1. View Transitions API Creating Smooth Transitions #devfestizmir #devfest25izmir
2. Mert Metin Senior Software Engineer Blogger, speaker QR to reach me Interests Microsoft / .NET web and API applications software architecture, secure software, clean code infrastructure, system design
3. Agenda What is View Transitions? Why? Same Document View Transitions Cross Document View Transitions Additional Informations

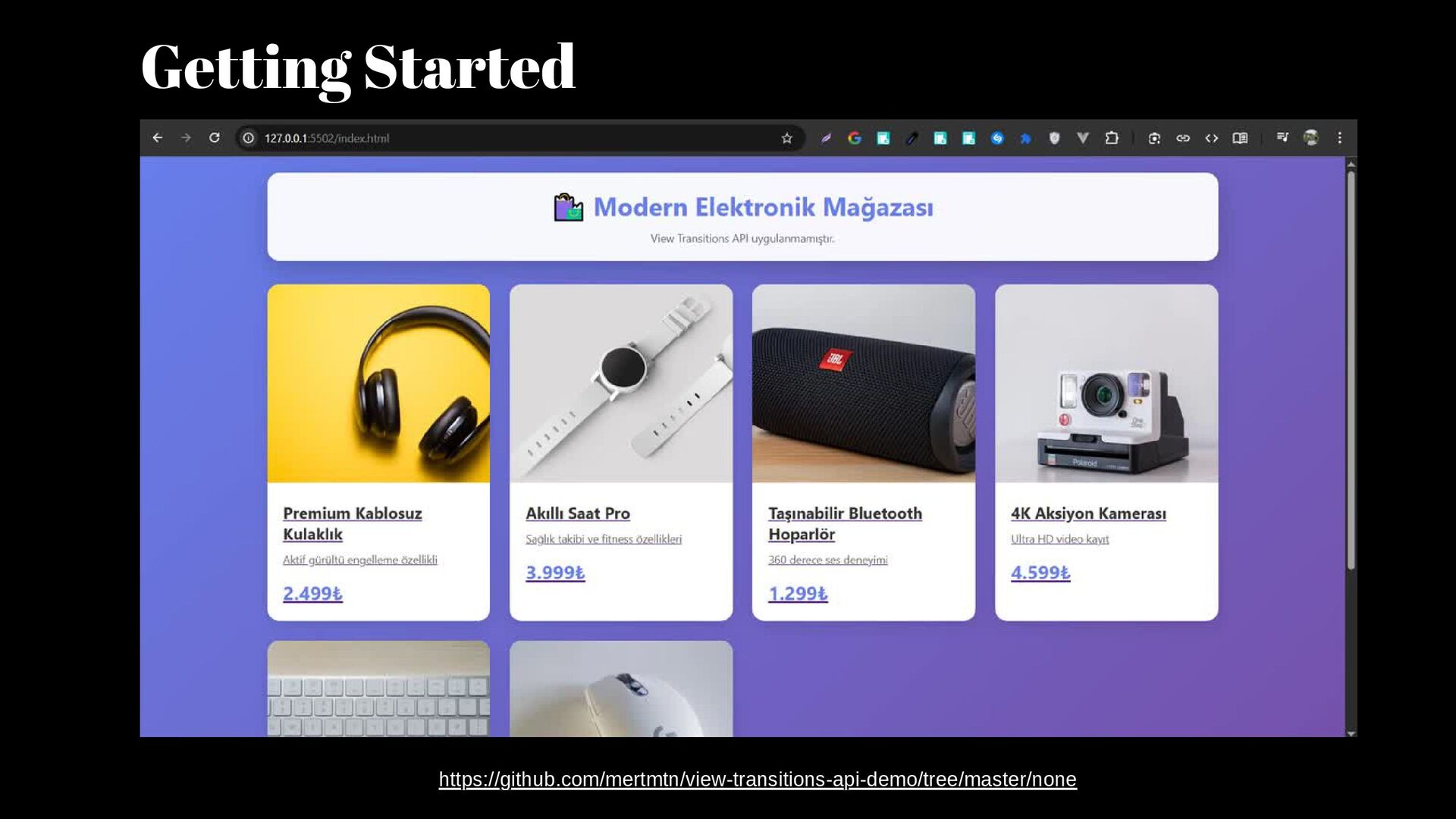

4. Getting Started https://github.com/mertmtn/view-transitions-api-demo/tree/master/none
5. View Transitions API provides a mechanisim to create smooter transitions between DOM states or pages on the website.
6. Improved perceived performance
7. Better user experience
8. Clean Code - No more complex CSS, Javascript code or 3rd party libraries
9. Same-document view transitions a.k.a. SPA - Single Page Applications runs on a single document

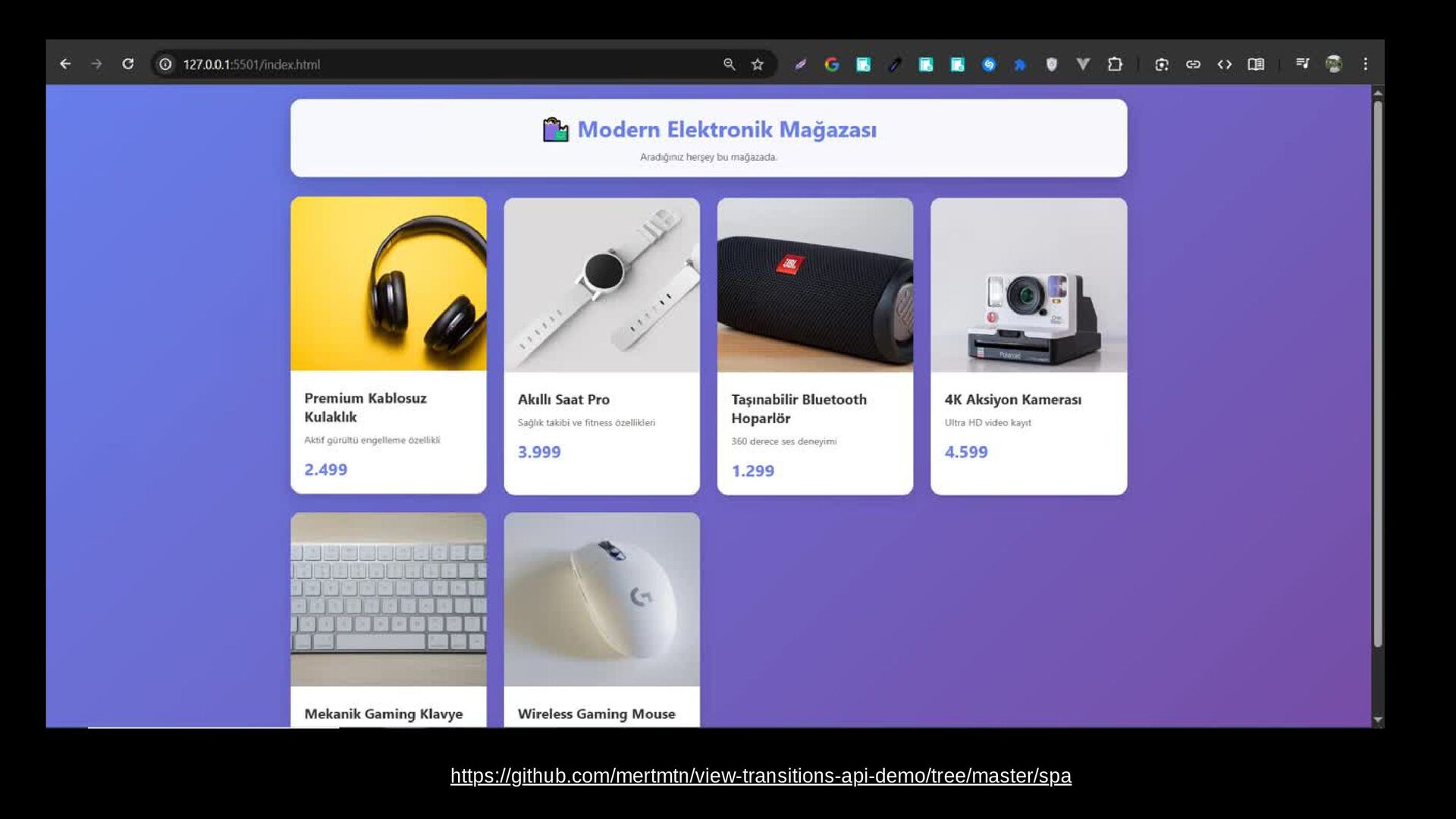

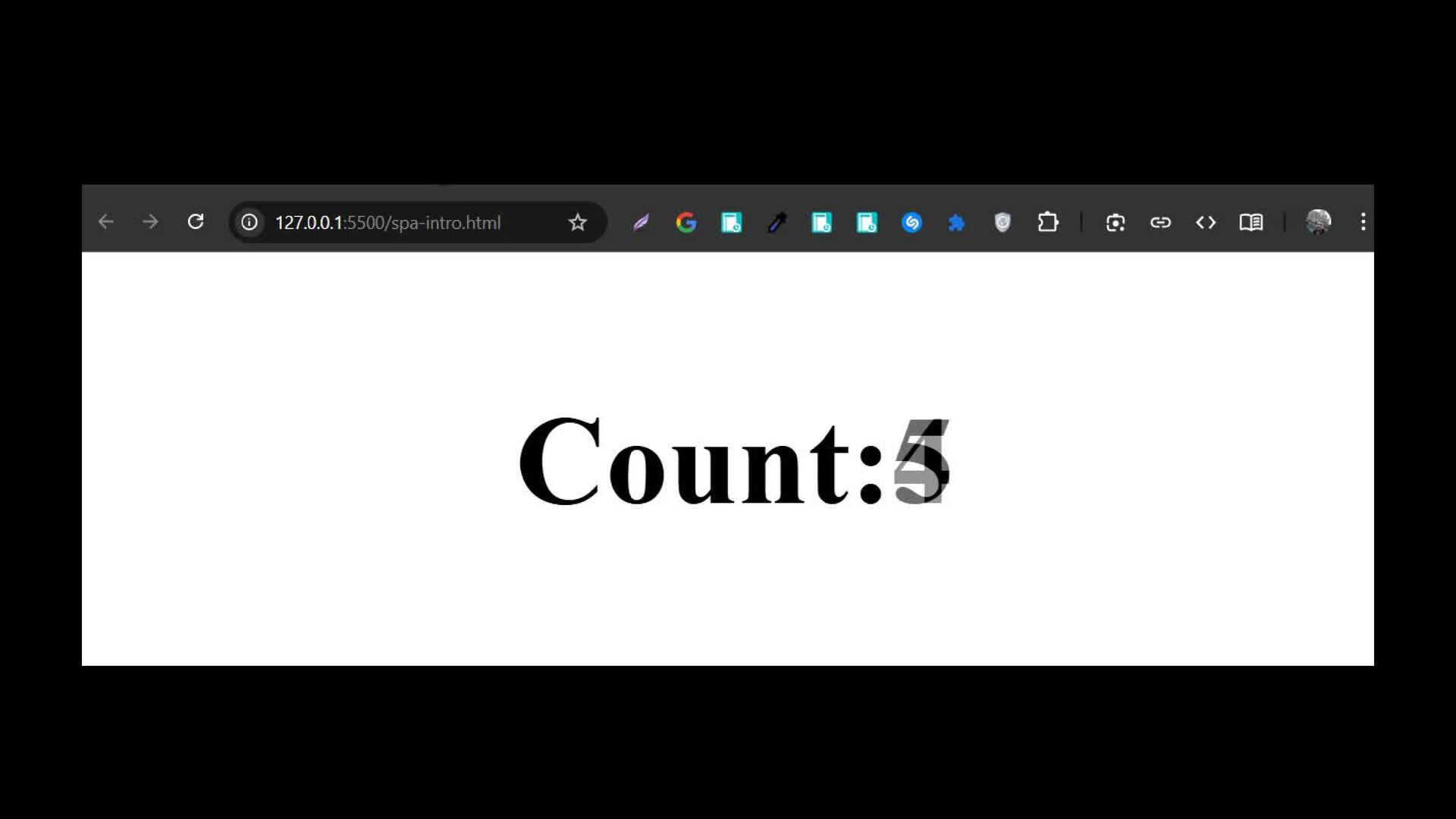

10. https://github.com/mertmtn/view-transitions-api-demo/tree/master/spa

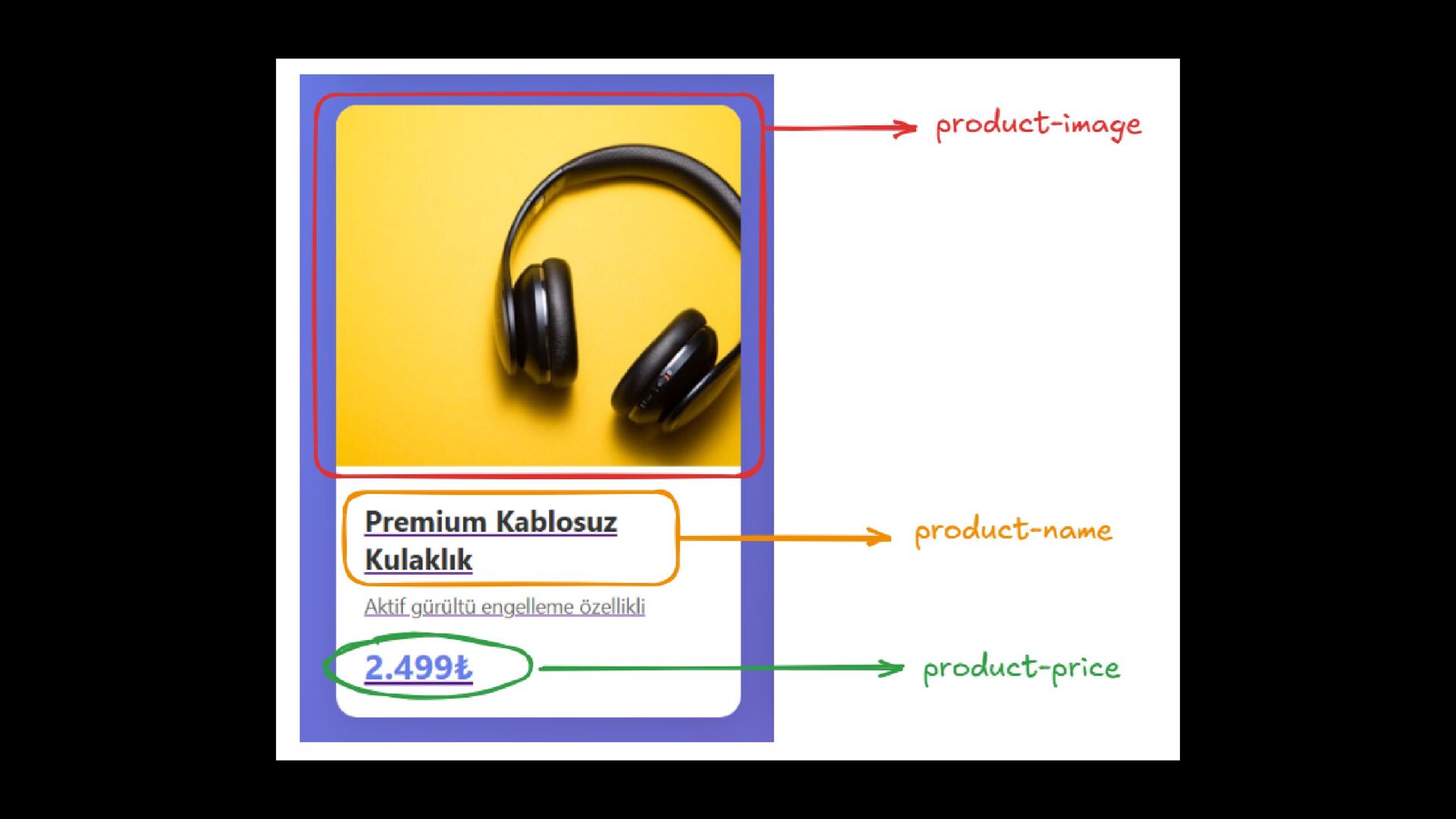

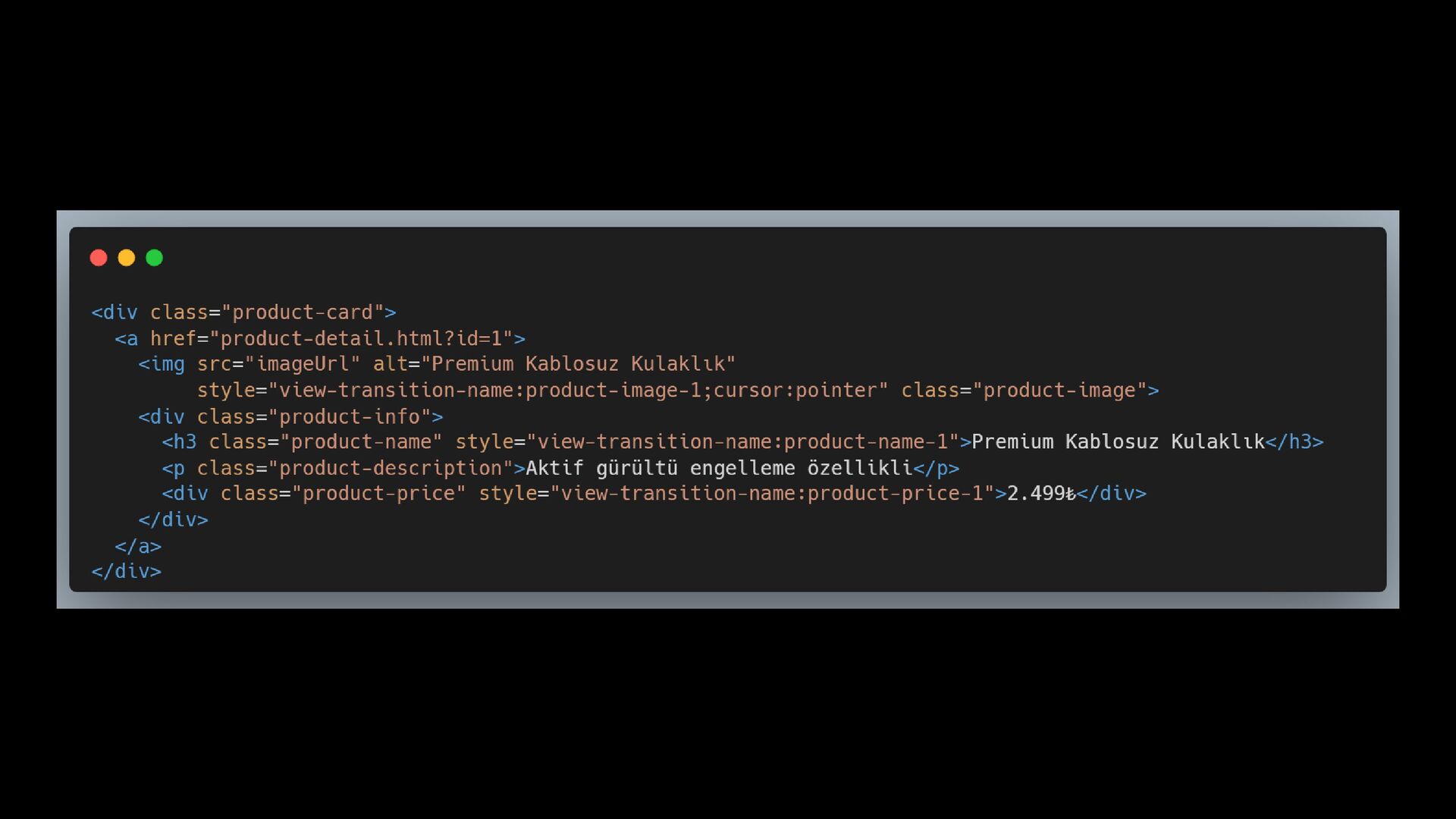

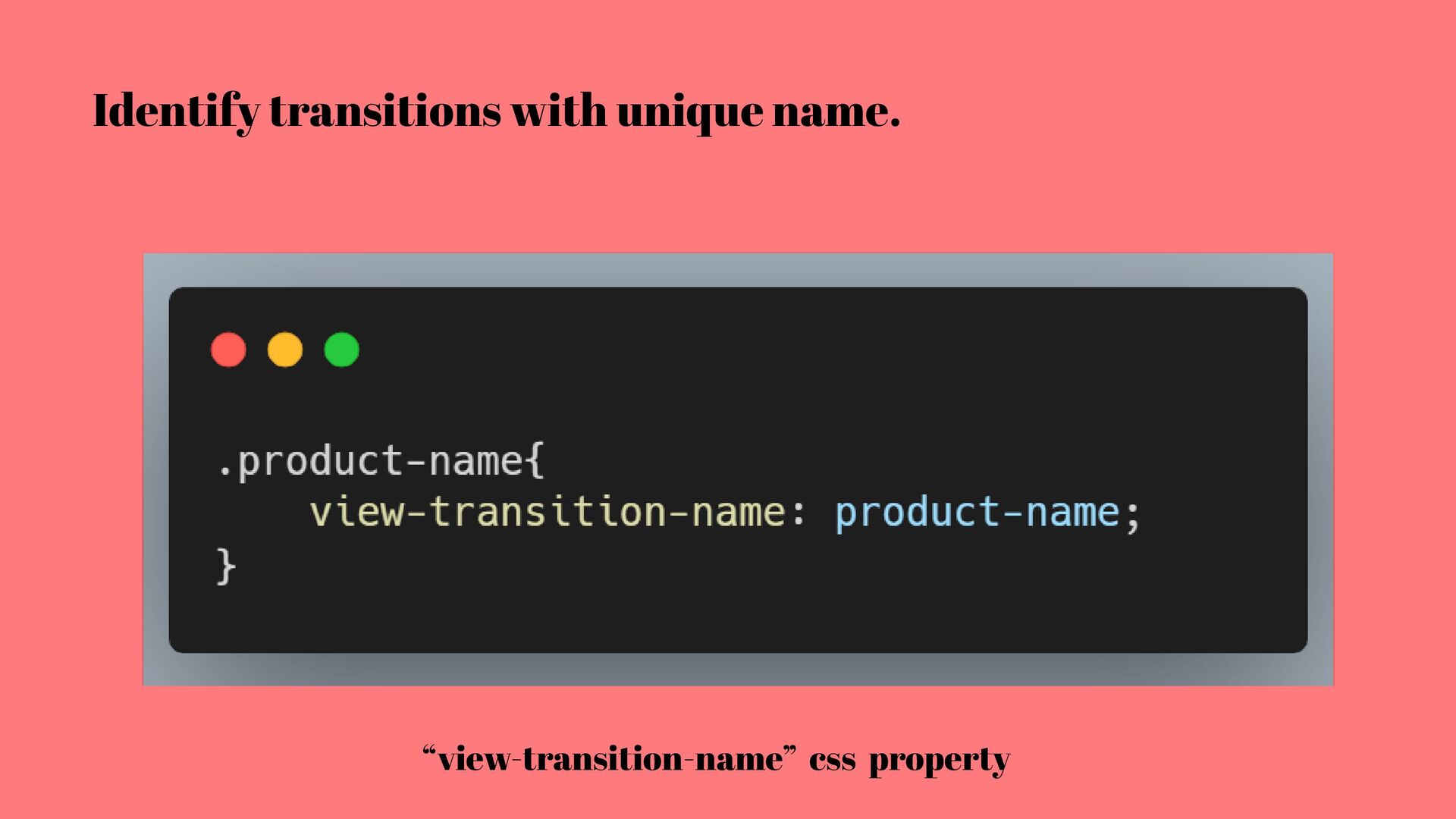

11. Identify transitions with unique name. “view-transition-name” css property

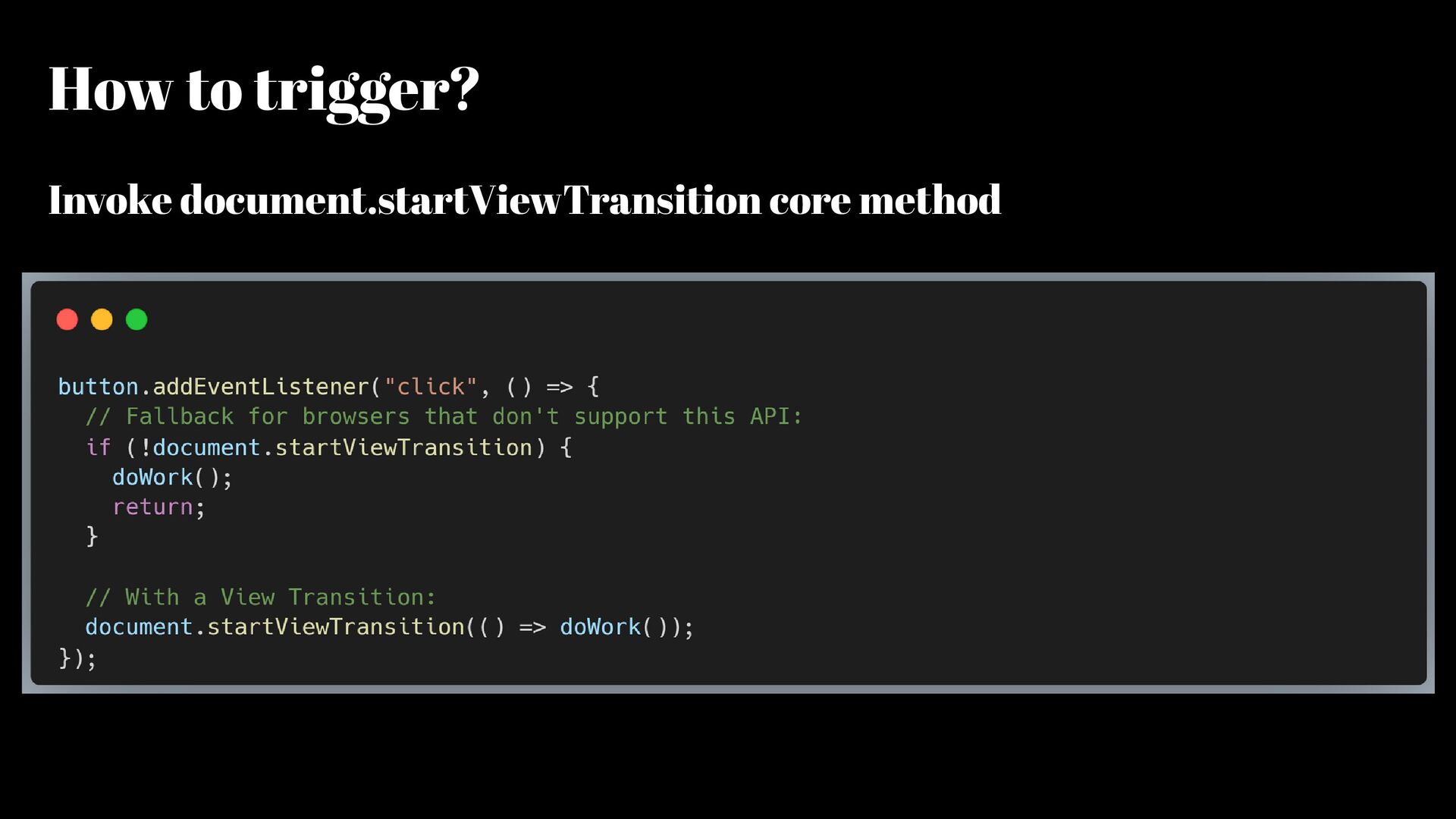

14. How to trigger? Invoke document.startViewTransition core method

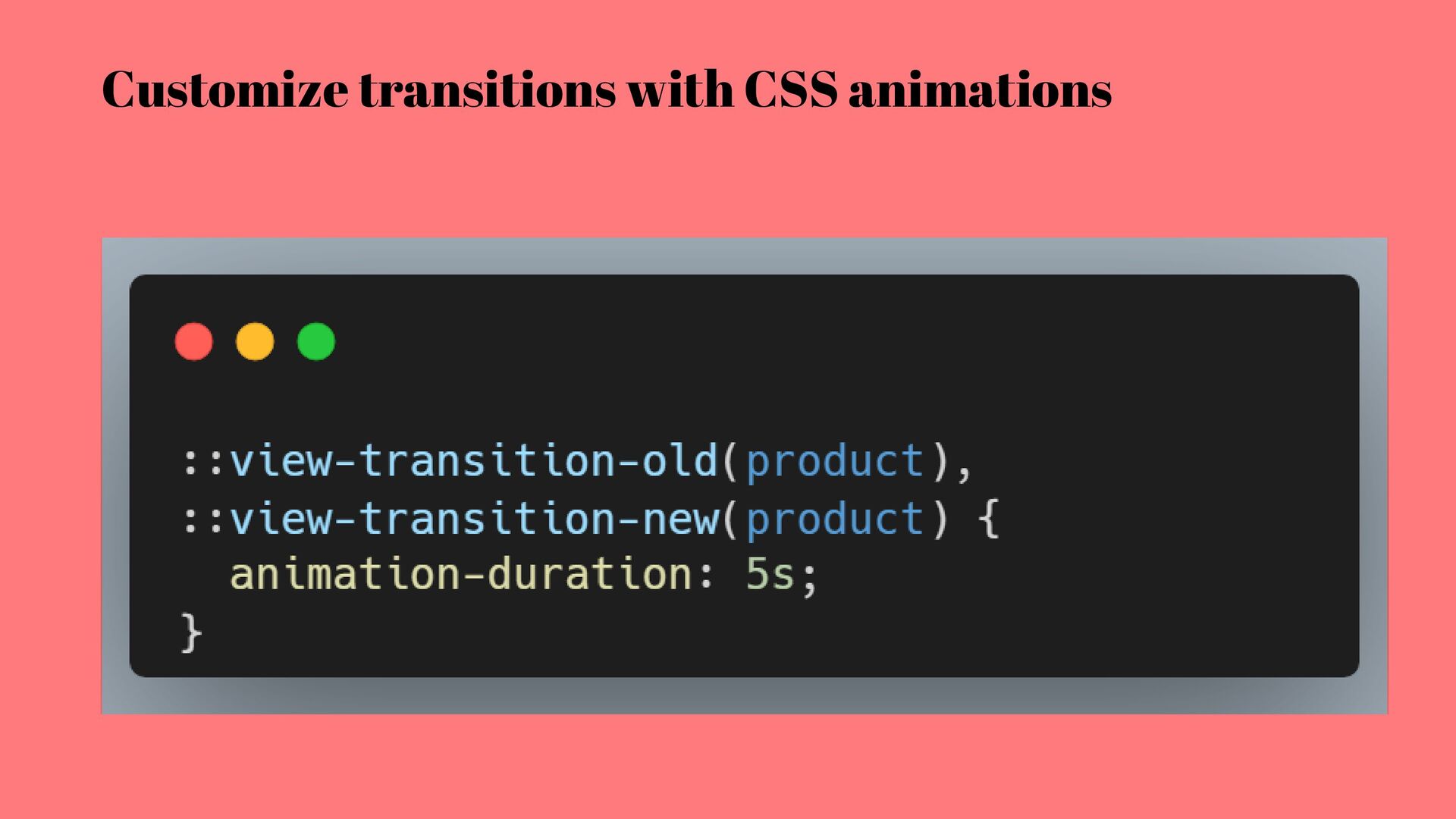

15. Customize transitions with CSS animations
16. How to work?

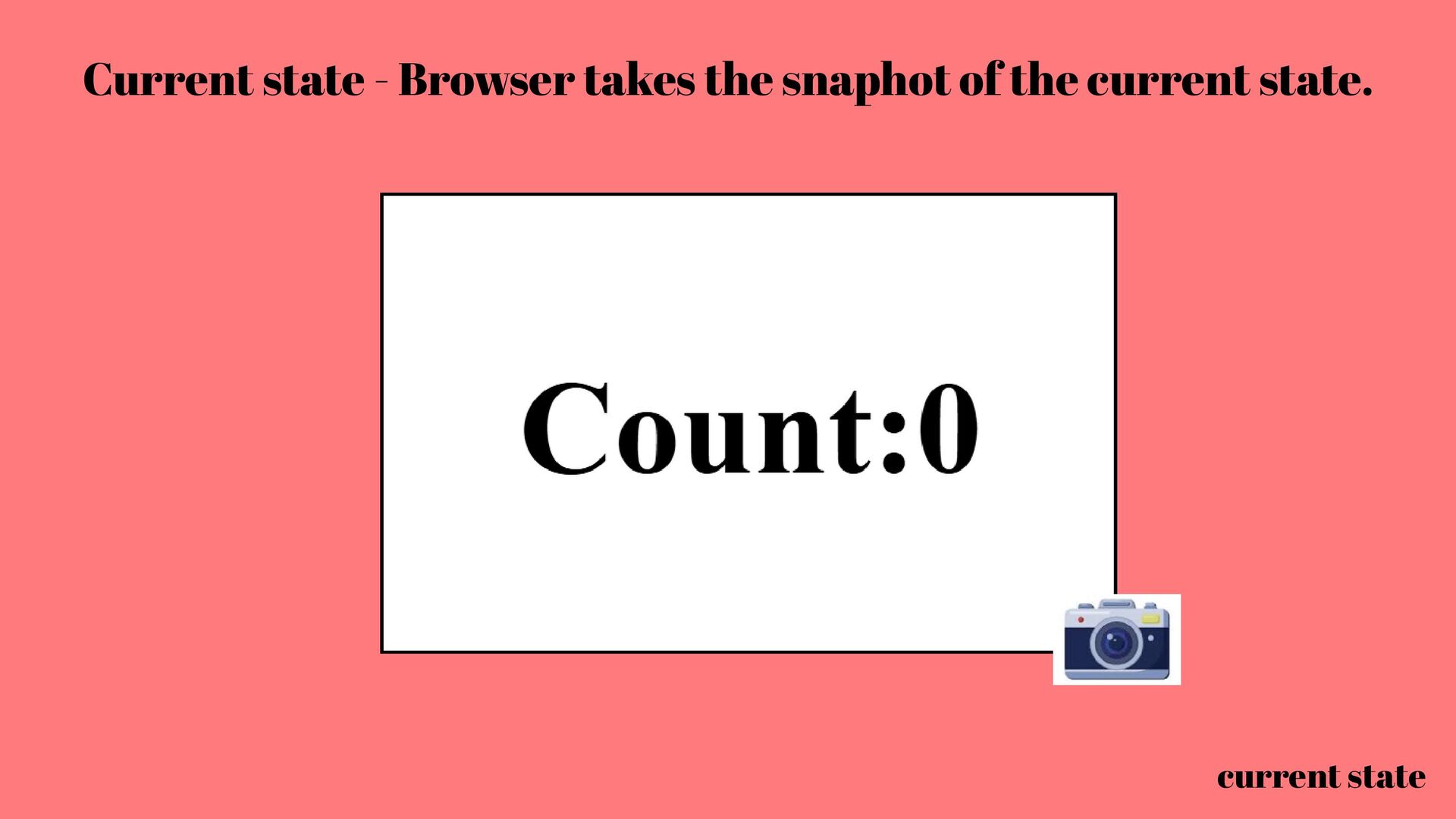

18. current state Current state - Browser takes the snaphot of the current state.

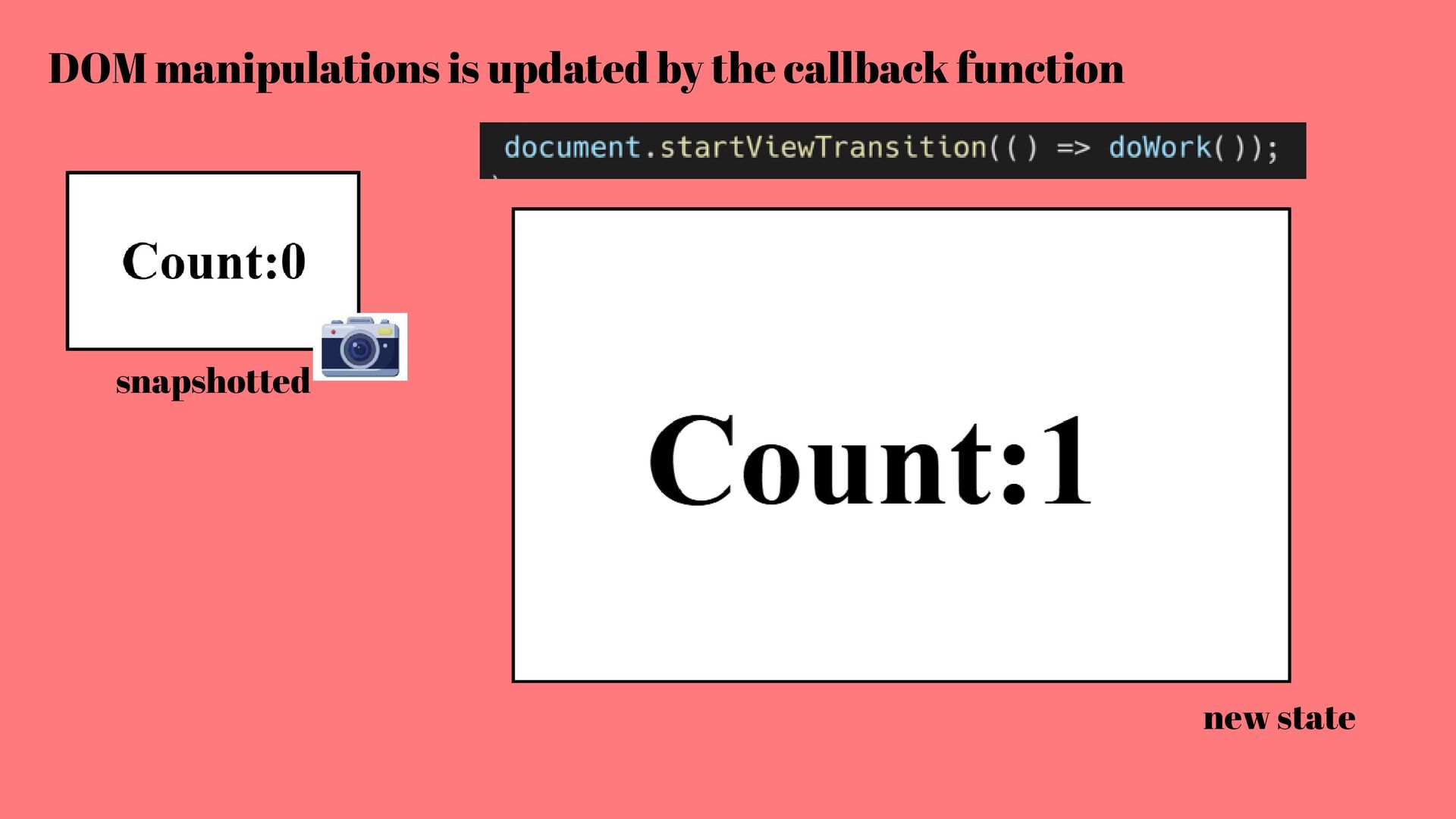

19. new state snapshotted DOM manipulations is updated by the callback function

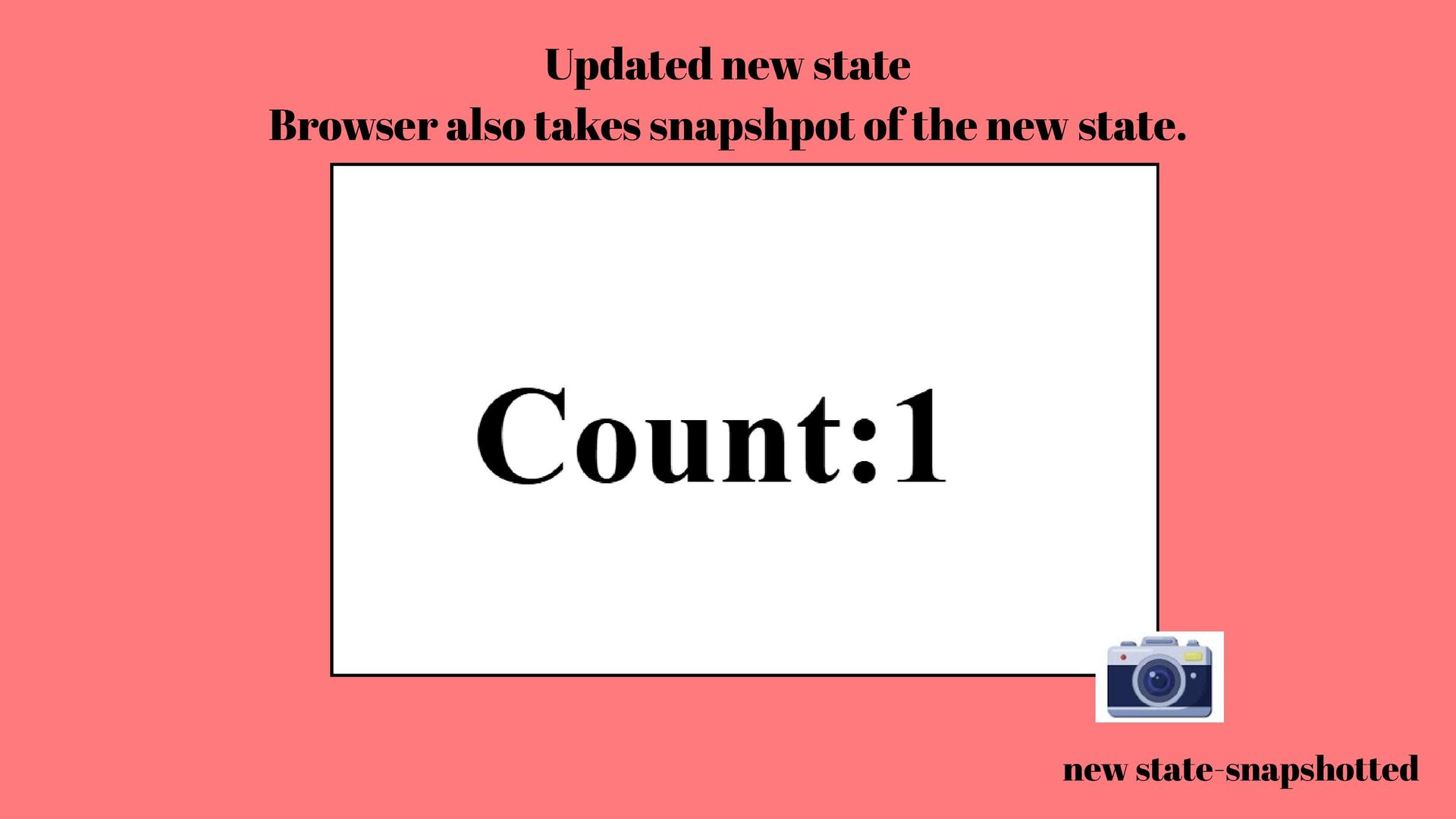

20. new state-snapshotted Updated new state Browser also takes snapshpot of the new state.

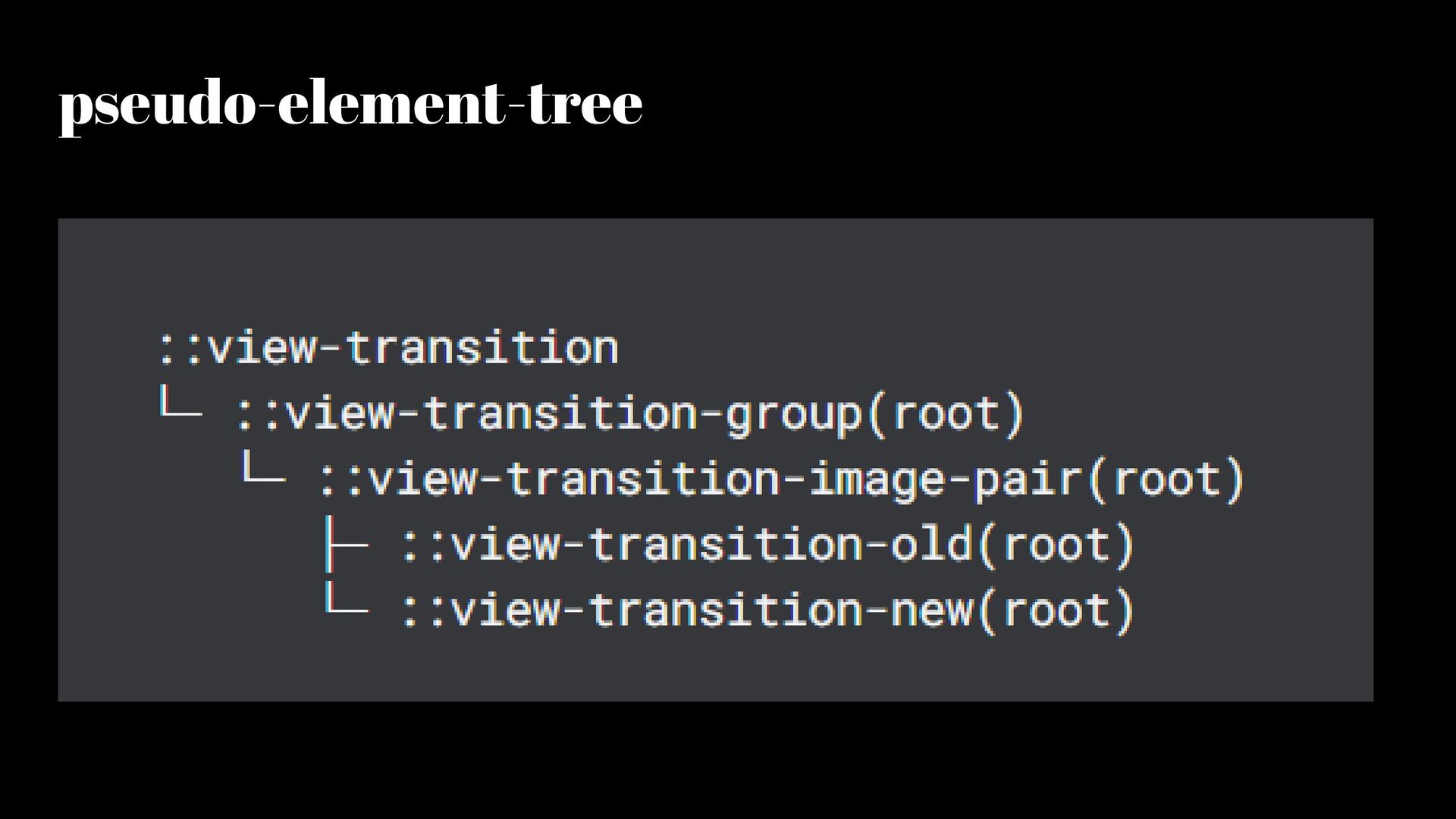

21. pseudo-element-tree

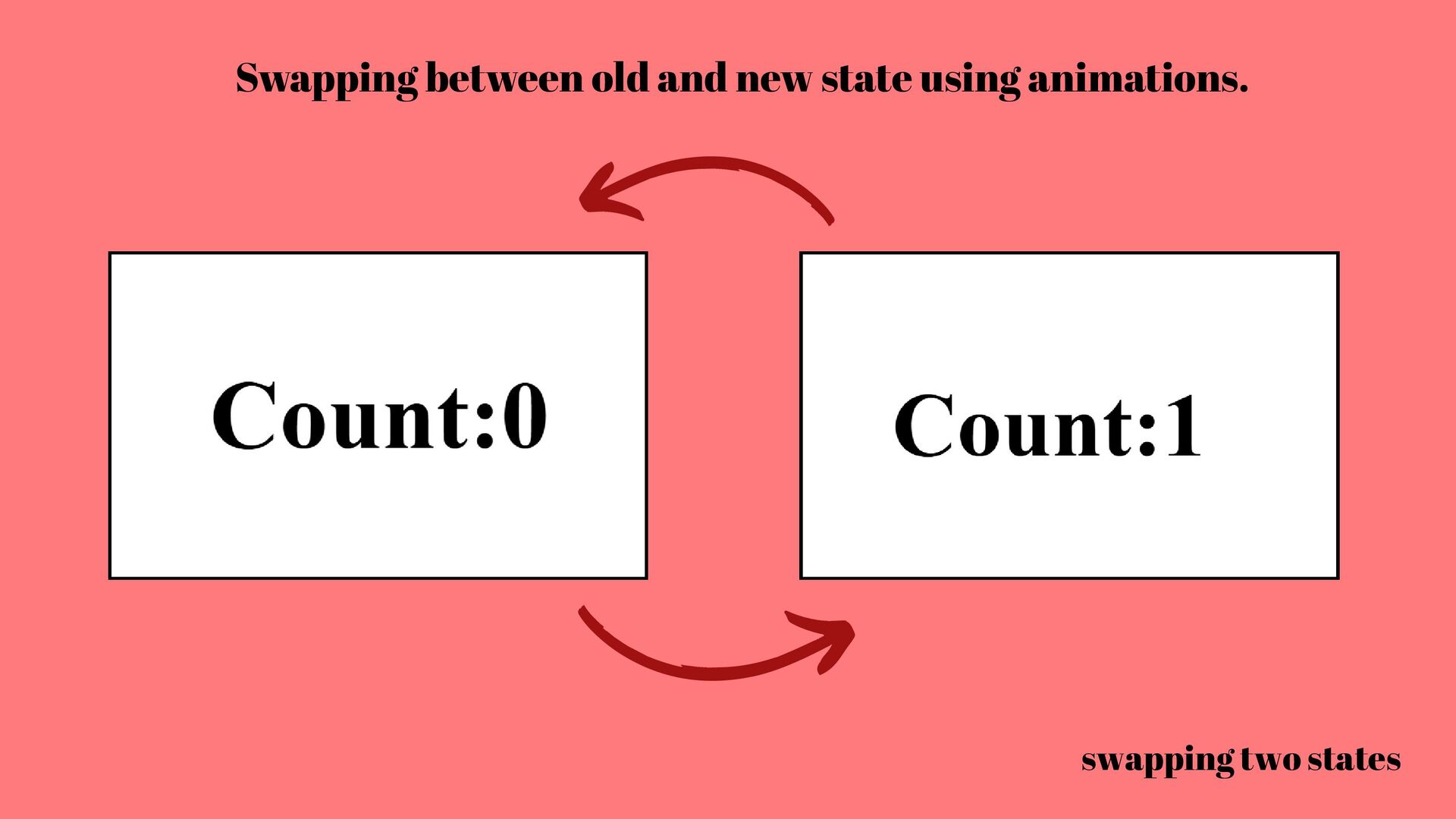

22. swapping two states Swapping between old and new state using animations.

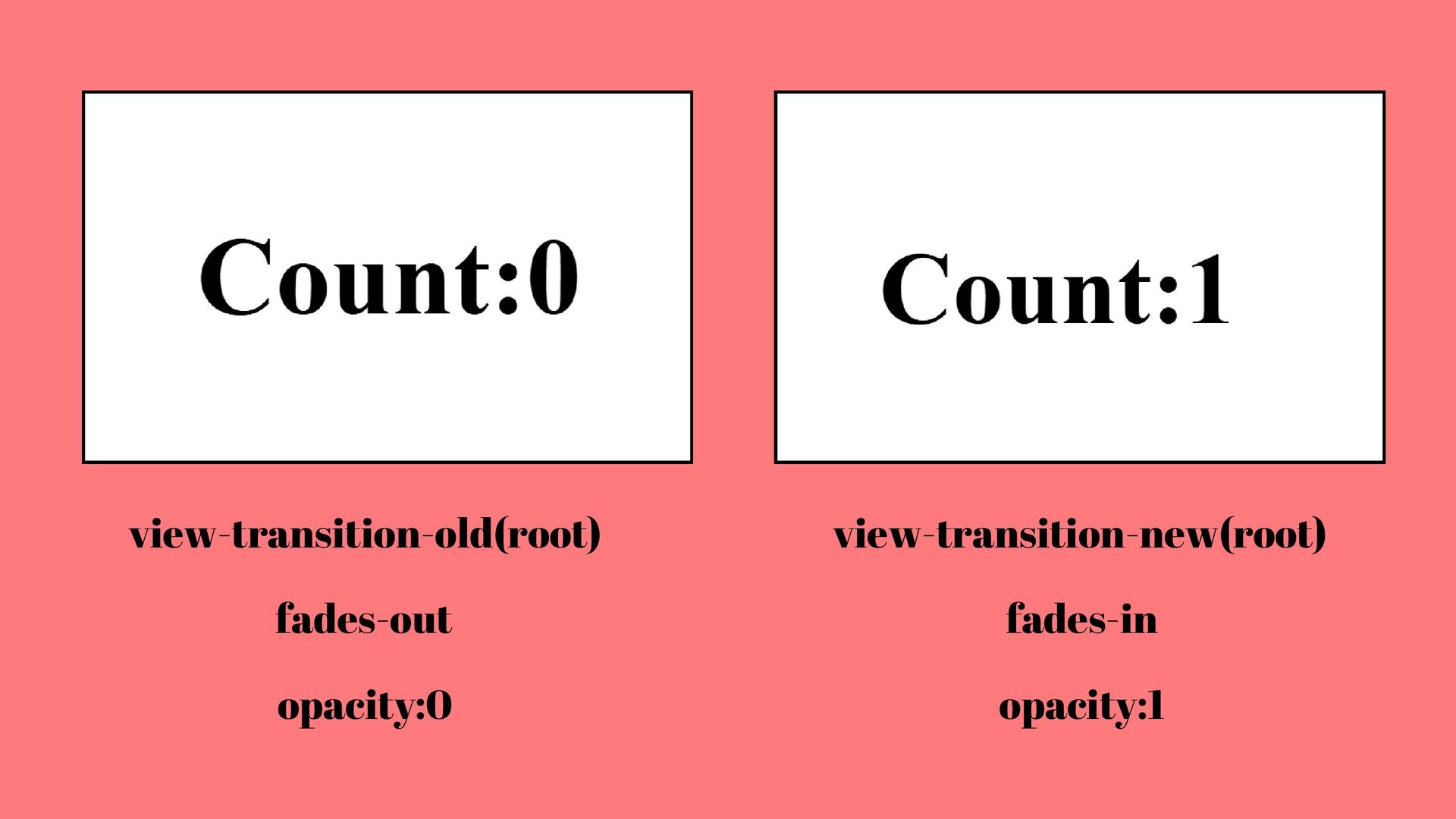

23. view-transition-old(root) view-transition-new(root) opacity:0 opacity:1 fades-out fades-in

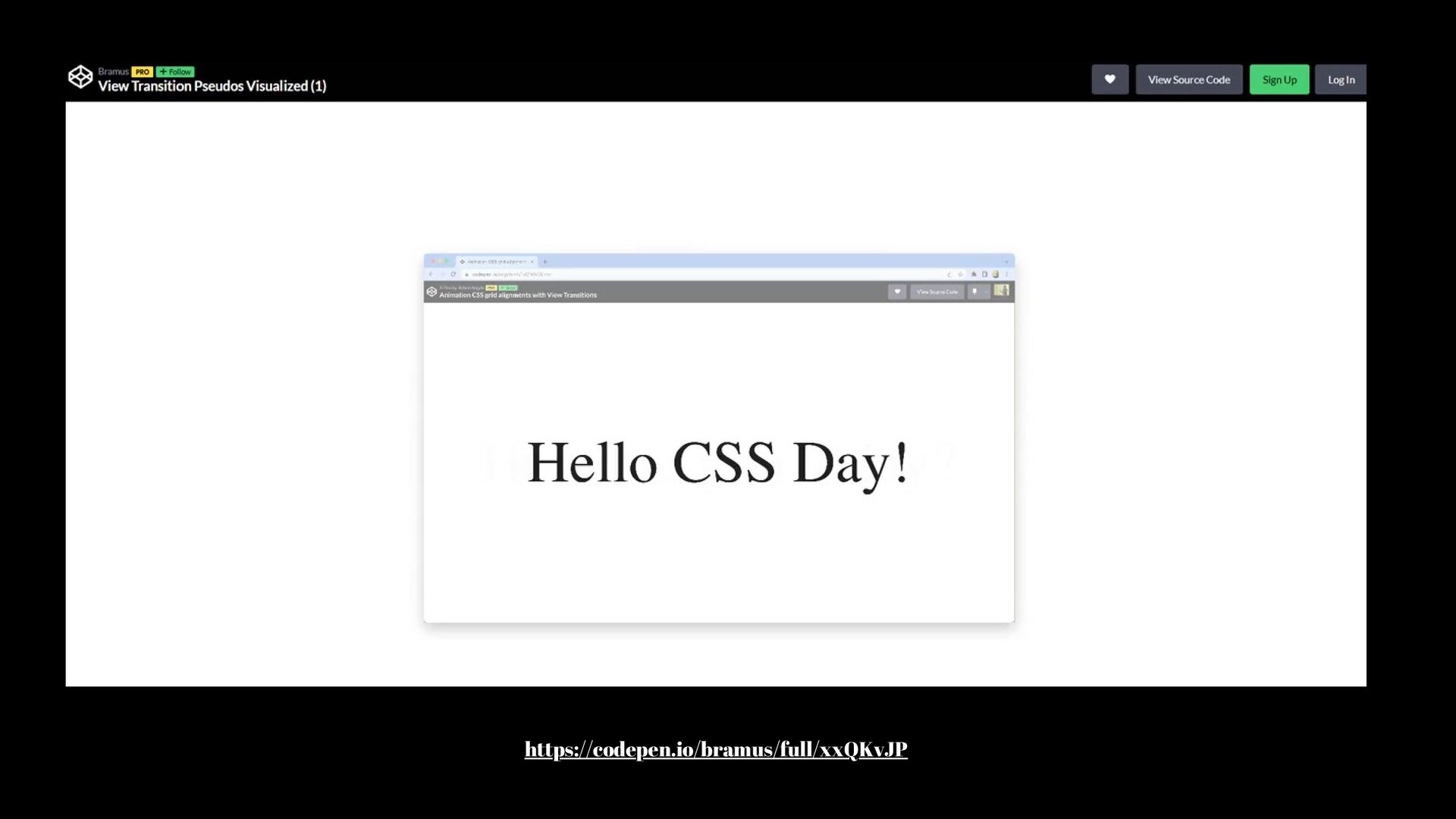

24. https://codepen.io/bramus/full/xxQKvJP
25. a.k.a. MPA - Multiple Page Applications Cross-document view transitions runs between two different documents

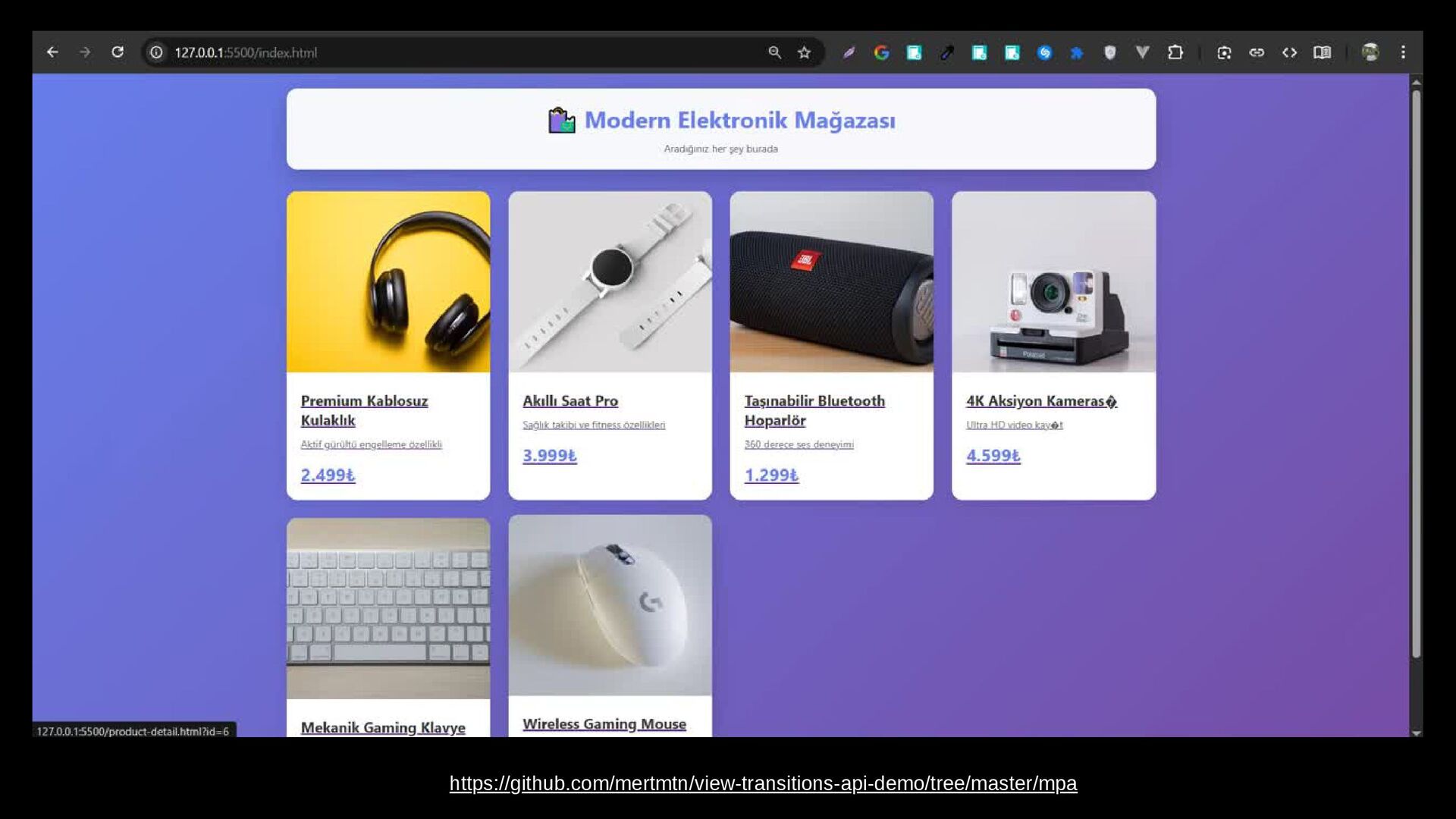

26. https://github.com/mertmtn/view-transitions-api-demo/tree/master/mpa

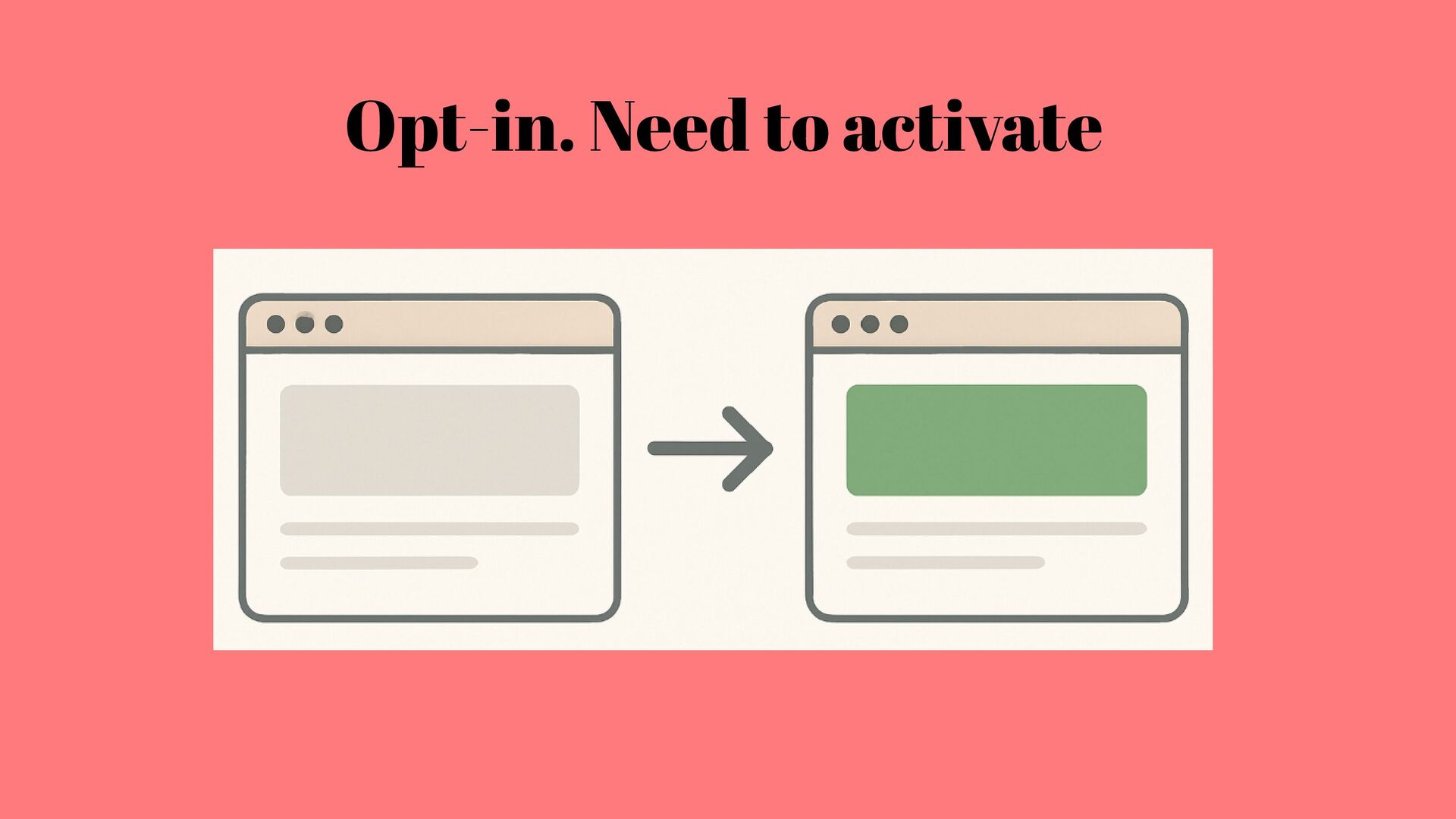

27. Opt-in. Need to activate

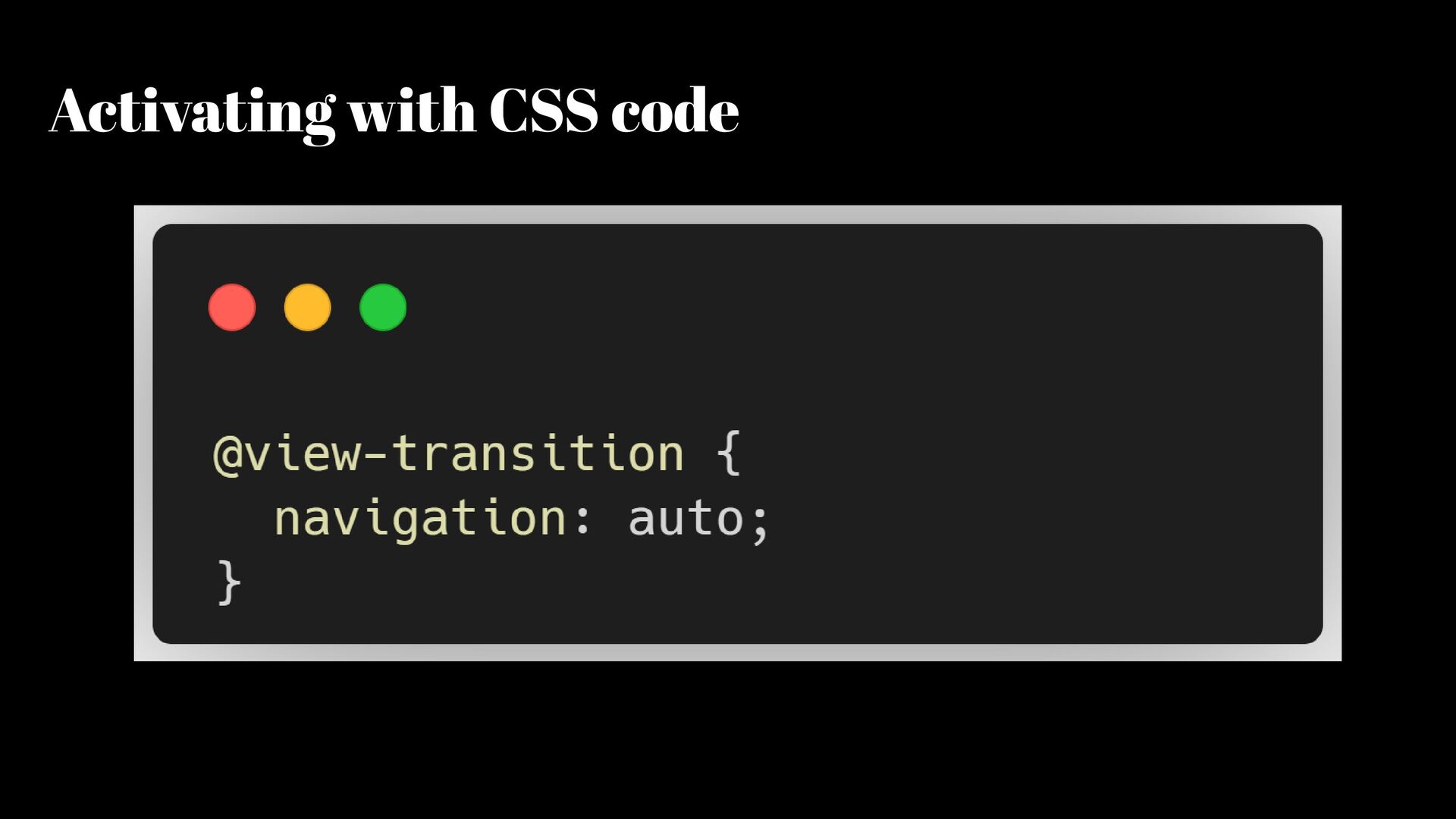

28. Activating with CSS code

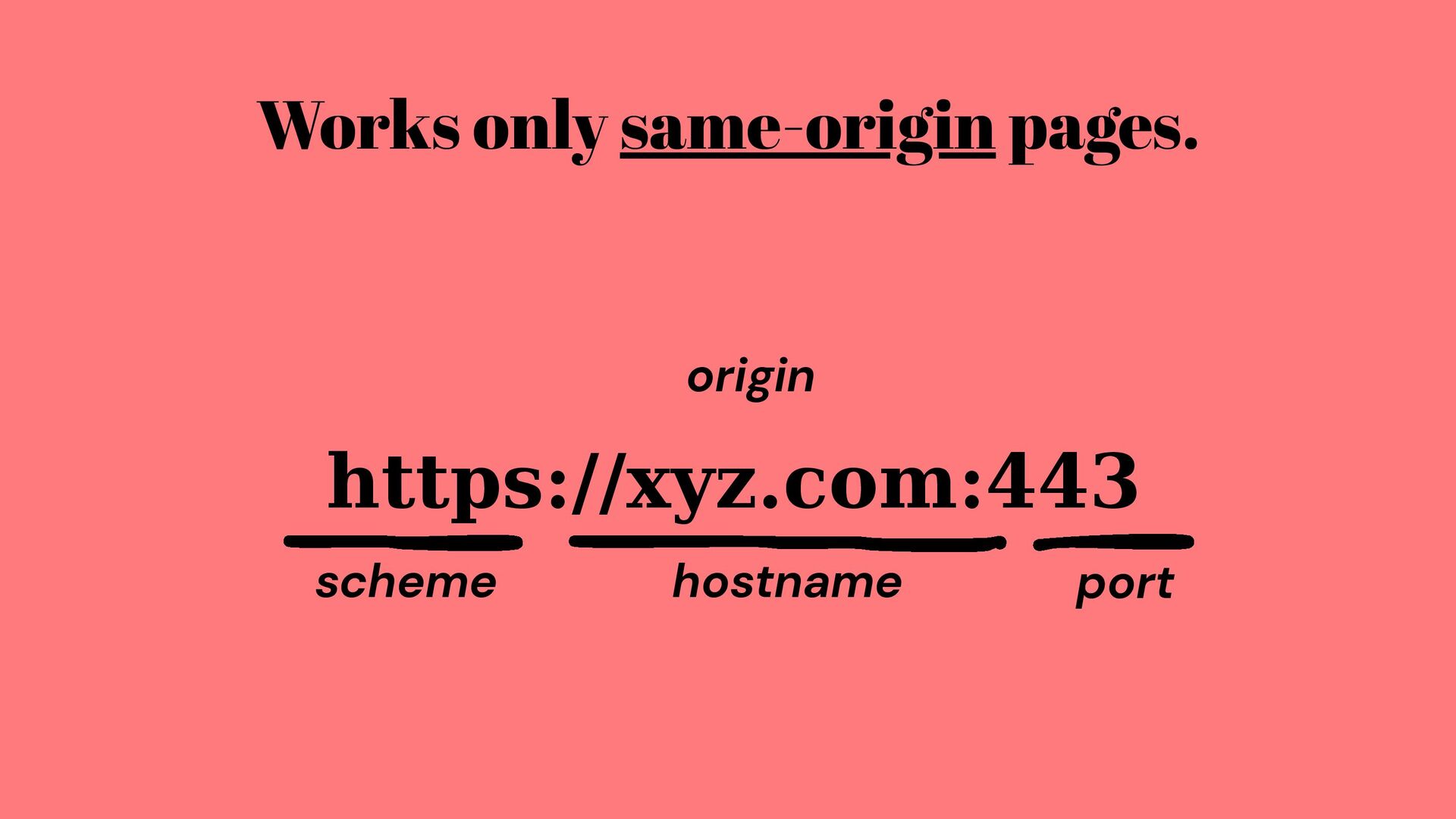

29. Works only same-origin pages. https://xyz.com:443 scheme hostname port origin

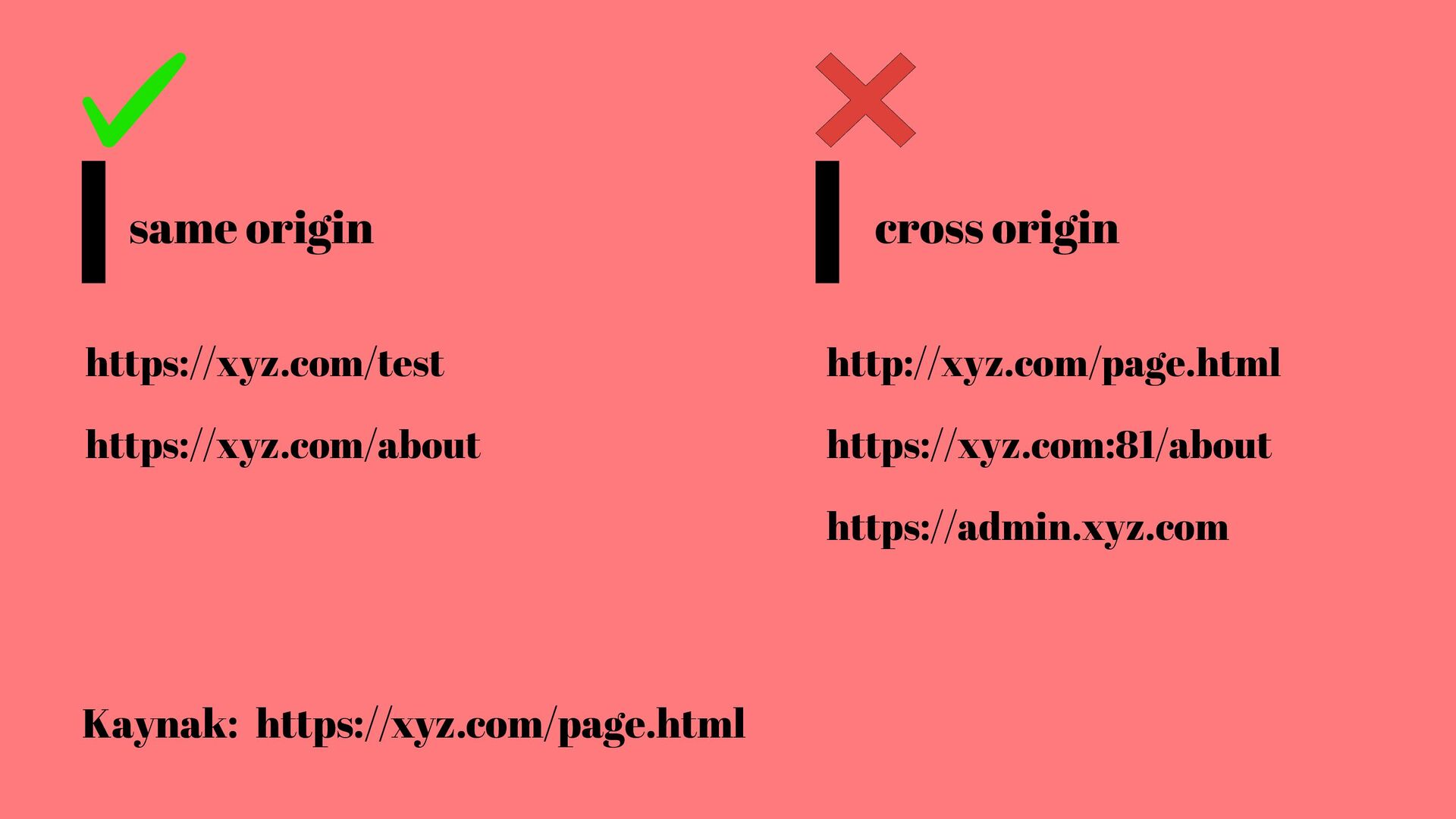

30. same origin https://xyz.com/test https://xyz.com/about cross origin http://xyz.com/page.html https://xyz.com:81/about https://admin.xyz.com https://xyz.com/page.html Kaynak:

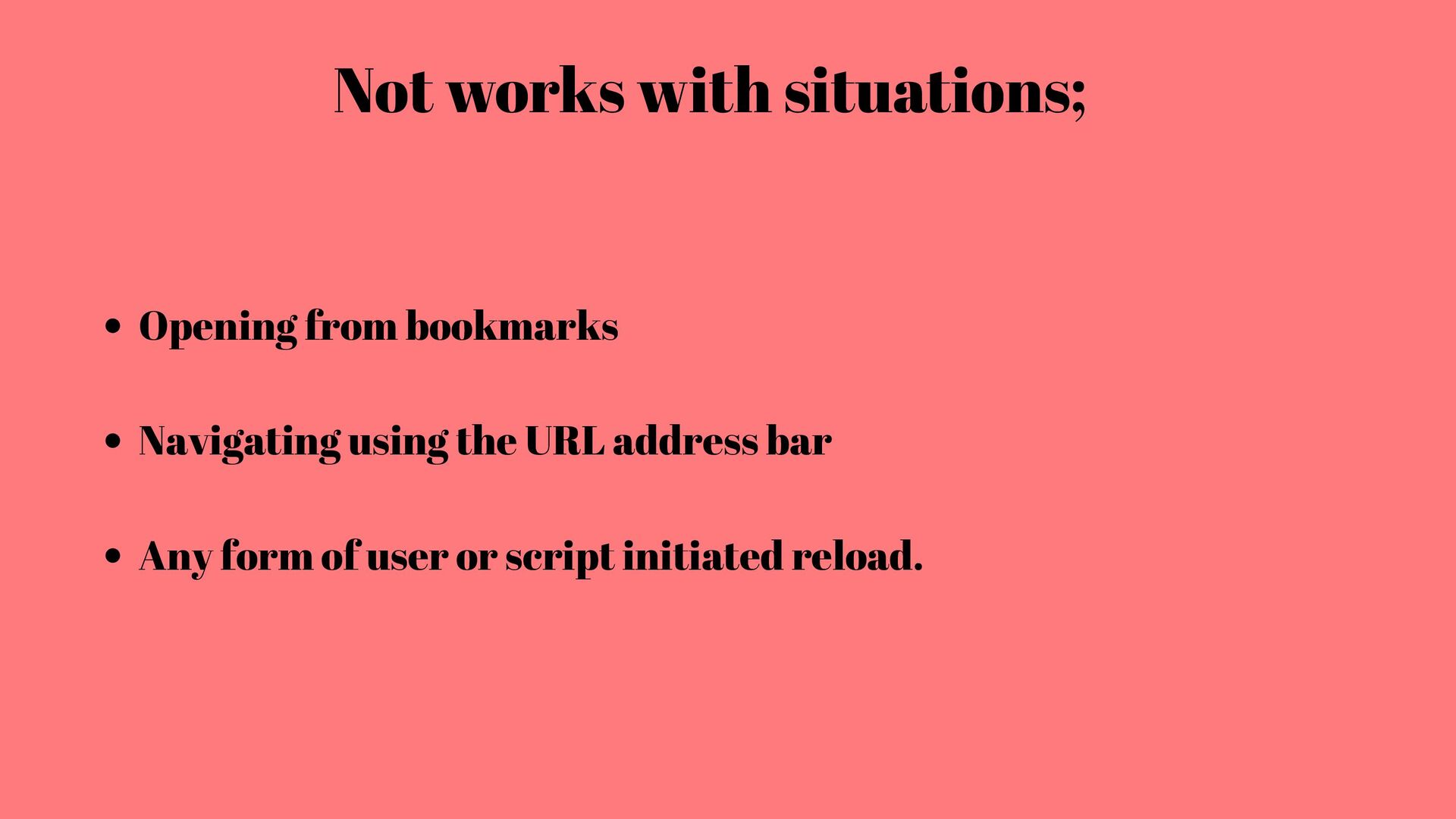

31. Not works with situations; Opening from bookmarks Navigating using the URL address bar Any form of user or script initiated reload.

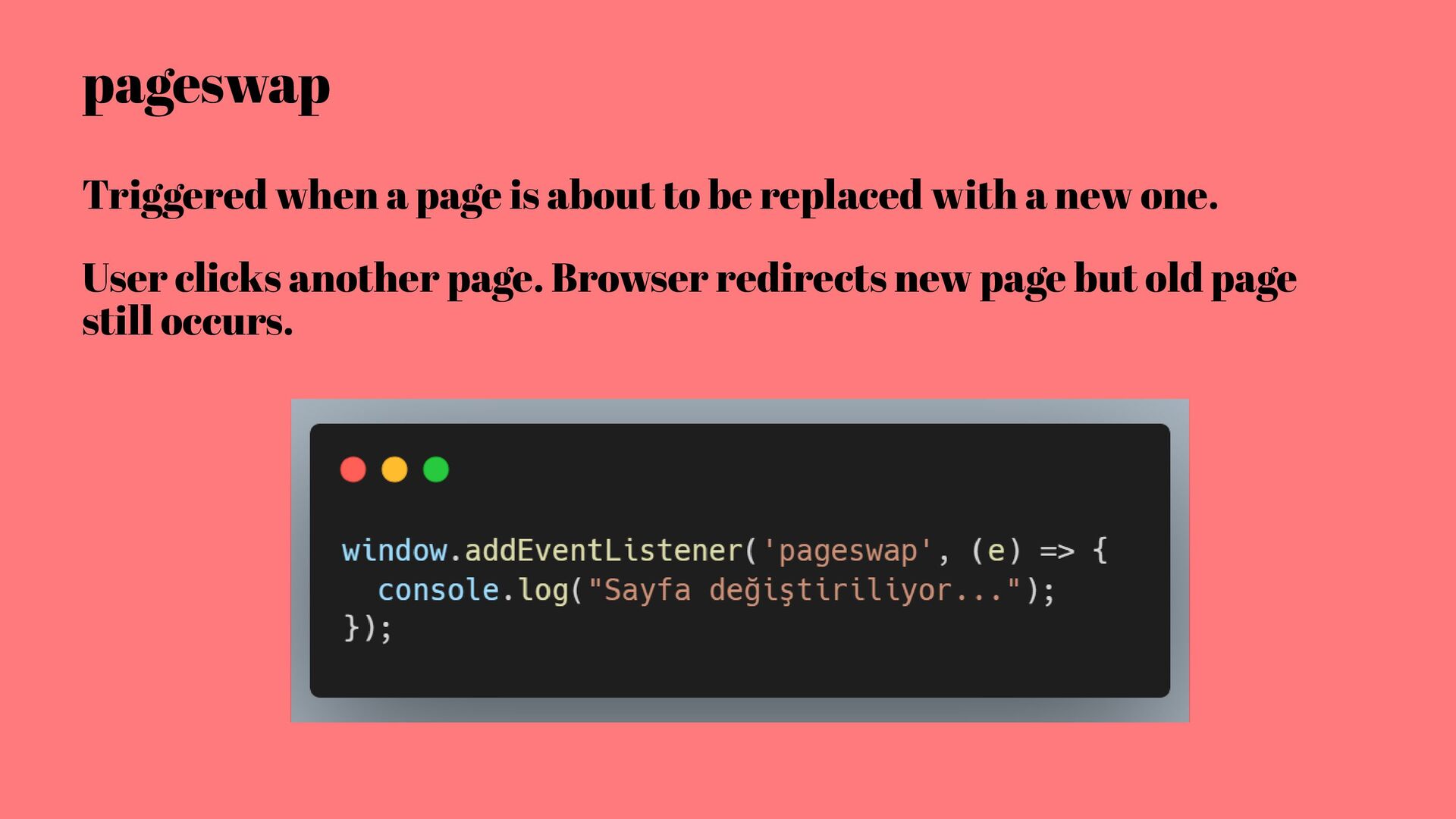

32. pageswap Triggered when a page is about to be replaced with a new one. User clicks another page. Browser redirects new page but old page still occurs.

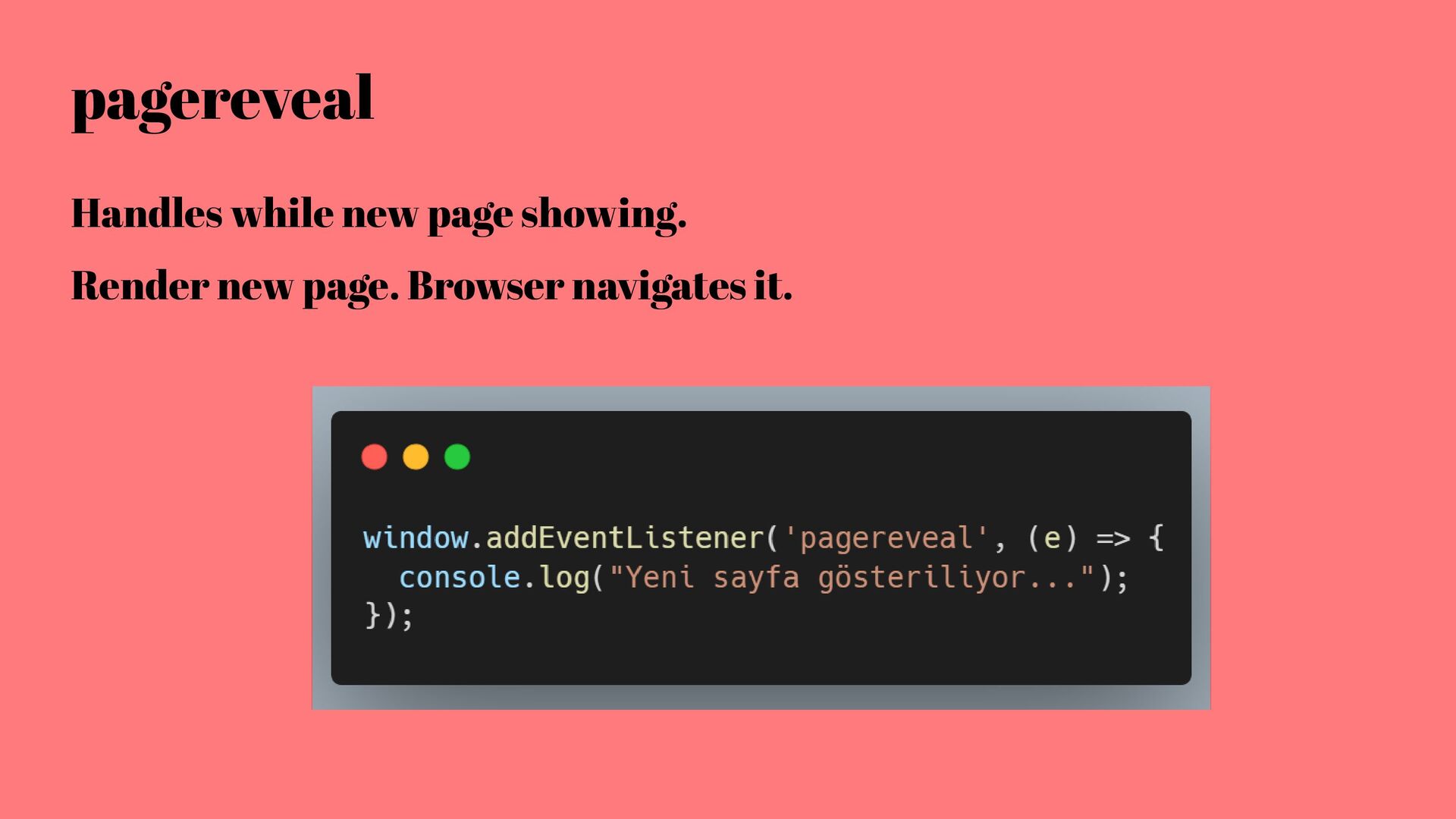

33. pagereveal Handles while new page showing. Render new page. Browser navigates it.

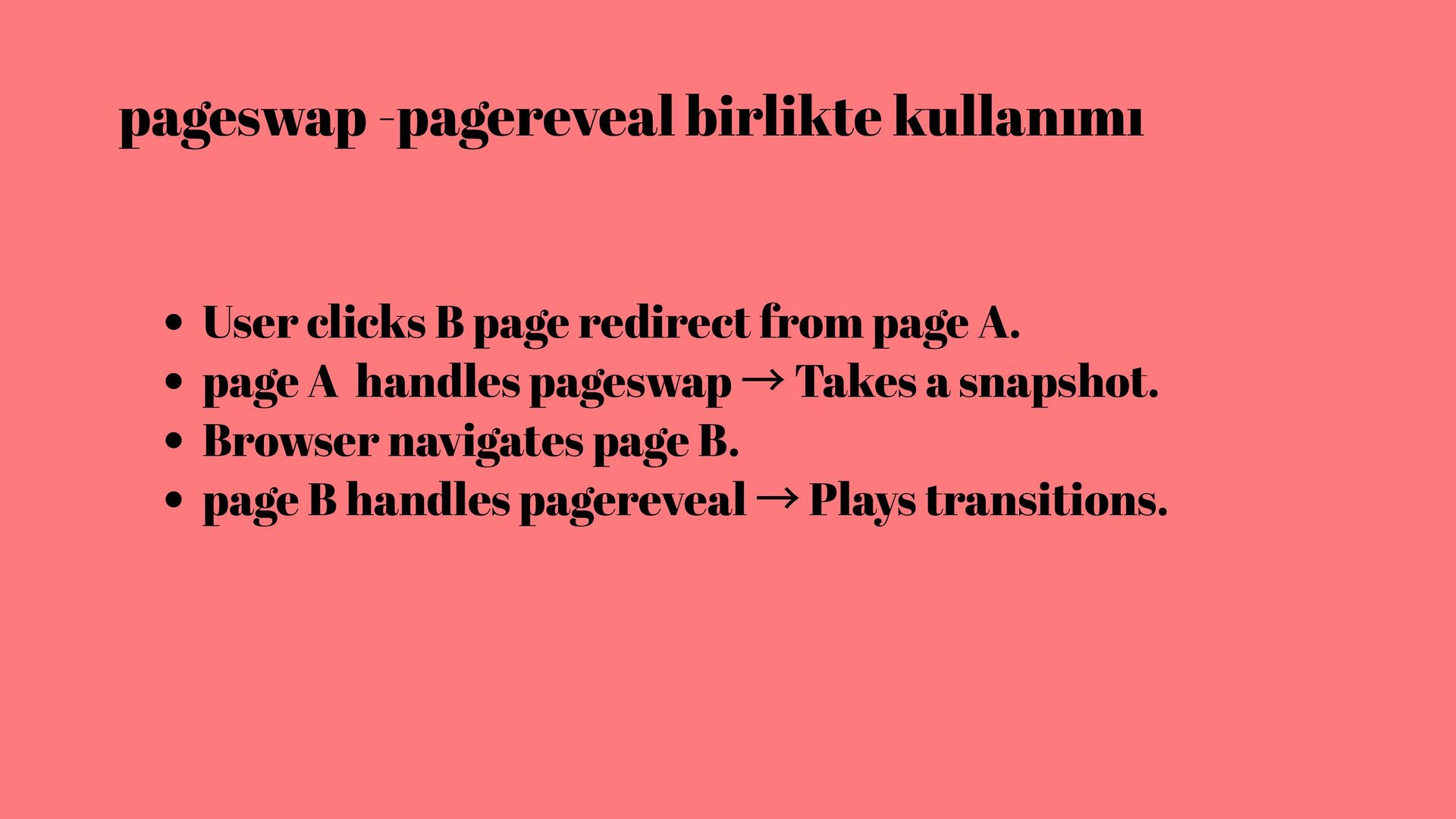

34. pageswap -pagereveal birlikte kullanımı User clicks B page redirect from page A. page A handles pageswap → Takes a snapshot. Browser navigates page B. page B handles pagereveal → Plays transitions.
35. Additional Informations

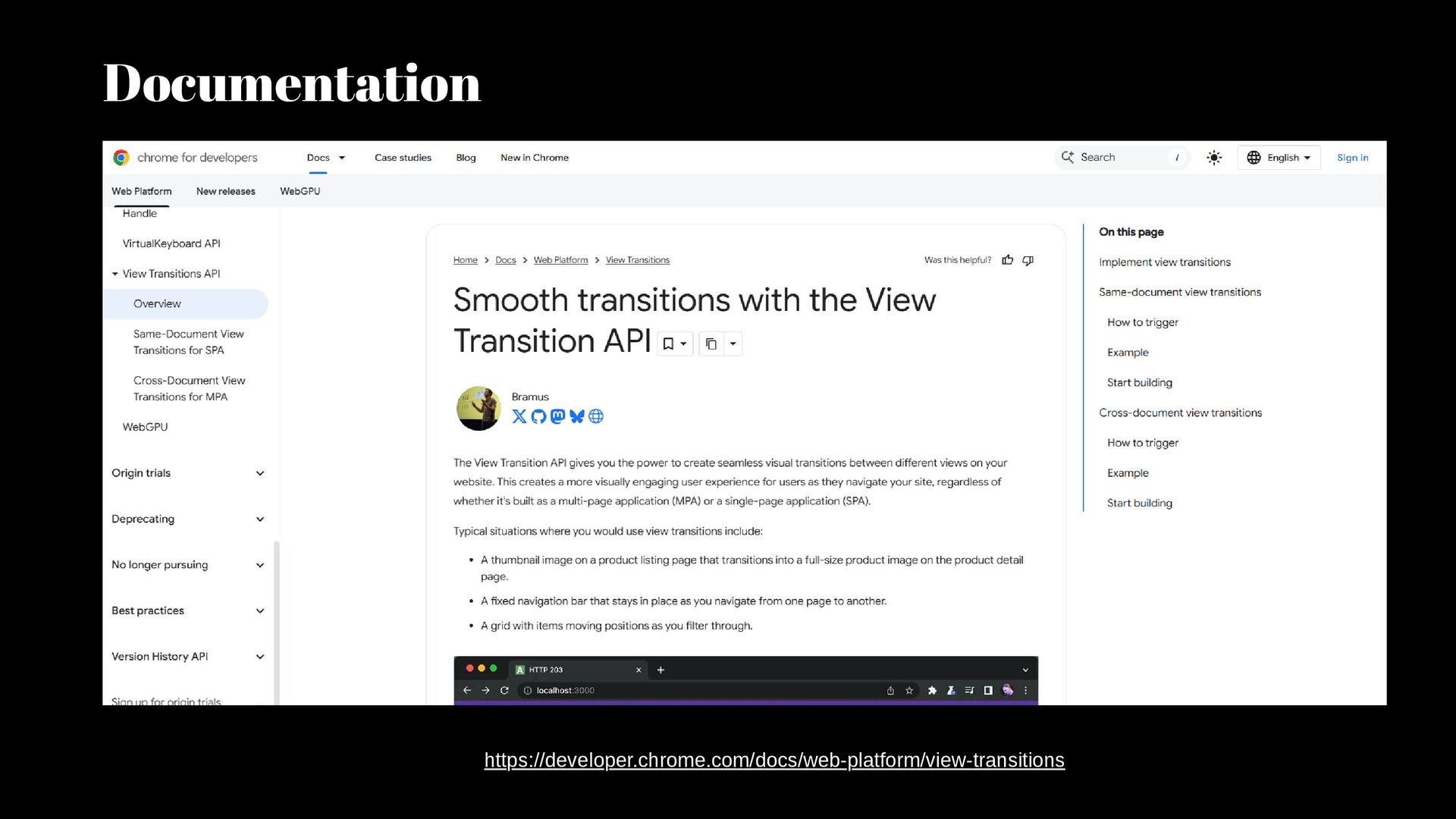

36. Documentation https://developer.chrome.com/docs/web-platform/view-transitions

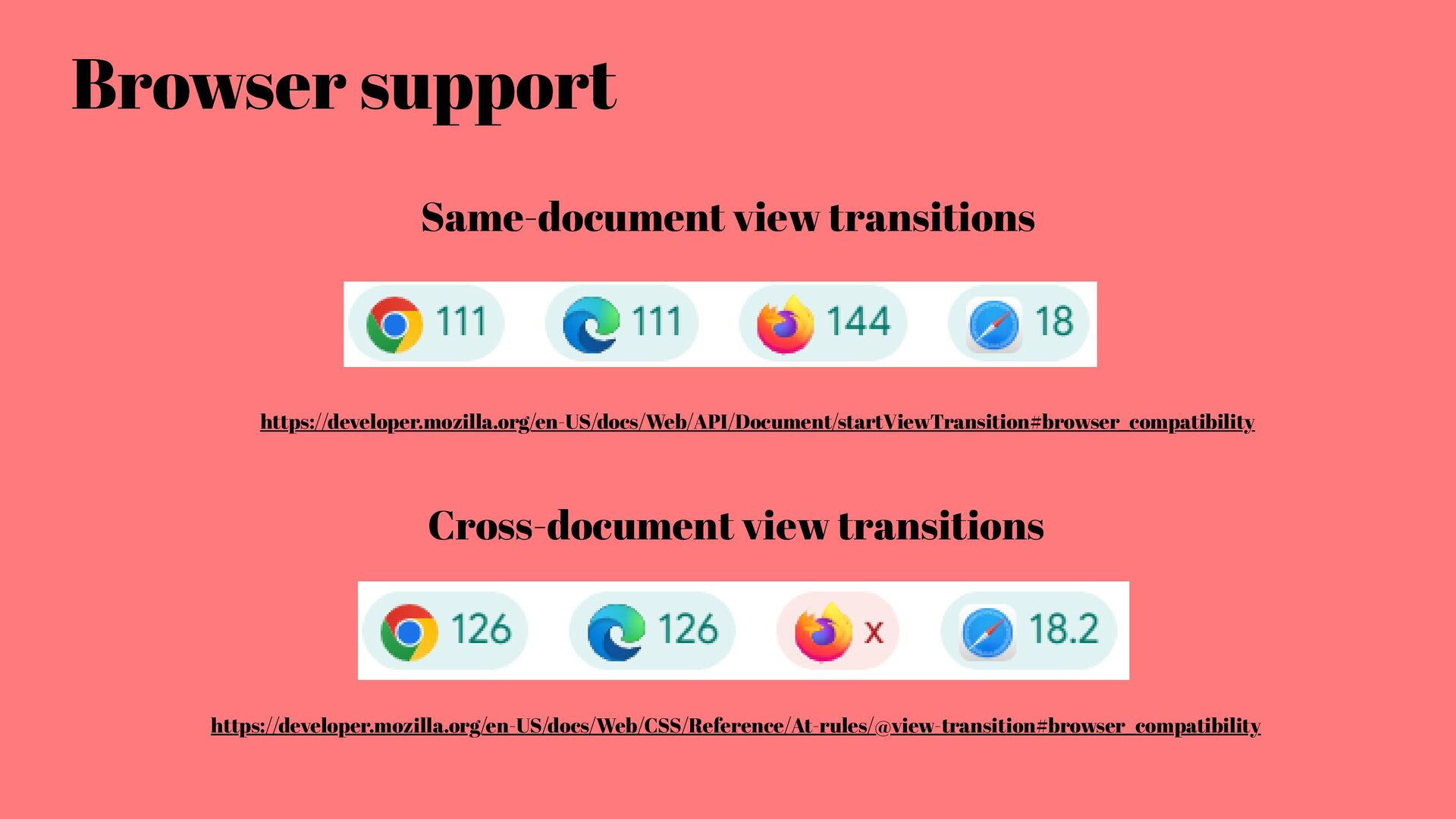

37. Browser support Same-document view transitions Cross-document view transitions https://developer.mozilla.org/en-US/docs/Web/CSS/Reference/At-rules/@view-transition#browser_compatibility https://developer.mozilla.org/en-US/docs/Web/API/Document/startViewTransition#browser_compatibility

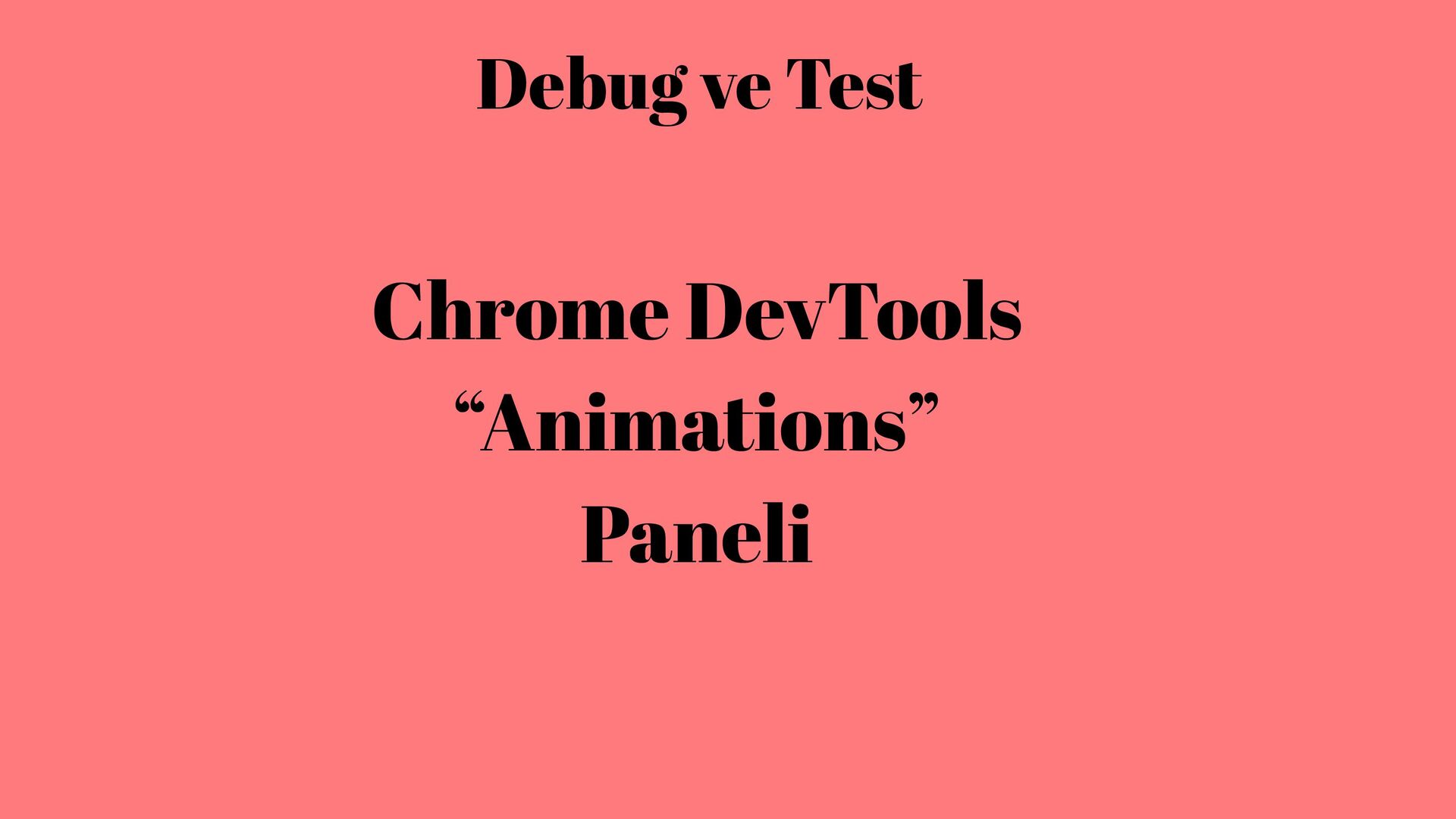

38. Debug ve Test Chrome DevTools “Animations” Paneli

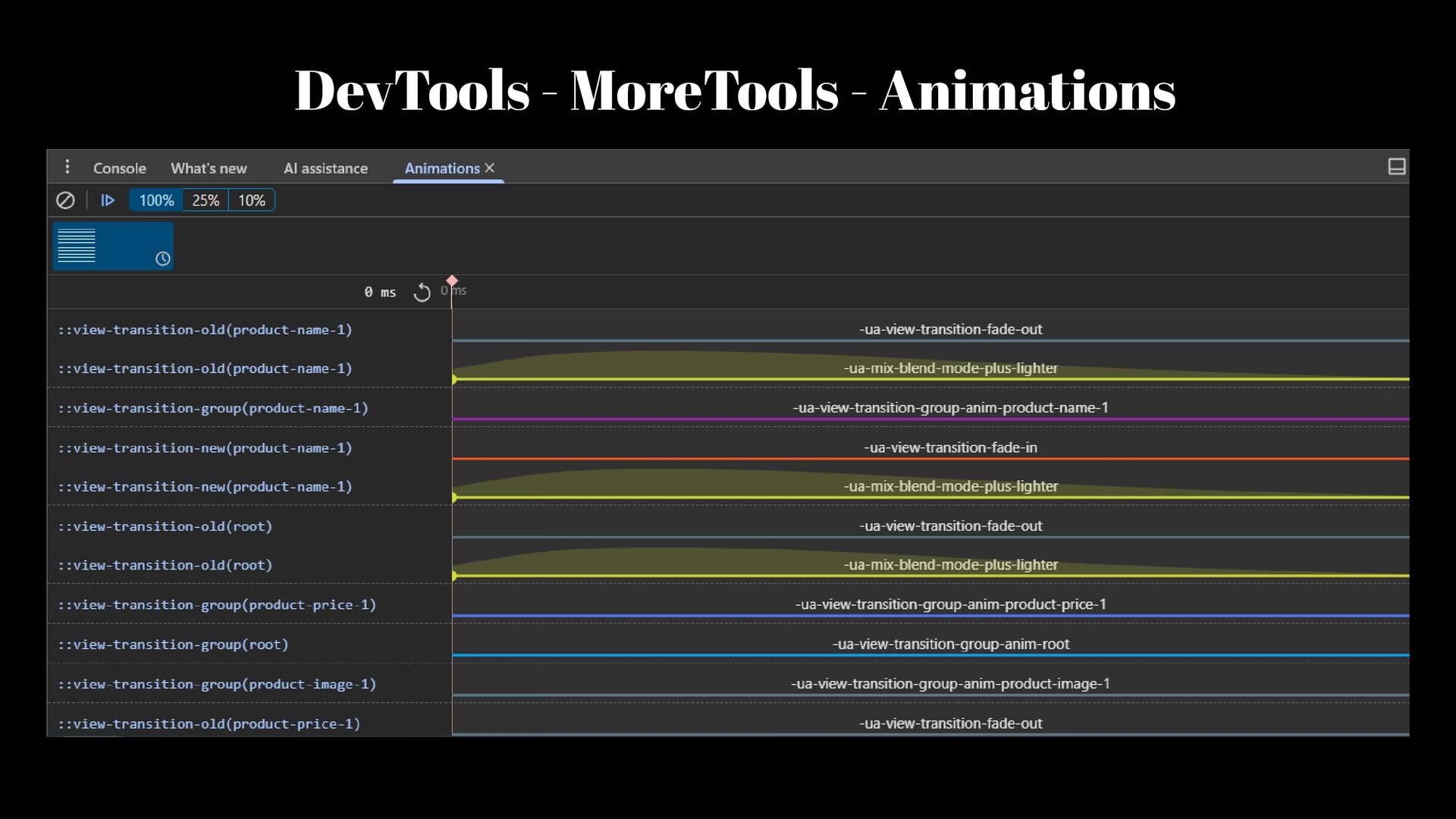

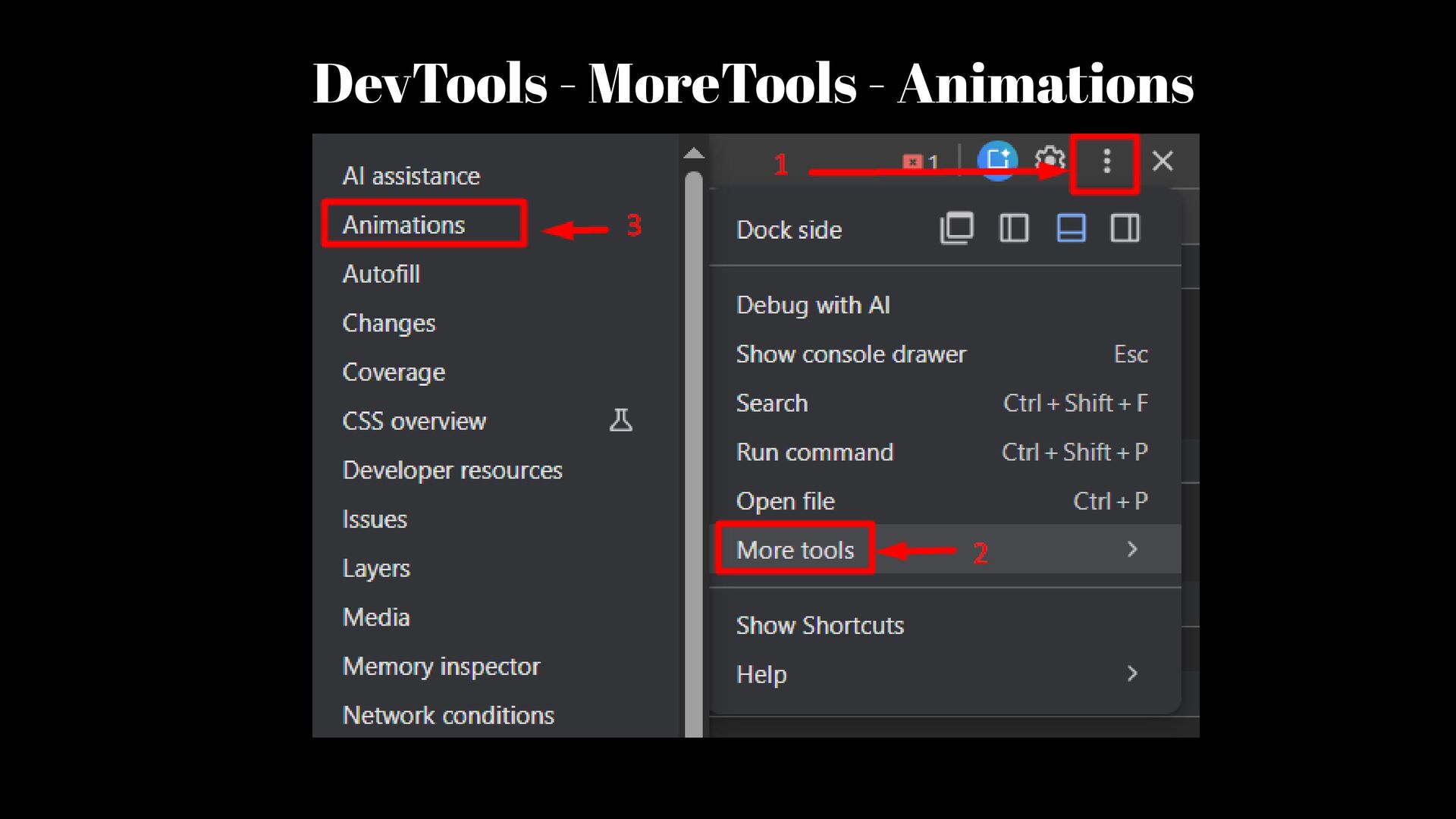

39. DevTools - MoreTools - Animations

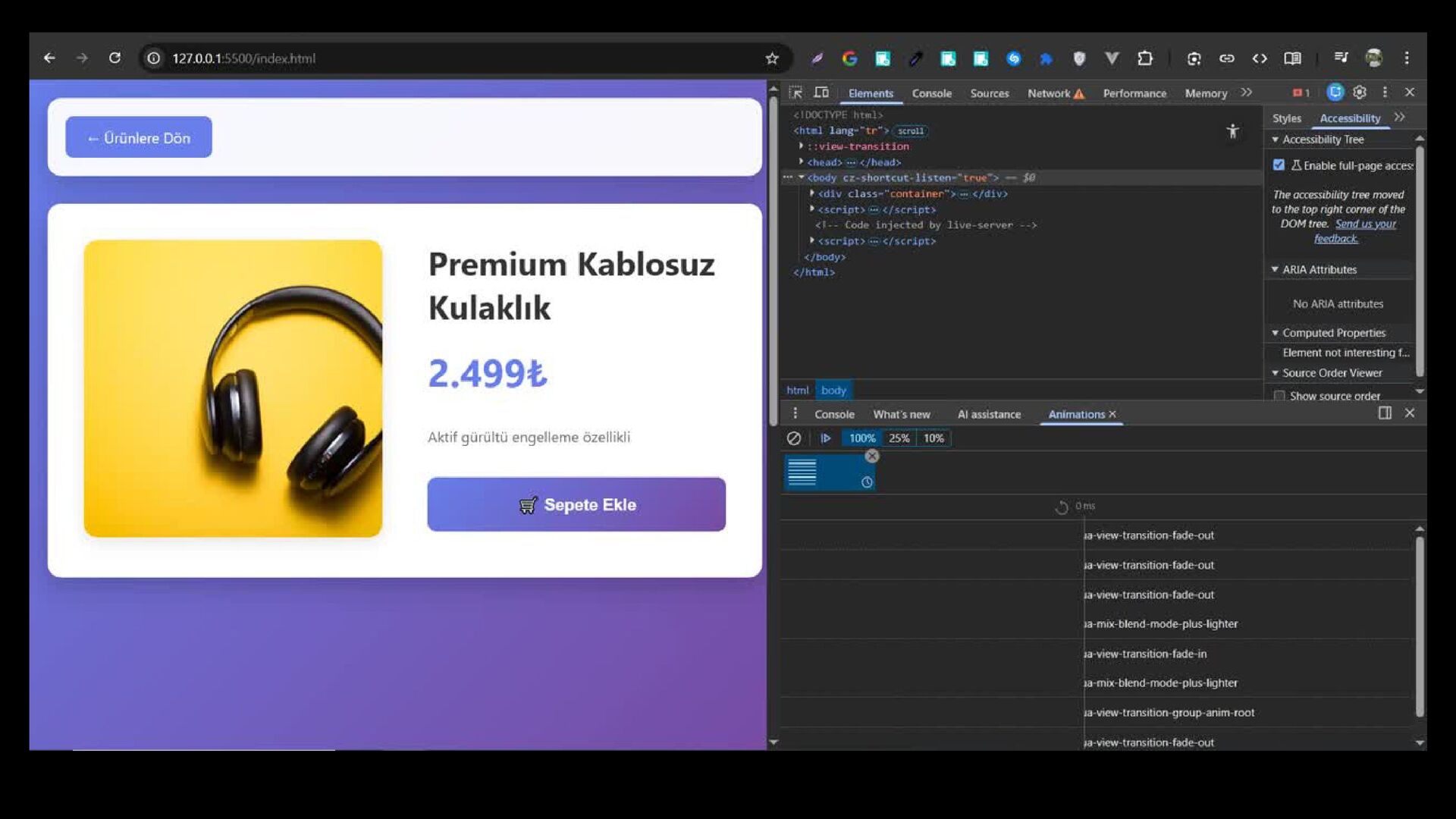

40. DevTools - MoreTools - Animations

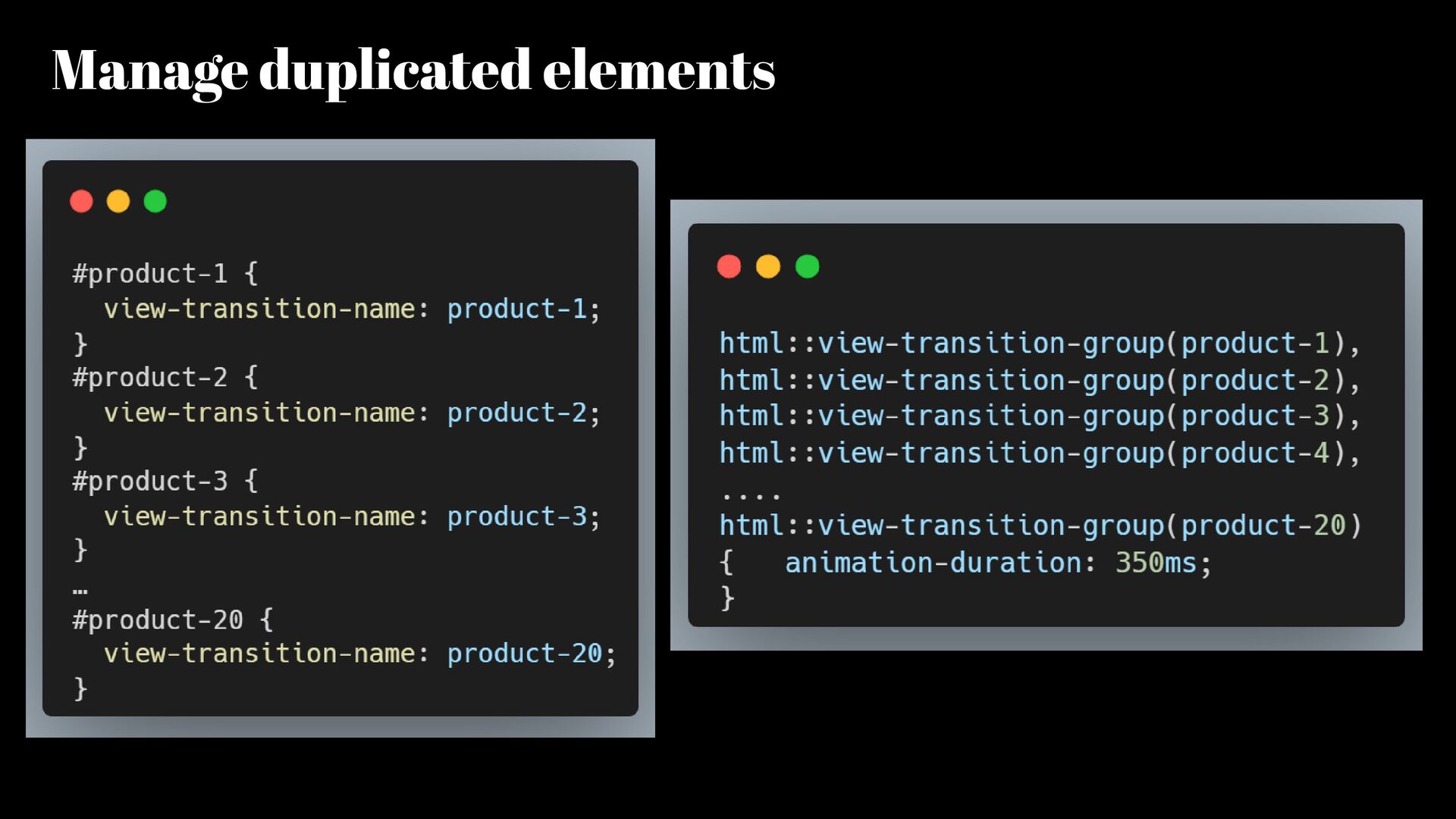

42. Manage duplicated elements

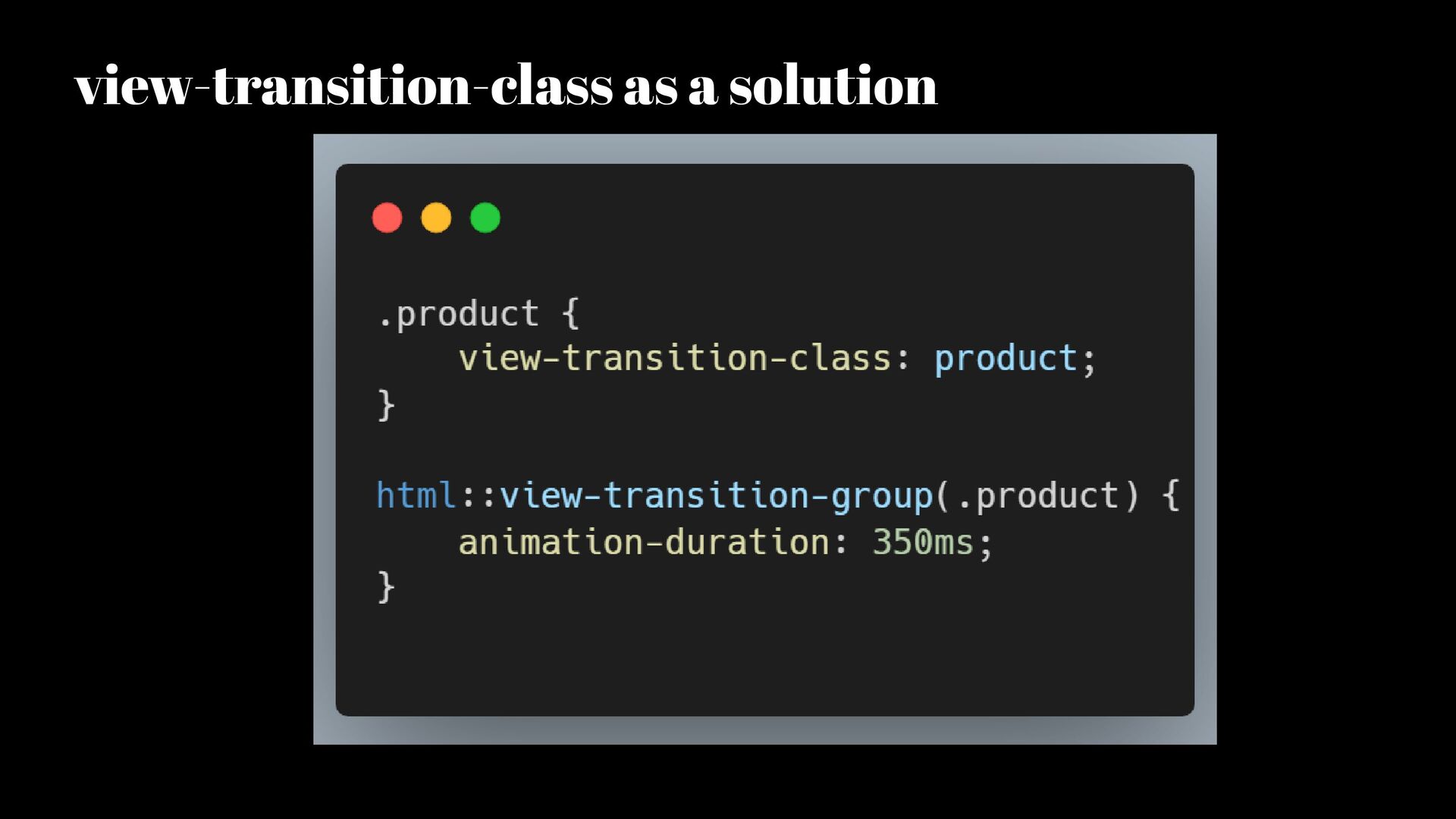

43. view-transition-class as a solution

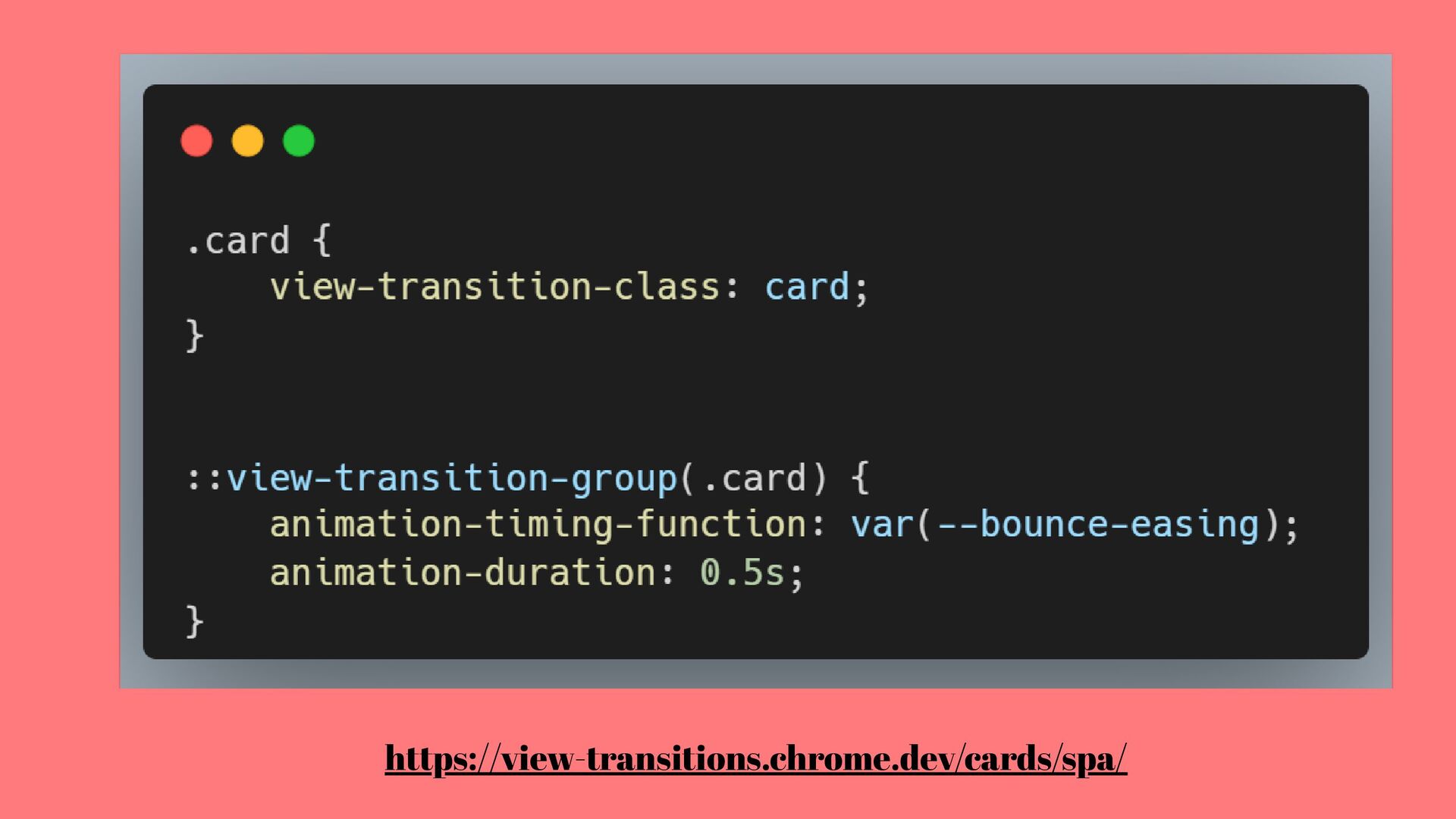

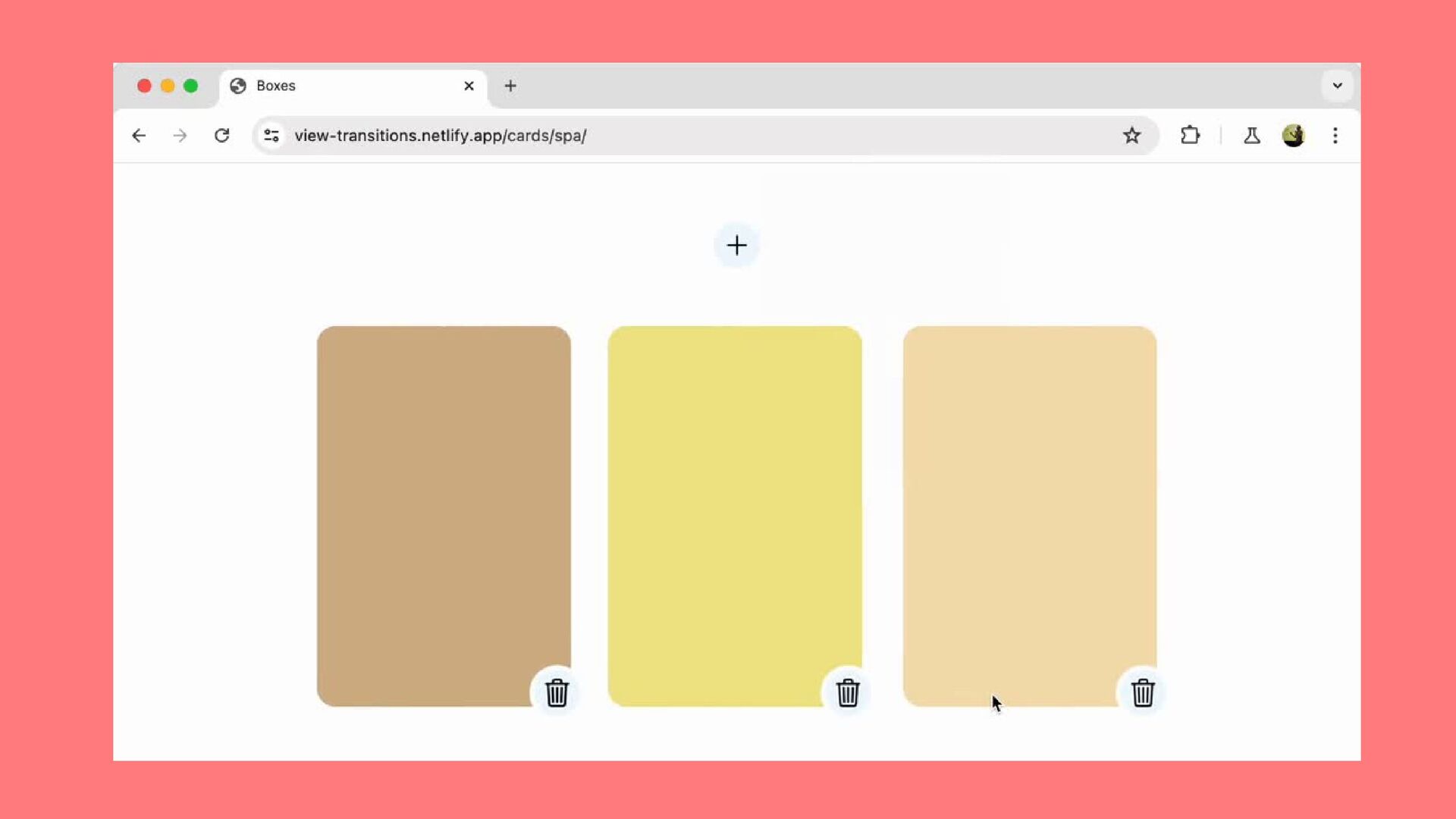

45. https://view-transitions.chrome.dev/cards/spa/

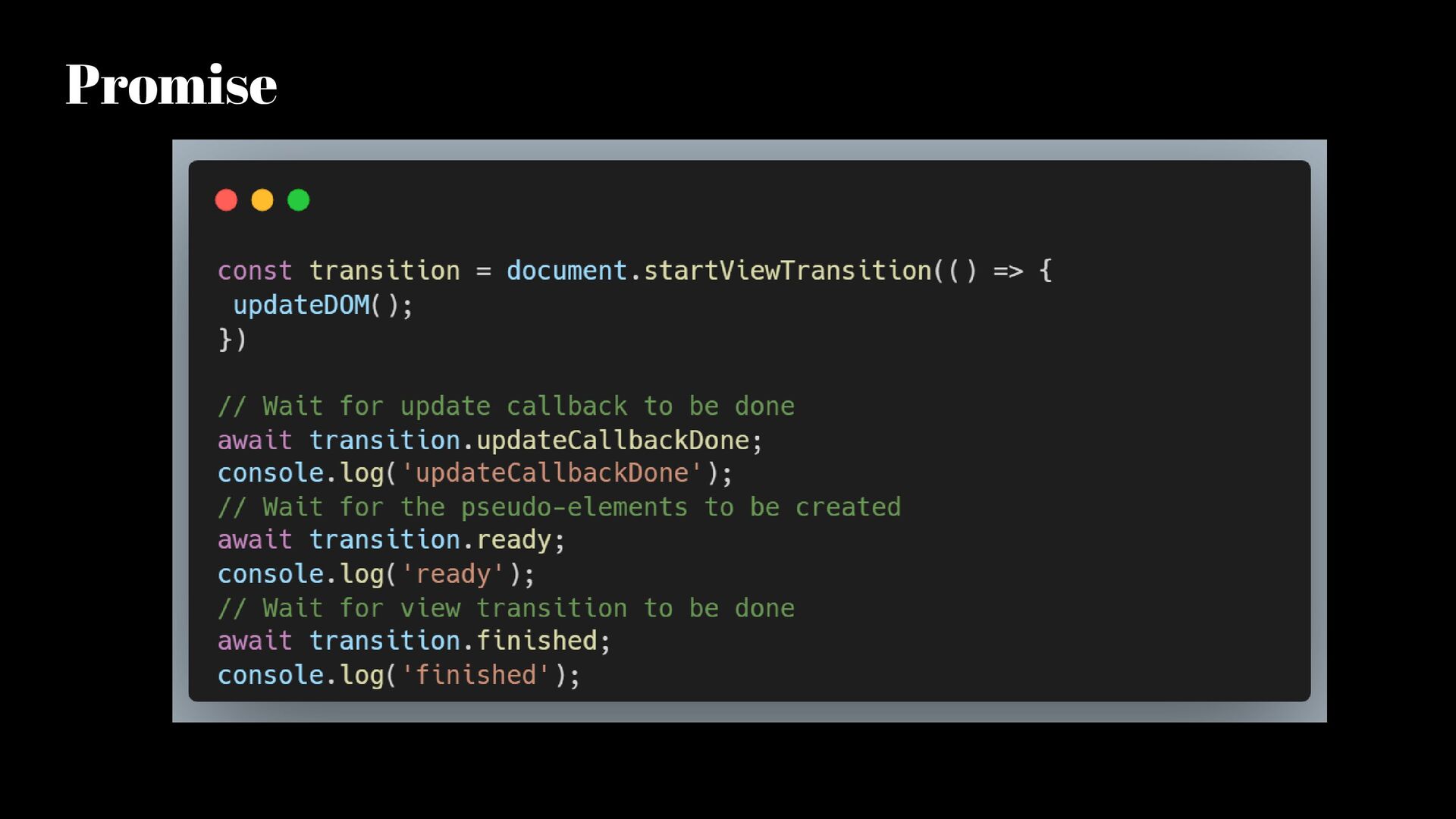

46. Promise

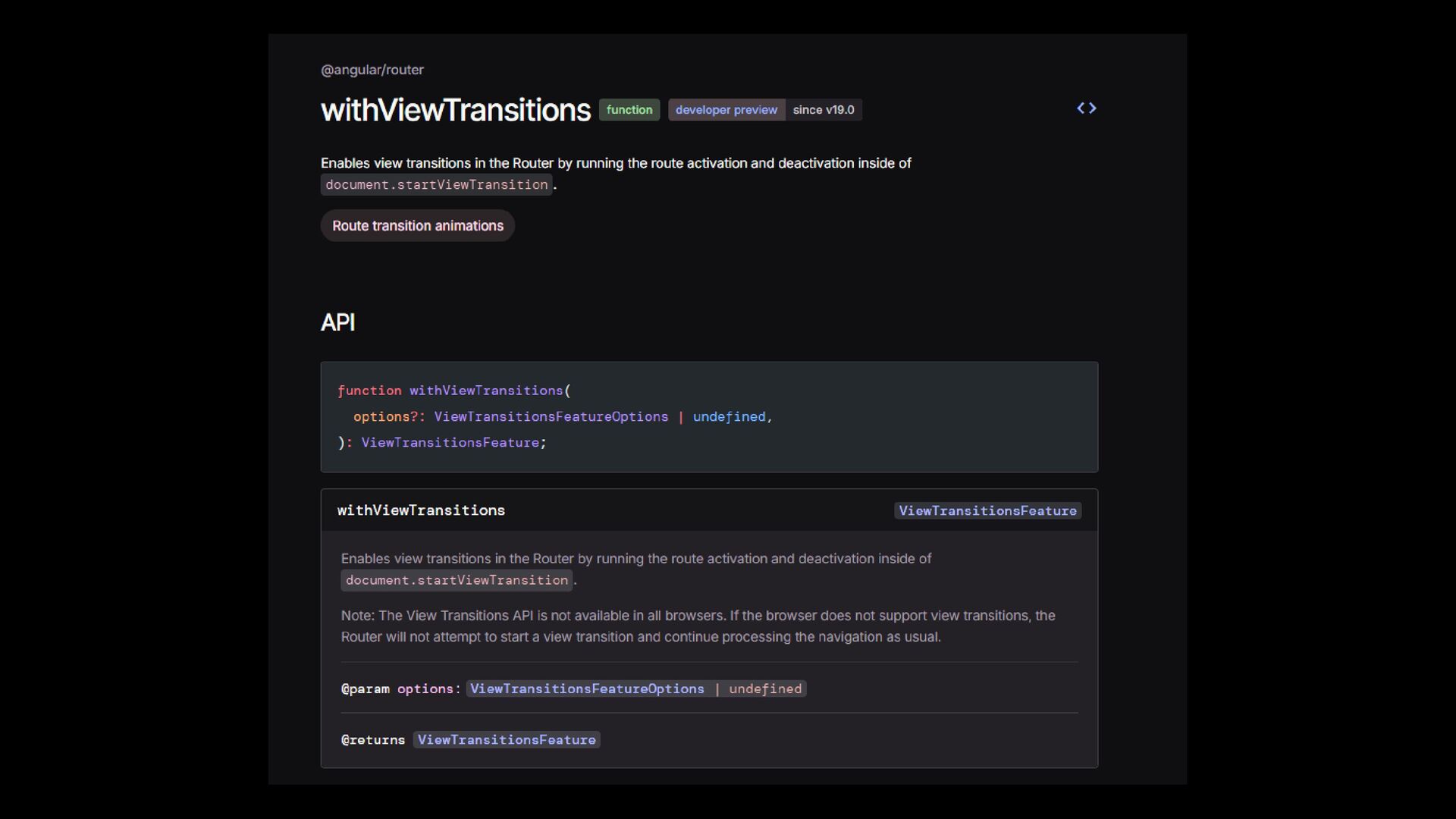

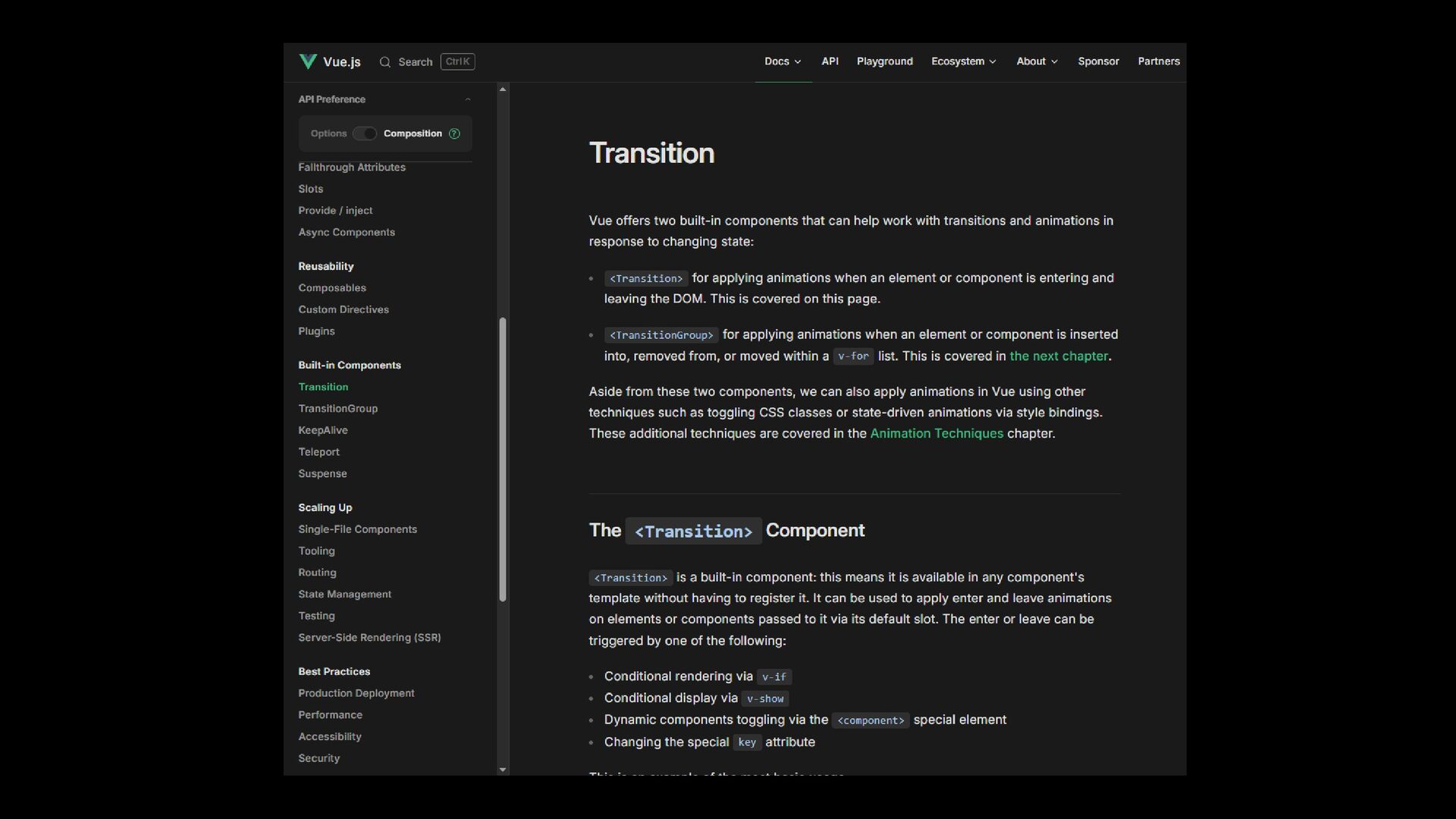

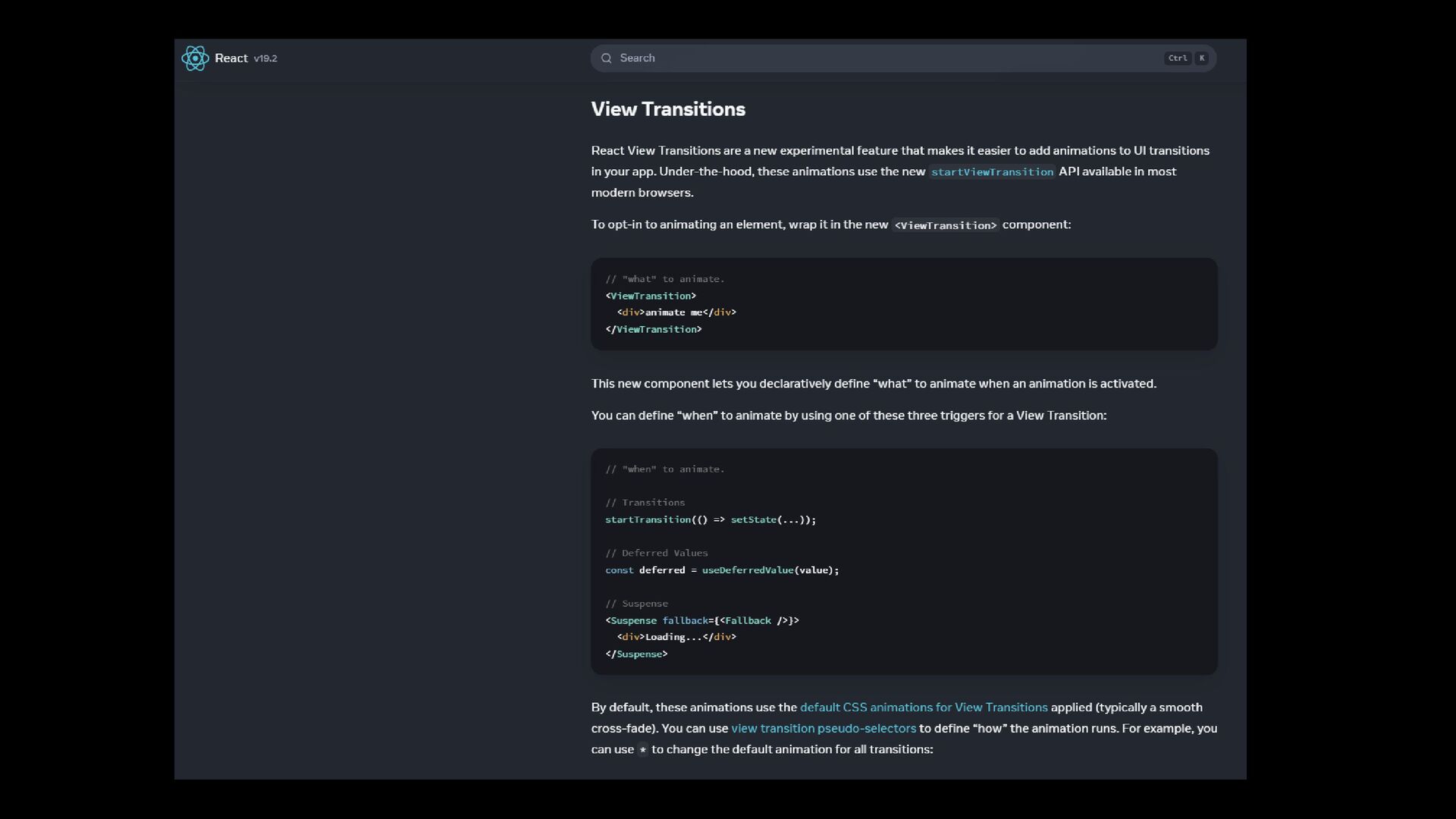

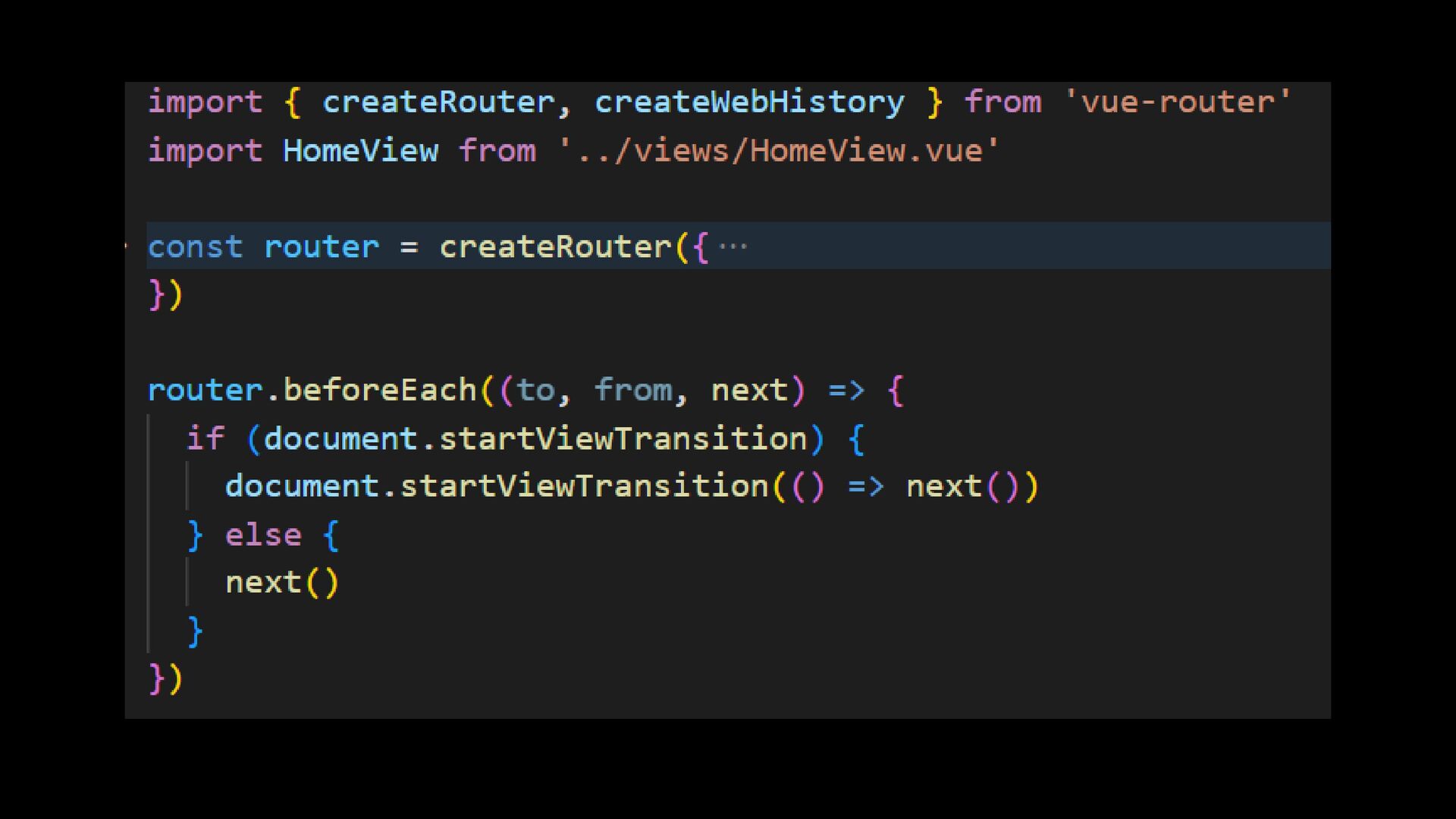

47. Work with different Javascript frameworks
52. Thank you Contact Demo
