A blast-radius reduction approach to embracing failure at scale.

As presented at re-deploy 2019.
https://re-deploy.io/2019/speakers/#adrian-hornsby

Abstract:
Mistakes. Bad judgment. Errors. Failures. They are all part of our engineering lives. While many think of them as being undesirable aspects of engineering, failures are very important, and even- beneficial. One thing that is sure is that failures will happen and will come in many forms, some expected, and some unexpected. It’s therefore important to embrace failure. The question is how to limit its blast-radius? In this talk, I will discuss a range of blast radius reduction design techniques used at AWS and by our customers, including isolation, bulkheads, cells, and sharding. I will also discuss how embracing failure infuses impact our operational practices.

Transcript

1. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark

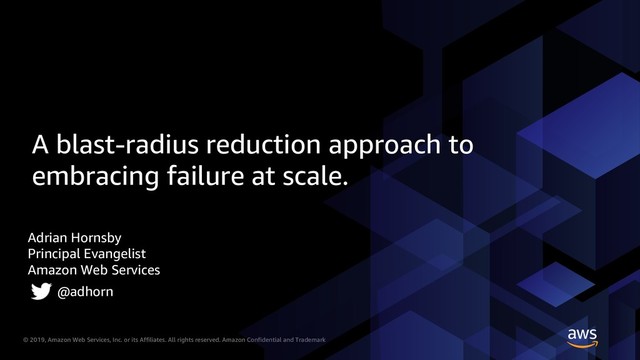

   A blast-radius reduction approach to
   embracing failure at scale.
   Adrian Hornsby
   Principal Evangelist
   Amazon Web Services
   @adhorn


   View Slide

2. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
   “You need to know the past to understand
   the present.”
   Carl Sagan


   View Slide

3. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
   Chapter 1: AWS endpoints


   View Slide

4. View Slide

5. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
   s3.amazonaws.com/bucket/
   And it all started with …


   View Slide

6. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
   s3.us-east-1.amazonaws.com/bucket/
   Then more AWS region arrived


   View Slide

7. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark


   View Slide

8. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
   autoscaling.us-east-1.amazonaws.com
   athena.us-east-1.amazonaws.com
   rds.us-east-1.amazonaws.com
   monitoring.us-east-1.amazonaws.com
   ec2.us-east-1.amazonaws.com
   dynamodb.us-east-1.amazonaws.com
   elasticloadbalancing.us-east-1.amazonaws.com
   SERVICE | REGION | AMAZONAWS | COM
   Today


   View Slide

9. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
   bucket.s3.us-east-1.amazonaws.com
   Today
   RESOURCE | SERVICE | REGION | AMAZONAWS | COM


   View Slide

10. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    ALB-761504102.us-west-1.elb.amazonaws.com
    adhorn-war.s3.us-west-1.amazonaws.com
    dl1bss4jo007o.cloudfront.net
    RESOURCE | SERVICE | REGION | AMAZONAWS | COM


    View Slide

11. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    Chapter 2: Health Dashboard


    View Slide

12. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    Service health dashboard


    View Slide

13. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    … gets personal


    View Slide

14. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    Chapter 3: AWS Regions


    View Slide

15. https://www.infrastructure.aws


    View Slide

16. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    autoscaling.us-east-1.amazonaws.com
    athena.us-east-1.amazonaws.com
    rds.us-east-1.amazonaws.com
    monitoring.us-east-1.amazonaws.com
    ec2.us-east-1.amazonaws.com
    dynamodb.us-east-1.amazonaws.com
    elasticloadbalancing.us-east-1.amazonaws.com
    SERVICE | REGION | AMAZONAWS | COM


    View Slide

17. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    By default - Shared nothing architecture
    X
    X
    X
    us-west-1 us-east-2


    View Slide

18. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    Chapter 4: Availability Zones


    View Slide

19. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
    Fully-scaled Availability Zone


    View Slide

20. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
    Highly redundant regional network


    View Slide

21. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    Availability Zones
    Region
    Availability zone a Availability zone b Availability zone c
    data center
    data center
    data center
    data center
    data center
    data center
    data center
    data center
    data center


    View Slide

22. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    Multi-AZ architecture
    Region
    Availability zone a Availability zone b Availability zone c
    Instances Instances Instances
    DB Instance DB instance
    standby
    Elastic Load
    Balancing (ELB)


    View Slide

23. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    Multi-AZ architecture
    Region
    Availability zone a Availability zone b Availability zone c
    Instances Instances Instances
    DB Instance DB instance
    standby
    Elastic Load
    Balancing (ELB)
    X


    View Slide

24. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    Multi-AZ architecture
    Region
    Availability zone a Availability zone b Availability zone c
    Instances Instances Instances
    DB Instance DB instance
    standby
    Elastic Load
    Balancing (ELB)
    X


    View Slide

25. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    Multi-AZ architecture
    • Enables fault-tolerant applications
    • AWS regional services designed to
    withstand AZ failures
    • Leveraged by AWS regional
    services such as Amazon S3,
    Amazon DynamoDB, Amazon
    Aurora, Amazon ELBs, etc.
    Region
    Availability zone a Availability zone b Availability zone c
    Instances Instances Instances
    DB Instance DB instance
    standby
    Elastic Load
    Balancing (ELB)


    View Slide

26. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    Database distributed architecture
    DynamoDB
    Aurora


    View Slide

27. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    Zone a control plane
    Zone a
    Zone a data plane
    Regional control plane
    Zone b control plane
    Zone b
    Zone b data plane
    Zone c control plane
    Zone c
    Zone c data plane
    Availability Zone independence


    View Slide

28. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    Abstracted Architecture
    Aggregation layer
    Routing
    Compartmentalized
    resources
    Failure isolation
    Entry point


    View Slide

29. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark


    View Slide

30. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    Chapter 5: Cells


    View Slide

31. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    Region
    Availability zone a Availability zone b Availability zone c
    Instances Instances Instances
    DB Instance DB instance
    standby
    Elastic Load
    Balancing (ELB)
    Compute
    Storage
    Cell


    View Slide

32. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    Cell-based architecture
    Regional Service
    Compute
    Storage
    Cell 1
    Compute
    Storage
    Cell 2
    Compute
    Storage
    Cell n
    [ … ]


    View Slide

33. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    REGIONAL
    SERVICE
    Zone A Zone B Zone C Zone A Zone B Zone C
    Zone A Zone B Zone C
    Z O N A L
    S E R V I C E
    Z O N A
    S E R V I C E
    Z O N A L
    S E R V I C E
    S E R V I C E C E L L
    S E R V I C E C E L L
    S E R V I C E C E L L
    Zone A Zone B Zone C
    S E R V I C E
    C E L L
    S E R V I C E
    C E L L
    S E R V I C E
    C E L L
    S E R V I C E
    C E L L
    S E R V I C E
    C E L L
    S E R V I C E
    C E L L
    S E R V I C E
    C E L L
    S E R V I C E
    C E L L
    S E R V I C E
    C E L L
    W I T H O U T C E L L S W I T H C E L L S


    View Slide

34. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    System properties
    Cell 0
    Cell router
    Service
    Cell 1 Cell n
    • Workload isolation
    • Failure containment
    • Scale-out vs. scale-up
    • Testability
    • Manageability
    Cell n+1


    View Slide

35. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    Cell size tradeoffs
    • Reduced blast radius
    • Easier to test
    • Cells easier to operate
    • Cost efficiency
    • Reduced splits
    • System easier to operate


    View Slide

36. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark


    View Slide

37. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    X X X X X X X
    X
    ♤
    ♡
    ♢ ⚀ ⚁ ⚂ ⚃
    ♧
    ♢


    View Slide

38. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
    Cell-based architecture
    X
    X
    ♤
    ♡
    ♢ ⚀ ⚁ ⚂ ⚃
    ♧
    ♢


    View Slide

39. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.


    View Slide

40. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
    Can we do better?


    View Slide

41. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
    Chapter 6: Shuffle Sharding


    View Slide

42. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
    Shuffle sharding
    X
    X
    ♤
    ♡
    ♢ ⚀ ⚁⚂ ⚃
    ♡ ♤ ♧
    ♢ ⚀⚂
    ♧ ⚁⚃
    ♢ ♢
    ♡ ♧
    ♢


    View Slide

43. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
    Shuffle sharding
    Nodes = 8
    Shard size = 2
    Combinations = 28
    Overlap % customers
    0 53.6%
    1 42.8%
    2 3.6%


    View Slide

44. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
    Shuffle sharding
    Nodes = 100
    Shard size = 5
    Combinations = 75 million!
    Overlap % customers
    0 77%
    1 21%
    2 1.8%
    3 0.06%
    4 0.0006%
    5 0.0000013%


    View Slide

45. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
    Shuffle sharding


    View Slide

46. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    Customer –based shards


    View Slide

47. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    Chapter 7: Backoff, throttles and Little’s law


    View Slide

48. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    No jitter With jitter
    https://aws.amazon.com/blogs/architecture/exponential-backoff-and-jitter/
    Exponential Backoff is not enough


    View Slide

49. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    https://aws.amazon.com/blogs/architecture/exponential-backoff-and-jitter/


    View Slide

50. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    https://docs.aws.amazon.com/AWSEC2/latest/APIReference/throttling.html
    https://docs.aws.amazon.com/apigateway/latest/developerguide/api-gateway-request-throttling.html
    Throttles


    View Slide

51. Token bucket
    rate (tokens/sec)
    Token Generation
    capacity
    (finite)
    Incoming Request Outgoing Request
    0 1 2 3 4 5 6 7 8 9 10
    0 1 2 3 4 5 6 7 8 9 10
    12 Mbps
    3 Mbps
    3 Mbps
    get
    token
    Burst
    Steady
    Rejection (429 Too Many Requests)
    yes
    no


    View Slide

52. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    Dining with philosophers
    Image source https://en.wikipedia.org/wiki/Dining_philosophers_problem


    View Slide

53. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    Dining with philosophers
    Image source https://en.wikipedia.org/wiki/Dining_philosophers_problem
    • Concurrency is a useful
    measure of capacity in real
    systems.
    • Concurrency measures
    consumption of resources like
    threads, memory, connections,
    file handles, etc.


    View Slide

54. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    Little’s law and concurrency
    L = λ . W
    Long-term average effective arrival rate
    average time a customer spends in the system
    Average number of customers


    View Slide

55. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    Little’s law and concurrency
    L = λ . W
    requests per second
    average time for each request to complete
    mean number of concurrent requests


    View Slide

56. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    Little’s law and concurrency
    L = λ . W


    View Slide

57. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    Chapter 8: Conclusion


    View Slide

58. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    “Anything that can go wrong will go wrong.”
    Murphy’s Law


    View Slide

59. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    • Start with the customers!
    • DNS names are your friends!
    • Bulkheads and isolation.
    • Shuffle Sharding.
    • Backoff and throttles.
    • Little’s law and concurrency.
    • Go eat with philosophers.
    Blast-radius reduction mindset


    View Slide

60. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    Operational Excellence
    Tools Processes
    Culture
    Technology


    View Slide

61. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    The master minds behind all this cool technology …


    View Slide

62. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    Resources
    https://aws.amazon.com/blogs/architecture/shuffle-sharding-massive-and-magical-fault-isolation/
    https://aws.amazon.com/blogs/architecture/a-case-study-in-global-fault-isolation/
    https://twitter.com/colmmacc/status/1034492056968736768
    https://docs.aws.amazon.com/apigateway/latest/developerguide/api-gateway-request-throttling.html
    https://docs.aws.amazon.com/AWSEC2/latest/APIReference/throttling.html
    https://en.wikipedia.org/wiki/Token_bucket
    https://en.wikipedia.org/wiki/Little%27s_law
    http://brooker.co.za/blog/2018/06/20/littles-law.html
    http://brooker.co.za/blog/2017/12/28/mean.html
    https://en.wikipedia.org/wiki/Dining_philosophers_problem
    https://en.wikipedia.org/wiki/Amdahl%27s_law
    https://medium.com/@adhorn
    https://www.infrastructure.aws
    https://aws.amazon.com/blogs/architecture/exponential-backoff-and-jitter


    View Slide

63. © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
    Thank you!
    @adhorn
    https://medium.com/@adhorn
    https://github.com/adhorn


    View Slide
