Trying to scale Puppet with simple tricks

Configuration Management Infrastrusture @GRNET. Trying to scale Puppet with simple tricks.

GRNOG 4th technical meeting

Transcript

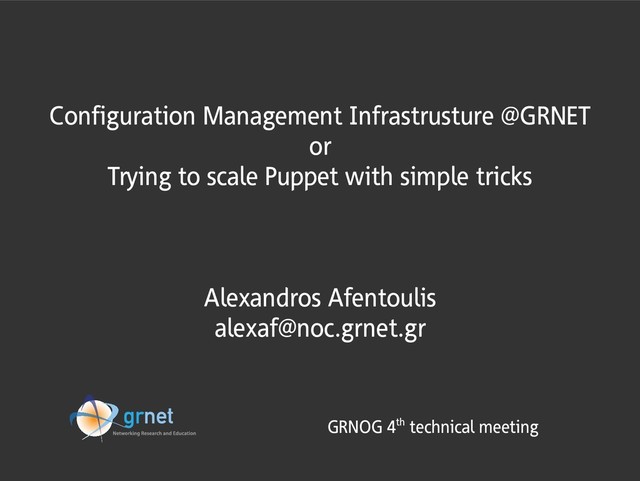

1. Configuration Management Infrastrusture @GRNET or Trying to scale Puppet with simple tricks Alexandros Afentoulis alexaf@noc.grnet.gr GRNOG 4th technical meeting

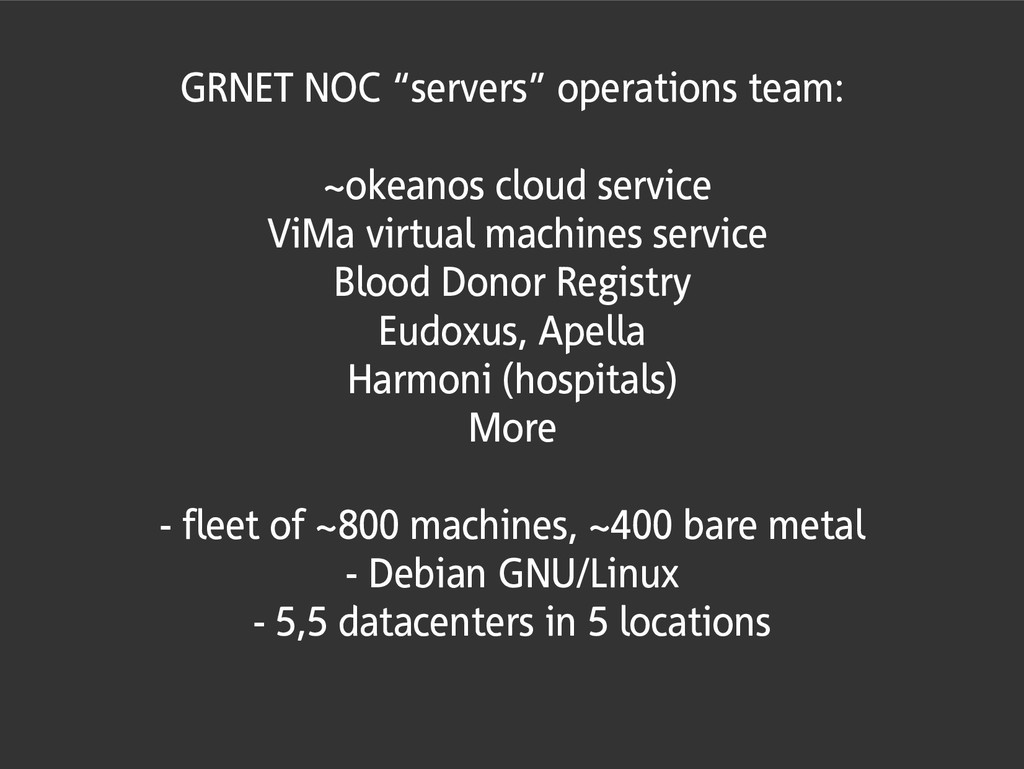

2. GRNET NOC “servers” operations team: ~okeanos cloud service ViMa virtual machines service Blood Donor Registry Eudoxus, Apella Harmoni (hospitals) More - fleet of ~800 machines, ~400 bare metal - Debian GNU/Linux - 5,5 datacenters in 5 locations
3. Overview of changes in Puppet ecosystem to achieve: - availability - easier maintainance - locality awareness
4. What is Puppet? - Infrastructure as code - An ecosystem(beast) on its own - Ensures a state of configuration - Essential tool for managing our services/infra

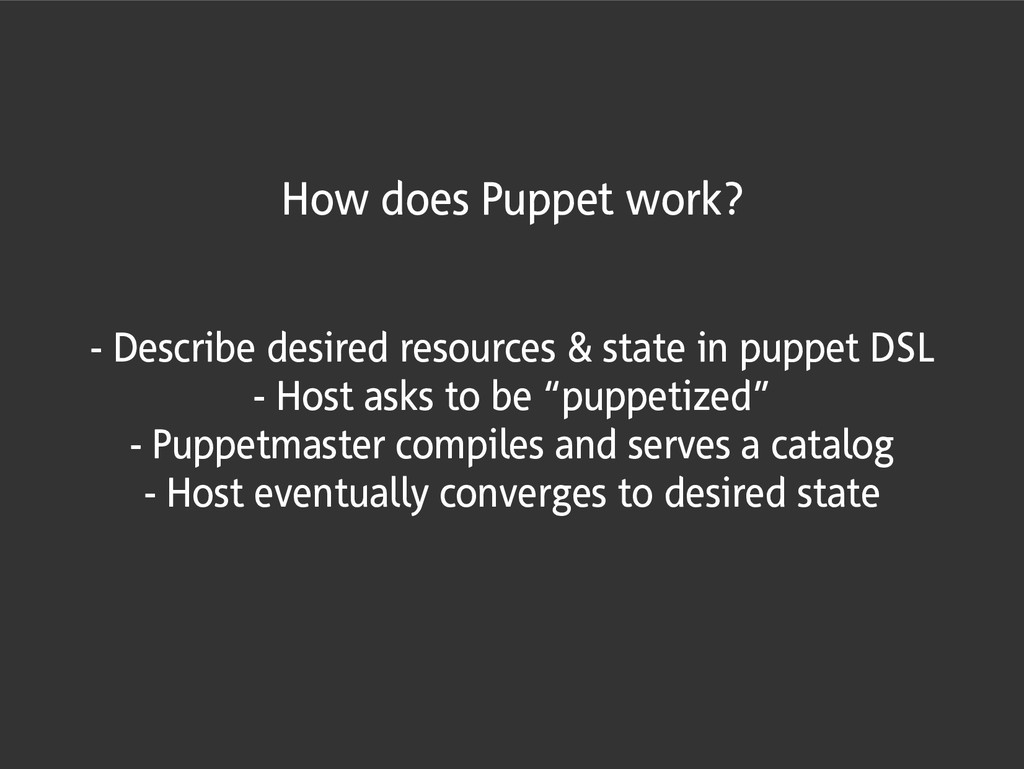

5. How does Puppet work? - Describe desired resources & state in puppet DSL - Host asks to be “puppetized” - Puppetmaster compiles and serves a catalog - Host eventually converges to desired state
6. Scaling challenges - Catalog compilation, CPU(+RAM) hungry - SQL database - TLS certs, ENC etc

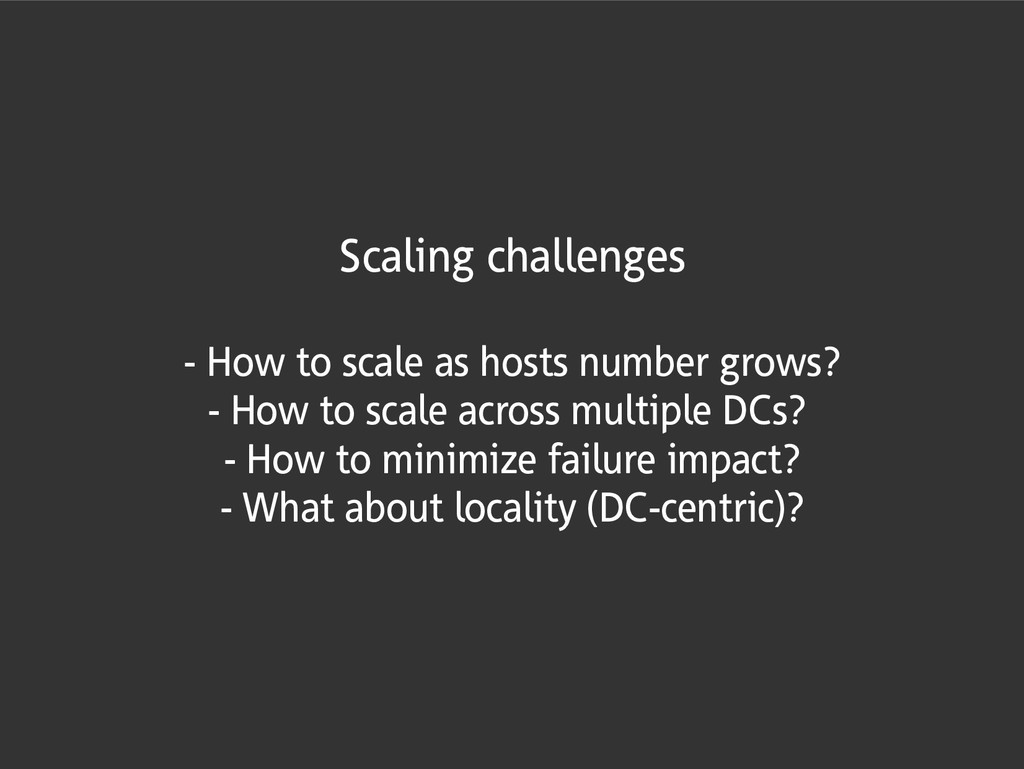

8. Scaling challenges - How to scale as hosts number grows? - How to scale across multiple DCs? - How to minimize failure impact? - What about locality (DC-centric)?

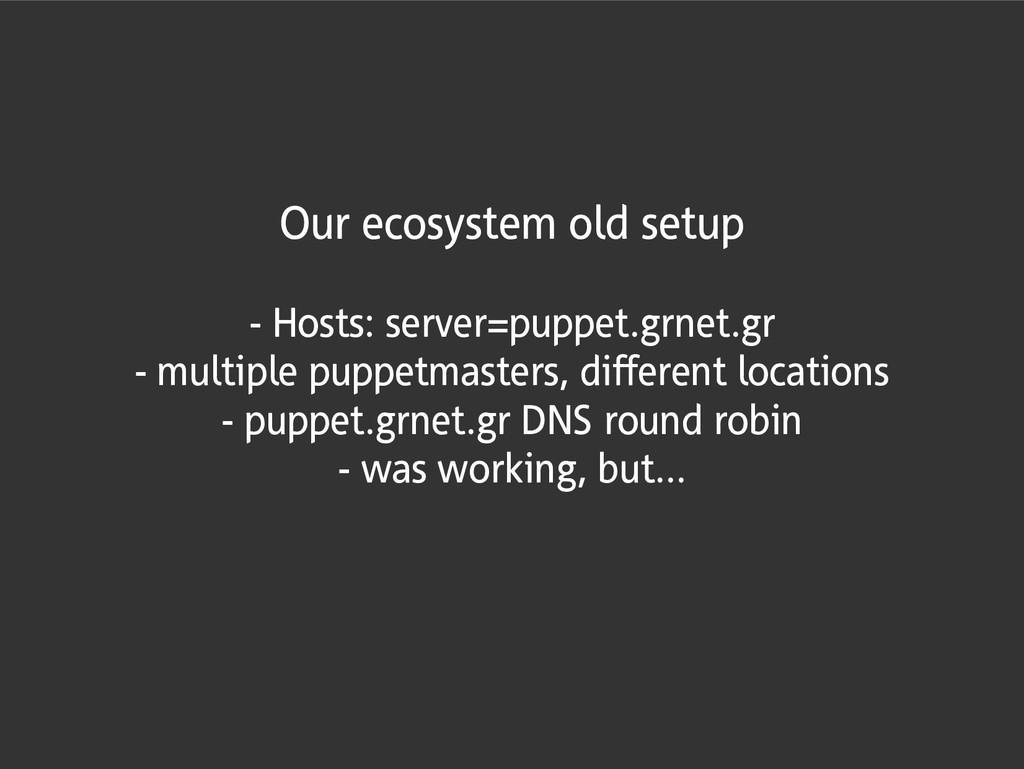

10. Our ecosystem old setup - Hosts: server=puppet.grnet.gr - multiple puppetmasters, different locations - puppet.grnet.gr DNS round robin - was working, but...

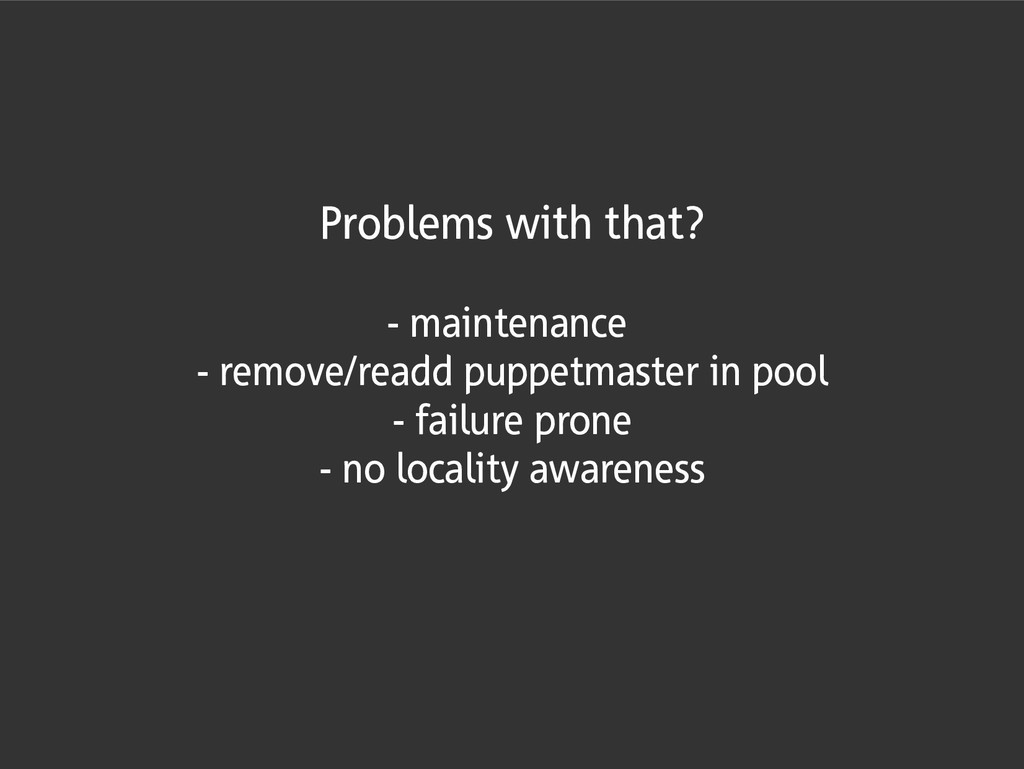

11. Problems with that? - maintenance - remove/readd puppetmaster in pool - failure prone - no locality awareness
12. Can we do better? - mechanism to smartly manage the pool - health checks, add/remove on the fly, stats, more?
13. A Load Balancer please Hello HAProxy! - 1 instance per location, TCP proxy - puppetmasters pool as backend, local preference - health checks (L7), admin socket => actions scriptable, smart auto-reactions, stats - stable, lightweight
14. peers mybeers peer eie-anyhap 127.0.0.1:1337 frontend puppetfront bind :::8140 v4v6 acl big_queue avg_queue(puppetworkers) gt 1 use_backend moar_puppetworkers if big_queue acl icinga src 194.177.210.168 62.217.124.126 acl bacula src 83.212.5.68 acl jp src 194.177.211.163 use_backend fast_puppetworkers if icinga or bacula or jp default_backend puppetworkers timeout client 1000s option tcplog backend puppetworkers timeout server 1000s mode tcp balance roundrobin stick-table type ip size 200k expire 15m peers mybeers stick on src option httpchk GET /production/status/koko HTTP/1.1\r\nHost:puppet.grnet.gr\r\nAccept:*/* option srvtcpka option allbackups server p0 p0.grnet.gr:8140 check check-ssl inter 10s fastinter 1s fall 1 weight 50 maxconn 12 backup server p1 p1.grnet.gr:8140 check check-ssl inter 2s fastinter 1s fall 1 weight 50 maxconn 12 server p2 p2.grnet.gr:8140 check check-ssl inter 10s fastinter 1s fall 1 weight 50 maxconn 12 backup server p3 p3.grnet.gr:8140 check check-ssl inter 10s fastinter 1s fall 1 weight 50 maxconn 12 backup server p4 p4.grnet.gr:8140 check check-ssl inter 2s fastinter 1s fall 1 weight 50 maxconn 12 server p5 p5.grnet.gr:8140 check check-ssl inter 2s fastinter 1s fall 1 weight 50 maxconn 12
15. We done yet? - nicely manage the pool, availability for puppetmasters
16. We done yet? - nicely manage the pool, availability for puppetmasters But... - How will hosts know about haproxy frontends? - Shouldn’t they be available as well? - Want an active-active setup, no VRRP - Want locality too

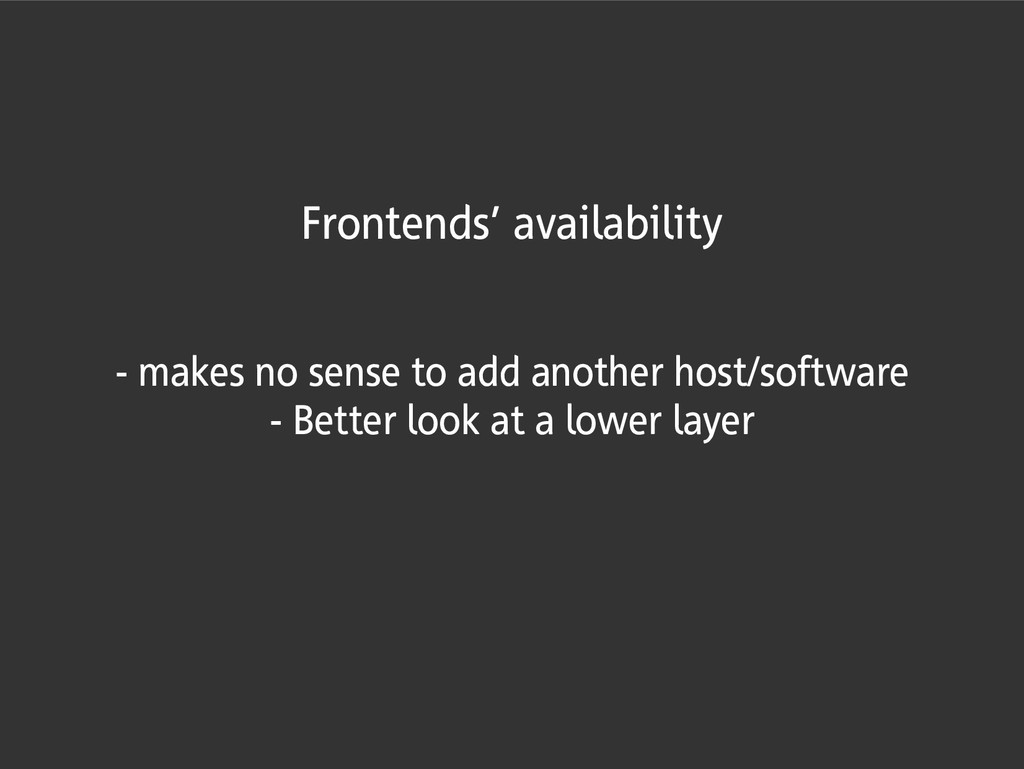

17. Frontends’ availability - makes no sense to add another host/software - Better look at a lower layer
18. Anycast - Setup anycast service IP - puppet.grnet.gr resolves to that - Each HAProxy instance peer with a GRNET’s IP router - Announcements with BGP (bird) - AS for private use, a /32 router id 62.217.126.167; filter bgp_to_grnet { if net.ip = 62.217.126.165 && net.len = 32 then accept; else reject; } protocol bgp BGP_ANY { local as 65500; description "BGP-EIER"; neighbor 62.217.126.166 as 5408; import filter rejectall; export filter bgp_to_grnet; bfd on; }
19. Resume - puppet as anycast service - load balancers availability, locality - manageable pool - availability of puppetworkers - lots more to be done for this ecosystem
21. Thanks!
