Cloud Security 101

Whether starting a greenfield project in one of the public clouds or implementing a lift-and-shift project – cloud security always is and will be an important topic. Even more so with the “privacy by design” principle that was put in place by GDPR. There are lots of best practices out there: multi-account strategies, principle of least privilege, automated patching and scanning security vulnerabilities and enforcing encryption – just to name a few measures to harden your cloud infrastructure. Ideally all these are driven by CI/CD pipelines to enable confident changes and short cycle times. The session will cover AWS-based examples on proven best practices and solutions that can be used to harden your cloud infrastructure with little effort using the already available features and components.

Transcript

1. Cloud Security 101 Andreas Mohrhard, tecRacer Consulting GmbH
2. @amohrhard The S3 Negligence Award goes to…
3. Slide 4 @amohrhard Intro §Andreas Mohrhard -amohrhard@tecracer.de -@amohrhard on Twitter §Consultant @tecRacer §AWS since 2013 §Disclaimer: I‘m not a security expert.
4. @amohrhard Starting off your journey through the clouds
5. @amohrhard
6. @amohrhard
7. @amohrhard What do we need to secure?
8. @amohrhard Security „of the cloud“ vs. Security „in the cloud“
9. Slide 10 @amohrhard Shared Responsibility Model Source: https://aws.amazon.com/compliance/shared-responsibility-model/
10. Slide 11 @amohrhard AWS Cloud Adoption Framework – Security Perspective § Security Controls -Directive -Preventive -Detective -Responsive https://d0.awsstatic.com/whitepapers/AWS_CAF_Security_Perspective.pdf
11. Slide 12 @amohrhard Directive Measures -Come up with a plan on how to handle your cloud usage -Define contacts (e-mail groups, security contact, billing contact) -Find or establish a security control framework (CIS? NIST?) -Data locality / Data classification
12. Slide 13 @amohrhard Preventive Measures -Create a strong framework of guard rails, best practices, automations -Start with minimum viable implementation and then iterate to improve
13. Slide 14 @amohrhard Detective Measures -Establish monitoring and proactive security scanning -Always be able to know: -What has happend (historic state of infrastructure) -What is happening
14. Slide 15 @amohrhard Responsive Measures -Automate responses to security findings -Simulate security incidents -Enable the security team to do forensics in case of an incident
15. @amohrhard How to measure cloud security?
16. Slide 17 @amohrhard CIS AWS Foundation Benchmark -Over 40 checks for best practices across: -Identity and Access Management -Logging -Monitoring -Networking -Basic security best practices
17. @amohrhard How many accounts do I need?
18. Slide 19 @amohrhard AWS Organizations - How many accounts to create? § Provide centralized solution to create accounts in your org (via API!) § Establishes initial trust between accounts § Consolidated Billing § Service Control Policies § Grouping by Org Unit Source: https://aws.amazon.com/answers/account-management/aws-multi-account-billing-strategy/
19. Slide 20 @amohrhard First steps into security -Create at least two accounts (master/billing and project) -Don‘t use personal e-mail addresses -Establish password policies -Always use Multi Factor Authentication (MFA) -Create individual users
20. Slide 21 @amohrhard Secure the Root Account § Best Practice -NEVER* use the Root Account -Lock away credentials -Do not create API credentials -Always use Multi Factor Authentication -Use virtual device (e.g. Google Authenticator or Authy) -Print the QR code as a backup - www.trek10.com/blog/improving-the-aws-force-mfa-policy-for-IAM-users/
21. @amohrhard How to securely access AWS accounts?
22. @amohrhard Principle of Least Privilege
23. Slide 24 @amohrhard Giving people access: Identity and Access Management -Create Users -Allow Users to assume Roles -Attach policies to Roles -References -https://iam.cloudonaut.io -https://amzn.to/2UaxYTW { "Version": "2012-10-17", "Statement": [ { "Effect": "Allow", "Action": [ "s3:GetObject" ], "Resource": ["arn:aws:s3:::<BUCKET-NAME>/*"] } ] }
24. Slide 25 @amohrhard Example roles -ReadOnlyRole – Everyday use in the AWS console -ProjectRole – Everything needed for day to day work -AdminRole – basically Action: “*:*“
25. Slide 26 @amohrhard Identity Federation for IAM – Single Sign On § Compatible with SAML § Implement Single Sign On -Option A: Use your on-prem AD -Option B: Use SaaS (e.g. onelogin) -Option C: Use AWS SSO § SAML needs to provide roles that can be assumed by user
26. Slide 27 @amohrhard Giving machines access (EC2/ECS): Roles and Instance Profiles curl \ http://169.254.169.254/latest/meta-data/iam/security-credentials/$ROLE { "Code" : "Success", "LastUpdated" : "2018-12-01T16:39:16Z", "Type" : "AWS-HMAC", "AccessKeyId" : "ASIAIOSFODNN7EXAMPLE", "SecretAccessKey" : "wJalrXUtnFEMI/K7MDENG/bPxRfiCYEXAMPLEKEY", "Token" : "token", "Expiration" : " 2018-12-01T18:39:16Z “ }
27. Slide 28 @amohrhard Giving AWS access: Service Roles § For some services it is necessary to give AWS access to other services -e.g. CloudFormation, Log Delivery, CloudWatch Events § Roles or Service Roles
28. Slide 29 @amohrhard Enforcing Least Privilege -github.com/Netflix/repokid -github.com/Netflix-Skunkworks/aardvark -IAM built-in Access Advisor
29. Slide 30 @amohrhard Advanced techniques -Permission Boundaries -Cross Account Roles -Conditions -IAM Policies based on tags -Service Control Policies Source: https://docs.aws.amazon.com/IAM/latest/UserGuide/reference_policies_evaluation-logic.html
30. @amohrhard Establish visibility.
31. @amohrhard CloudTrail
32. @amohrhard { "eventVersion": "1.05", "userIdentity": { "type": "IAMUser", "principalId": "AIDAJXXXXXXXXXXXXXX", "arn": "arn:aws:iam::xxxx0077xxxx:user/andreas.mohrhard", "accountId": “xxxx0077xxxx", "userName": "andreas.mohrhard" }, "eventTime": "2018-11-30T12:02:41Z", "eventSource": "signin.amazonaws.com", "eventName": "ConsoleLogin", "awsRegion": "us-east-1", "sourceIPAddress": "93.295.294.40", "userAgent": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_14_1) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/70.0.3538.110 Safari/537.36", "requestParameters": null, "responseElements": { "ConsoleLogin": "Success" }, "additionalEventData": { "LoginTo": "https://console.aws.amazon.com/iam/home?region=eu-central-1&state=hashArgs%23&isauthcode=true", "MobileVersion": "No", "MFAUsed": "No" }, "eventID": "cc39ef16-cf53-488e-ac72-d020fb40a019", "eventType": "AwsConsoleSignIn", "recipientAccountId": "xxxx0077xxxx" }
33. Slide 34 @amohrhard Enable CloudTrail § Best Practice -CloudTrail in all regions -Deliver it to a central S3 bucket -Alarm using Metric Filters (e.g. on Root Account Login) § Bonus -Have a separate account that holds all your log files. § Abilities -See what is happening in your account (both your and AWS service triggered actions) -Analyse in CloudWatch Logs, alarm with Metric Filters
34. @amohrhard Enforce basic best practices using AWS Config.
35. Slide 36 @amohrhard Enable Config § Best Practice -Enable AWS Config in all regions -Deliver it to a central S3 bucket -Setup rules for all security rules and best practices § Abilities -See which resources there are and how they change over time -Monitor compliance status of infrastructure components
36. Slide 37 @amohrhard Managed Rules – Examples § Compute: approved-amis, encrypted-volumes, restricted-ssh, elb-logging- enabled § Databases: db-instance-backup-enabled, rds-storage-encrypted § Management Tools: cloudtrail-enabled, required-tags § Security, Identity & Compliance: iam-password-policy, root-account-mfa- enabled § Storage: s3-bucket-public-read-prohibited, s3-bucket-server-side- encryption-enabled Managed rules exist for most best practices!
37. Slide 38 @amohrhard Enable GuardDuty § Best Practice -Enable AWS GuardDuty in all regions -Deliver it to a central S3 bucket -Set up alerting § Abilities -See current threats against your account (suspicious API requests, brute force detection -
38. @amohrhard Enforce basic best practices.
39. Slide 40 @amohrhard Recommendations § Make sure to enable CloudTrail, Config and Guard Duty in all regions across your account (There is some cost associated with each service) § Set up lightweight monitoring (e.g. marbot.io, just emails or SaaS solutions like CloudCheckr)
40. @amohrhard AWS_ACCESS_KEY_ID=AKIAIAIQOZ4JVNFI3VUQ AWS_SECRET_ACCESS_KEY=OJ+72v26vKK+hIfqI4ZusLASDQaXSntgH8Q7bOpR
41. @amohrhard Safeguard your security credentials.
42. Slide 43 @amohrhard Safeguard your credentials § Store them encrypted (e.g. with https://github.com/99designs/aws-vault) § NEVER commit them to VCS § Only use temporary credentials (AssumeRole or Instance Roles)
43. @amohrhard Keeping your account tidy.
44. Slide 45 @amohrhard Keeping your account tidy. § Best Practice -Use resource tagging (at least Name and Owner, maybe classify data PII vs non-PII) -Delete unused resources -Use Infrastructure-as-Code § Bonus -IAM allows usage of tags for controlling permissions § Abilities -Easier to reason about infrastructure if you know the owner.
45. @amohrhard Encrypt everything.
46. Slide 47 @amohrhard KMS – Key Management Service § Manages Master Key § Provides Data Keys for Envelope Encryption § Fully integrated into IAM and all services that store data Source: https://docs.aws.amazon.com/kms/latest/developerguide/concepts.html
47. Slide 48 @amohrhard Encrypt everything. § Best Practice -Encrypt databases, queues, images, files § Bonus -No decision if encryption should be enabled or not. Just encrypt it. § Tools -Use AWS Config to monitor compliance -Use IAM policies to force encrypted resources
48. @amohrhard Secure your network.
49. @amohrhard

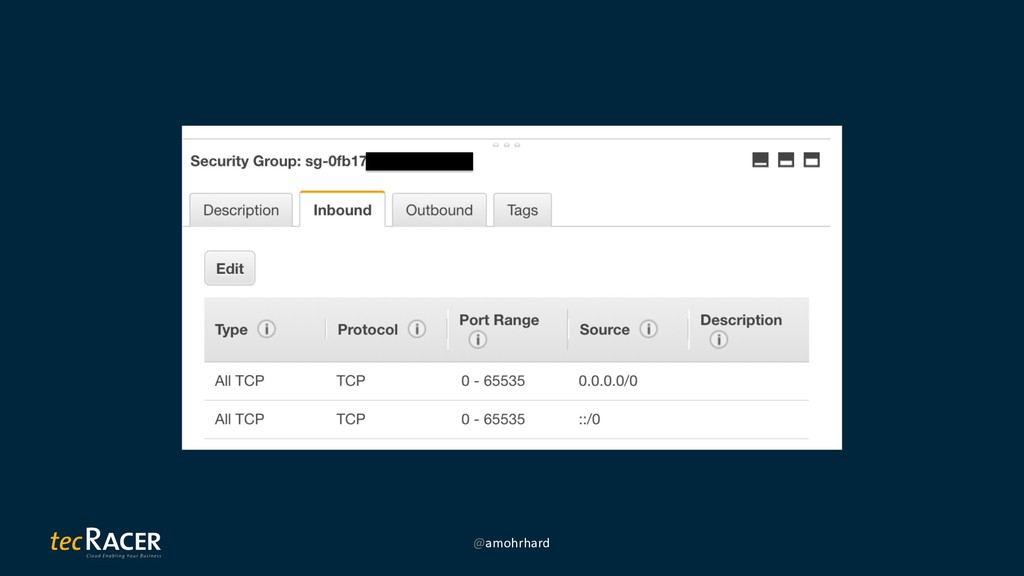

50. Slide 51 @amohrhard Security Group Best Practices § Don‘t allow ssh from public internet § Prefer security group references over private IP ranges
51. @amohrhard Network Access Control Lists (NACLs)
52. @amohrhard VPC Flow Logs
53. @amohrhard Use Bastion hosts. But how to manage SSH keys?
54. Slide 55 @amohrhard Options for Bastion Hosts § Option A: Single instance in an AutoScaling Group (set up manually) § Option B: AutoScaling Group for Bastion hosts (e.g. https://github.com/widdix/aws-cf-templates) § Option C: On Demand Bastion using Fargate (https://github.com/alex0ptr/fargate-bastion) § Option D: Why enable SSH at all? Use SSM instead.
55. Slide 56 @amohrhard VPN as alternative to Bastion hosts § Create a tunnel from your office or your machine to your AWS network § Different solutions, for example: -OpenVPN Access Server -Sophos UTM -AWS Client VPN (coming soon)
56. @amohrhard Secure your buckets.
57. Slide 58 @amohrhard Secure S3 § Best Practice -Only use explicit IAM policies and Bucket Policies -Use Public Access Block -Data Security: MFA Delete / Object Locks / Versioning -Access Logging + CloudTrail Data Events for critical data
58. @amohrhard Automate all the things.
59. Slide 60 @amohrhard Automate all the things! § Best Practice -Compliance-as-Code (pacbot, cloud custodian, AWS Config) -Create all configs through code -Automate actions to mitigate risks (-> responsive controls) -Use StackSets to configure multiple accounts / regions at once -Make sure that your $BUILD_SERVER is secure!
60. Slide 61 @amohrhard Automate all the things! § Resources -docs.cloudposse.com -github.com/widdix/aws-cf-templates -asecure.cloud
61. @amohrhard More Multi Account Strategies
62. Slide 63 @amohrhard Multi Account Strategies – User Account Source: https://aws.amazon.com/answers/account-management/aws-multi-account-security-strategy/
63. Slide 64 @amohrhard Multi Account Strategies – Security Account Source: https://aws.amazon.com/answers/account-management/aws-multi-account-security-strategy/
64. Slide 65 @amohrhard Multi Account Strategies – Logging Account Source: https://aws.amazon.com/answers/account-management/aws-multi-account-security-strategy/
65. @amohrhard Landing Zones
66. Slide 67 @amohrhard Landing Zone – “Account Vending Machine” Source: https://aws.amazon.com/answers/aws-landing-zone/ Coming soon: AWS Control Tower
67. @amohrhard How to assess security in an existing account?
68. Slide 69 @amohrhard How to assess security in an existing account? § Prowler § Scout2 § Pacbot § AWS Security Hub (coming soon) § https://github.com/toniblyx/my-arsenal-of-aws-security-tools -Defensive and offensive tools -Good resource on possible attack angles
69. @amohrhard Things not covered today IAM Permission Boundaries, Cross Account Roles, Trusted Advisor, Cross Account Resource Sharing, VPC VPN Gateways, S3 Client Side Encryption, Lambda Permissions, IoT, Glacier Vault Locks, S3 ACLs, SQS Queue Policies, S3 Pre-Signed URLs, CloudFront URL signing, API Gateway Custom Authorizer, Cognito, Trust Policies, Password Management with SSM, Secrets Manager, Inspector, Security Monkey, AWS Shield, WAF, CloudHSM, Managed Policies, SSM Automated Patching, Cross Account Resource Sharing, KMS Grants, KMS Key Policies, Secure Network Design, IAM Authentication for RDS And many more.
70. @amohrhard Take-aways
71. Slide 72 @amohrhard Take-aways § Start small, expand incrementally § Principle of Least Privilege § Establish observability and alerts § Use public S3 buckets with extreme care
72. @amohrhard Multi strategy. Source: https://lastweekinaws.com/blog/s3-bucket-responsibility.html <your name here>?
73. Andreas Mohrhard | Cloud Consultant | @amohrhard
74. Slide 75 @amohrhard Resources § https://github.com/toniblyx/my-arsenal-of-aws-security-tools § AWS Documentation on the mentioned services § Well Architected Framework § CIS AWS Foundations Benchmark § https://aws.amazon.com/blogs/security/
