Hydraulic Reservoir Tank Design for OEM Equipment

A practical guide to hydraulic reservoir tank design for OEM and industrial equipment. This presentation covers reservoir sizing, suction and return port placement, internal baffles, steel and stainless steel construction, welding, leak integrity, and design-for-manufacturing considerations.

Engineered Welding, Inc. provides custom metal fabrication and hydraulic reservoir tank manufacturing for OEM and industrial applications.

Learn more about custom metal fabrication and hydraulic reservoir manufacturing:
https://www.engineeredwelding.com/

Transcript

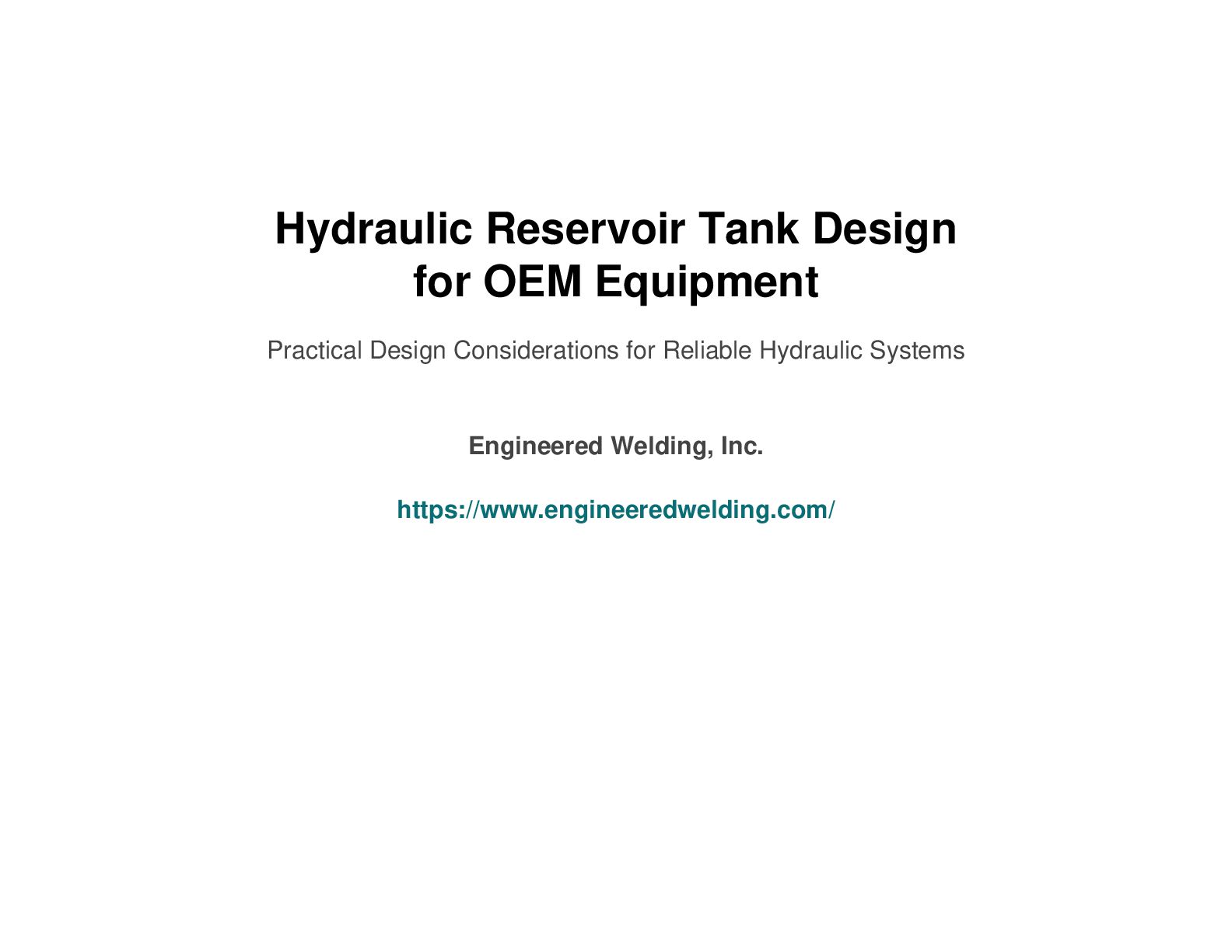

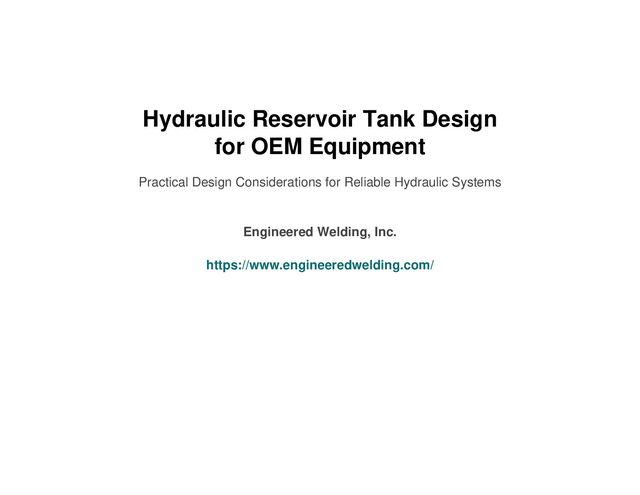

1. Hydraulic Reservoir Tank Design for OEM Equipment Practical Design Considerations for Reliable Hydraulic Systems Engineered Welding, Inc. https://www.engineeredwelding.com/

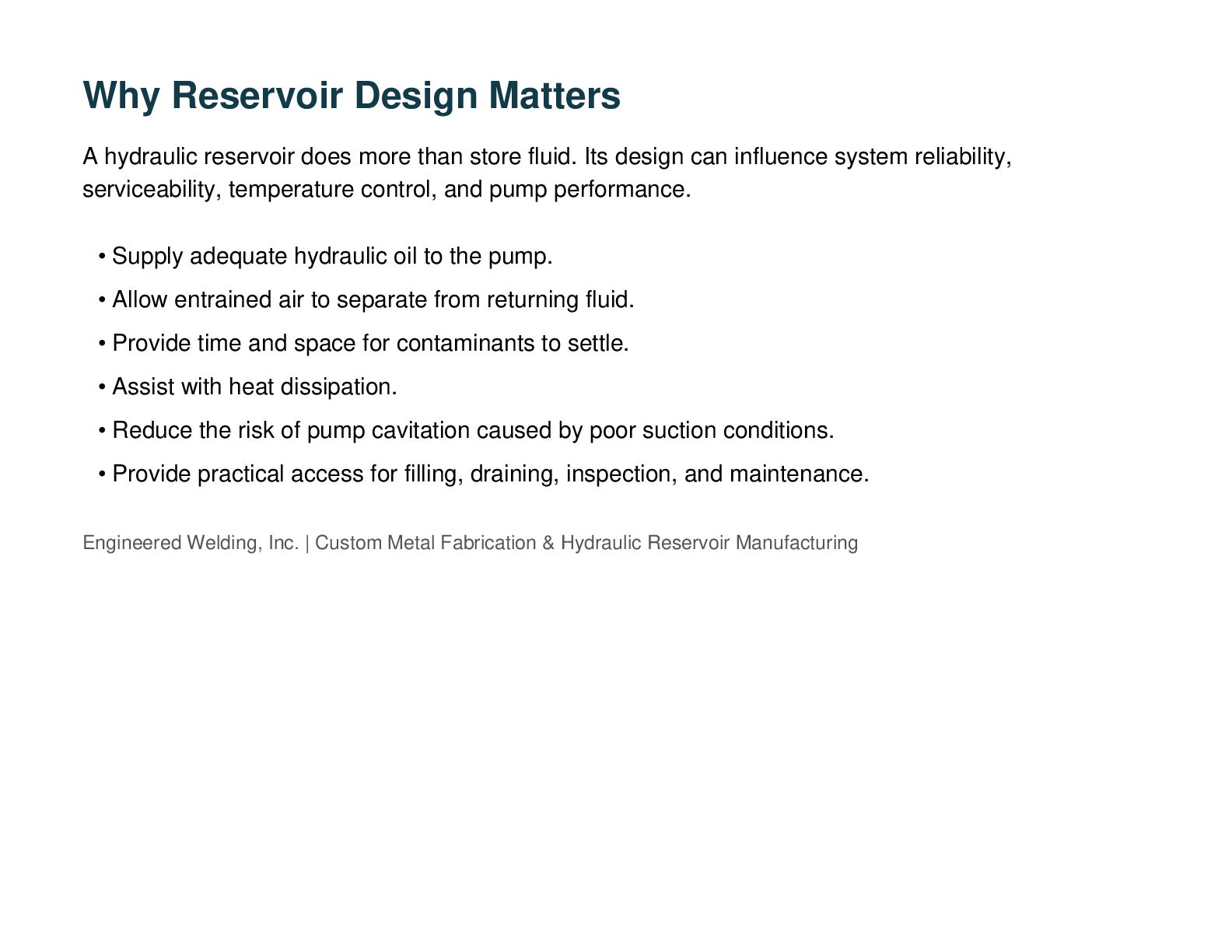

2. Why Reservoir Design Matters A hydraulic reservoir does more than store fluid. Its design can influence system reliability, serviceability, temperature control, and pump performance. • Supply adequate hydraulic oil to the pump. • Allow entrained air to separate from returning fluid. • Provide time and space for contaminants to settle. • Assist with heat dissipation. • Reduce the risk of pump cavitation caused by poor suction conditions. • Provide practical access for filling, draining, inspection, and maintenance. Engineered Welding, Inc. | Custom Metal Fabrication & Hydraulic Reservoir Manufacturing

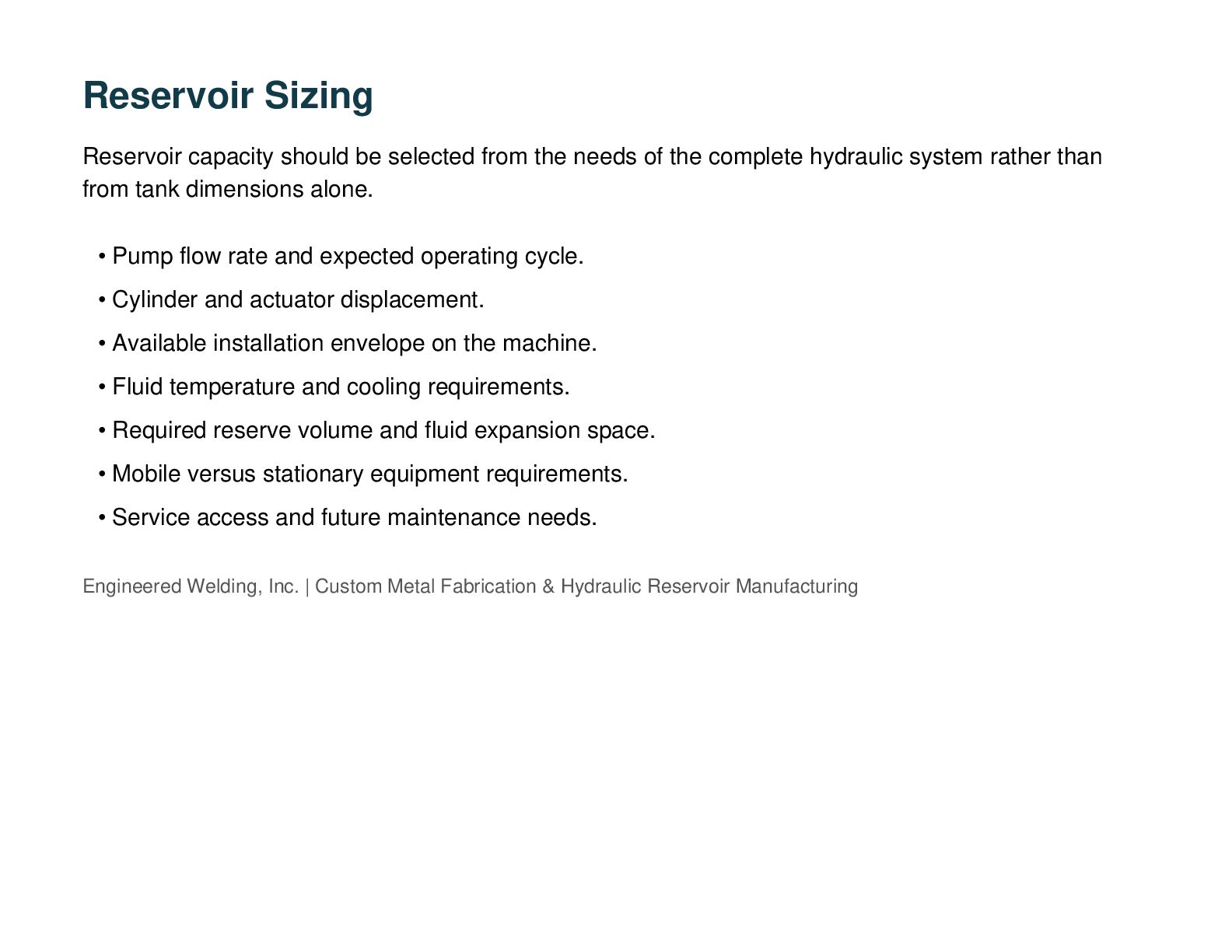

3. Reservoir Sizing Reservoir capacity should be selected from the needs of the complete hydraulic system rather than from tank dimensions alone. • Pump flow rate and expected operating cycle. • Cylinder and actuator displacement. • Available installation envelope on the machine. • Fluid temperature and cooling requirements. • Required reserve volume and fluid expansion space. • Mobile versus stationary equipment requirements. • Service access and future maintenance needs. Engineered Welding, Inc. | Custom Metal Fabrication & Hydraulic Reservoir Manufacturing

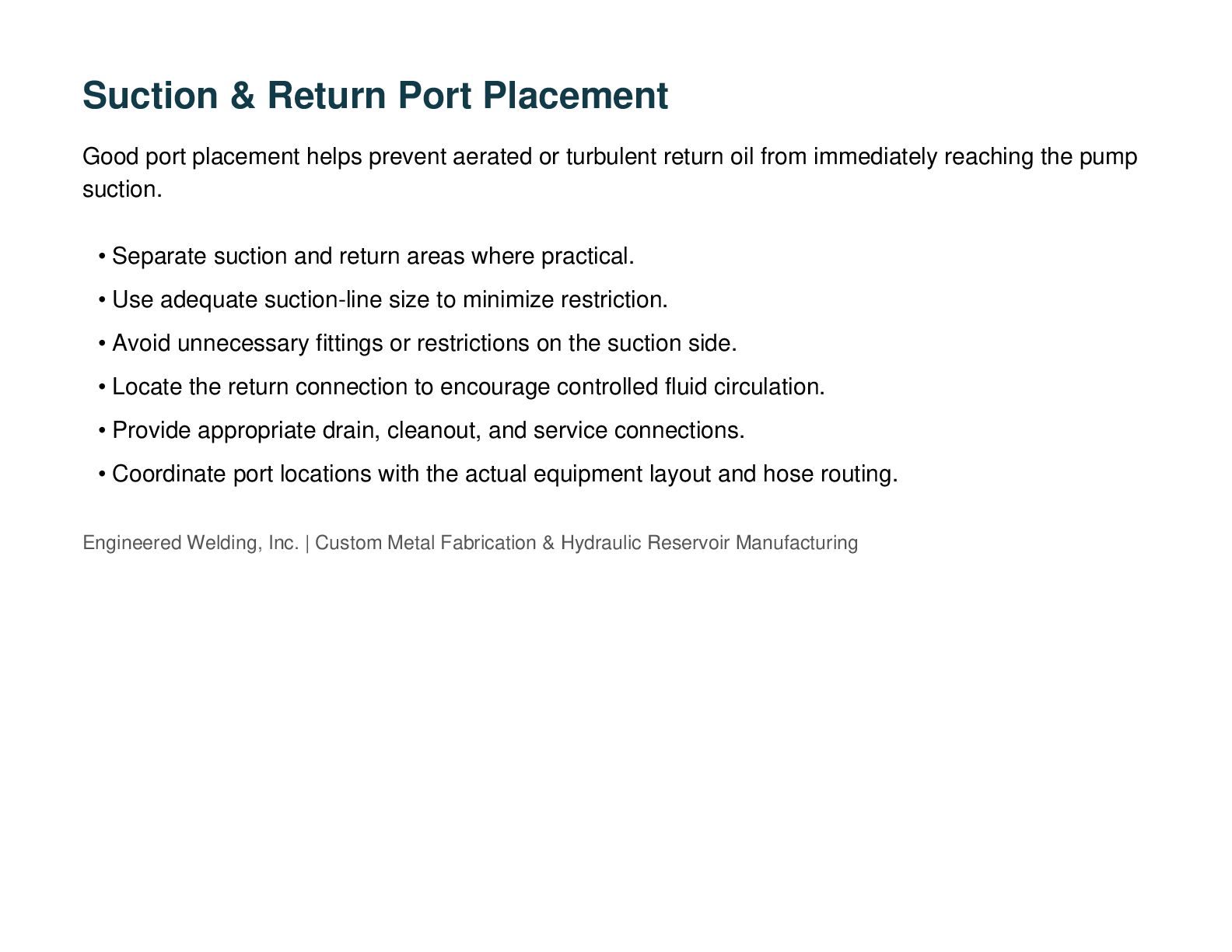

4. Suction & Return Port Placement Good port placement helps prevent aerated or turbulent return oil from immediately reaching the pump suction. • Separate suction and return areas where practical. • Use adequate suction-line size to minimize restriction. • Avoid unnecessary fittings or restrictions on the suction side. • Locate the return connection to encourage controlled fluid circulation. • Provide appropriate drain, cleanout, and service connections. • Coordinate port locations with the actual equipment layout and hose routing. Engineered Welding, Inc. | Custom Metal Fabrication & Hydraulic Reservoir Manufacturing

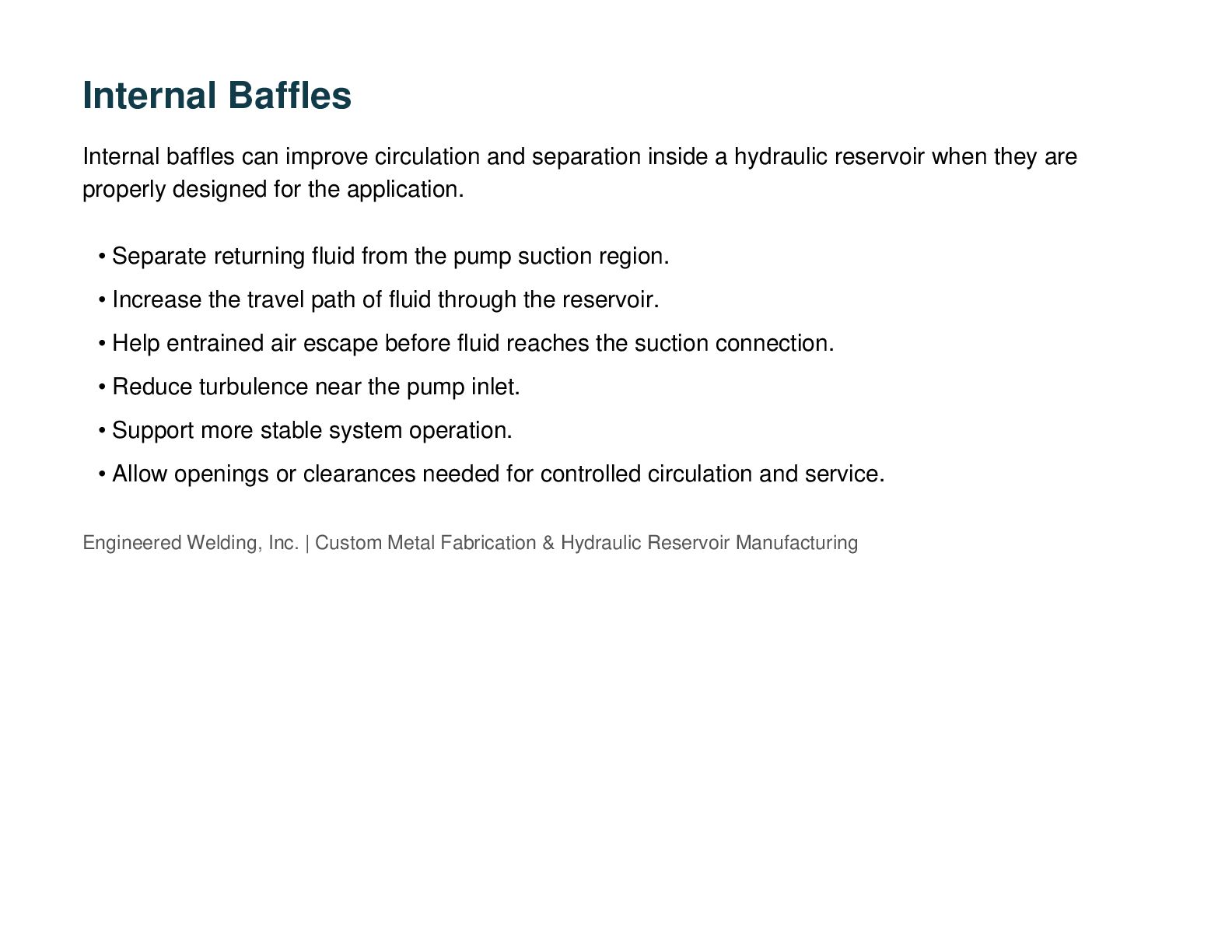

5. Internal Baffles Internal baffles can improve circulation and separation inside a hydraulic reservoir when they are properly designed for the application. • Separate returning fluid from the pump suction region. • Increase the travel path of fluid through the reservoir. • Help entrained air escape before fluid reaches the suction connection. • Reduce turbulence near the pump inlet. • Support more stable system operation. • Allow openings or clearances needed for controlled circulation and service. Engineered Welding, Inc. | Custom Metal Fabrication & Hydraulic Reservoir Manufacturing

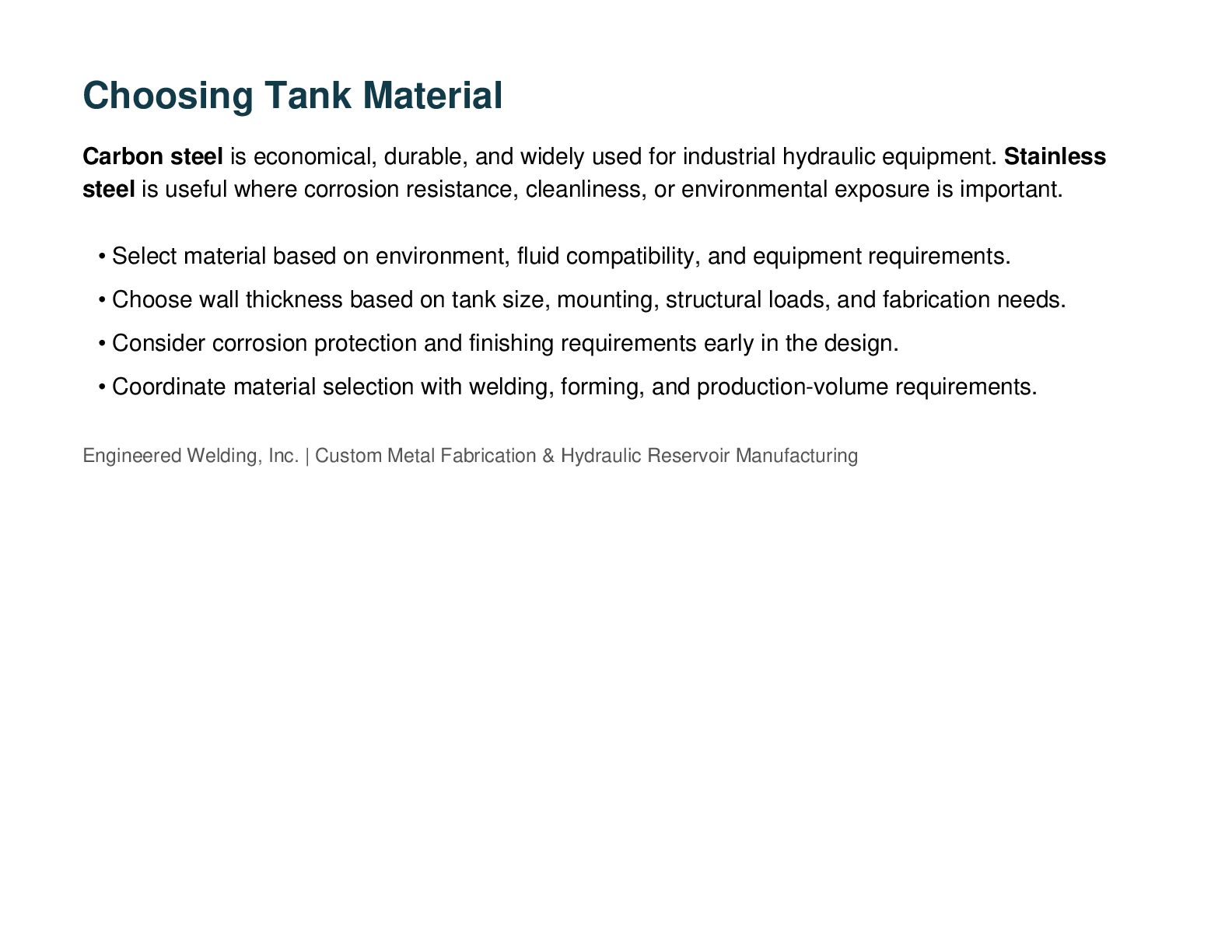

6. Choosing Tank Material Carbon steel is economical, durable, and widely used for industrial hydraulic equipment. Stainless steel is useful where corrosion resistance, cleanliness, or environmental exposure is important. • Select material based on environment, fluid compatibility, and equipment requirements. • Choose wall thickness based on tank size, mounting, structural loads, and fabrication needs. • Consider corrosion protection and finishing requirements early in the design. • Coordinate material selection with welding, forming, and production-volume requirements. Engineered Welding, Inc. | Custom Metal Fabrication & Hydraulic Reservoir Manufacturing

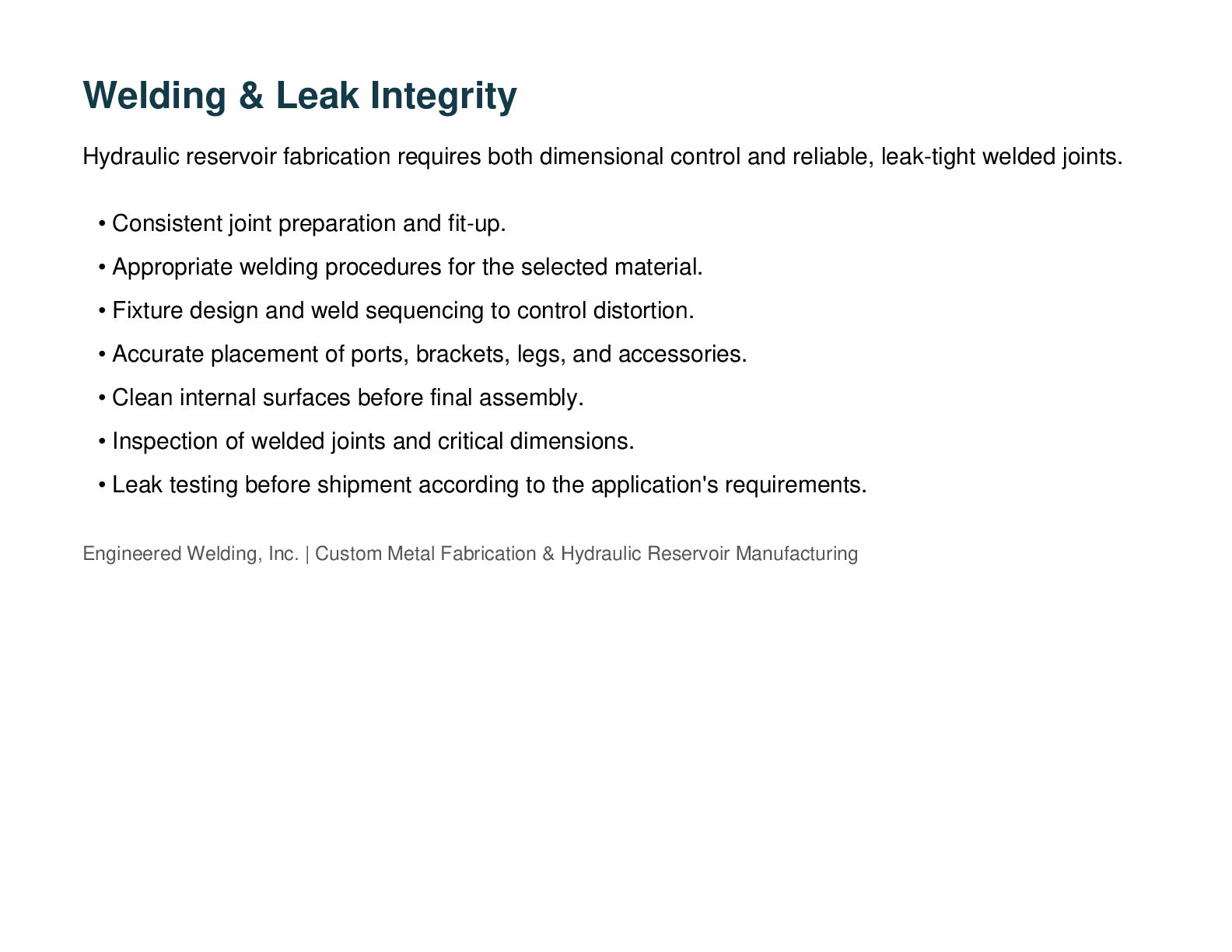

7. Welding & Leak Integrity Hydraulic reservoir fabrication requires both dimensional control and reliable, leak-tight welded joints. • Consistent joint preparation and fit-up. • Appropriate welding procedures for the selected material. • Fixture design and weld sequencing to control distortion. • Accurate placement of ports, brackets, legs, and accessories. • Clean internal surfaces before final assembly. • Inspection of welded joints and critical dimensions. • Leak testing before shipment according to the application's requirements. Engineered Welding, Inc. | Custom Metal Fabrication & Hydraulic Reservoir Manufacturing
8. Designing for OEM Manufacturing Manufacturability should be considered while the reservoir is still being designed. Early coordination between the OEM and fabricator can reduce unnecessary complexity and production problems. • Provide complete CAD drawings and revision control. • Specify material grade and thickness. • Define port sizes, thread types, and exact locations. • Identify mounting features and interface dimensions. • Document baffle configuration and internal components. • Specify filler/breather, drain, sight-level, and other accessories. • Define inspection, leak-test, finish, and packaging requirements. • Communicate prototype and expected production quantities. Engineered Welding, Inc. | Custom Metal Fabrication & Hydraulic Reservoir Manufacturing

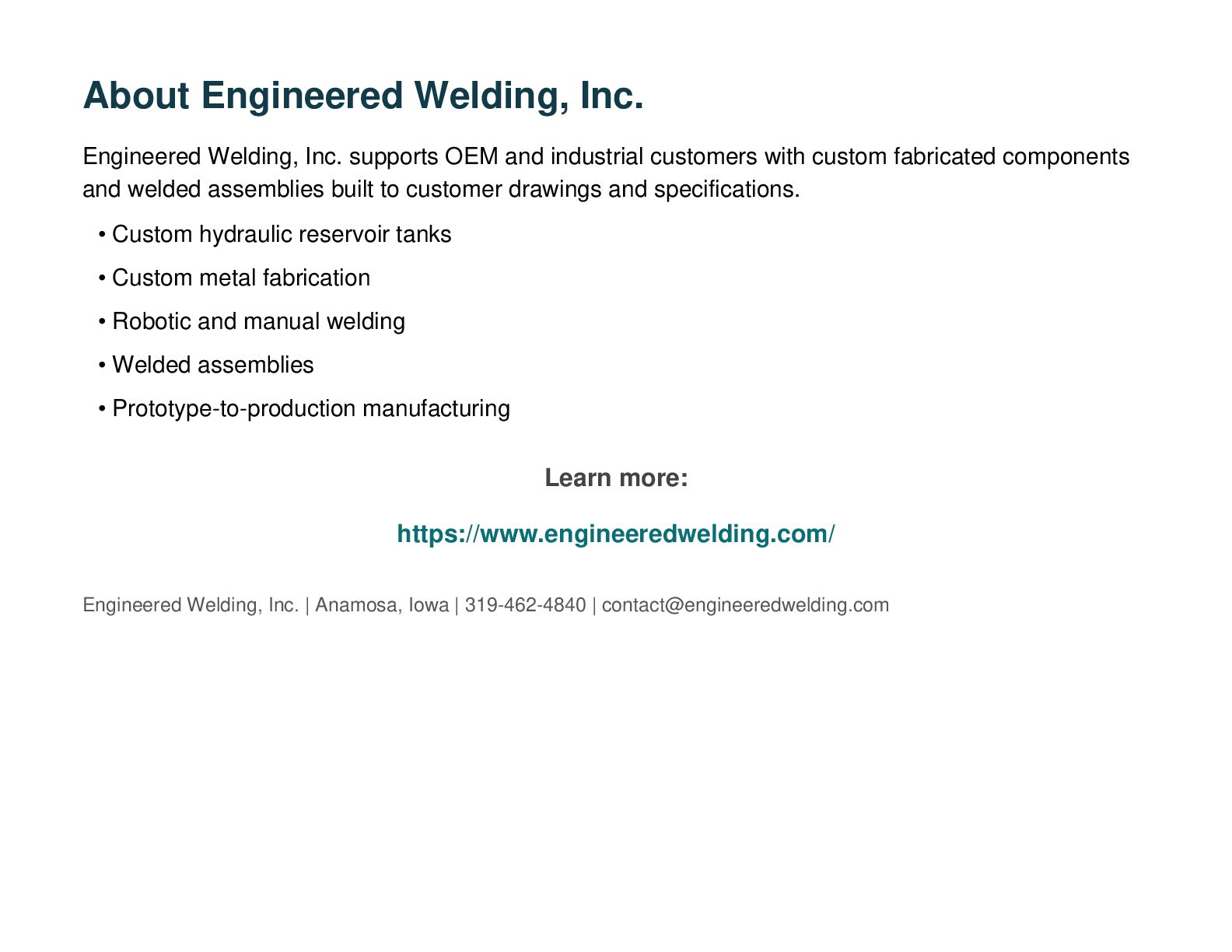

9. About Engineered Welding, Inc. Engineered Welding, Inc. supports OEM and industrial customers with custom fabricated components and welded assemblies built to customer drawings and specifications. • Custom hydraulic reservoir tanks • Custom metal fabrication • Robotic and manual welding • Welded assemblies • Prototype-to-production manufacturing Learn more: https://www.engineeredwelding.com/ Engineered Welding, Inc. | Anamosa, Iowa | 319-462-4840 | contact@engineeredwelding.com
