  1. Trends, patterns and use cases in hybrid cloud API Management

    Matt Roberts Distinguished Engineer and CTO, IBM Integration
  2. 2023 SERIES OF EVENT New York May 16&17 Australia October

    11&12 Singapore April 12&13 Helsinki & North June 5&6 Paris SEPTEMBER London November 15&16 June 28-30 SILICON VALLEY March 14&15 Dubai & Middle East February 22&23
  3. Goals for this session Why are hybrid-cloud API scenarios permeating

    the industry? What are the different hybrid-cloud API management patterns? Why is API portability a critical factor in delivering successful hybrid-cloud projects? 2
  4. 16% % of business channels replaced by digital 34% 2020

    2019 Over 50% of organizations estimate they have more than 100 applications in their portfolio today The great digital shift Growing complexity - McKinsey 10 years of digitization in under 1 year - IDC Why are hybrid-cloud API scenarios permeating the industry today? 3

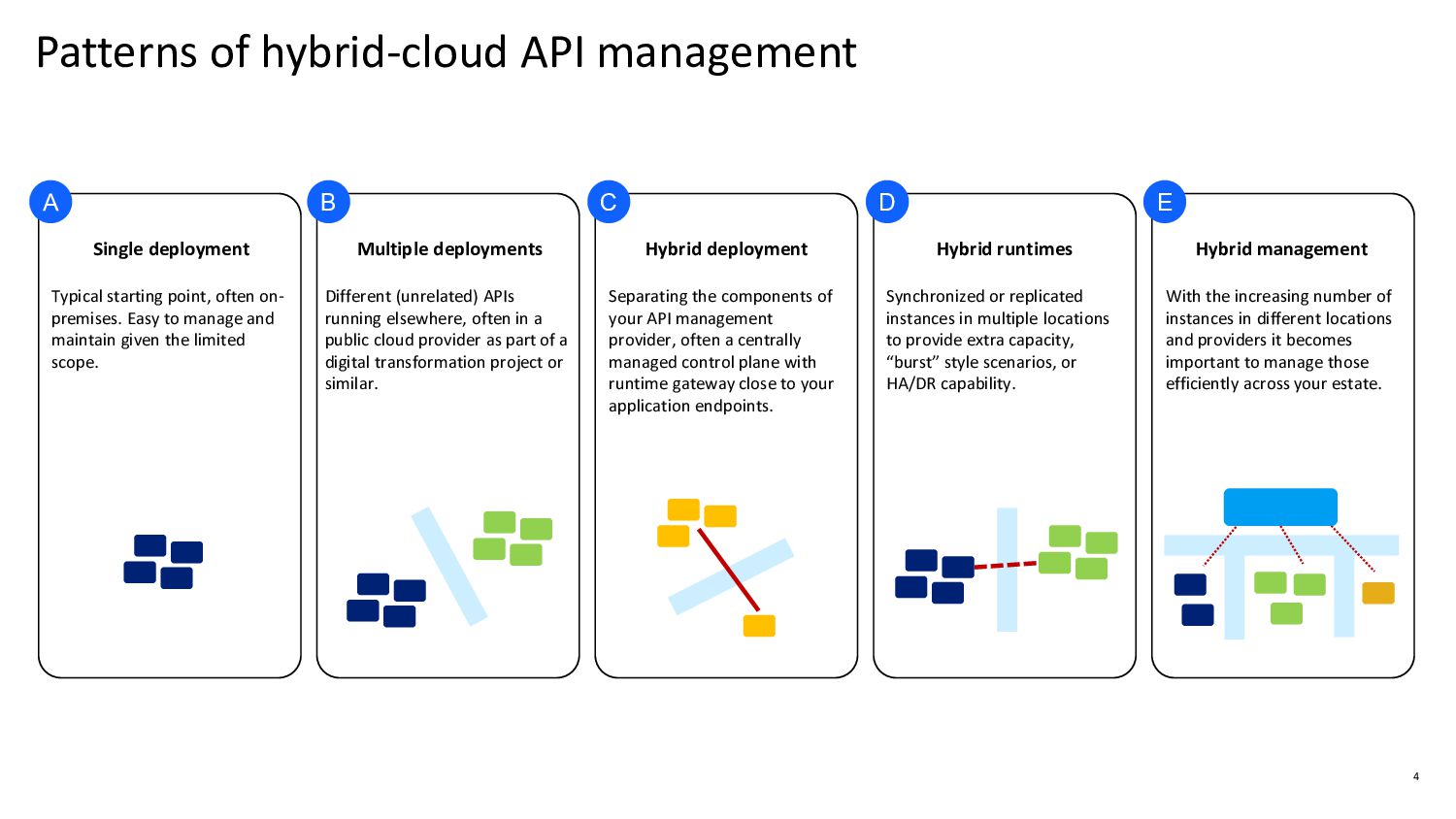

  5. Patterns of hybrid-cloud API management 4 D Hybrid runtimes Synchronized

    or replicated instances in multiple locations to provide extra capacity, “burst” style scenarios, or HA/DR capability. C Hybrid deployment Separating the components of your API management provider, often a centrally managed control plane with runtime gateway close to your application endpoints. E Hybrid management With the increasing number of instances in different locations and providers it becomes important to manage those efficiently across your estate. A Single deployment Typical starting point, often on- premises. Easy to manage and maintain given the limited scope. B Multiple deployments Different (unrelated) APIs running elsewhere, often in a public cloud provider as part of a digital transformation project or similar.

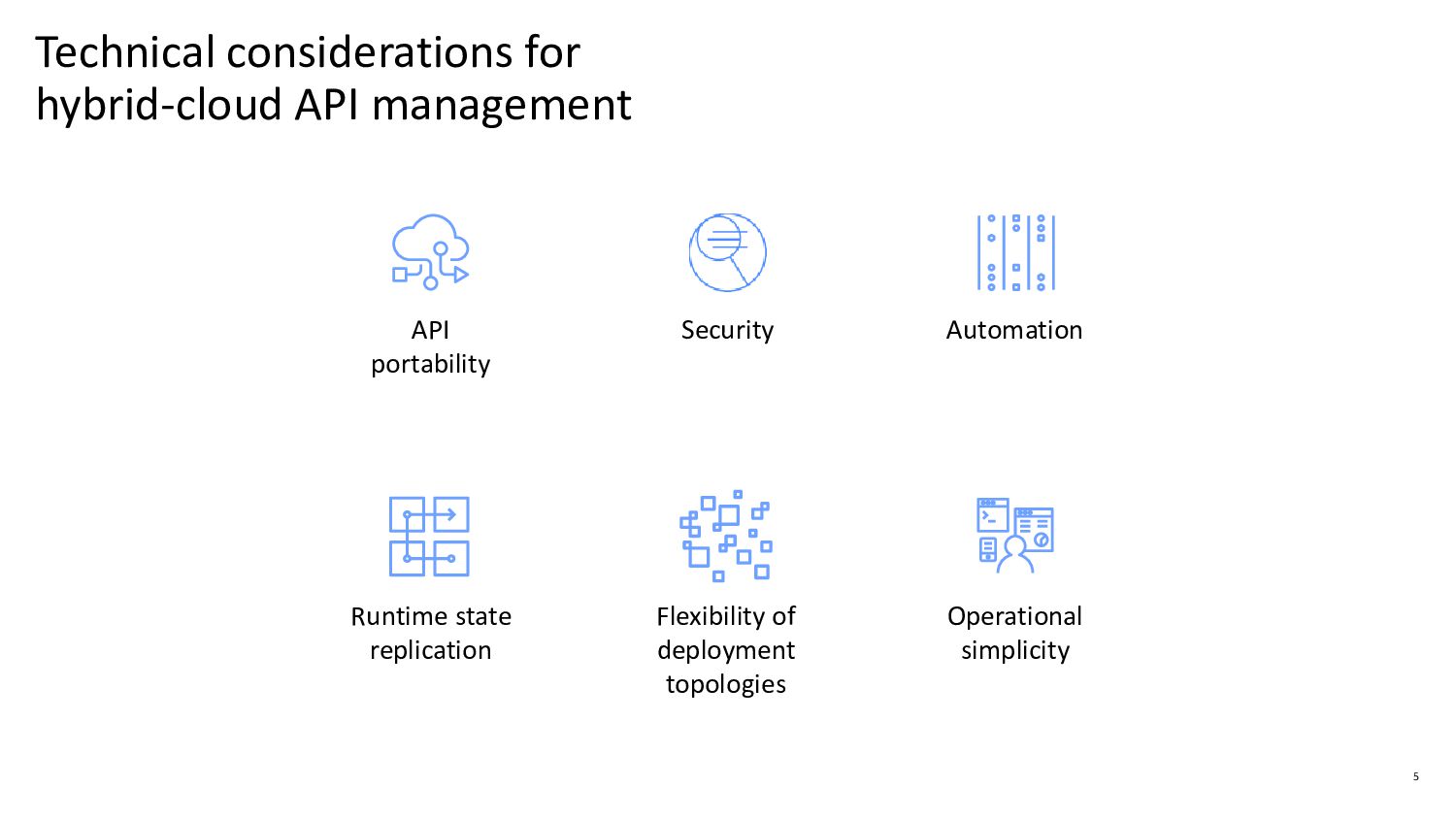

  6. Technical considerations for hybrid-cloud API management 5 API portability Flexibility

    of deployment topologies Automation Operational simplicity Runtime state replication Security

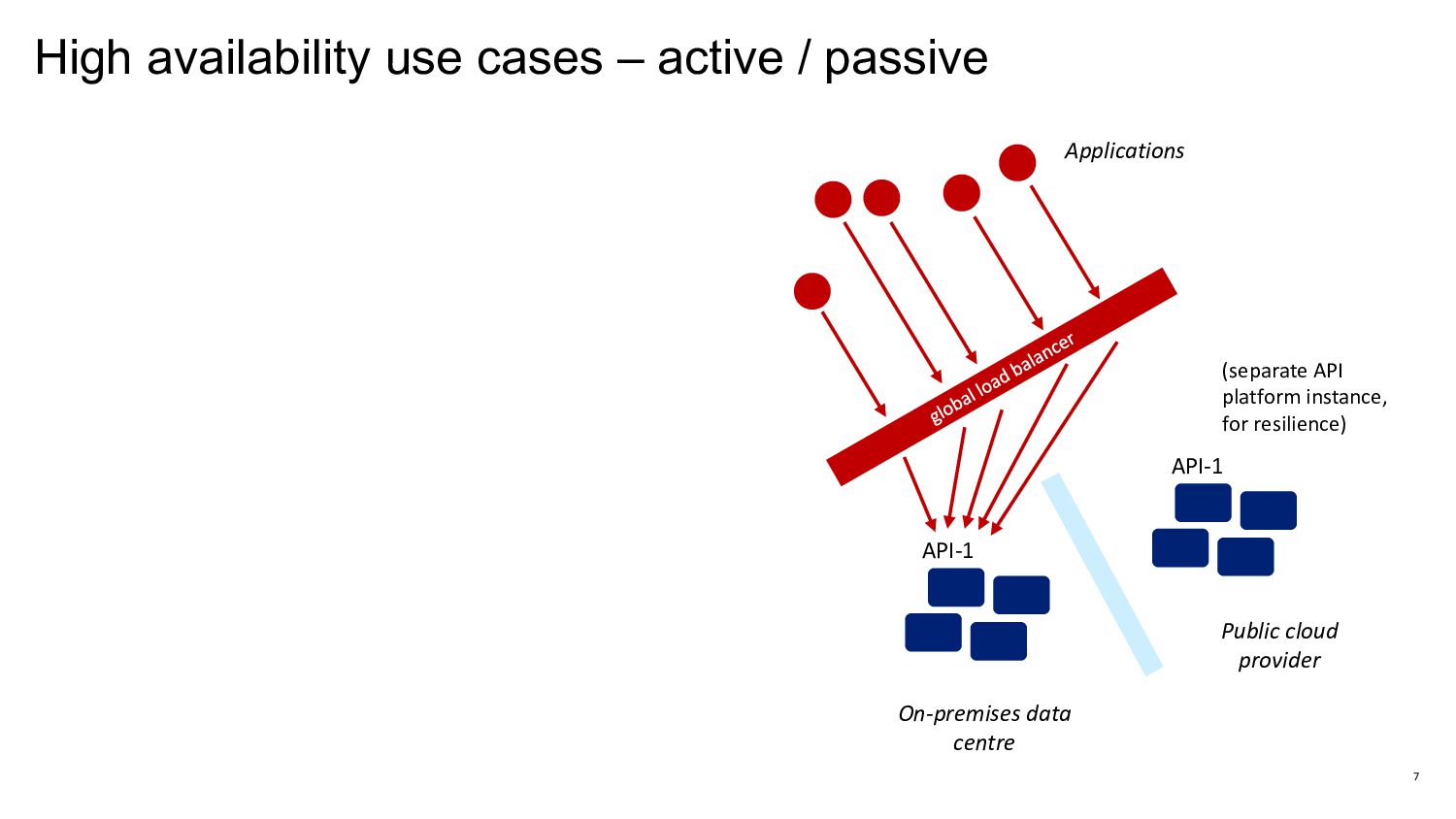

  7. High availability use cases – active / passive 7 API-1

    On-premises data centre API-1 Public cloud provider Applications (separate API platform instance, for resilience)

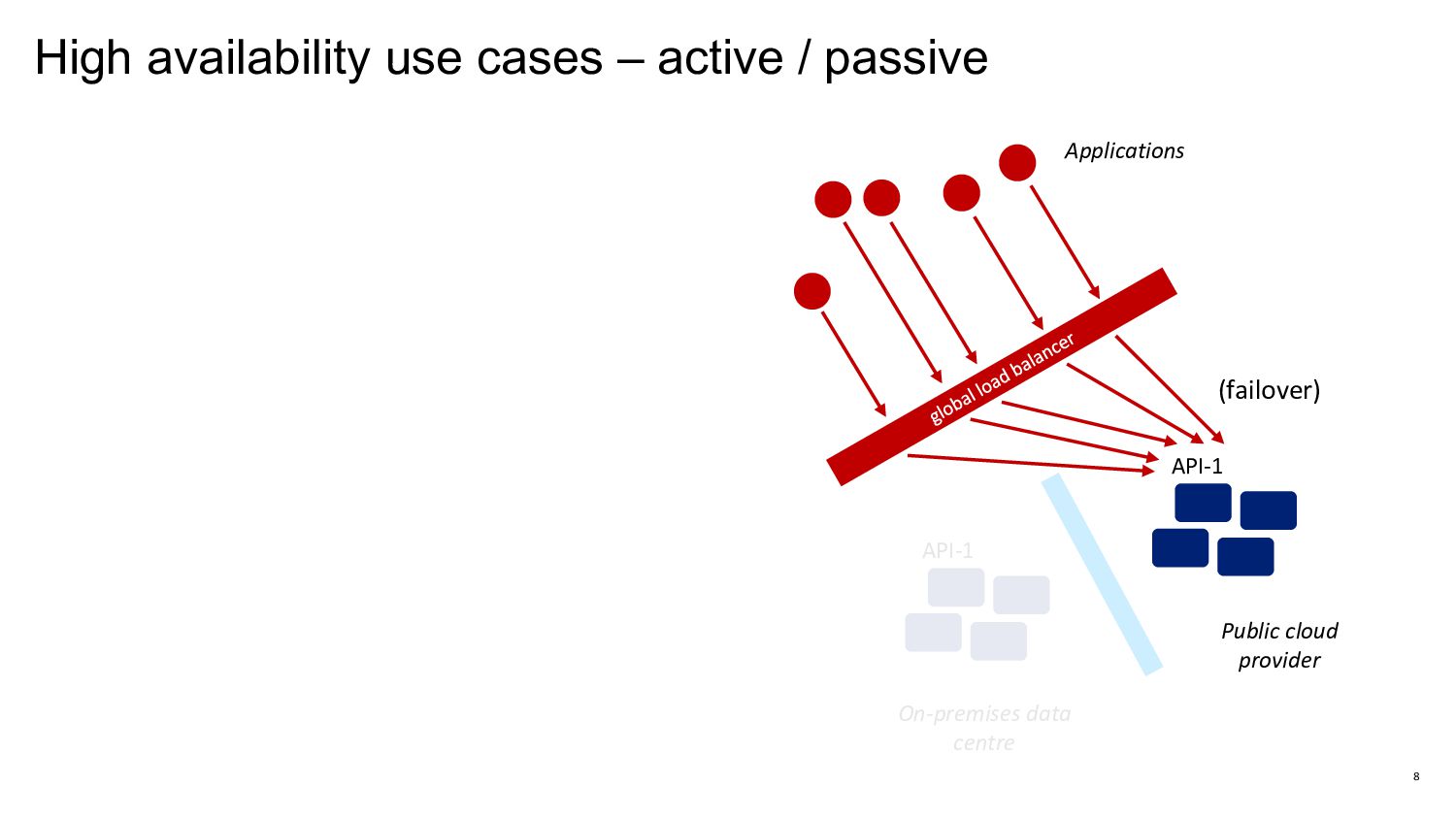

  8. High availability use cases – active / passive 8 API-1

    On-premises data centre API-1 Public cloud provider Applications (failover)

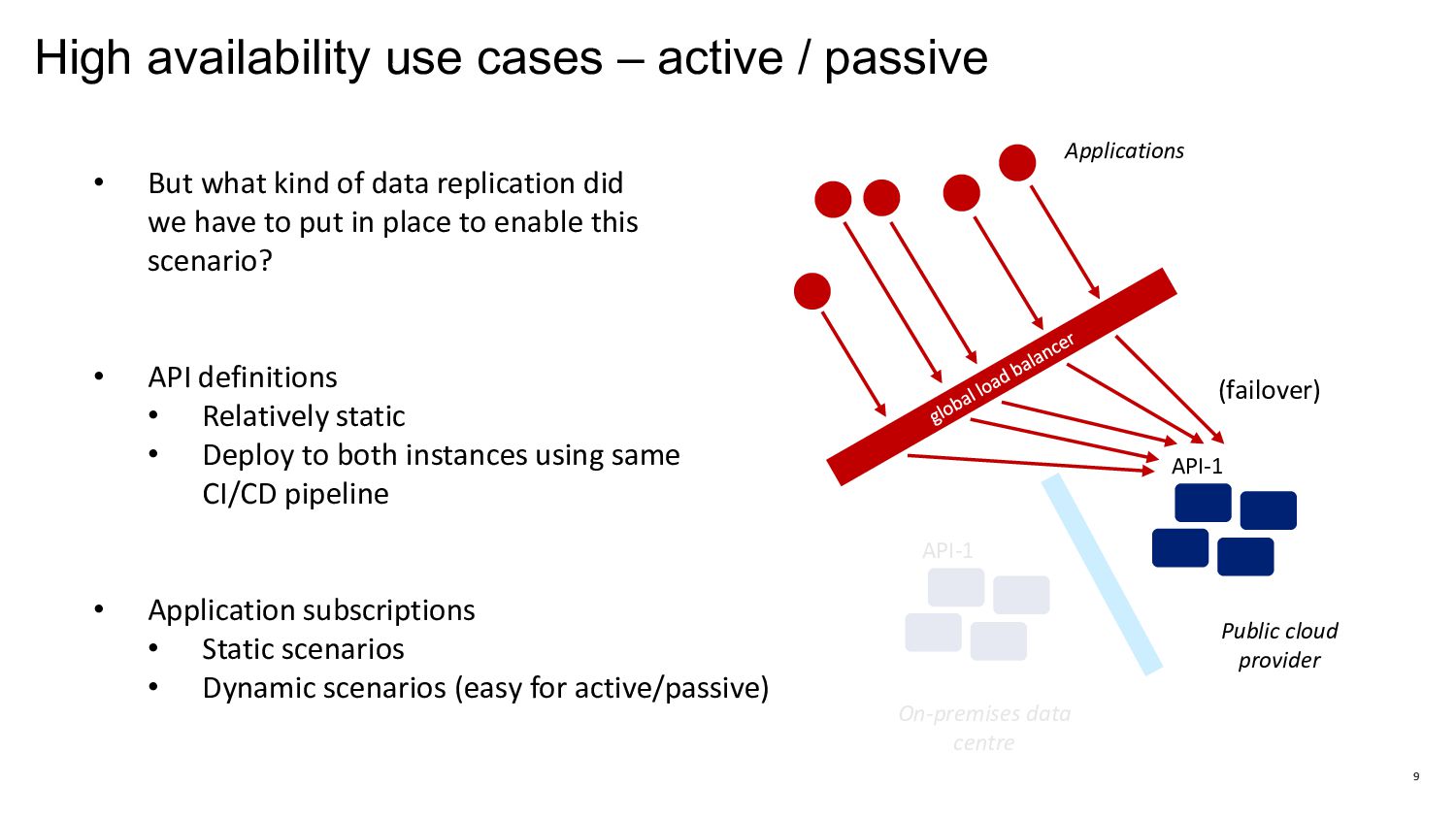

  9. High availability use cases – active / passive 9 API-1

    On-premises data centre API-1 Public cloud provider Applications (failover) • But what kind of data replication did we have to put in place to enable this scenario? • API definitions • Relatively static • Deploy to both instances using same CI/CD pipeline • Application subscriptions • Static scenarios • Dynamic scenarios (easy for active/passive)

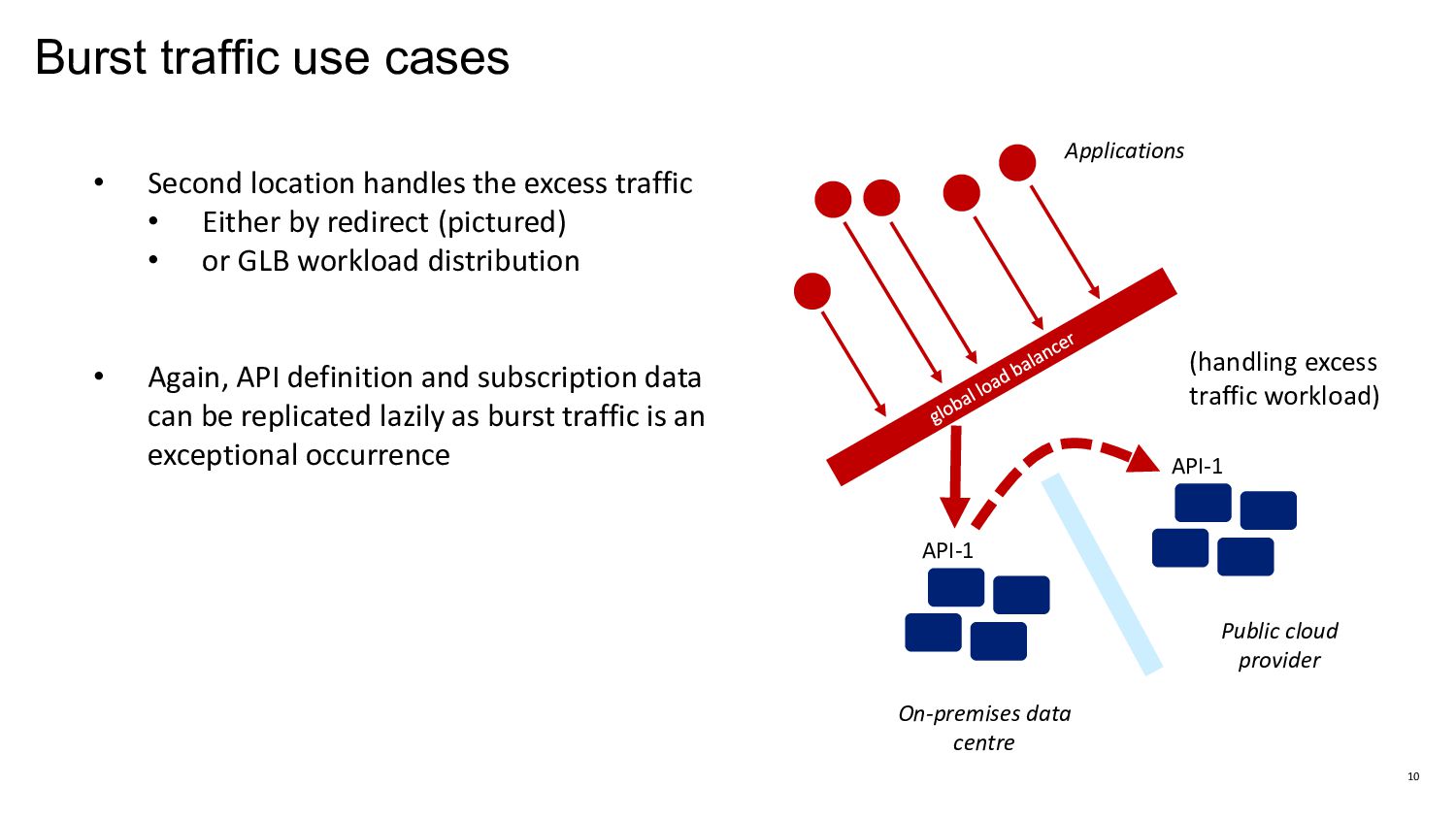

  10. Burst traffic use cases 10 API-1 On-premises data centre API-1

    Public cloud provider Applications (handling excess traffic workload) • Second location handles the excess traffic • Either by redirect (pictured) • or GLB workload distribution • Again, API definition and subscription data can be replicated lazily as burst traffic is an exceptional occurrence

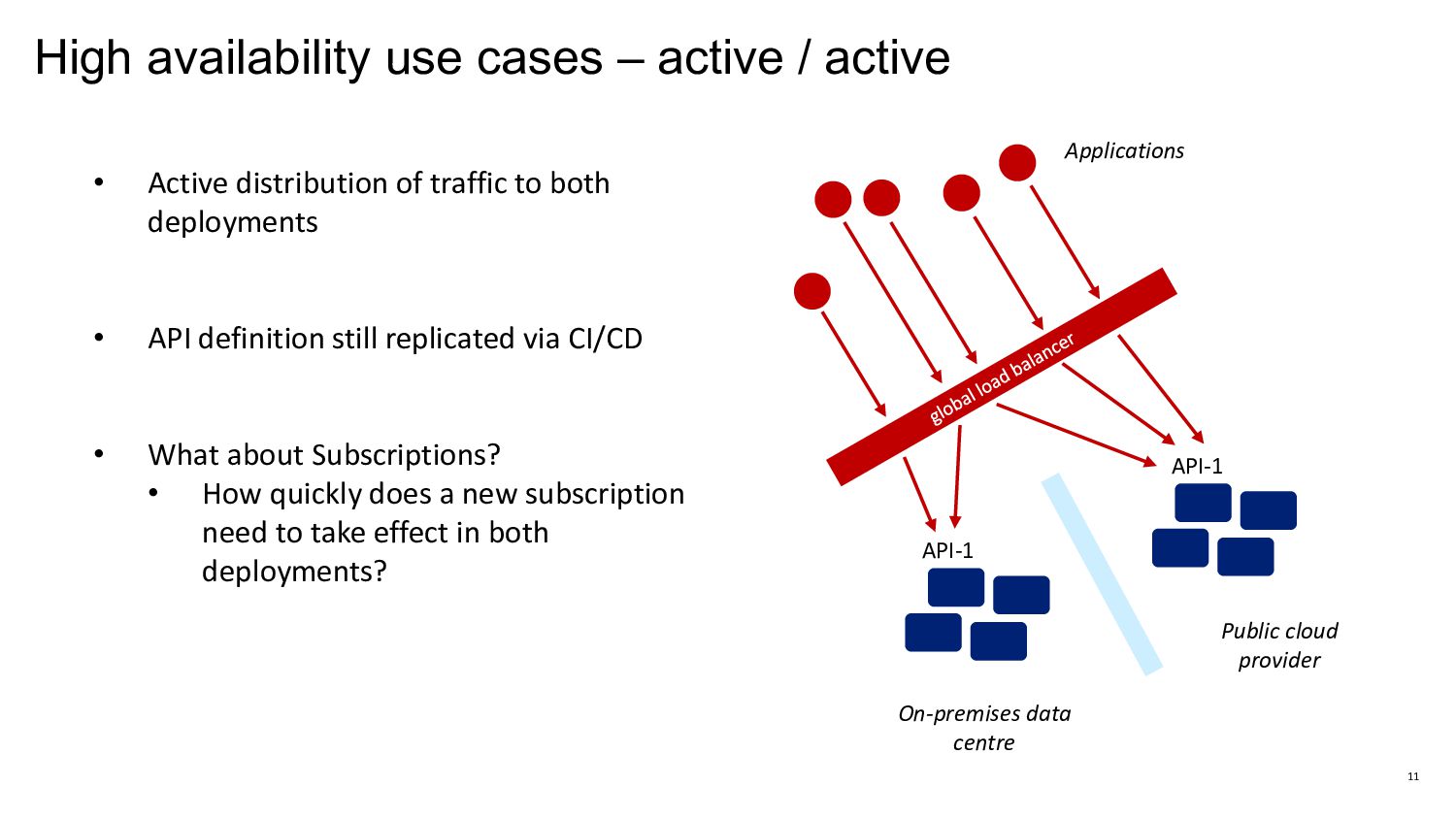

  11. High availability use cases – active / active 11 API-1

    API-1 On-premises data centre Public cloud provider Applications • Active distribution of traffic to both deployments • API definition still replicated via CI/CD • What about Subscriptions? • How quickly does a new subscription need to take effect in both deployments?
  12. Achieving portability of APIs (a UK banking case study) 13

    • Multiple hosting providers for on-premises and cloud built up over time • Regulatory requirements to avoid lock-in to any individual hosting provider • Exposing the same logical API from each location for resilience Data centre provider 1 Data centre provider 2 Public cloud provider 1 Public cloud provider 2 API provider A API provider B API provider C API provider D API implementation converter (custom written code) Abstract API definition Built, owned and maintained by the bank Forces lowest common denominator functionality across all providers

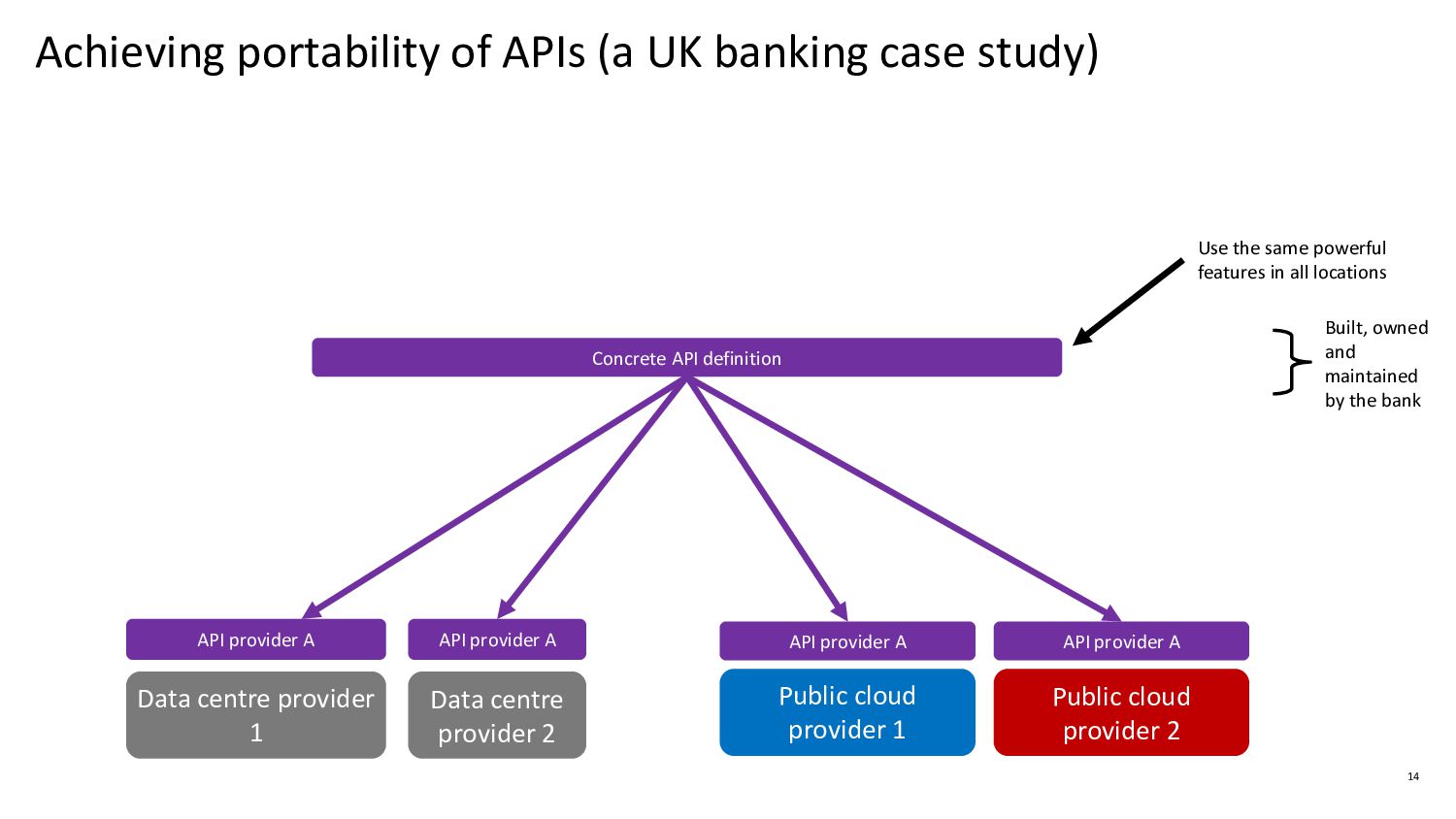

  13. Achieving portability of APIs (a UK banking case study) 14

    Data centre provider 1 Data centre provider 2 Public cloud provider 1 Public cloud provider 2 API provider A API provider A API provider A API provider A Built, owned and maintained by the bank Use the same powerful features in all locations Concrete API definition
  14. The hybrid cloud API Management platform, from IBM © 2022

    IBM Corporation 15 IBM API Connect SaaS Consume as a service with multiple options for isolation and availability IBM API Connect Software Deploy on-prem or any cloud, bring your own OpenShift, other K8s platforms or VMware IBM Cloud Pak for Integration Consume API Management integration capabilities in a unified integration platform, on OpenShift anywhere
  15. Summary 16 • Hybrid-cloud API Management is increasingly common due

    to the breadth and depth of API use cases • There are a range of patterns and use cases that can be adopted by different organizations to meet their requirements • API portability is a critical factor for hybrid success when selecting your hybrid cloud API Management platform
