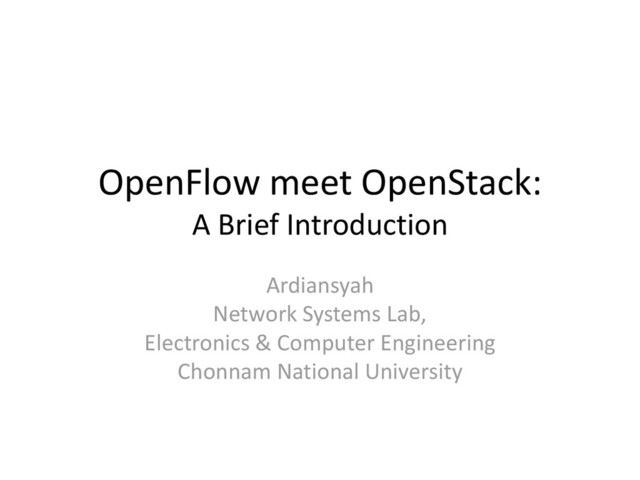

1. OpenFlow meet OpenStack: A Brief Introduction Ardiansyah Network Systems Lab, Electronics & Computer Engineering Chonnam National University
2. Outline • Introduction to SDN Controller • OpenStack Services – Neutron/Quantum • Example – Ryu Plugin for OpenStack Quantum – NEC/Trema for OpenStack Quantom
3. Introduction to SDN Controller • SDN Controller: Manage flow control to enable intelligent networking • Tools – Ryu – NEC/Trema – Floodlight – Etc…
4. OpenStack • What we can do with OpenStack
5. OpenStack - Quantum https://wiki.openstack.org/wiki/Quantum
6. Openstack - Quantum • How Quantum Works
7. Openstack - Quantum • Plugins
8. Example 1. OpenStack/Quantum SDN-based network virtualization with Ryu by Key Ohmura, NTT Software Innovation Center (May 2013) 2. OpenStack with OpenFlow/SDN by Takashi Torii, NEC (August 2012)
9. Ryu Plugin for OpenStack Quantum • SDN Framework – A platform for building SDN applications using Python – Provides useful libraries and well-defined API • Using Ryu Network Operation System with OpenStack as Network Controller (https://github.com/osrg/ryu/wiki/OpenStack)
10. Ryu Plugin for OpenStack Quantum • Ryu plugin was merged into OpenStack Quantum Grizzly release
11. Ryu Plugin for OpenStack Quantum • How Ryu Works with OpenStack
12. Ryu Plugin for OpenStack Quantum • Ryu and OpenStack (GRE Tunneling) - Demo
13. NEC/Trema for OpenStack Quantom • Trema: Full-Stack OpenFlow Framework for Ruby/C • Quantom-NEC OpenFlow Plugin https://wiki.openstack.org/wiki/Neutron/NEC_OpenFlow_Plugin • https://github.com/nec-openstack/quantum-openflow-plugin
14. NEC/Trema for OpenStack Quantum • NEC Plugin consists of two components – Plugin: It processes Neutron API calls and controls OpenFlow controller to handle logical networks on OpenFlow enabled network. – Agent: It runs on each compute node. It gathers a mapping beween a VIF and a switch port from local Open vSwitch and reports it to the plugin. • Requirements – OpenFlow Controller: Trema with Sliceable Switch (distributed under GPL2), or an OpenFlow Controller that has the same functionalities and REST API available at https://github.com/trema/apps/wiki/Sliceable-Network- Management-API .
