Testing server infrastructure with #serverspec

Testing server infrastructure with #serverspec

Open Source Datacenter Conference osdc.de
04/09/2014

An Introduction to serverspec (www.serverspec.org)

F28d4f1634bce85c90b76b197b1413d4?s=128

Andreas Schmidt

April 10, 2014
Tweet

Transcript

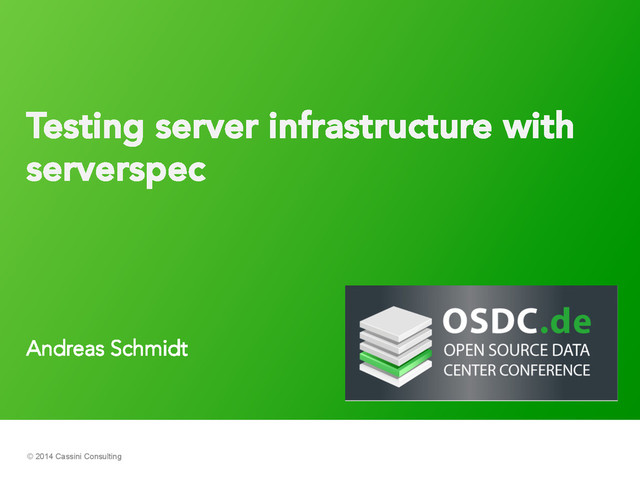

  1. © 2014 Cassini Consulting Andreas Schmidt Testing server infrastructure with

    serverspec
  2. Cassini Consulting @cassinigmbh •  IT & Management Consulting Andreas Schmidt

    •  From Dev to Ops •  Infrastructure & Deployment Automation w/ ruby
  3. •  Purpose of infrastructure testing •  #serverspec •  Examples /

    Demo •  Use Cases & benefits ? !
  4. Provisioning & Delivery

  5. Application being tested?

  6. Servers being tested?

  7. How is infrastructure being specified?

  8. „Startup“ •  Recent cloud technology •  Virtual Infrastructure Provisioning • 

    „Phoenix Server“ „Classic“ IT Environments •  Both virtualized & non-virtualized •  Mixed Provisioning processes •  IT outsourcing •  IT System & Software Architecture Regulated IT Environments •  i.e. banking, insurance companies, government •  + Compliance •  + Security Low Cost Short Cycle Time Documentation (Internal/External) Audit Capabilities Internal Documentation Acceptance Tests
  9. Automated Provisioning & Configuration Management

  10. Lower-level configuration aspects •  VM infrastructure & kernel parameters • 

    Networking •  Logical volume management Side effects •  RPM post-install scripts Documentation •  Specification of infrastructure •  Human Readable Testing on machine itself what‘s missing?
  11. Machine parse-able Human read-able Infrastructure Specification

  12. serverspec •  www.serverspec.org •  github.com/serverspec/serverspec MIT License Gosuke Miyashita @gokusenator

    „With serverspec, you can write RSpec tests for checking your servers are configured correctly.“
  13. serverspec describe package 'openssh-server' do it { should be_installed }

    end describe file '/etc/ssh/sshd_config' do it { should be_mode 600 } it { should be_owned_by 'root' }
 end describe service 'ssh' do it { should be_enabled } end
  14. Development box CM code

  15. Development box CM code CM code specs Test locally

  16. Development box CM code Staging Provision CM code specs box

    „state“ Test locally
  17. Development box CM code Staging Provision Test locally CM code

    specs box „state“ server spec „Spec“ box
  18. Development box CM code Staging Provision Test locally CM code

    specs box „state“ Test on server(s) server spec „Spec“ box
  19. Development box CM code Staging Local VM or Container Provision

    Test locally CM code specs box „state“ Provision Test on server(s) server spec „Spec“ box
  20. Development box CM code Staging Local VM or Container Provision

    Test locally CM code specs box „state“ Test Provision Test on server(s) server spec „Spec“ box
  21. Development box CM code Staging Local VM or Container Provision

    Test locally CM code specs box „state“ Test Provision Test on server(s) server spec „Spec“ box
  22. $ gem install serverspec diff-lcs, highline, rake
 net-ssh


    rspec, rspec-core, rspec- expectations, rspec-mock
 specinfra, serverspec Basics ssh to target hosts spec basics „Backend“ for infrastructure tests (local/remote, command abstraction, helpers) „Frontend“ w/ resource types à rspec
  23. Demo •  Serverspec Basics •  Overview of resource types • 

    Using abstractions and facts •  Introduce roles •  Environment-independent specs through properties
  24. Demo •  github.com/aschmidt75/serverspecplayground

  25. Monitoring vs. Spec •  Dynamic Aspects (crashed servers, services not

    reachable, disk full, ...) •  Mostly in „internal form“, not human readable, special checks buried in scripts •  Static Aspects (how system is built) •  Explicit form, human readable •  Keep your system up & running •  Build according to a specification and prove compliance with it
  26. Additional tools •  Comparable: rspec-system (! beaker-rspec), rspec-system-serverspec •  Integrate

    serverspec into vagrant as a provisioner: github.com/jvoorhis/vagrant-serverspec •  Reporting http://vincent.bernat.im/en/blog/2014-serverspec-test- infrastructure.html
  27. Infrastructure QA

  28. Infrastructure regression testing

  29. Automated acceptance testing

  30. Audit Capabilities

  31. Work test driven – Define, build, compare your environments.

  32. github.com/aschmidt75/serverspecplayground andreas.schmidt@cassini.de xing.to/aschmidt @aschmidt75 ?

  33. Cassini Consulting Niederlassung Düsseldorf Andreas Schmidt Bennigsen-Platz 1 40474 Düsseldorf

    Deutschland andreas.schmidt@cassini.de visit www.cassini.de Alle Angaben basieren auf dem derzeitigen Kenntnisstand. Änderungen vorbehalten. Dieses Dokument von Cassini Consulting ist ausschließlich für den Adressaten bzw. Auftraggeber bestimmt. Es bleibt bis zur einer ausdrücklichen Übertragung von Nutzungsrechten Eigentum von Cassini. Jede Bearbeitung, Verwertung, Vervielfältigung und/oder gewerbsmäßige Verbreitung des Werkes ist nur mit Einverständnis von Cassini zulässig.
