Inside the Mind of Malware: Analysis & Investigations Unraveled

A talk on Malware Analysis covering areas like -

Introduction to Malware & Its Types
Initial Access & Infection Techniques
Persistence Techniques Used by Malware
Packers 101
OS Internals: PE Structure, DLL & Windows API
Malware Analysis: Static Analysis
Glimpse into Malware Reverse Engineering
Memory Forensics 101
Anti-Analysis Techniques

Transcript

1. Inside the Mind of Malware: Analysis & Investigations Unraveled
2. Agenda Introduction to Malware & Its Types Initial Access & Infection Techniques Persistence Techniques Used by Malware Packers 101 OS Internals: PE Structure, DLL & Windows API Malware Analysis: Static Analysis Glimpse into Malware Reverse Engineering Memory Forensics 101 Anti-Analysis Techniques
3. Undergrad @VELS 7+ years of Experience in Information Security Security Engineer @Azefox Head @DEF CON Chennai DCG9144 CRTP & MCRTA Red Team Operations, Exploit Development, Application Security, Malware Analysis & Threat Research Whoami
4. OFFSET 0X1: MALWARE

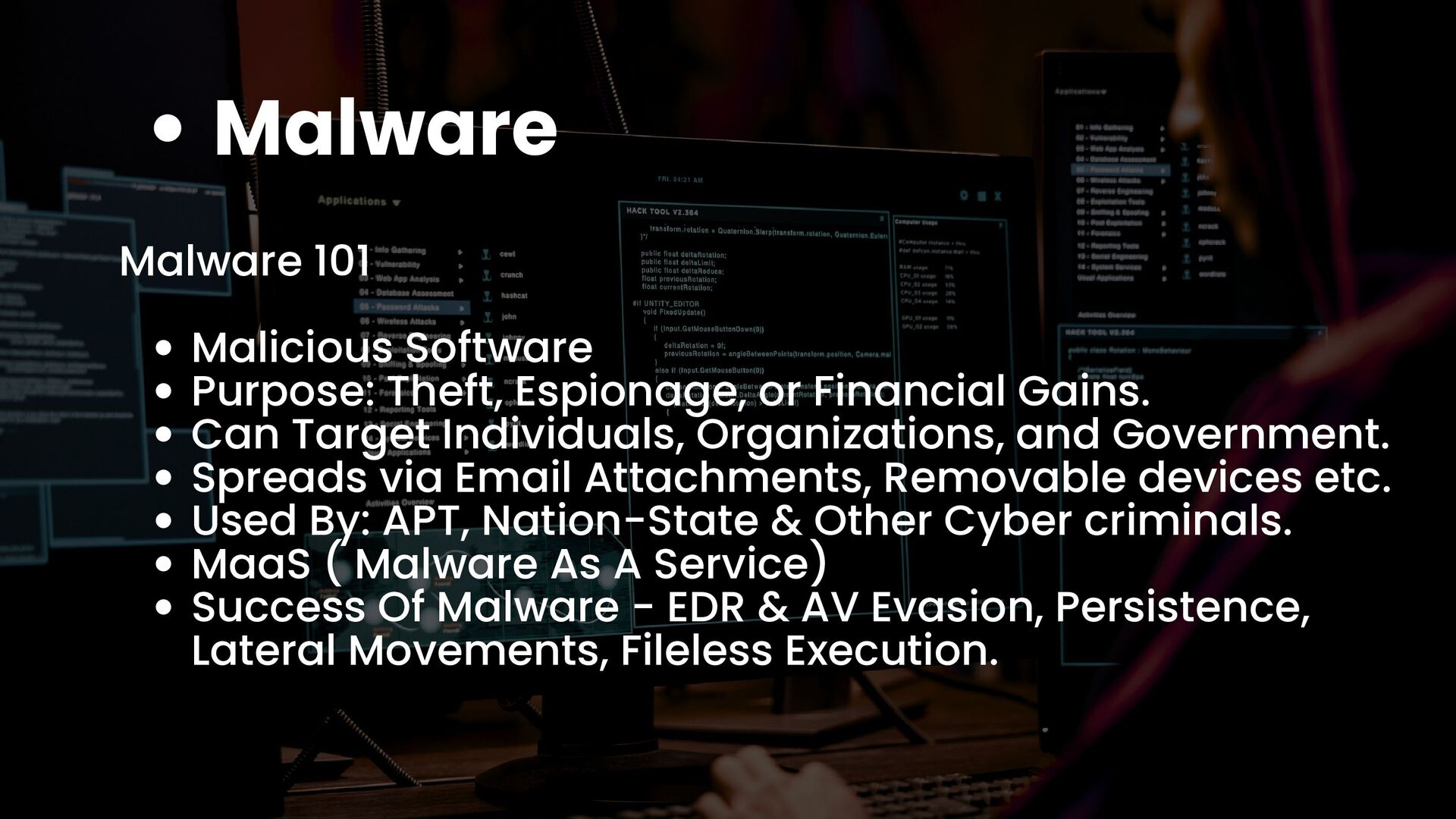

5. Malware 101 Malicious Software Purpose: Theft, Espionage, or Financial Gains. Can Target Individuals, Organizations, and Government. Spreads via Email Attachments, Removable devices etc. Used By: APT, Nation-State & Other Cyber criminals. MaaS ( Malware As A Service) Success Of Malware - EDR & AV Evasion, Persistence, Lateral Movements, Fileless Execution. Malware

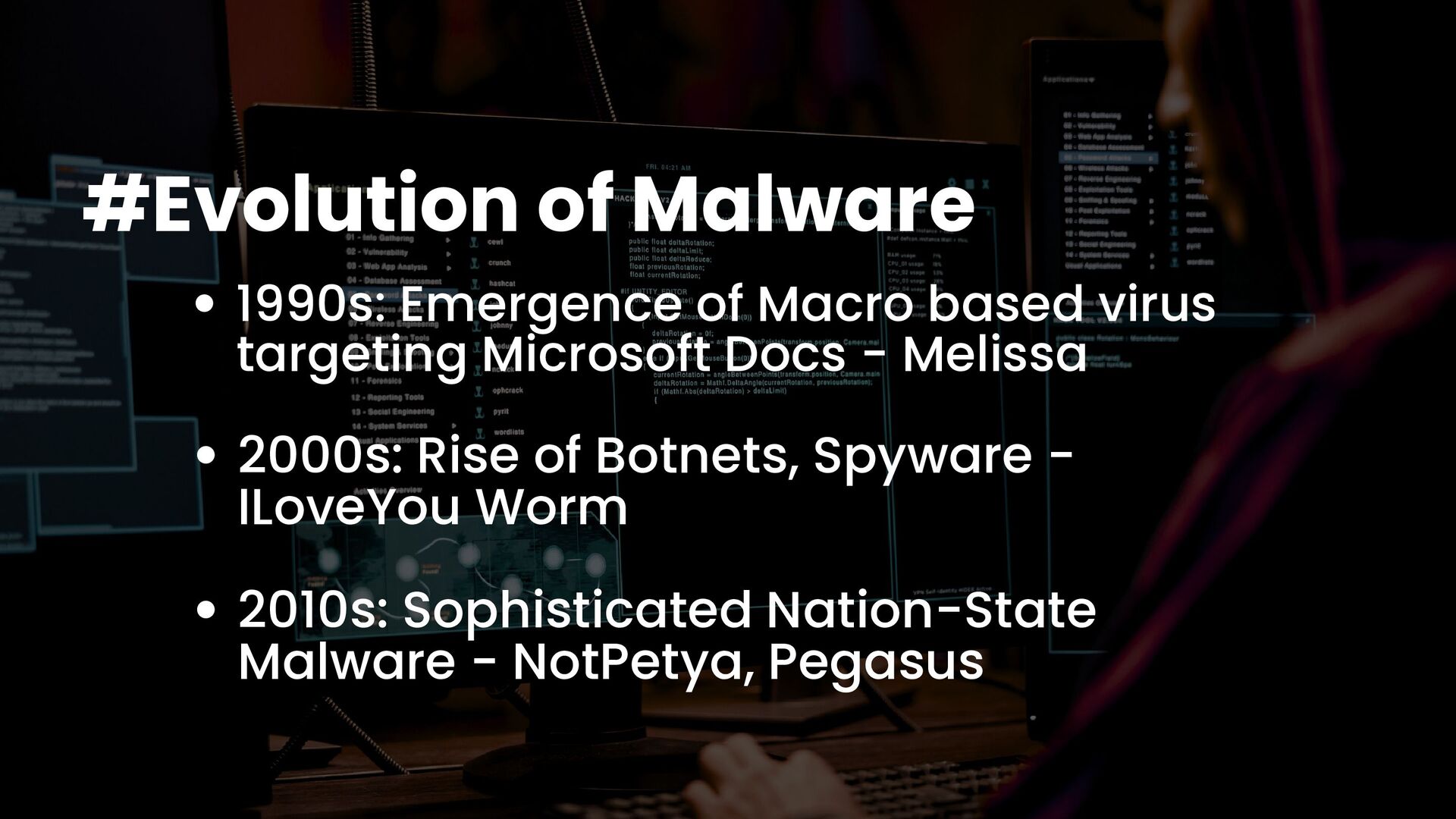

6. #Evolution of Malware 1990s: Emergence of Macro based virus targeting Microsoft Docs - Melissa 2000s: Rise of Botnets, Spyware - ILoveYou Worm 2010s: Sophisticated Nation-State Malware - NotPetya, Pegasus
7. # Types of Malware Virus & Worm Spyware & Adware Ransomware Downloader/Dropper Botnet Infostealer Keylogger Backdoor RAT Rootkit/Bootkit

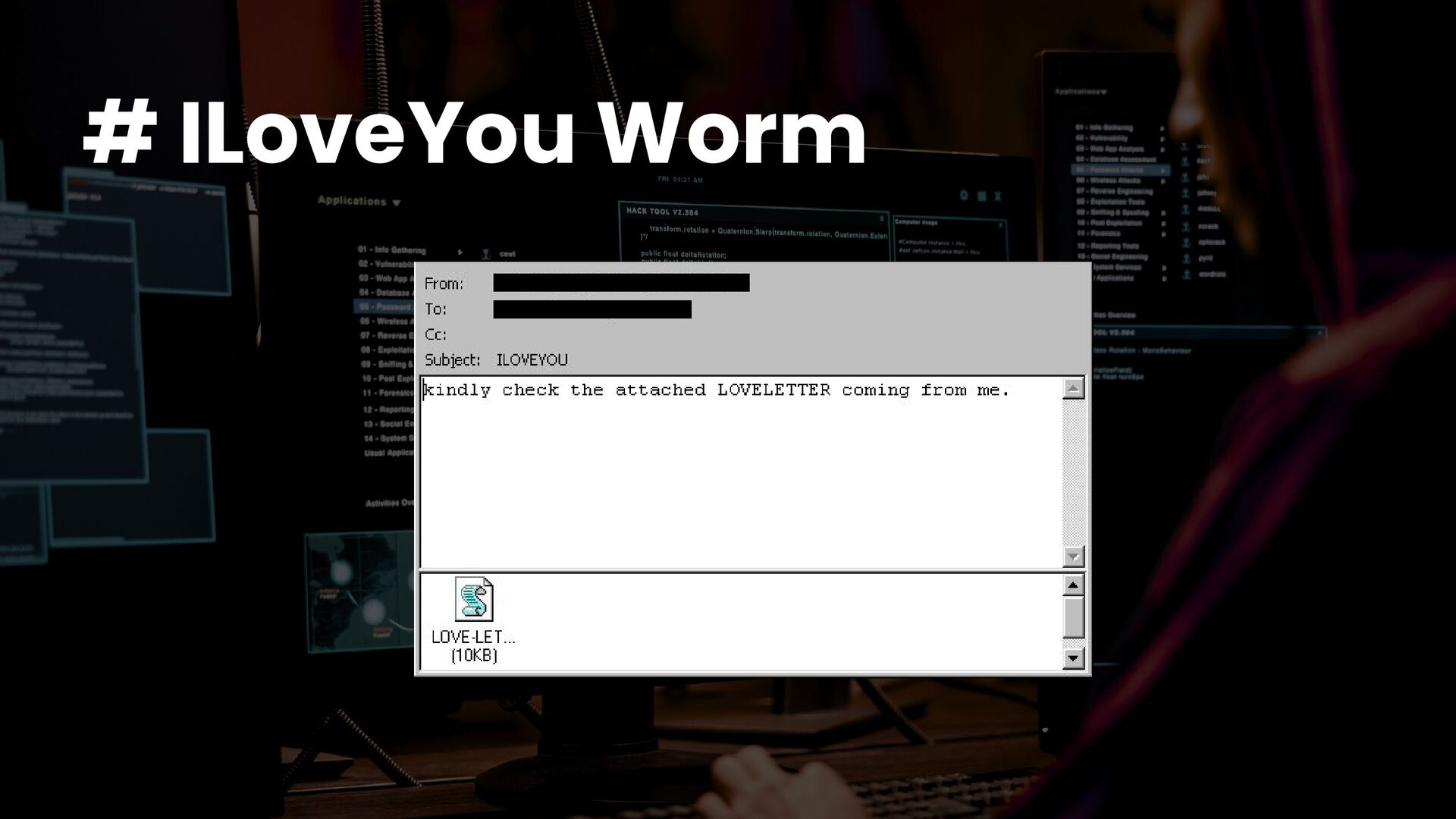

8. # ILoveYou Worm

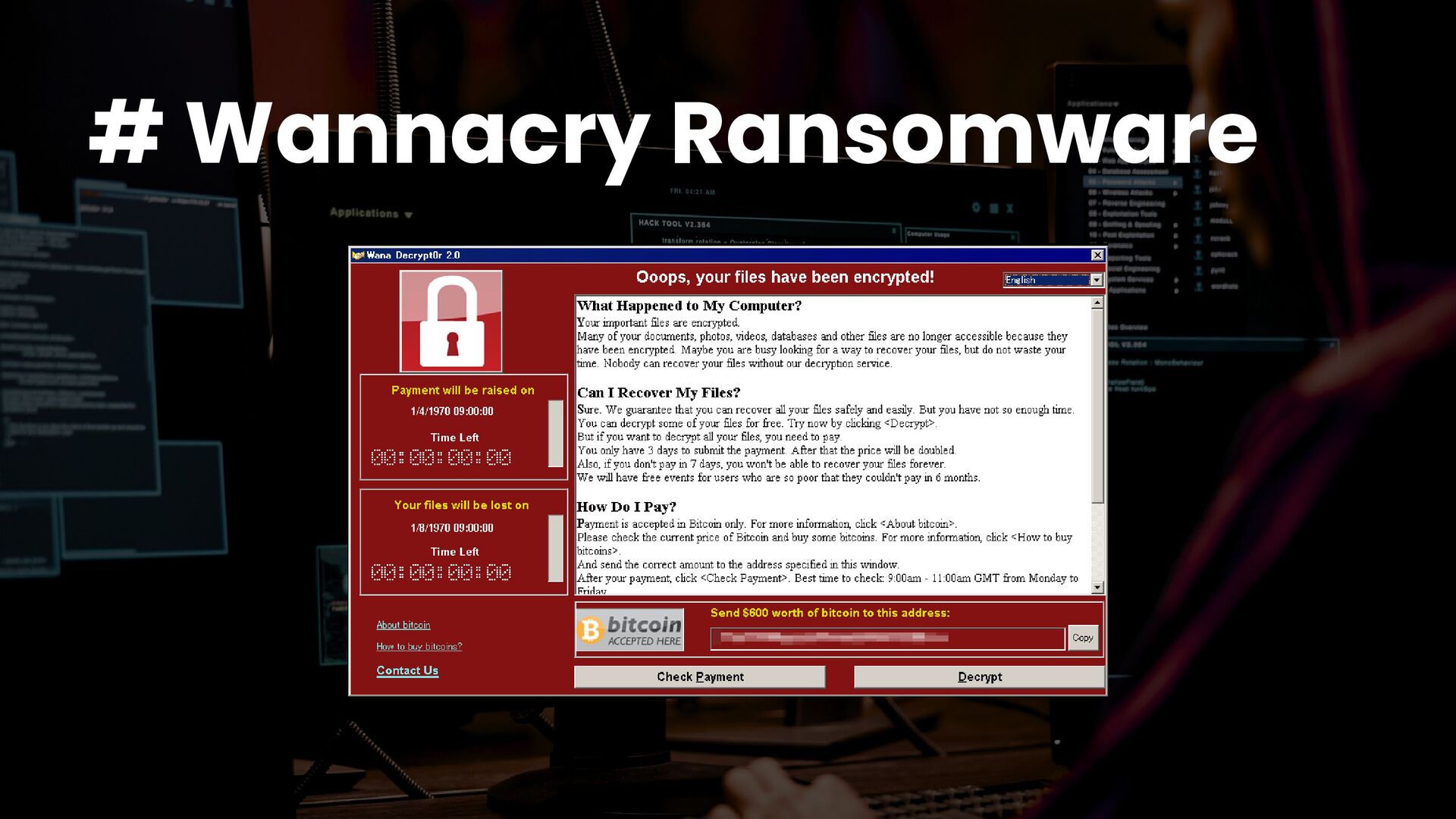

9. # Wannacry Ransomware
10. Ransomware ft. REVil DEMO:
11. OFFSET 0X2: INFECTIONS
12. # Initial Access & Infection Techniques Supply Chain Attacks Drive-By Downloads Email Attachments Removable Devices Exploiting Vulnerabilities Malvertising Watering Hole Attack
13. DEMO: Email Attachments

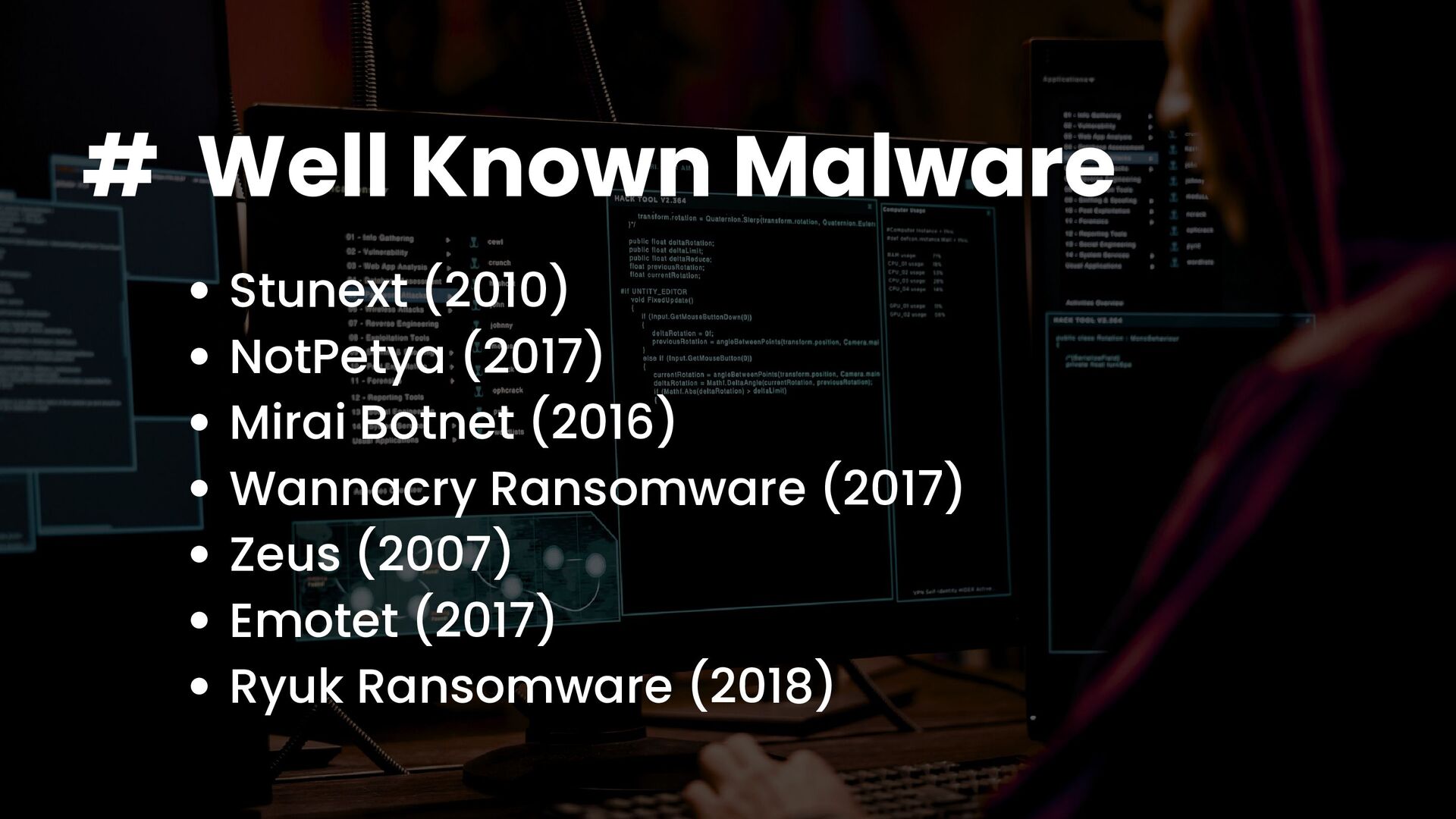

14. # Well Known Malware Stunext (2010) NotPetya (2017) Mirai Botnet (2016) Wannacry Ransomware (2017) Zeus (2007) Emotet (2017) Ryuk Ransomware (2018)

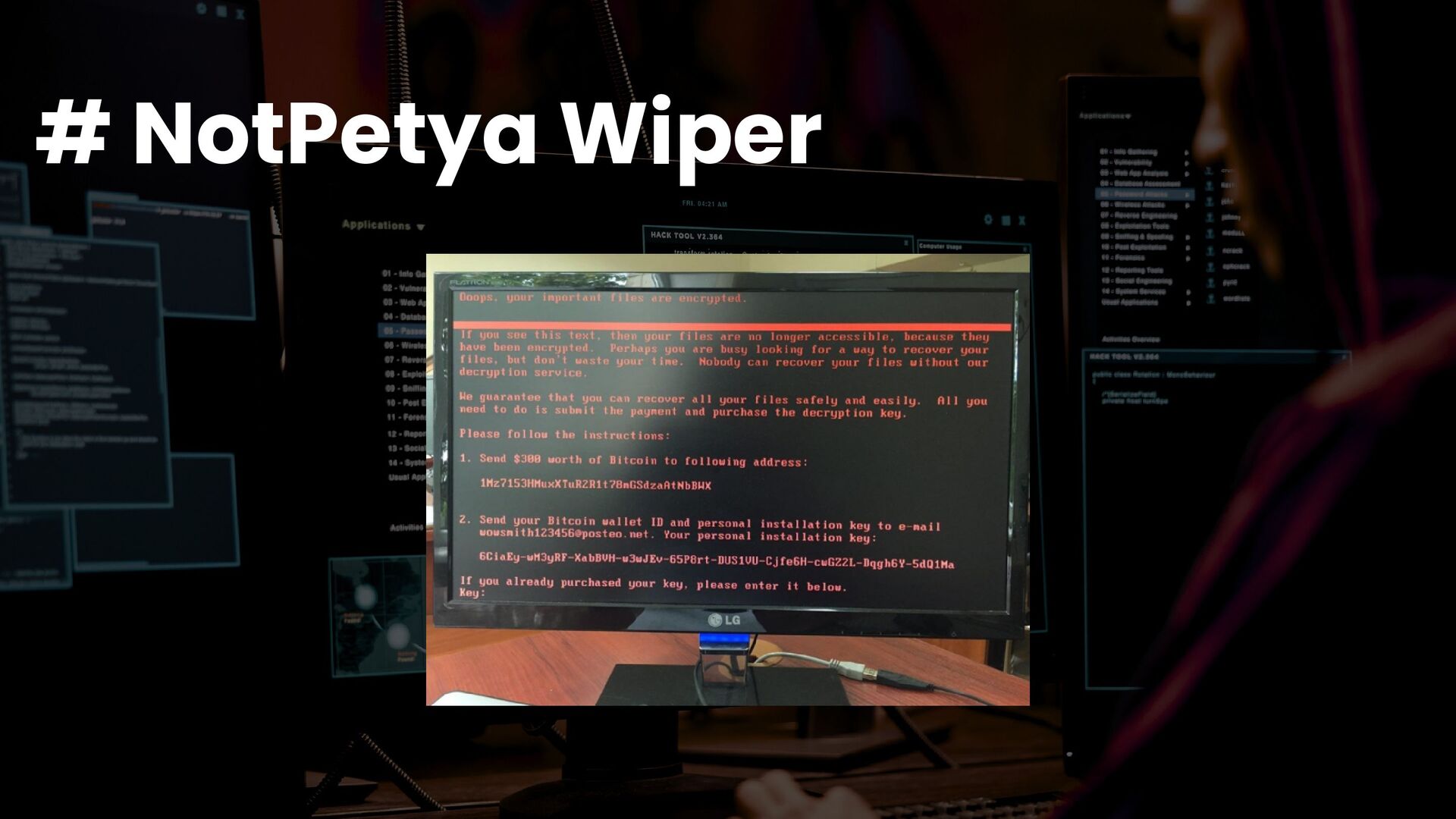

15. # NotPetya Wiper
16. OFFSET 0X3: PERSISTENCE

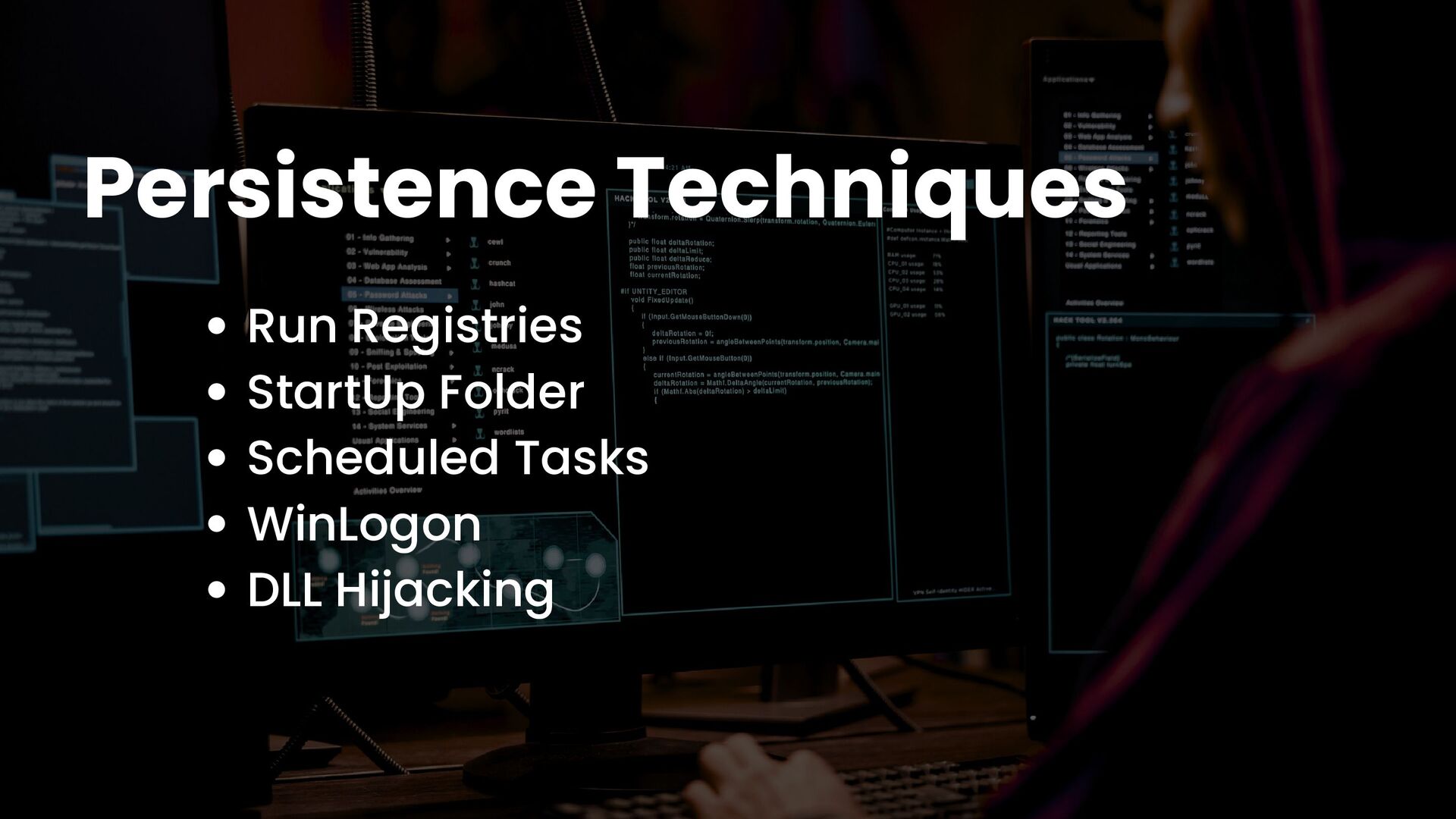

17. Run Registries StartUp Folder Scheduled Tasks WinLogon DLL Hijacking Persistence Techniques
18. DEMO: Run Registries

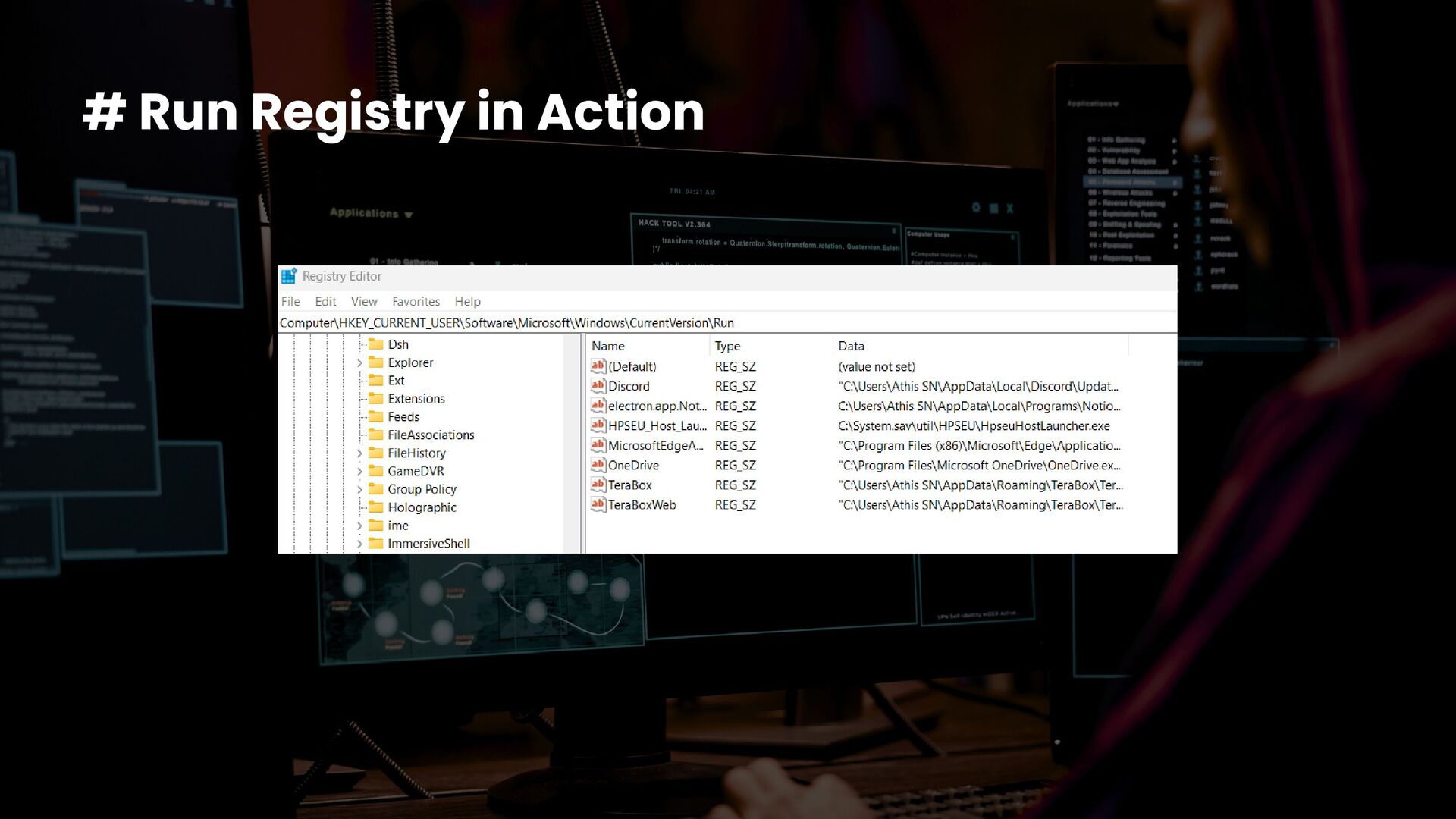

19. # Run Registry in Action
20. OFFSET 0X4: PACKERS

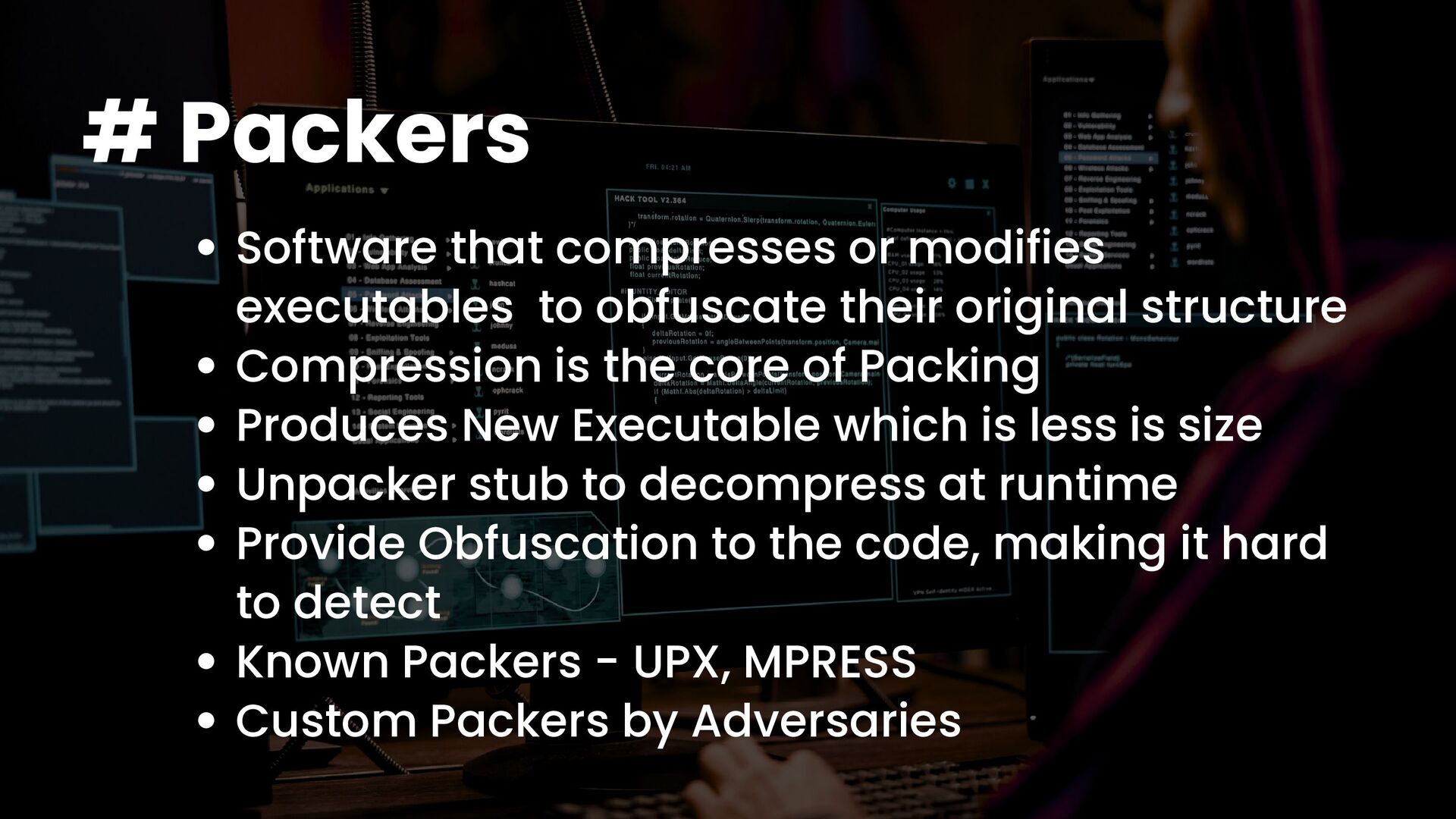

21. # Packers Software that compresses or modifies executables to obfuscate their original structure Compression is the core of Packing Produces New Executable which is less is size Unpacker stub to decompress at runtime Provide Obfuscation to the code, making it hard to detect Known Packers - UPX, MPRESS Custom Packers by Adversaries

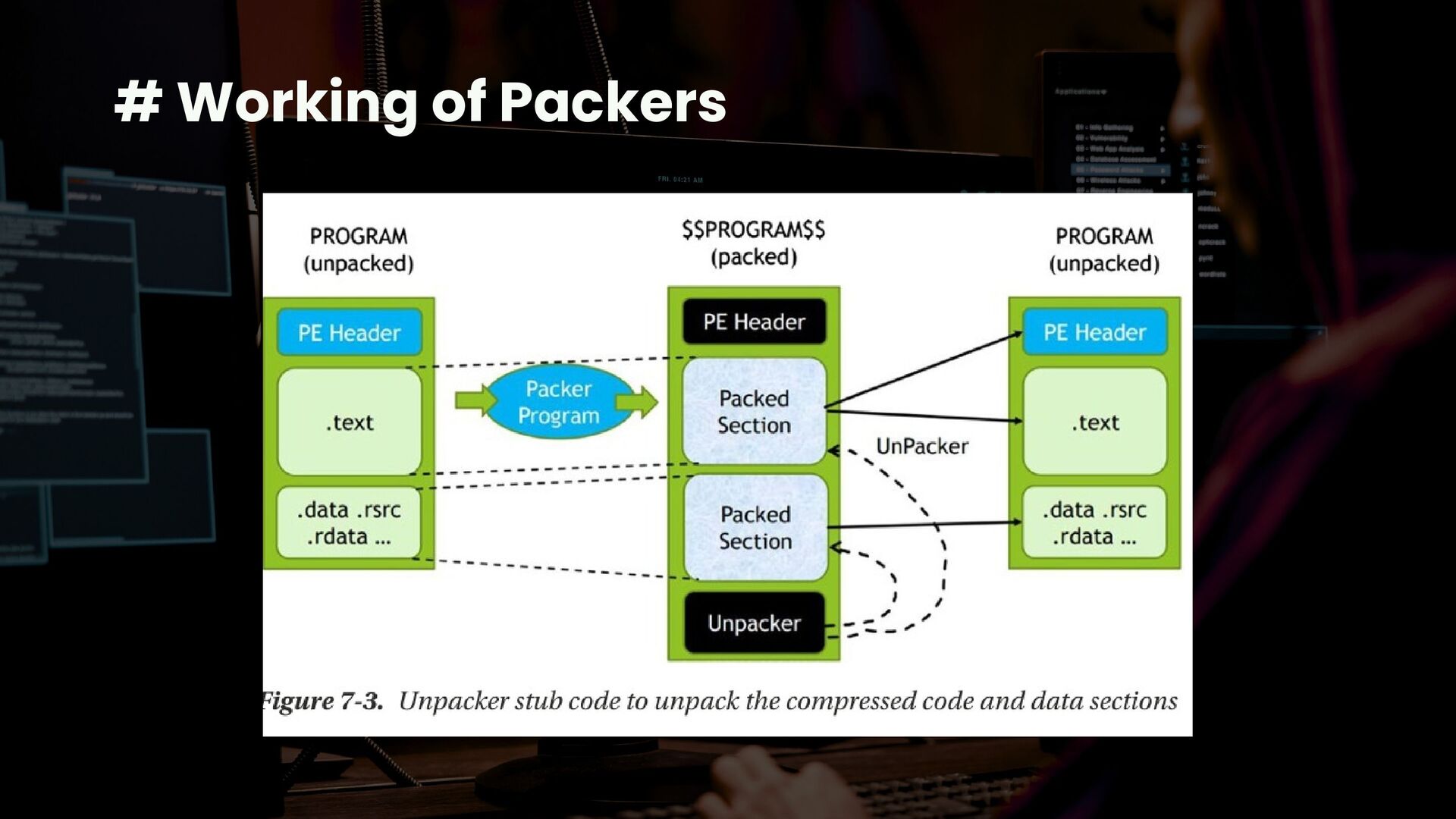

22. # Working of Packers
23. Packer Sample ft. UPX DEMO:
24. Offset 0x5: OS Internals OFFSET 0X5: OS INTERNALS

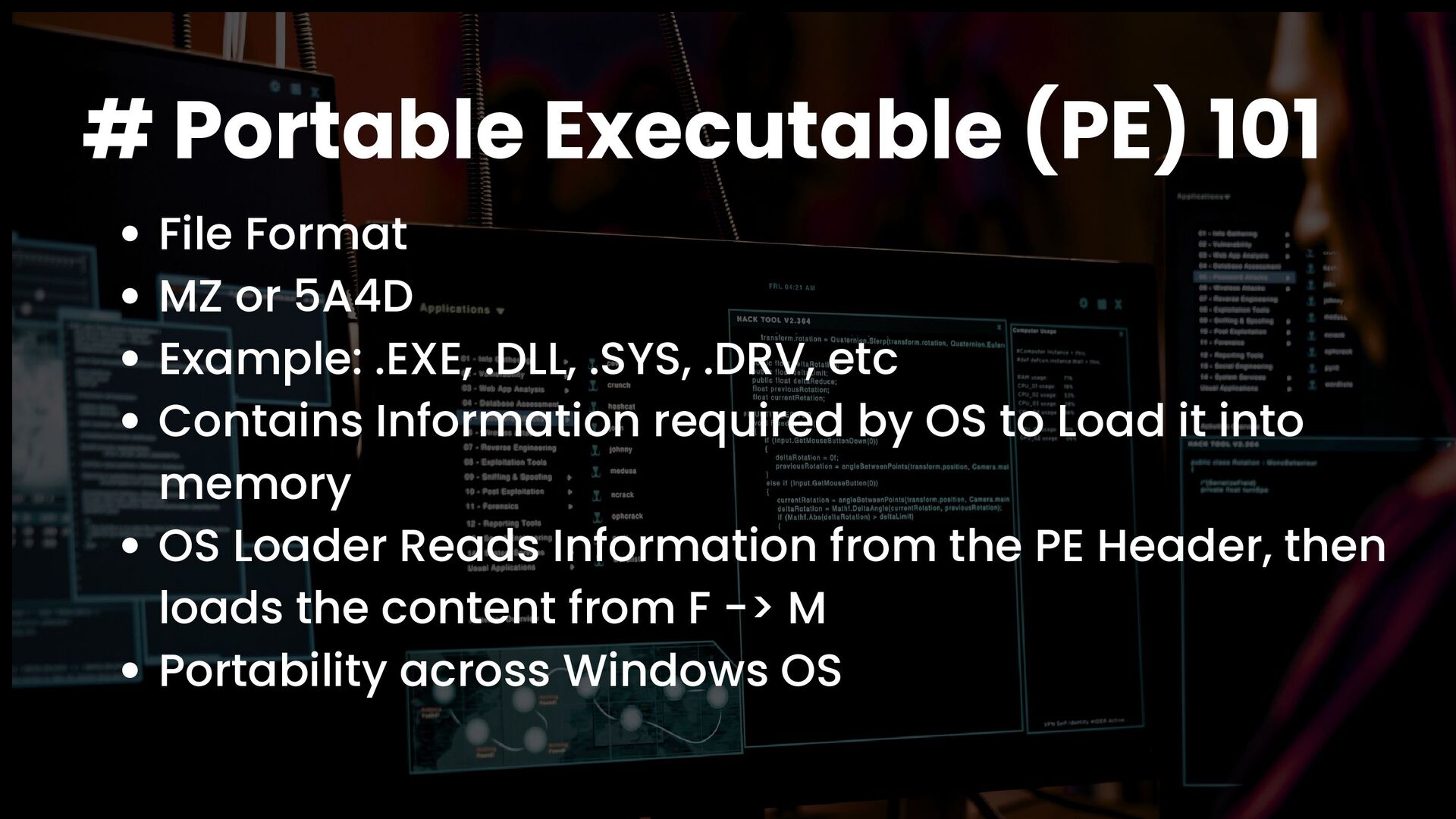

25. # Portable Executable (PE) 101 File Format MZ or 5A4D Example: .EXE, .DLL, .SYS, .DRV, etc Contains Information required by OS to Load it into memory OS Loader Reads Information from the PE Header, then loads the content from F -> M Portability across Windows OS

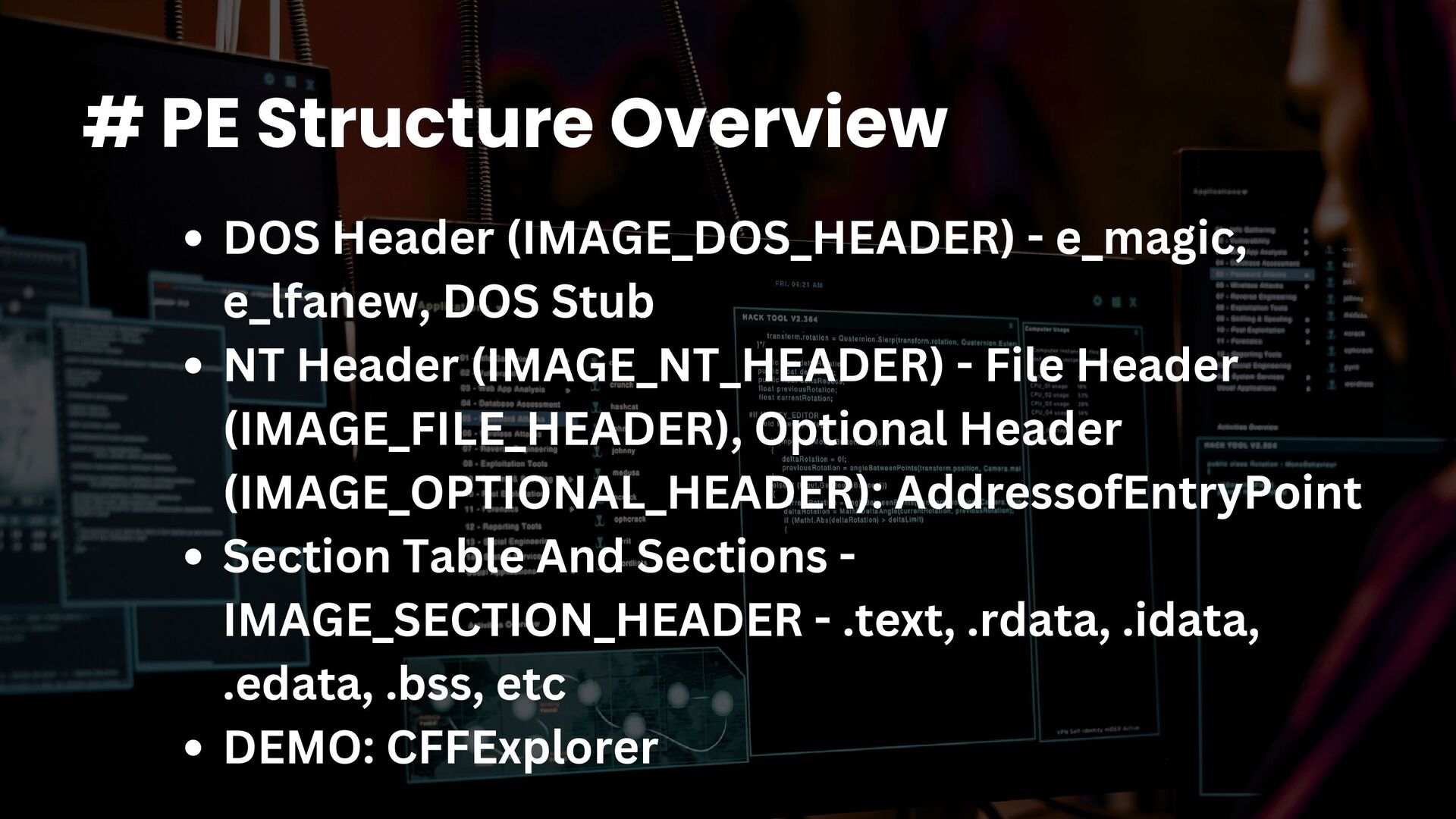

26. # PE Structure Overview DOS Header (IMAGE_DOS_HEADER) - e_magic, e_lfanew, DOS Stub NT Header (IMAGE_NT_HEADER) - File Header (IMAGE_FILE_HEADER), Optional Header (IMAGE_OPTIONAL_HEADER): AddressofEntryPoint Section Table And Sections - IMAGE_SECTION_HEADER - .text, .rdata, .idata, .edata, .bss, etc DEMO: CFFExplorer

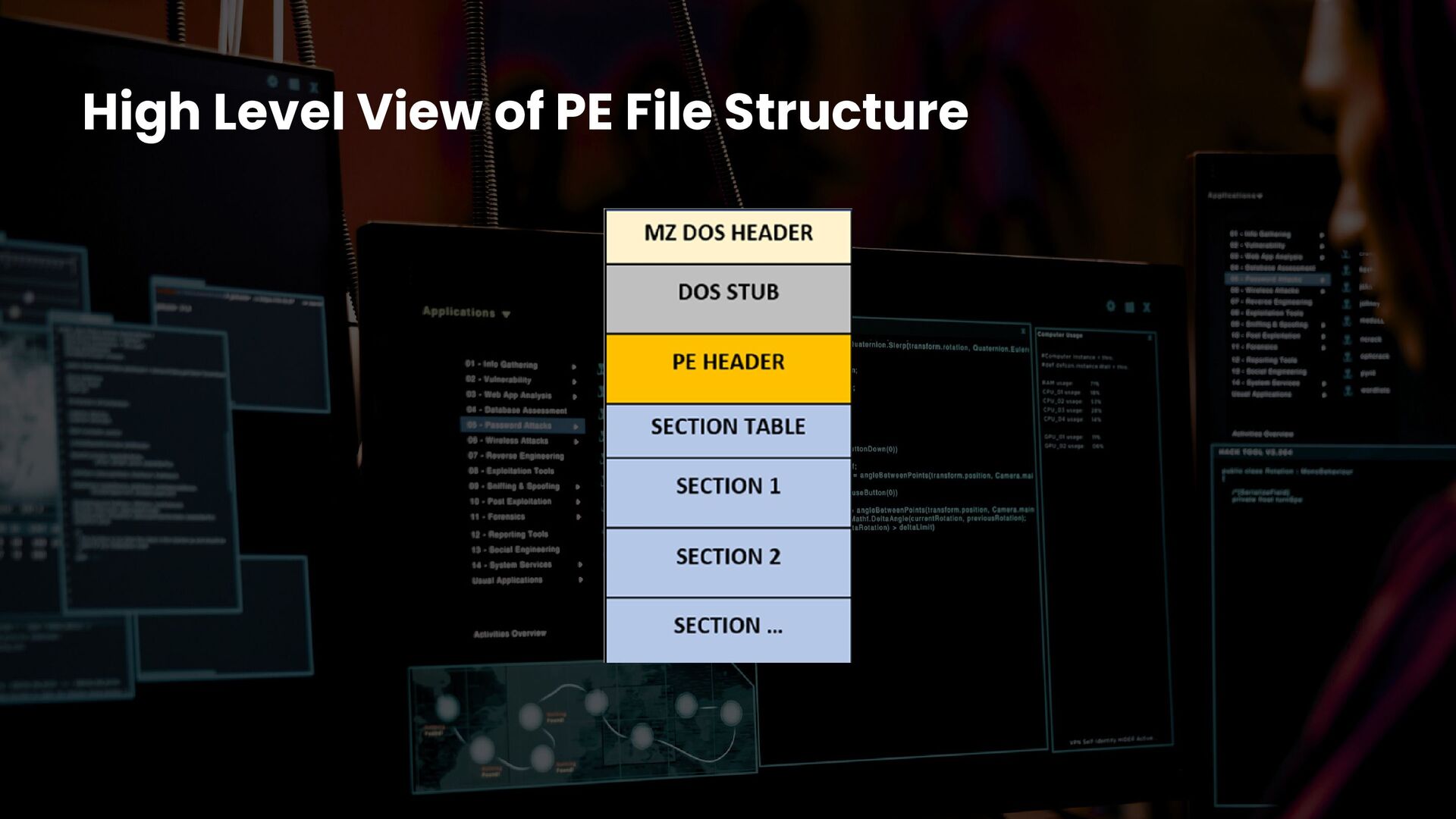

27. High Level View of PE File Structure

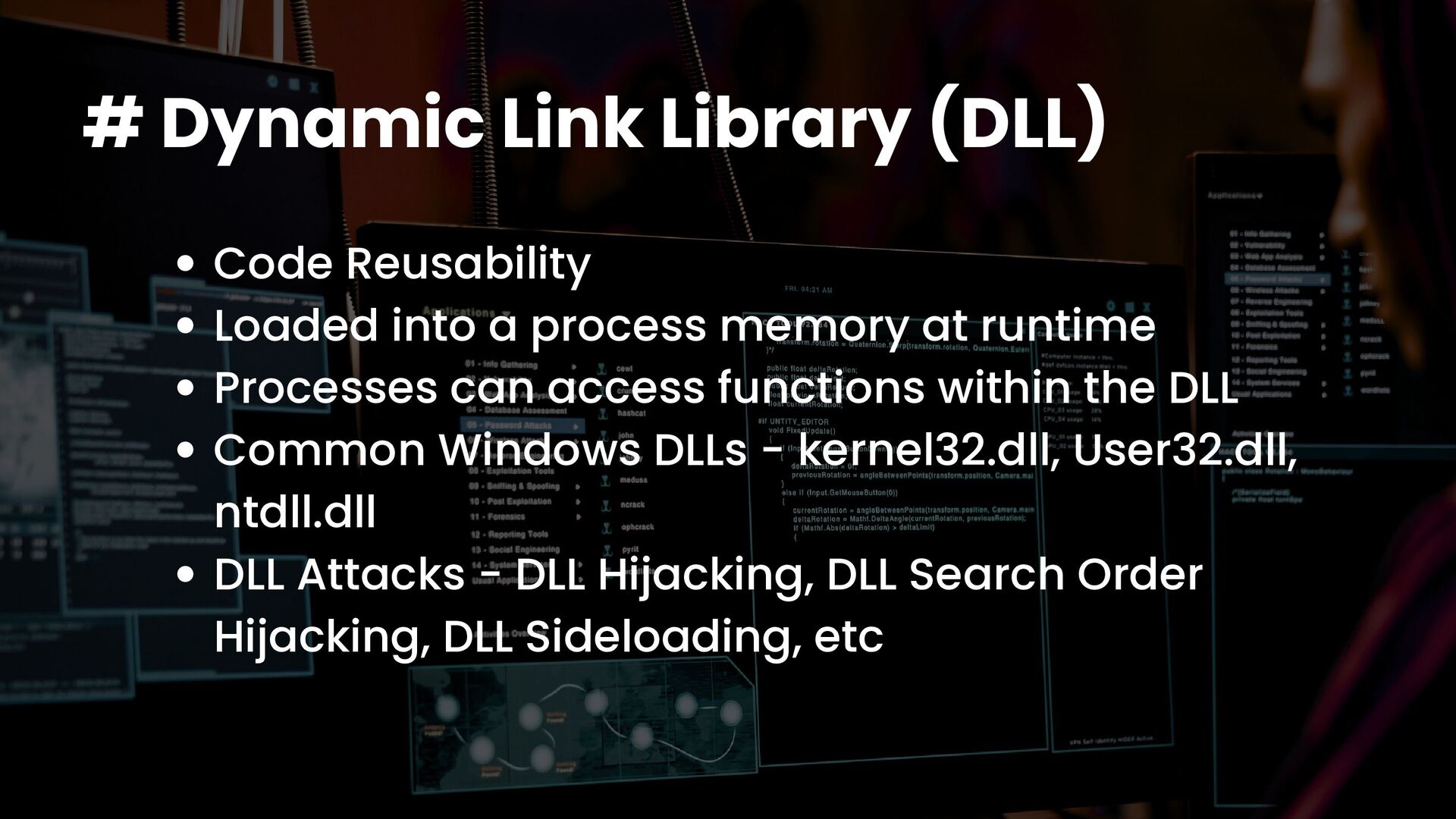

28. Code Reusability Loaded into a process memory at runtime Processes can access functions within the DLL Common Windows DLLs - kernel32.dll, User32.dll, ntdll.dll DLL Attacks - DLL Hijacking, DLL Search Order Hijacking, DLL Sideloading, etc # Dynamic Link Library (DLL)

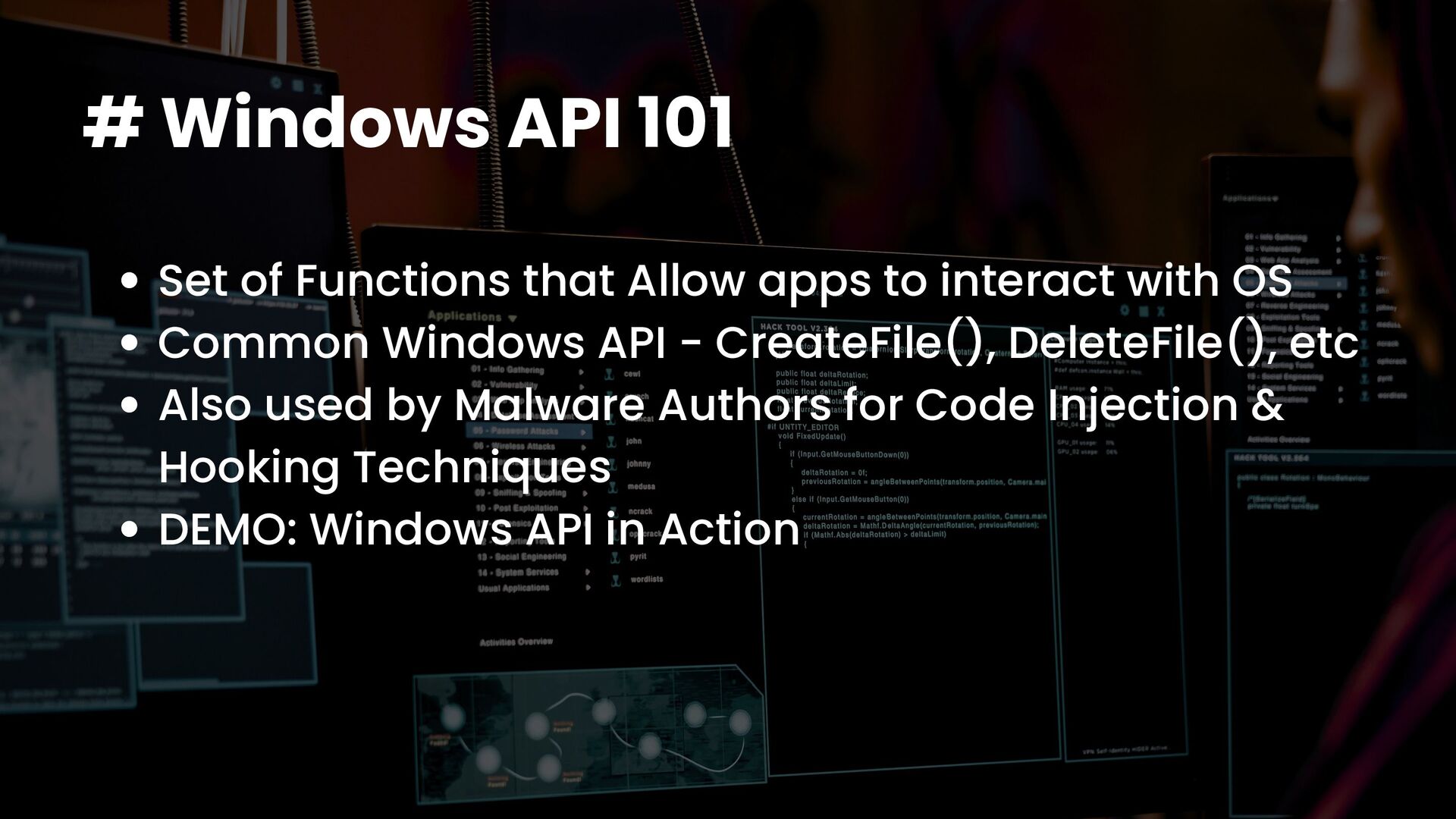

29. # Windows API 101 Set of Functions that Allow apps to interact with OS Common Windows API - CreateFile(), DeleteFile(), etc Also used by Malware Authors for Code Injection & Hooking Techniques DEMO: Windows API in Action
30. OFFSET 0X5: STATIC MALWARE ANALYSIS

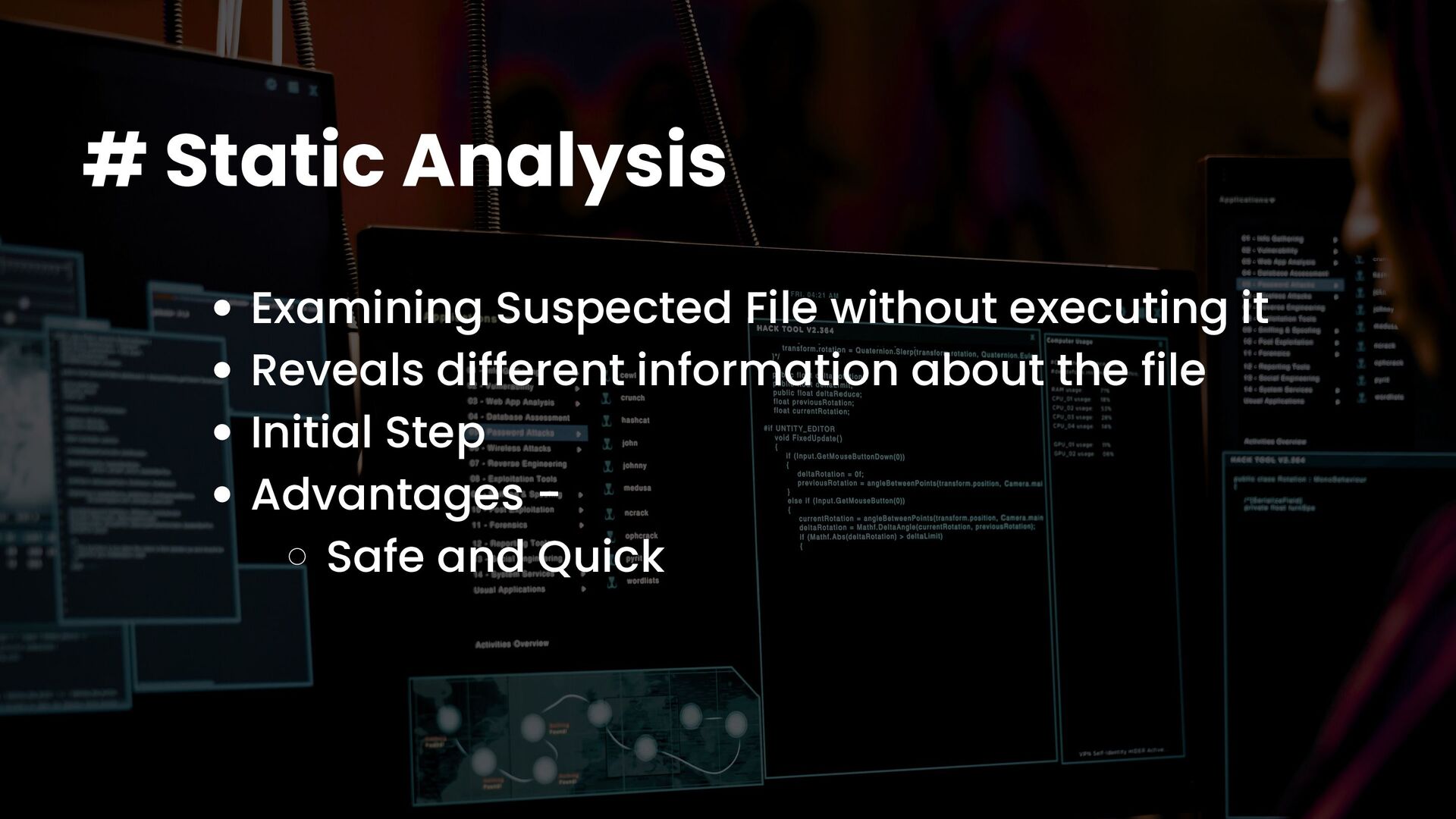

31. # Static Analysis Examining Suspected File without executing it Reveals different information about the file Initial Step Advantages - Safe and Quick

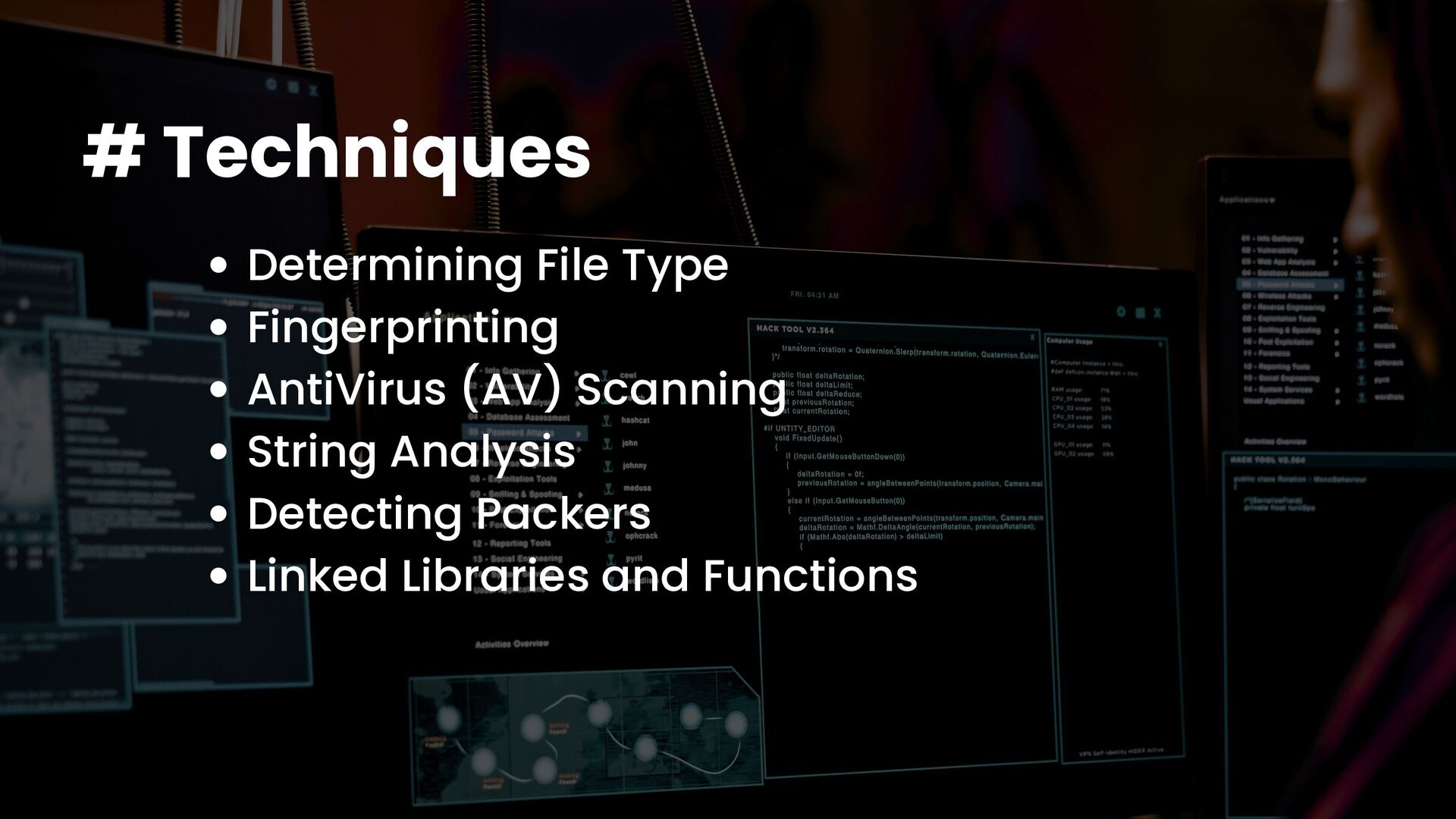

32. # Techniques Determining File Type Fingerprinting AntiVirus (AV) Scanning String Analysis Detecting Packers Linked Libraries and Functions

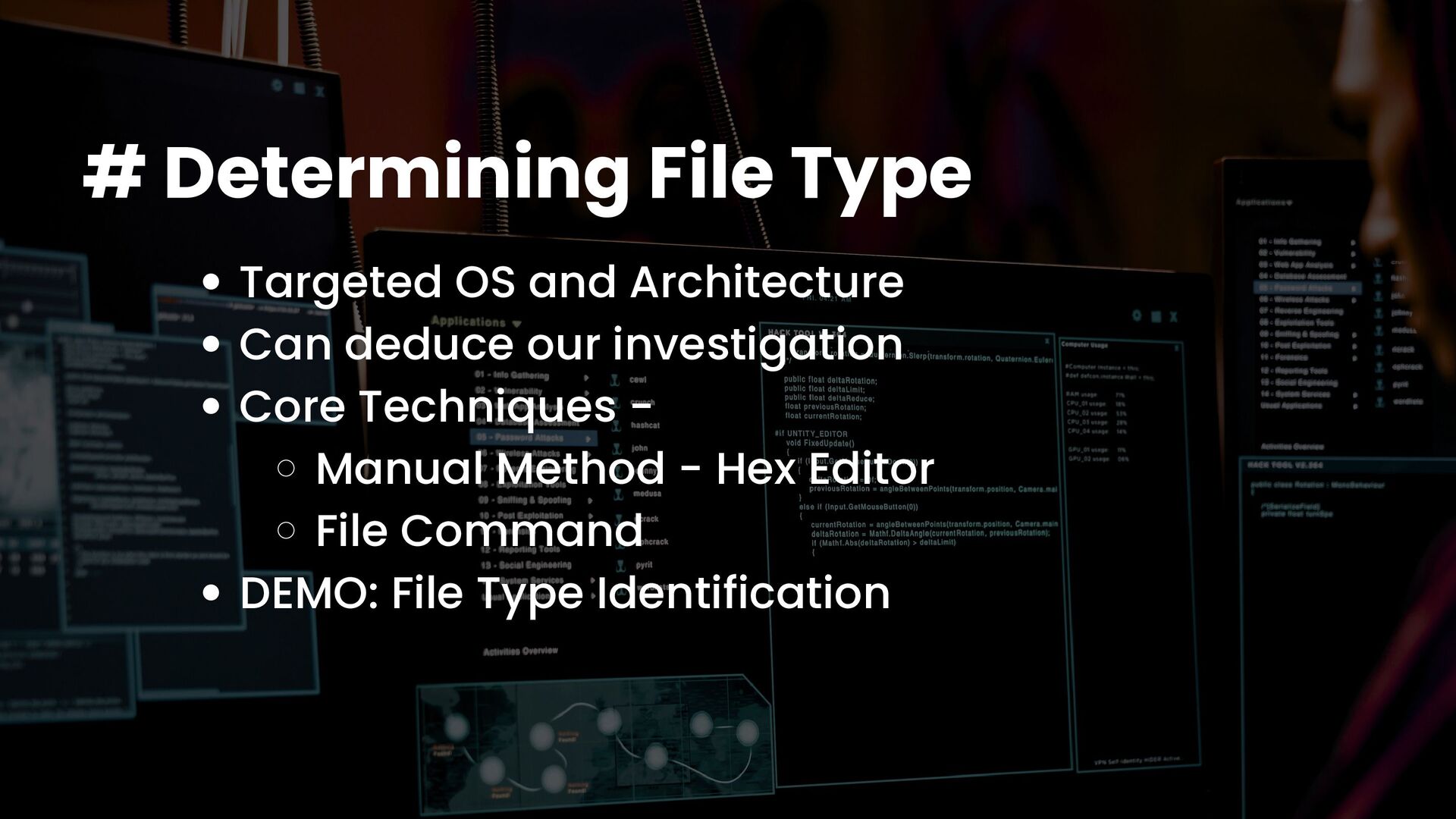

33. # Determining File Type Targeted OS and Architecture Can deduce our investigation Core Techniques - Manual Method - Hex Editor File Command DEMO: File Type Identification

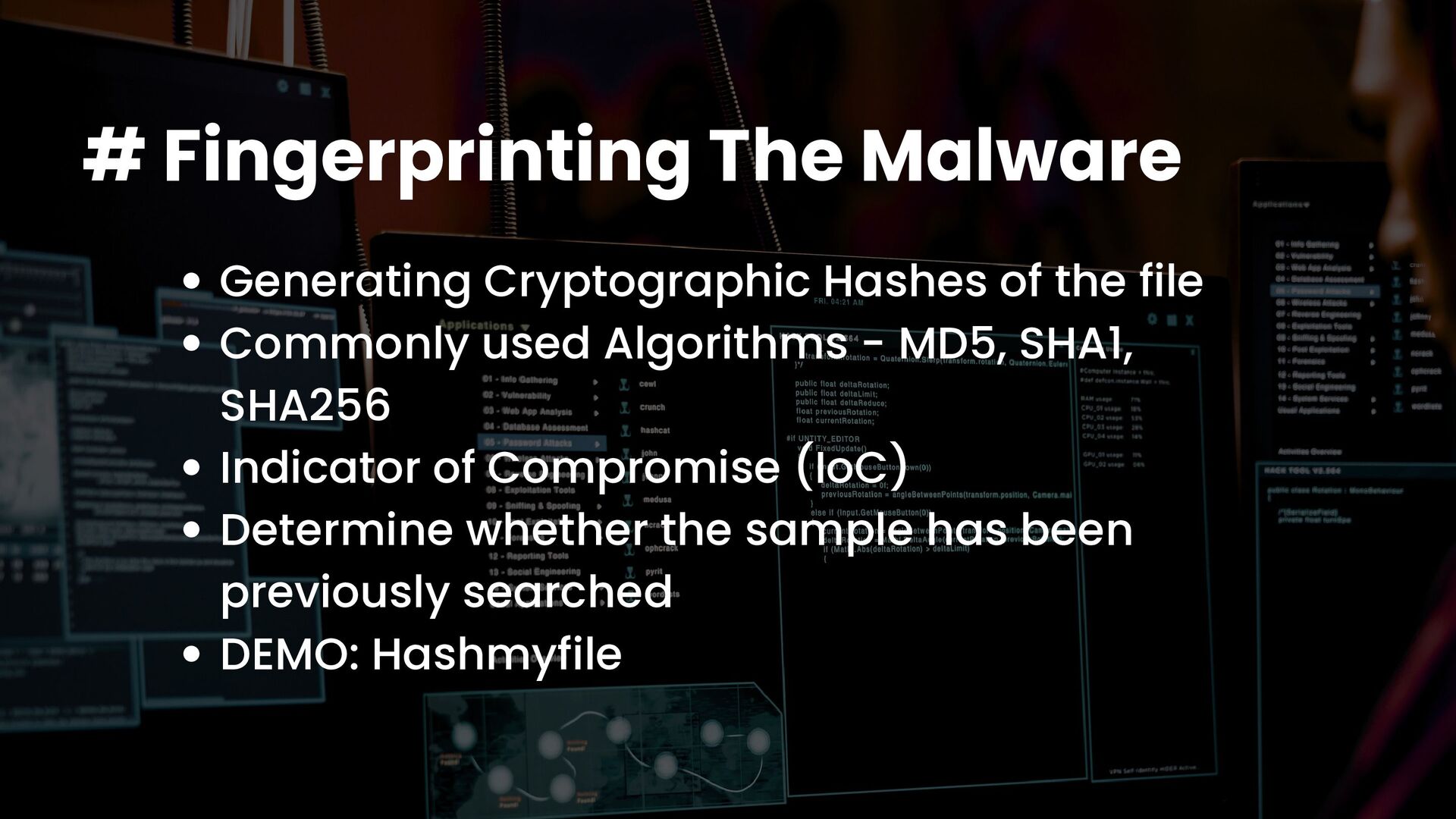

34. Generating Cryptographic Hashes of the file Commonly used Algorithms - MD5, SHA1, SHA256 Indicator of Compromise (IoC) Determine whether the sample has been previously searched DEMO: Hashmyfile # Fingerprinting The Malware

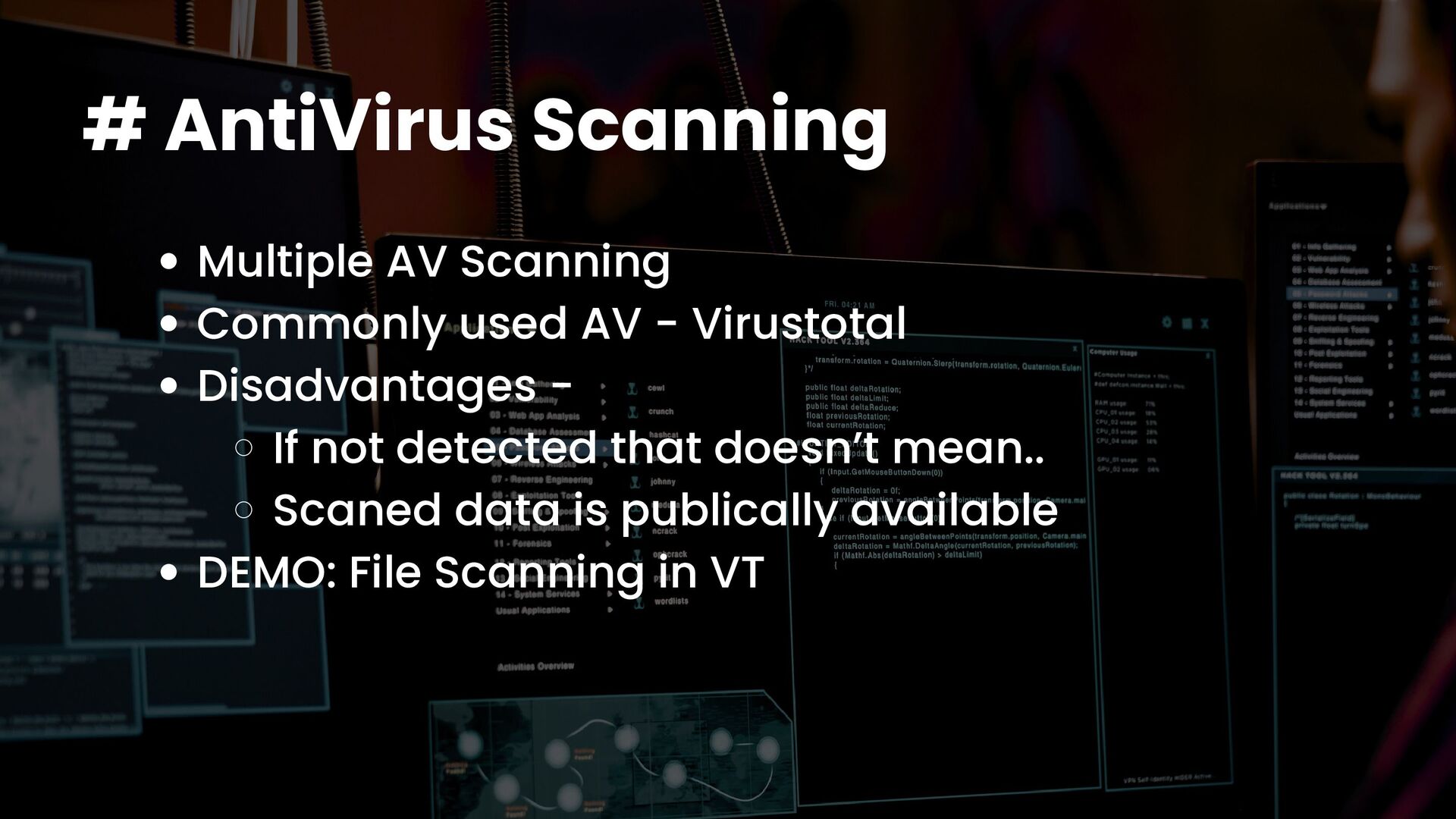

35. # AntiVirus Scanning Multiple AV Scanning Commonly used AV - Virustotal Disadvantages - If not detected that doesn’t mean.. Scaned data is publically available DEMO: File Scanning in VT

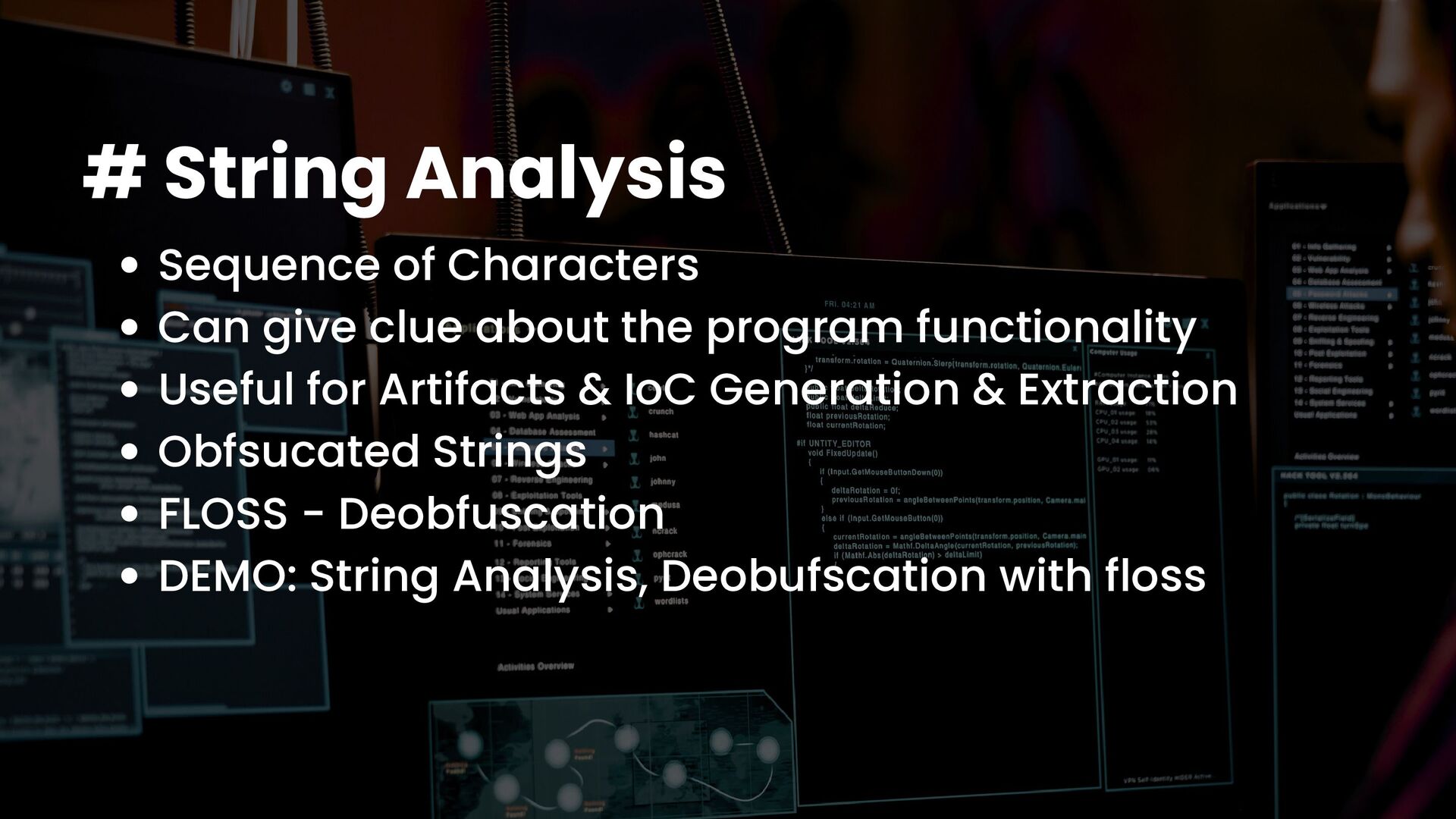

36. # String Analysis Sequence of Characters Can give clue about the program functionality Useful for Artifacts & IoC Generation & Extraction Obfsucated Strings FLOSS - Deobfuscation DEMO: String Analysis, Deobufscation with floss

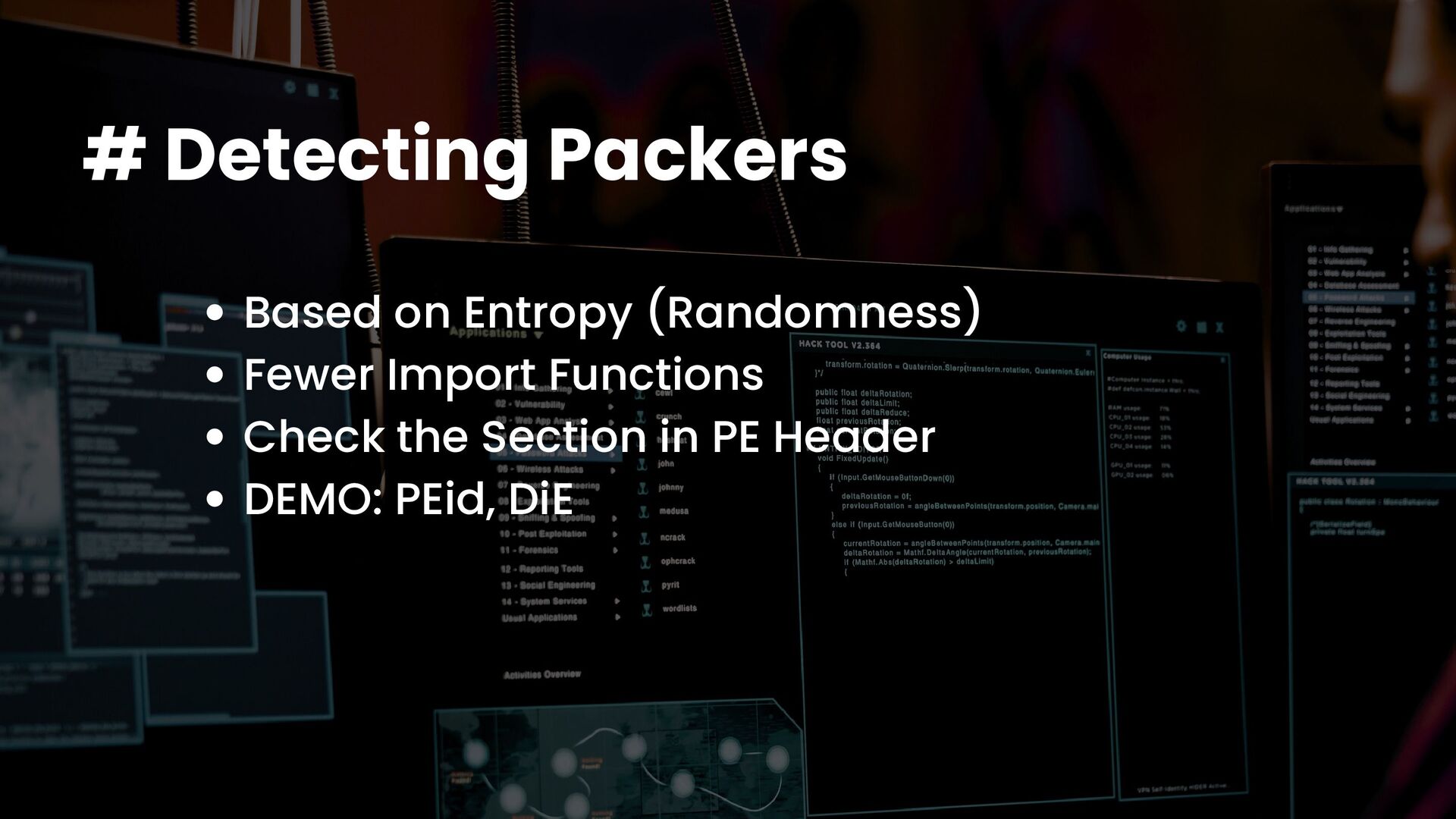

37. # Detecting Packers Based on Entropy (Randomness) Fewer Import Functions Check the Section in PE Header DEMO: PEid, DiE
38. # Linked Libraries & Functions Malware Interacts with files, network, registries, etc but how? DLL & WinAPI Functions Imported & Exported Functions Examining PE Resources Examining Compiliation Timestamps DEMO: PEStudio, Resource Hacker

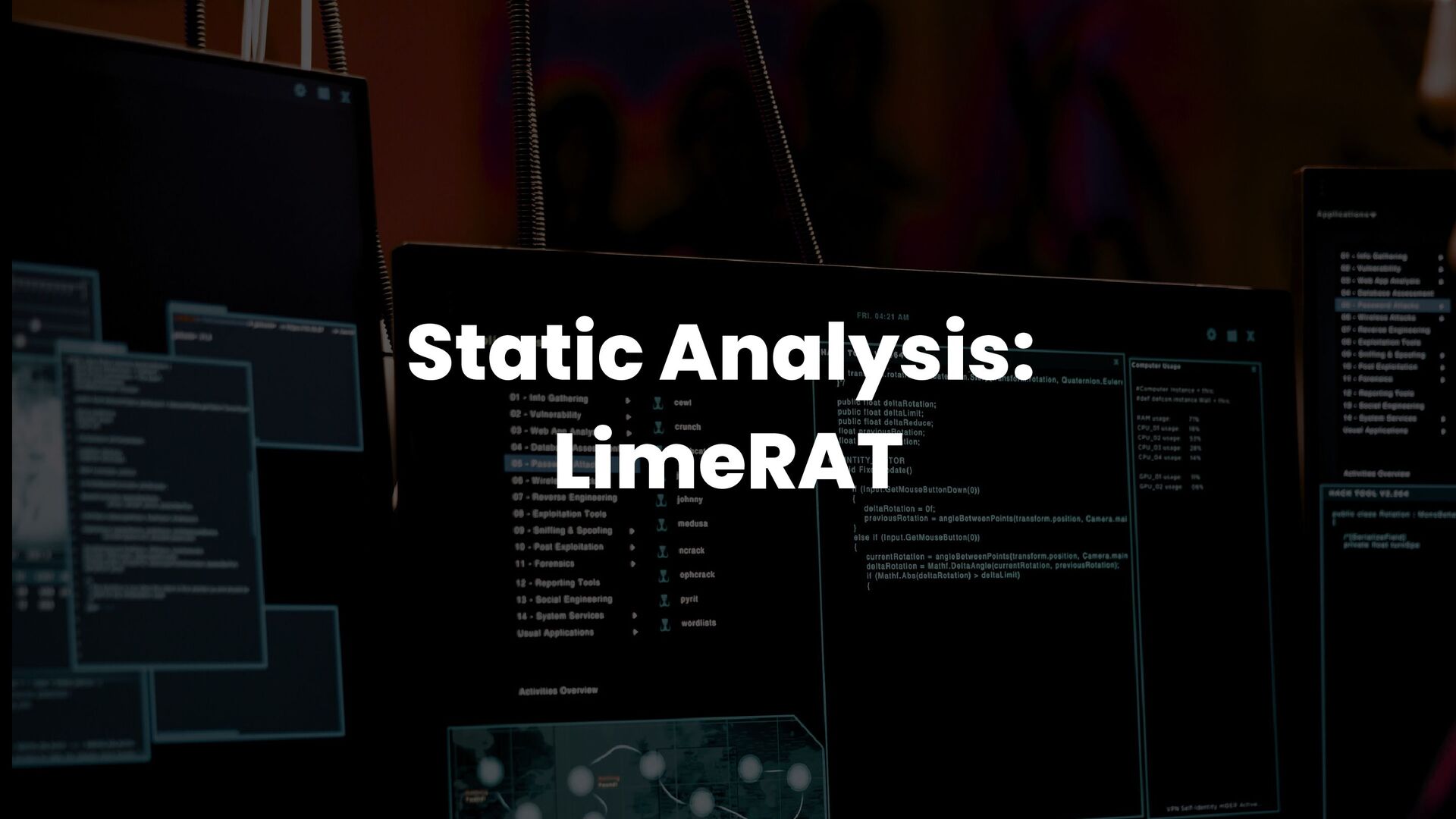

39. Static Analysis: LimeRAT
40. OFFSET 0x6: MALWARE REVERSE ENGINEERING 101

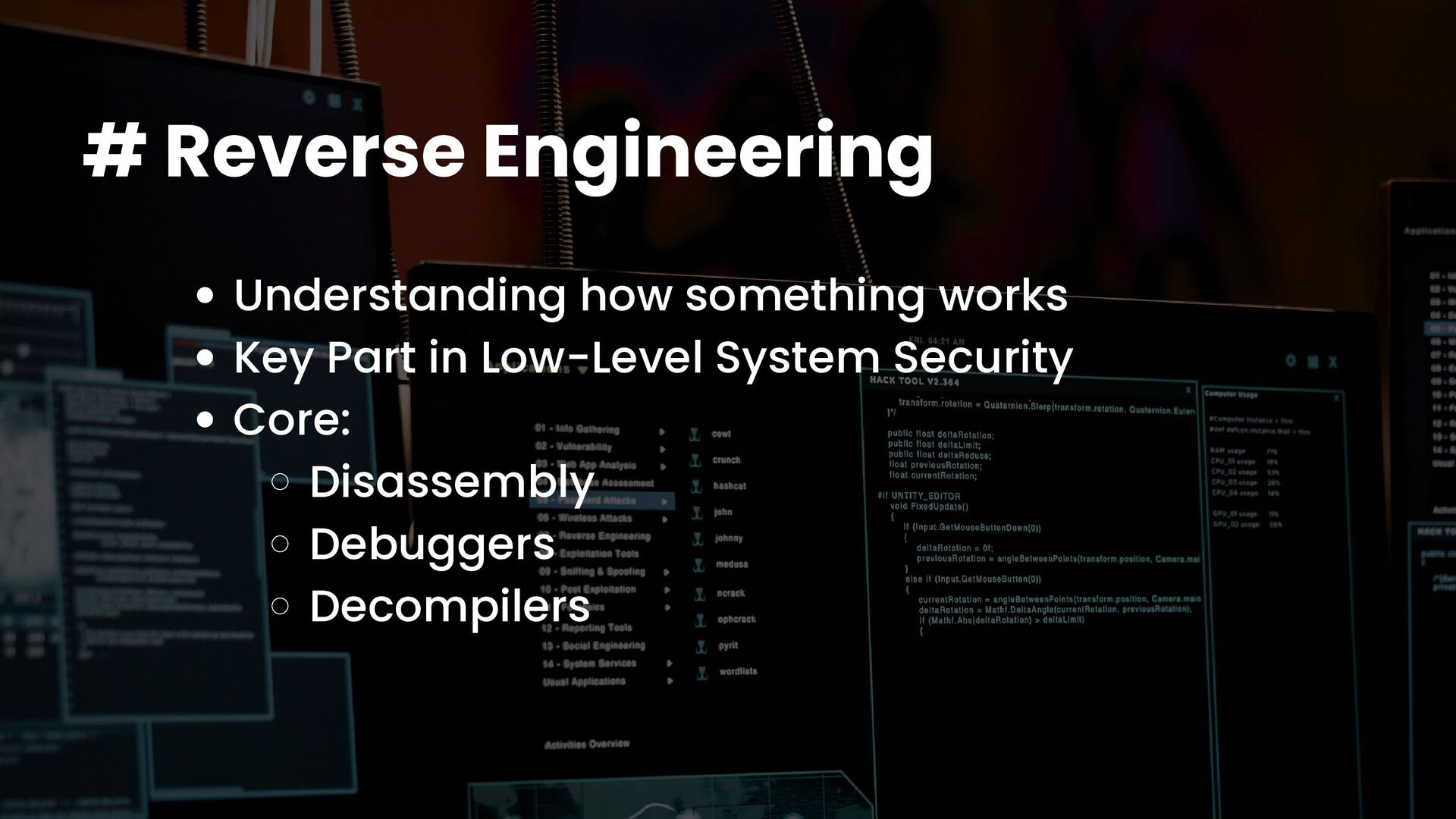

41. # Reverse Engineering Understanding how something works Key Part in Low-Level System Security Core: Disassembly Debuggers Decompilers

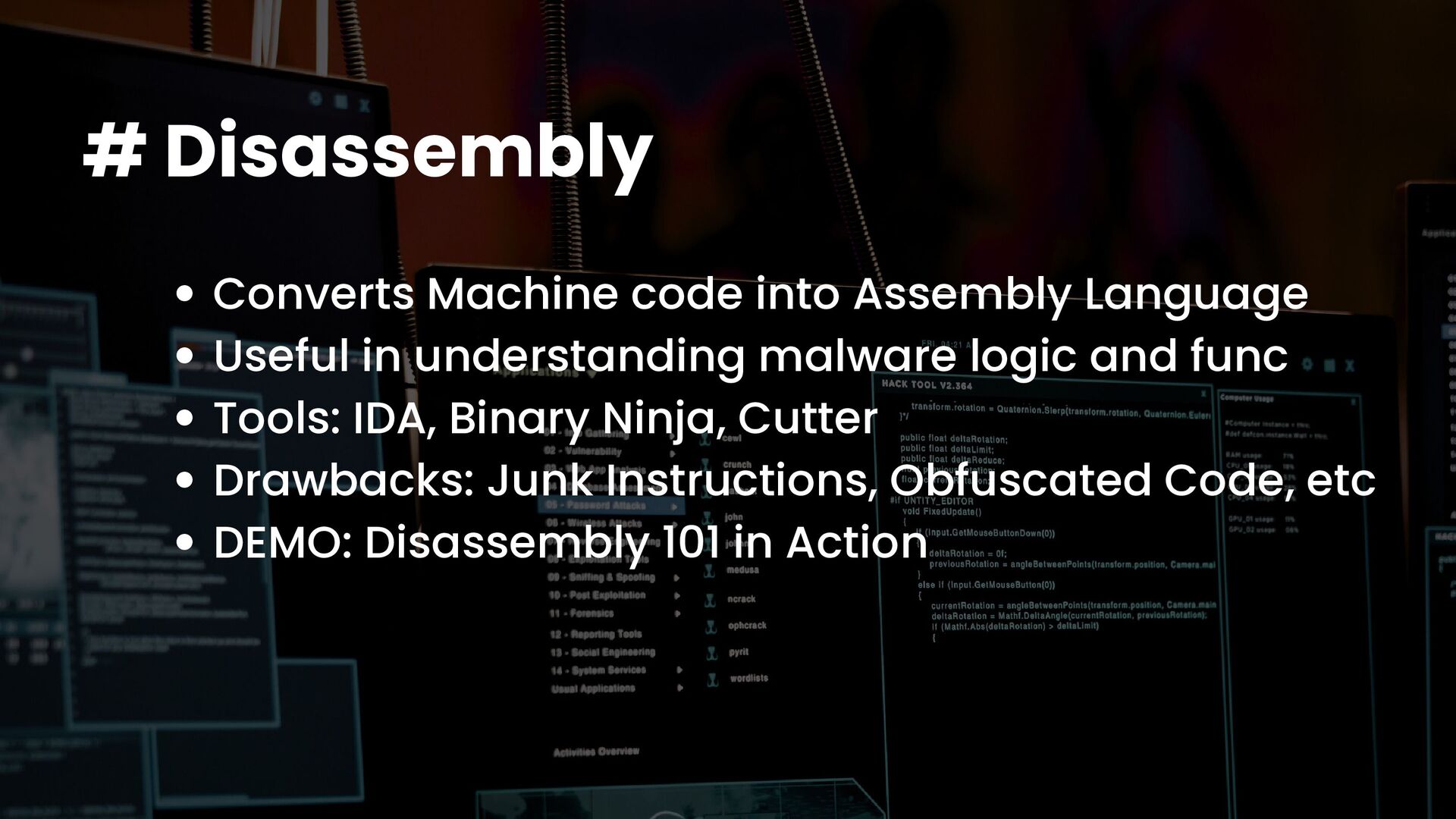

43. # Disassembly Converts Machine code into Assembly Language Useful in understanding malware logic and func Tools: IDA, Binary Ninja, Cutter Drawbacks: Junk Instructions, Obfuscated Code, etc DEMO: Disassembly 101 in Action

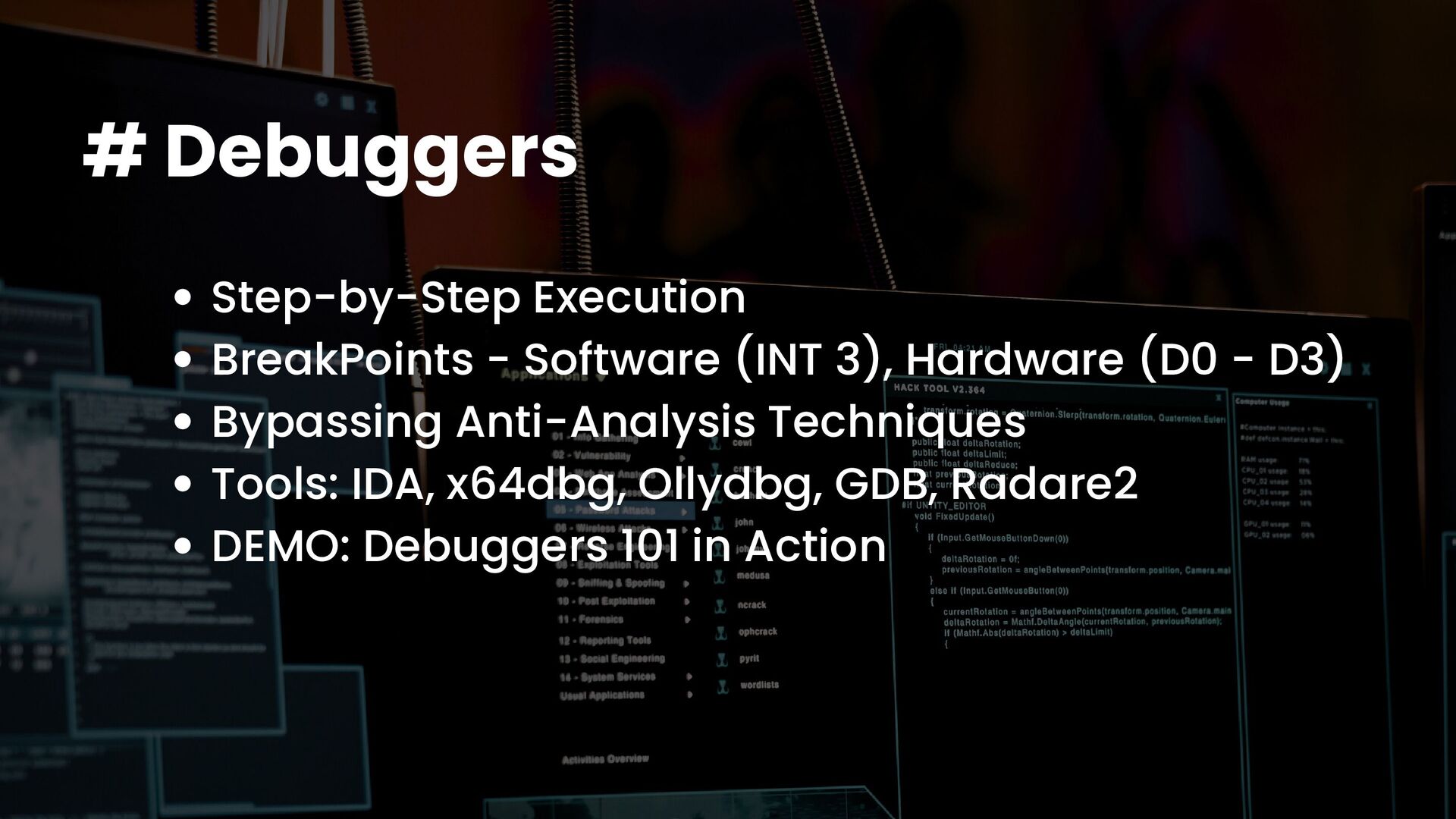

44. # Debuggers Step-by-Step Execution BreakPoints - Software (INT 3), Hardware (D0 - D3) Bypassing Anti-Analysis Techniques Tools: IDA, x64dbg, Ollydbg, GDB, Radare2 DEMO: Debuggers 101 in Action

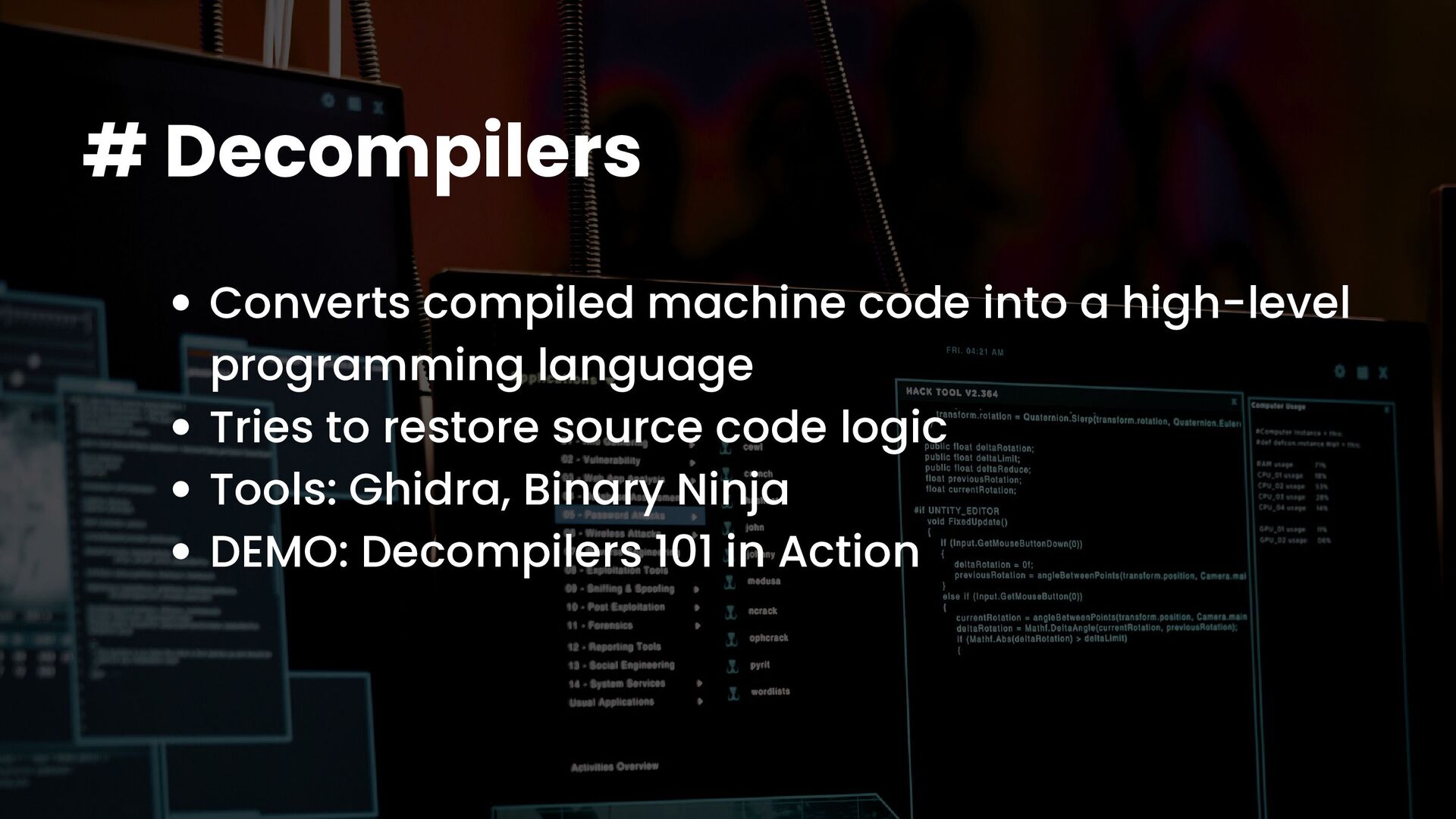

45. # Decompilers Converts compiled machine code into a high-level programming language Tries to restore source code logic Tools: Ghidra, Binary Ninja DEMO: Decompilers 101 in Action
46. REVERSE ENGINEERING: Zeus Trojan - A Glimpse
47. OFFSET 0x7: MEMORY FORENSICS

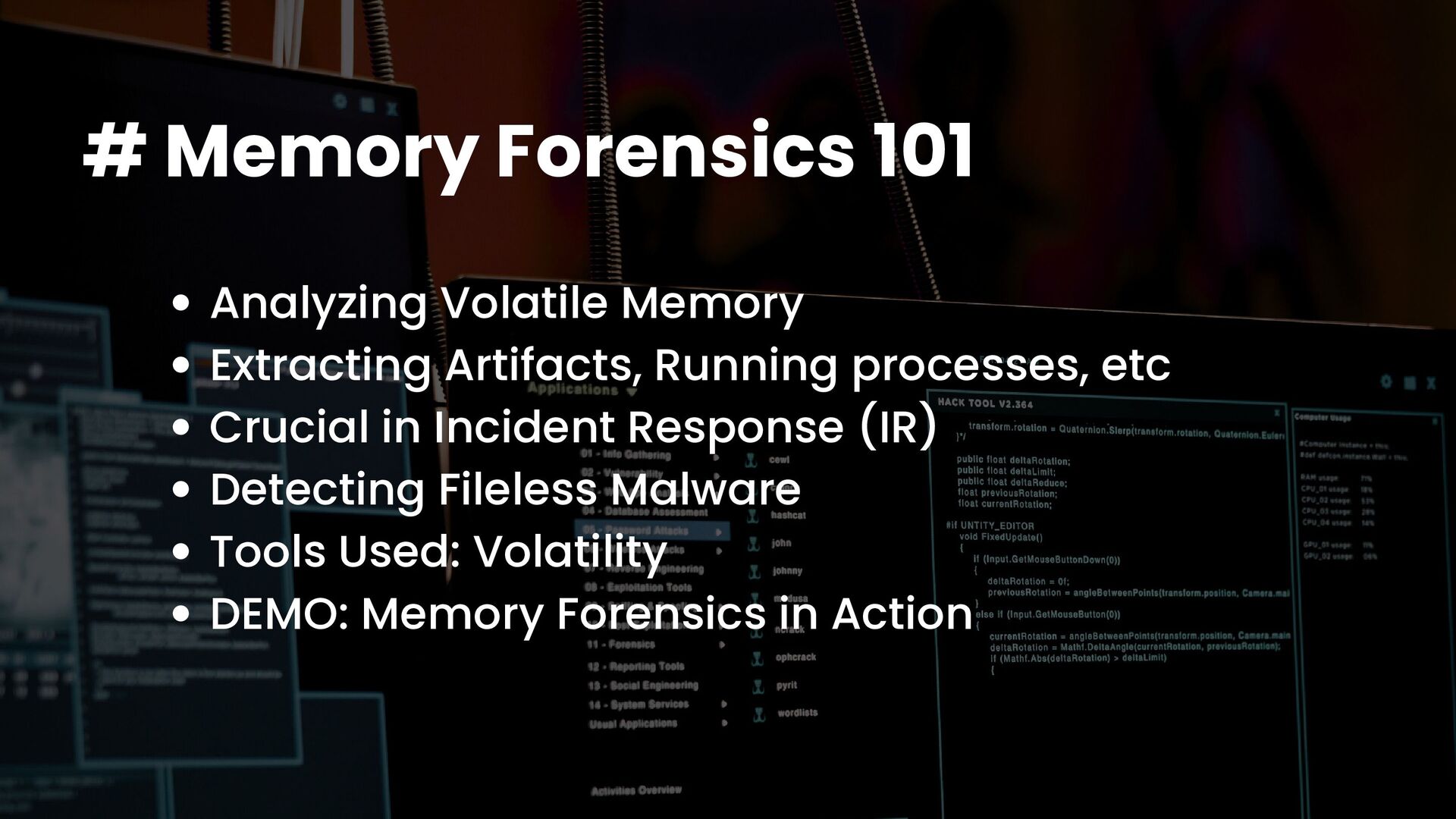

48. # Memory Forensics 101 Analyzing Volatile Memory Extracting Artifacts, Running processes, etc Crucial in Incident Response (IR) Detecting Fileless Malware Tools Used: Volatility DEMO: Memory Forensics in Action
49. OFFSET 0x7: ANTI-ANALYSIS TECHNIQUES

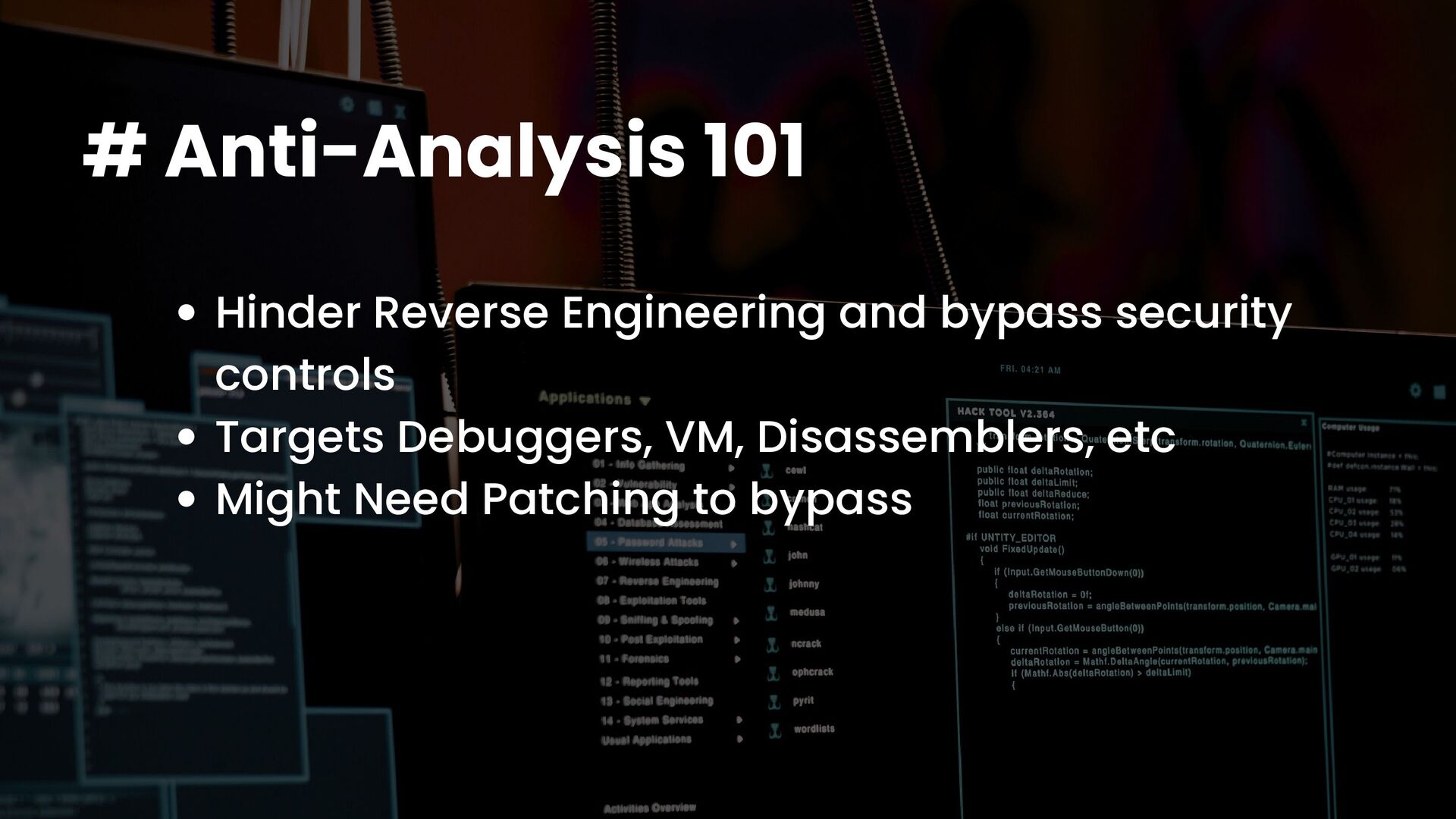

50. # Anti-Analysis 101 Hinder Reverse Engineering and bypass security controls Targets Debuggers, VM, Disassemblers, etc Might Need Patching to bypass

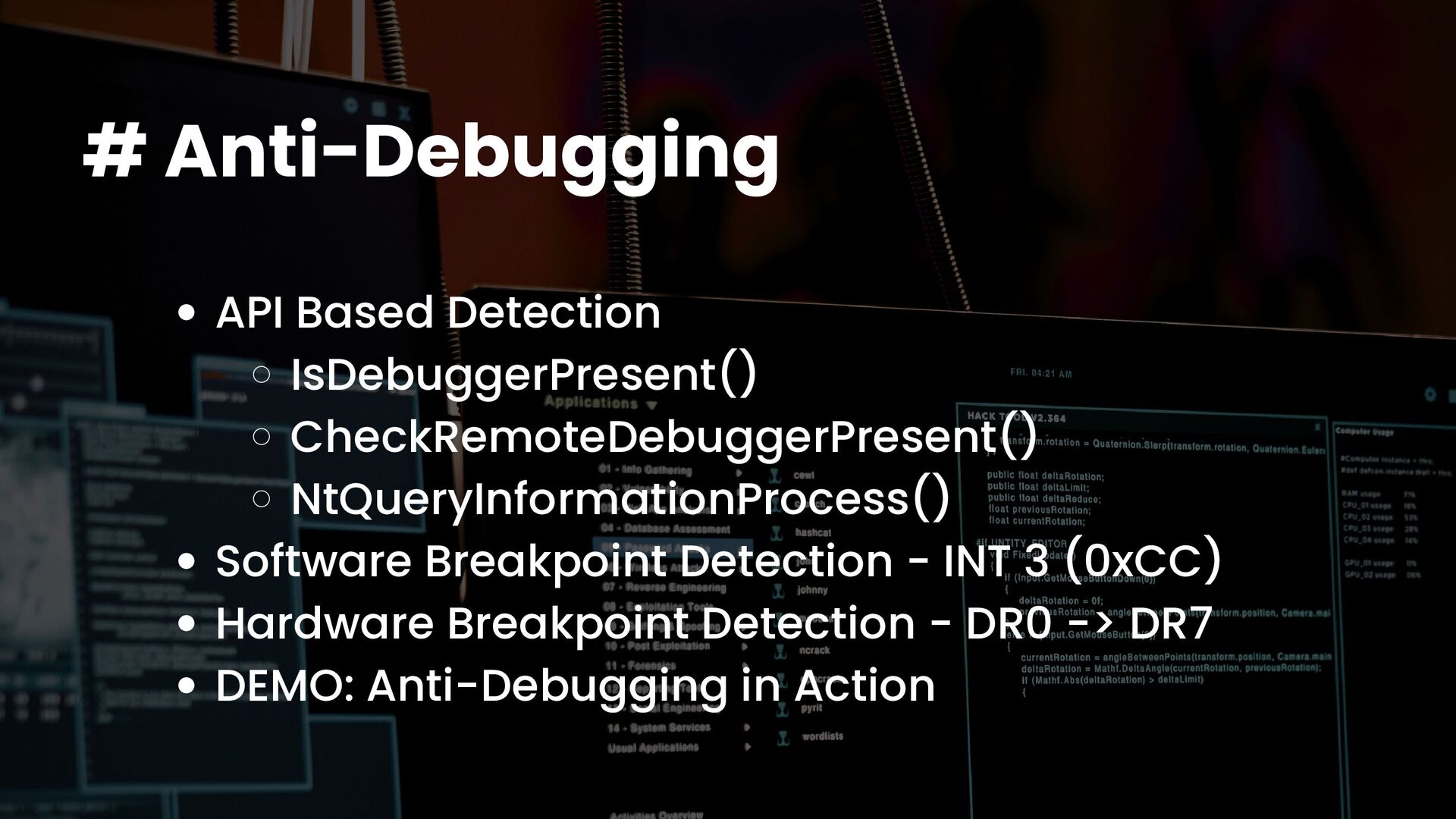

51. # Anti-Debugging API Based Detection IsDebuggerPresent() CheckRemoteDebuggerPresent() NtQueryInformationProcess() Software Breakpoint Detection - INT 3 (0xCC) Hardware Breakpoint Detection - DR0 -> DR7 DEMO: Anti-Debugging in Action

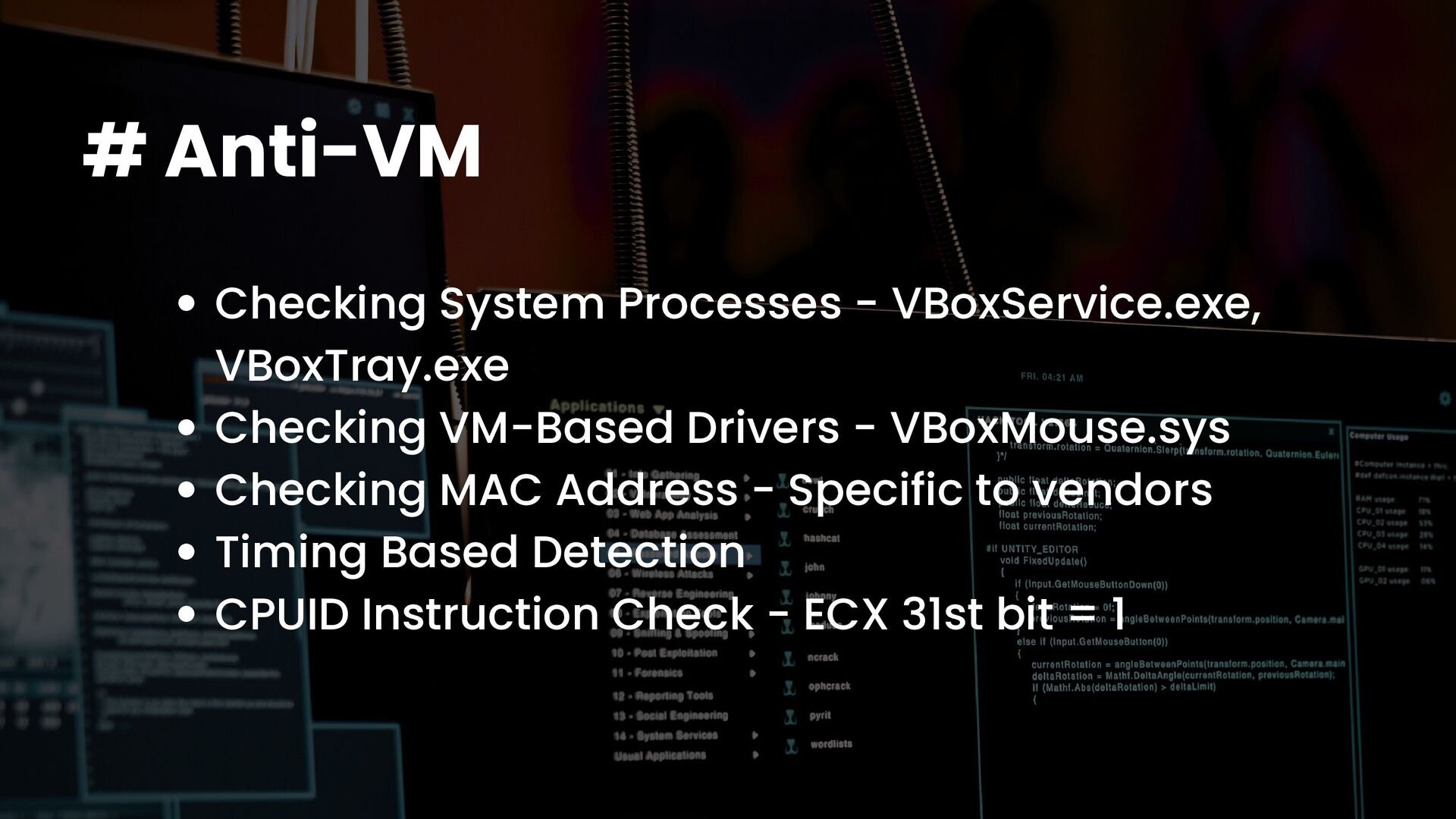

52. # Anti-VM Checking System Processes - VBoxService.exe, VBoxTray.exe Checking VM-Based Drivers - VBoxMouse.sys Checking MAC Address - Specific to vendors Timing Based Detection CPUID Instruction Check - ECX 31st bit = 1

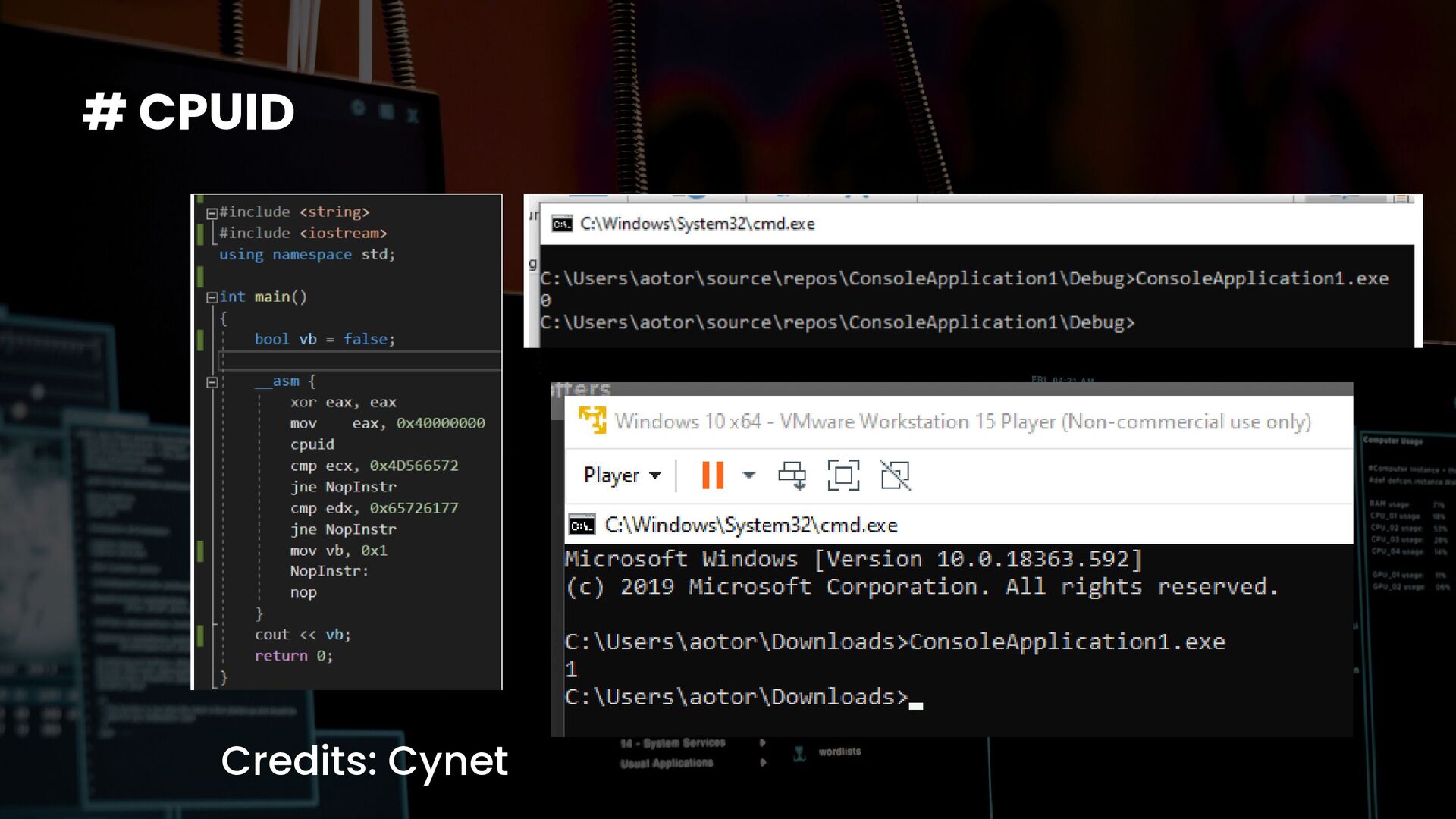

53. # CPUID Credits: Cynet

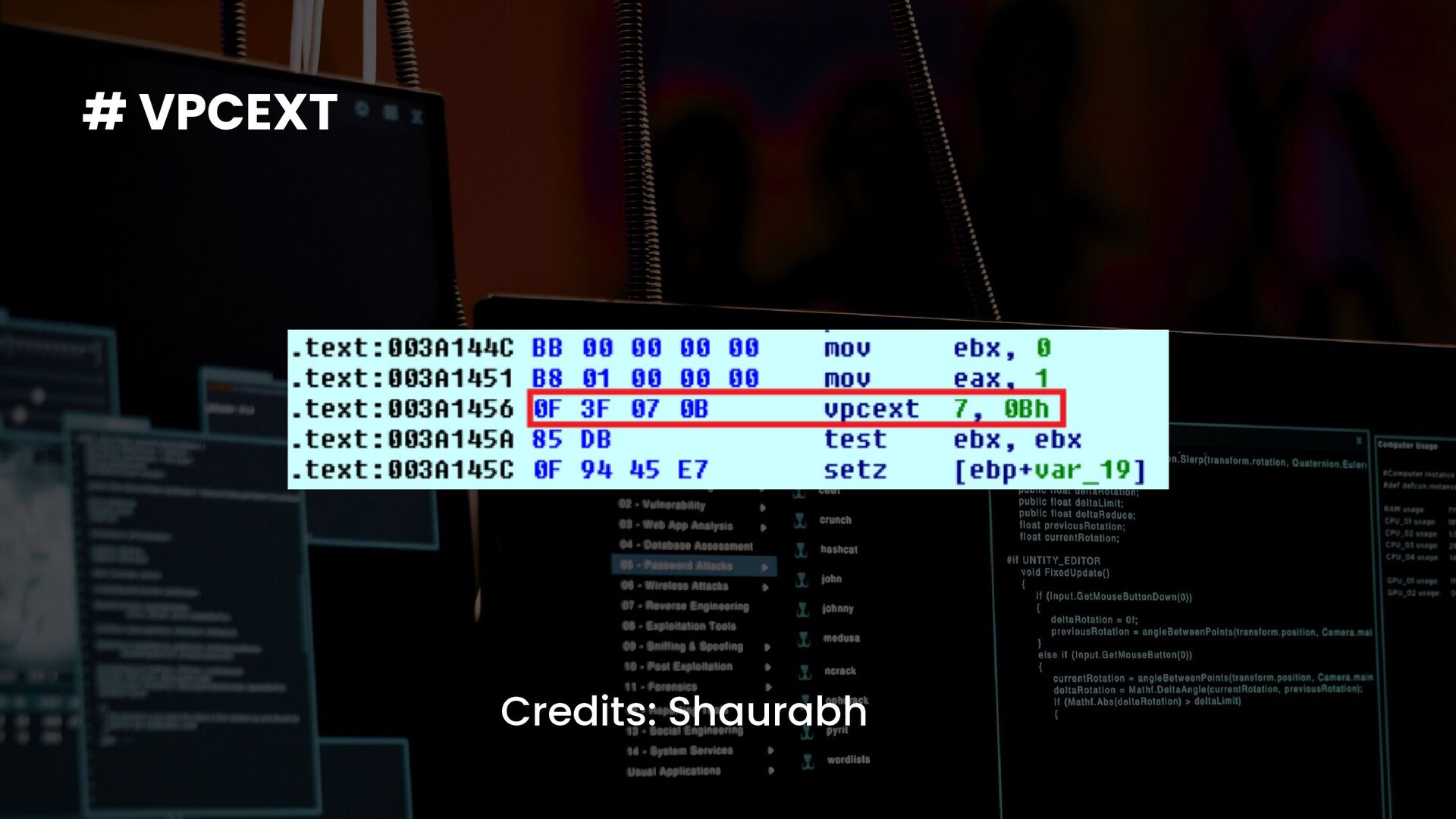

54. # VPCEXT Credits: Shaurabh

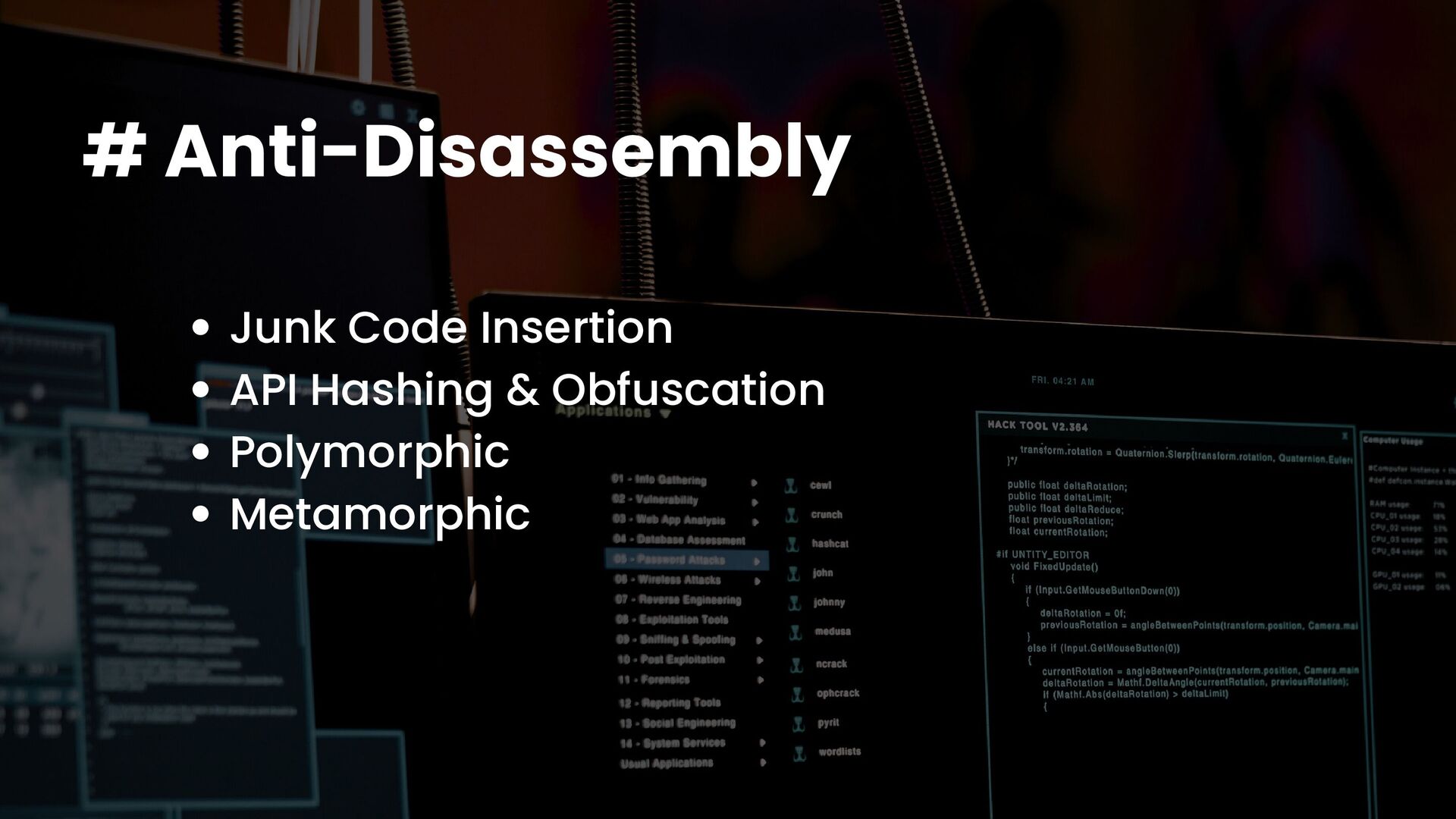

55. # Anti-Disassembly Junk Code Insertion API Hashing & Obfuscation Polymorphic Metamorphic

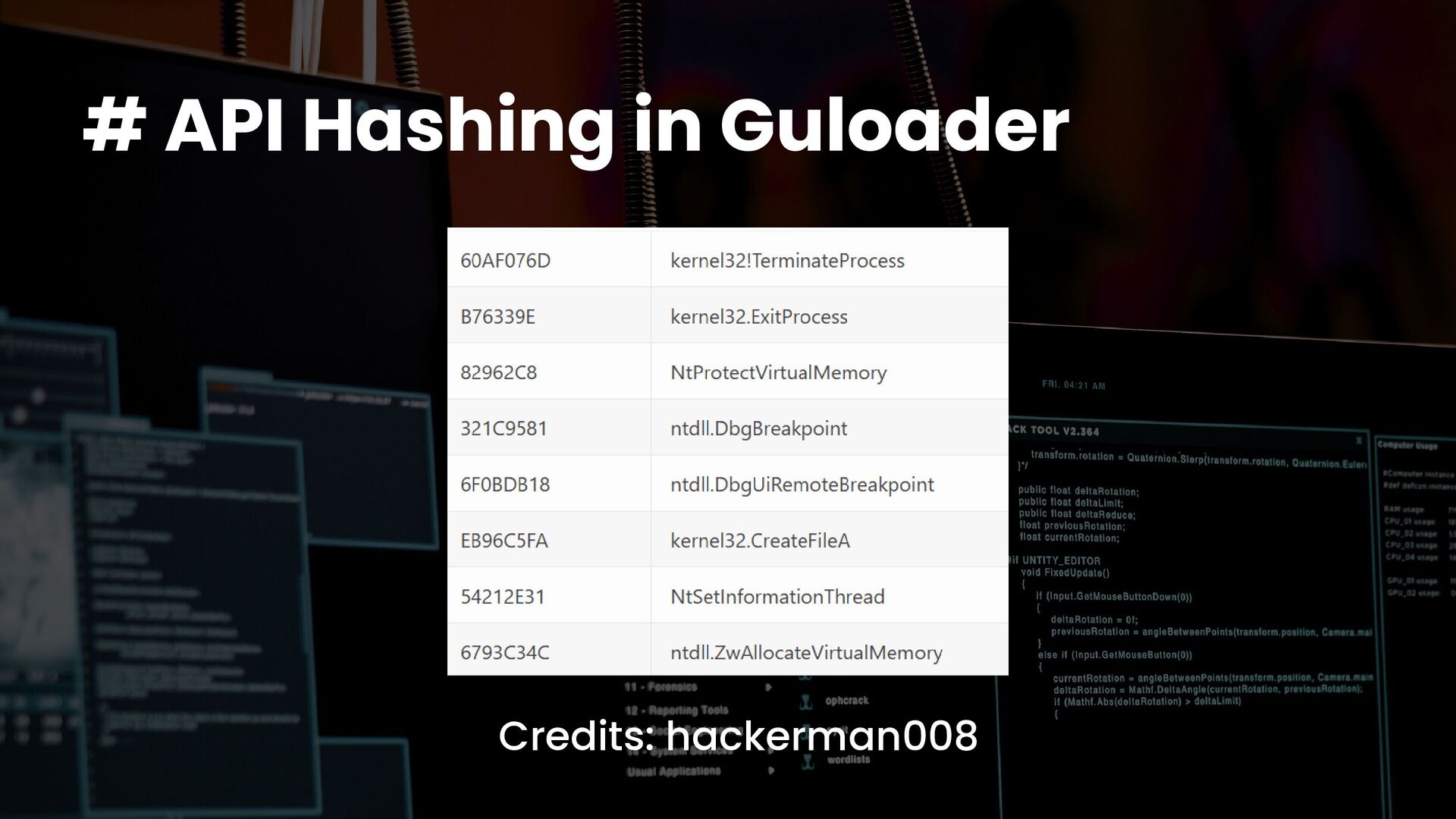

56. # API Hashing in Guloader Credits: hackerman008
57. Any Queries?
58. Athis SN VincePanda19 Athis SN REACH OUT AT: AthisSn
