DEFCON 24 IoT village - snmp remote attacks bertin bervis

In this talk i covered the scenarios in which the SNMP with default private community string with write properties can be abused in Iot devices in order to modify behaviors or condition that affects real world environments .

Transcript

1. SNMP AND IOT DEVICES: LET ME MANAGE THAT FOR YOU BRO! Bertin Bervis Bonilla NetDB Project Co-Founder
2. Important Disclaimer You don´t need to do something illegal or stupid, you could be caught This research is for educational purposes My experience in a real scenario
3. Agenda -whoami -SNMP in 5 minutes … or more -OSINT /IoT Search engine NetDB -SNMP remote attacks DEMOS Conclusions/recommendations
4. It can only be attributable to human error
6. SNMP Packet Format
8. The Agent
9. So…WTF is a MIB?
13. Commands
14. Versions,settings,encryption
16. In a nutshell SNMP versions V1 V2 NO ENCRYPTION COMMUNITY STRINGS IN PLAIN TEXT USUALLY MANY VENDORS USES PUBLIC* FOR READ ONLY PRIVATE* FOR READ-WRITE

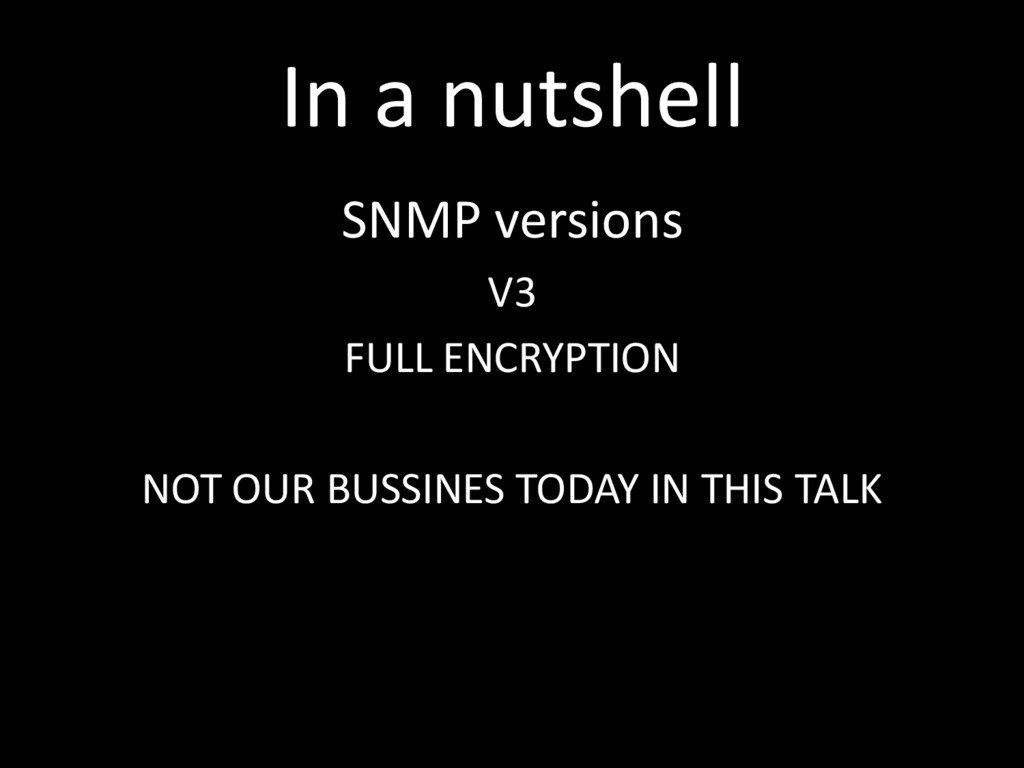

17. In a nutshell SNMP versions V3 FULL ENCRYPTION NOT OUR BUSSINES TODAY IN THIS TALK
18. It´s easy
19. The OID interface index 1.3.6.1.2.1.2.2.1.1 A unique value, greater than zero, for each interface. It is recommended that values are assigned contiguously starting from 1. The value for each interface sub-layer must remain constant at least from one re-initialization of the entity's network management system to the next re- initialization.
21. The OID ifAdminStatus 1.3.6.1.2.1.2.2.1.7 read-write properties1.3.
22. The OID ifAdminStatus 1.3.6.1.2.1.2.2.1.7. 4 Where number 4 is the interface index.
23. • The snmpset command is used to actually modify information on the remote host. For each variable you want to set, you need to specify the OID to update, the data type and the value you want to set it to. • The valid datatypes can be found at the end of the snmpset help output: • % snmpset -h |& tail -4 type - one of i, u, t, a, o, s, x, d, n i: INTEGER, u: unsigned INTEGER, t: TIMETICKS, a: IPADDRESS o: OBJID, s: STRING, x: HEX STRING, d: DECIMAL STRING U: unsigned int64, I: signed int64, F: float, D: double
24. The OID ifAdminStatus with SNMPSET 1.3.6.1.2.1.2.2.1.7. 4 i 1 Where number 4 is the interface index. And integer 1 is the value to turn off the interface 1 = ON 2 = OFF
25. So…. Let´s abuse the READ/WRITE properties using the PRIVATE community by default in all devices. POLL everything in the public Internet!!!!!!!!!!!
26. NetDB – The Network Database Project • Scan the ipv4/ipv6 public address space • 24 hours • 70+ protocols • TCP/UDP • API • Probes for SNMP PRIVATE community strings • Sysname OID 1.3.6.1.2.1.1.5
27. DEMO
28. SNMP is everywhere in IoT After months of research we found : ATMs Cars Traffic lights systems Heavy Networking equipment Industrial equipment Medical devices SOHO Modems/Routers
29. CASE # 1 ATMs
30. "NCR Self-Service Terminal Hardware: x86 Family 15” iso.3.6.1.2.1.1.5.0 = STRING: "ATM041"
31. NCR interesting OIDs • CASH-01-SDCDISPENSER-SECONDCASSETTE-MIB 1.3.6.1.4.1.191.39.13.2.2.17.11 (secondCassette) • MCRW-01-SDCMOTORISED-CARDREADER-MIB 1.3.6.1.4.1.191.39.13.2.2.1.5 (cardReader) • MCRW-01-SDCMOTORISED-CARDCAPTUREBIN-MIB 1.3.6.1.4.1.191.39.13.2.2.1.9 (cardCaptureBin)

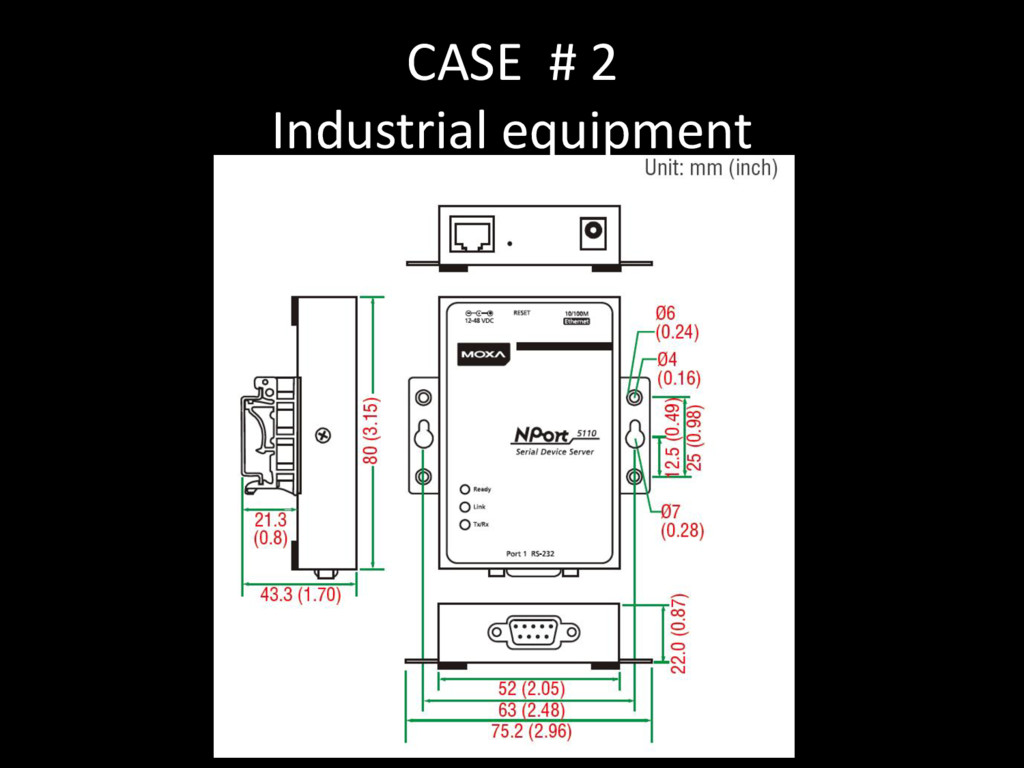

32. CASE # 2 Industrial equipment
33. Taipei Metro System
35. CASE # 3 Traffic light systems
36. DEMO
37. Econolite ASC/3 SNMP/NTCIP
38. NTCIP National Transportation Communications for Intelligent Transportation
40. So….. We can set the Min green?
41. CASE # 4 3000+ watts power supplies /UPS
42. 1.3.6.1.2.1.33.1.1.2.0 In order to get the system version
43. But.. In this scenario you can turn off the whole device • UPS-MIB • upsShutdownAfterDelay 1.3.6.1.2.1.33.1.8.2 • upsStartupAfterDelay 1.3.6.1.2.1.33.1.8.3 • upsRebootWithDuration 1.3.6.1.2.1.33.1.8.4 • upsShutdownType 1.3.6.1.2.1.33.1.8.1
44. CASE # 5 Cars.. Remote cars…

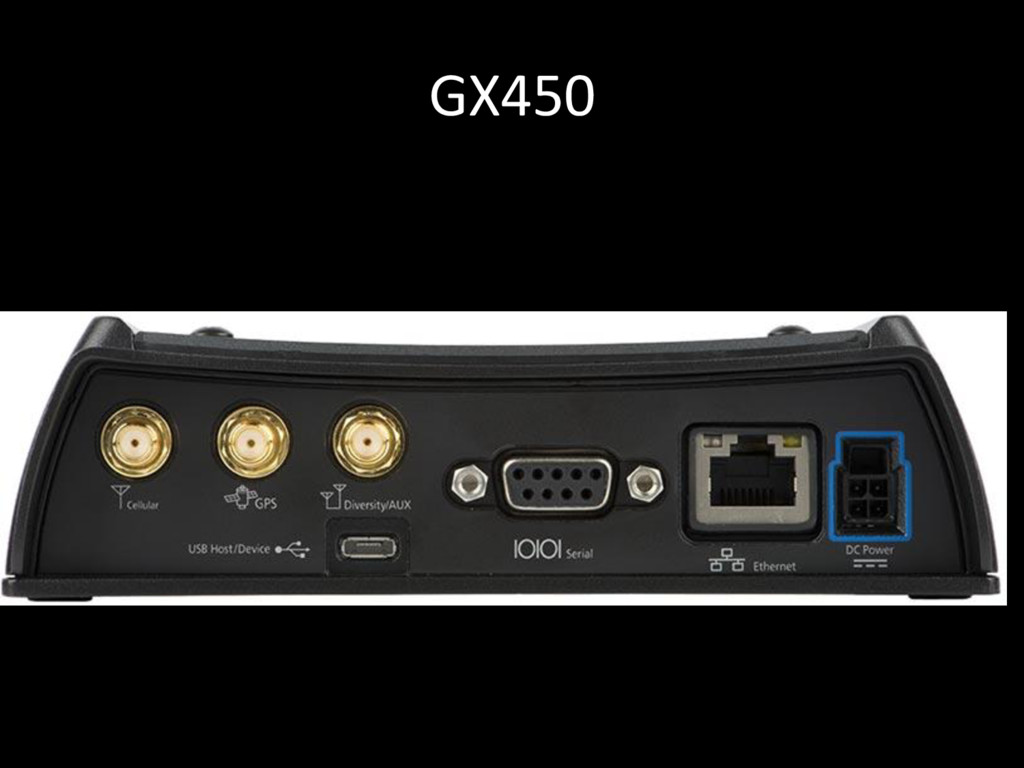

46. GX450
47. DEMO
48. CASE # 6 Heavy networking equipment
49. Cisco and Huawei use the same OIDs
50. SNMP Killer DEMO Password extraction
51. Thanks !! See you next time !!!!
