  2. Apache MXNet Distributed Training Explained In Depth Viacheslav Kovalevskyi @b0noi

    https://goo.gl/MaZFkE
  3. Why To Distribute?

  4. * https://github.com/apache/incubator-mxnet/tree/master/example/image-classification#distributed-training

  5. Multi Machine Vs Multi GPU Training

  6. x16

  7. * https://github.com/apache/incubator-mxnet/tree/master/example/image-classification#distributed-training

  8. * https://github.com/apache/incubator-mxnet/tree/master/example/image-classification#distributed-training 1 instance (16 GPUs)

  9. * https://github.com/apache/incubator-mxnet/tree/master/example/image-classification#distributed-training 1 instance (16 GPUs) Not achievable with 1

    instance
  10. x16 MXNet cluster

  11. * https://github.com/apache/incubator-mxnet/tree/master/example/image-classification#distributed-training 1 instance (16 GPUs) Not achievable with 1

    instance
  12. * https://github.com/apache/incubator-mxnet/tree/master/example/image-classification#distributed-training instances, 16 GPU each

  13. Training Example def f(x): # a = 5 # b

    = 2 return 5 * x + 2 # Data X = np.arange(100, step=0.001) Y = f(X) # Split data for training and evaluation X_train, X_test, Y_train, Y_test = train_test_split(X, Y)
  14. Actual training model.fit(train_iter, eval_iter, optimizer_params={ 'learning_rate':0.000000002}, num_epoch=20, eval_metric='mae', batch_end_callback =

    mx.callback.Speedometer(batch_size, 20), kvstore="device") * https://mxnet.incubator.apache.org/tutorials/python/linear-regression.html
  15. Lab #1 https://goo.gl/MaZFk E

  16. Let’s Distribute

  17. Main Components of a Cluster scheduler worker(s) server(s)

  18. How To Start a Component import os os.environ.update({ "DMLC_ROLE": "scheduler",

    "DMLC_PS_ROOT_URI": "127.0.0.1", "DMLC_PS_ROOT_PORT": "9000", "DMLC_NUM_SERVER": "1", "DMLC_NUM_WORKER": "2", "PS_VERBOSE": "0" }) import mxnet as mx
  19. How To Start a Component import os os.environ.update({ "DMLC_ROLE": "scheduler",

    # Could be "scheduler", "worker" or "server" "DMLC_PS_ROOT_URI": "127.0.0.1", "DMLC_PS_ROOT_PORT": "9000", "DMLC_NUM_SERVER": "1", "DMLC_NUM_WORKER": "2", "PS_VERBOSE": "0" }) import mxnet as mx
  20. How To Start a Component import os os.environ.update({ "DMLC_ROLE": "scheduler",

    # Could be "scheduler", "worker" or "server" "DMLC_PS_ROOT_URI": "127.0.0.1", # IP address of a scheduler "DMLC_PS_ROOT_PORT": "9000", "DMLC_NUM_SERVER": "1", "DMLC_NUM_WORKER": "2", "PS_VERBOSE": "0" }) import mxnet as mx
  21. How To Start a Component import os os.environ.update({ "DMLC_ROLE": "scheduler",

    # Could be "scheduler", "worker" or "server" "DMLC_PS_ROOT_URI": "127.0.0.1", # IP address of a scheduler "DMLC_PS_ROOT_PORT": "9000", # Port of a scheduler "DMLC_NUM_SERVER": "1", "DMLC_NUM_WORKER": "2", "PS_VERBOSE": "0" }) import mxnet as mx
  22. How To Start a Component import os os.environ.update({ "DMLC_ROLE": "scheduler",

    # Could be "scheduler", "worker" or "server" "DMLC_PS_ROOT_URI": "127.0.0.1", # IP address of a scheduler "DMLC_PS_ROOT_PORT": "9000", # Port of a scheduler "DMLC_NUM_SERVER": "1", # Number of servers in cluster "DMLC_NUM_WORKER": "2", "PS_VERBOSE": "0" }) import mxnet as mx
  23. How To Start a Component import os os.environ.update({ "DMLC_ROLE": "scheduler",

    # Could be "scheduler", "worker" or "server" "DMLC_PS_ROOT_URI": "127.0.0.1", # IP address of a scheduler "DMLC_PS_ROOT_PORT": "9000", # Port of a scheduler "DMLC_NUM_SERVER": "1", # Number of servers in cluster "DMLC_NUM_WORKER": "2", # Number of workers in cluster "PS_VERBOSE": "0" }) import mxnet as mx
  24. How To Start a Component import os os.environ.update({ "DMLC_ROLE": "scheduler",

    # Could be "scheduler", "worker" or "server" "DMLC_PS_ROOT_URI": "127.0.0.1", # IP address of a scheduler "DMLC_PS_ROOT_PORT": "9000", # Port of a scheduler "DMLC_NUM_SERVER": "1", # Number of servers in cluster "DMLC_NUM_WORKER": "2", # Number of workers in cluster "PS_VERBOSE": "0" # Could be 0, 1 or 2 }) import mxnet as mx
  25. Physical instance Our Test Cluster 1x scheduler 1x worker 1x

    server
  26. Lab #2 (example_cluster)

  27. python start_scheduler.py & python start_server.py & python start_worker.py Lets Bootstrap

    Our First Cluster
  28. python start_scheduler.py & python start_server.py & python start_worker.py Lets Bootstrap

    Our First Cluster
  29. 1x scheduler (1) 1x worker (?) 1x server (?) Meta:

    request=0, timestamp=0, control={ cmd=ADD_NODE, node={ role=server, ip=172.31.99.98, port=62 Hey scheduler, I’m server, I’m up, my rank is ? please add me to the cluster on server
  30. 1x scheduler (1) 1x worker (?) 1x server (?) Meta:

    request=0, timestamp=0, control={ cmd=ADD_NODE, node={ role=server, ip=172.31.99.98, port=62 Hey scheduler, I’m server, I’m up, my rank is ? please add me to the cluster Meta: request=0, timestamp=0, control={ cmd=ADD_NODE, node={ role=server, ip=172.31.99.98, port=62 I'm confirming that I got: “Hey scheduler, I’m server, I’m up, my rank is ? please add me to the cluster” on server on scheduler
  31. 1x scheduler (1) 1x worker (?) 1x server (?) Hey

    scheduler, I’m worker, I’m up, my rank is ? please add me to the cluster Meta: request=0, timestamp=0, control={ cmd=ADD_NODE, node={ role=worker, ip=172.31.99.98, port=6 on worker
  32. 1x scheduler (1) 1x worker (?) 1x server (?) Assigning

    rank 8 to the server src/van.cc:235: assign rank=8 to node role=server, ip=172.31.99.98, port=62263, is_recovery=0 on scheduler

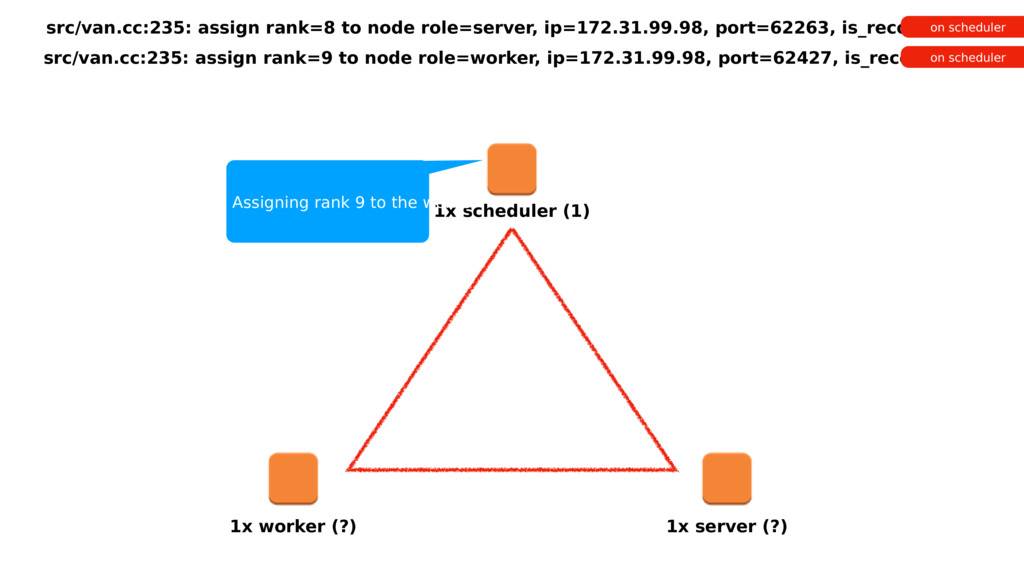

  33. 1x scheduler (1) 1x worker (?) 1x server (?) Assigning

    rank 9 to the worker src/van.cc:235: assign rank=8 to node role=server, ip=172.31.99.98, port=62263, is_recovery=0 src/van.cc:235: assign rank=9 to node role=worker, ip=172.31.99.98, port=62427, is_recovery=0 on scheduler on scheduler
  34. 1x scheduler (1) 1x worker (?) 1x server (?) ={

    role=server, id=8, ip=172.31.99.98, port=62263, is_recovery=0 role=worker, id=9, ip=172.31.99.98, por Hey, worker, you are now part of the cluster with rank 9 on scheduler
  35. 1x scheduler (1) 1x worker (?) 1x server (?) ={

    role=server, id=8, ip=172.31.99.98, port=62263, is_recovery=0 role=worker, id=9, ip=172.31.99.98, por Hey, server, you are now part of the cluster with rank 8 ={ role=server, id=8, ip=172.31.99.98, port=62263, is_recovery=0 role=worker, id=9, ip=172.31.99.98, por on scheduler on scheduler
  36. 1x scheduler (1) 1x worker (?) 1x server (?) src/van.cc:251:

    the scheduler is connected to 1 workers and 1 servers on scheduler
  37. 1x scheduler (1) 1x worker (?) 1x server (8) node={

    role=server, id=8, ip=172.31.99.98, port=62263, is_recovery=0 role=worker, id=9, ip=172.31.99.9 src/van.cc:281: S[8] is connected to others Finally I’m connected and have rank 8 on server on server
  38. 1x scheduler (1) 1x worker (9) 1x server (8) Finally

    I’m connected and have rank 9 node={ role=server, id=8, ip=172.31.99.98, port=62572, is_recovery=0 role=worker, id=9, ip=172.31.99.9 src/van.cc:281: W[9] is connected to others on worker on worker
  39. 1x scheduler (1) 1x worker (9) 1x server (8) I

    have reached barrier on worker src/van.cc:136: ? => 1. Meta: request=1, timestamp=1, control={ cmd=BARRIER, barrier_group=7 } on server on scheduler I have reached barrier I have reached barrier
  40. 1x scheduler (1) 1x worker (9) 1x server (8) 3

    nodes have reached barrier, looks like all gang is here src/van.cc:161: 1 => 1. Meta: request=1, timestamp=2, control={ cmd=BARRIER, barrier_group=7 } src/van.cc:291: Barrier count for 7 : 1 src/van.cc:161: 8 => 1. Meta: request=1, timestamp=1, control={ cmd=BARRIER, barrier_group=7 } src/van.cc:291: Barrier count for 7 : 2 src/van.cc:161: 9 => 1. Meta: request=1, timestamp=1, control={ cmd=BARRIER, barrier_group=7 } src/van.cc:291: Barrier count for 7 : 3 on scheduler
  41. 1x scheduler (1) 1x worker (9) 1x server (8) Hey

    server and worker, you are free to go, barrier has been removed. on scheduler src/van.cc:136: ? => 9. Meta: request=0, timestamp=3, control={ cmd=BARRIER, barrier_group=0 } src/van.cc:136: ? => 8. Meta: request=0, timestamp=4, control={ cmd=BARRIER, barrier_group=0 }
  42. 1x scheduler (1) 1x worker (9) 1x server (8) I

    will wait you all in the next barrier on scheduler src/van.cc:136: ? => 1. Meta: request=1, timestamp=6, control={ cmd=BARRIER, barrier_group=7 } src/van.cc:161: 1 => 1. Meta: request=1, timestamp=6, control={ cmd=BARRIER, barrier_group=7 } src/van.cc:291: Barrier count for 7 : 1
  43. 1x scheduler (1) 1x worker (9) 1x server (8)

  44. Lab 3 (multi_worker_clust er)

  45. More Workers (multi_worker_clust er)

  46. 1x scheduler 1x server 2x workers

  47. Common Misconception

  48. https://stackoverflow.com/questions/46460492

  49. None
  50. None
  51. None
