Hands-on Lab: Making the paradigm-shift to Reactive Programming with Spring 5 Web Reactive @ J-Fall16

These last few years Reactive Programming has found the hearts of a significant amount of developers. The fact that Spring 5 will incorporate the possibility of programming Reactive Systems in its core framework through the Spring Web Reactive project is a very positive development (pun intended) and shows the the paradigm-shift towards declarative programming. A probably familiar phrase in the Reactive Programming context is “Everything is a Stream”. So, what is a Stream? If you’re familiar with Futures, which abstract the delivery of a single value asynchronously in the future, and Iterables, for accessing a sequence of items which have an unknown length, then you can think of a Stream as essentially being a hybrid of the two: a mechanism for asynchronously receiving multiple items. The session starts with the basics of Reactive Programming (in a nutshell) after which we’ll quickly move on to the hands-on part of the session. Using a number of small programming assignments we will familiarize you with all the concepts involving Reactive Programming, and the Spring 5 Web Reactive module. Then, with a real-life use case, we will finally show you why it is such a powerful paradigm. So let us introduce you to a way of building applications in a declarative way, as opposed to imperatively, resulting in more responsive and resilient applications.

Transcript

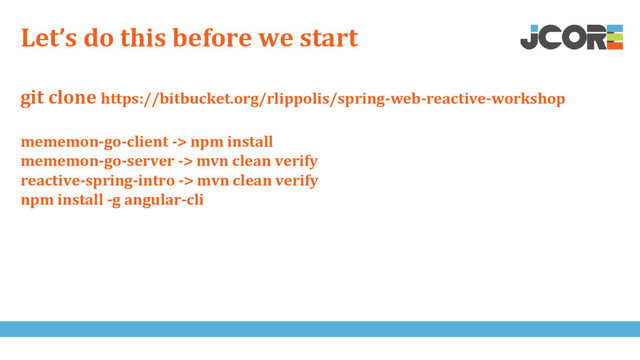

1. Let’s do this before we start git clone https://bitbucket.org/rlippolis/spring-web-reactive-workshop mememon-go-client -> npm install mememon-go-server -> mvn clean verify reactive-spring-intro -> mvn clean verify npm install -g angular-cli
2. Reactive Programming with Spring 5 Web Reactive Riccardo Lippolis - JDriven Bas W. Knopper - JCore
3. Who are we?
4. • Presentation ◦ Intro ◦ Quick dive into Reactive Programming ◦ Reactive Streams Specification ◦ Reactor ◦ Spring Web Reactive ◦ Examples Agenda
5. Quick Dive into Reactive Programming
9. Increase in User Expectance Applications used to have •Couple of servers •Seconds of response time •Hours of offline maintenance •Gigabytes of data to process Today, users expect •Desktop, web & mobile support •Milliseconds response time •100% uptime •Petabytes of data to process
10. Reactive System
12. Reactive Programming • Extending the observer pattern • Abstract away concerns • Low-level threading, Synchronization, Thread-safety, Concurrent data structures, Non-blocking I/O • Observable model • Streams of asynchronous events • Composable operations • No more callback hell!
15. Manipulating data
17. Java 8 Streams vs. Reactive Streams • A Stream is pull-based • it "asks" for items to process. • Reactive Streams are push-based • you are notified when an element is available.
18. Backpressure what if you can’t handle the data?
19. Frameworks? Libraries?
20. Reactive Extensions
21. Reactive Streams
22. Reactive Streams • A standard for asynchronous stream processing with non-blocking backpressure • Inspired by Reactive Extensions API • The API consists of the following components that are required to be provided by Reactive Stream implementations • Publisher • Subscriber • Subscription • Processor
24. “That’s it? I can implement that!” - Random developer “Just don’t...” - Bas & Riccardo
25. Reactor projectreactor.io
26. Reactor • Made by Pivotal! (Spring FTW \0/) • A foundation for asynchronous applications on the JVM • Interact directly with • Java 8 functional API • CompletableFuture • Stream • Duration • Based on the Reactive Streams Specification (same concepts, different naming) • Latest: 3.0.2.RELEASE
27. Flux and Mono
28. Flux and Mono
29. Examples - Creating Reactive Streams • Arbitrary number of items: Flux<String> flux = Flux. just("Hello", "World!"); • Converting an existing collection / Java 8 Stream: List<Integer> list = Arrays. asList(1, 3, 5); Flux<Integer> flux = Flux. fromIterable(list); Flux<Integer> flux = Flux. fromStream(list.stream()); • Empty stream: Flux.empty();
30. Examples - Manipulating Streams • Filtering Flux.just(1, 2, 3, 4, 5).filter(n -> n % 2 == 0); // [2, 4] • Transforming Flux.just(1, 2, 3, 4, 5).map(i -> i * 2); // [2, 4, 6, 8, 10] • Distinct only Flux.just("a", "a", "b", "c").distinct(); // [a, b, c]
31. Examples - Consuming Streams Flux.just("Hello", " ", "World!").subscribe(System. out::print); // Hello World!
32. Examples - Consuming Streams With a custom Subscriber Flux.just("Hello", " ", "World!").subscribe( new Subscriber<String>() { @Override public void onSubscribe(Subscription s) { s.request(Long. MAX_VALUE); } @Override public void onNext(String s) { System. out.println("Received: " + s); } @Override public void onError(Throwable t) { System. err.println("Error: " + t.toString()); } @Override public void onComplete() { System. out.println("Done!"); } });
34. Spring Web Reactive
35. Spring Web Reactive Uses the familiar Spring MVC programming model (@Controller, etc.)... ...but with a new reactive, non-blocking engine
36. Traditional Servlet Engine vs Reactive Engine Traditional
37. Traditional Servlet Engine vs Reactive Engine Traditional Reactive
38. Implementation • Implemented using Project Reactor • Uses Flux (0..N) and Mono (0..1) • Compatible with RxJava • Return Observables from your REST controllers
39. Current state of implementation • Version: 5.0 M2 (Not production ready!) • Focus on REST • Basic HTML rendering supported (Freemarker) • Support for • JSON (Jackson) • XML (JAXB) • SSE streaming • Zero-copy file transfers • • Functional Web Framework -> Not today
40. Examples - Using Streams • With a Spring @RestController @RestController public class MyController { @GetMapping ("count") public Flux<Integer> count( @RequestParam ("to") int to) { return Flux.range(1, to); } } GET http://localhost:8080/count?to=5 -> [1, 2, 3, 4, 5]
41. Reactive Pitfalls Looks very cool, but… • Declarative style of coding is hard(er) to debug • “When is my code executed? (If ever)” • Appears to be multithreaded by default, but isn’t • Design choice "if there’s no explicit request to switch threads it stays on the same one for the next call, whatever that is"
42. Workshop part 1: Master the koans • Open the reactive-spring-intro project • Fix all the tests / koans in: src/test/java/com/jdriven/reactive/exercises
43. Workshop part 2: Mememon Go • Demo explaining Use case • Make all the tests pass by implementing the code • Make the application work :)
44. Coming up • Support for Reactive types in other Spring projects, e.g.: • Spring Data • Spring Cloud • Spring Security • GA Release • Current release: 5.0 M2 • GA not before March 2017
45. Great work everybody!
