Model-based testing: gone and back again - .NET Perth March 2020

My first job in software was as a tester using model-based testing. After switching to development, I've found that writing tests is more work, and gives me less confidence than before. In this talk, I'll explain what's missing in the way we write tests now, some more benefits of model-based testing, and why I'm going back to my roots.

Links:
https://saucelabs.com/blog/the-challenges-and-benefits-of-model-based-testing
https://statecharts.github.io/
http://graphwalker.github.io/
https://altom.gitlab.io/altwalker/altwalker/
https://xstate.js.org/
https://gannettdigital.github.io/simulato/
http://mit.bme.hu/~micskeiz/pages/modelbased_testing.html#tools

Transcript

1. Model-based testing Gone and back again
2. Model-based testing Gone and back again
3. This is a talk about ME
4. Ben Lowry @bplowry Consultant

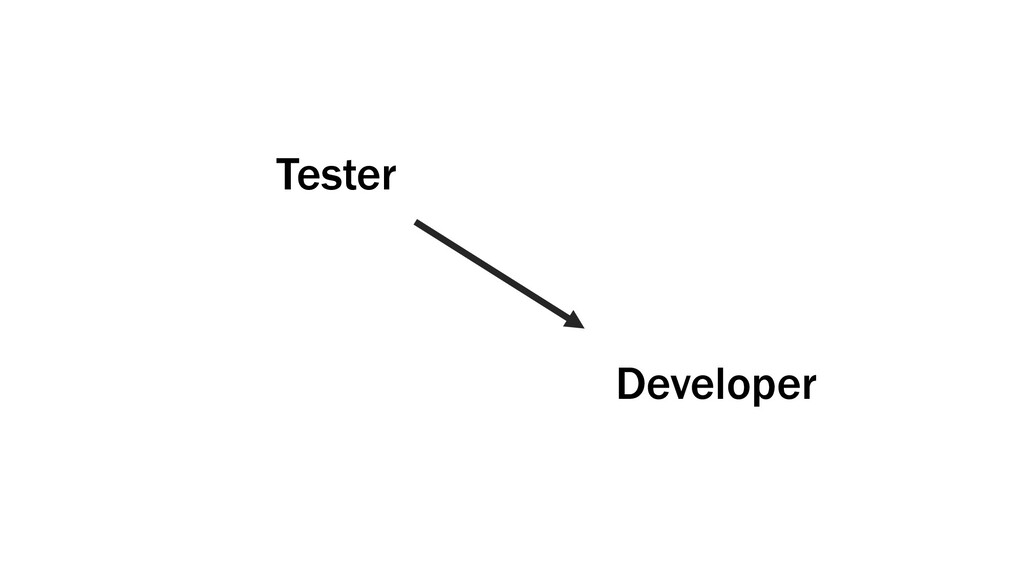

5. Tester Developer

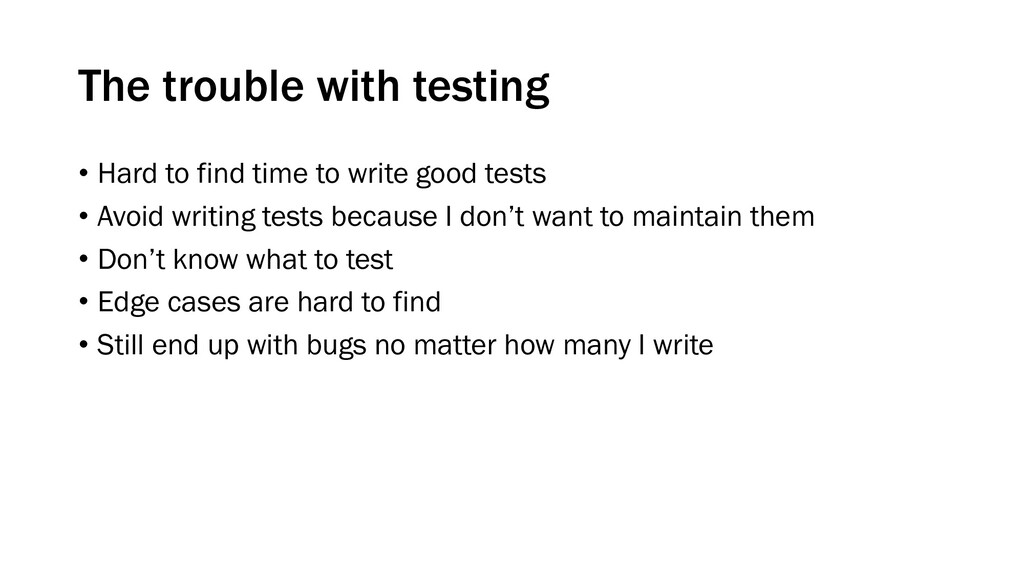

6. The trouble with testing • Hard to find time to write good tests • Avoid writing tests because I don’t want to maintain them • Don’t know what to test • Edge cases are hard to find • Still end up with bugs no matter how many I write
7. Model-based testing

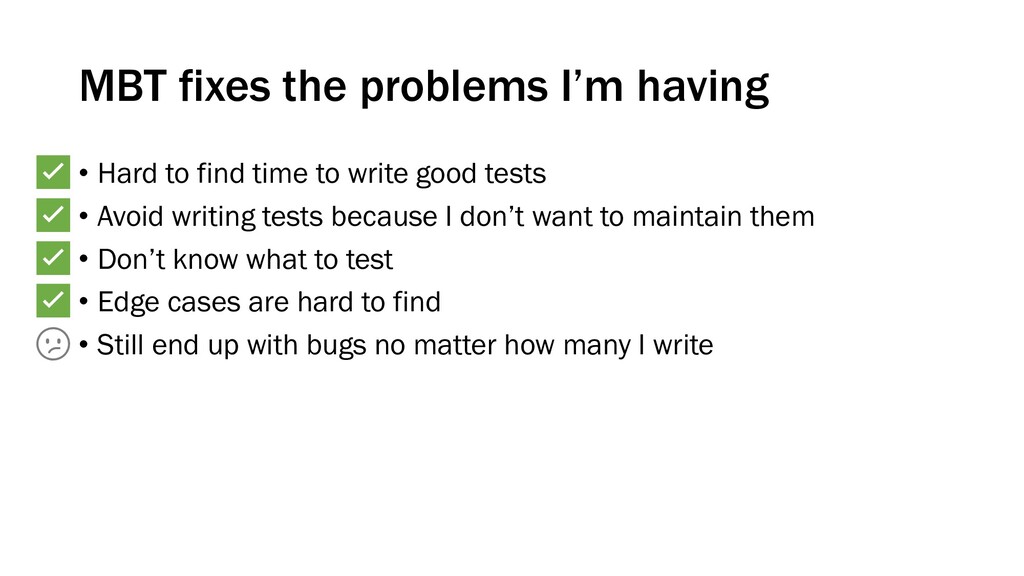

8. MBT fixes the problems I’m having • Hard to find time to write good tests • Avoid writing tests because I don’t want to maintain them • Don’t know what to test • Edge cases are hard to find • Still end up with bugs no matter how many I write ✅ ✅ ✅ ✅
9. Step one: create an abstract model

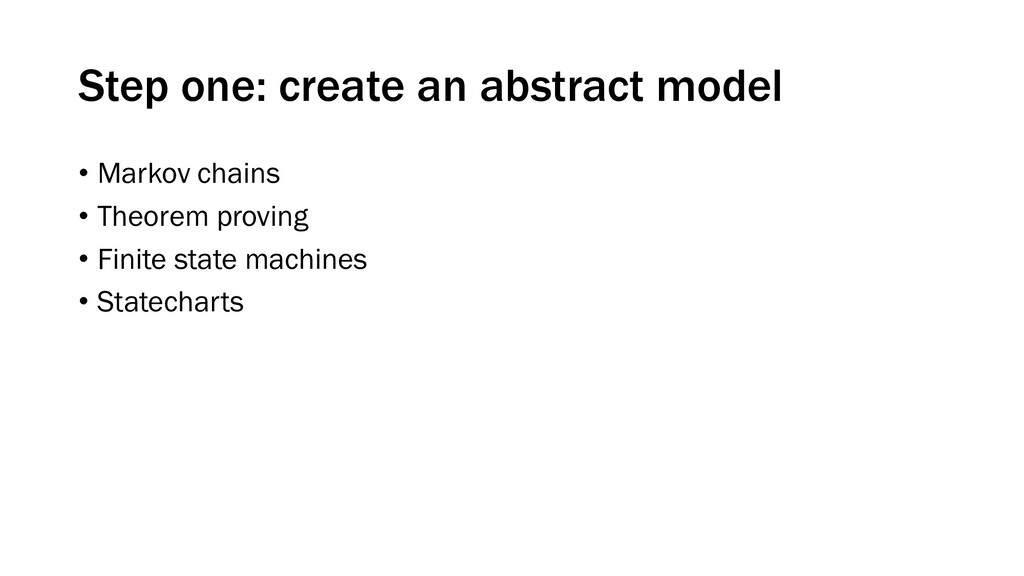

10. Step one: create an abstract model • Markov chains • Theorem proving • Finite state machines • Statecharts

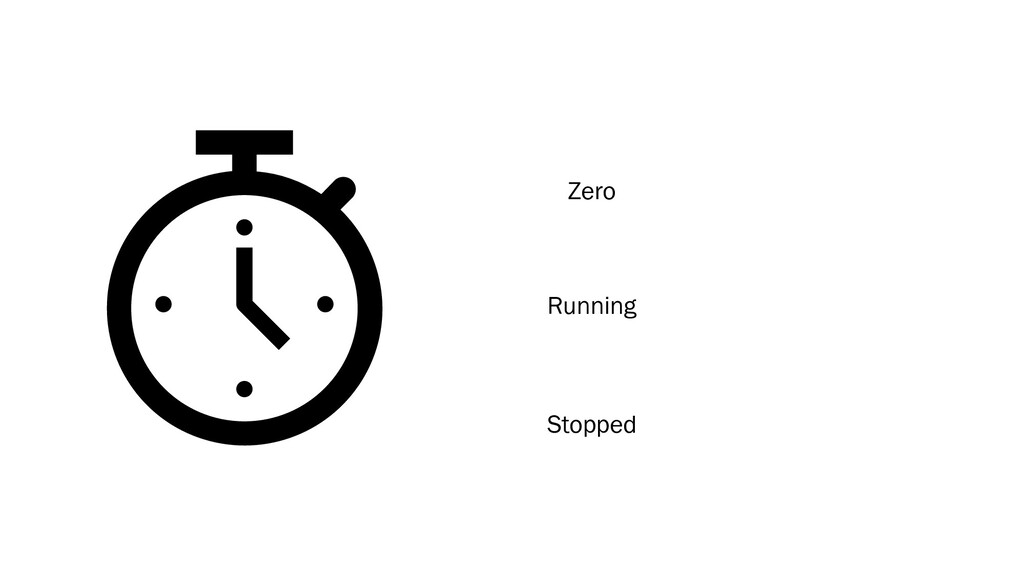

12. Zero Running Stopped

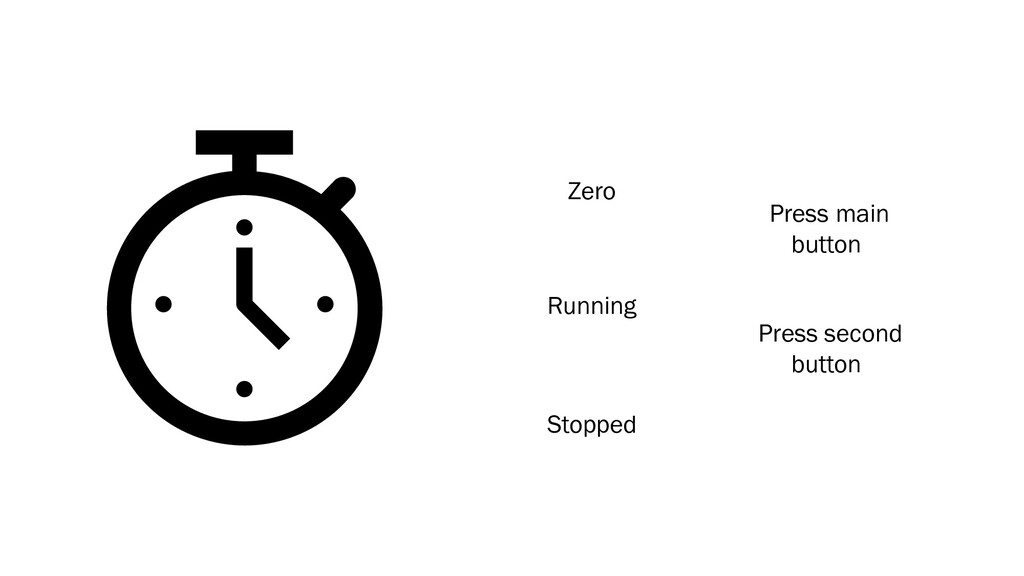

13. Zero Press main button Running Stopped Press second button

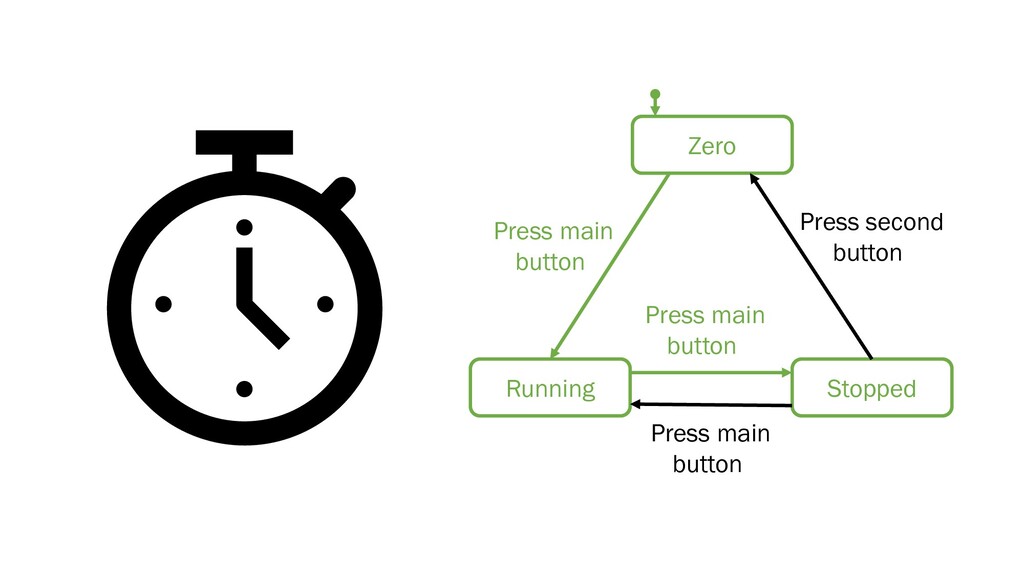

14. Zero Press main button Running Stopped Press second button Press main button Press main button

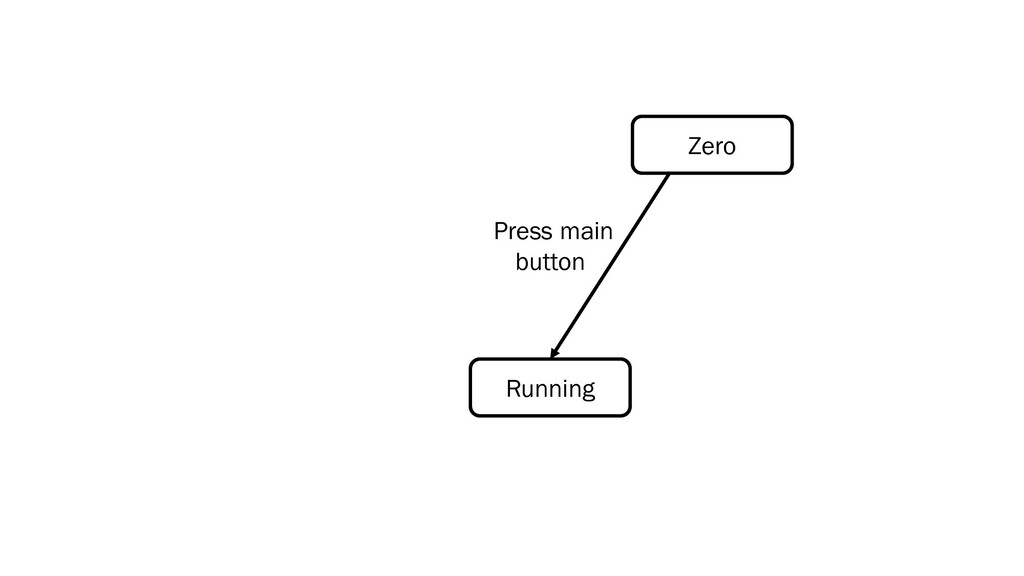

15. Zero Press main button Running

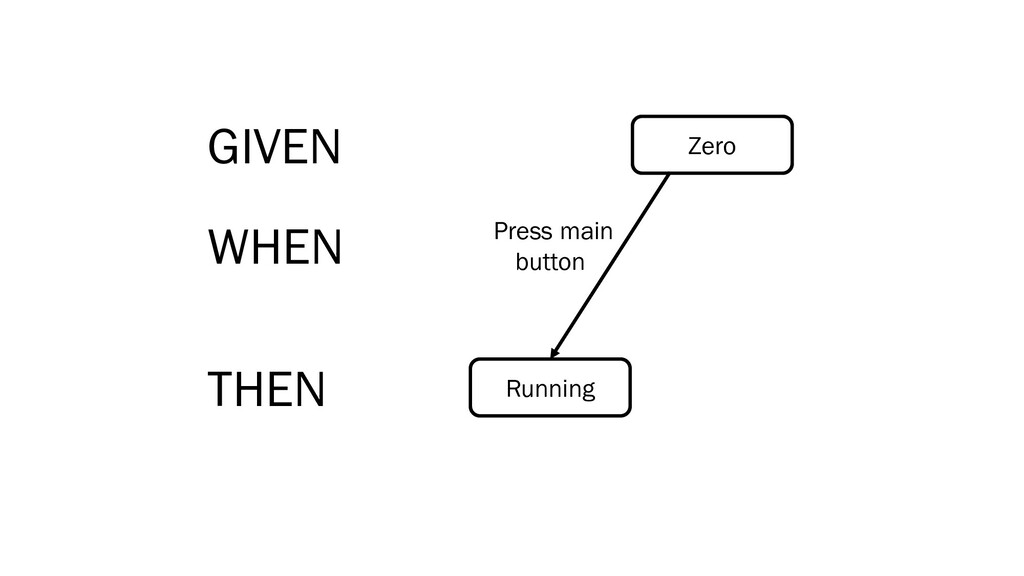

16. Zero Press main button Running GIVEN WHEN THEN
17. You can model just about anything as a finite state machine

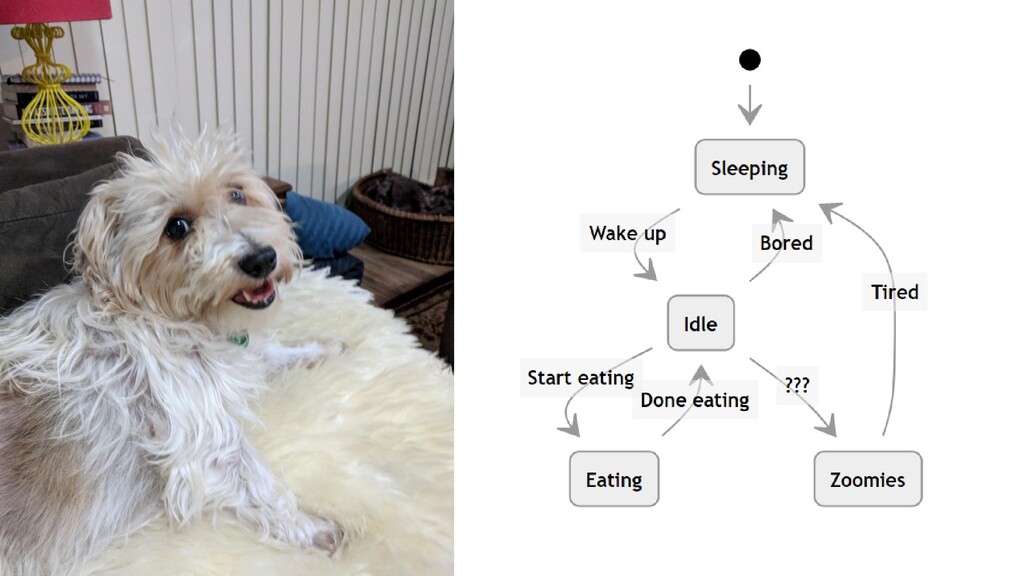

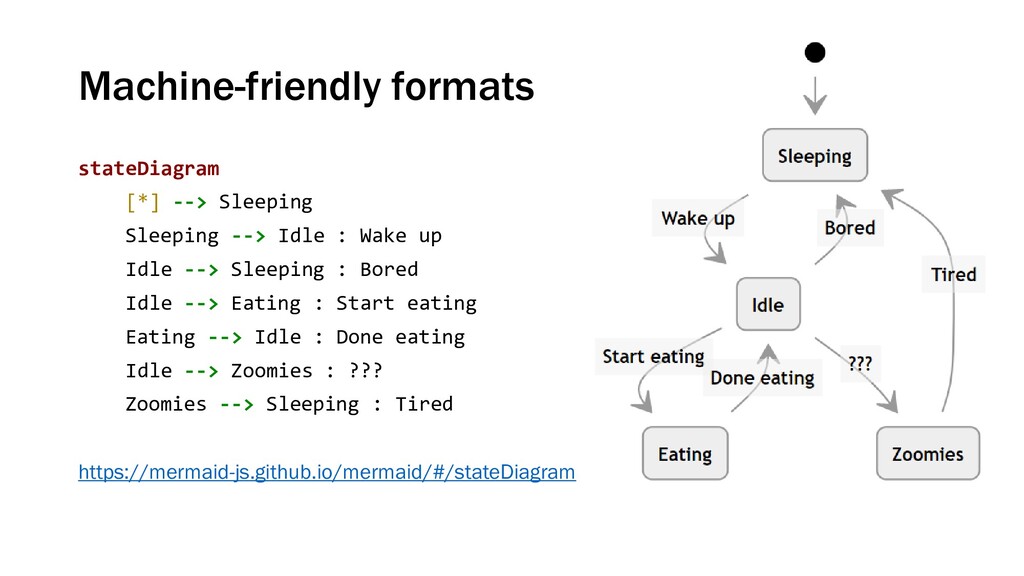

19. Machine-friendly formats stateDiagram [*] --> Sleeping Sleeping --> Idle : Wake up Idle --> Sleeping : Bored Idle --> Eating : Start eating Eating --> Idle : Done eating Idle --> Zoomies : ??? Zoomies --> Sleeping : Tired https://mermaid-js.github.io/mermaid/#/stateDiagram
20. Step two: fill in actions and assertions

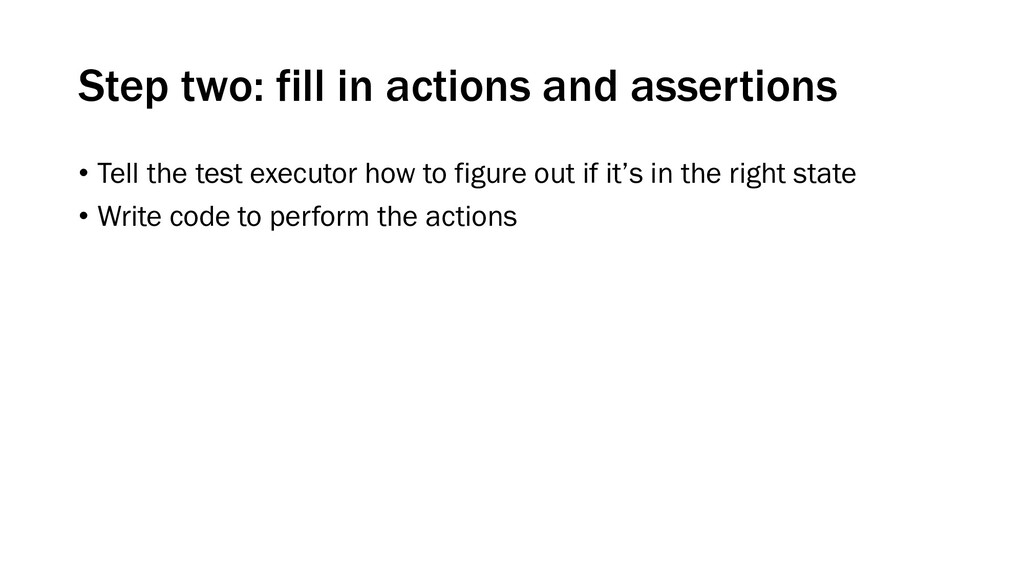

21. Step two: fill in actions and assertions • Tell the test executor how to figure out if it’s in the right state • Write code to perform the actions
22. Zero Press main button Running Stopped Press second button Press main button Press main button
23. Step three: generate the tests

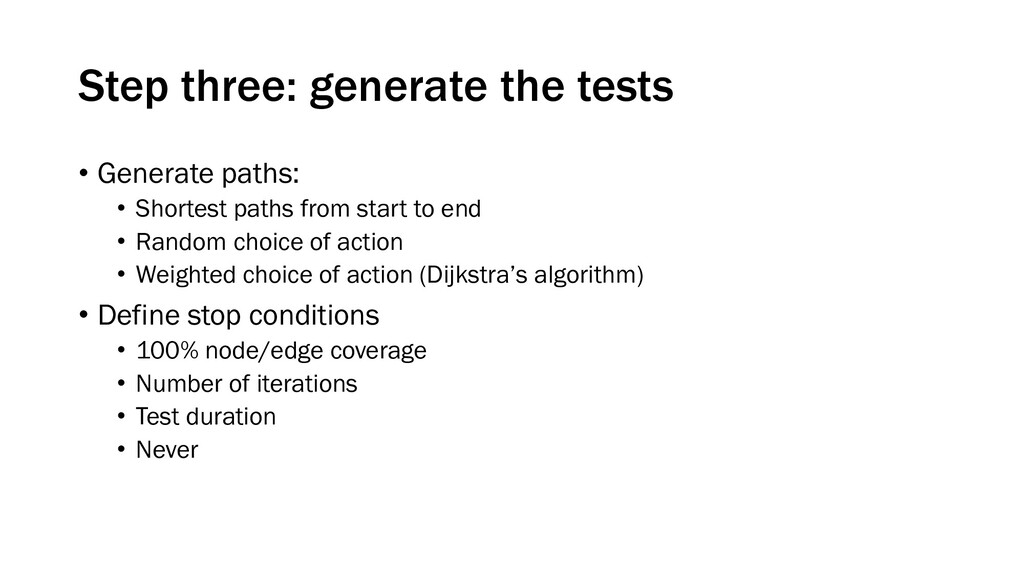

24. Step three: generate the tests • Generate paths: • Shortest paths from start to end • Random choice of action • Weighted choice of action (Dijkstra’s algorithm) • Define stop conditions • 100% node/edge coverage • Number of iterations • Test duration • Never

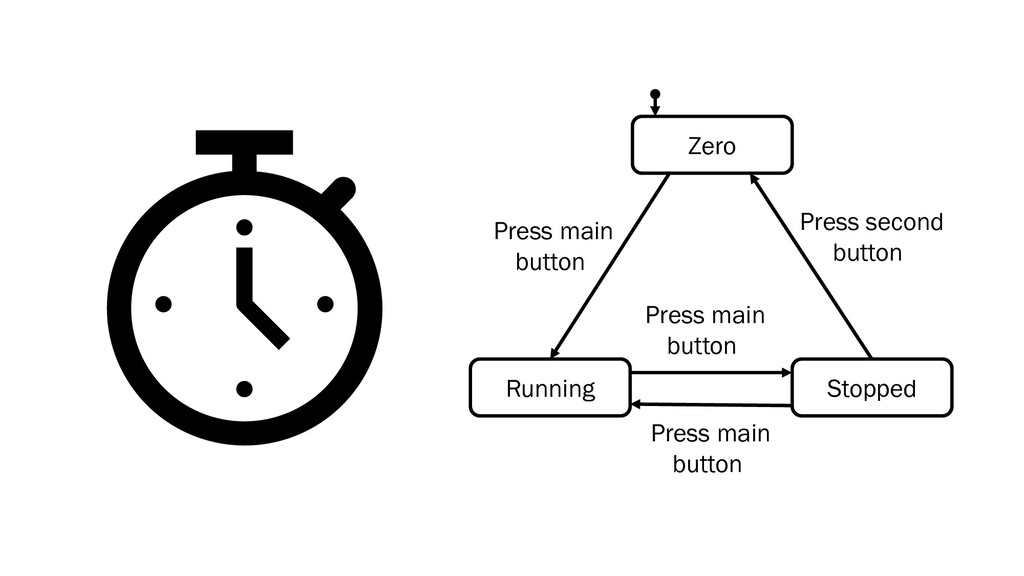

25. Zero Press main button Running Stopped Press second button Press main button Press main button
26. Zero Press main button Running Stopped Press second button Press main button Press main button

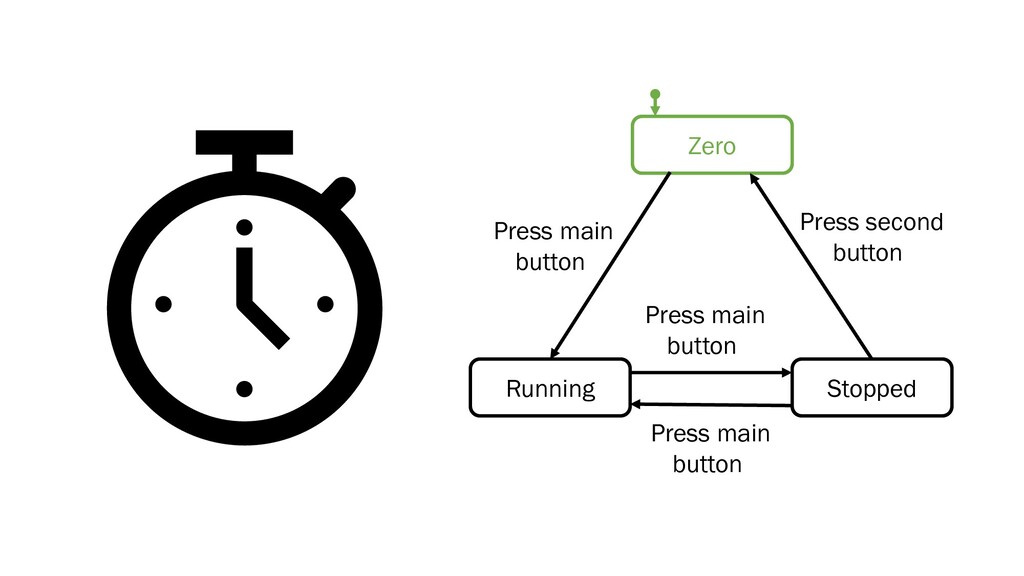

27. Zero Press main button Running Stopped Press second button Press main button Press main button

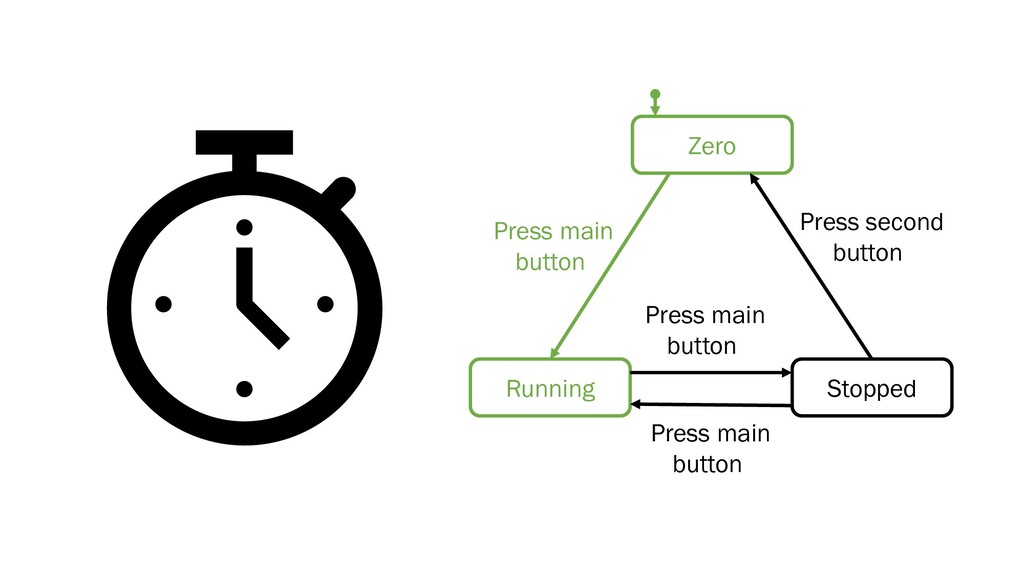

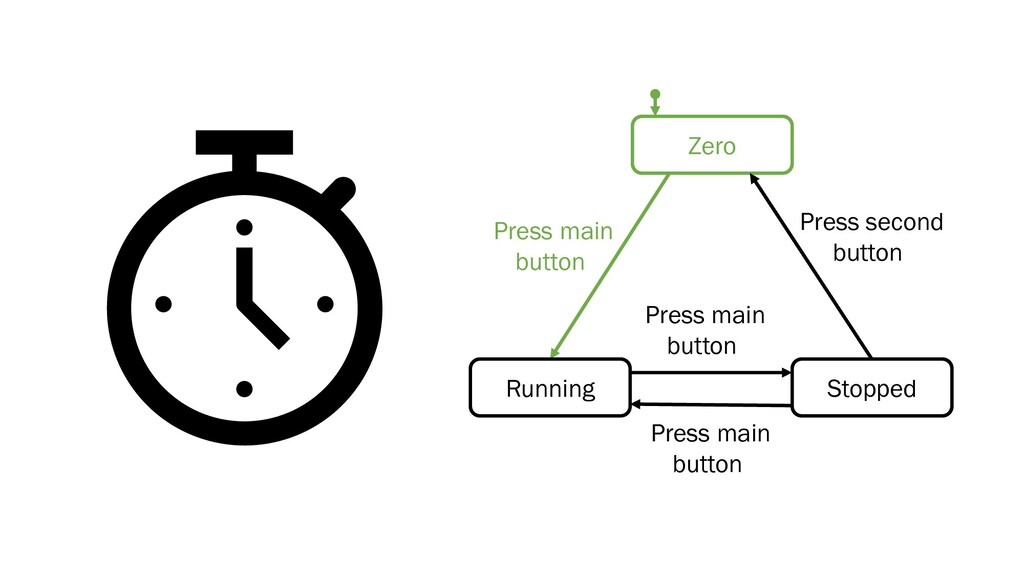

28. Zero Press main button Running Stopped Press second button Press main button Press main button
29. Zero Press main button Running Stopped Press second button Press main button Press main button

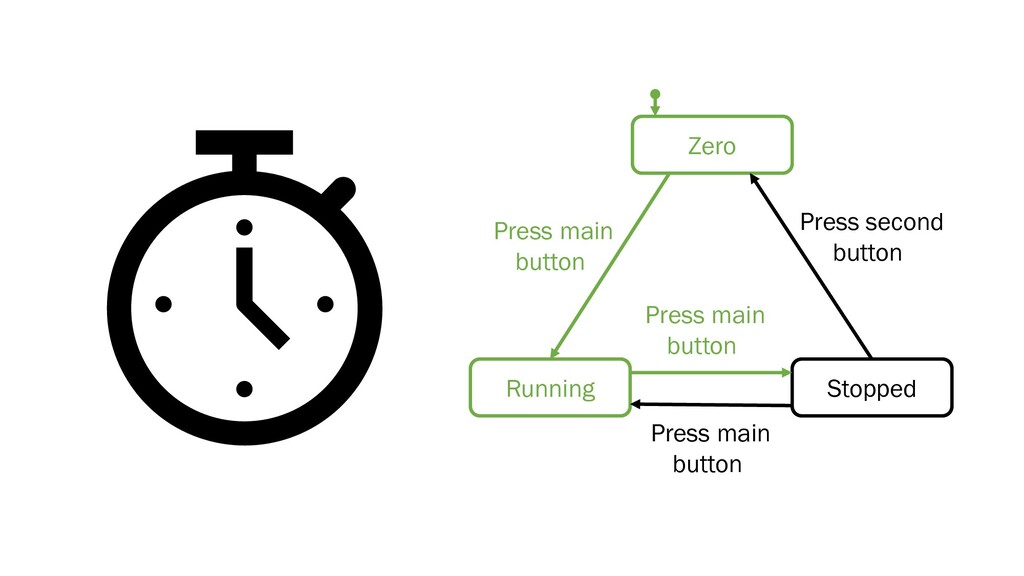

30. Zero Press main button Running Stopped Press second button Press main button Press main button

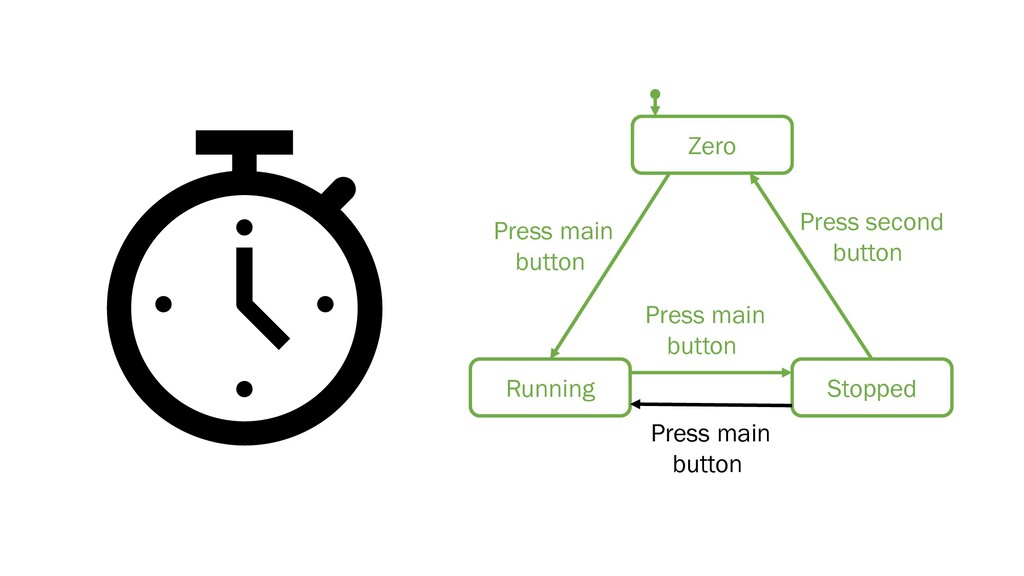

31. Zero Press main button Running Stopped Press second button Press main button Press main button
32. Zero Press main button Running Stopped Press second button Press main button Press main button

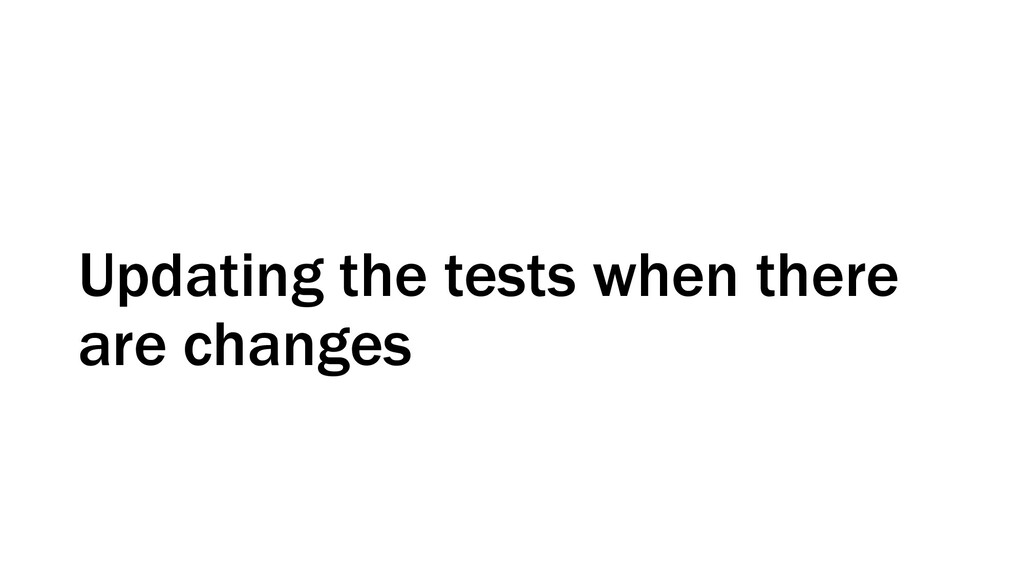

33. Updating the tests when there are changes
34. Zero Press main button Running Stopped Press second button Press main button Press main button

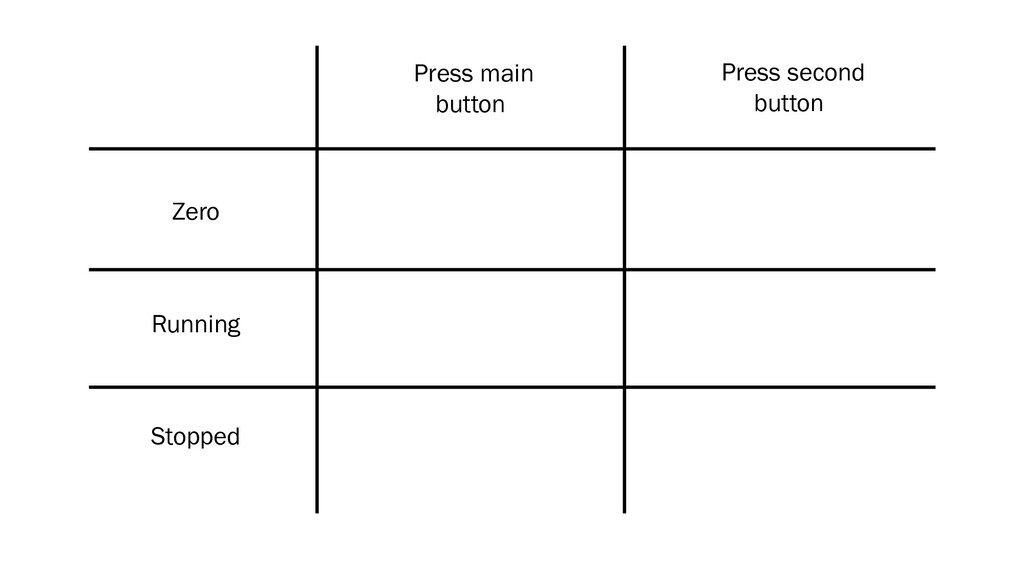

35. Zero Press main button Running Stopped Press second button

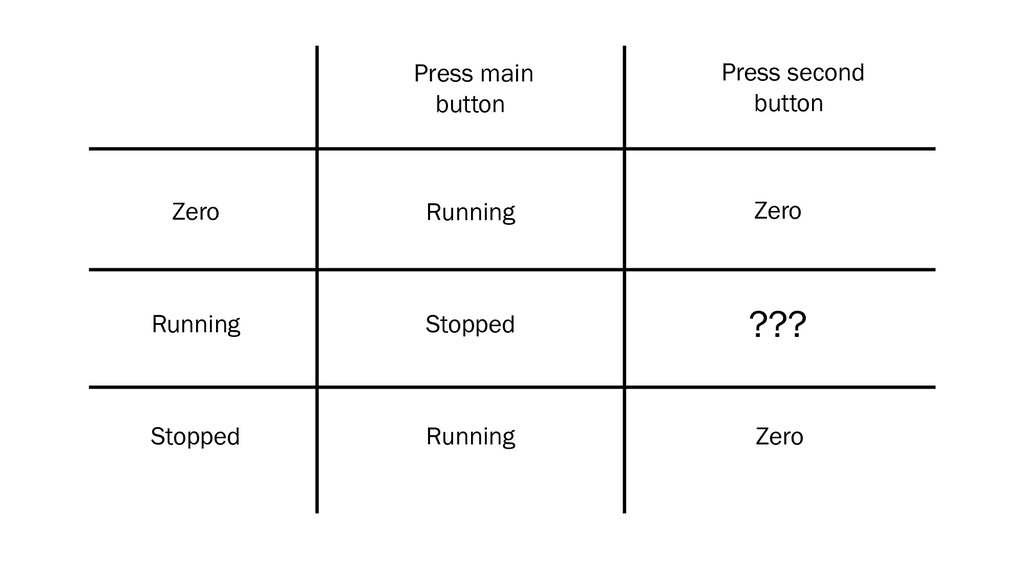

36. Zero Press main button Running Stopped Press second button Running Running Zero Stopped Zero ???
37. Zero Press main button Running Stopped Press second button Running Running Zero Stopped Zero Lap

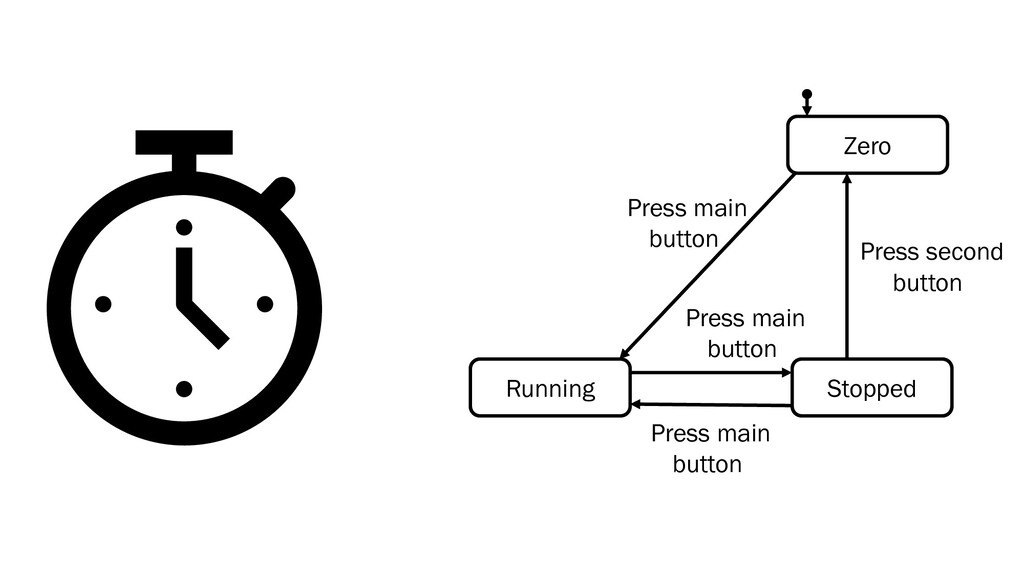

38. Zero Press main button Running Stopped Press second button Press main button Press main button
39. Zero Running Stopped Press second button Press main button Press main button Press main button

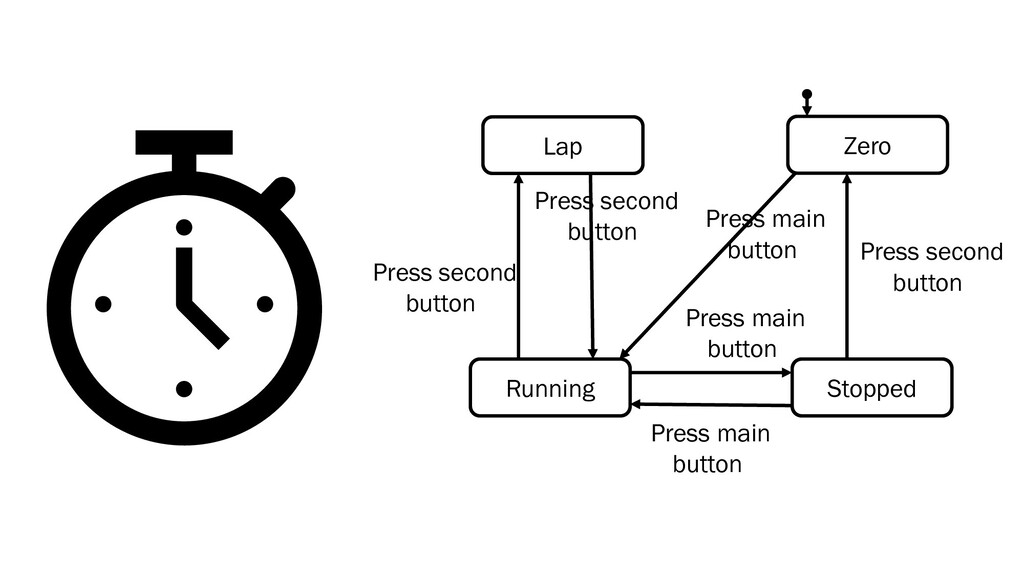

40. Zero Press second button Running Stopped Press second button Press main button Press main button Lap Press second button Press main button

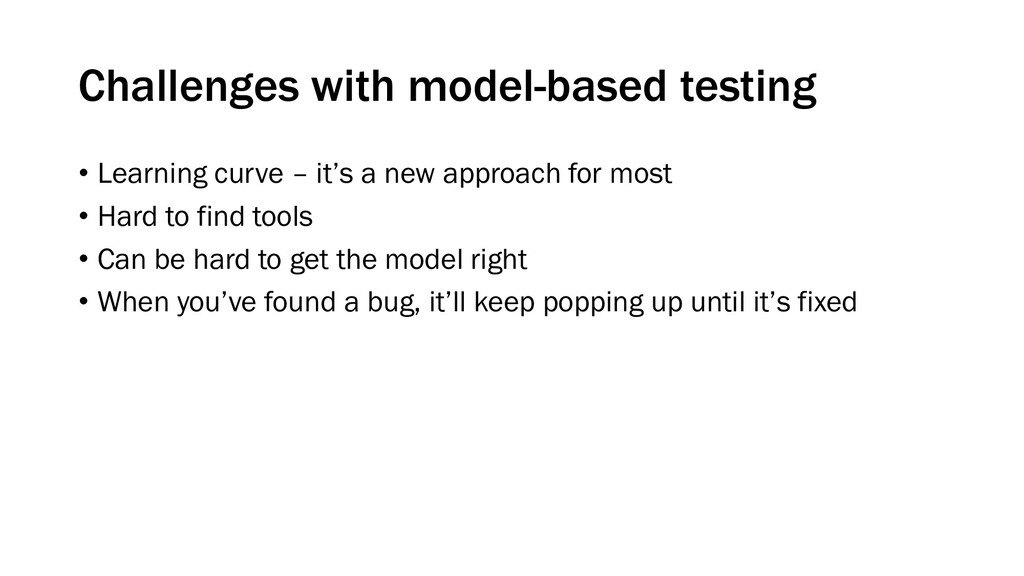

41. Challenges with model-based testing • Learning curve – it’s a new approach for most • Hard to find tools • Can be hard to get the model right • When you’ve found a bug, it’ll keep popping up until it’s fixed

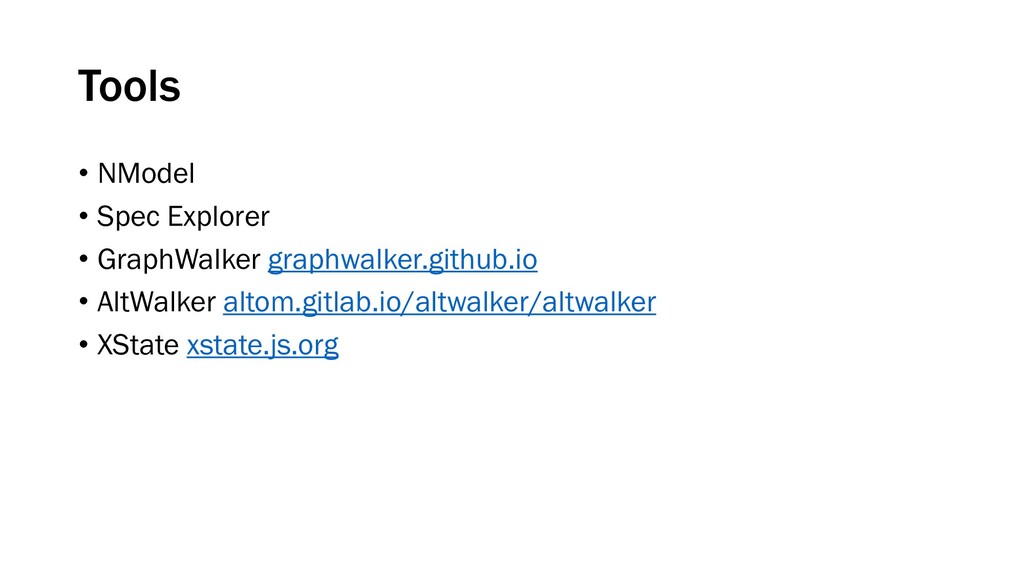

42. Tools • NModel • Spec Explorer • GraphWalker graphwalker.github.io • AltWalker altom.gitlab.io/altwalker/altwalker • XState xstate.js.org

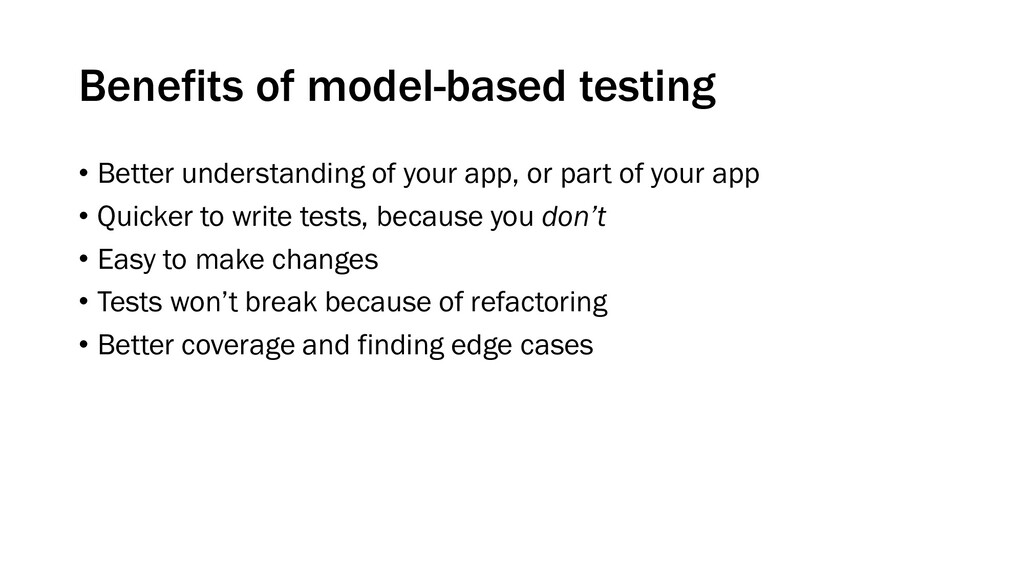

43. Benefits of model-based testing • Better understanding of your app, or part of your app • Quicker to write tests, because you don’t • Easy to make changes • Tests won’t break because of refactoring • Better coverage and finding edge cases
44. Model-based testing is the logical progression from automated testing

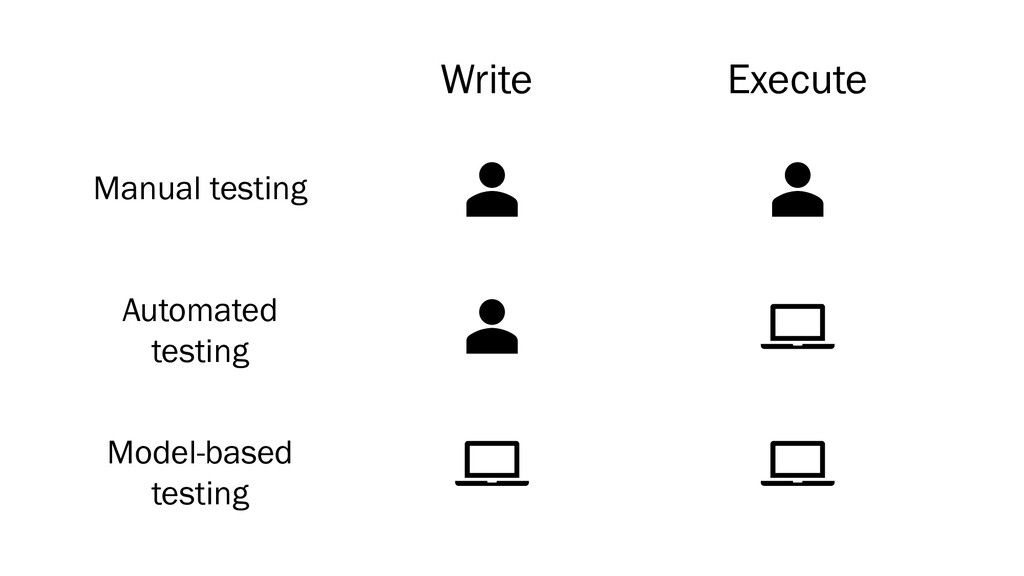

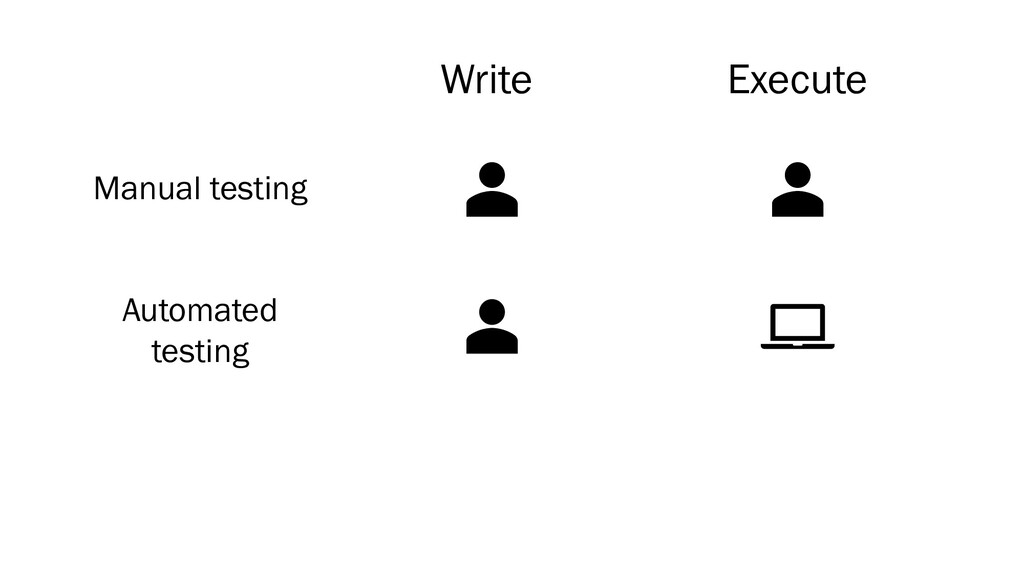

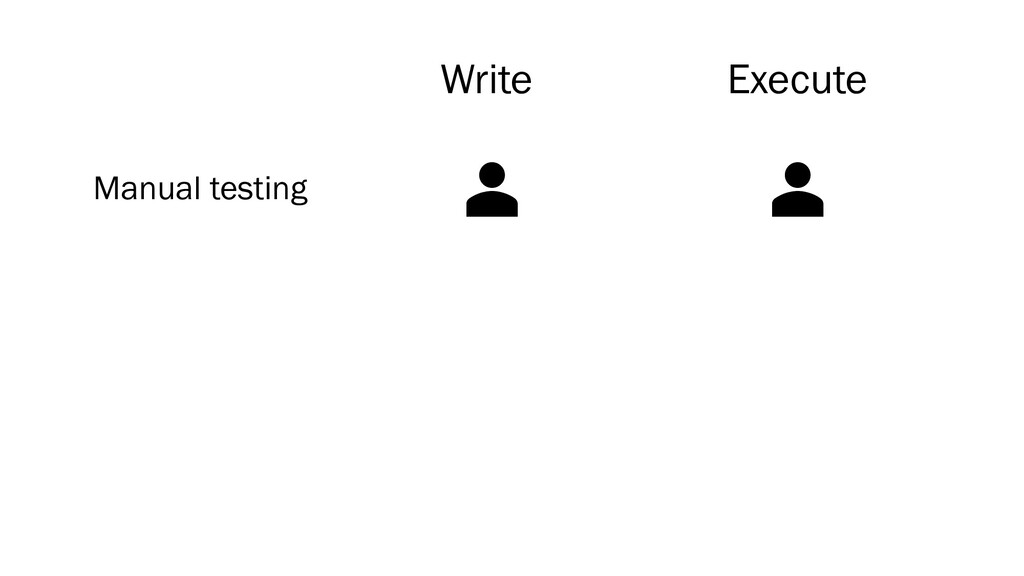

45. Write Execute Manual testing Automated testing Model-based testing
46. Write Execute Manual testing Automated testing Model-based testing
47. Write Execute Manual testing Automated testing Model-based testing

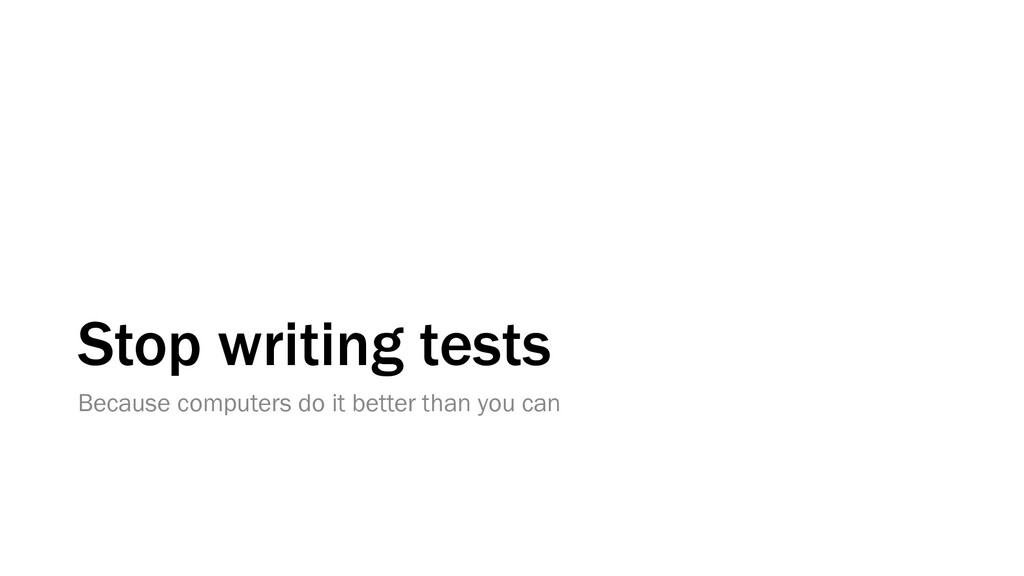

48. Stop writing tests Because computers do it better than you can
