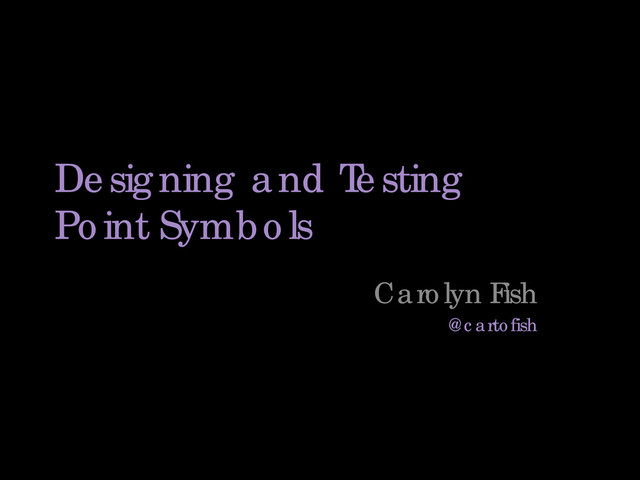

  1. Designing and Testing Point Symbols Carolyn Fish @cartofish

  2. None
  3. None
  4. None
  5. None
  6. None
  7. None
  8. None

  9. Incidents • Accident • Arrest • Arson • Assassination •

    Attack • Demonstration • Detain • Direct Fire • IED • Surveillance • Unexploded Ordnance • Indirect Fire • Medevac • Mine Found and Cleared • Mine Strike • Murder • Other Defensive • Other Offensive • Propaganda • Small Arms Fire • Unknown Explosion
  10. None
  11. None

  12. Brainstorm

  13. Collaboration

  14. None
  15. None
  16. None
  17. None

  18. Research 1. Google Images 2. The Noun Project 3. SymbolStore

    4. ArcGIS Symbols 5. Military Symbology

  19. Develop

  20. Evaluate 1. Putting Points on a Map

  21. Pixels * 72 Screen Resolution = Points

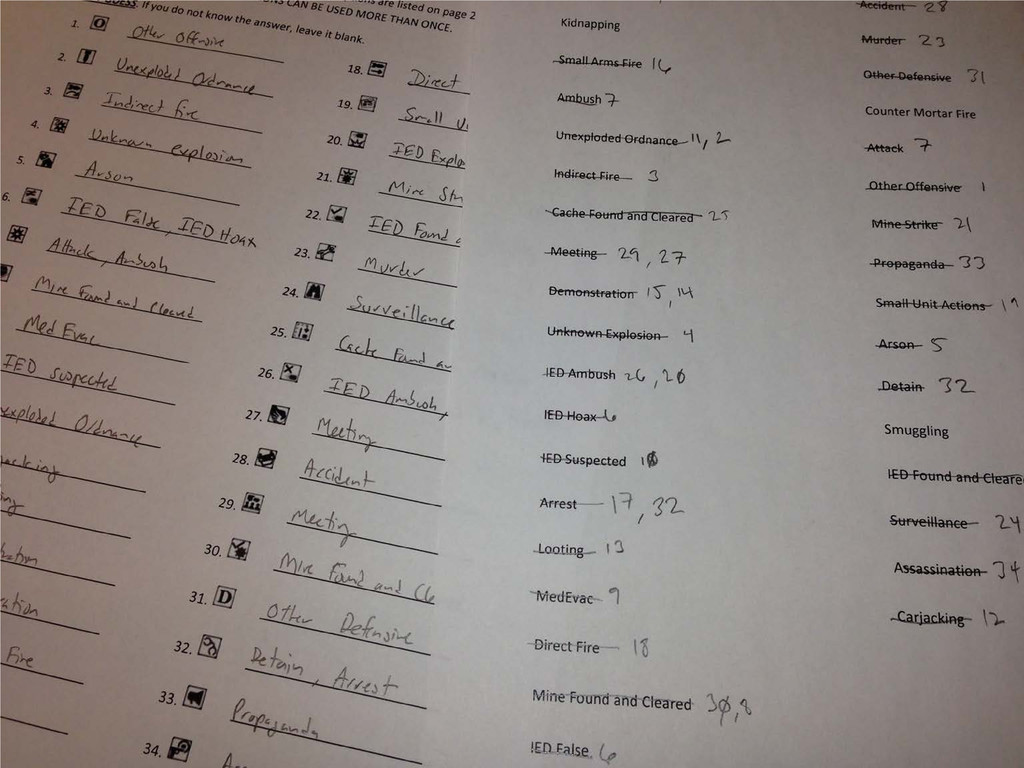

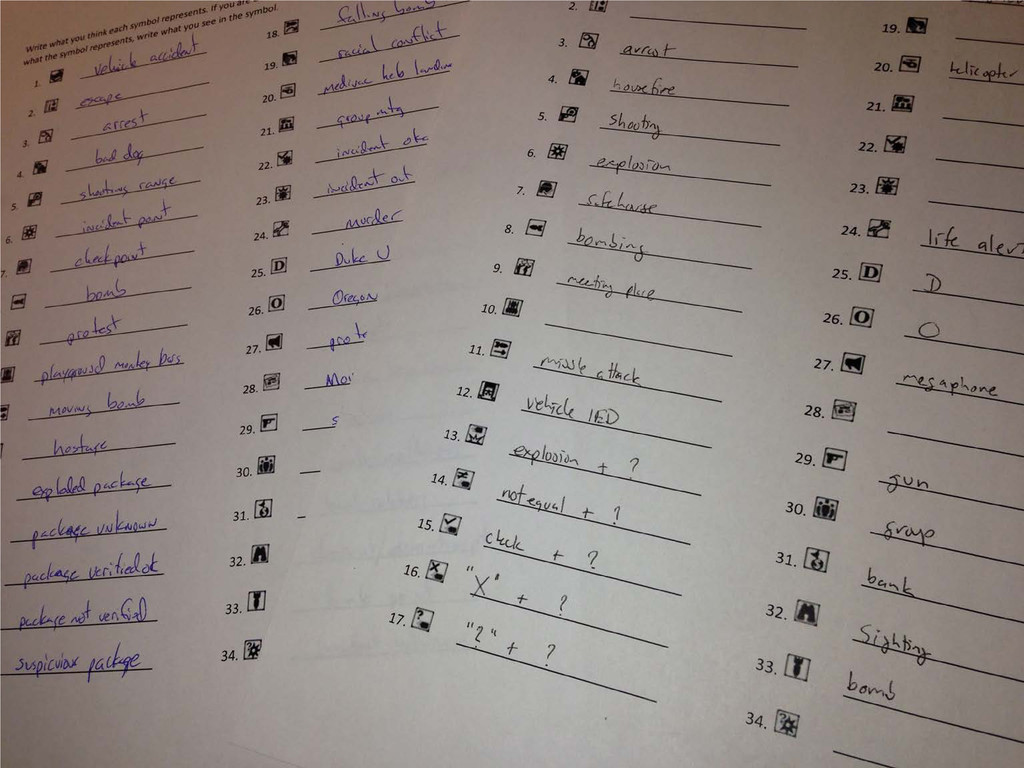

  22. Evaluate 2. Testing Symbols

  23. None
  24. None
  25. None
  26. None

  27. Questions? [email protected] @cartofish
