Introducing TiDB

This talk was delivered with PingCAP co-founder and CTO, Ed Huang, at the SQL NYC, NoSQL & NewSQL Data Group to introduce TiDB, an open source NewSQL database, and its use case with Mobike, one of the largest dockless bike sharing platforms in the world.

A video of the talk can be viewed here: https://www.youtube.com/watch?v=fIVUWPtWQ4o

Transcript

1. Introducing TiDB Make Data Creative Ed Huang (@pingcap; @c4pt0r) Kevin Xu (@kevinsxu) September 27, 2018
2. • Company History and Community • Architecture Overview • Deep dive into MySQL compatibility • Use Case with Mobike • Demo: ◦ TiDB in the cloud ◦ TiDB Syncer • Q&A + Raffle Agenda

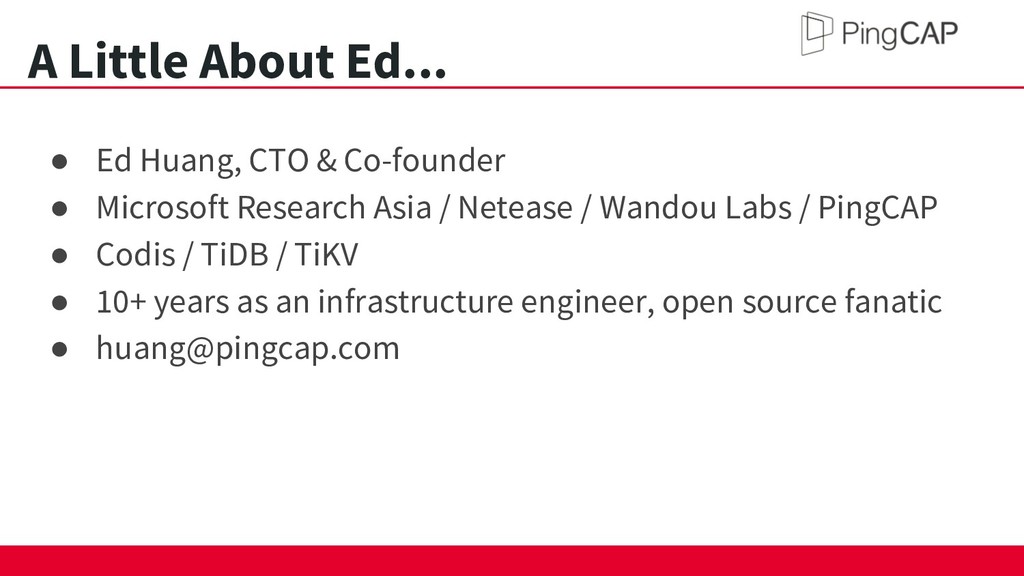

3. • Ed Huang, CTO & Co-founder • Microsoft Research Asia / Netease / Wandou Labs / PingCAP • Codis / TiDB / TiKV • 10+ years as an infrastructure engineer, open source fanatic • huang@pingcap.com A Little About Ed...
4. • General Manager of U.S. at PingCAP • Studied CS and Law at Stanford • Program in Javascript, Python, and (more recently) in Rust • kevin@pingcap.com A Little About Kevin...

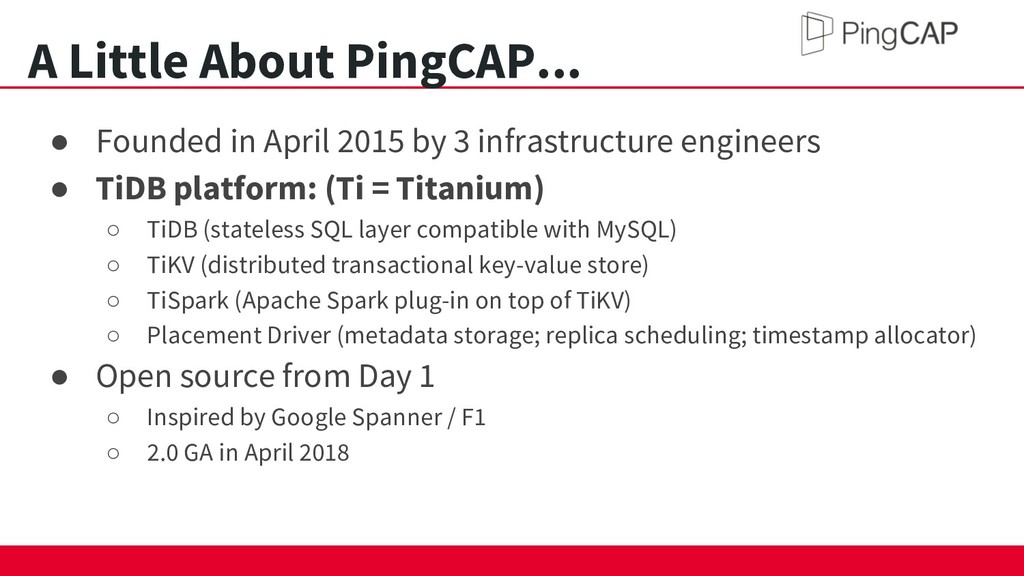

5. A Little About PingCAP... • Founded in April 2015 by 3 infrastructure engineers • TiDB platform: (Ti = Titanium) ◦ TiDB (stateless SQL layer compatible with MySQL) ◦ TiKV (distributed transactional key-value store) ◦ TiSpark (Apache Spark plug-in on top of TiKV) ◦ Placement Driver (metadata storage; replica scheduling; timestamp allocator) • Open source from Day 1 ◦ Inspired by Google Spanner / F1 ◦ 2.0 GA in April 2018

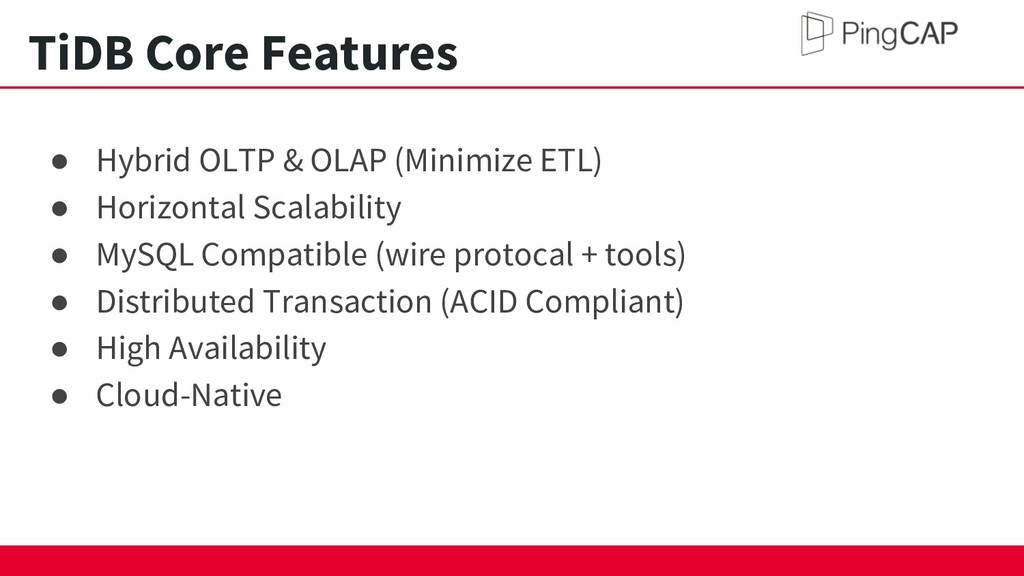

6. • Hybrid OLTP & OLAP (Minimize ETL) • Horizontal Scalability • MySQL Compatible (wire protocal + tools) • Distributed Transaction (ACID Compliant) • High Availability • Cloud-Native TiDB Core Features

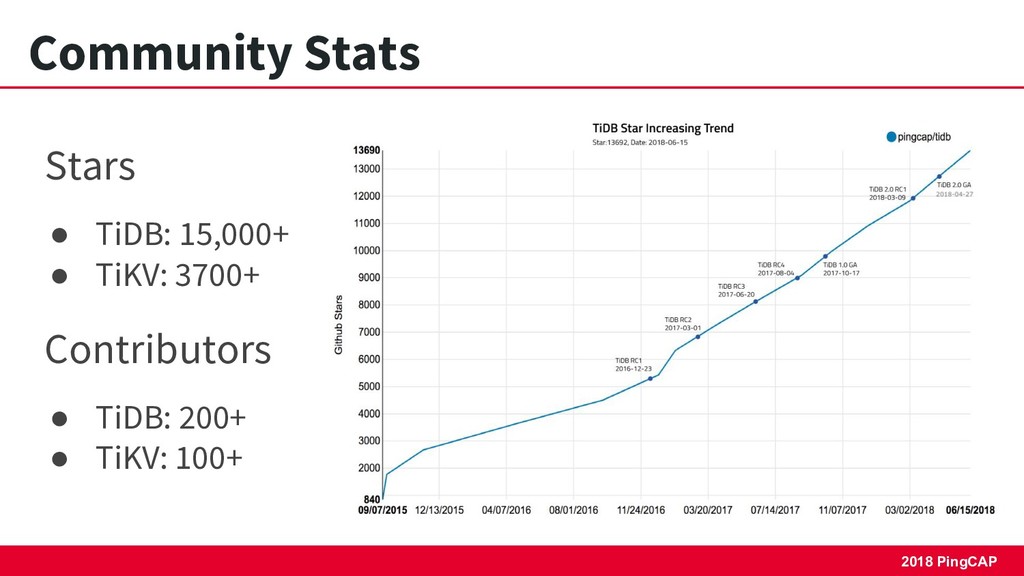

7. 2018 PingCAP Stars • TiDB: 15,000+ • TiKV: 3700+ Contributors • TiDB: 200+ • TiKV: 100+ Community Stats
8. Recent News

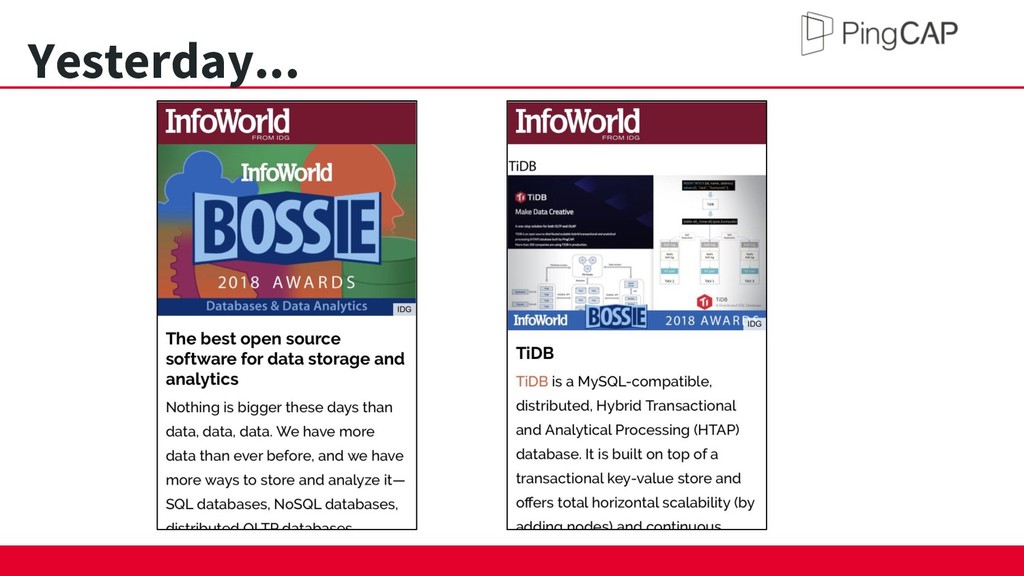

9. Yesterday...

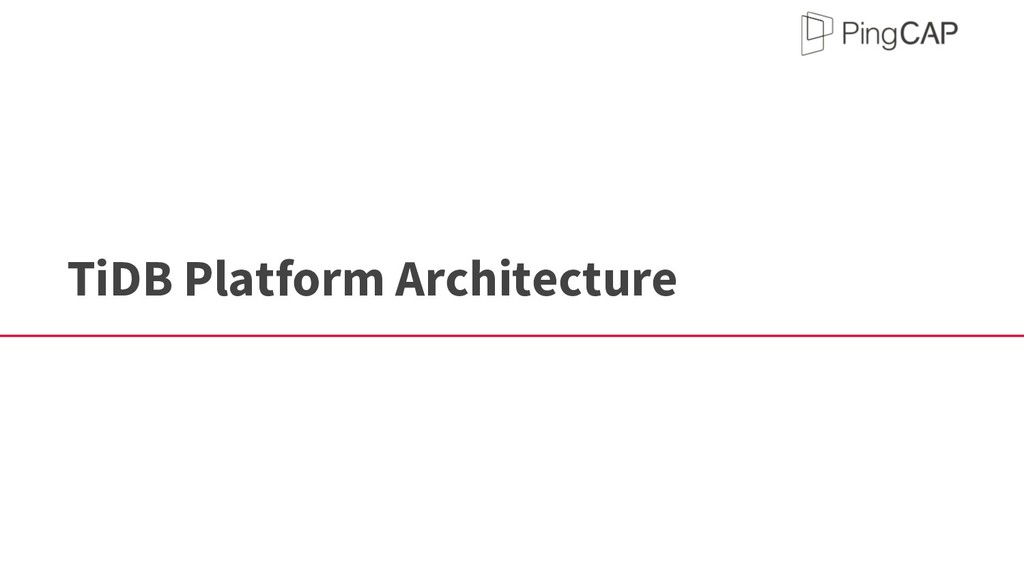

10. TiDB Platform Architecture

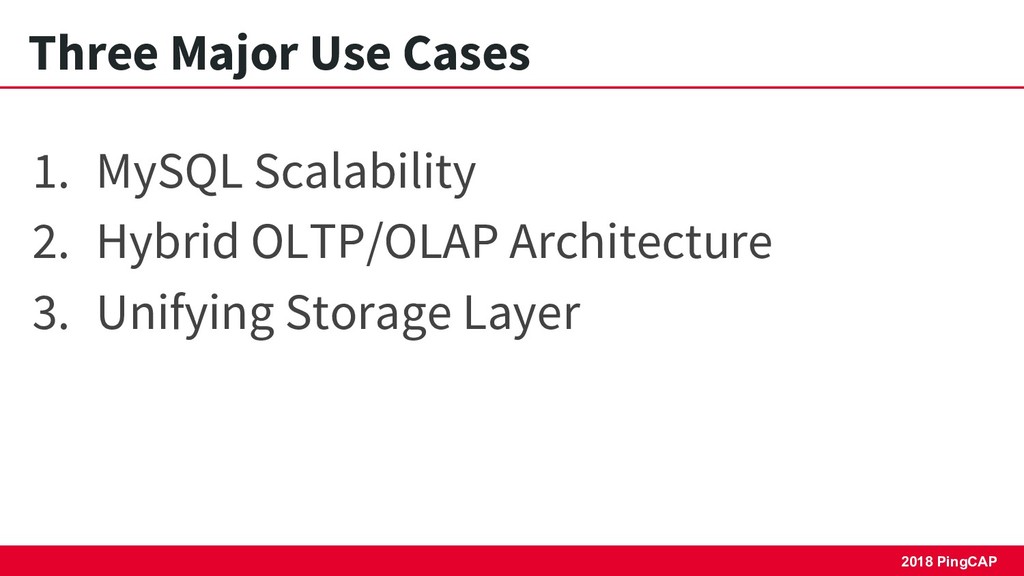

11. 2018 PingCAP 1. MySQL Scalability 2. Hybrid OLTP/OLAP Architecture 3. Unifying Storage Layer Three Major Use Cases

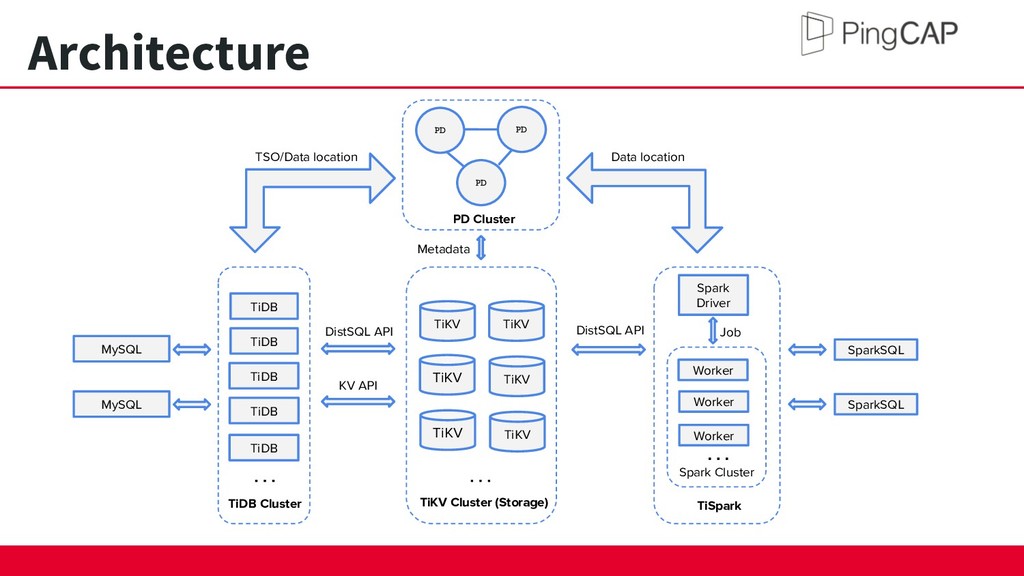

12. Architecture TiDB TiDB Worker Spark Driver TiKV Cluster (Storage) Metadata TiKV TiKV TiKV Data location Job TiSpark DistSQL API TiKV TiDB TSO/Data location Worker Worker Spark Cluster TiDB Cluster TiDB DistSQL API PD PD Cluster TiKV TiKV TiDB KV API MySQL MySQL SparkSQL PD PD SparkSQL

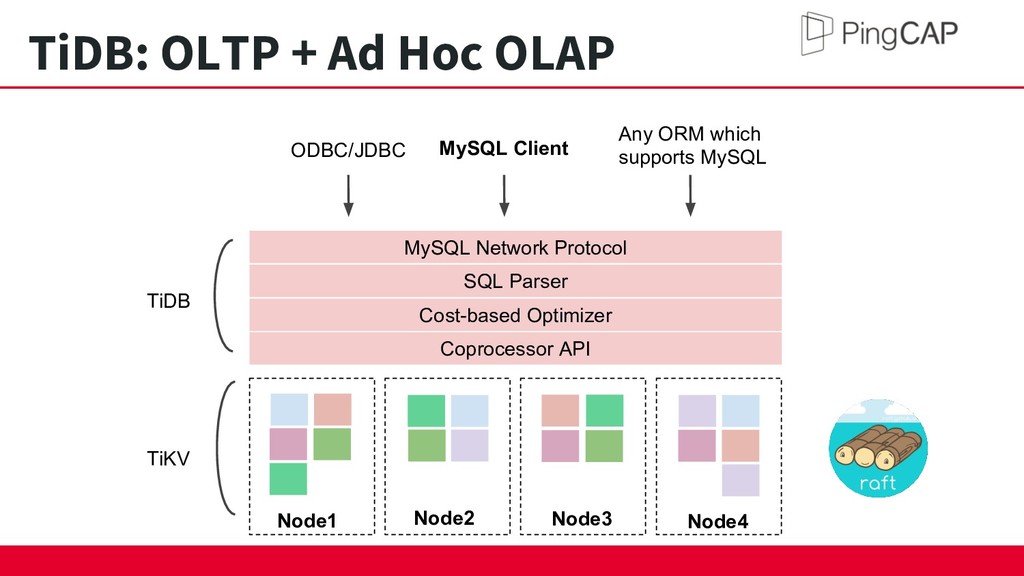

13. TiDB: OLTP + Ad Hoc OLAP Node1 Node2 Node3 Node4 MySQL Network Protocol SQL Parser Cost-based Optimizer Coprocessor API ODBC/JDBC MySQL Client Any ORM which supports MySQL TiDB TiKV

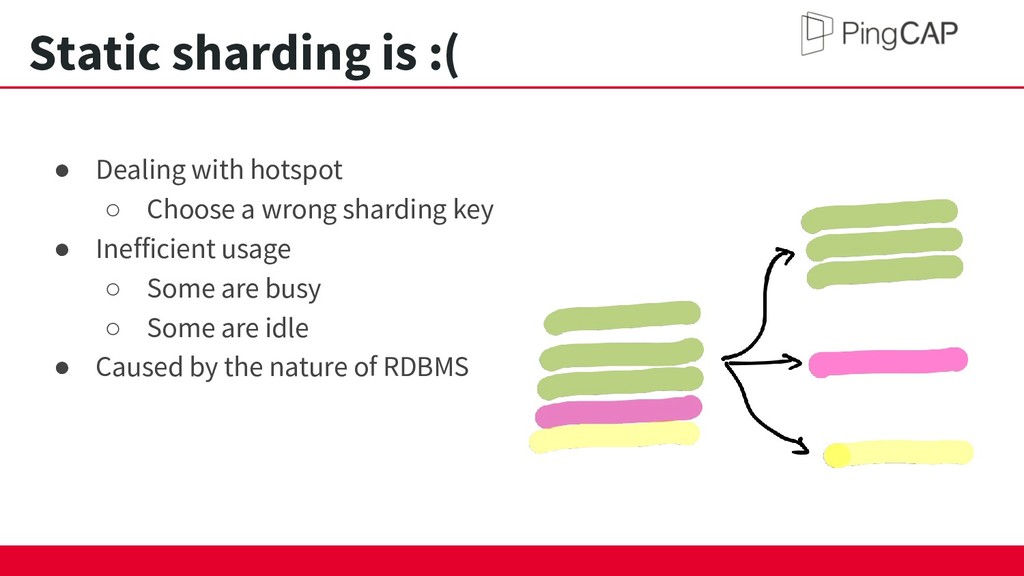

14. Static sharding is :( • Dealing with hotspot ◦ Choose a wrong sharding key • Inefficient usage ◦ Some are busy ◦ Some are idle • Caused by the nature of RDBMS

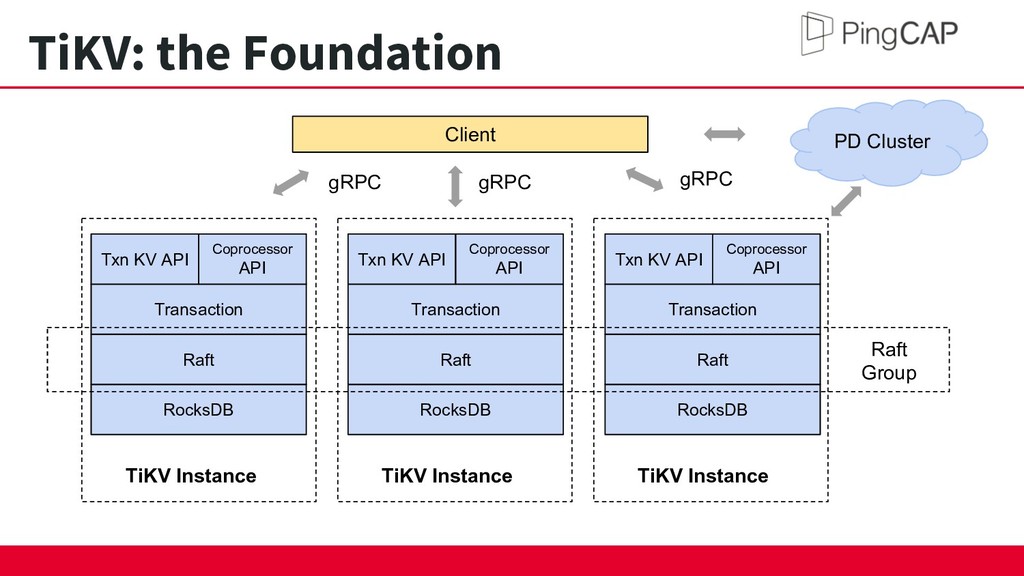

15. TiKV: the Foundation RocksDB Raft Transaction Txn KV API Coprocessor API RocksDB Raft Transaction Txn KV API Coprocessor API RocksDB Raft Transaction Txn KV API Coprocessor API Raft Group Client gRPC TiKV Instance TiKV Instance TiKV Instance gRPC gRPC PD Cluster

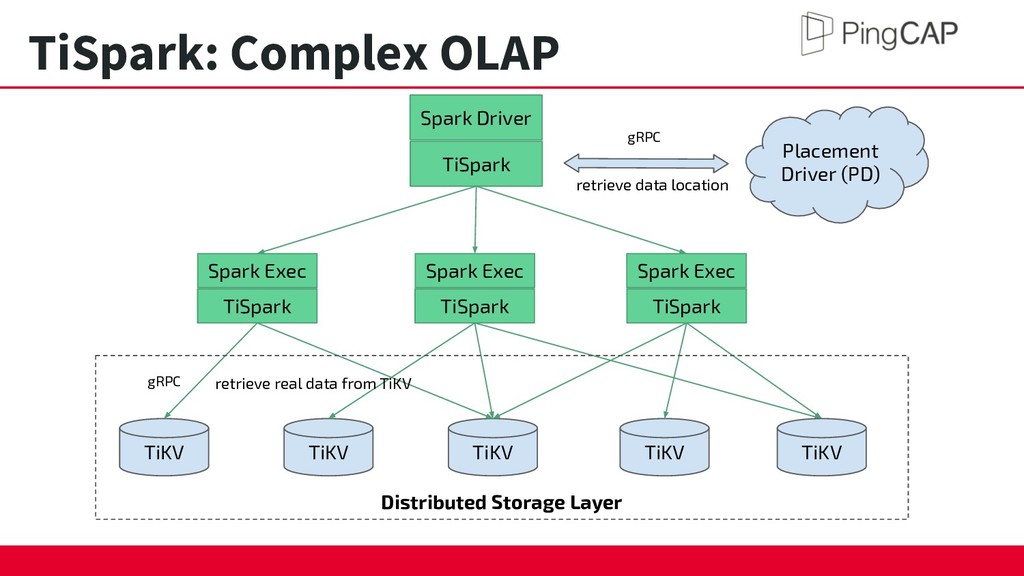

16. TiSpark: Complex OLAP Spark Exec Spark Exec Spark Driver Spark Exec TiKV TiKV TiKV TiKV TiSpark TiSpark TiSpark TiSpark TiKV Placement Driver (PD) gRPC Distributed Storage Layer gRPC retrieve data location retrieve real data from TiKV

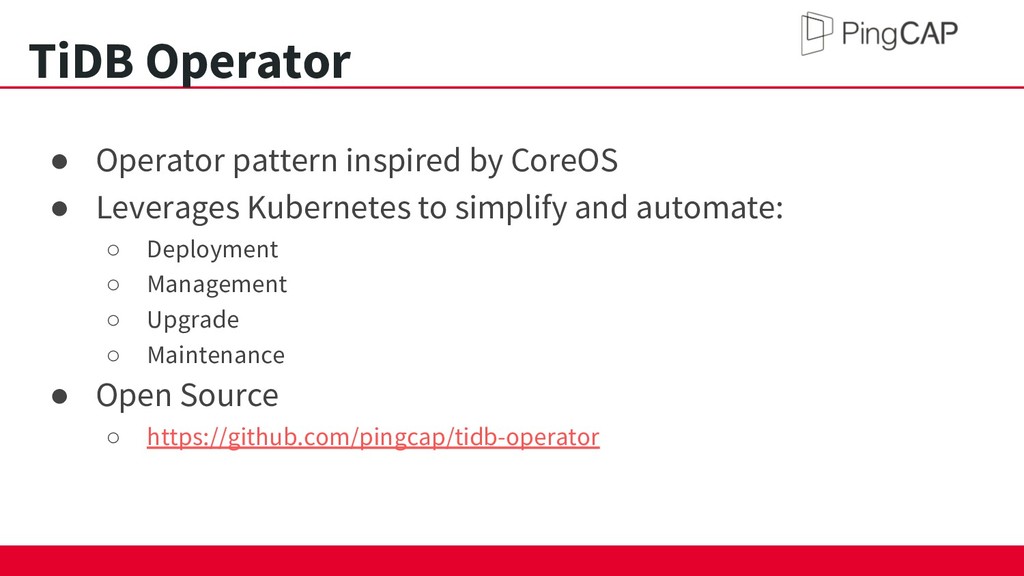

17. • Operator pattern inspired by CoreOS • Leverages Kubernetes to simplify and automate: ◦ Deployment ◦ Management ◦ Upgrade ◦ Maintenance • Open Source ◦ https://github.com/pingcap/tidb-operator TiDB Operator

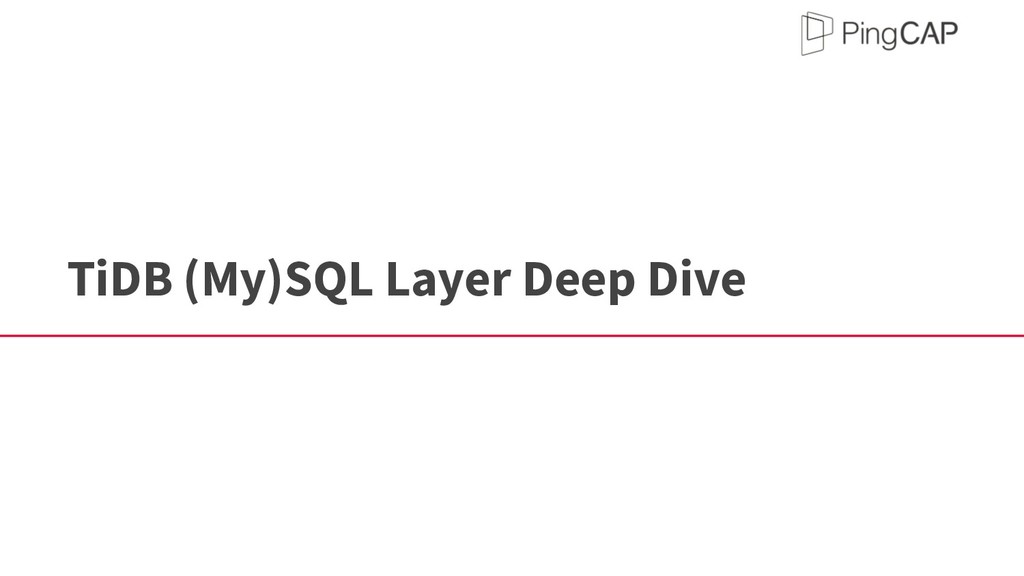

18. TiDB (My)SQL Layer Deep Dive

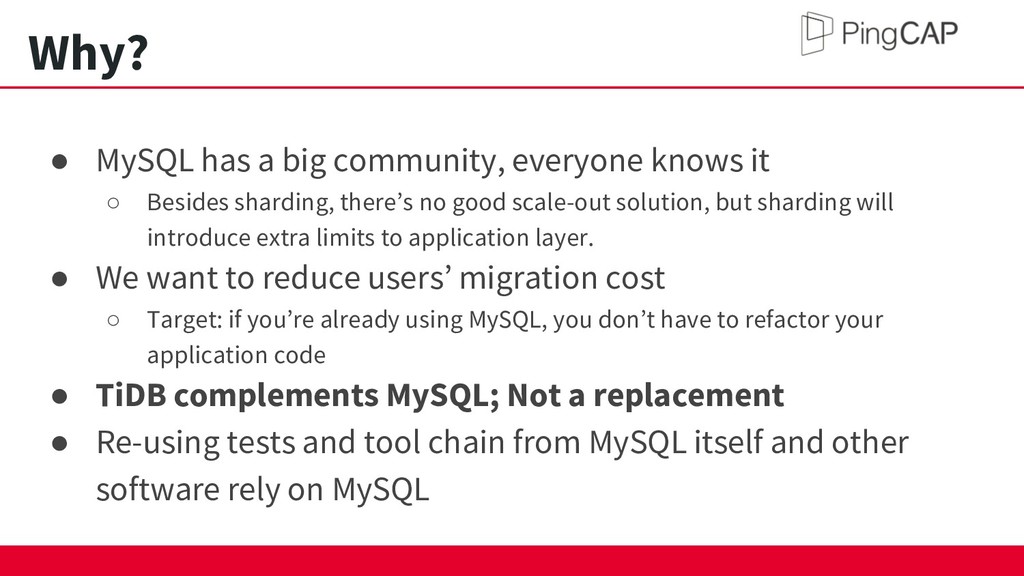

19. Why? • MySQL has a big community, everyone knows it ◦ Besides sharding, there’s no good scale-out solution, but sharding will introduce extra limits to application layer. • We want to reduce users’ migration cost ◦ Target: if you’re already using MySQL, you don’t have to refactor your application code • TiDB complements MySQL; Not a replacement • Re-using tests and tool chain from MySQL itself and other software rely on MySQL

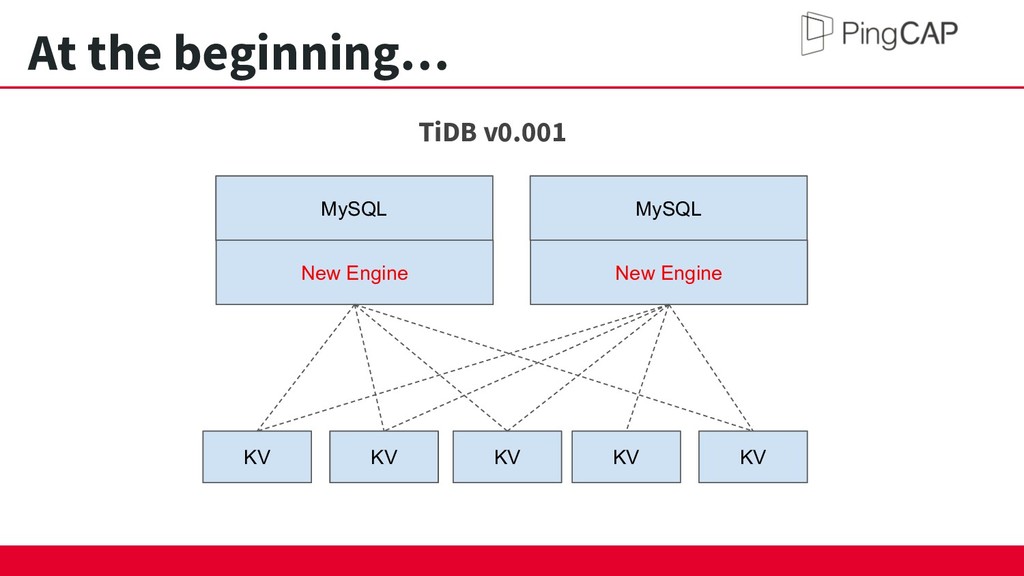

20. At the beginning… MySQL New Engine KV KV KV KV KV MySQL New Engine TiDB v0.001

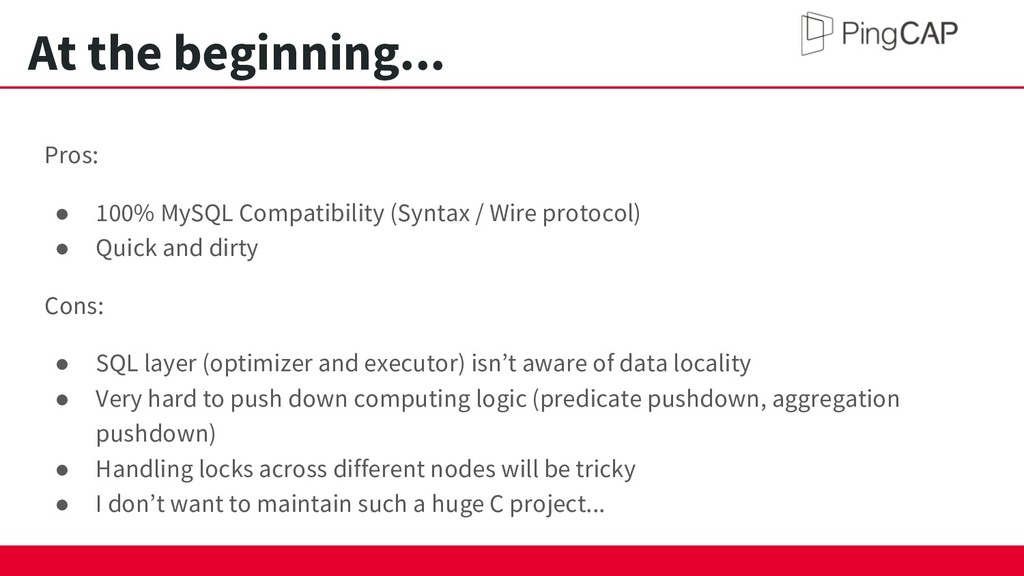

21. At the beginning... Pros: • 100% MySQL Compatibility (Syntax / Wire protocol) • Quick and dirty Cons: • SQL layer (optimizer and executor) isn’t aware of data locality • Very hard to push down computing logic (predicate pushdown, aggregation pushdown) • Handling locks across different nodes will be tricky • I don’t want to maintain such a huge C project...
22. Go is a very productive language. Also...my favorite language!

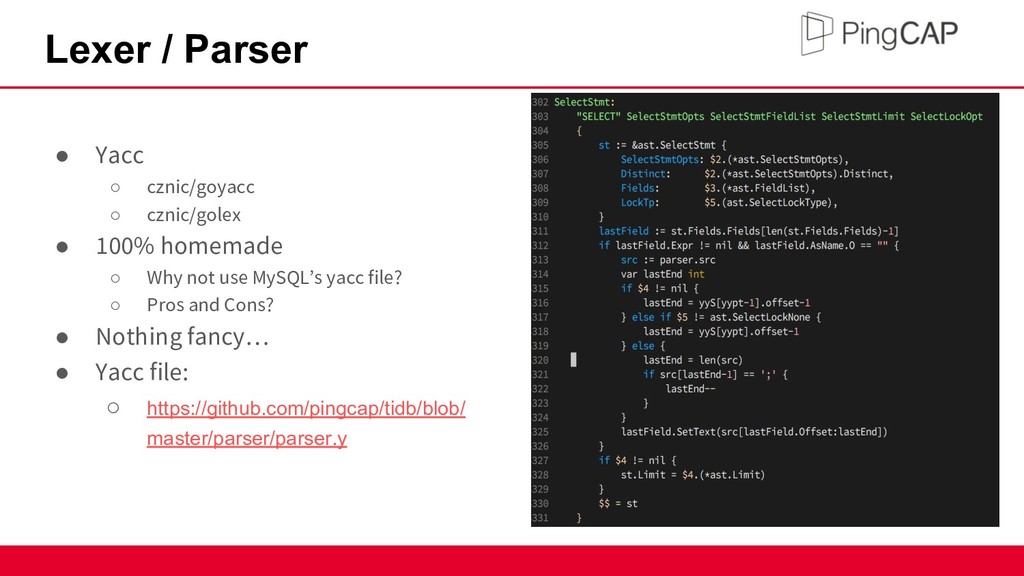

23. Lexer / Parser • Yacc ◦ cznic/goyacc ◦ cznic/golex • 100% homemade ◦ Why not use MySQL’s yacc file? ◦ Pros and Cons? • Nothing fancy… • Yacc file: ◦ https://github.com/pingcap/tidb/blob/ master/parser/parser.y

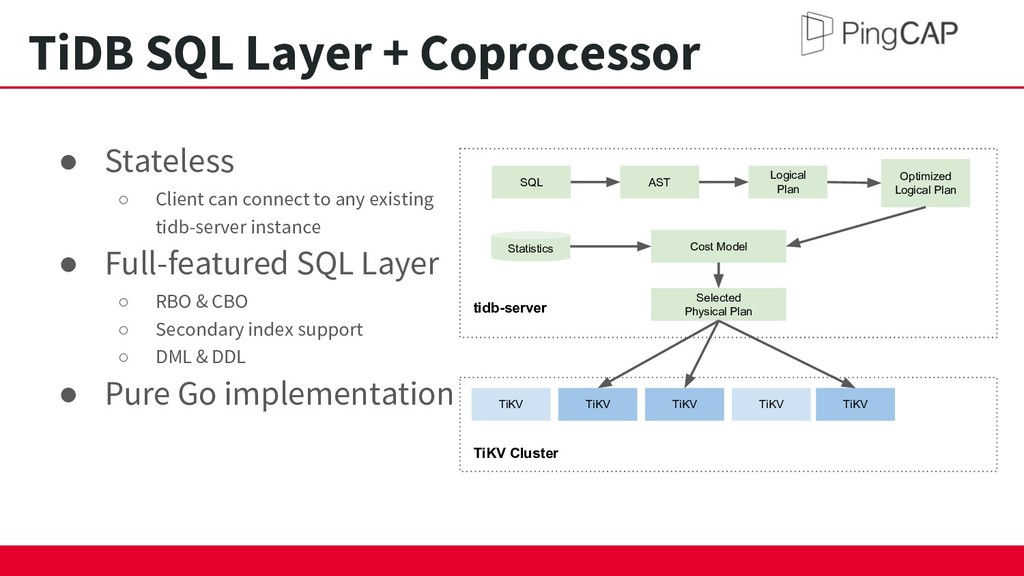

24. TiDB SQL Layer + Coprocessor • Stateless ◦ Client can connect to any existing tidb-server instance • Full-featured SQL Layer ◦ RBO & CBO ◦ Secondary index support ◦ DML & DDL • Pure Go implementation SQL AST Logical Plan Optimized Logical Plan Cost Model Selected Physical Plan TiKV TiKV TiKV tidb-server Statistics TiKV TiKV TiKV Cluster

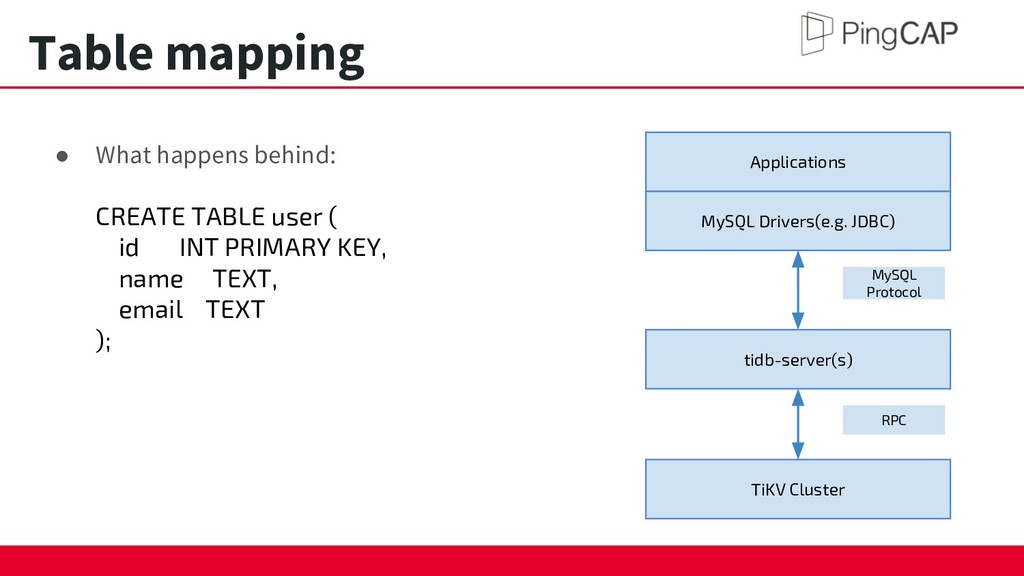

25. Table mapping • What happens behind: CREATE TABLE user ( id INT PRIMARY KEY, name TEXT, email TEXT ); Applications MySQL Drivers(e.g. JDBC) tidb-server(s) TiKV Cluster MySQL Protocol RPC

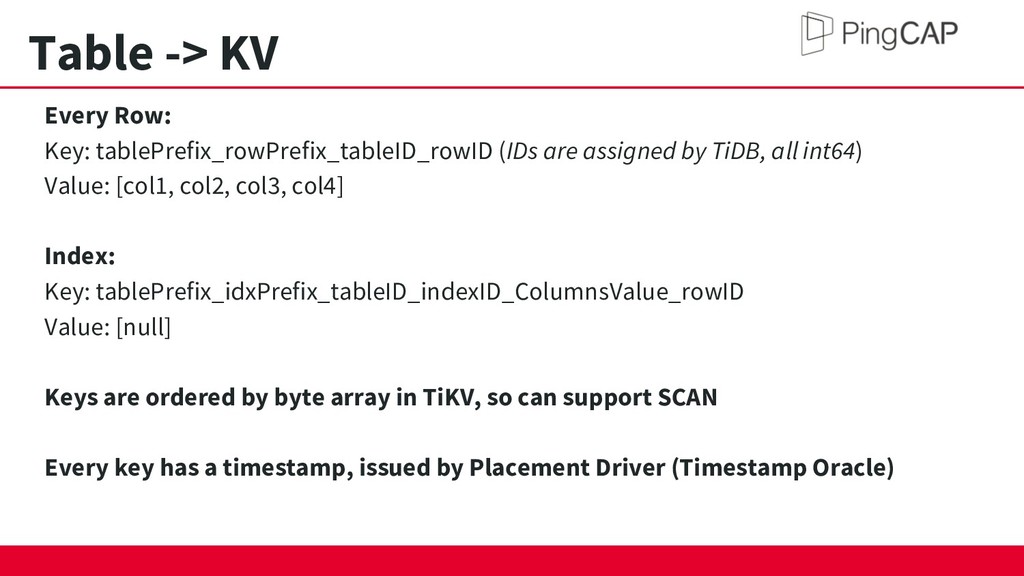

26. Table -> KV Every Row: Key: tablePrefix_rowPrefix_tableID_rowID (IDs are assigned by TiDB, all int64) Value: [col1, col2, col3, col4] Index: Key: tablePrefix_idxPrefix_tableID_indexID_ColumnsValue_rowID Value: [null] Keys are ordered by byte array in TiKV, so can support SCAN Every key has a timestamp, issued by Placement Driver (Timestamp Oracle)

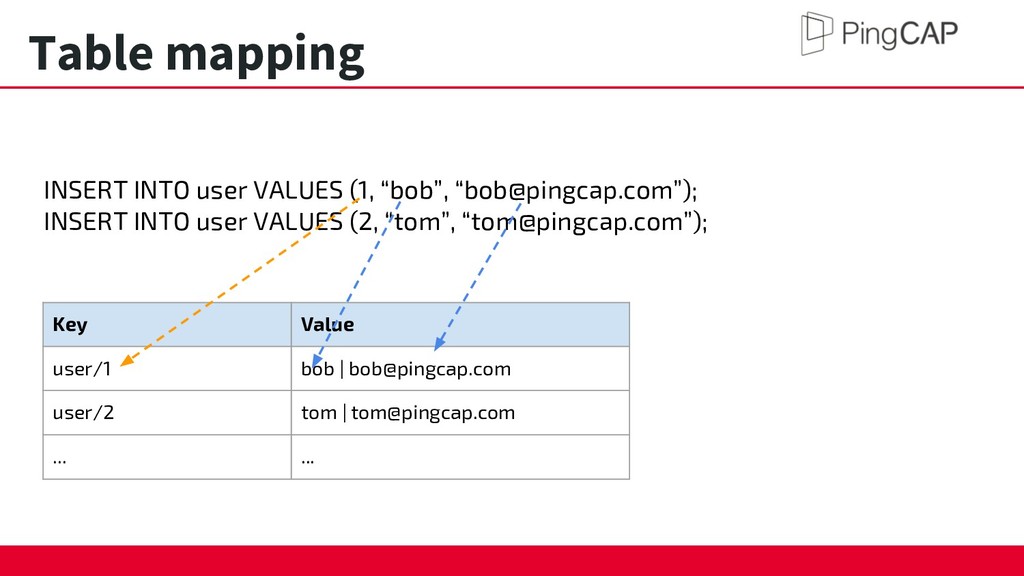

27. Table mapping Key Value user/1 bob | bob@pingcap.com user/2 tom | tom@pingcap.com ... ... INSERT INTO user VALUES (1, “bob”, “bob@pingcap.com”); INSERT INTO user VALUES (2, “tom”, “tom@pingcap.com”);

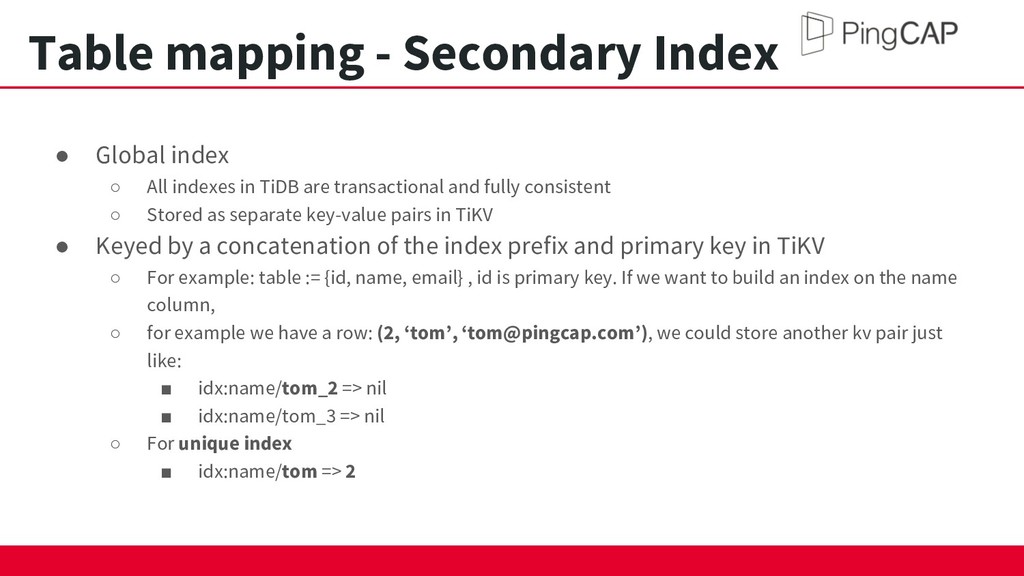

28. Table mapping - Secondary Index • Global index ◦ All indexes in TiDB are transactional and fully consistent ◦ Stored as separate key-value pairs in TiKV • Keyed by a concatenation of the index prefix and primary key in TiKV ◦ For example: table := {id, name, email} , id is primary key. If we want to build an index on the name column, ◦ for example we have a row: (2, ‘tom’, ‘tom@pingcap.com’), we could store another kv pair just like: ▪ idx:name/tom_2 => nil ▪ idx:name/tom_3 => nil ◦ For unique index ▪ idx:name/tom => 2

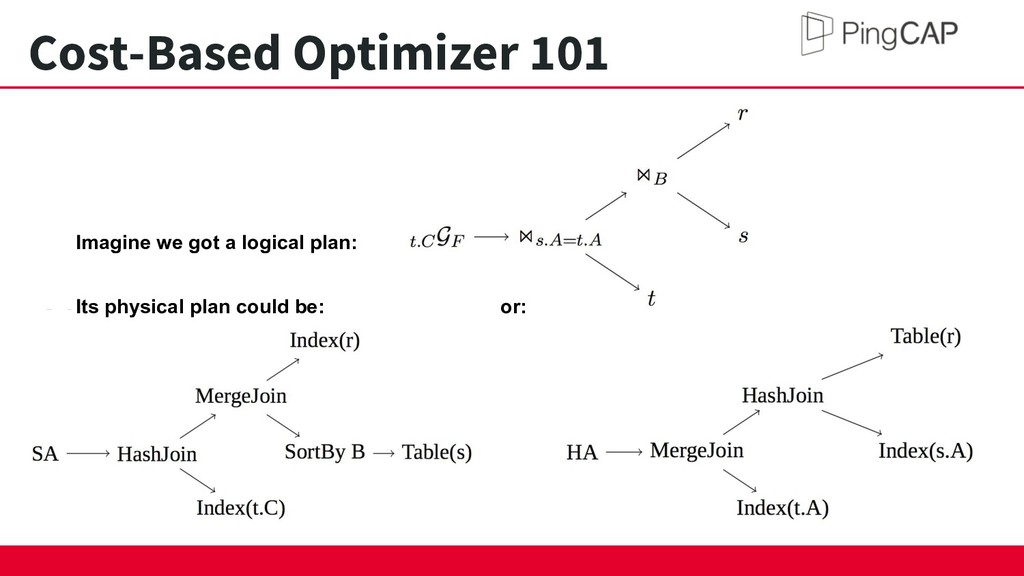

29. Cost-Based Optimizer 101 or: Imagine we got a logical plan: Its physical plan could be:

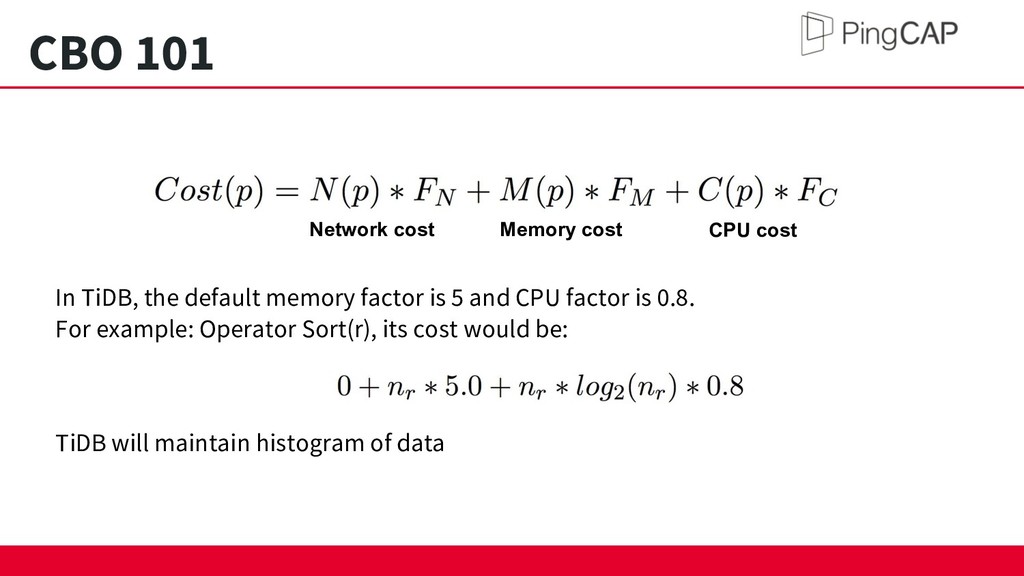

30. CBO 101 Network cost Memory cost CPU cost In TiDB, the default memory factor is 5 and CPU factor is 0.8. For example: Operator Sort(r), its cost would be: TiDB will maintain histogram of data
31. • Hash Join (fastest; if table <= 50 million rows) • Sort Merge Join (join on indexed column or ordered data source) • Index Lookup Join (join on indexed column; ideally after filter, result < 10,000 rows) Chosen based on Cost-base Optimizer Notice: TiDB will not re-shuffle the data across different tidb-servers Join Support

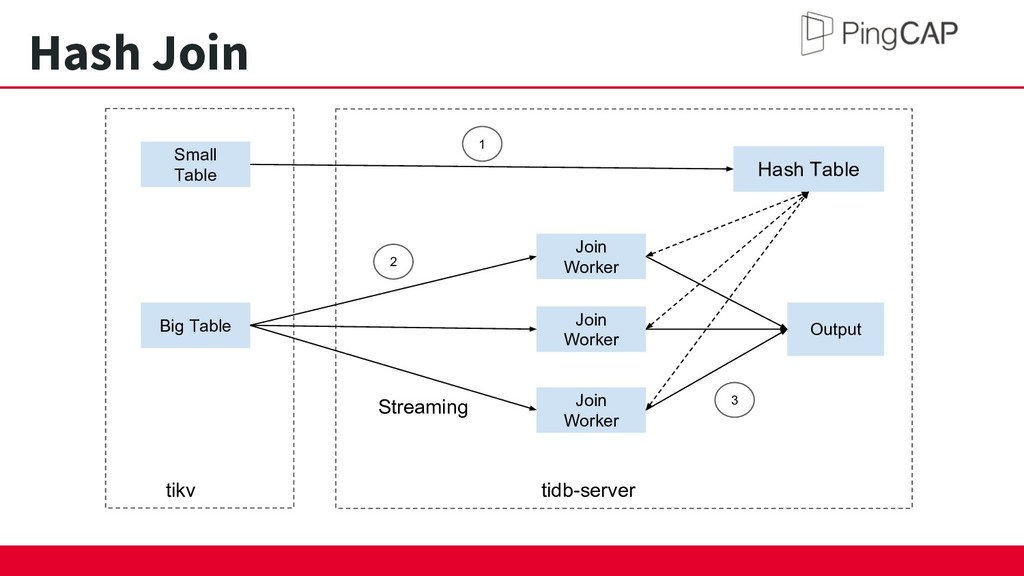

32. Hash Join Small Table Big Table Join Worker Join Worker Join Worker Hash Table Output tidb-server 1 2 3 Streaming tikv

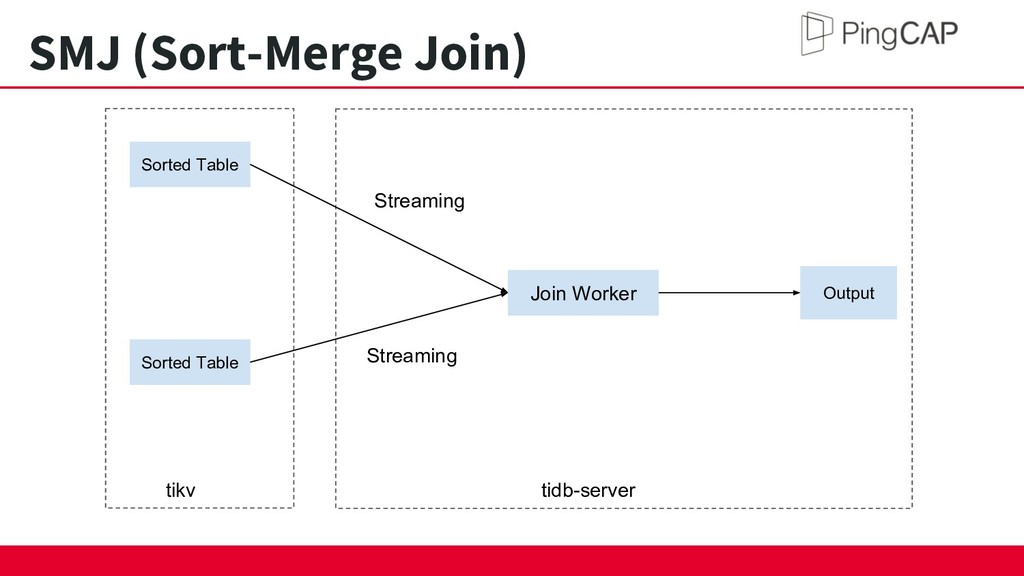

33. SMJ (Sort-Merge Join) Sorted Table Sorted Table Join Worker Output tidb-server Streaming tikv Streaming

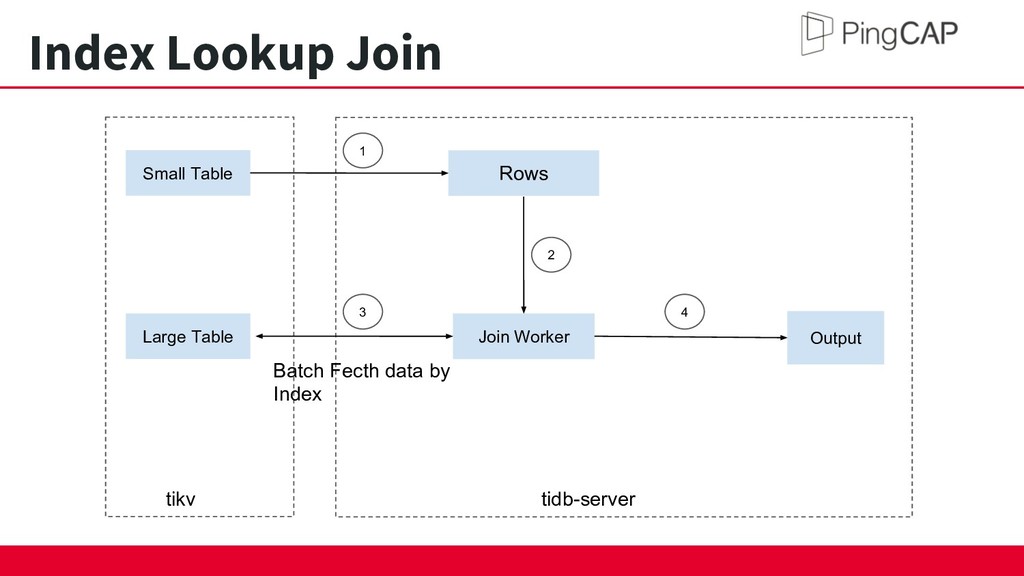

34. Index Lookup Join Small Table Large Table Join Worker Rows Output tidb-server 2 3 Batch Fecth data by Index tikv 1 4

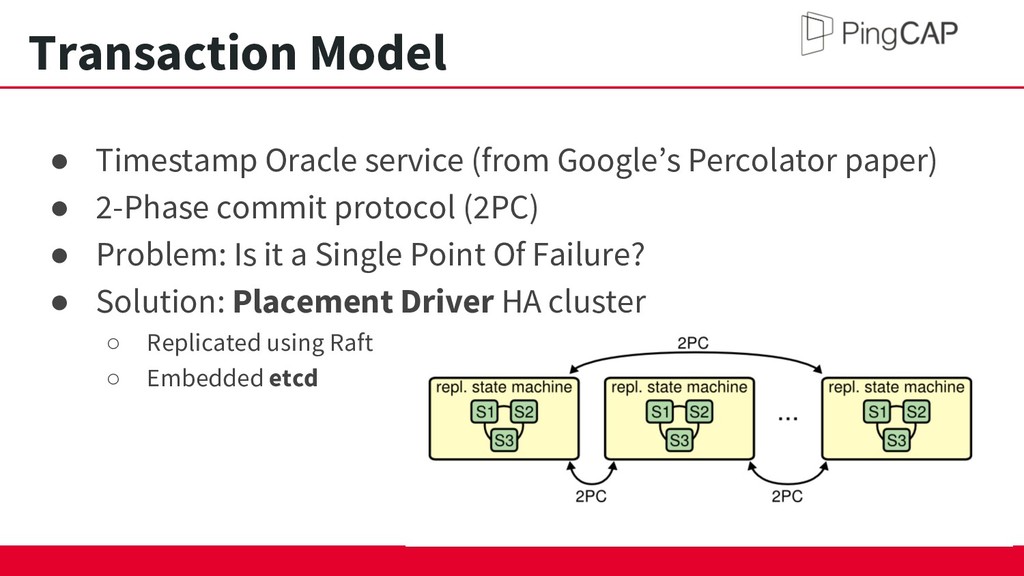

35. • Timestamp Oracle service (from Google’s Percolator paper) • 2-Phase commit protocol (2PC) • Problem: Is it a Single Point Of Failure? • Solution: Placement Driver HA cluster ◦ Replicated using Raft ◦ Embedded etcd Transaction Model

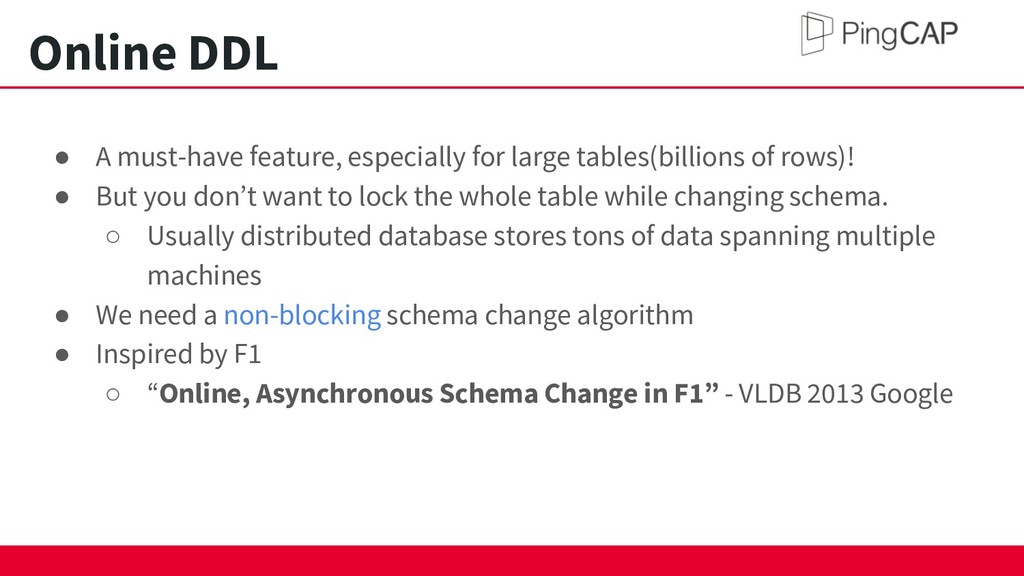

36. • A must-have feature, especially for large tables(billions of rows)! • But you don’t want to lock the whole table while changing schema. ◦ Usually distributed database stores tons of data spanning multiple machines • We need a non-blocking schema change algorithm • Inspired by F1 ◦ “Online, Asynchronous Schema Change in F1” - VLDB 2013 Google Online DDL
37. Benchmark Sysbench

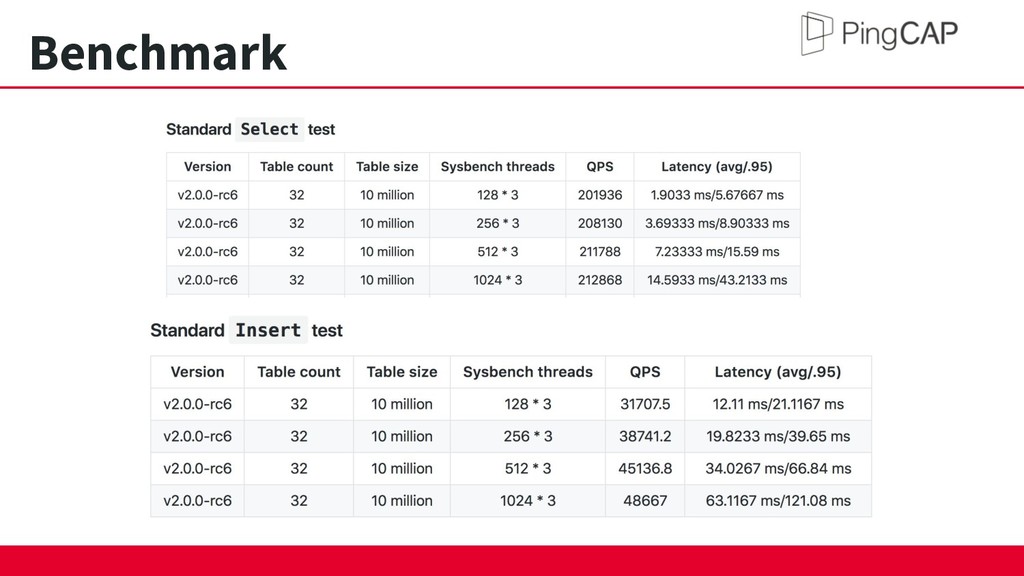

38. Benchmark

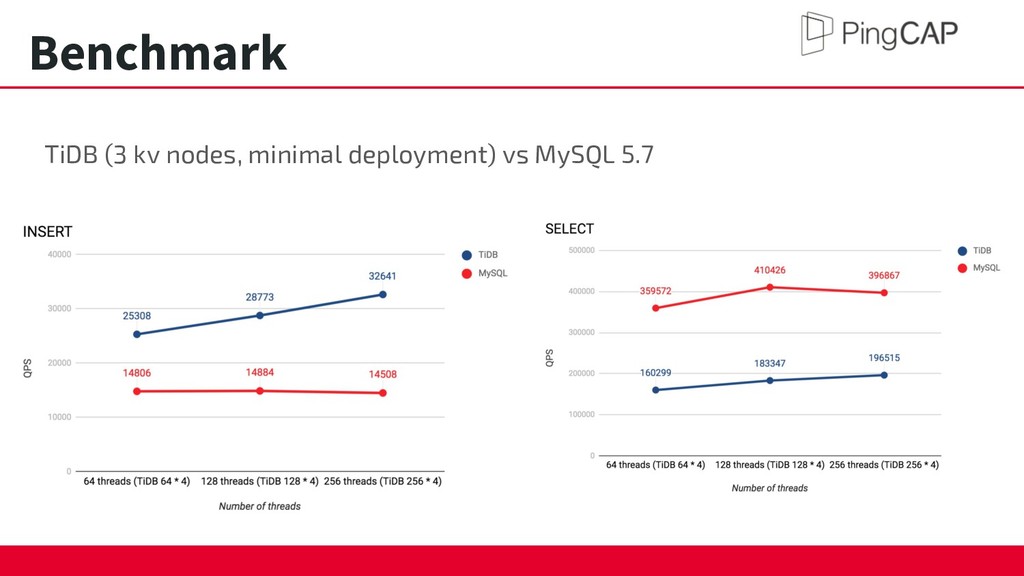

39. Benchmark TiDB (3 kv nodes, minimal deployment) vs MySQL 5.7

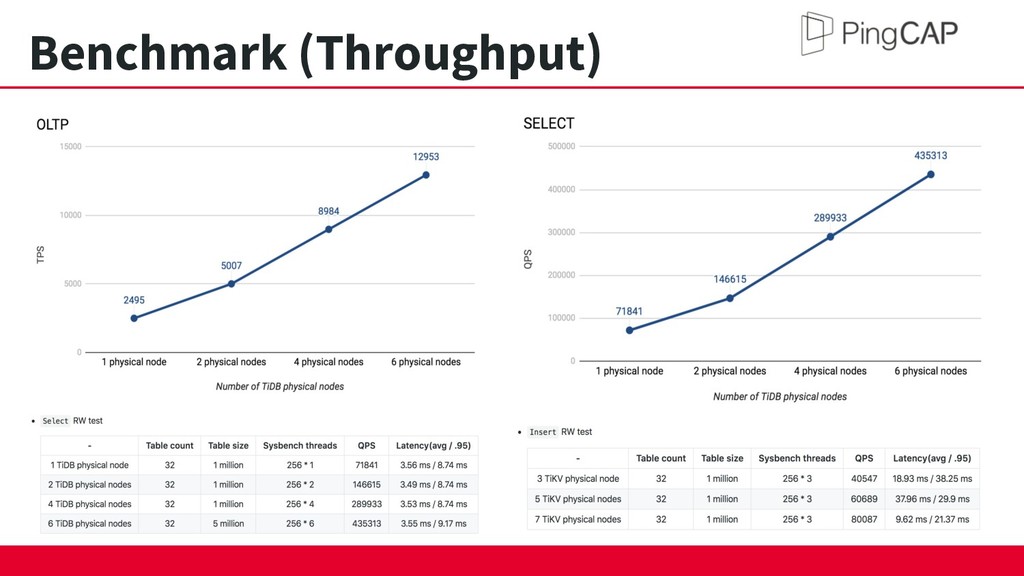

40. Benchmark (Throughput)
41. MySQL Ecosystem Tooling

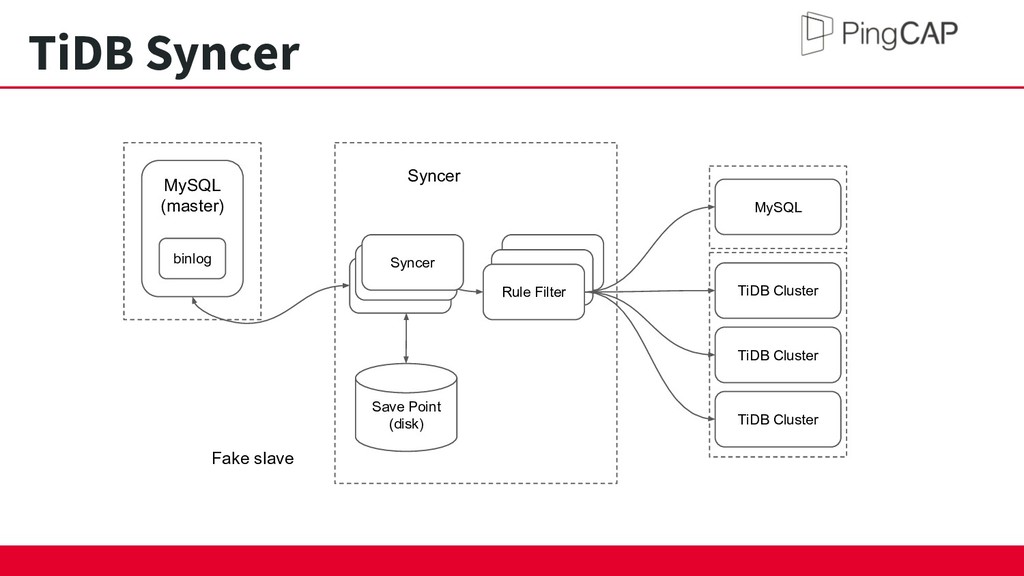

42. TiDB Syncer MySQL (master) Syncer Save Point (disk) Rule Filter MySQL TiDB Cluster TiDB Cluster TiDB Cluster Syncer Syncer binlog Fake slave Syncer

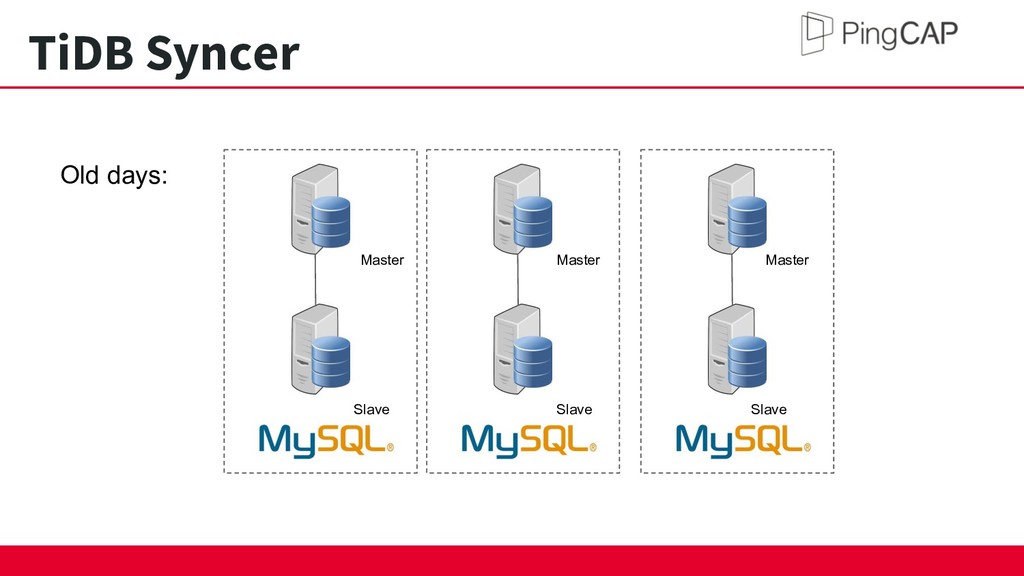

43. TiDB Syncer Master Slave Old days: Master Slave Master Slave

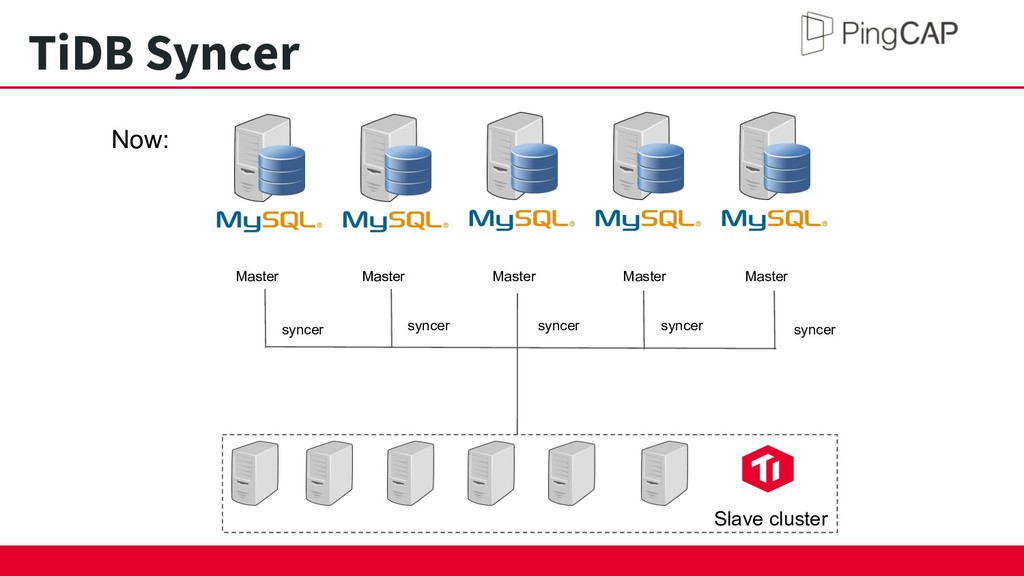

44. TiDB Syncer Slave cluster Master Master Master Master Master syncer syncer syncer syncer syncer Now:

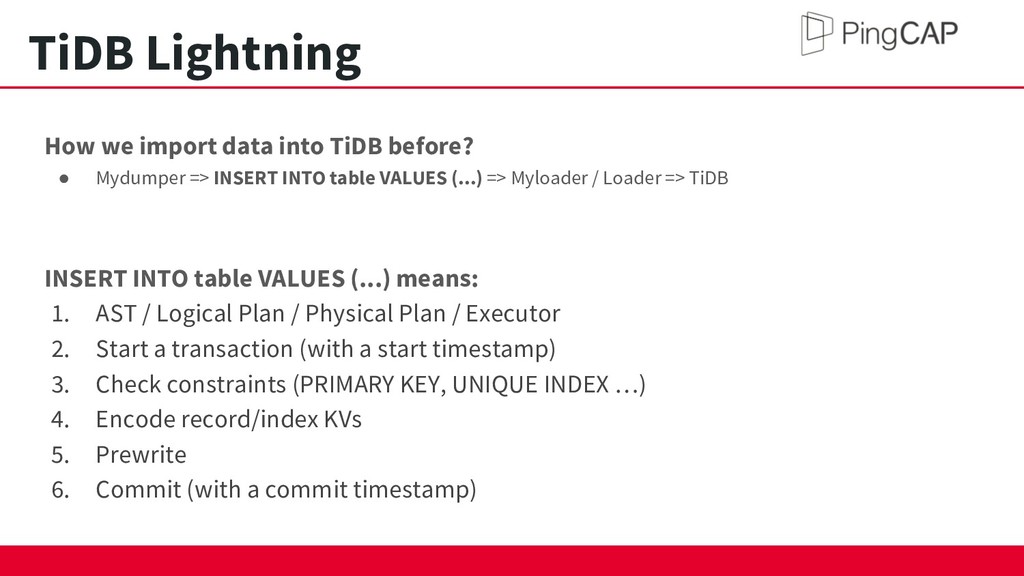

45. TiDB Lightning How we import data into TiDB before? • Mydumper => INSERT INTO table VALUES (...) => Myloader / Loader => TiDB INSERT INTO table VALUES (...) means: 1. AST / Logical Plan / Physical Plan / Executor 2. Start a transaction (with a start timestamp) 3. Check constraints (PRIMARY KEY, UNIQUE INDEX …) 4. Encode record/index KVs 5. Prewrite 6. Commit (with a commit timestamp)

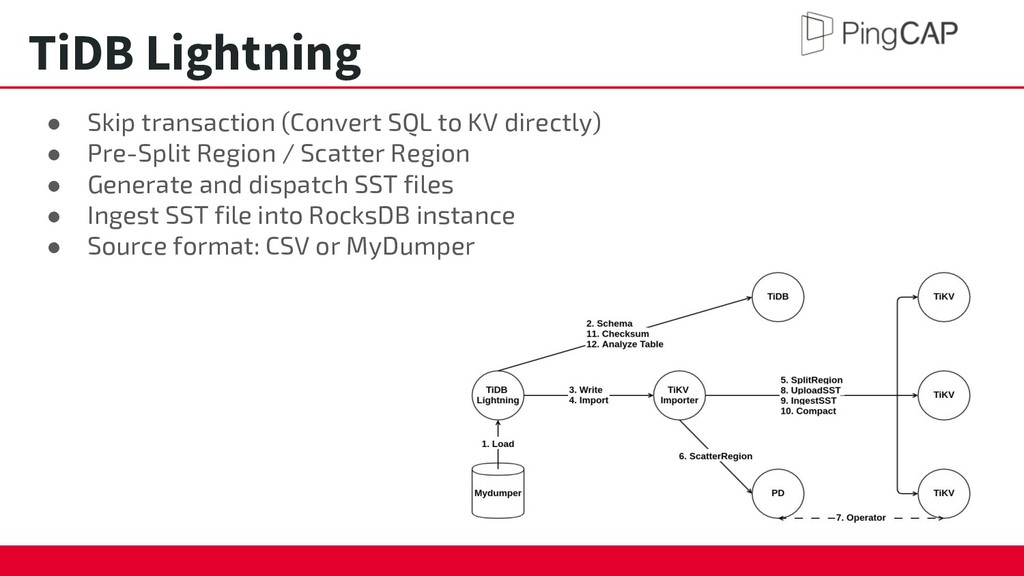

46. TiDB Lightning • Skip transaction (Convert SQL to KV directly) • Pre-Split Region / Scatter Region • Generate and dispatch SST files • Ingest SST file into RocksDB instance • Source format: CSV or MyDumper

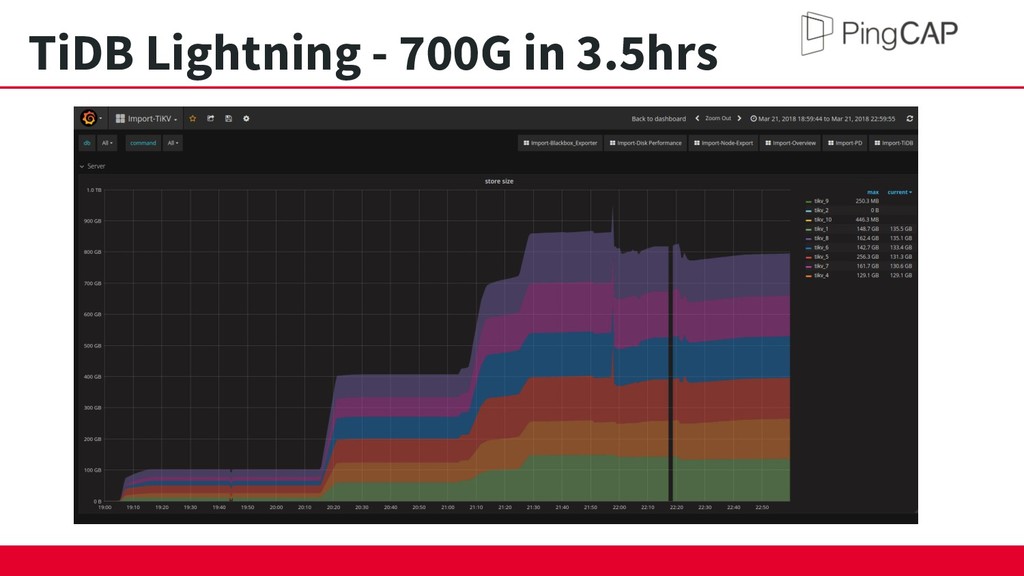

47. TiDB Lightning - 700G in 3.5hrs
48. Who’s Using TiDB?
49. 2018 PingCAP Who’s using TiDB? 300+ Companies
50. Mobike + TiDB • 200 million users • 200 cities • 9 milllion smart bikes • ~30 TB / day

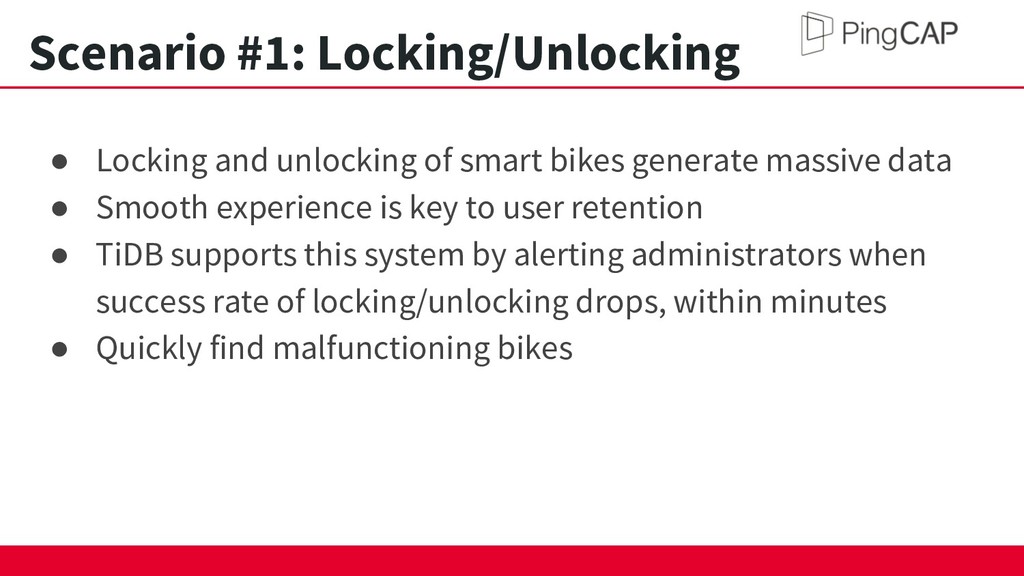

51. • Locking and unlocking of smart bikes generate massive data • Smooth experience is key to user retention • TiDB supports this system by alerting administrators when success rate of locking/unlocking drops, within minutes • Quickly find malfunctioning bikes Scenario #1: Locking/Unlocking

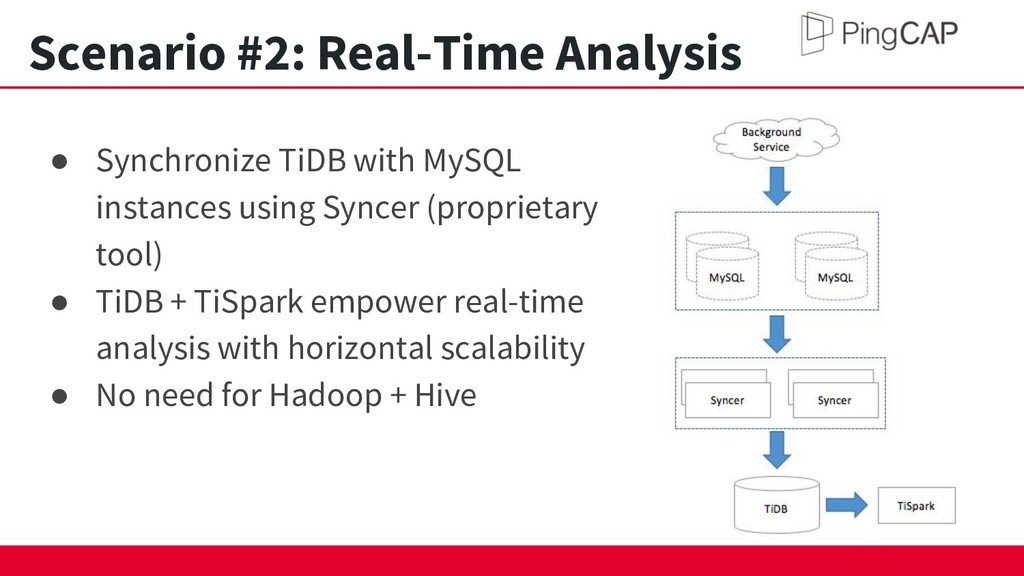

52. • Synchronize TiDB with MySQL instances using Syncer (proprietary tool) • TiDB + TiSpark empower real-time analysis with horizontal scalability • No need for Hadoop + Hive Scenario #2: Real-Time Analysis

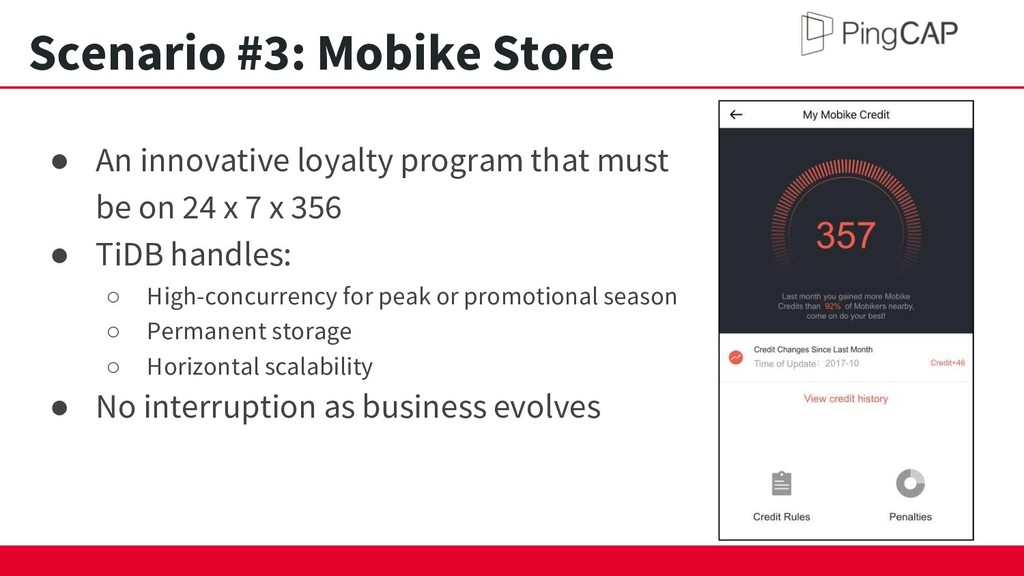

53. • An innovative loyalty program that must be on 24 x 7 x 356 • TiDB handles: ◦ High-concurrency for peak or promotional season ◦ Permanent storage ◦ Horizontal scalability • No interruption as business evolves Scenario #3: Mobike Store
54. DEMO Time!!

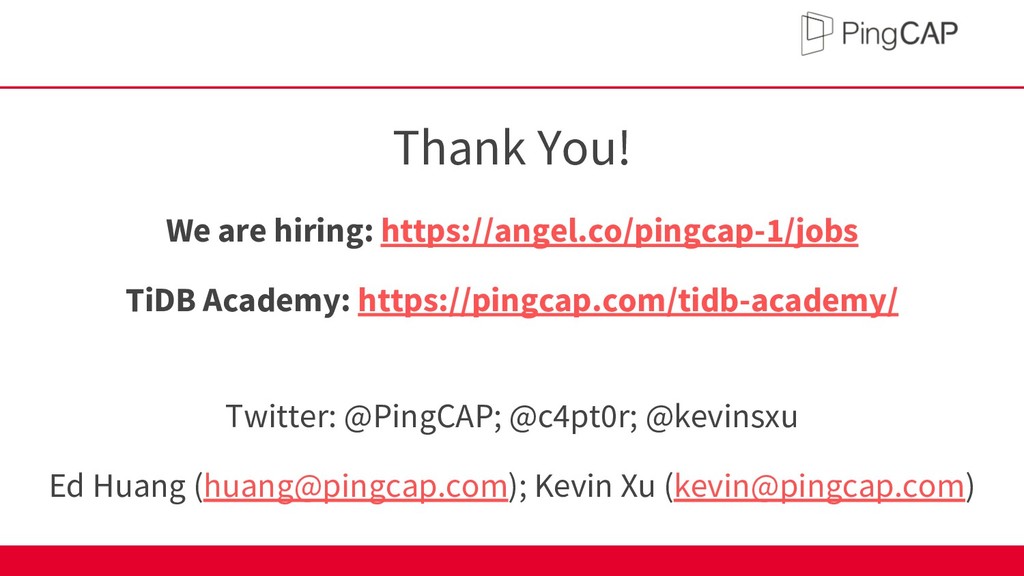

55. Thank You! We are hiring: https://angel.co/pingcap-1/jobs TiDB Academy: https://pingcap.com/tidb-academy/ Twitter: @PingCAP; @c4pt0r; @kevinsxu Ed Huang (huang@pingcap.com); Kevin Xu (kevin@pingcap.com)
56. Appendix

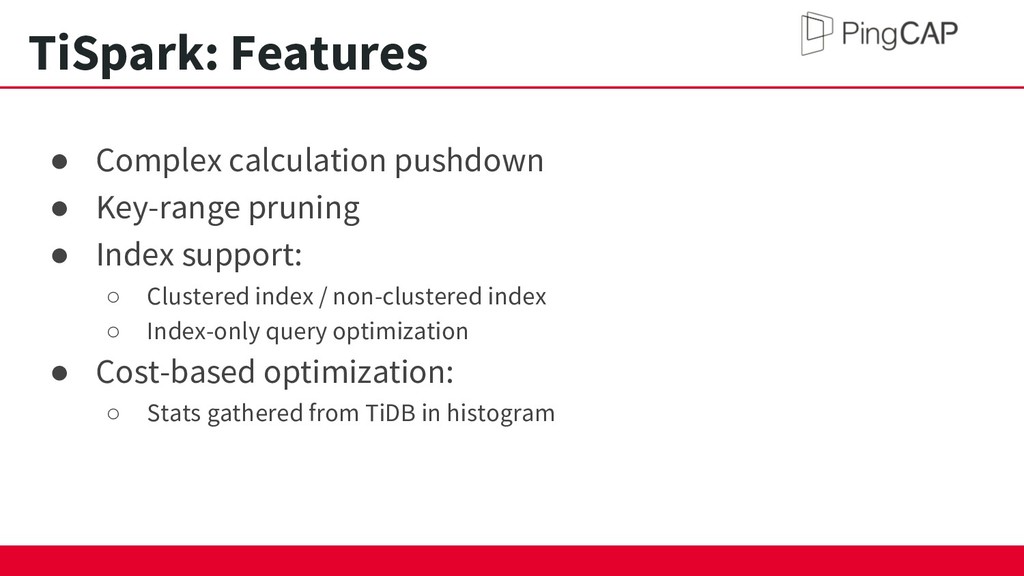

57. • Complex calculation pushdown • Key-range pruning • Index support: ◦ Clustered index / non-clustered index ◦ Index-only query optimization • Cost-based optimization: ◦ Stats gathered from TiDB in histogram TiSpark: Features

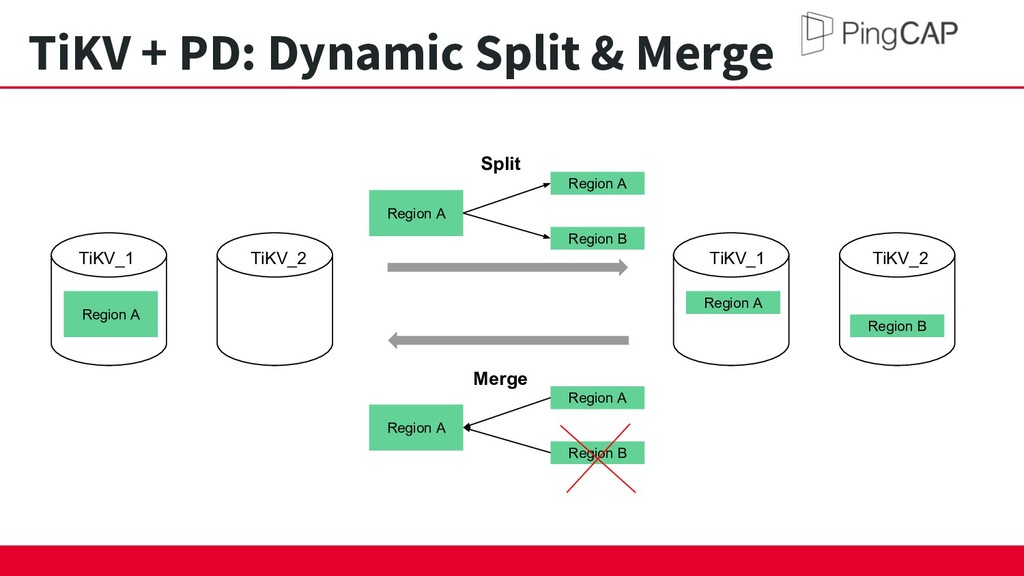

58. TiKV + PD: Dynamic Split & Merge Region A Region A Region B Region A Region A Region B Split Region A Region A Region B Merge TiKV_1 TiKV_2 TiKV_2 TiKV_1

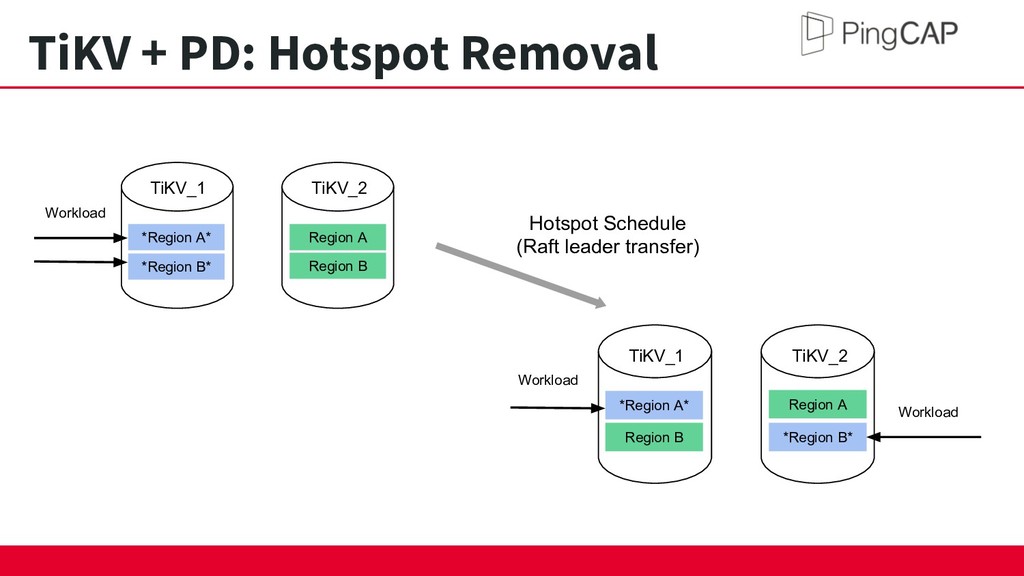

59. TiKV + PD: Hotspot Removal *Region A* *Region B* Region A Region B Workload *Region A* Region B Region A *Region B* Workload Workload Hotspot Schedule (Raft leader transfer) TiKV_1 TiKV_2 TiKV_2 TiKV_1

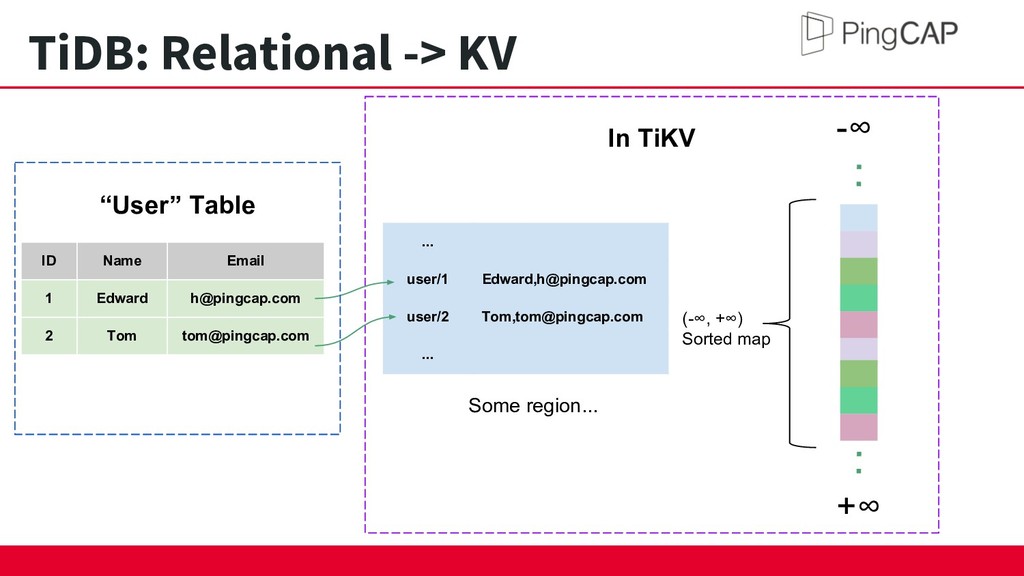

60. ID Name Email 1 Edward h@pingcap.com 2 Tom tom@pingcap.com ... user/1 Edward,h@pingcap.com user/2 Tom,tom@pingcap.com ... In TiKV -∞ +∞ (-∞, +∞) Sorted map “User” Table TiDB: Relational -> KV Some region...

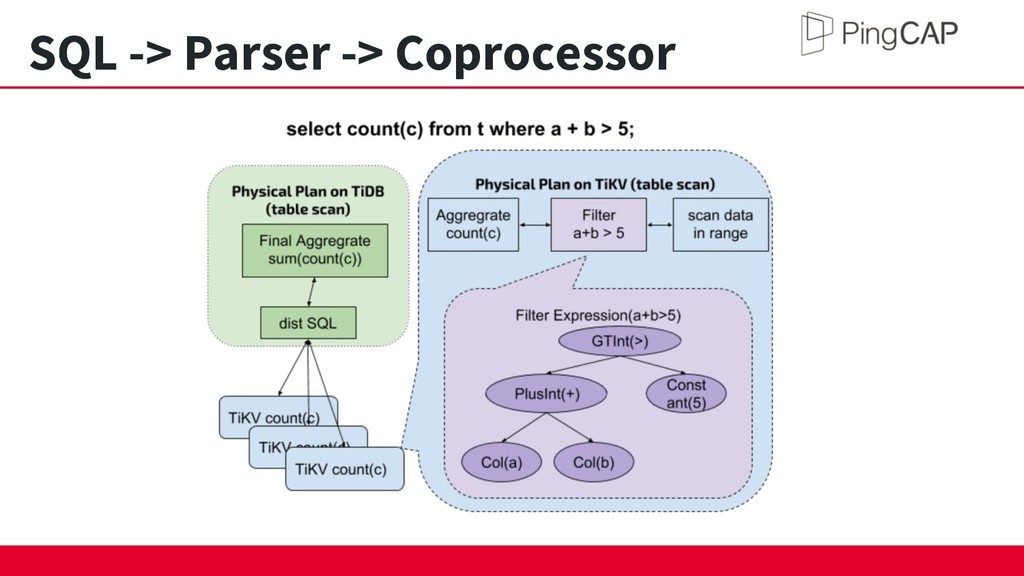

61. SQL -> Parser -> Coprocessor

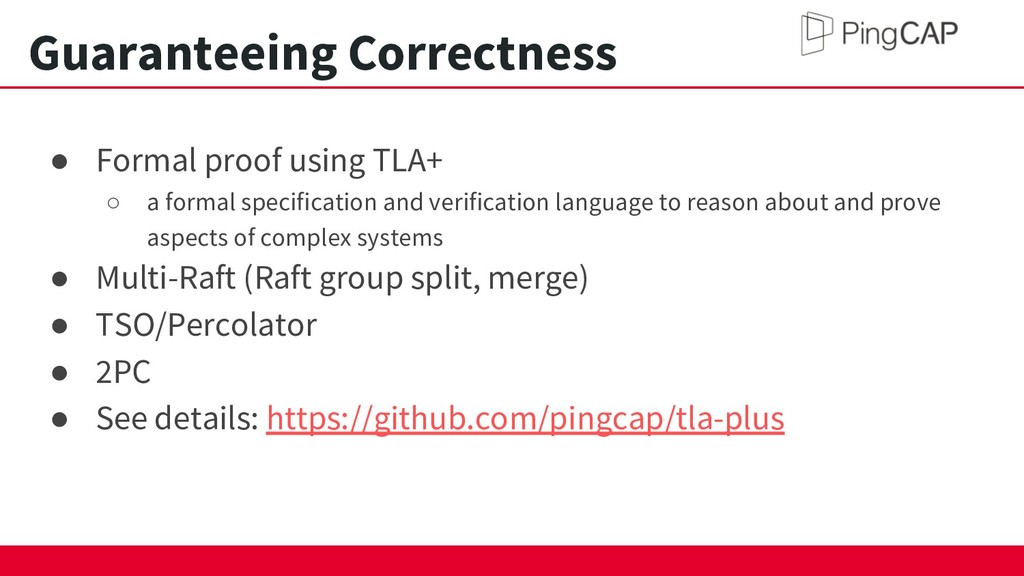

62. • Formal proof using TLA+ ◦ a formal specification and verification language to reason about and prove aspects of complex systems • Multi-Raft (Raft group split, merge) • TSO/Percolator • 2PC • See details: https://github.com/pingcap/tla-plus Guaranteeing Correctness
