Introduction to Containers and Container Networking (Melbourne Cisco Data Centre Users Group)

Transcript

1. Chris Gascoigne Technical Solutions Architect October 2017 Introduction to Containers and Container Networking
2. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential What are containers?
3. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential Running applications – bare metal Server OS App Server OS App Server OS App Server OS App

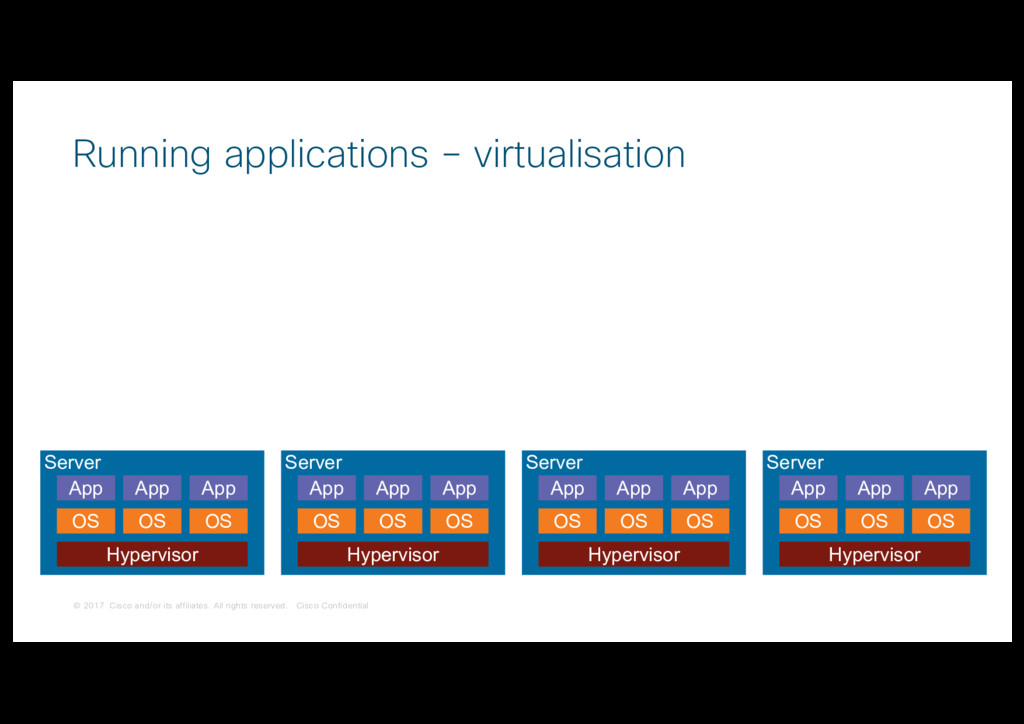

4. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential Server OS App Hypervisor OS App OS App Server OS App Hypervisor OS App OS App Server OS App Hypervisor OS App OS App Server OS App Hypervisor OS App OS App Running applications – virtualisation

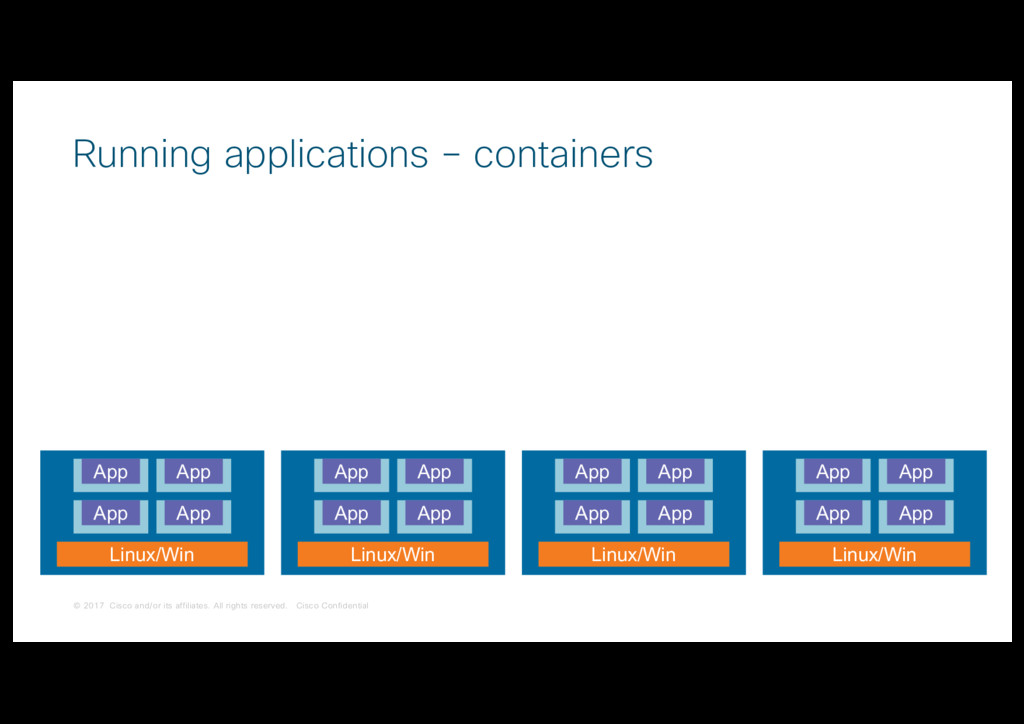

5. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential Linux/Win App App App App Linux/Win App App App App Linux/Win App App App App Linux/Win App App App App Running applications – containers
6. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential • Yes and No … • Yes • Run multiple applications per host • Isolate adjacent applications to prevent conflict • Fair resource usage • No • Shared kernel – security implications • Shared kernel – (generally) containers must be same operating system • Containers use less resources (i.e. much quicker start up, less RAM/CPU required without hypervisor) So containers are like VMs?
7. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential So containers eliminate VMs? • Yes and No … • … deploying container hosts as VMs is very common Linux/Win App App App App Linux/Win App App App App Linux/Win App App App App Linux/Win App App App App Hypervisor Hypervisor Hypervisor Hypervisor
8. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential Why are customers adopting containers?
9. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential I’ll give you a hint, it is not … … because of lower resource requirements
10. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential I’ll give you a hint, it is not … … because containers start up quicker
11. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential I’ll give you a hint, it is not … … to save money on vSphere licenses
12. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential I’ll give you a hint, it is not … … because they’re required for microservices
13. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential so? …
14. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential Traditional application deployment environment C ++ .Net Java Developers Write Code Development Environment C ++ .Net Java Ops / IT Setup runtime environment IIS / Tomcat / JRE / … Linux / Windows / Unix Production Environment
16. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential Modern application deployment environment Developers Ops / IT Write Code Setup container environment Container platform App Runtime OS packages App Runtime OS packages App Runtime OS packages Containers
18. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential Docker architecture Image source:https://docs.docker.com/introduction/understanding-docker/
19. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential Demo

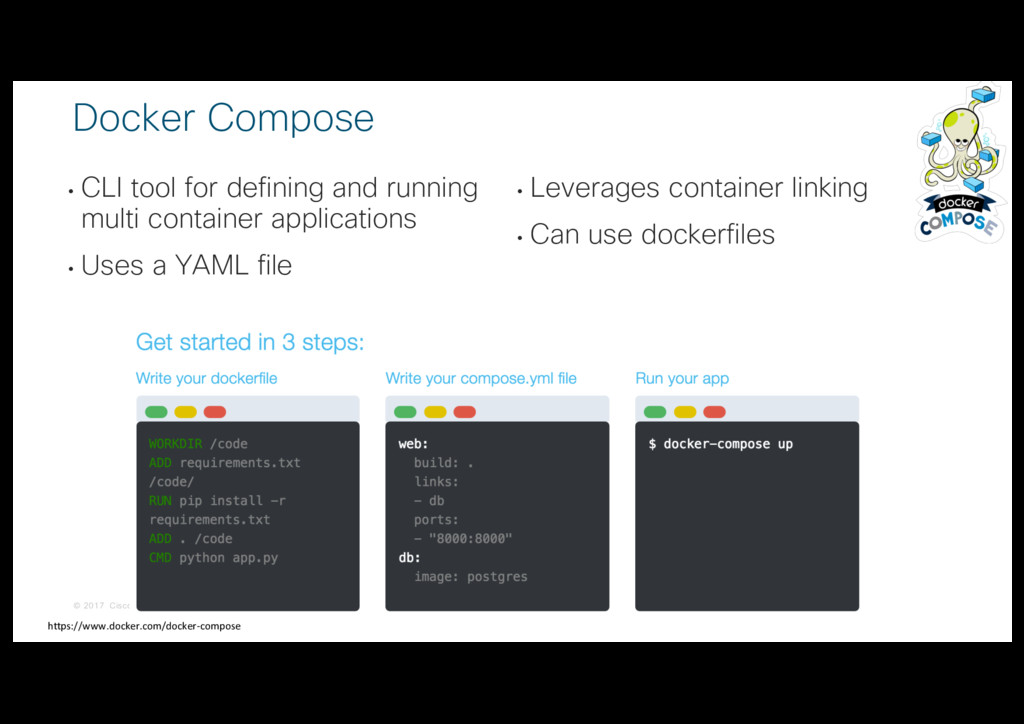

20. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential • CLI tool for defining and running multi container applications • Uses a YAML file • Leverages container linking • Can use dockerfiles Docker Compose https://www.docker.com/docker-compose
21. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential Demo
22. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential Who are the players?

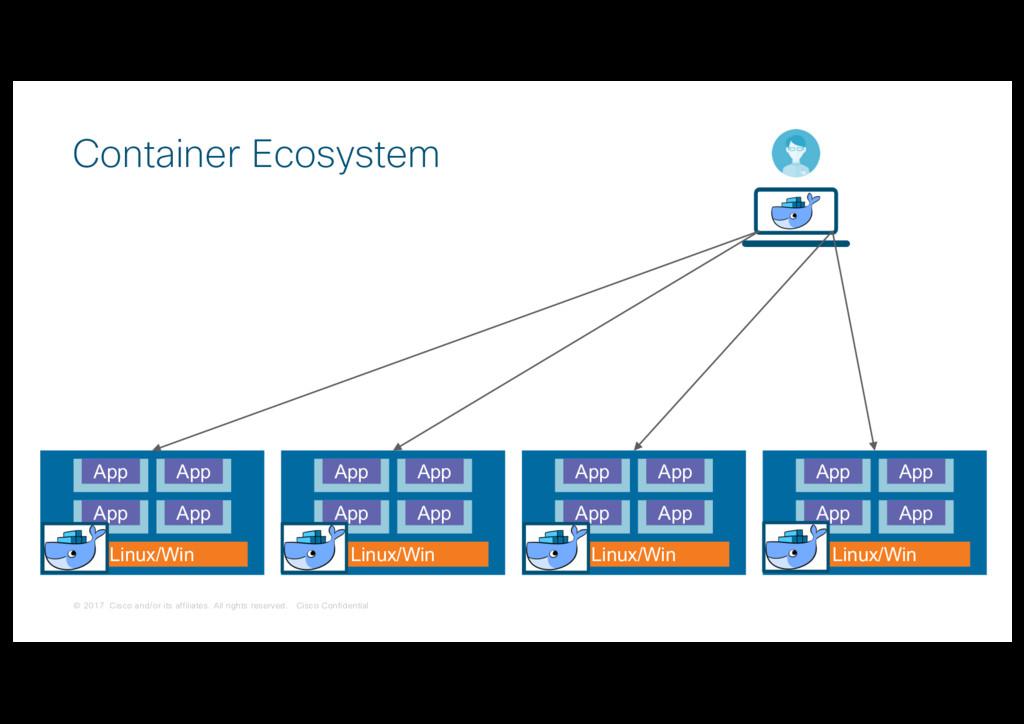

23. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential Linux/Win App App App App Linux/Win App App App App Linux/Win App App App App Linux/Win App App App App Container Ecosystem
24. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential Linux/Win App App App App Linux/Win App App App App Linux/Win App App App App Linux/Win App App App App Container Ecosystem
25. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential Linux/Win App App App App Linux/Win App App App App Linux/Win App App App App Linux/Win App App App App Container Ecosystem - Scheduling Docker Swarm
26. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential Linux/Win App App App App Linux/Win App App App App Linux/Win App App App App Linux/Win App App App App Container Ecosystem - Scheduling Kubernetes

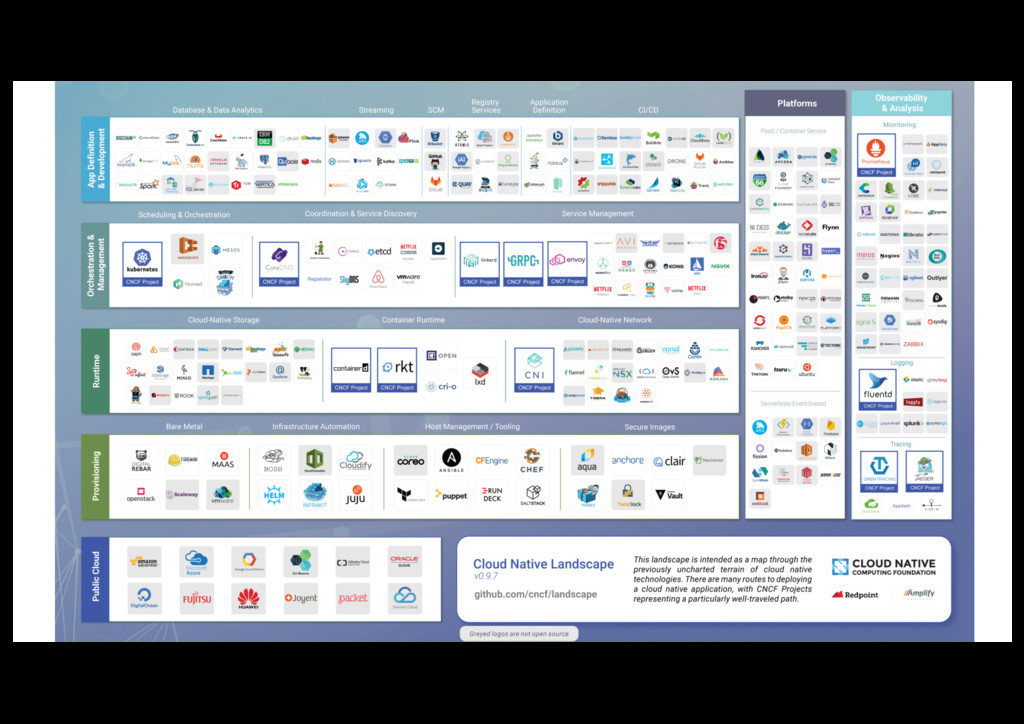

27. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential Linux/Win App App App App Linux/Win App App App App Linux/Win App App App App Linux/Win App App App App Container Ecosystem - PaaS Kubernetes OpenShift <code>
28. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
29. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential Container Networking

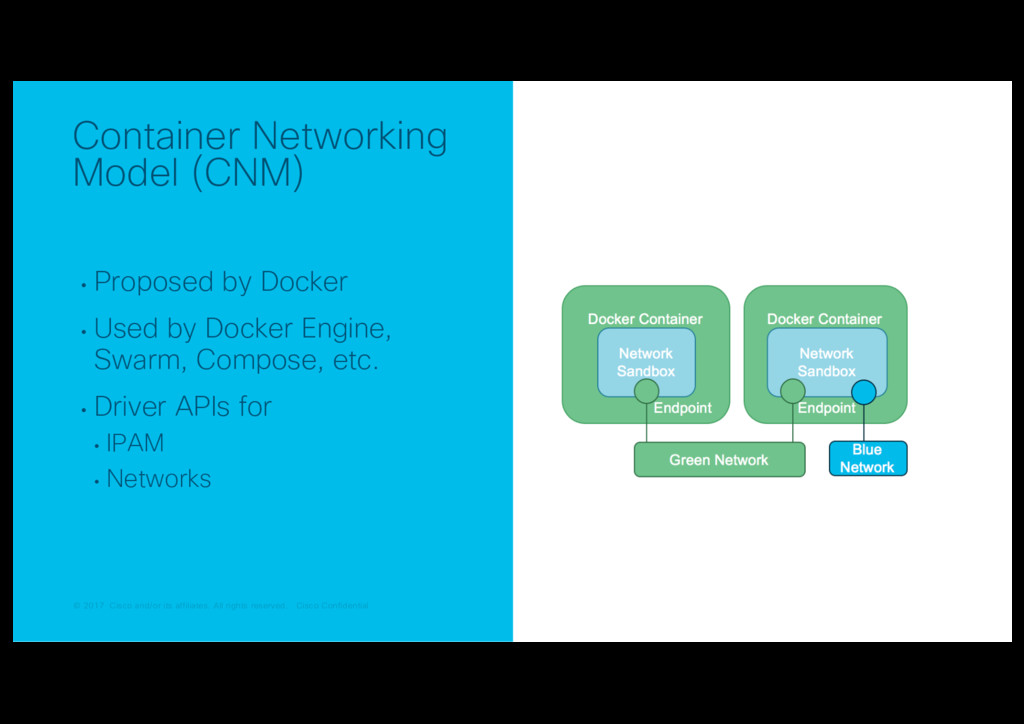

30. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential • Proposed by Docker • Used by Docker Engine, Swarm, Compose, etc. • Driver APIs for • IPAM • Networks Container Networking Model (CNM)
31. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential libnetwork 31 BRKCLD-2022 Remote Drivers Contiv, Calico, Weave…. Native Drivers none, bridge, overlay, macvlan Docker Engine Libnetwork (CNM) IPAM • Service Discovery • Distributed Key Value Store • IP Address Mgmt • Gossip Protocol • Encryption “batteries included, but removable”

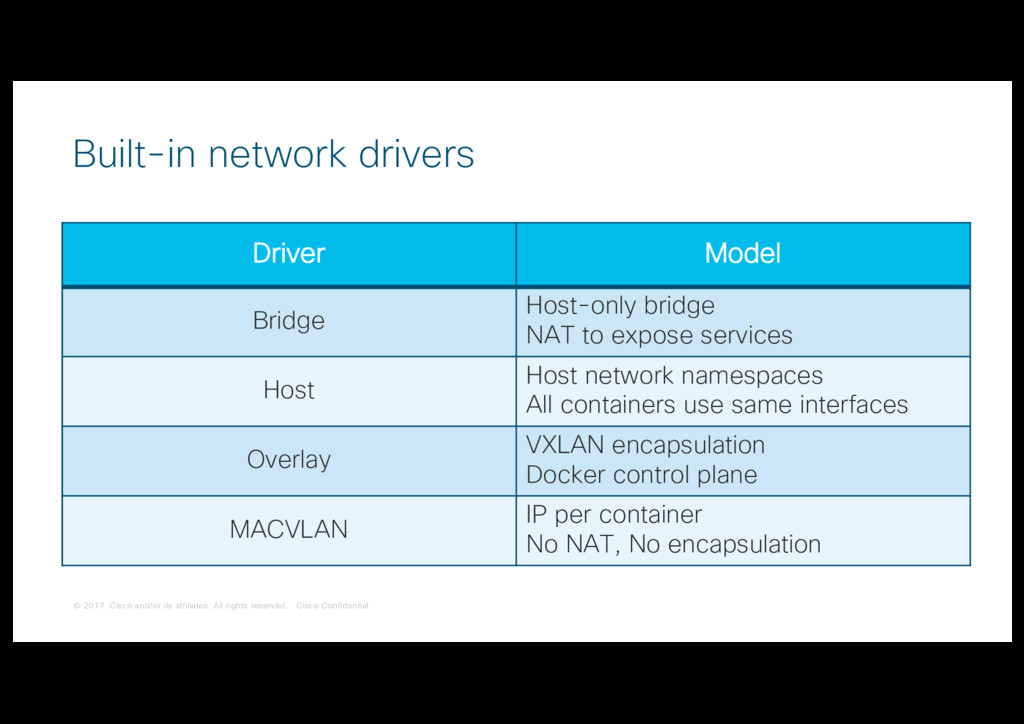

32. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential Built-in network drivers Driver Model Bridge Host-only bridge NAT to expose services Host Host network namespaces All containers use same interfaces Overlay VXLAN encapsulation Docker control plane MACVLAN IP per container No NAT, No encapsulation
33. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential Docker Bridge Driver

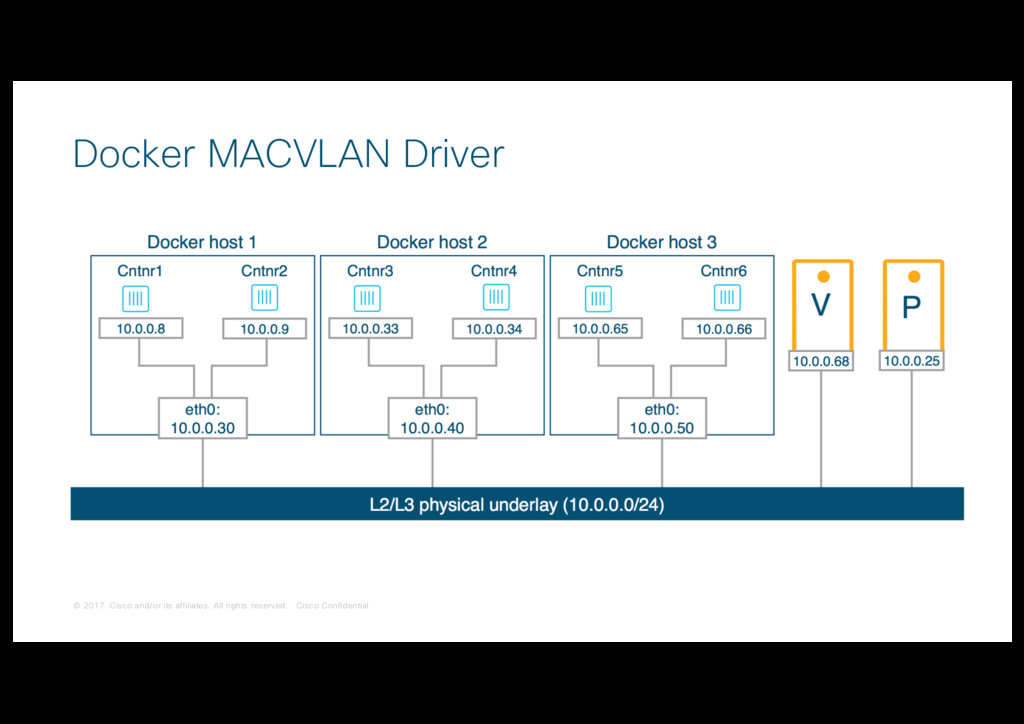

34. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential Docker MACVLAN Driver
35. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential Docker Overlay Driver
36. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential • Proposed by CoreOS • Used by Kubernetes • No separate IPAM driver Container Networking Interface (CNI)
37. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential Networking challenges for containers
38. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential Demo
39. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 100% Open Source The Most Powerful Container Networking Fabric L2, L3, Overlay or ACI Rich Policies DevOps IT Admin Any Networking Any Platform Any Infrastructure Application Intent Rich Policy Declarative Simple Install GUI + CLI LDAP/RBAC Cisco Contiv
40. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential Docker Certified Plugin 41 https://store.docker.com/plugins/contiv
41. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential • Use the network model that suits the infrastructure • Contiv provides flexibility on the network side with consistency on the application side • References: • https://github.com/contiv/netplugin • https://github.com/contiv/install Summary
