An Extensible Compiler for Creating Scriptable Scientific Software

Conference presentation. ICCS 2002. Amsterdam.

Transcript

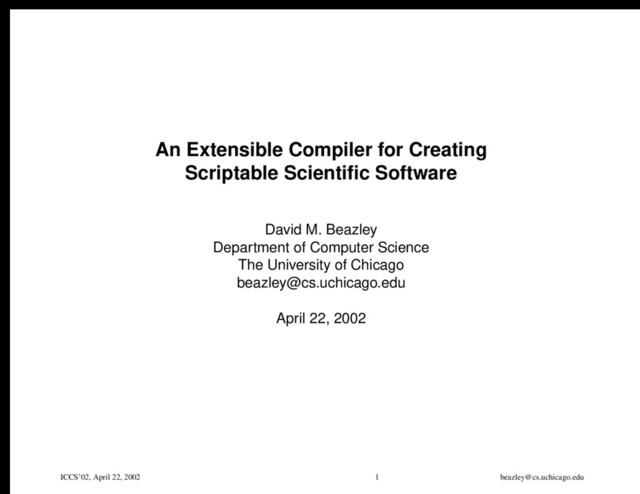

1. ICCS’02, April 22, 2002 1 beazley@cs.uchicago.edu
   An Extensible Compiler for Creating
   Scriptable Scientific Software
   David M. Beazley
   Department of Computer Science
   The University of Chicago
   beazley@cs.uchicago.edu
   April 22, 2002
   PY-MA


   View Slide

2. ICCS’02, April 22, 2002 2 beazley@cs.uchicago.edu
   Scripted Scientific Software
   Many scientific programs are being transformed
   Motivation: Scripting languages offer many benefits
   • Interpreted and interactive user environment.
   • Extensible with compiled C/C++/Fortran code.
   • Rapid prototyping.
   • Debugging.
   • Systems integration and components.
   • Can make applications look a lot like MATLAB, IDL, etc.
   C/C++
   Application
   C/C++
   Application
   Scripting Language
   Non-interactive
   batch processing (Python, Perl, Tcl, etc.)
   (extension)


   View Slide

3. ICCS’02, April 22, 2002 3 beazley@cs.uchicago.edu
   Extension Programming
   Wrappers
   • main() replaced by wrappers (data marshalling, error handling, etc.)
   • Similar to stub-code with RPC, CORBA, COM, etc.
   • Goal: expose application internals to interpreter (functions, classes, variables,...)
   >>> gcd(12,16)
   4
   Scripting Interpreter
   Scientific Application
   (C/C++/Fortran)
   Wrapper Layer
   Scientific Application
   (C/C++/Fortran)
   Wrapper Layer
   Scientific Application
   (C/C++/Fortran)
   main()
   Original Application


   View Slide

4. ICCS’02, April 22, 2002 4 beazley@cs.uchicago.edu
   Extension Code Example
   Python wrapper
   #include "Python.h"
   extern int gcd(int,int);
   PyObject *wrap_gcd(PyObject *self, PyObject *args) {
   int x,y;
   int result;
   if (!PyArg_ParseTuple(args,"ii", &x, &y)) {
   return NULL;
   }
   result = gcd(x,y);
   return PyInt_FromLong(result);
   }
   • Data conversion from C <---> Python.
   • You would write a wrapper for each part of your program.
   • Ex: 300 C functions ==> 300 wrapper functions
   • C++ classes, structures, templates, etc. are more complicated.


   View Slide

5. ICCS’02, April 22, 2002 5 beazley@cs.uchicago.edu
   The Problem
   No one wants to write extension code
   • Highly repetitive.
   • Prone to error.
   • Difficult for complicated programs.
   Other issues
   • Scientific programs characterized by rapid change.
   • Functions change, variables change, objects change.
   • Piecemeal development.
   • Would require continual maintenance of the wrappers.
   • Complicates development.
   • Makes scripting languages impractical to use in early stages of a project.


   View Slide

6. ICCS’02, April 22, 2002 6 beazley@cs.uchicago.edu
   The SWIG Project
   SWIG
   • A C/C++ compiler for generating wrappers to existing code.
   • Freely available and in development since 1995.
   • Currently targets Python, Perl, Tcl, Ruby, Java, PHP
   , Guile, and Mzscheme.
   Source translation
   • C++ header files are parsed to generate wrappers
   Goals
   • Make it extremely easy for users (scientists) to build wrappers.
   • Allow scripting interface to automatically track changes in underlying source.
   • Make the wrapping process as invisible as possible.
   .h
   .h
   .h
   swig Wrapper Code
   C/C++ Perl, Python,Tcl, Ruby, ...


   View Slide

7. ICCS’02, April 22, 2002 7 beazley@cs.uchicago.edu
   SWIG Overview
   Key components:
   • Header file parsing.
   • Special SWIG directives.
   Supported C++ features
   • Functions, variables, constants.
   • Classes
   • Inheritance and multiple inheritance.
   • Pointers, references, arrays, member pointers.
   • Overloading (with renaming)
   • Operators.
   • Namespaces.
   • Templates.
   • Preprocessing.
   Not supported
   • Nested classes, member templates, template partial specialization
   Will show a few examples
   • Not a complete coverage of SWIG.


   View Slide

8. ICCS’02, April 22, 2002 8 beazley@cs.uchicago.edu
   Input files
   C/C++ declarations mixed with special SWIG directives.
   // example.i : Sample SWIG input file
   %module example
   %{
   #include "example.h"
   %}
   // Resolve a name clash with Python
   %rename(cprint) print;
   // C/C++ declarations
   extern int gcd(int x, int y);
   extern int fact(int n);
   ...
   %include "example.h" // Parse a header file
   ...


   View Slide

9. ICCS’02, April 22, 2002 9 beazley@cs.uchicago.edu
   Creating a Module
   Compilation and linking
   % swig -python example.i
   % cc -c -I/usr/local/include/python2.1 example_wrap.c
   % cc -shared example_wrap.o $(OBJS) -o examplemodule.so
   Use
   % python
   Python 2.1 (#3, Aug 20 2001, 15:41:42)
   [GCC 2.95.2 19991024 (release)] on sunos5
   >>> import example
   >>> example.gcd(12,16)
   4
   >>>
   Comments:
   • Modules built as shared libraries/DLLs
   • Dynamic loading used to import into interpreter.
   • Contents of the module similar to C.


   View Slide

10. ICCS’02, April 22, 2002 10 beazley@cs.uchicago.edu
    A More Complicated Example
    • Structures/classes mapped into wrapper objects.
    • Provides natural access from an interpreter.
    class Complex {
    double real, imag;
    public:
    Complex(double r = 0, double i = 0);
    Complex(const Complex &c);
    Complex &operator=(const Complex &c);
    Complex operator+(const Complex &);
    Complex operator-(const Complex &);
    Complex operator*(const Complex &);
    Complex operator-();
    double re();
    double im();
    ...
    };
    >>> a = Complex(3,4)
    >>> b = Complex(5,6)
    >>> c = a + b
    >>> c.re()
    8.0
    >>> c.im()
    10.0
    >>>
    C++ Python


    View Slide

11. ICCS’02, April 22, 2002 11 beazley@cs.uchicago.edu
    Structure Extension
    Converting C structures to classes
    • Can make C programs look OO (or extend C++ classes)
    typedef struct {
    double x,y,z;
    } Vector;
    ...
    %addmethods Vector {
    Vector(double x, double y, double z) {
    Vector *r = (Vector *) malloc(sizeof(Vector));
    r->x = x;
    r->y = y;
    r->z = z;
    return r;
    }
    double magnitude() {
    return sqrt(self->x*self->x+self->y*self->y
    + self->z*self->z);
    }
    ...
    };


    View Slide

12. ICCS’02, April 22, 2002 12 beazley@cs.uchicago.edu
    Template Wrapping
    %template directive
    template class vector {
    public:
    vector();
    ~vector();
    T get(int index);
    int size();
    ...
    };
    // Instantiate templates
    %template(intvector) vector;
    %template(doublevector) vector;
    In Python
    >>> v = intvector()
    ...
    >>> x = v.get(2)
    >>> print v.size()
    10
    >>>


    View Slide

13. ICCS’02, April 22, 2002 13 beazley@cs.uchicago.edu
    How it Works
    class Complex {
    public:
    Complex(double r = 0, double i = 0);
    Complex operator+(const Complex &);
    double re();
    ...
    };
    C++ (input)


    View Slide

14. ICCS’02, April 22, 2002 14 beazley@cs.uchicago.edu
    How it Works
    class Complex {
    public:
    Complex(double r = 0, double i = 0);
    Complex operator+(const Complex &);
    double re();
    ...
    };
    Complex *
    new_Complex(double r, double i) {
    return new Complex(r,i);
    }
    Complex *
    Complex_operator___add__(
    Complex *self,Complex *other) {
    Complex *r;
    r=new Complex(self->operator+(*other));
    return r;
    }
    double
    Complex_re(Complex *self) {
    return self->re();
    }
    C++ (input)
    Procedure Wrappers


    View Slide

15. ICCS’02, April 22, 2002 15 beazley@cs.uchicago.edu
    How it Works
    class Complex {
    public:
    Complex(double r = 0, double i = 0);
    Complex operator+(const Complex &);
    double re();
    ...
    };
    Complex *
    new_Complex(double r, double i) {
    return new Complex(r,i);
    }
    Complex *
    Complex_operator___add__(
    Complex *self,Complex *other) {
    Complex *r;
    r=new Complex(self->operator+(*other));
    return r;
    }
    double
    Complex_re(Complex *self) {
    return self->re();
    }
    Extension Module (DLL)
    C++ (input)
    Procedure Wrappers


    View Slide

16. ICCS’02, April 22, 2002 16 beazley@cs.uchicago.edu
    How it Works
    class Complex {
    public:
    Complex(double r = 0, double i = 0);
    Complex operator+(const Complex &);
    double re();
    ...
    };
    Complex *
    new_Complex(double r, double i) {
    return new Complex(r,i);
    }
    Complex *
    Complex_operator___add__(
    Complex *self,Complex *other) {
    Complex *r;
    r=new Complex(self->operator+(*other));
    return r;
    }
    double
    Complex_re(Complex *self) {
    return self->re();
    }
    Extension Module (DLL)
    class Complex:
    def __init__(self,r,i):
    self.this = new_Complex(r,i)
    def __add__(self,other):
    return Complex_operator___add__
    self.this,other)
    def re(self):
    return Complex_re(self.this)
    ...
    C++ (input)
    Procedure Wrappers
    Python class


    View Slide

17. ICCS’02, April 22, 2002 17 beazley@cs.uchicago.edu
    How it Works
    class Complex {
    public:
    Complex(double r = 0, double i = 0);
    Complex operator+(const Complex &);
    double re();
    ...
    };
    Complex *
    new_Complex(double r, double i) {
    return new Complex(r,i);
    }
    Complex *
    Complex_operator___add__(
    Complex *self,Complex *other) {
    Complex *r;
    r=new Complex(self->operator+(*other));
    return r;
    }
    double
    Complex_re(Complex *self) {
    return self->re();
    }
    Extension Module (DLL)
    class Complex:
    def __init__(self,r,i):
    self.this = new_Complex(r,i)
    def __add__(self,other):
    return Complex_operator___add__
    self.this,other)
    def re(self):
    return Complex_re(self.this)
    ...
    >>> a = Complex(2,3)
    >>> b = Complex(4,5)
    >>> c = a + b
    >>> c.re()
    6
    >>>
    C++ (input)
    Procedure Wrappers
    Python class
    Python script


    View Slide

18. ICCS’02, April 22, 2002 18 beazley@cs.uchicago.edu
    How it Works
    class Complex {
    public:
    Complex(double r = 0, double i = 0);
    Complex operator+(const Complex &);
    double re();
    ...
    };
    Complex *
    new_Complex(double r, double i) {
    return new Complex(r,i);
    }
    Complex *
    Complex_operator___add__(
    Complex *self,Complex *other) {
    Complex *r;
    r=new Complex(self->operator+(*other));
    return r;
    }
    double
    Complex_re(Complex *self) {
    return self->re();
    }
    Extension Module (DLL)
    class Complex:
    def __init__(self,r,i):
    self.this = new_Complex(r,i)
    def __add__(self,other):
    return Complex_operator___add__
    self.this,other)
    def re(self):
    return Complex_re(self.this)
    ...
    >>> a = Complex(2,3)
    >>> b = Complex(4,5)
    >>> c = a + b
    >>> c.re()
    6
    >>>
    C++ (input)
    Procedure Wrappers
    Python class
    Python script


    View Slide

19. ICCS’02, April 22, 2002 19 beazley@cs.uchicago.edu
    How it Works
    class Complex {
    public:
    Complex(double r = 0, double i = 0);
    Complex operator+(const Complex &);
    double re();
    ...
    };
    Extension Module (DLL)
    >>> a = Complex(2,3)
    >>> b = Complex(4,5)
    >>> c = a + b
    >>> c.re()
    6
    >>>
    C++ (input)
    Procedure Wrappers
    Python class
    Python script
    SWIG generated
    SWIG generated


    View Slide

20. ICCS’02, April 22, 2002 20 beazley@cs.uchicago.edu
    How it Works
    • User only works with input file (C++) and scripts
    • Details of wrappers hidden.
    • Wrappers not modified by user. Only used to compile DLL.
    class Complex {
    public:
    Complex(double r = 0, double i = 0);
    Complex operator+(const Complex &);
    double re();
    ...
    };
    Extension Module (DLL)
    >>> a = Complex(2,3)
    >>> b = Complex(4,5)
    >>> c = a + b
    >>> c.re()
    6
    >>>
    C++ (input)
    Python script
    swig


    View Slide

21. ICCS’02, April 22, 2002 21 beazley@cs.uchicago.edu
    Challenges
    C/C++ is a bad interface definition language
    • Type system complexity:
    typedef int (*PFIA[20])(int, double *x);
    double foo(PFIA *const x);
    • Ambiguity in data conversion (pointers, arrays, output values, etc.)
    double bar(double *x, double *y, double *r);
    • Structures, classes, unions.
    • Templates, namespaces, overloading, operators, etc.
    SWIG solution
    • Declaration annotation.
    • Pattern based type conversion.
    • Will provide a brief tour of internals.


    View Slide

22. ICCS’02, April 22, 2002 22 beazley@cs.uchicago.edu
    Declaration Annotation
    The underlying customization mechanism
    %module example
    %rename(cprint) print;
    %ignore Complex::operator=;
    %include "example.h"
    // example.h
    void print(char *s);
    class Complex {
    public:
    void print();
    ...
    Complex& operator=(const Complex &);
    ...
    };
    Declaration modifiers
    (special directives)
    Pattern matching
    (unmodified C/C++)


    View Slide

23. ICCS’02, April 22, 2002 23 beazley@cs.uchicago.edu
    Declaration Annotation
    Advanced features
    • Fully integrated with the C++ type system.
    • Annotations can be parameterized with type signatures.
    Example:
    %ignore Object::bar(string *s) const;
    ...
    class Object {
    ...
    void bar(string *s);
    void bar(string *s) const; // Ignored
    ...
    } ;
    class Foo : public Object {
    ...
    void bar(string *s);
    void bar(string *s) const; // Ignored
    ...
    };


    View Slide

24. ICCS’02, April 22, 2002 24 beazley@cs.uchicago.edu
    Type Conversion
    Problem: marshalling
    • Must convert data between scripting and C representation.
    Example:
    In Python
    >>> gcd(12,16)
    4
    >>> count("Hello",5,"e")
    1
    int gcd(int x, int y);
    int count(char *buf, int len, char c);
    Integers
    String Single character


    View Slide

25. ICCS’02, April 22, 2002 25 beazley@cs.uchicago.edu
    Pattern-Based Type Conversion
    Typemap patterns
    %typemap(in) int {
    $1 = PyInt_AsLong($input);
    }
    %typemap(out) int {
    $result = PyInt_FromLong($1);
    }
    %typemap(in) char * {
    $1 = PyString_AsString($input);
    }
    ...
    %include "example.h"
    int gcd(int x, int y);
    ...
    int count(char *buf, int len, char c);
    ...
    C datatype conversion code.
    (depends on target language)
    C header
    Note: user rarely writes this.


    View Slide

26. ICCS’02, April 22, 2002 26 beazley@cs.uchicago.edu
    Typemaps
    Named typemaps:
    %typemap(in) double nonnegative {
    $1 = PyFloat_AsDouble($input);
    if ($1 < 0) {
    PyErr_SetString(PyExc_ValueError,"domain error!");
    return NULL;
    }
    }
    double sqrt(double nonnegative);
    Sequences
    %typemap(in) (char *buf, int len) {
    $1 = PyString_AsString($input);
    $2 = PyString_Size($input);
    }
    int count(char *buf, int len, char c);
    >>> count("Hello","e")
    1


    View Slide

27. ICCS’02, April 22, 2002 27 beazley@cs.uchicago.edu
    Typemaps and Datatypes
    Pattern matching integrated with C++ typesystem
    %typemap(in) int { ... }
    typedef int Integer;
    ...
    Integer gcd(Integer x, Integer y);
    namespace std {
    class string;
    %typemap(in) string * { ... };
    }
    namespace S = std;
    using std::string;
    ...
    void foo(string *a, S::string *b);
    Comments:
    • All type conversion in SWIG is pattern based.
    • Type conversion by naming convention.
    • Mostly hidden from users.
    • Allows advanced customization.


    View Slide

28. ICCS’02, April 22, 2002 28 beazley@cs.uchicago.edu
    Advanced Typemap Example
    Conversion of Numeric Python array to C
    %typemap(in) (double *mat, int nx, int ny) {
    PyArrayObject *array;
    if (!PyArray_Check($input)) {
    PyErr_SetString(PyExc_TypeError,"Expected an array");
    return NULL;
    }
    array = (PyArrayObject *)
    PyArray_ContiguousFromObject(input, PyArray_DOUBLE, 2, 2);
    if (!array) {
    PyErr_SetString(PyExc_ValueError,
    "array must be two-dimensional and of type float");
    return NULL;
    }
    $1 = (double *) array->data; /* Assign grid */
    $2 = array->dimensions[0]; /* Assign nx */
    $3 = array->dimensions[1]; /* Assign ny */
    }
    ...
    double determinant(double *mat, int nx, int ny);
    Key point
    • SWIG can be customized to handle new datatypes.
    • Customized data marshalling.


    View Slide

29. ICCS’02, April 22, 2002 29 beazley@cs.uchicago.edu
    Using SWIG
    Summary
    • Existing C/C++ header files used to build wrappers.
    • Process guided by some special SWIG directives.
    • Most details hidden from user.
    • Can customize output using typemaps and other features.
    .h
    .h
    .h
    .h
    Scientific Application
    (C/C++/Fortran)
    Scientific Application
    (C/C++/Fortran)
    .i
    Scientific Application
    (C/C++/Fortran)
    Wrapper Layer
    swig
    DLL


    View Slide

30. ICCS’02, April 22, 2002 30 beazley@cs.uchicago.edu
    Extending SWIG
    SWIG consists of several components
    • Preprocessor.
    • C++ parser.
    • C++ type system.
    • Fully supports multi-pass compilation/code generation.
    • Internal data structures loosely based on XML-DOM.
    Target language modules
    • Implemented as C++ classes.
    • Virtual methods redefined according to target language.
    class SomeLanguage : public Language {
    public:
    virtual void main(int argc, char *argv[]);
    virtual int top(Node *n);
    virtual int functionWrapper(Node *n);
    virtual int variableWrapper(Node *n);
    ...
    };


    View Slide

31. ICCS’02, April 22, 2002 31 beazley@cs.uchicago.edu
    Limitations
    Unsupported C++ features
    • Nested classes (soon).
    • Certain advanced features of templates.
    • Not all C++ features map cleanly to scripting interface.
    • Subtle differences in semantics (assignment, overloading, etc.)
    Problematic topics
    • Callback functions and methods.
    • Memory management (object ownership).
    • Arrays. No universal representation, marshalling, mapping to arguments.


    View Slide

32. ICCS’02, April 22, 2002 32 beazley@cs.uchicago.edu
    Related Work
    Many extension building tools are available
    Goals
    • Simplify extension programming
    • Automate extension programming.
    Common approaches
    • Programming libraries.
    • Specialized compilers.
    • Mixed language procedure inlining.
    • SWIG
    • CABLE
    • Inline
    • Boost Python
    • Wrappy
    • Grad
    • f2py
    • pyfort
    • G-wrap
    • Tolua
    • CXX
    • Pyrex
    • Weave
    • Many others


    View Slide

33. ICCS’02, April 22, 2002 33 beazley@cs.uchicago.edu
    Current Status and Availability
    SWIG is actively used and developed
    • 750 members on mailing list (swig@cs.uchicago.edu)
    • 86000 downloads in last 3 years.
    • Used in industry and commercial products.
    • And real scientific computing applications.
    Status
    • Currently working on major new release (SWIG-1.3.x ===> SWIG-2.0).
    • About 6 active developers.
    • Major enhancements to C++ handling (templates, namespaces, type system).
    • New target languages.
    Availability:
    • http://www.swig.org
    • And many Linux distributions.


    View Slide
