Reactive Programming with RxJava for Efficient Data Access

Reactive Programming with RxJava for Efficient Data Access

This talk was given by Ben Christensen (https://twitter.com/benjchristensen) from Netflix and me at Couchbase Connect 2014 about RxJava, data access patterns and failure handling in reactive systems.

Video will be available through the Couchbase Resources channel

D839d9aa56849a71d8a9aa3d292a6ce6?s=128

Michael Nitschinger

October 06, 2014
Tweet

Transcript

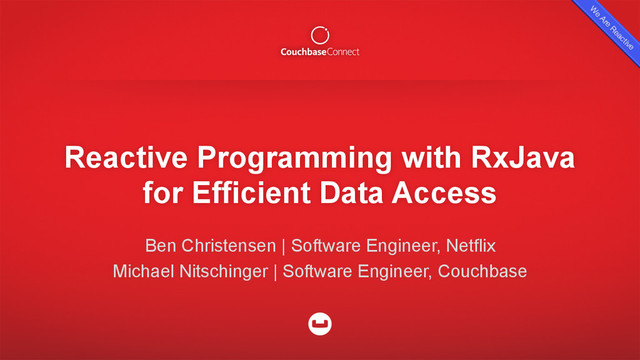

  1. Reactive Programming with RxJava for Efficient Data Access Ben Christensen

    | Software Engineer, Netflix Michael Nitschinger | Software Engineer, Couchbase
  2. RxJava Reactive Extensions for Async Programming

  3. Reactive Extensions for Async Programming RxJava http://github.com/ReactiveX/RxJava http://reactivex.io Single Multiple

    Sync T getData() Iterable<T> getData() Async Future<T> getData() Observable<T> getData()
  4. Single Multiple Sync T getData() Iterable<T> getData() Async Future<T> getData()

    Observable<T> getData() Observable.create(subscriber -> { subscriber.onNext("Hello world!"); subscriber.onCompleted(); }).forEach(System.out::println); Synchronous single value
  5. Single Multiple Sync T getData() Iterable<T> getData() Async Future<T> getData()

    Observable<T> getData() Observable.create(subscriber -> { subscriber.onNext("Hello"); subscriber.onNext("world"); subscriber.onNext("!"); subscriber.onCompleted(); }).forEach(System.out::println); Synchronous multi-value
  6. Single Multiple Sync T getData() Iterable<T> getData() Async Future<T> getData()

    Observable<T> getData() Observable.create(subscriber -> { try { subscriber.onNext(doSomething()); subscriber.onCompleted(); } catch (Throwable e) { subscriber.onError(e); } }).subscribeOn(Schedulers.io()) .forEach(System.out::println); Asynchronous single value with error handling
  7. Single Multiple Sync T getData() Iterable<T> getData() Async Future<T> getData()

    Observable<T> getData() Observable.create(subscriber -> { int i = 0; while (!subscriber.isUnsubscribed()) { subscriber.onNext(i++); } }).take(10).forEach(System.out::println); Synchronous multi-value with unsubscribe
  8. Single Multiple Sync T getData() Iterable<T> getData() Async Future<T> getData()

    Observable<T> getData() Observable.create(subscriber -> { AtomicInteger i = new AtomicInteger(); AtomicLong requested = new AtomicLong(); subscriber.setProducer(r -> { if (requested.getAndAdd(r) == 0) { do { if (subscriber.isUnsubscribed()) { break; } subscriber.onNext(i.incrementAndGet()); } while (requested.decrementAndGet() > 0); } }); }).observeOn(Schedulers.newThread()) .take(10).forEach(System.out::println); Synchronous multi-valued source that thread-hops with “reactive pull” backpressure
  9. Single Multiple Sync T getData() Iterable<T> getData() Async Future<T> getData()

    Observable<T> getData() Observable.from(iterable) .observeOn(Schedulers.newThread()) .take(10).forEach(System.out::println); Synchronous multi-valued source that thread-hops with “reactive pull” backpressure
  10. None
  11. None
  12. None
  13. Abstract Concurrency ©2014 Couchbase, Inc. — Proprietary and Confidential 13

  14. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request

    User object return new UserCommand(request.getQueryParameters().get("userId")).observe().flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = new PersonalizedCatalogCommand(user).observe() .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = new BookmarkCommand(video).observe(); Observable<Rating> rating = new RatingsCommand(video).observe(); Observable<VideoMetadata> metadata = new VideoMetadataCommand(video).observe(); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = new SocialCommand(user).observe().map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  15. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request

    User object return new UserCommand(request.getQueryParameters().get("userId")).observe().flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = new PersonalizedCatalogCommand(user).observe() .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = new BookmarkCommand(video).observe(); Observable<Rating> rating = new RatingsCommand(video).observe(); Observable<VideoMetadata> metadata = new VideoMetadataCommand(video).observe(); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = new SocialCommand(user).observe().map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  16. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request

    User object return new UserCommand(request.getQueryParameters().get("userId")).observe().flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = new PersonalizedCatalogCommand(user).observe() .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = new BookmarkCommand(video).observe(); Observable<Rating> rating = new RatingsCommand(video).observe(); Observable<VideoMetadata> metadata = new VideoMetadataCommand(video).observe(); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = new SocialCommand(user).observe().map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  17.  Observable<R>  b  =  Observable<T>.flatMap({  T  t  -­‐>

         Observable<R>  r  =  ...  transform  t  ...          return  r;    })   flatMap!
  18.  Observable<R>  b  =  Observable<T>.flatMap({  T  t  -­‐>

         Observable<R>  r  =  ...  transform  t  ...          return  r;    })   flatMap!
  19. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request

    User object return new UserCommand(request.getQueryParameters().get("userId")).observe().flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = new PersonalizedCatalogCommand(user).observe() .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = new BookmarkCommand(video).observe(); Observable<Rating> rating = new RatingsCommand(video).observe(); Observable<VideoMetadata> metadata = new VideoMetadataCommand(video).observe(); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = new SocialCommand(user).observe().map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  20. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request

    User object return new UserCommand(request.getQueryParameters().get("userId")).observe().flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = new PersonalizedCatalogCommand(user).observe() .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = new BookmarkCommand(video).observe(); Observable<Rating> rating = new RatingsCommand(video).observe(); Observable<VideoMetadata> metadata = new VideoMetadataCommand(video).observe(); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = new SocialCommand(user).observe().map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  21. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request

    User object return new UserCommand(request.getQueryParameters().get("userId")).observe().flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = new PersonalizedCatalogCommand(user).observe() .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = new BookmarkCommand(video).observe(); Observable<Rating> rating = new RatingsCommand(video).observe(); Observable<VideoMetadata> metadata = new VideoMetadataCommand(video).observe(); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = new SocialCommand(user).observe().map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  22. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request

    User object return new UserCommand(request.getQueryParameters().get("userId")).observe().flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = new PersonalizedCatalogCommand(user).observe() .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = new BookmarkCommand(video).observe(); Observable<Rating> rating = new RatingsCommand(video).observe(); Observable<VideoMetadata> metadata = new VideoMetadataCommand(video).observe(); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = new SocialCommand(user).observe().map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  23. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request

    User object return new UserCommand(request.getQueryParameters().get("userId")).observe().flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = new PersonalizedCatalogCommand(user).observe() .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = new BookmarkCommand(video).observe(); Observable<Rating> rating = new RatingsCommand(video).observe(); Observable<VideoMetadata> metadata = new VideoMetadataCommand(video).observe(); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = new SocialCommand(user).observe().map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  24. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request

    User object return new UserCommand(request.getQueryParameters().get("userId")).observe().flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = new PersonalizedCatalogCommand(user).observe() .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = new BookmarkCommand(video).observe(); Observable<Rating> rating = new RatingsCommand(video).observe(); Observable<VideoMetadata> metadata = new VideoMetadataCommand(video).observe(); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = new SocialCommand(user).observe().map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  25. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request

    User object return new UserCommand(request.getQueryParameters().get("userId")).observe().flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = new PersonalizedCatalogCommand(user).observe() .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = new BookmarkCommand(video).observe(); Observable<Rating> rating = new RatingsCommand(video).observe(); Observable<VideoMetadata> metadata = new VideoMetadataCommand(video).observe(); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = new SocialCommand(user).observe().map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  26. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request

    User object return new UserCommand(request.getQueryParameters().get("userId")).observe().flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = new PersonalizedCatalogCommand(user).observe() .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = new BookmarkCommand(video).observe(); Observable<Rating> rating = new RatingsCommand(video).observe(); Observable<VideoMetadata> metadata = new VideoMetadataCommand(video).observe(); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = new SocialCommand(user).observe().map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  27. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request

    User object return new UserCommand(request.getQueryParameters().get("userId")).observe().flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = new PersonalizedCatalogCommand(user).observe() .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = new BookmarkCommand(video).observe(); Observable<Rating> rating = new RatingsCommand(video).observe(); Observable<VideoMetadata> metadata = new VideoMetadataCommand(video).observe(); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = new SocialCommand(user).observe().map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  28.        Observable.zip(a,  b,  {  a,  b,  -­‐>

                 ...  operate  on  values  from  both  a  &  b  ...              return  [a,  b];  //  i.e.  return  tuple          })
  29. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request

    User object return new UserCommand(request.getQueryParameters().get("userId")).observe().flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = new PersonalizedCatalogCommand(user).observe() .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = new BookmarkCommand(video).observe(); Observable<Rating> rating = new RatingsCommand(video).observe(); Observable<VideoMetadata> metadata = new VideoMetadataCommand(video).observe(); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = new SocialCommand(user).observe().map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  30. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request

    User object return new UserCommand(request.getQueryParameters().get("userId")).observe().flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = new PersonalizedCatalogCommand(user).observe() .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = new BookmarkCommand(video).observe(); Observable<Rating> rating = new RatingsCommand(video).observe(); Observable<VideoMetadata> metadata = new VideoMetadataCommand(video).observe(); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = new SocialCommand(user).observe().map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  31. None
  32. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request

    User object return new UserCommand(request.getQueryParameters().get("userId")).observe().flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = new PersonalizedCatalogCommand(user).observe() .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = new BookmarkCommand(video).observe(); Observable<Rating> rating = new RatingsCommand(video).observe(); Observable<VideoMetadata> metadata = new VideoMetadataCommand(video).observe(); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = new SocialCommand(user).observe().map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  33. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request

    User object return new UserCommand(request.getQueryParameters().get("userId")).observe().flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = new PersonalizedCatalogCommand(user).observe() .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = new BookmarkCommand(video).observe(); Observable<Rating> rating = new RatingsCommand(video).observe(); Observable<VideoMetadata> metadata = new VideoMetadataCommand(video).observe(); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = new SocialCommand(user).observe().map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  34. class  VideoService  {        def  VideoList  getPersonalizedListOfMovies(userId);

         def  VideoBookmark  getBookmark(userId,  videoId);        def  VideoRating  getRating(userId,  videoId);        def  VideoMetadata  getMetadata(videoId);   }   class  VideoService  {        def  Observable<VideoList>  getPersonalizedListOfMovies(userId);        def  Observable<VideoBookmark>  getBookmark(userId,  videoId);        def  Observable<VideoRating>  getRating(userId,  videoId);        def  Observable<VideoMetadata>  getMetadata(videoId);   }   ... create an observable api: instead of a blocking api ...
  35. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request

    User object return new UserCommand(request.getQueryParameters().get("userId")).observe().flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = new PersonalizedCatalogCommand(user).observe() .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = new BookmarkCommand(video).observe(); Observable<Rating> rating = new RatingsCommand(video).observe(); Observable<VideoMetadata> metadata = new VideoMetadataCommand(video).observe(); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = new SocialCommand(user).observe().map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); } 1 2 3 4 5 6
  36. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request

    User object return new UserCommand(request.getQueryParameters().get("userId")).observe().flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = new PersonalizedCatalogCommand(user).observe() .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = new BookmarkCommand(video).observe(); Observable<Rating> rating = new RatingsCommand(video).observe(); Observable<VideoMetadata> metadata = new VideoMetadataCommand(video).observe(); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = new SocialCommand(user).observe().map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); } 1 2 3 4 5 6
  37. Non-Opinionated Concurrency ©2014 Couchbase, Inc. — Proprietary and Confidential 37

  38. None
  39. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request

    User object return new UserCommand(request.getQueryParameters().get("userId")).observe().flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = new PersonalizedCatalogCommand(user).observe() .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = new BookmarkCommand(video).observe(); Observable<Rating> rating = new RatingsCommand(video).observe(); Observable<VideoMetadata> metadata = new VideoMetadataCommand(video).observe(); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = new SocialCommand(user).observe().map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); }
  40. None
  41. None
  42. None
  43. None
  44. public Observable<Void> handle(HttpServerRequest<ByteBuf> request, HttpServerResponse<ByteBuf> response) { // first request

    User object return new UserCommand(request.getQueryParameters().get("userId")).observe().flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = new PersonalizedCatalogCommand(user).observe() .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = new BookmarkCommand(video).observe(); Observable<Rating> rating = new RatingsCommand(video).observe(); Observable<VideoMetadata> metadata = new VideoMetadataCommand(video).observe(); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = new SocialCommand(user).observe().map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }).flatMap(data -> { // output as SSE as we get back the data (no waiting until all is done) return response.writeAndFlush(new ServerSentEvent(SimpleJson.mapToJson(data))); }); } 1 2 3 4 6
  45. None
  46. // first request User object return new UserCommand(request.getQueryParameters().get("userId")).observe().flatMap(user -> {

    // then fetch personal catalog Observable<Map<String, Object>> catalog = new PersonalizedCatalogCommand(user).observe() .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = new BookmarkCommand(video).observe(); Observable<Rating> rating = new RatingsCommand(video).observe(); Observable<VideoMetadata> metadata = new VideoMetadataCommand(video).observe(); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = new SocialCommand(user).observe().map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }) Decouples Consumption from Production
  47. // first request User object return new UserCommand(request.getQueryParameters().get("userId")).observe().flatMap(user -> {

    // then fetch personal catalog Observable<Map<String, Object>> catalog = new PersonalizedCatalogCommand(user).observe() .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = new BookmarkCommand(video).observe(); Observable<Rating> rating = new RatingsCommand(video).observe(); Observable<VideoMetadata> metadata = new VideoMetadataCommand(video).observe(); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = new SocialCommand(user).observe().map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }) Decouples Consumption from Production
  48. // first request User object return new UserCommand(request.getQueryParameters().get("userId")).observe().flatMap(user -> {

    // then fetch personal catalog Observable<Map<String, Object>> catalog = new PersonalizedCatalogCommand(user).observe() .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = new BookmarkCommand(video).observe(); Observable<Rating> rating = new RatingsCommand(video).observe(); Observable<VideoMetadata> metadata = new VideoMetadataCommand(video).observe(); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = new SocialCommand(user).observe().map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }) Decouples Consumption from Production
  49. Decouples Consumption from Production

  50. Decouples Consumption from Production // first request User object return

    new UserCommand(request.getQueryParameters().get("userId")).observe().flatMap(user -> { // then fetch personal catalog Observable<Map<String, Object>> catalog = new PersonalizedCatalogCommand(user).observe() .flatMap(catalogList -> { return catalogList.videos().<Map<String, Object>> flatMap(video -> { Observable<Bookmark> bookmark = new BookmarkCommand(video).observe(); Observable<Rating> rating = new RatingsCommand(video).observe(); Observable<VideoMetadata> metadata = new VideoMetadataCommand(video).observe(); return Observable.zip(bookmark, rating, metadata, (b, r, m) -> { return combineVideoData(video, b, r, m); }); }); }); // and fetch social data in parallel Observable<Map<String, Object>> social = new SocialCommand(user).observe().map(s -> { return s.getDataAsMap(); }); // merge the results return Observable.merge(catalog, social); }) 1 2 3 4 5
  51. class  VideoService  {        def  Observable<VideoList>  getPersonalizedListOfMovies(userId);

         def  Observable<VideoBookmark>  getBookmark(userId,  videoId);        def  Observable<VideoRating>  getRating(userId,  videoId);        def  Observable<VideoMetadata>  getMetadata(videoId);   }   Clear API Communicates Potential Cost
  52. Implementation Can Differ class  VideoService  {        def

     Observable<VideoList>  getPersonalizedListOfMovies(userId);        def  Observable<VideoBookmark>  getBookmark(userId,  videoId);        def  Observable<VideoRating>  getRating(userId,  videoId);        def  Observable<VideoMetadata>  getMetadata(videoId);   }   BIO Network Call Local Cache Collapsed Network Call
  53. class  VideoService  {        def  Observable<VideoList>  getPersonalizedListOfMovies(userId);

         def  Observable<VideoBookmark>  getBookmark(userId,  videoId);        def  Observable<VideoRating>  getRating(userId,  videoId);        def  Observable<VideoMetadata>  getMetadata(videoId);   }   Collapsed Network Call Collapsed Network Call BIO NIO Network Call Local Cache Implementation Can Differ and Change
  54. Retrieval, Transformation, Combination all done in same declarative manner

  55. Couchbase Java Client 2.0 Reactive from top to bottom

  56. Java SDK 2.0 ©2014 Couchbase, Inc. — Proprietary and Confidential

    56 It is a complete rewrite compared to 1.* and provides asynchronous & synchronous document oriented APIs.
  57. Couchbase Core IO ©2014 Couchbase, Inc. — Proprietary and Confidential

    57 §  Common infrastructure & feature set for all language bindings §  Message oriented §  Asynchronous only §  Low overhead and performance focused §  Supports Java 6+ (including 8!) §  Disruptor RingBuffer for implicit batching and backpressure §  Netty for high performance IO
  58. The Big Picture ©2014 Couchbase, Inc. — Proprietary and Confidential

    58
  59. Connecting ©2014 Couchbase, Inc. — Proprietary and Confidential 59

  60. From Sync to Async ©2014 Couchbase, Inc. — Proprietary and

    Confidential 60
  61. Connecting Async ©2014 Couchbase, Inc. — Proprietary and Confidential 61

  62. Storing a Document ©2014 Couchbase, Inc. — Proprietary and Confidential

    62
  63. Loading a Document ©2014 Couchbase, Inc. — Proprietary and Confidential

    63
  64. Querying ©2014 Couchbase, Inc. — Proprietary and Confidential 64

  65. Querying ©2014 Couchbase, Inc. — Proprietary and Confidential 65

  66. Stability Patterns

  67. Reacting to Failure ©2014 Couchbase, Inc. — Proprietary and Confidential

    67 §  Resiliency is key §  Things will go wrong, so better plan for it §  Do not aim for QA, aim for production §  Do not trust integration points §  Treat the Database (SDK) as an integration point The more you sweat in peace, the less you bleed in war.
  68. Useful Reading ©2014 Couchbase, Inc. — Proprietary and Confidential 68

    §  Release It! by Michael T. Nygard §  Stability Patterns & Antipatterns §  Capacity planning §  Operations
  69. Timeouts ©2014 Couchbase, Inc. — Proprietary and Confidential 69 § 

    The network is unreliable §  Servers fail §  The SDK contains bugs §  Always specify timeouts and deal with them! §  The synchronous wrapper defines them for you all the time.
  70. Timeouts: Simple ©2014 Couchbase, Inc. — Proprietary and Confidential 70

  71. Timeouts: Synchronous API ©2014 Couchbase, Inc. — Proprietary and Confidential

    71
  72. Timeouts: Complex Example ©2014 Couchbase, Inc. — Proprietary and Confidential

    72
  73. Coordinated Retry ©2014 Couchbase, Inc. — Proprietary and Confidential 73

    Fail fast §  Don’t let your system get stuck §  Fail and backpressure Retry §  immediately won’t help §  either linear or exponential backoff necessary §  have a strategy if retry also doesn’t work (Fallbacks!)
  74. Coordinated Retry: Fallback ©2014 Couchbase, Inc. — Proprietary and Confidential

    74
  75. Coordinated Retry with Delay ©2014 Couchbase, Inc. — Proprietary and

    Confidential 75
  76. More Patterns ©2014 Couchbase, Inc. — Proprietary and Confidential 76

    Circuit Breaker §  Closed if everything okay §  Opens once the integration point breaks §  Fail fast if open §  Rechecking with half-open Bulkheads §  Isolate failure where possible §  Don’t let your ship sink!
  77. QA Thanks!
