1. Game Tools in the Browser Don Olmstead Sony Network Entertainment International

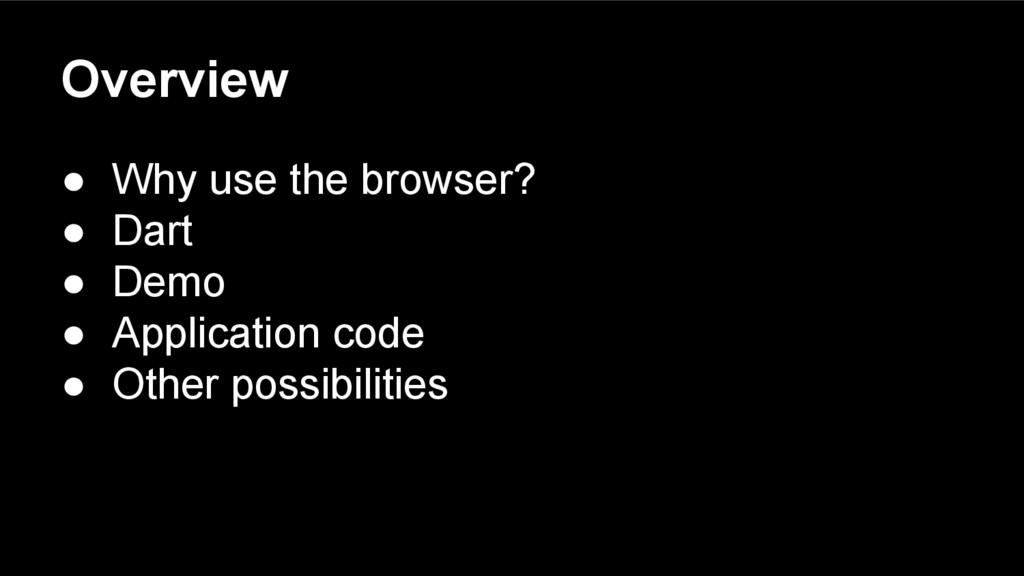

2. Overview • Why use the browser? • Dart • Demo • Application code • Other possibilities
3. HTML 5 Misconceptions

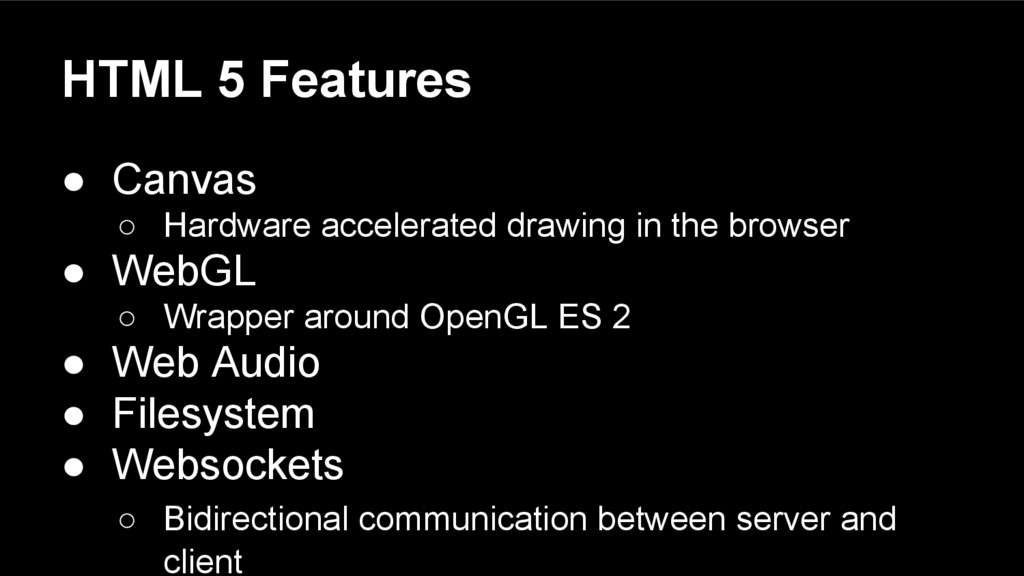

4. HTML 5 Features • Canvas ◦ Hardware accelerated drawing in the browser • WebGL ◦ Wrapper around OpenGL ES 2 • Web Audio • Filesystem • Websockets ◦ Bidirectional communication between server and client
5. Language Misconceptions The Good Parts The Definitive Guide 176 Pages 1100 Pages

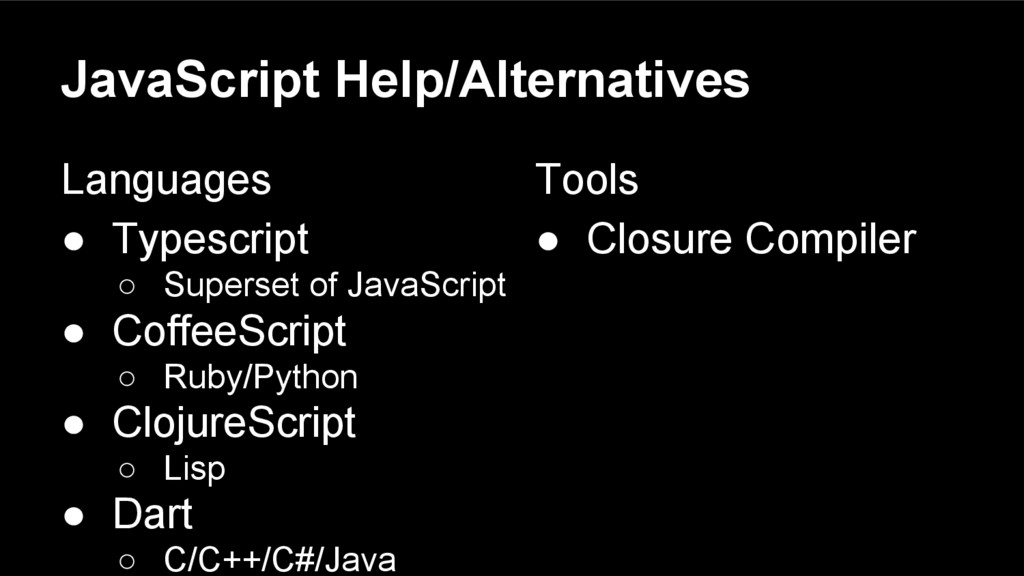

6. JavaScript Help/Alternatives Languages • Typescript ◦ Superset of JavaScript • CoffeeScript ◦ Ruby/Python • ClojureScript ◦ Lisp • Dart ◦ C/C++/C#/Java Tools • Closure Compiler

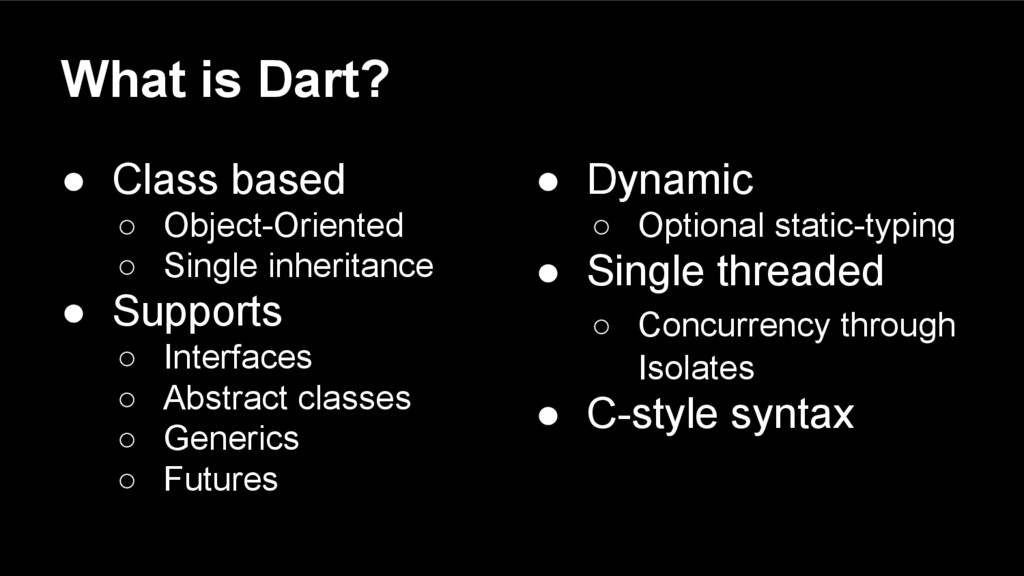

7. What is Dart? • Class based ◦ Object-Oriented ◦ Single inheritance • Supports ◦ Interfaces ◦ Abstract classes ◦ Generics ◦ Futures • Dynamic ◦ Optional static-typing • Single threaded ◦ Concurrency through Isolates • C-style syntax

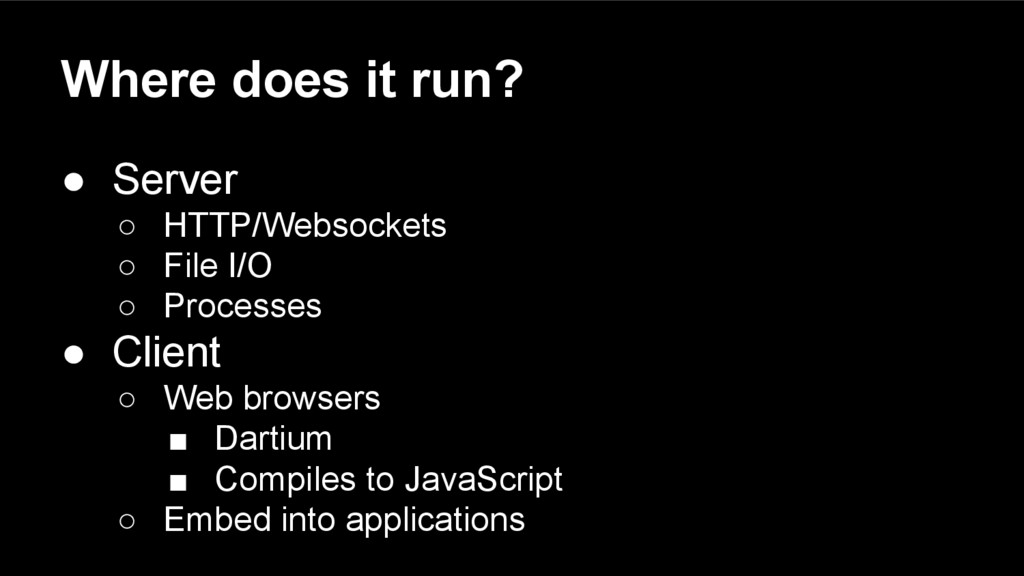

8. Where does it run? • Server ◦ HTTP/Websockets ◦ File I/O ◦ Processes • Client ◦ Web browsers ▪ Dartium ▪ Compiles to JavaScript ◦ Embed into applications

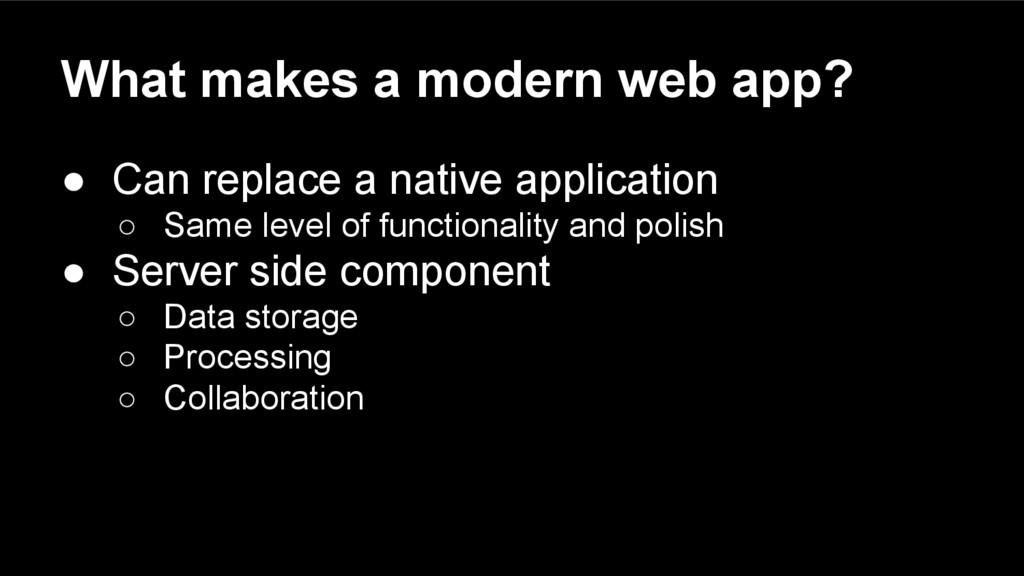

9. What makes a modern web app? • Can replace a native application ◦ Same level of functionality and polish • Server side component ◦ Data storage ◦ Processing ◦ Collaboration

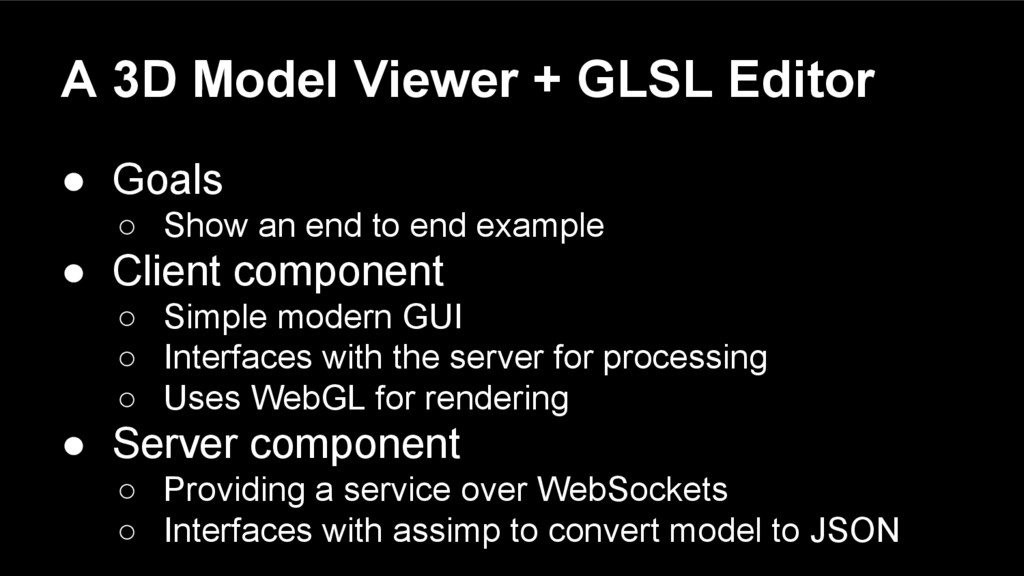

10. A 3D Model Viewer + GLSL Editor • Goals ◦ Show an end to end example • Client component ◦ Simple modern GUI ◦ Interfaces with the server for processing ◦ Uses WebGL for rendering • Server component ◦ Providing a service over WebSockets ◦ Interfaces with assimp to convert model to JSON
11. Demo

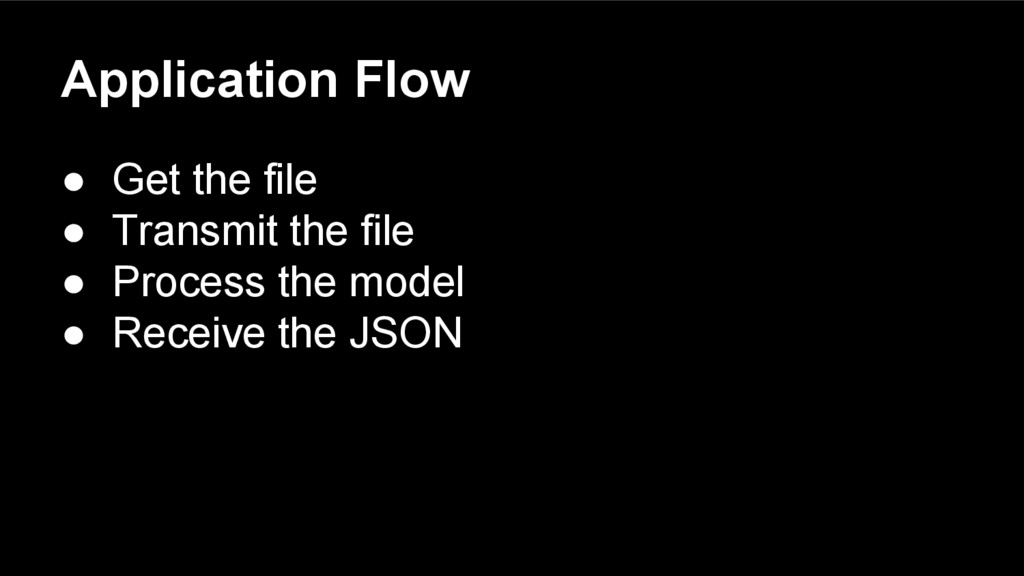

12. Application Flow • Get the file • Transmit the file • Process the model • Receive the JSON

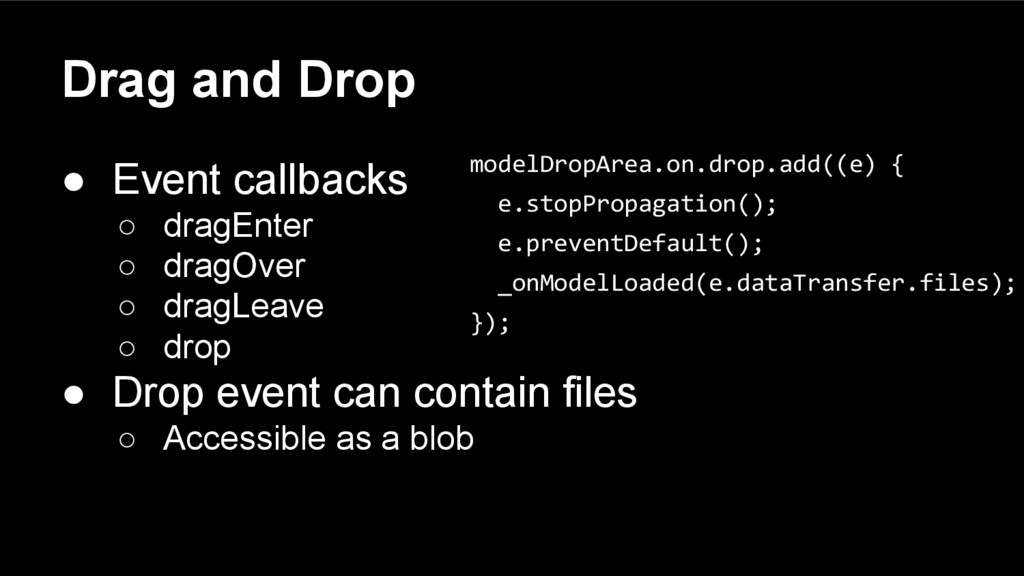

13. Drag and Drop • Event callbacks ◦ dragEnter ◦ dragOver ◦ dragLeave ◦ drop • Drop event can contain files ◦ Accessible as a blob modelDropArea.on.drop.add((e) { e.stopPropagation(); e.preventDefault(); _onModelLoaded(e.dataTransfer.files); });

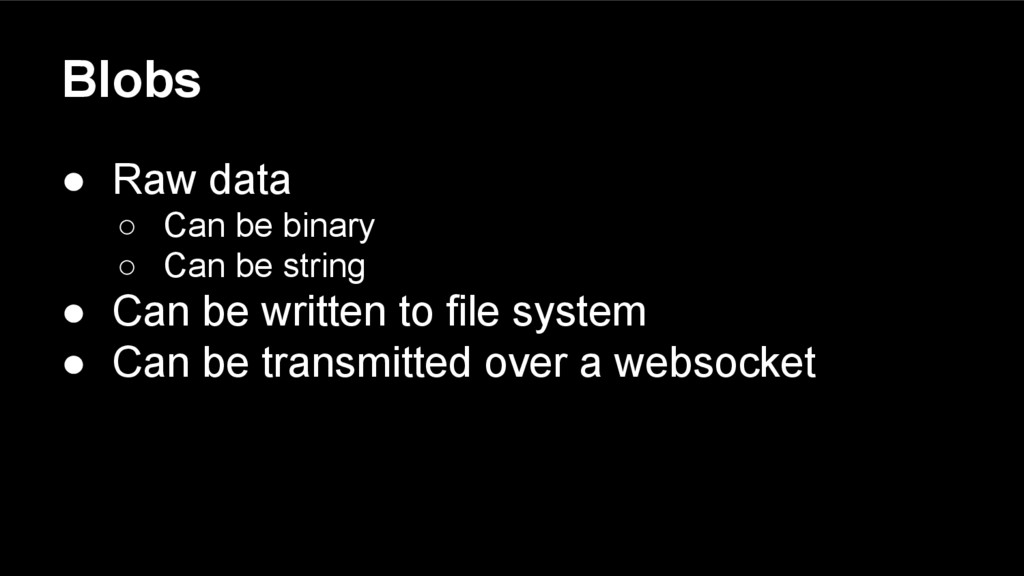

14. Blobs • Raw data ◦ Can be binary ◦ Can be string • Can be written to file system • Can be transmitted over a websocket

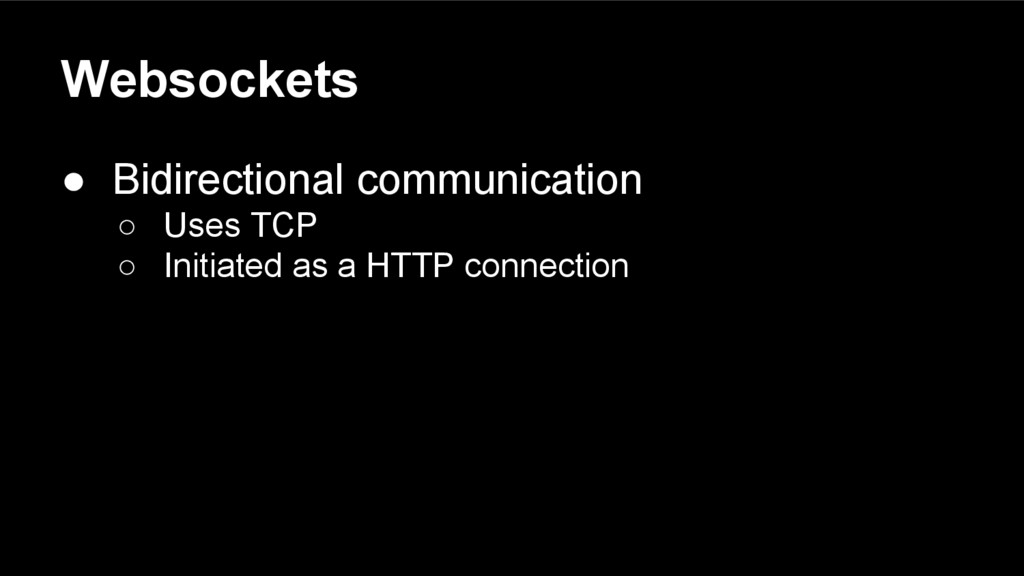

15. Websockets • Bidirectional communication ◦ Uses TCP ◦ Initiated as a HTTP connection

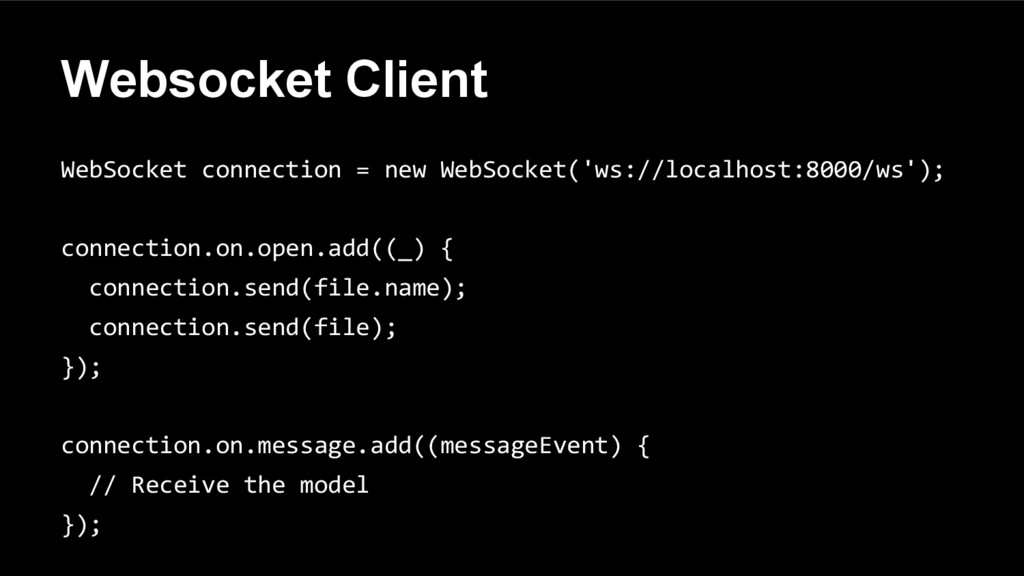

16. Websocket Client WebSocket connection = new WebSocket('ws://localhost:8000/ws'); connection.on.open.add((_) { connection.send(file.name); connection.send(file); }); connection.on.message.add((messageEvent) { // Receive the model });

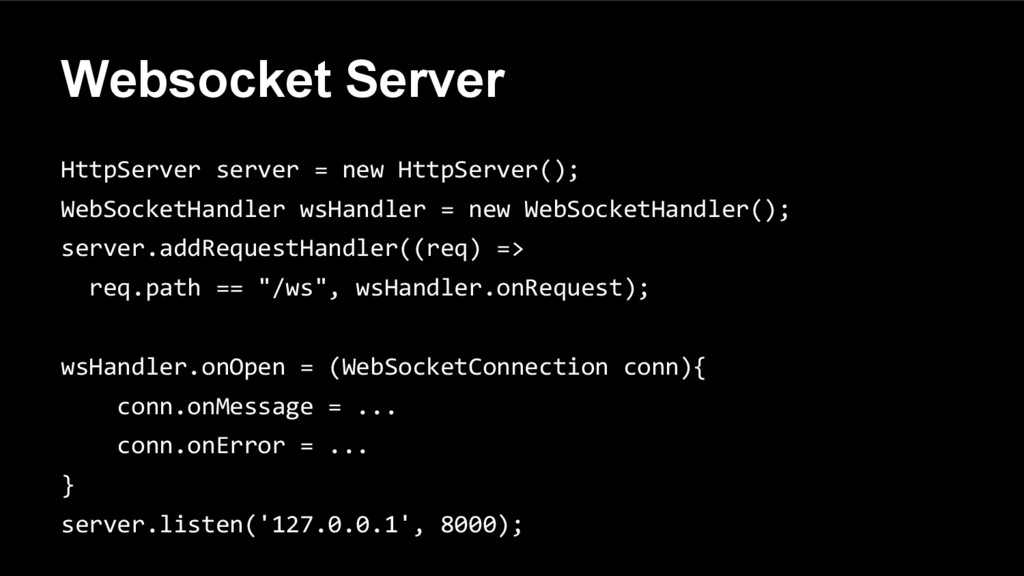

17. Websocket Server HttpServer server = new HttpServer(); WebSocketHandler wsHandler = new WebSocketHandler(); server.addRequestHandler((req) => req.path == "/ws", wsHandler.onRequest); wsHandler.onOpen = (WebSocketConnection conn){ conn.onMessage = ... conn.onError = ... } server.listen('127.0.0.1', 8000);

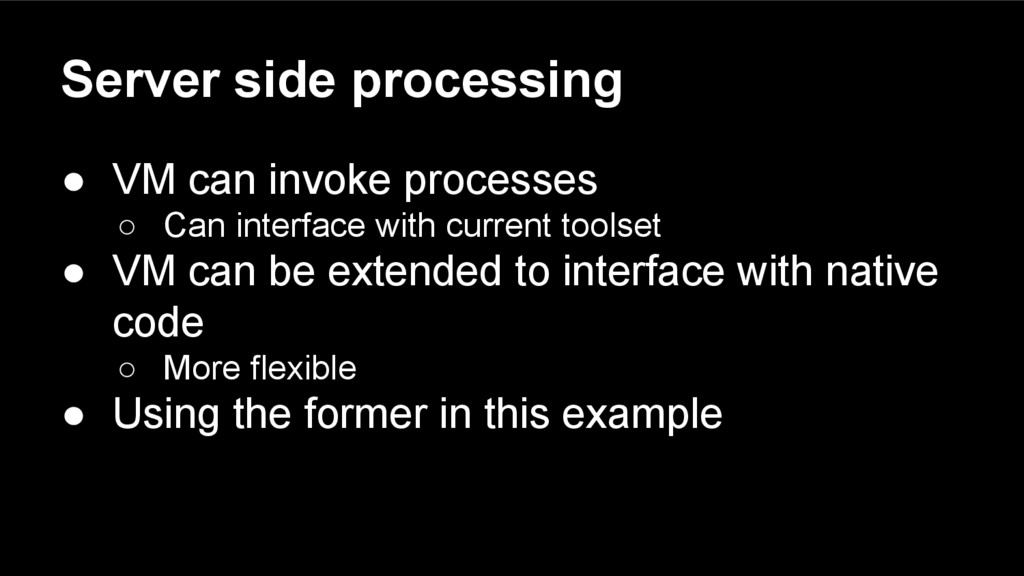

18. Server side processing • VM can invoke processes ◦ Can interface with current toolset • VM can be extended to interface with native code ◦ More flexible • Using the former in this example

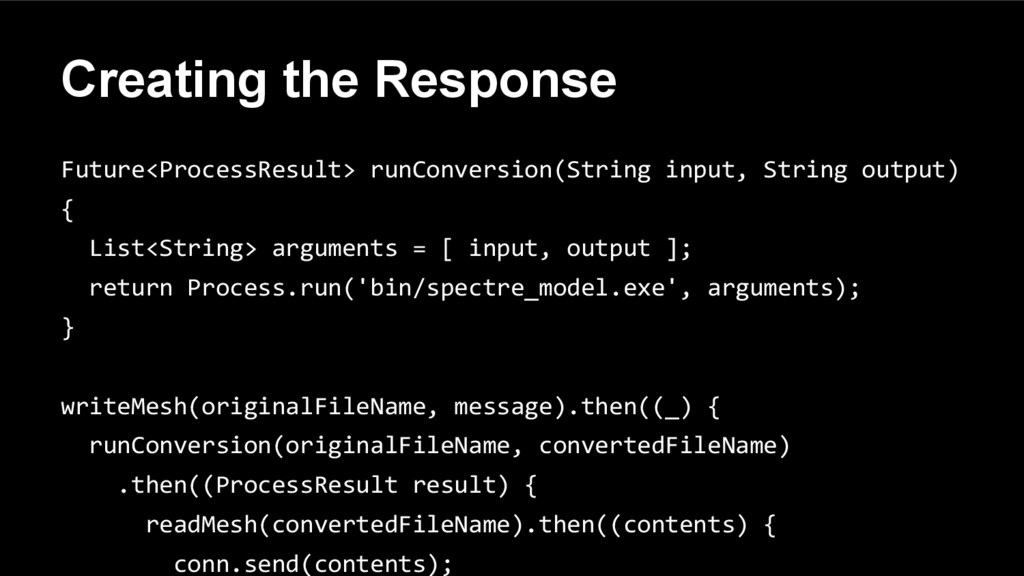

19. Creating the Response Future<ProcessResult> runConversion(String input, String output) { List<String> arguments = [ input, output ]; return Process.run('bin/spectre_model.exe', arguments); } writeMesh(originalFileName, message).then((_) { runConversion(originalFileName, convertedFileName) .then((ProcessResult result) { readMesh(convertedFileName).then((contents) { conn.send(contents);

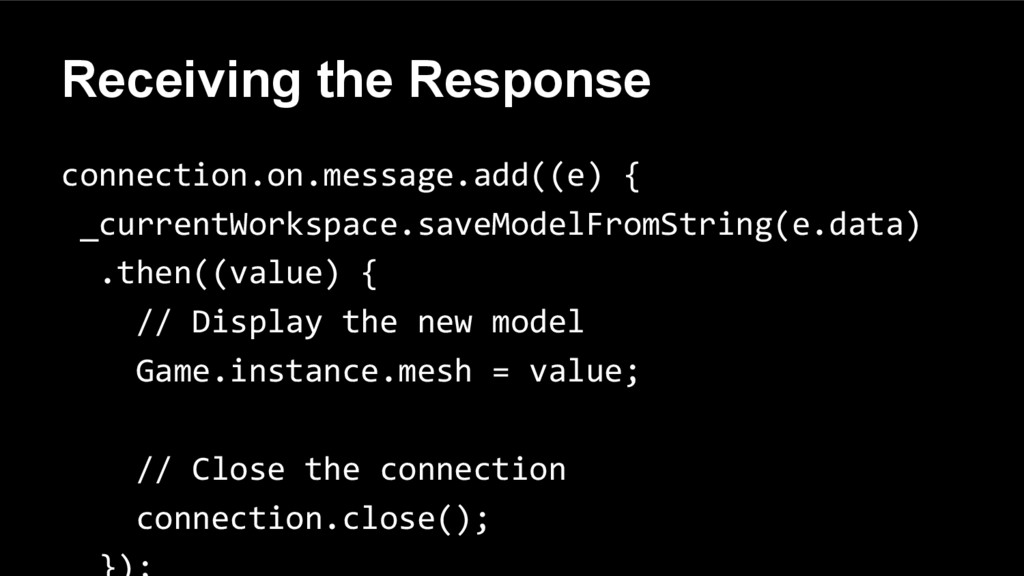

20. Receiving the Response connection.on.message.add((e) { _currentWorkspace.saveModelFromString(e.data) .then((value) { // Display the new model Game.instance.mesh = value; // Close the connection connection.close();

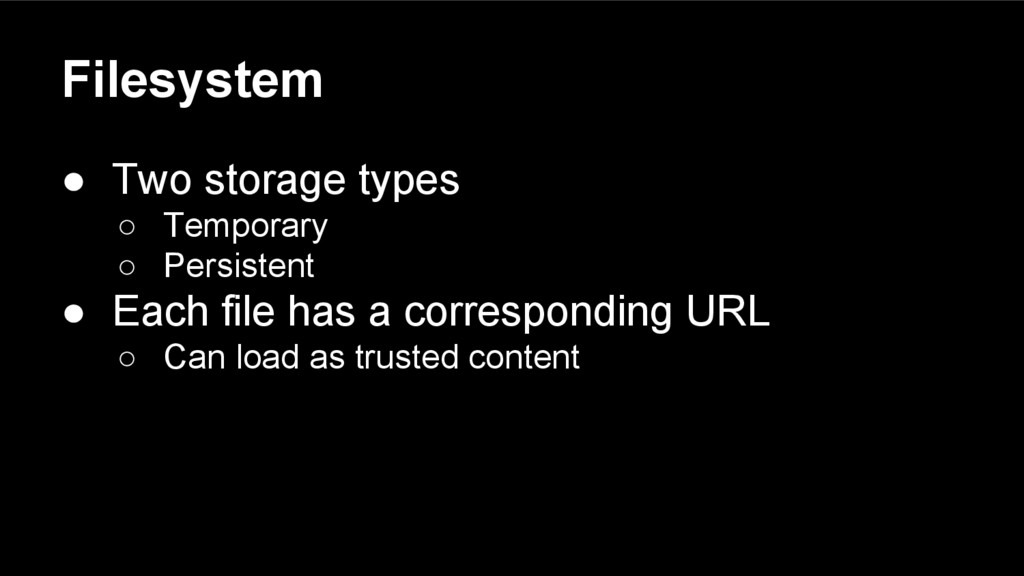

21. Filesystem • Two storage types ◦ Temporary ◦ Persistent • Each file has a corresponding URL ◦ Can load as trusted content

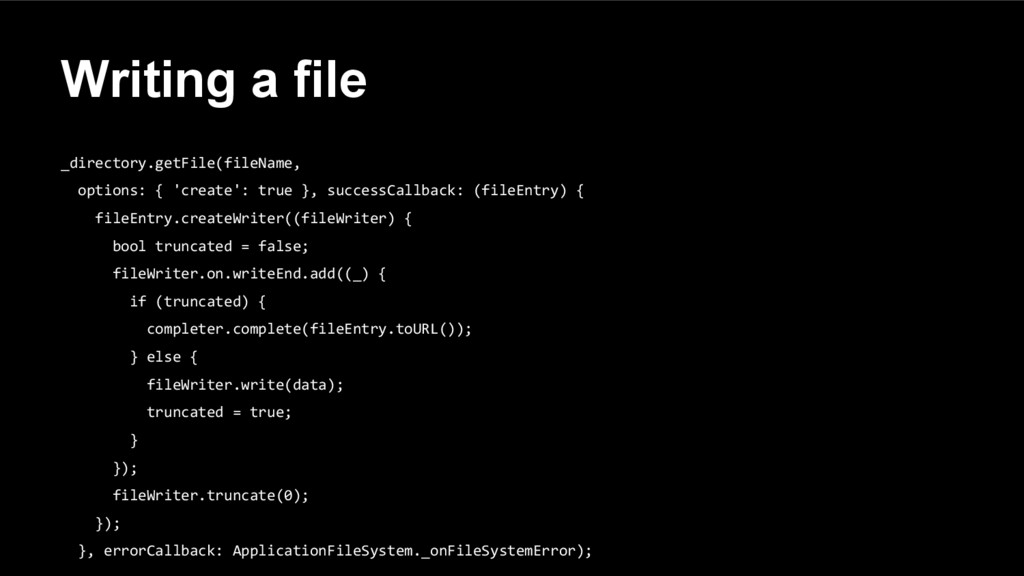

22. Writing a file _directory.getFile(fileName, options: { 'create': true }, successCallback: (fileEntry) { fileEntry.createWriter((fileWriter) { bool truncated = false; fileWriter.on.writeEnd.add((_) { if (truncated) { completer.complete(fileEntry.toURL()); } else { fileWriter.write(data); truncated = true; } }); fileWriter.truncate(0); }); }, errorCallback: ApplicationFileSystem._onFileSystemError);

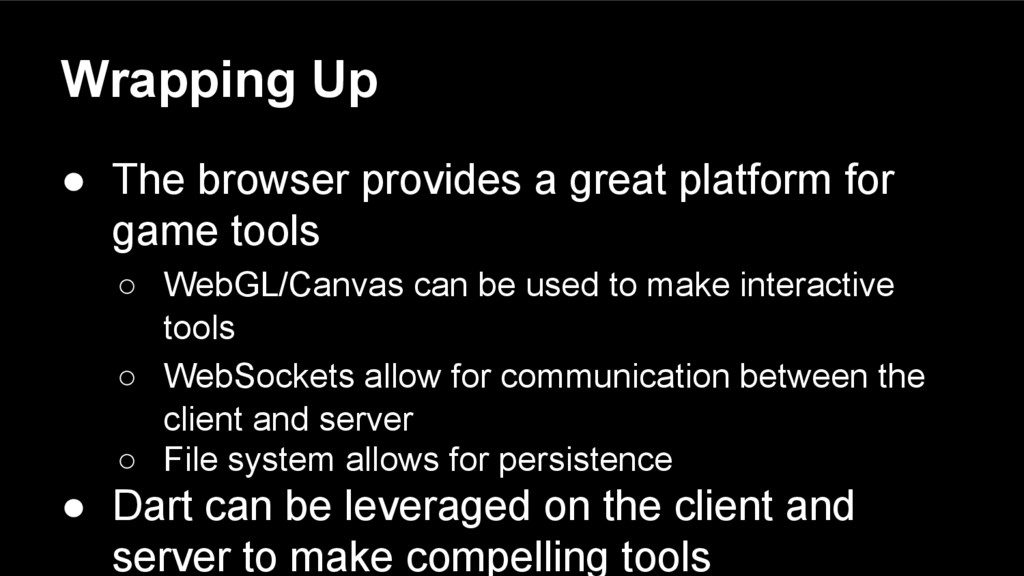

23. Wrapping Up • The browser provides a great platform for game tools ◦ WebGL/Canvas can be used to make interactive tools ◦ WebSockets allow for communication between the client and server ◦ File system allows for persistence • Dart can be leveraged on the client and server to make compelling tools

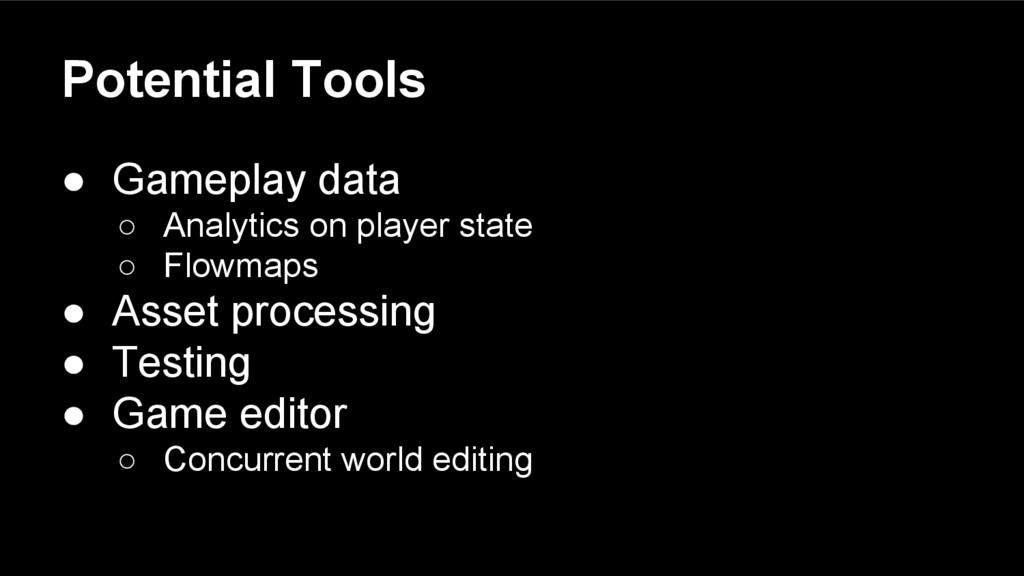

24. Potential Tools • Gameplay data ◦ Analytics on player state ◦ Flowmaps • Asset processing • Testing • Game editor ◦ Concurrent world editing

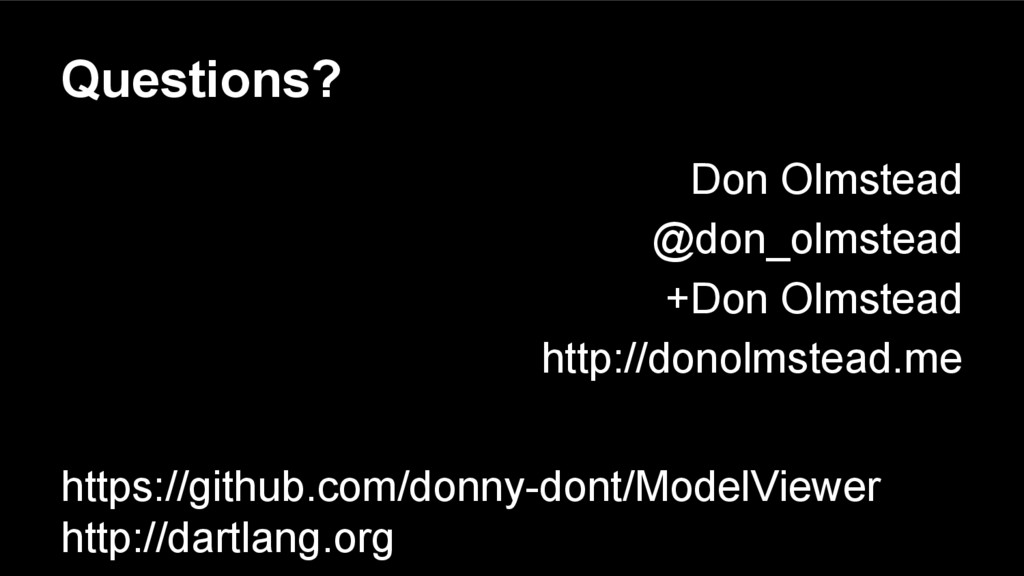

25. Questions? Don Olmstead @don_olmstead +Don Olmstead http://donolmstead.me https://github.com/donny-dont/ModelViewer http://dartlang.org
