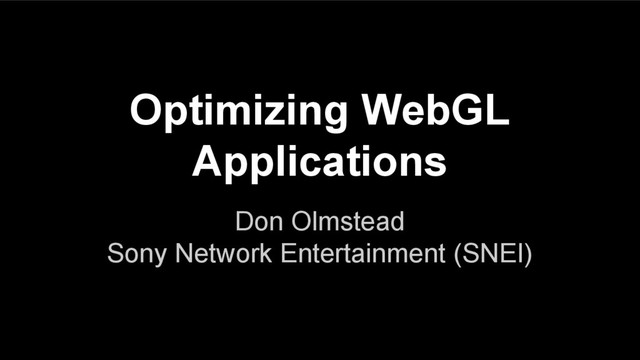

1. Optimizing WebGL Applications Don Olmstead Sony Network Entertainment (SNEI)
2. PlayStation 4 • Released 11/15/13 • Sold over 1 million in 24 hours • Sold over 4.2 million units in 2013 • All run WebGL!

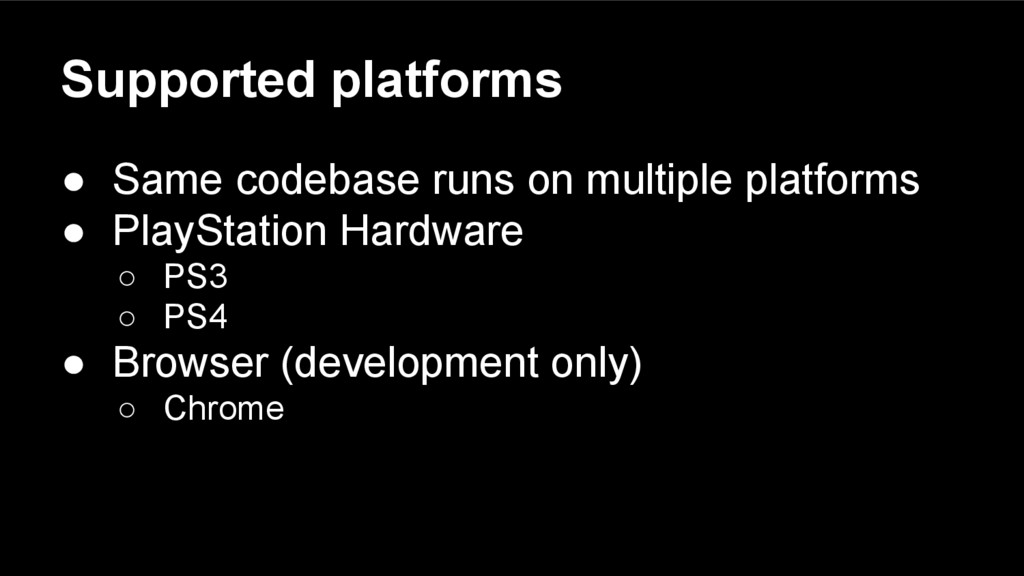

3. Supported platforms • Same codebase runs on multiple platforms • PlayStation Hardware ◦ PS3 ◦ PS4 • Browser (development only) ◦ Chrome

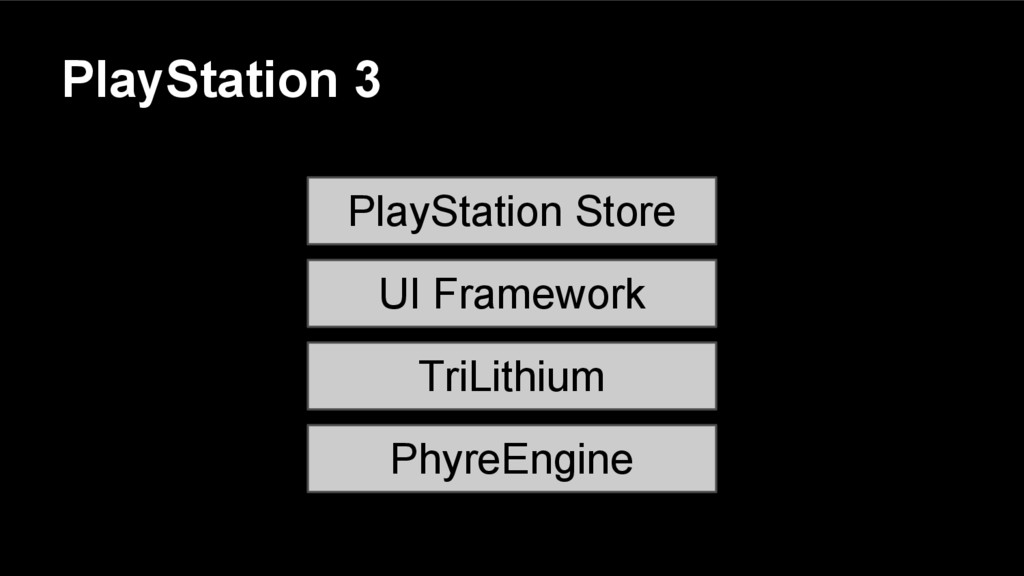

4. PlayStation 3 PhyreEngine PhyreEngine TriLithium UI Framework PlayStation Store

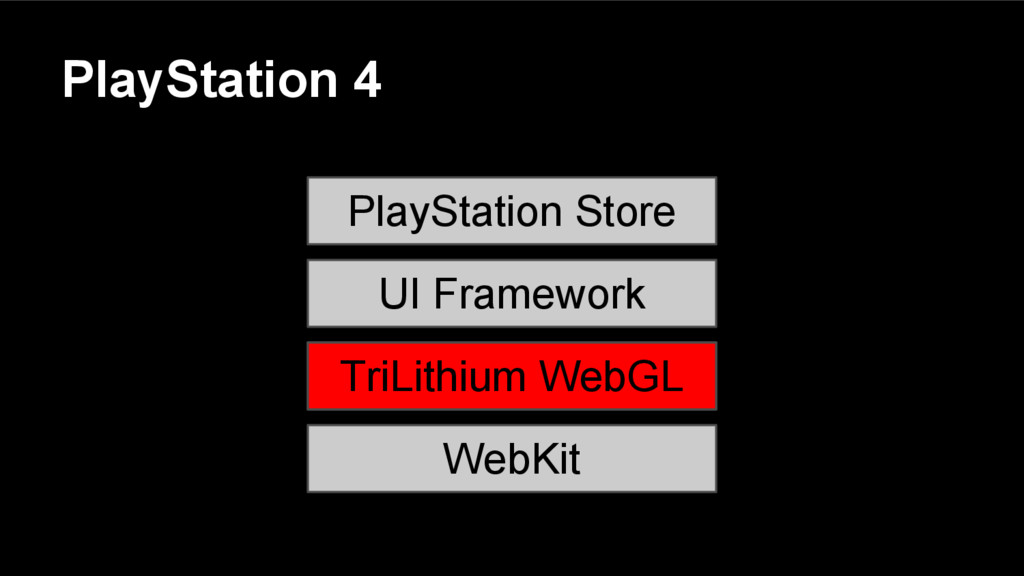

5. PlayStation 4 PhyreEngine WebKit TriLithium WebGL UI Framework PlayStation Store TriLithium WebGL
6. The nucular option

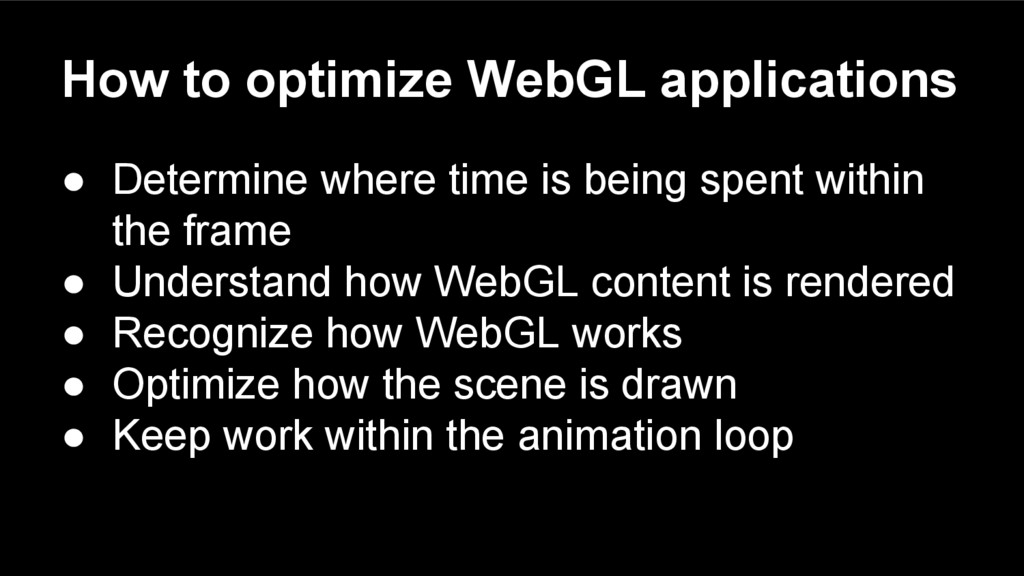

8. How to optimize WebGL applications • Determine where time is being spent within the frame • Understand how WebGL content is rendered • Recognize how WebGL works • Optimize how the scene is drawn • Keep work within the animation loop

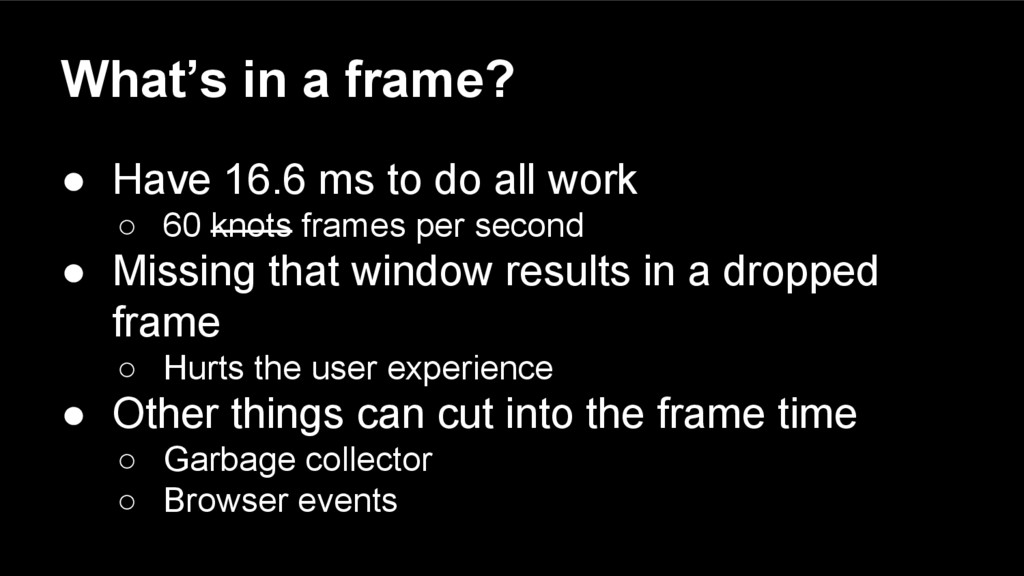

9. What’s in a frame? • Have 16.6 ms to do all work ◦ 60 knots frames per second • Missing that window results in a dropped frame ◦ Hurts the user experience • Other things can cut into the frame time ◦ Garbage collector ◦ Browser events

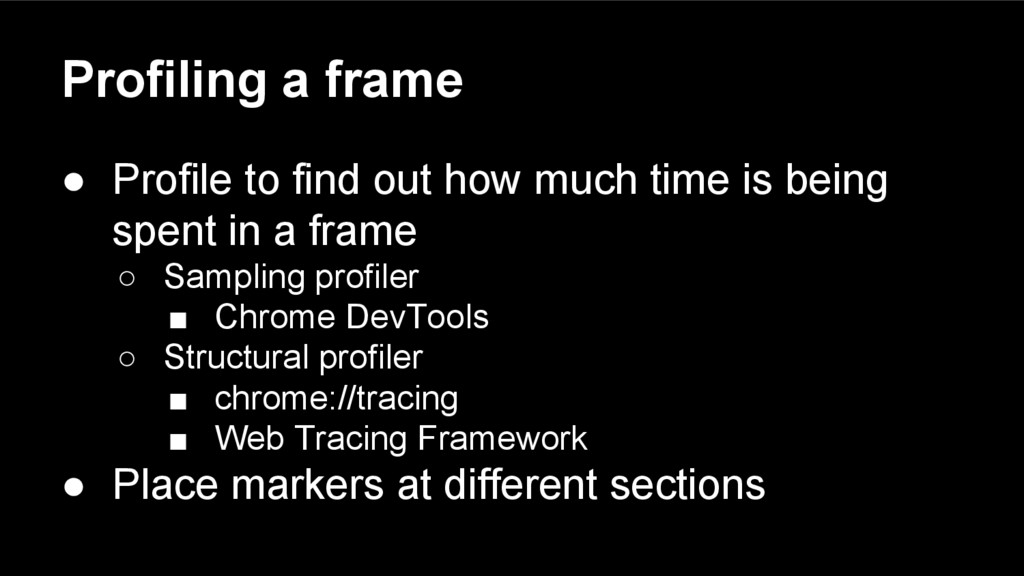

10. Profiling a frame • Profile to find out how much time is being spent in a frame ◦ Sampling profiler ▪ Chrome DevTools ◦ Structural profiler ▪ chrome://tracing ▪ Web Tracing Framework • Place markers at different sections

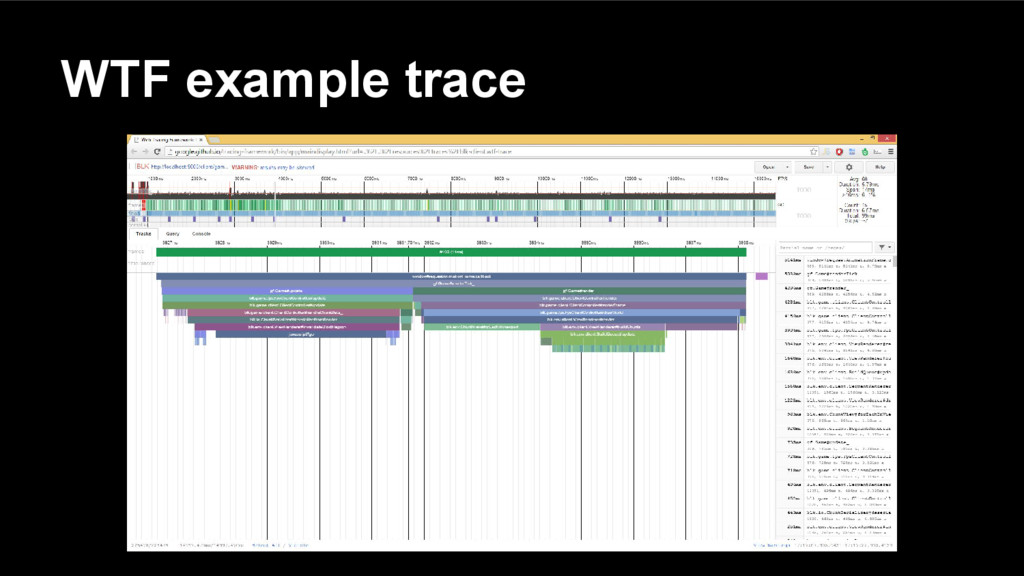

11. WTF example trace

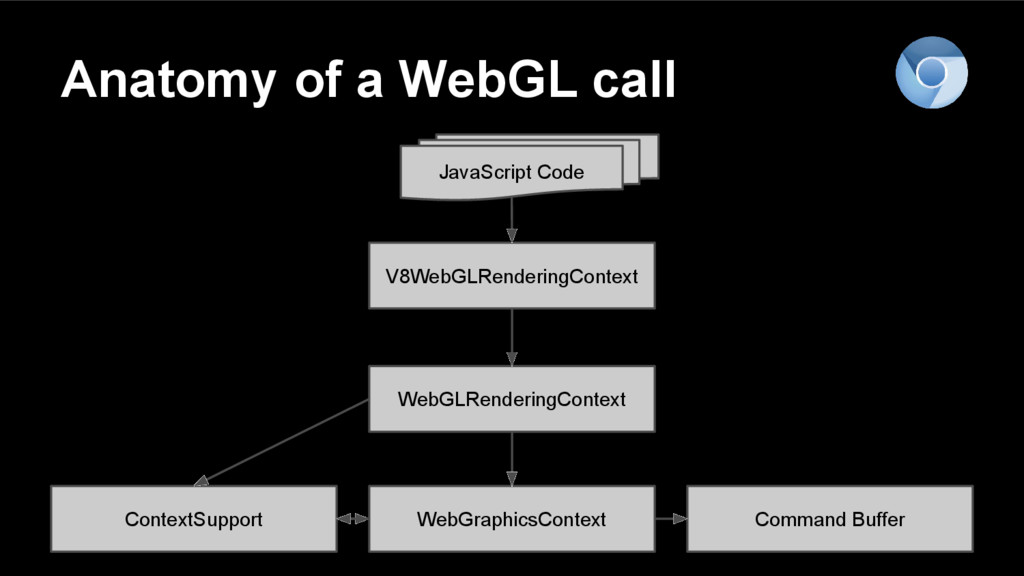

12. Anatomy of a WebGL call JavaScript Code V8WebGLRenderingContext WebGLRenderingContext ContextSupport WebGraphicsContext Command Buffer

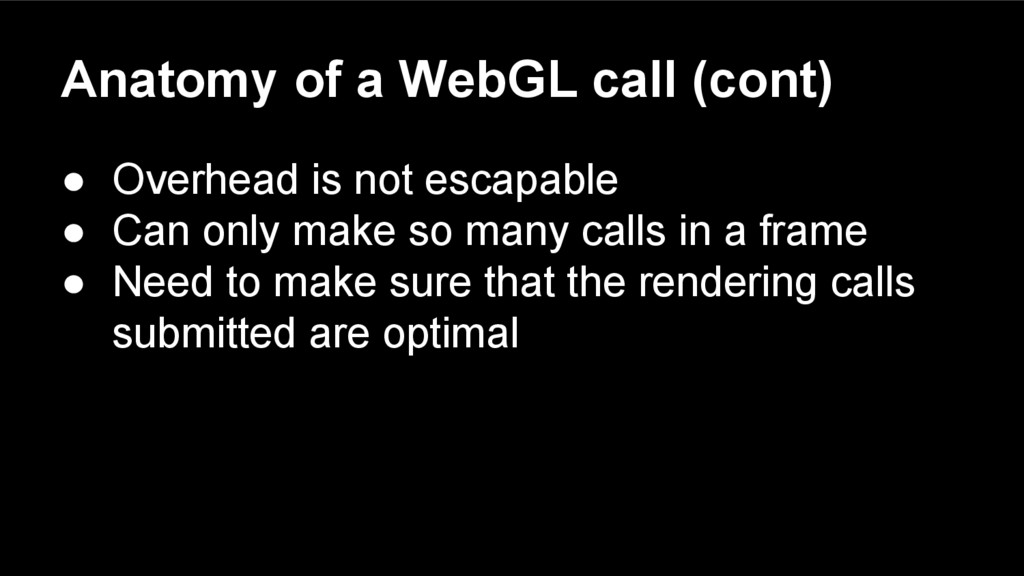

13. Anatomy of a WebGL call (cont) • Overhead is not escapable • Can only make so many calls in a frame • Need to make sure that the rendering calls submitted are optimal

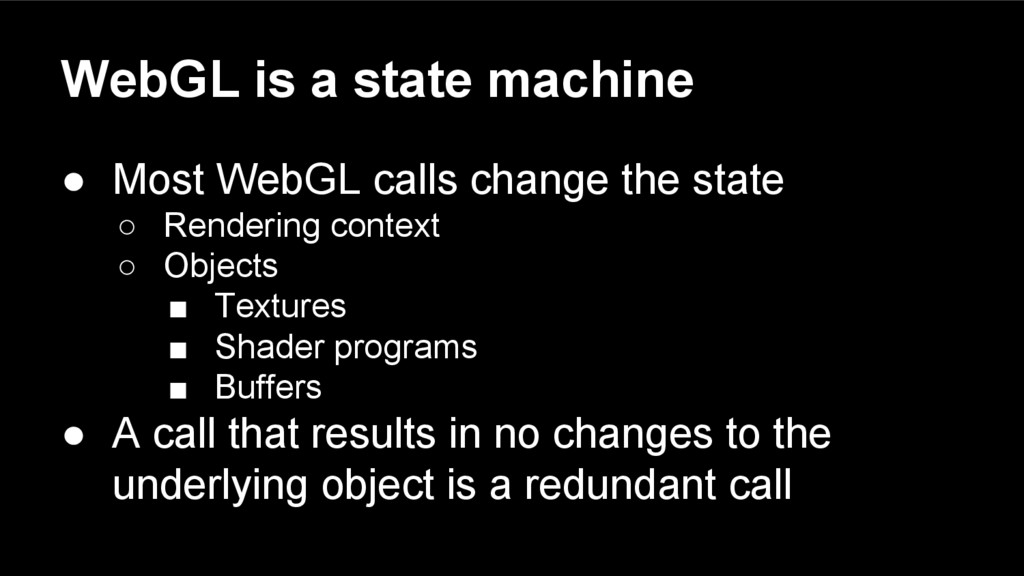

14. WebGL is a state machine • Most WebGL calls change the state ◦ Rendering context ◦ Objects ▪ Textures ▪ Shader programs ▪ Buffers • A call that results in no changes to the underlying object is a redundant call

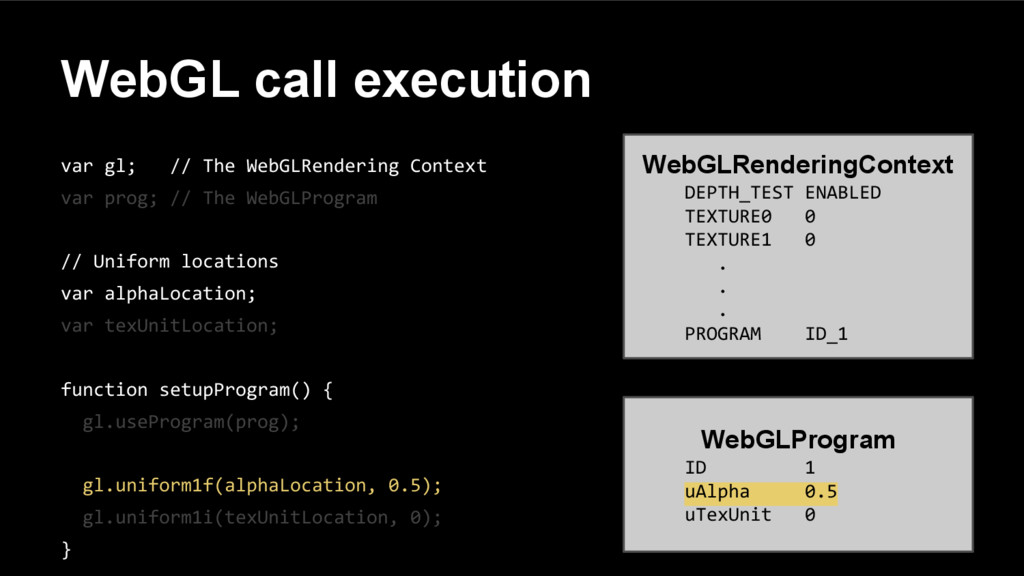

15. WebGL call execution var gl; // The WebGLRendering Context var prog; // The WebGLProgram // Uniform locations var alphaLocation; var texUnitLocation; function setupProgram() { gl.useProgram(prog); gl.uniform1f(alphaLocation, 0.5); gl.uniform1i(texUnitLocation, 0); } WebGLRenderingContext DEPTH_TEST ENABLED TEXTURE0 0 TEXTURE1 0 . . . PROGRAM 0 WebGLProgram ID 1 uAlpha 0 uTexUnit 0

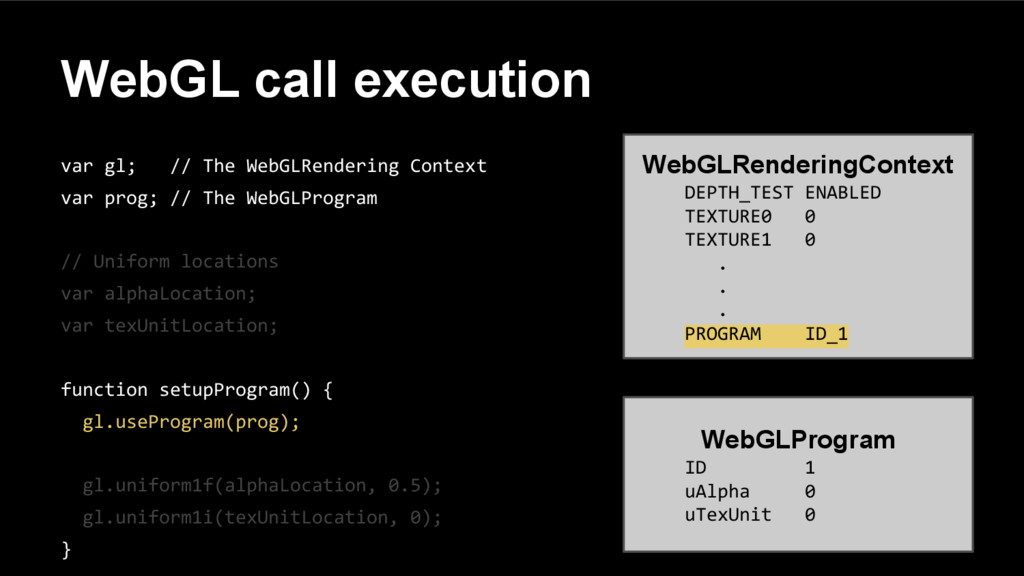

16. WebGL call execution var gl; // The WebGLRendering Context var prog; // The WebGLProgram // Uniform locations var alphaLocation; var texUnitLocation; function setupProgram() { gl.useProgram(prog); gl.uniform1f(alphaLocation, 0.5); gl.uniform1i(texUnitLocation, 0); } WebGLRenderingContext DEPTH_TEST ENABLED TEXTURE0 0 TEXTURE1 0 . . . PROGRAM ID_1 WebGLProgram ID 1 uAlpha 0 uTexUnit 0
17. WebGL call execution var gl; // The WebGLRendering Context var prog; // The WebGLProgram // Uniform locations var alphaLocation; var texUnitLocation; function setupProgram() { gl.useProgram(prog); gl.uniform1f(alphaLocation, 0.5); gl.uniform1i(texUnitLocation, 0); } WebGLRenderingContext DEPTH_TEST ENABLED TEXTURE0 0 TEXTURE1 0 . . . PROGRAM ID_1 WebGLProgram ID 1 uAlpha 0.5 uTexUnit 0
18. WebGL call execution var gl; // The WebGLRendering Context var prog; // The WebGLProgram // Uniform locations var alphaLocation; var texUnitLocation; function setupProgram() { gl.useProgram(prog); gl.uniform1f(alphaLocation, 0.5); gl.uniform1i(texUnitLocation, 0); } WebGLRenderingContext DEPTH_TEST ENABLED TEXTURE0 0 TEXTURE1 0 . . . PROGRAM ID_1 WebGLProgram ID 1 uAlpha 0.5 uTexUnit 0

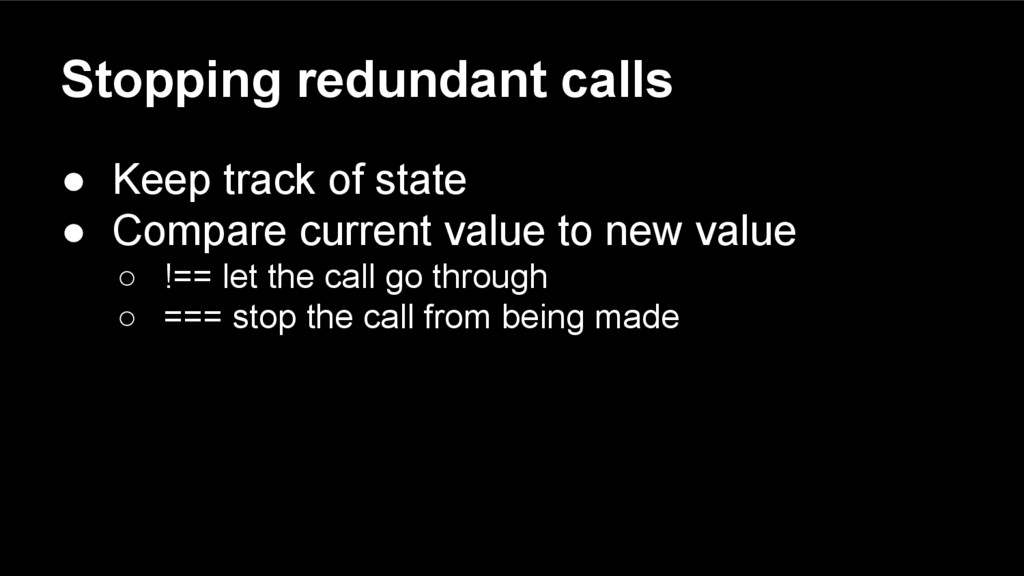

19. Stopping redundant calls • Keep track of state • Compare current value to new value ◦ !== let the call go through ◦ === stop the call from being made

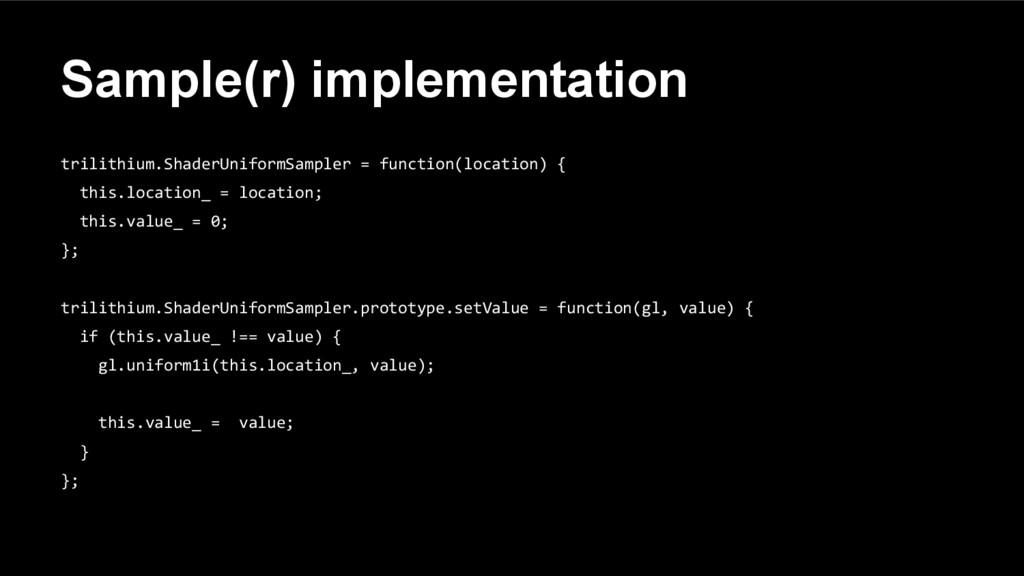

20. Sample(r) implementation trilithium.ShaderUniformSampler = function(location) { this.location_ = location; this.value_ = 0; }; trilithium.ShaderUniformSampler.prototype.setValue = function(gl, value) { if (this.value_ !== value) { gl.uniform1i(this.location_, value); this.value_ = value; } };

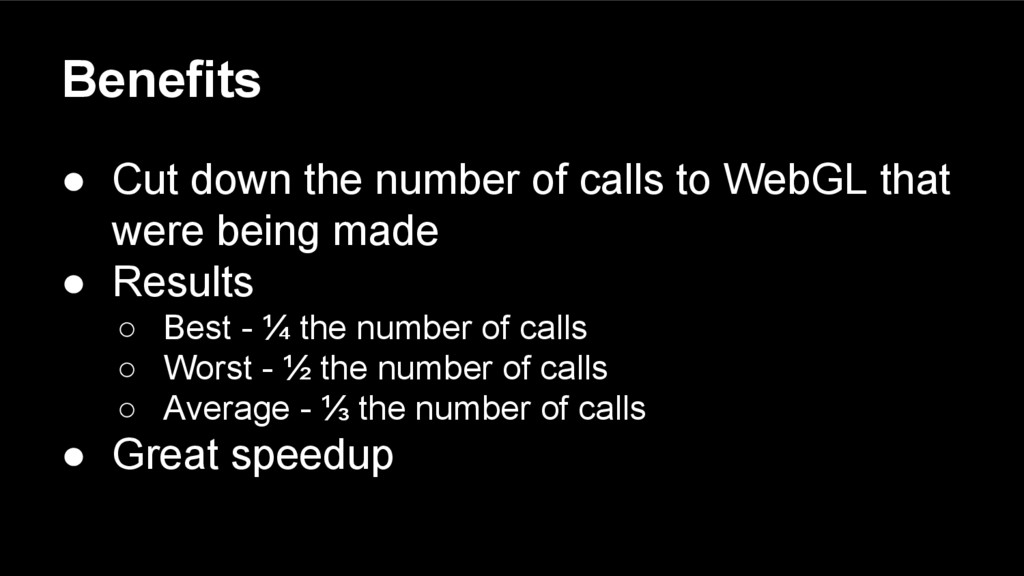

21. Benefits • Cut down the number of calls to WebGL that were being made • Results ◦ Best - ¼ the number of calls ◦ Worst - ½ the number of calls ◦ Average - ⅓ the number of calls • Great speedup

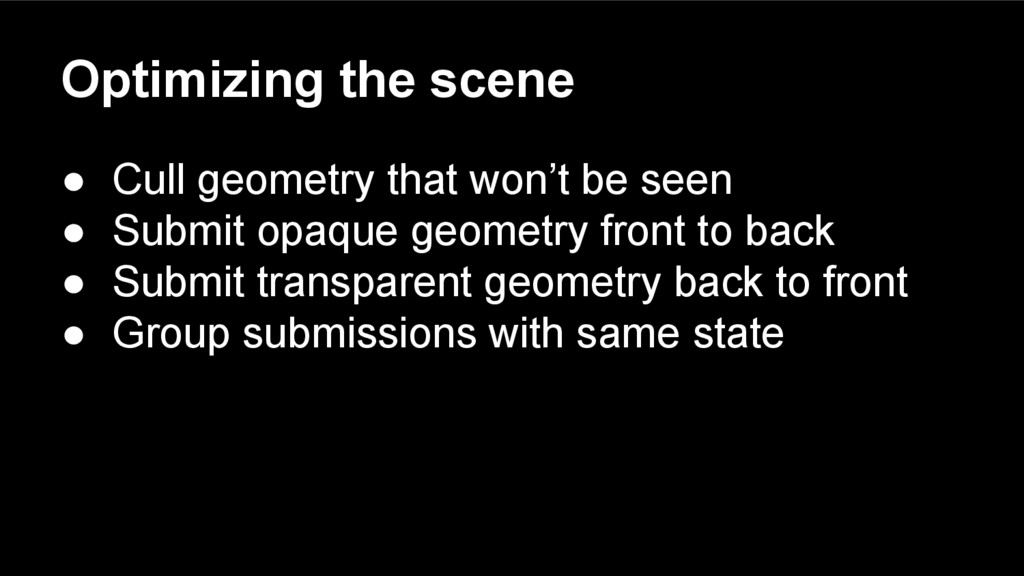

22. Optimizing the scene • Cull geometry that won’t be seen • Submit opaque geometry front to back • Submit transparent geometry back to front • Group submissions with same state

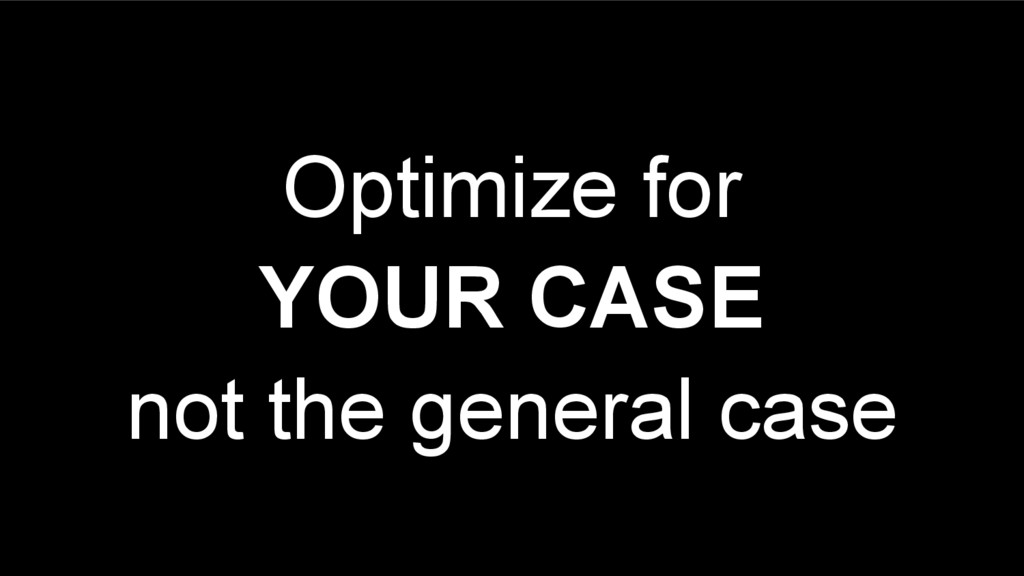

23. Optimize for YOUR CASE not the general case

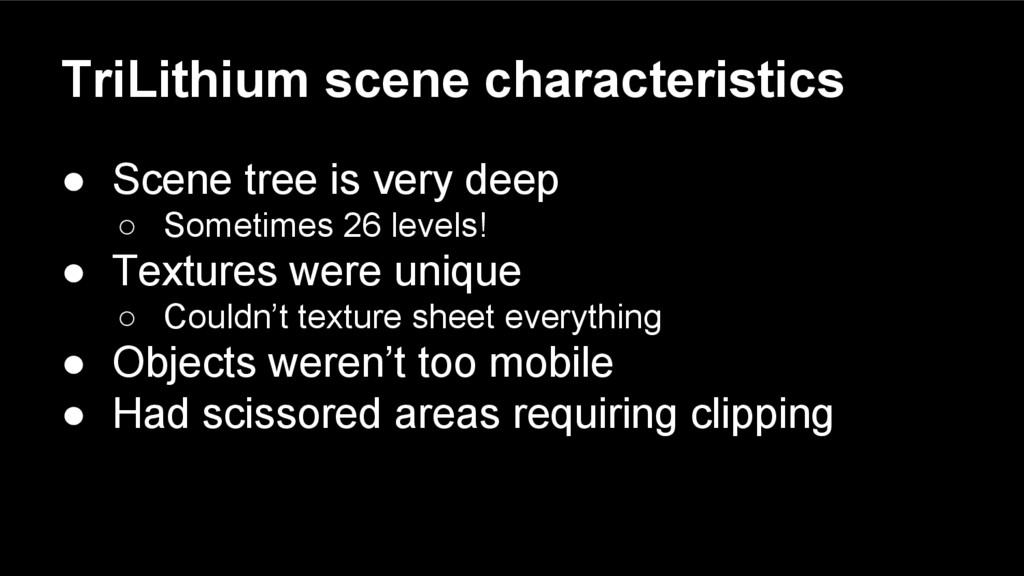

24. TriLithium scene characteristics • Scene tree is very deep ◦ Sometimes 26 levels! • Textures were unique ◦ Couldn’t texture sheet everything • Objects weren’t too mobile • Had scissored areas requiring clipping

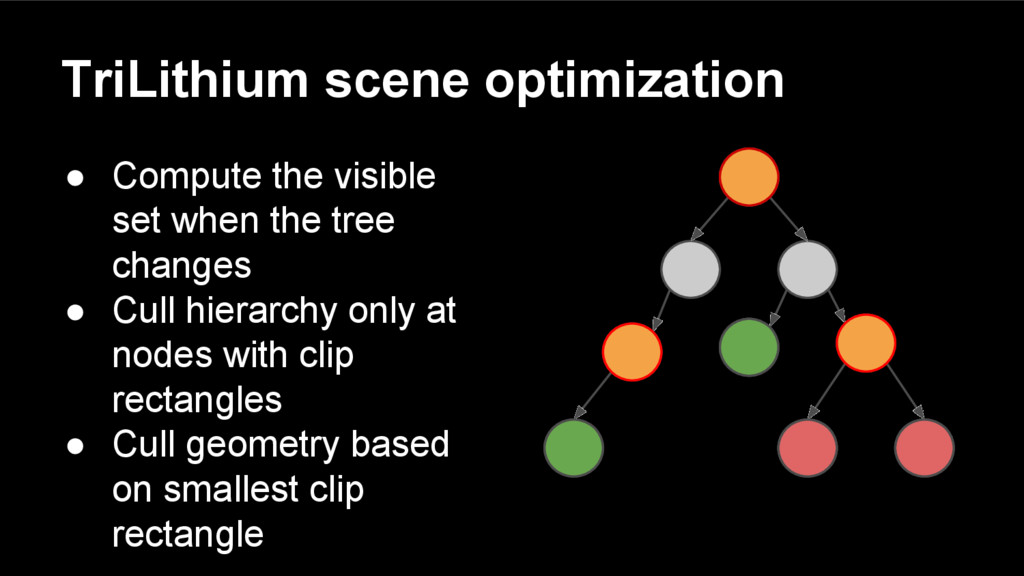

25. TriLithium scene optimization • Compute the visible set when the tree changes • Cull hierarchy only at nodes with clip rectangles • Cull geometry based on smallest clip rectangle

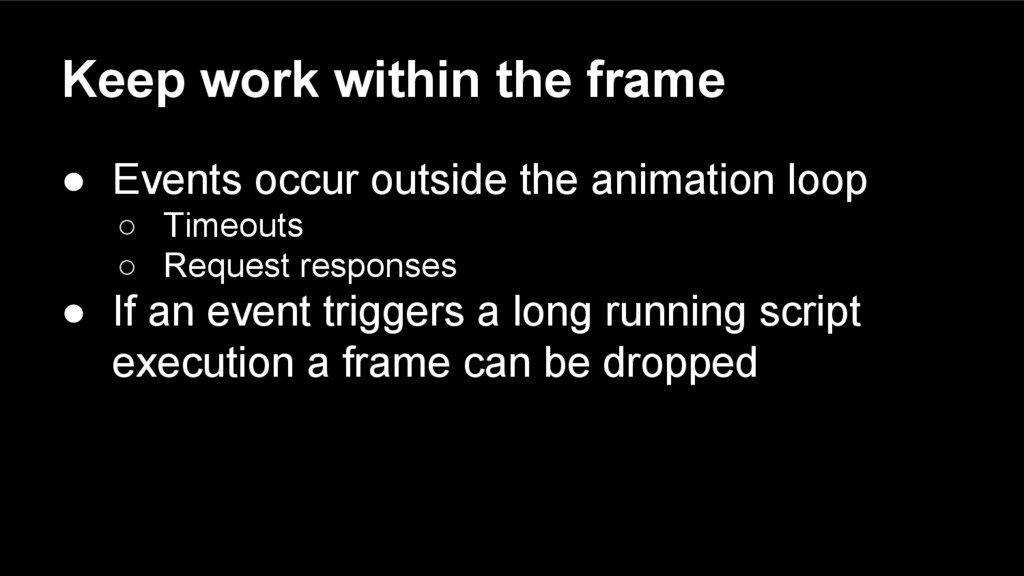

26. Keep work within the frame • Events occur outside the animation loop ◦ Timeouts ◦ Request responses • If an event triggers a long running script execution a frame can be dropped

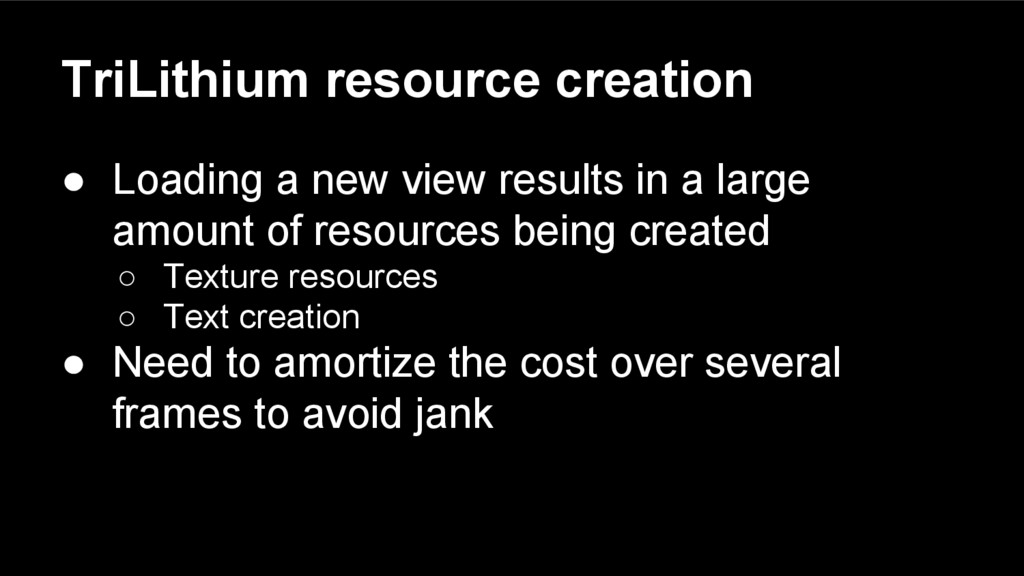

27. TriLithium resource creation • Loading a new view results in a large amount of resources being created ◦ Texture resources ◦ Text creation • Need to amortize the cost over several frames to avoid jank

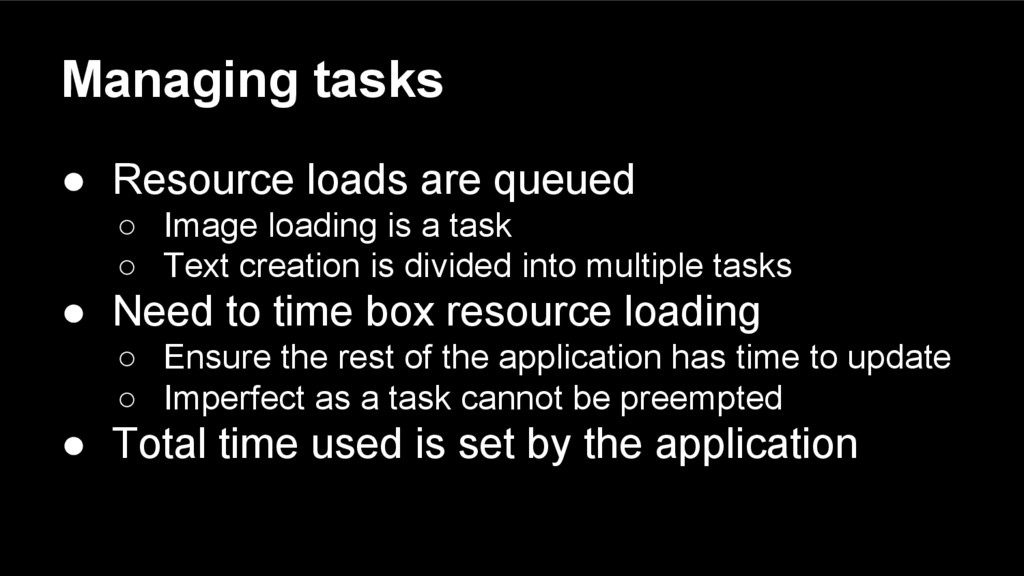

28. Managing tasks • Resource loads are queued ◦ Image loading is a task ◦ Text creation is divided into multiple tasks • Need to time box resource loading ◦ Ensure the rest of the application has time to update ◦ Imperfect as a task cannot be preempted • Total time used is set by the application

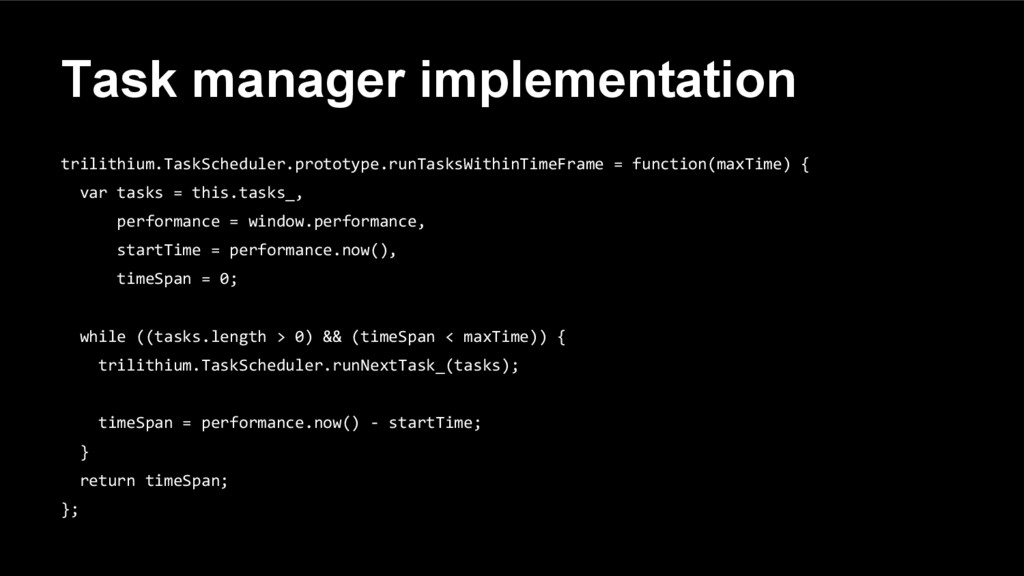

29. Task manager implementation trilithium.TaskScheduler.prototype.runTasksWithinTimeFrame = function(maxTime) { var tasks = this.tasks_, performance = window.performance, startTime = performance.now(), timeSpan = 0; while ((tasks.length > 0) && (timeSpan < maxTime)) { trilithium.TaskScheduler.runNextTask_(tasks); timeSpan = performance.now() - startTime; } return timeSpan; };

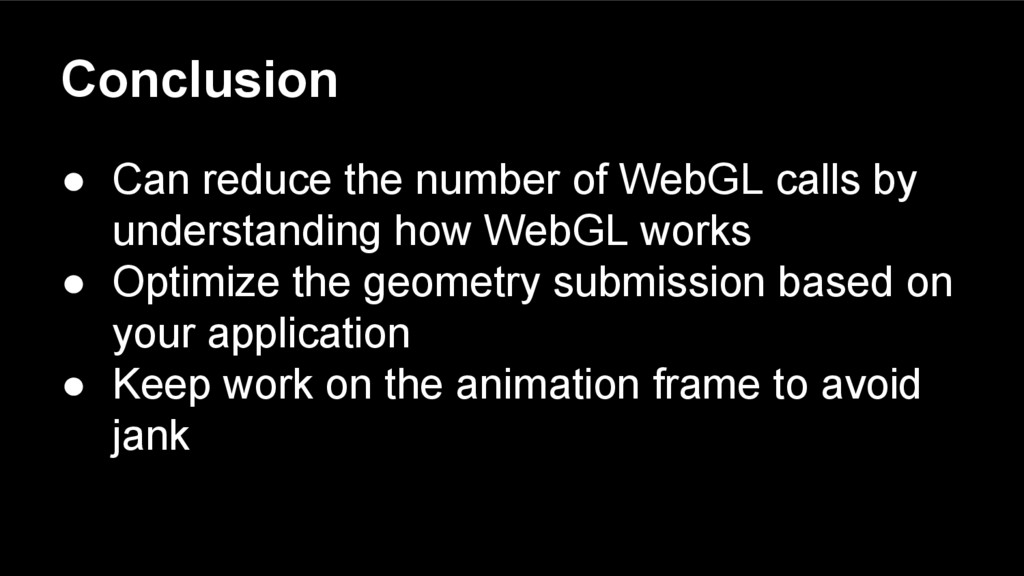

30. Conclusion • Can reduce the number of WebGL calls by understanding how WebGL works • Optimize the geometry submission based on your application • Keep work on the animation frame to avoid jank

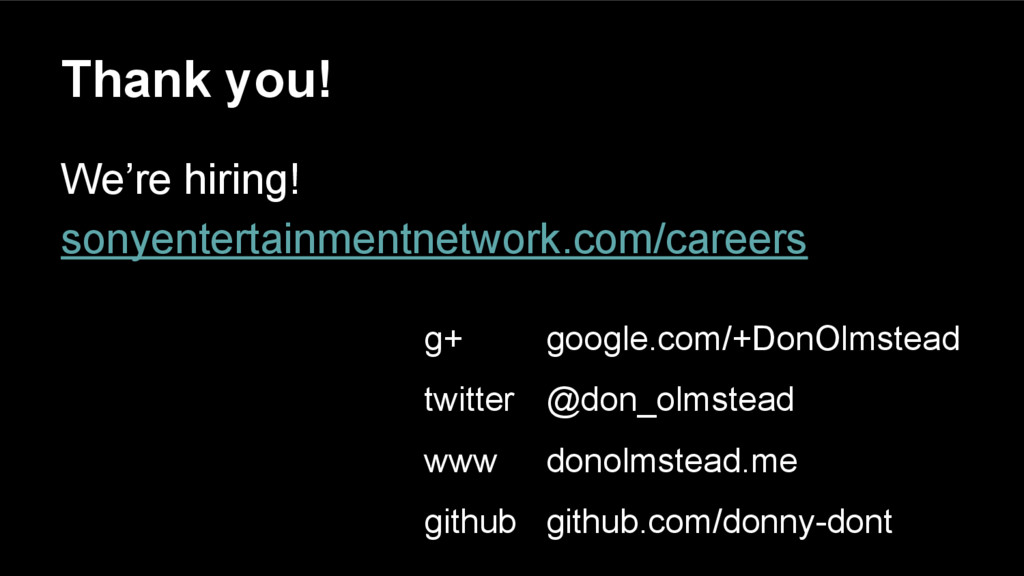

31. Buy this book!
