Gaming in the Browser

Transcript

1. Gaming in the Browser Don Olmstead CUSEC 2014

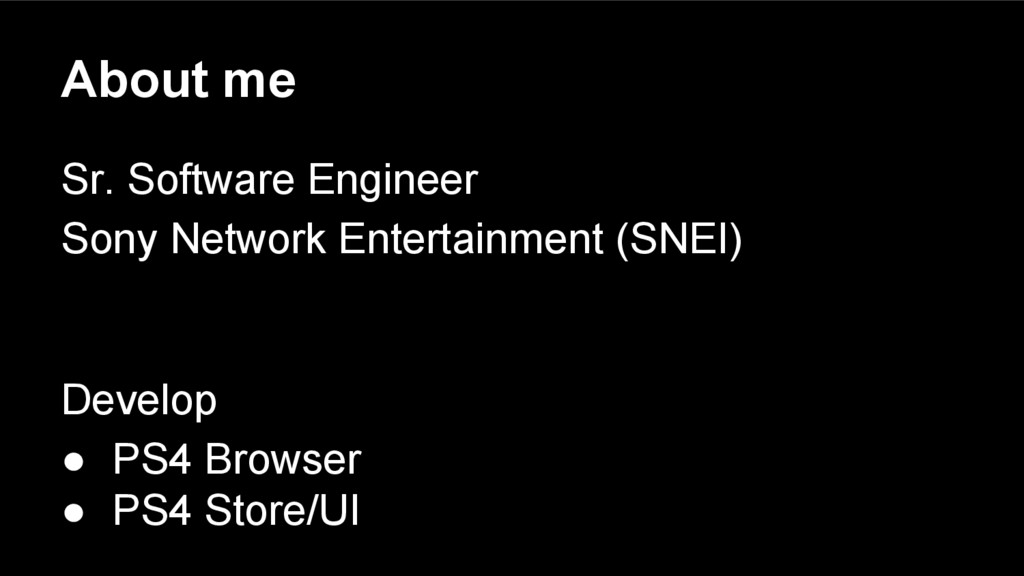

2. About me Sr. Software Engineer Sony Network Entertainment (SNEI) Develop • PS4 Browser • PS4 Store/UI

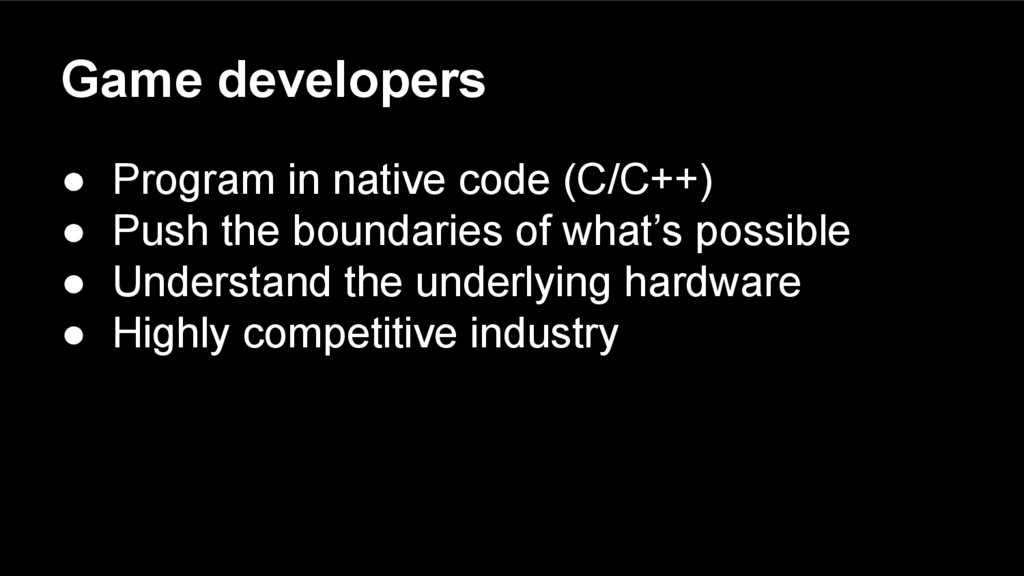

3. Game developers • Program in native code (C/C++) • Push the boundaries of what’s possible • Understand the underlying hardware • Highly competitive industry
4. Game developers

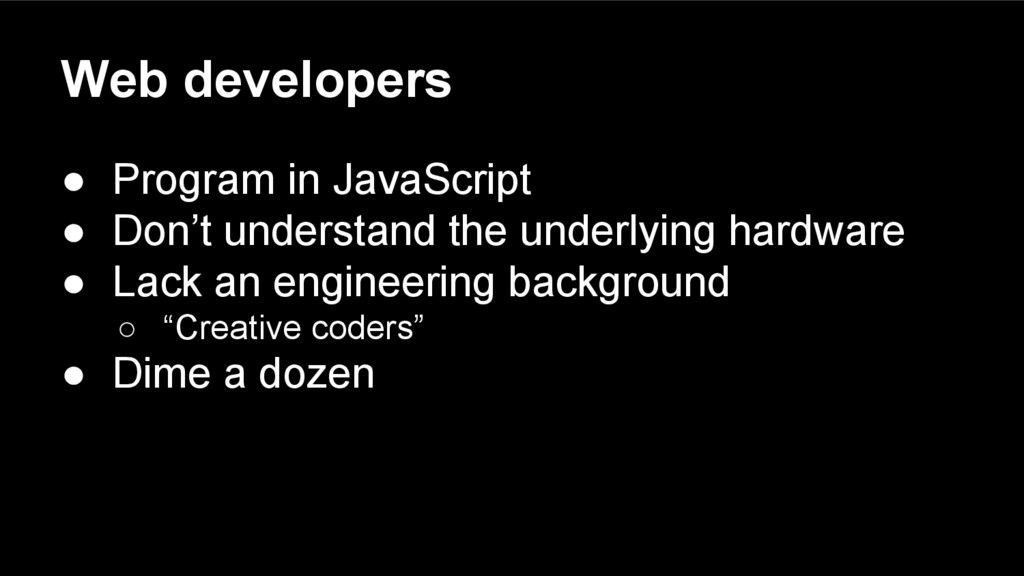

5. Web developers • Program in JavaScript • Don’t understand the underlying hardware • Lack an engineering background ◦ “Creative coders” • Dime a dozen
6. Web developers
7. Game Web Game Web Viewpoints

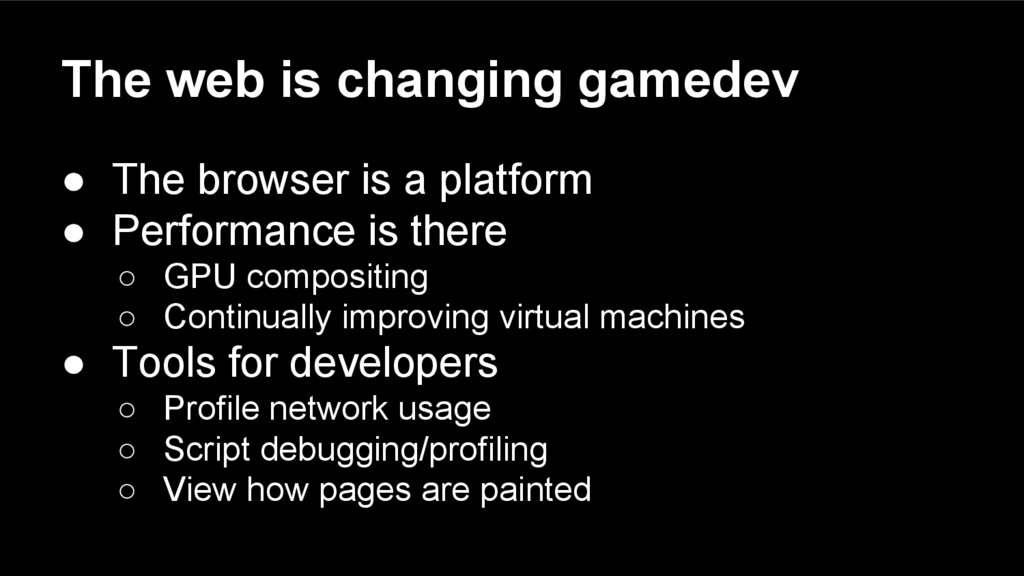

8. The web is changing gamedev • The browser is a platform • Performance is there ◦ GPU compositing ◦ Continually improving virtual machines • Tools for developers ◦ Profile network usage ◦ Script debugging/profiling ◦ View how pages are painted

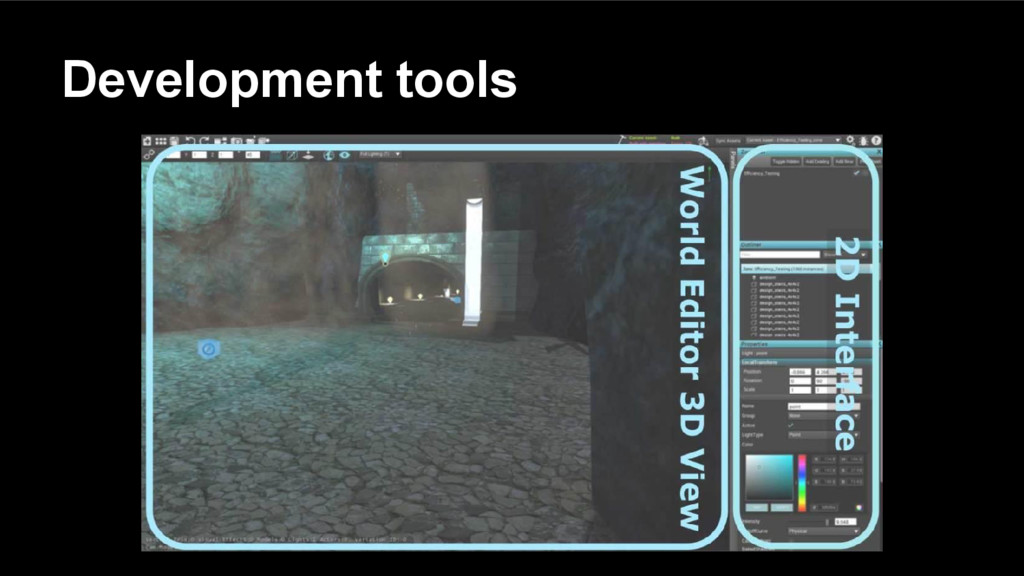

9. Development tools

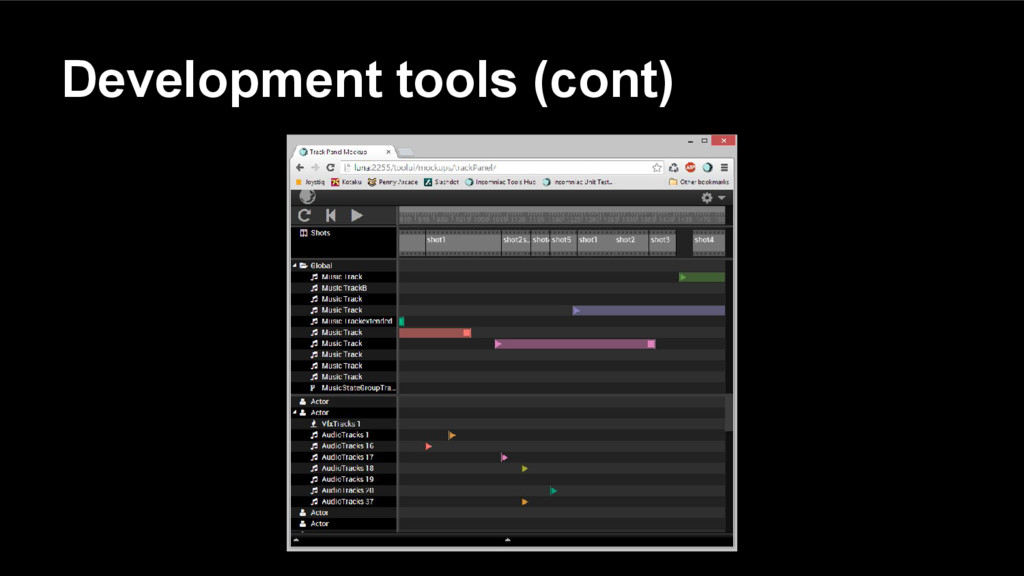

10. Development tools (cont)

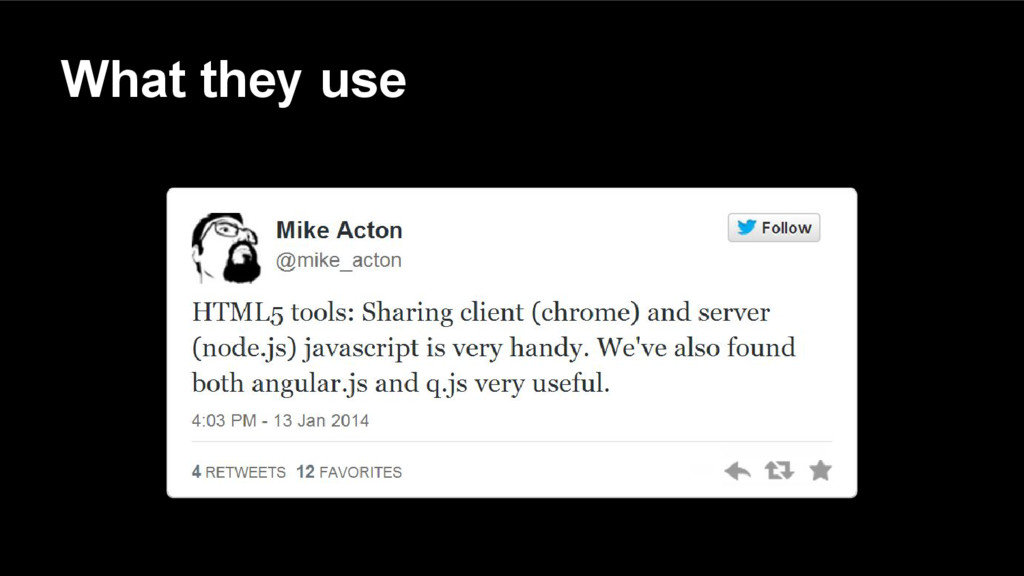

11. What they use

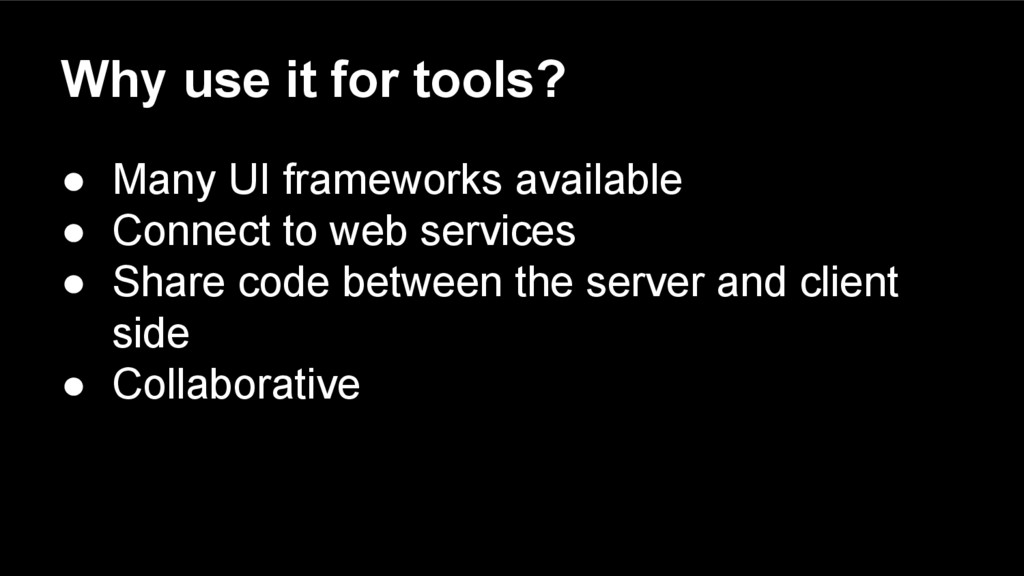

12. Why use it for tools? • Many UI frameworks available • Connect to web services • Share code between the server and client side • Collaborative

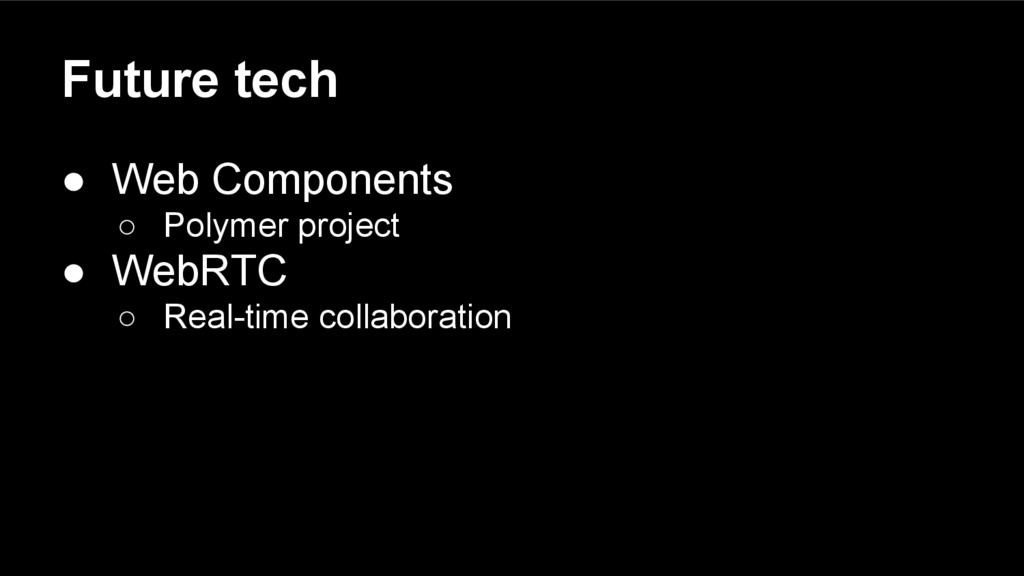

13. Future tech • Web Components ◦ Polymer project • WebRTC ◦ Real-time collaboration

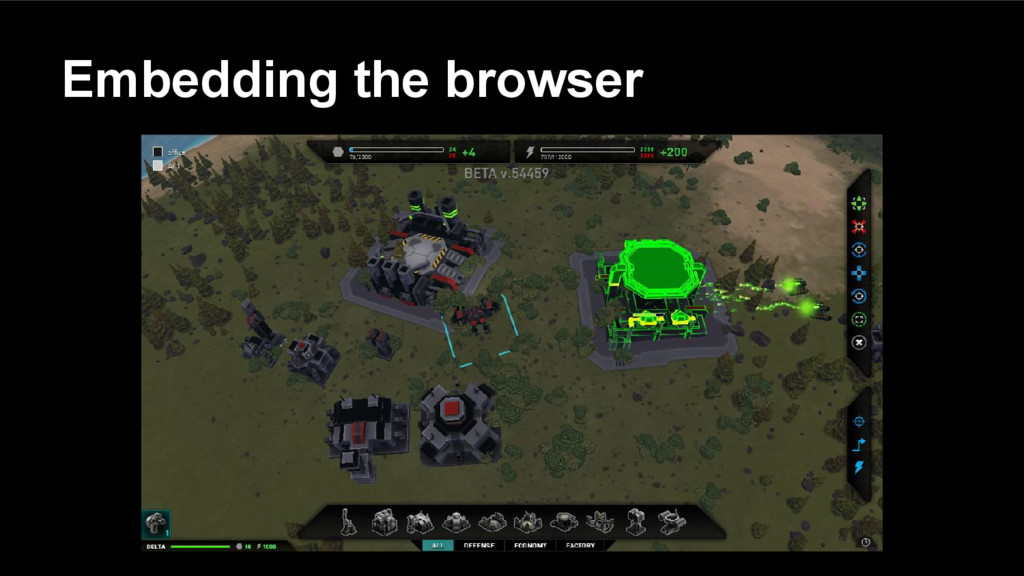

14. Embedding the browser

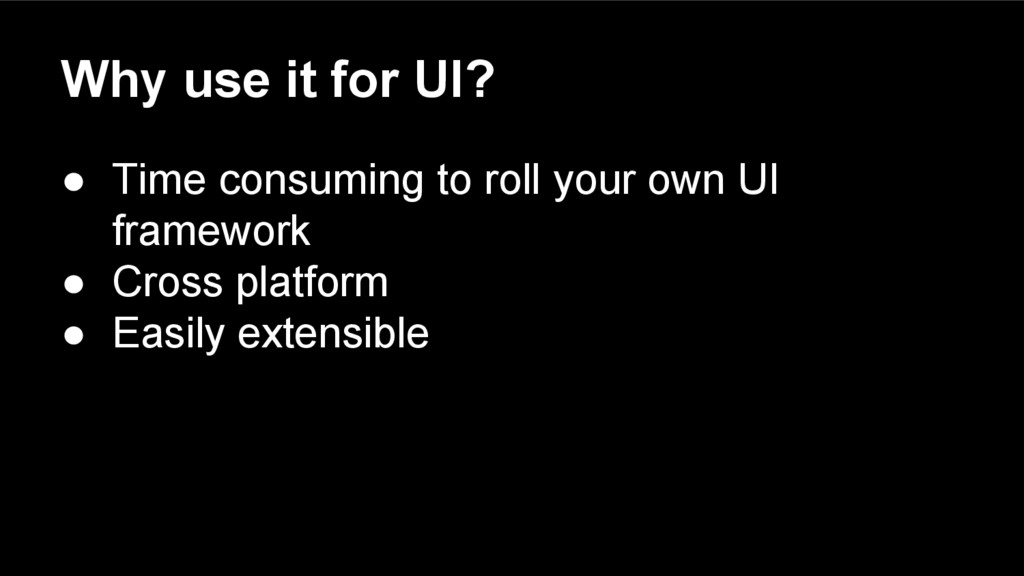

15. Why use it for UI? • Time consuming to roll your own UI framework • Cross platform • Easily extensible

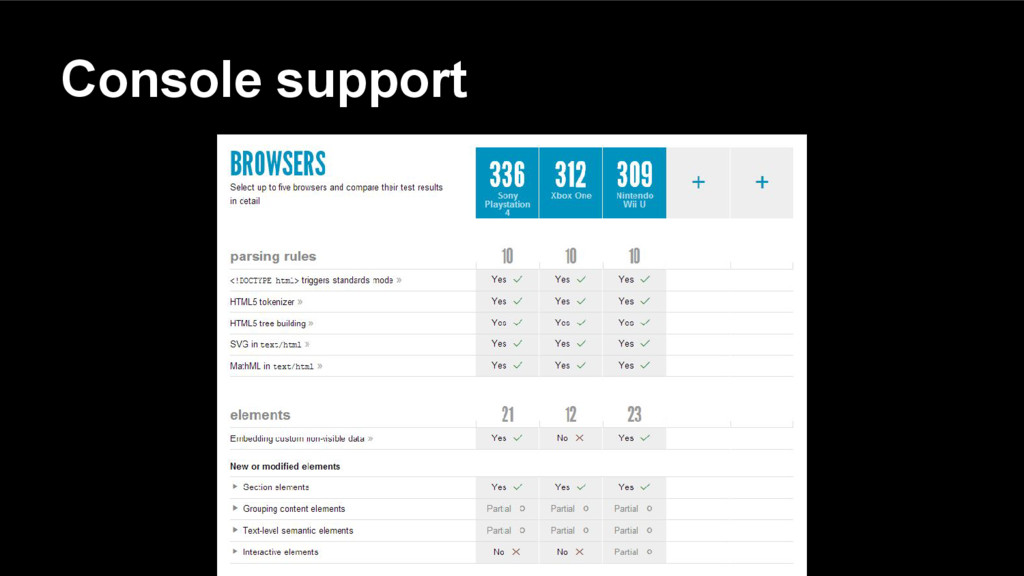

16. Console support

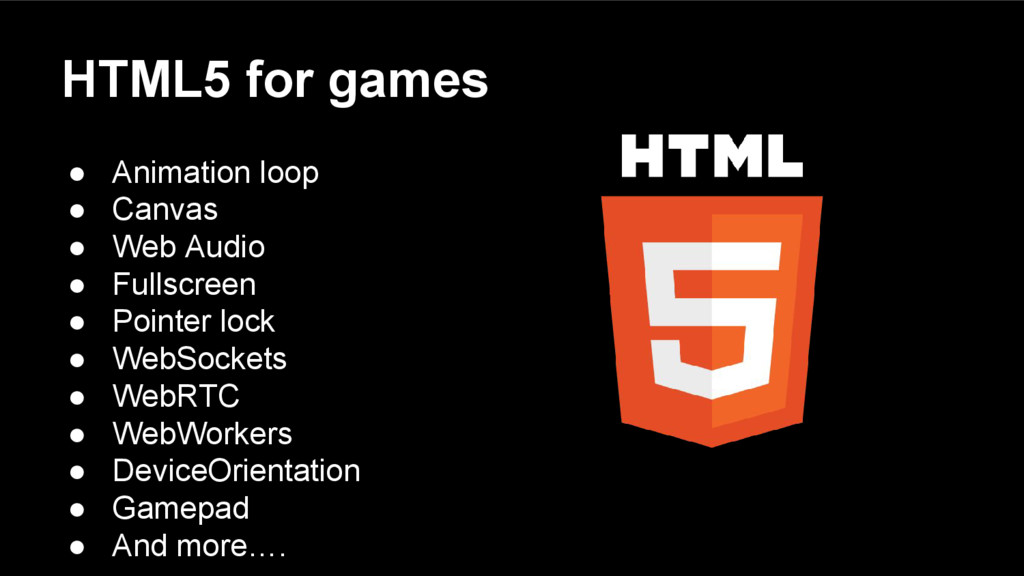

17. HTML5 for games • Animation loop • Canvas • Web Audio • Fullscreen • Pointer lock • WebSockets • WebRTC • WebWorkers • DeviceOrientation • Gamepad • And more….

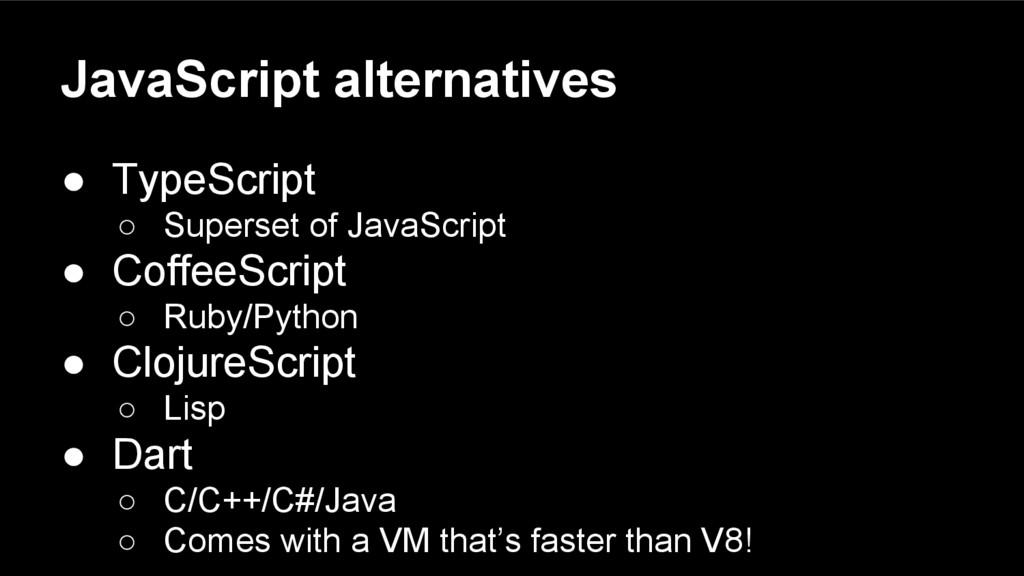

18. JavaScript alternatives • TypeScript ◦ Superset of JavaScript • CoffeeScript ◦ Ruby/Python • ClojureScript ◦ Lisp • Dart ◦ C/C++/C#/Java ◦ Comes with a VM that’s faster than V8!
19. The most important feature for HTML5

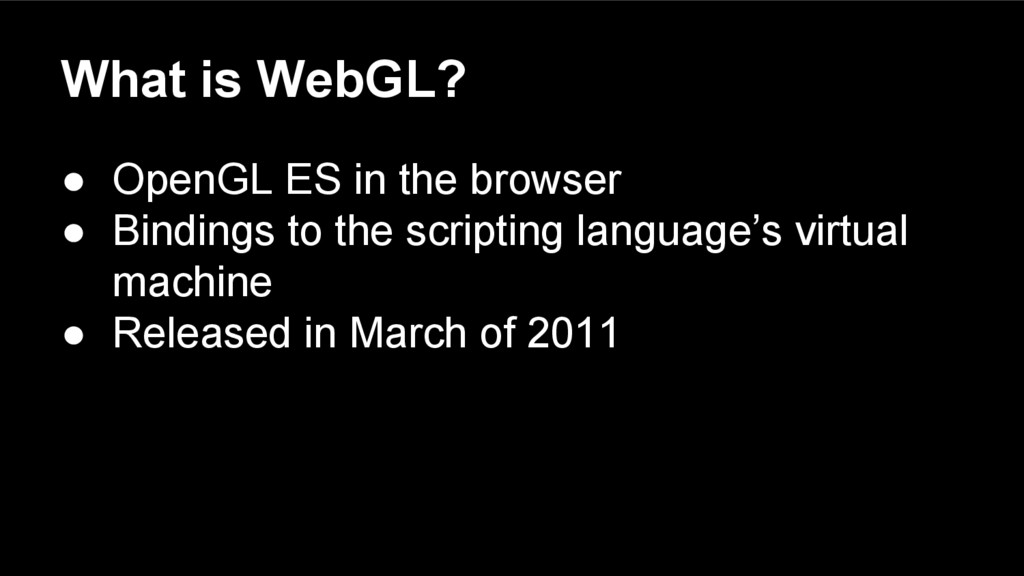

20. What is WebGL? • OpenGL ES in the browser • Bindings to the scripting language’s virtual machine • Released in March of 2011

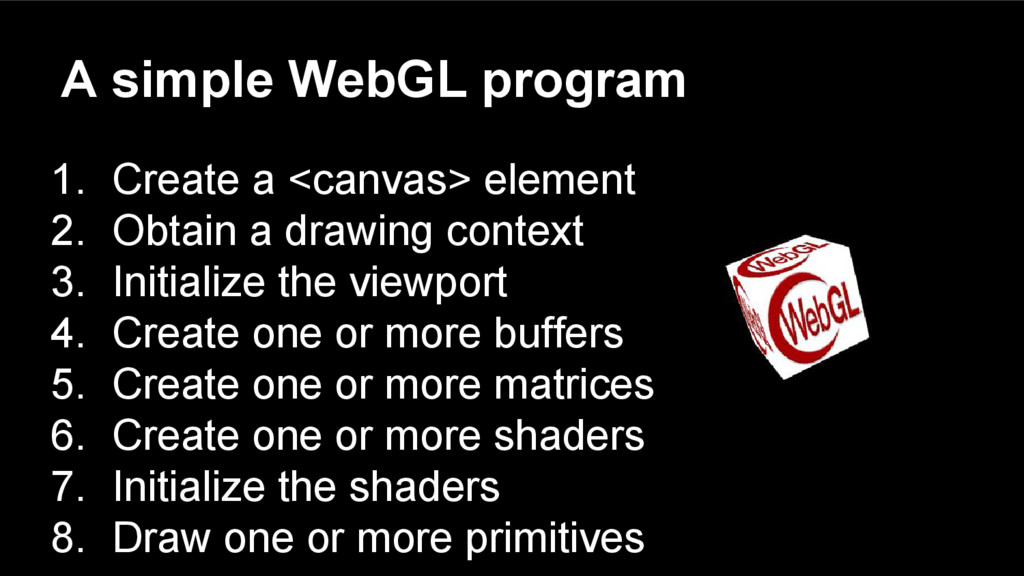

21. A simple WebGL program 1. Create a <canvas> element 2. Obtain a drawing context 3. Initialize the viewport 4. Create one or more buffers 5. Create one or more matrices 6. Create one or more shaders 7. Initialize the shaders 8. Draw one or more primitives

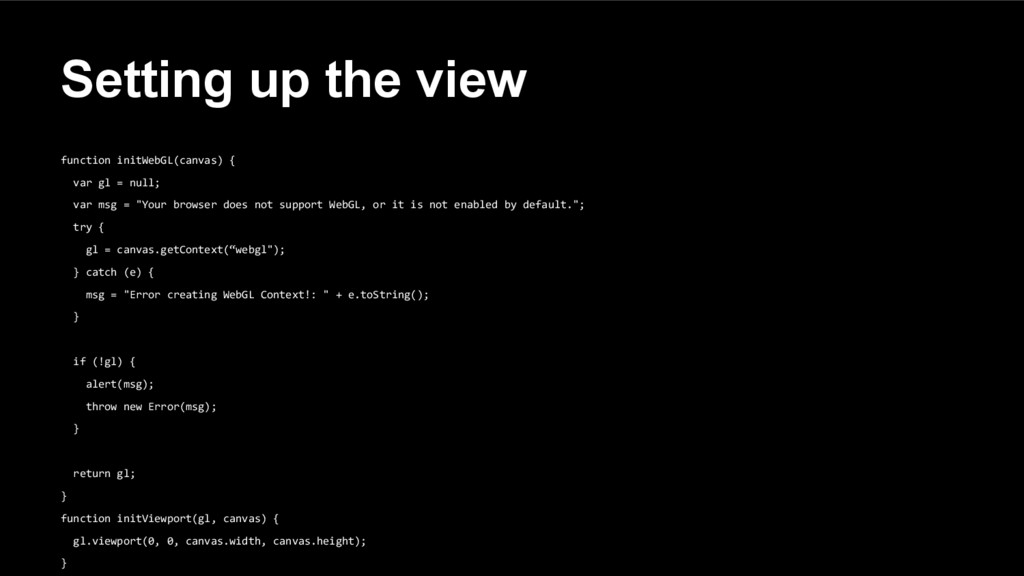

22. Setting up the view function initWebGL(canvas) { var gl = null; var msg = "Your browser does not support WebGL, or it is not enabled by default."; try { gl = canvas.getContext(“webgl"); } catch (e) { msg = "Error creating WebGL Context!: " + e.toString(); } if (!gl) { alert(msg); throw new Error(msg); } return gl; } function initViewport(gl, canvas) { gl.viewport(0, 0, canvas.width, canvas.height); }

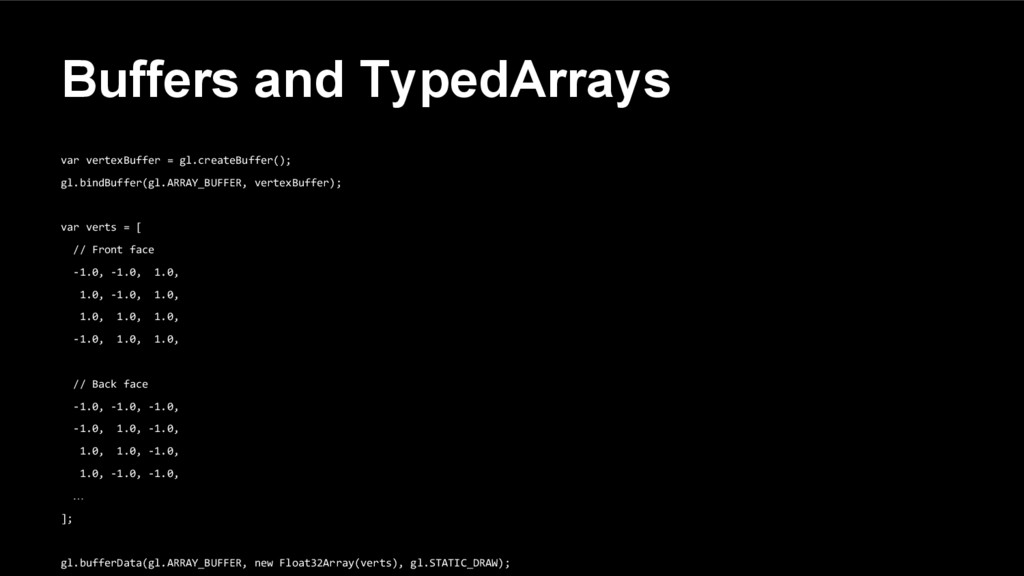

23. Buffers and TypedArrays var vertexBuffer = gl.createBuffer(); gl.bindBuffer(gl.ARRAY_BUFFER, vertexBuffer); var verts = [ // Front face -1.0, -1.0, 1.0, 1.0, -1.0, 1.0, 1.0, 1.0, 1.0, -1.0, 1.0, 1.0, // Back face -1.0, -1.0, -1.0, -1.0, 1.0, -1.0, 1.0, 1.0, -1.0, 1.0, -1.0, -1.0, … ]; gl.bufferData(gl.ARRAY_BUFFER, new Float32Array(verts), gl.STATIC_DRAW);

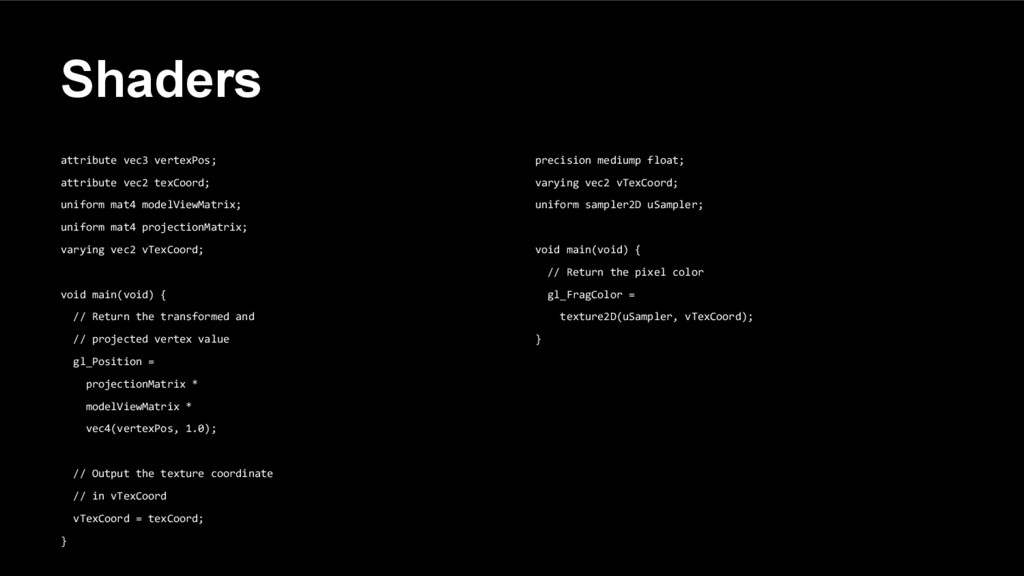

24. Shaders attribute vec3 vertexPos; attribute vec2 texCoord; uniform mat4 modelViewMatrix; uniform mat4 projectionMatrix; varying vec2 vTexCoord; void main(void) { // Return the transformed and // projected vertex value gl_Position = projectionMatrix * modelViewMatrix * vec4(vertexPos, 1.0); // Output the texture coordinate // in vTexCoord vTexCoord = texCoord; } precision mediump float; varying vec2 vTexCoord; uniform sampler2D uSampler; void main(void) { // Return the pixel color gl_FragColor = texture2D(uSampler, vTexCoord); }

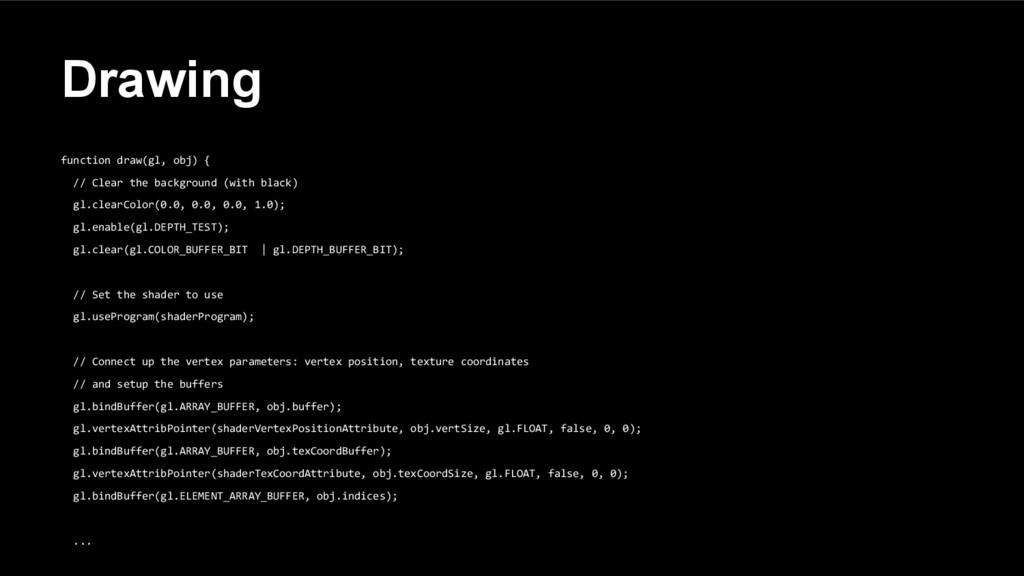

25. Drawing function draw(gl, obj) { // Clear the background (with black) gl.clearColor(0.0, 0.0, 0.0, 1.0); gl.enable(gl.DEPTH_TEST); gl.clear(gl.COLOR_BUFFER_BIT | gl.DEPTH_BUFFER_BIT); // Set the shader to use gl.useProgram(shaderProgram); // Connect up the vertex parameters: vertex position, texture coordinates // and setup the buffers gl.bindBuffer(gl.ARRAY_BUFFER, obj.buffer); gl.vertexAttribPointer(shaderVertexPositionAttribute, obj.vertSize, gl.FLOAT, false, 0, 0); gl.bindBuffer(gl.ARRAY_BUFFER, obj.texCoordBuffer); gl.vertexAttribPointer(shaderTexCoordAttribute, obj.texCoordSize, gl.FLOAT, false, 0, 0); gl.bindBuffer(gl.ELEMENT_ARRAY_BUFFER, obj.indices); ...

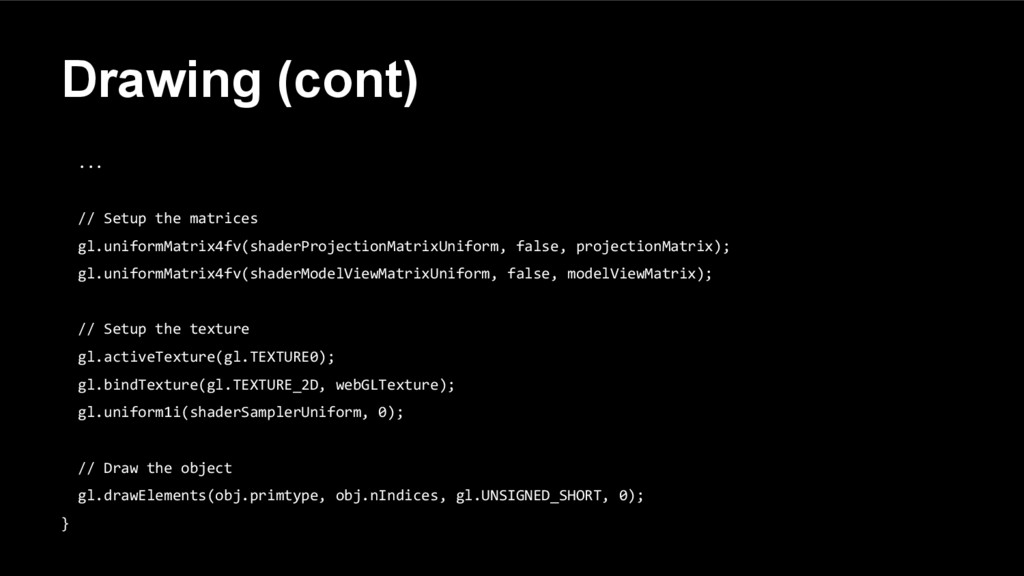

26. Drawing (cont) ... // Setup the matrices gl.uniformMatrix4fv(shaderProjectionMatrixUniform, false, projectionMatrix); gl.uniformMatrix4fv(shaderModelViewMatrixUniform, false, modelViewMatrix); // Setup the texture gl.activeTexture(gl.TEXTURE0); gl.bindTexture(gl.TEXTURE_2D, webGLTexture); gl.uniform1i(shaderSamplerUniform, 0); // Draw the object gl.drawElements(obj.primtype, obj.nIndices, gl.UNSIGNED_SHORT, 0); }

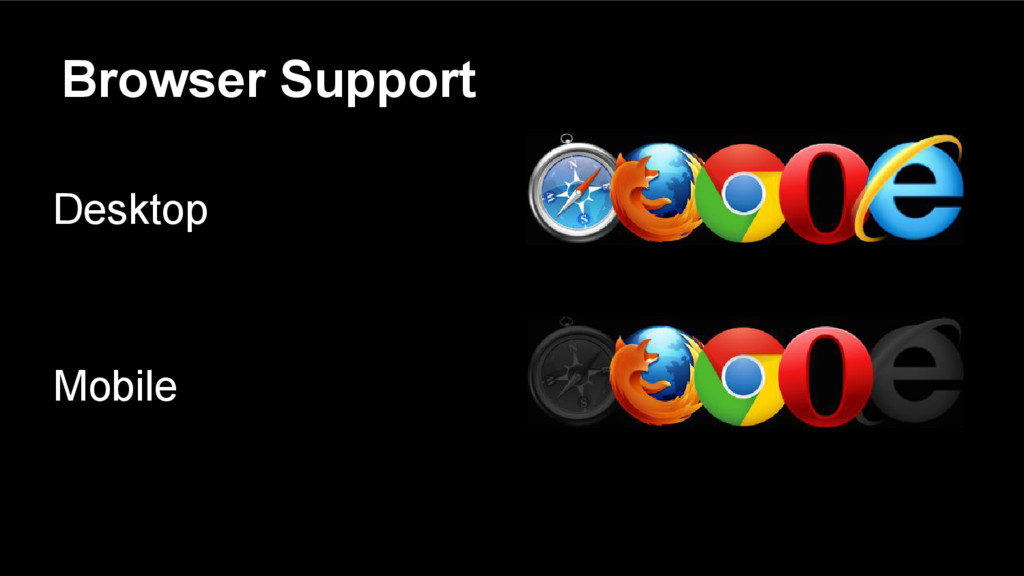

27. Browser Support Desktop Mobile

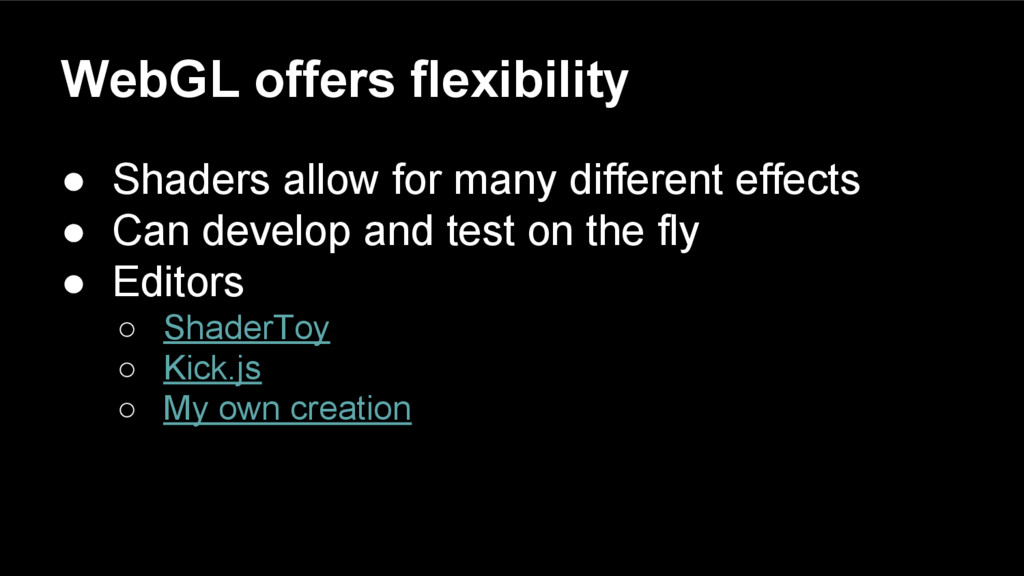

28. WebGL offers flexibility • Shaders allow for many different effects • Can develop and test on the fly • Editors ◦ ShaderToy ◦ Kick.js ◦ My own creation

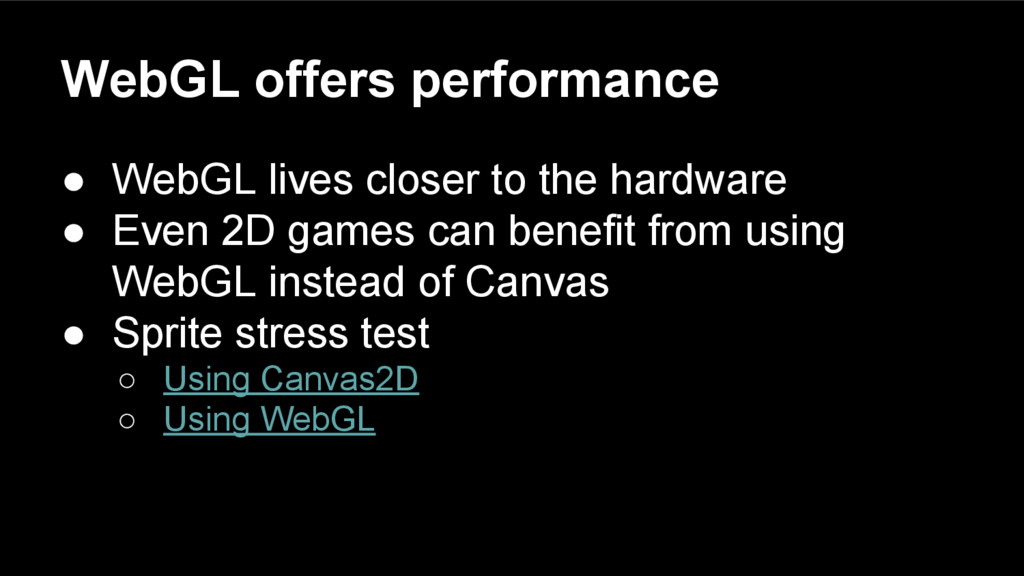

29. WebGL offers performance • WebGL lives closer to the hardware • Even 2D games can benefit from using WebGL instead of Canvas • Sprite stress test ◦ Using Canvas2D ◦ Using WebGL

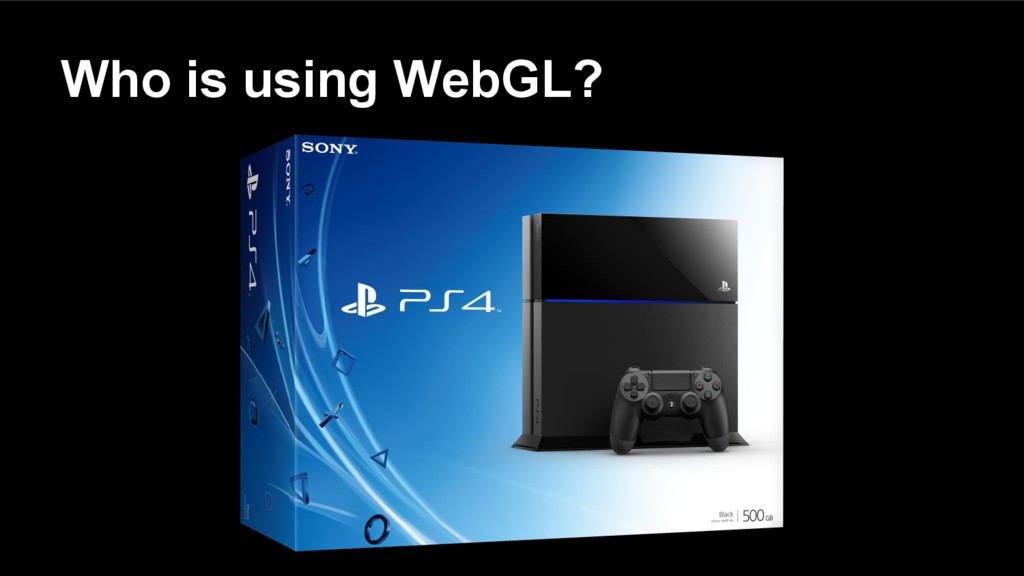

30. Who is using WebGL?

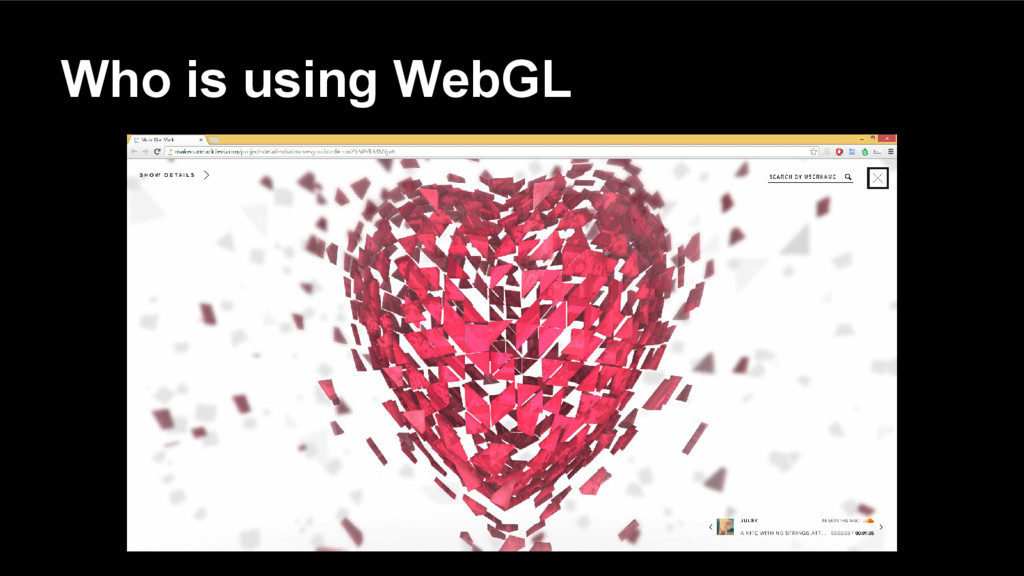

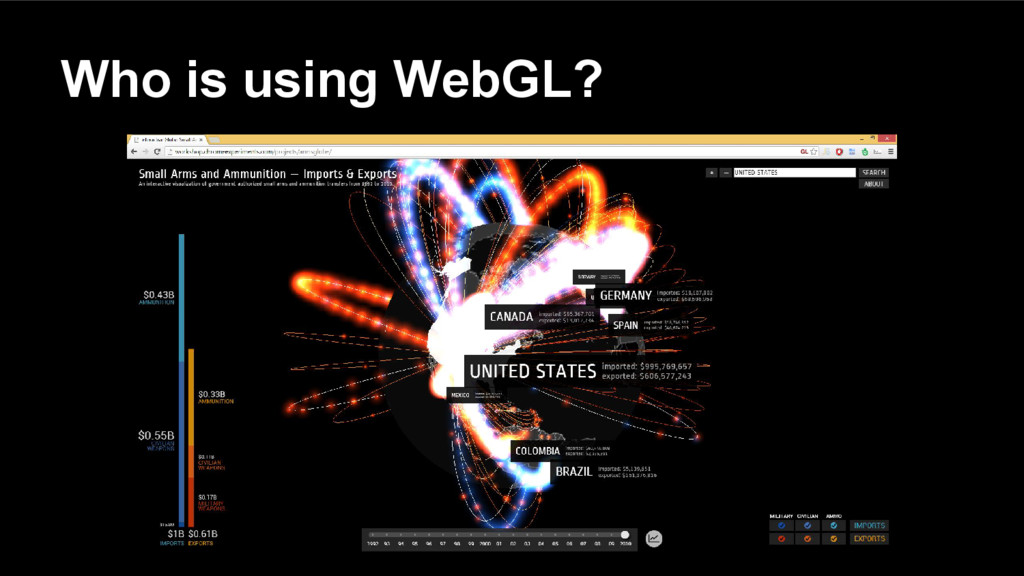

31. Who is using WebGL

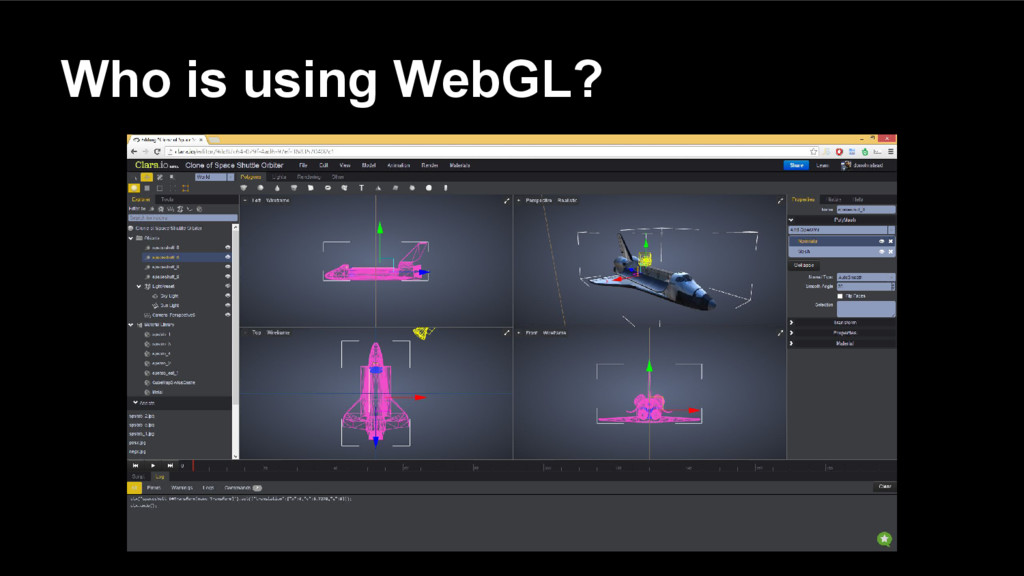

32. Who is using WebGL?
33. Who is using WebGL?

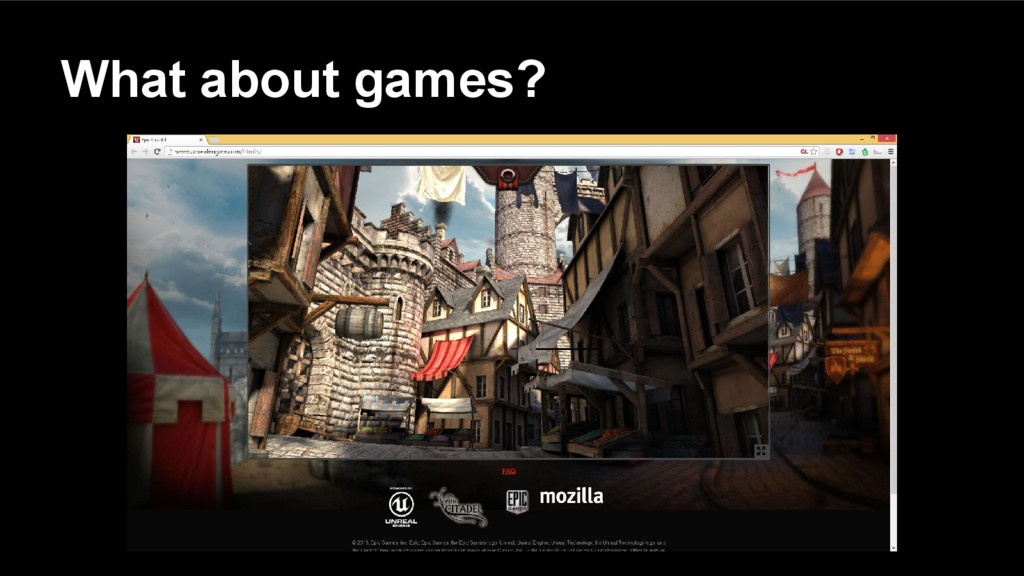

34. What about games?

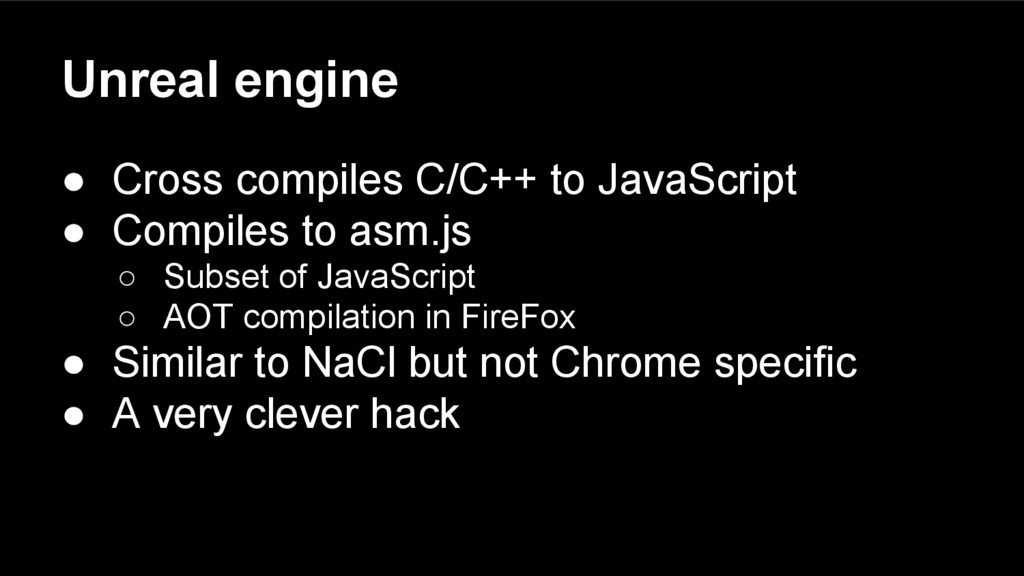

35. Unreal engine • Cross compiles C/C++ to JavaScript • Compiles to asm.js ◦ Subset of JavaScript ◦ AOT compilation in FireFox • Similar to NaCl but not Chrome specific • A very clever hack

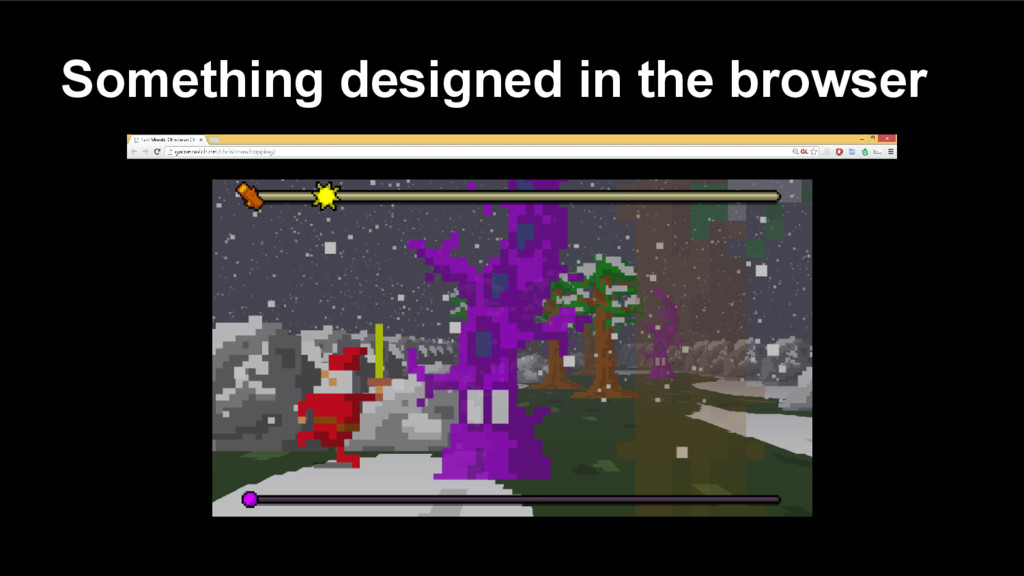

36. Something designed in the browser

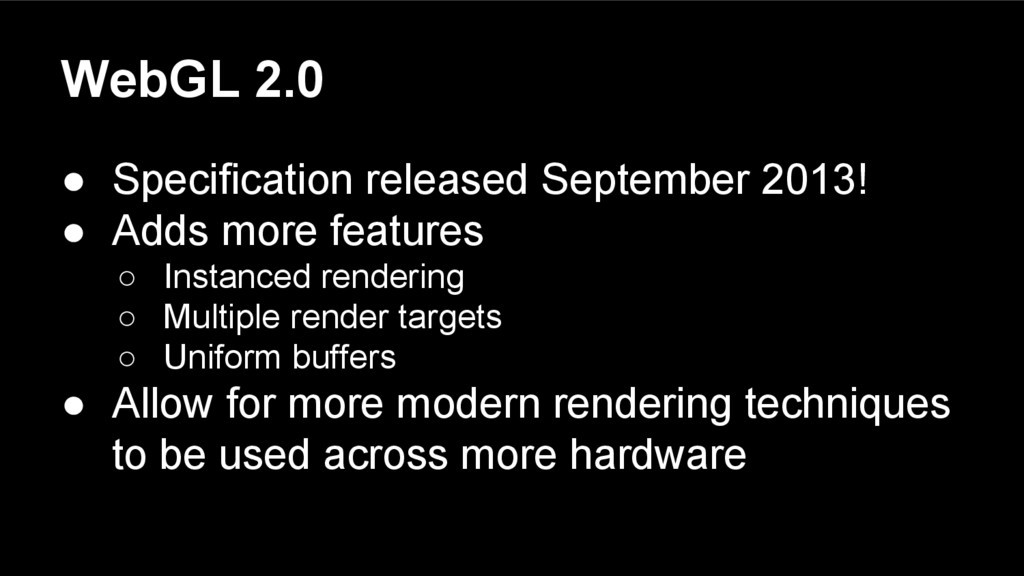

37. WebGL 2.0 • Specification released September 2013! • Adds more features ◦ Instanced rendering ◦ Multiple render targets ◦ Uniform buffers • Allow for more modern rendering techniques to be used across more hardware

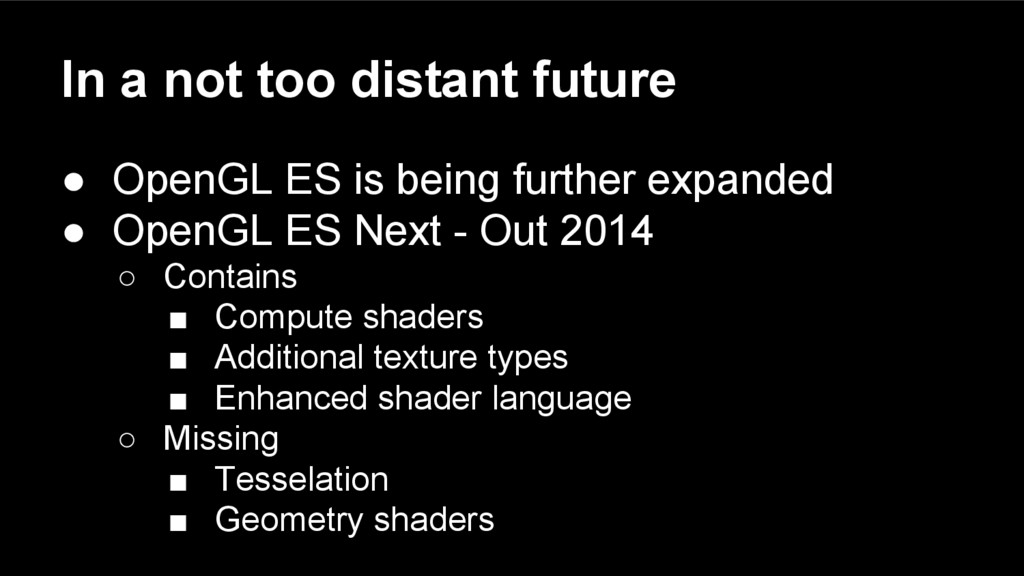

38. In a not too distant future • OpenGL ES is being further expanded • OpenGL ES Next - Out 2014 ◦ Contains ▪ Compute shaders ▪ Additional texture types ▪ Enhanced shader language ◦ Missing ▪ Tesselation ▪ Geometry shaders

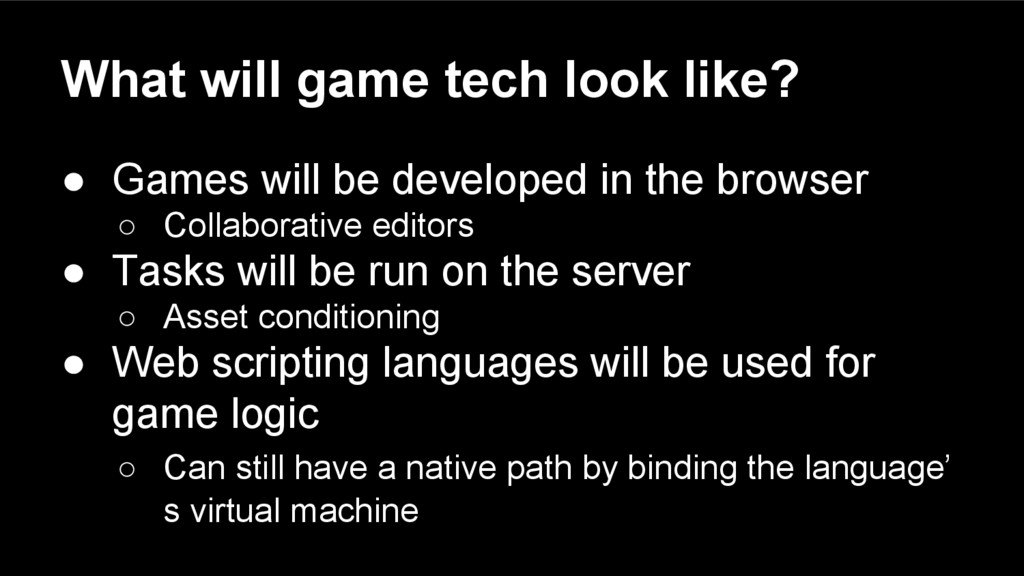

39. What will game tech look like? • Games will be developed in the browser ◦ Collaborative editors • Tasks will be run on the server ◦ Asset conditioning • Web scripting languages will be used for game logic ◦ Can still have a native path by binding the language’ s virtual machine

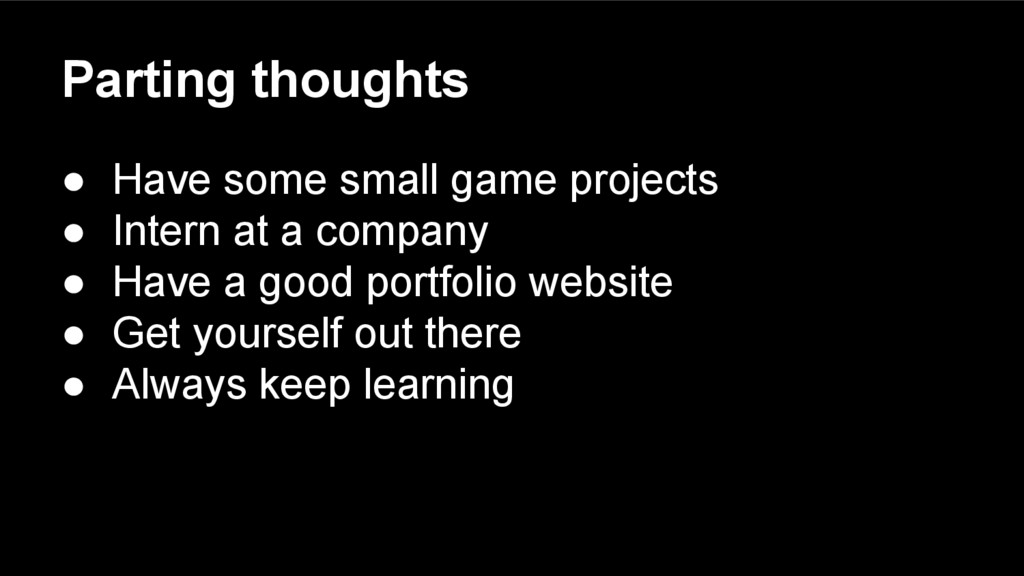

40. Parting thoughts • Have some small game projects • Intern at a company • Have a good portfolio website • Get yourself out there • Always keep learning
41. Thank you! Questions???? g+ google.com/+DonOlmstead twitter @don_olmstead www donolmstead.me github github.com/donny-dont
