DSSAT 2021 Update

DSSAT 2021 Update

The following presentation entitled "Improvement and Application of Agroecosystem Models: The DSSAT Experience" was presented by Gerrit Hoogenboom during the Symposium - "Improvement and Application of Crop Growth and Agroecosystem Models for Knowledge Advancement and Sustainable Development" as part of the 2021 ASA-CSSA-SSSA Annual Meeting held in Salt Lake City, Utah, USA

50524a6c17766c1b96df5199de528249?s=128

DSSAT Foundation

November 17, 2021
Tweet

Transcript

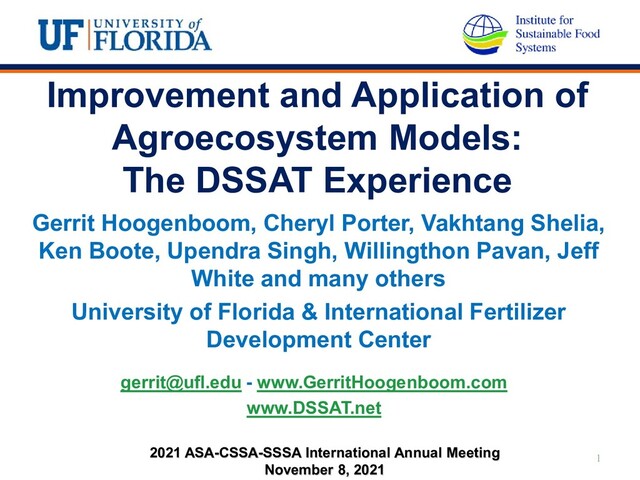

  1. 1 Improvement and Application of Agroecosystem Models: The DSSAT Experience

    2021 ASA-CSSA-SSSA International Annual Meeting November 8, 2021 Gerrit Hoogenboom, Cheryl Porter, Vakhtang Shelia, Ken Boote, Upendra Singh, Willingthon Pavan, Jeff White and many others University of Florida & International Fertilizer Development Center gerrit@ufl.edu - www.GerritHoogenboom.com www.DSSAT.net
  2. 2 • IBSNAT Project; USAID, 1982-193 • Minimum Data Set

    Concept, 1983-1986 • Initial models included the CERES-Maize, CERES-Wheat and SOYGRO soybean models. • Data standards for compatibility of models (1986, 1994) • DSSAT v2.1 released in 1986 • ICASA, 1994 - 2003 • IDSSAT Version 3.5 released in 1998 (after project ended) • DSSAT Cropping System Model, DSSAT v4 released in early 2004 • DSSAT Version 4.02 in 2006, v4.5 in 2012, v4.6 in 2015 • DSSAT Version 4.7 in 2017, v4.7.5 in 2019 • DSSAT Version 4.8 in 2021 (?) Some Historical Notes on DSSAT
  3. 3 Original scientific publications

  4. 4 Original User’s Guides

  5. 5 Initial price: US $495 + shipping costs Updated price:

    US $195 + shipping costs Free download from DSSAT portal Free download & Open Source 3-clause BSD license Original Software
  6. 6 The DSSAT Crop Modeling Ecosystem www.DSSAT.net

  7. 7 DSSAT is not just a software program but an

    ecosystem of: • Crop model users • Crop model trainers • Crop model developers • Models for the most important food, feed, fiber, fuel, and vegetable crops • Tools and utilities for data preparation • Minimum data for model calibration and evaluation • ICASA Data standards • Application programs for assessing real-world problems
  8. 8 Country Downloads India 2493 China 1536 USA 1307 Pakistan

    1127 Brazil 996 Iran 480 Argentina 473 Ethiopia 444 Indonesia 403 Thailand 328 Philippines 277 Germany 255 Peru 233 Colombia 212 Spain 197 Nigeria 179 Mexico 168 Italy 161 South Africa 156 United Kingdom 155 Total 15501 Countries 183
  9. 9 DSSAT Interface & Organization

  10. 10 Input and Output Files Format

  11. 11 Cropping System Model (CSM) Structure

  12. 12 Cropping System Model (CSM) Structure

  13. Plant Modules

  14. Cropping System Model (CSM) 14 Net Income Resource use Environmental

    Plant growth (grain, biomass, roots, etc.) Plant development (time to flowering, maturity, etc.) Yield Soil conditions (physical & chemical properties by layer) Weather (daily rainfall, solar radiation, max & min temperatures, …) Management events (sowing, irrigation, fertilizer, organic matter, tillage, harvest) Genetics (cultivar- specific parameters controlling growth and development) Crop Model Simulation
  15. DSSAT Advancement • Improve model performance • Improve model functionality

    • Improve portability • Add new crops • Add new crop modules • Add new capabilities and process simulations • Add new tools and utilities • Develop new model applications • Add new experimental data that encompass new environments and/or new management scenarios
  16. Genetics in Crop Models • Current crop models use empirical

    genotype specific parameters (GSPs) for cultivar environment interactions that are not linked to actual genes. These GSPs do not adequately include the genetic (G) and gene-by- environment interaction (G x E) effects on crop development, thus inherent limitations. • Genetics in the DSSAT Cropping System Model – Species coefficients – Ecotype coefficients – Cultivar coefficients • Bridging the gap between biotechnology, breeding and crop management
  17. Simulation of plant responses to temperature and photoperiod 1.0 Temperature

    (°C) Temp base Temp Max Opt 1 Opt 02 Daylength (h) CSDL PPSEN Model 1/d =f(T) x f(D) Stagei = f(photothermal days) Cultivar Coefficients Species Coefficients CSM Genetic Coefficients
  18. 18 Predicting time to flowering for dry bean based on

    QTL and Environmental Variables Stand Alone Gene-Based Model CSM-CROPGRO-Dry Bean
  19. 19 Gene-Based Model Integration diagram

  20. 20 Input Files • The reading of the file '.GEN'

    uses the line code (VAR#) and the TF (QTLs) with values of 1 and -1. For each experiment 13 RILs/genotypes were used. BNGRO047.GEN CTFL1101.BNX • If GENF is equal to Y the Gene- Based model can be executed. Otherwise, it will not affect the simulation.
  21. 21 Predicted versus Observed Flowering Original Model Gene-based Model

  22. 22 Final Simulated Yield Gene-based module integrated into the Main

    Model Original Model
  23. Crop simulation models as a tool for yield forecasting Yield

    Forecasting • DSSAT Crop Simulation Model • Input data requirements – Access to current and historical daily weather data – Local soil characteristics – Crop management • Benefits – Predict yield directly – No dependence on satellite data – Can be run locally – free!
  24. Yield forecasting for wheat – Case Study Yield Forecasting •

    Model evaluation - Akmola region – Observed 1981 to 2015 – Simulated 1984 to 2018 Simulated & Observed Historical Yield Historical Regional & FAO Yield
  25. 2019 Wheat Yield Forecast • Ensemble yield forecast - May

    1, 2019 • Current weather data January 1 to May 1, 2019 for Petropavlovsk • Historical weather data for 1984 to 2018 • Each line represents a different weather ensemble  2019 weather data  May 1  Historical weather data 
  26. 2019 Wheat Yield Forecast • Ensemble Forecast – Petropavlovsk •

    Monthly forecast dates from April 1 to August 1 • Predicted wheat yield variability and uncertainty is reduced for later forecast dates • Accurate prediction on July 1 • Significant change between June 1 and July 1 forecast dates • The forecast improves as more current weather information becomes available
  27. 2019 Wheat Yield Forecast • Monthly Ensemble Forecast – Petropavlovsk

    • Low rainfall in May & high rainfall in June
  28. 28

  29. Crop Yield Forecasting Using the CCAFS Regional Agricultural Forecasting Toolbox

    (CRAFT) in Ethiopia Kindie Tesfaye, Esayas Lemma, Robel Takele, Vakhtang Shelia , Addisu Dabale, Pierre C. Sibiry Traore, Gerrit Hoogenboom, Dawit Solomon GHACOF 58, May 27, 2021
  30. 30

  31. 31

  32. 32 Perennial Forage Model-Alfalfa

  33. 33 CROPGRO-Strawberry

  34. 34 CROPGRO-Carinata

  35. 35 CROPGRO-Quinoa

  36. 36 MANIHOT-Cassava How do we model cassava?

  37. 37 MANIHOT-Cassava

  38. 38 Energy balance

  39. 39 Time Series Calibration

  40. 40 Coupling Pests and Diseases

  41. Challenges DSSAT Future? • Free software • Mixed language programming

    • Open Source for the model and tools • New tools and applications • New platforms (Linux, iOS, Web) • Linkages with other models using wrappers and docking technologies • Driven by the availability of resources • Driven by the interest of the user community
  42. Challenges DSSAT Future? • New crops: safflower, alfalfa, teff, sugarbeet,

    quinoa, chia, carinata, strawberry, hemp • New crop modules: CROPGRO-Perennial, NWheat-Teff, CERES-Rice-Teff, SAMUCA- Sugarcane • New processes: – Salinity – Plant P & Soil and plant K – 2D soil model • Greenhouse Gas Emissions • Pest and disease coupling
  43. DSSAT Portal www.DSSAT.net

  44. DSSAT Development Sprint July 26-30, 2021 @ International Fertilizer Development

    Center
  45. DSSAT 2021 @ University of Georgia DSSAT 2021 @ TUM,

    Germany
  46. 46

  47. 47

  48. 48 Questions? www.DSSAT.net
