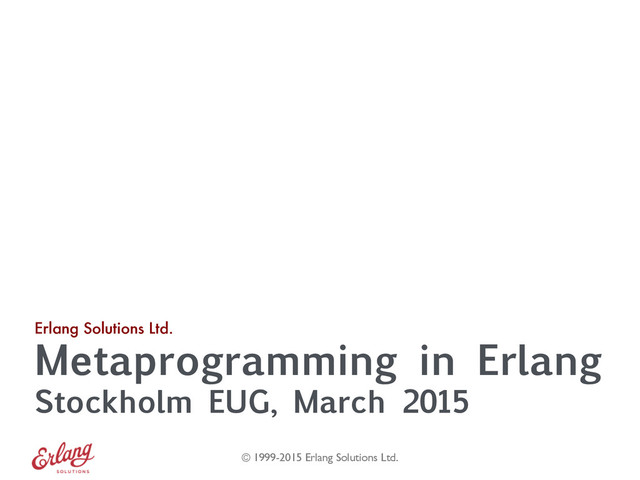

Metaprogramming in Erlang

Talk given at the Erlang User Group in Stockholm.

Enrique Fernández

March 18, 2015

Transcript

24 slides
  1. © 1999-2015 Erlang Solutions Ltd. • Enrique Fernández - MSc.

    Computer Science, URV, Spain - Working with Erlang since 2011 - AST (URV), Spain (~2.5 years) - Ericsson Research, Sweden (~1.5 years) - Erlang Solutions, Sweden (2+ years) - Long time “black magic”1 enthusiast
 • Contact: [email protected] Speaker 2 1 Enabling Collaboration Transparency with Computational Reflection. CRIWG 2010.
 P.García, E.Fernández-Casado, C.Angles & M.Ferre.
  2. © 1999-2015 Erlang Solutions Ltd. Metaprogramming 3 • Ability to

    treat programs as data. • Ability to write programs that read, analyse and/ or transform other programs.
  3. © 1999-2015 Erlang Solutions Ltd. Metaprogramming (Ruby example) class  Person

         def  initialize(name)          @name  =  name      end   end   jimmy  =  Person.new(“Jimmy")   #  =>  #<Person:...  @name="Jimmy">   jimmy.class   #  =>  Person   jimmy.name   #  =>  NoMethodError:  undefined  method  `name`  for  #<Person:...  @name="Jimmy">   #        ...   Person.instance_eval  do      define_method("name")  {  @name  }   end   jimmy.name   #  =>  "Jimmy" 4
  4. © 1999-2015 Erlang Solutions Ltd. Metaprogramming (Python example) class  Person:

             def  __init__(self,  name):                  self._name  =  name   jimmy  =  Person("Jimmy")   #  =>  <__main__.Person  instance  at  0x10868fbd8>   jimmy.name   #  =>  AttributeError:  Person  instance  has  no  attribute  'name'   jimmy.name()   #  =>  AttributeError:  Person  instance  has  no  attribute  'name'   setattr(Person,  "name",  lambda  self:  self._name)   jimmy.name   #  =>  <bound  method  Person.<lambda>  of  <__main__.Person  instance  at   0x10868fbd8>>   jimmy.name()   #  =>  'Jimmy' 5
  5. © 1999-2015 Erlang Solutions Ltd. Metaprogramming (JS example) function  Person(name)

     {          this._name  =  name;   }   var  jimmy  =  new  Person("Jimmy");   jimmy.name()   //  =>  ReferenceError:  name  is  not  defined   Person.prototype.name  =  function()  {          return  this._name;   };   jimmy.name();   //  =>  'Jimmy' 6
  6. © 1999-2015 Erlang Solutions Ltd. 8 Is there support for

    metaprogramming in Erlang? Yes!
 It may not obvious, though.
  7. © 1999-2015 Erlang Solutions Ltd. Metaprogramming (Erlang example) -­‐module(person).

    -­‐export([new/1]).   -­‐record(person,  {name}).   new(Name)  -­‐>          #person{name  =  Name}. 9 Jimmy  =  person:new("Jimmy").   %%  =>  {person,  "Jimmy"}   person:name(Jimmy).   %%  =>  exception  error:   undefined  function  person:name/1   NameF  =  forms:to_abstract("
    name(#person{name  =  Name})  -­‐>
          Name.   ").   meta:add_function(      NameF,      _Export  =  true,      person).   person:name(Jimmy).   %%  =>  "Jimmy"
  8. © 1999-2015 Erlang Solutions Ltd. 11 How is metaprogramming supported

    in Erlang? - Abstract format - Parse transformations - Hot code loading (optional)
  9. © 1999-2015 Erlang Solutions Ltd. Abstract Format 12 • Recursive

    representation of Erlang code • Easier to manipulate than vanilla Erlang • Use +debug_info option to include a module’s abstract format in its beam file • Use beam_lib/epp modules to fetch it
  10. © 1999-2015 Erlang Solutions Ltd. Abstract Format 13 -­‐module(person).

    -­‐export([new/1]).   -­‐record(person,  {name}).   new(Name)  -­‐>          #person{name  =  Name}. [{attribute,1,file,{"person.erl",1}},    {attribute,18,module,person},        {attribute,20,export,[{new,1}]},        {attribute,22,record,      {person,        [{record_field,22,            {atom,22,name}}]}},        {function,24,new,1,      [{clause,24,          [{var,24,'Name'}],          [],          [{record,25,person,              [{record_field,25,                {atom,25,name},                {var,25,'Name'}}]}]}]},        {eof,26}] Lots of Irritating Single Curly Brackets
 (LISCB)
  11. © 1999-2015 Erlang Solutions Ltd. Parse Transformations 14 • Compile-time

    transformations • After the preprocessor and before the compiler • parse_transform/2 • +{parse_transform, Module} • Identity transform2 2 https://github.com/erlang/otp/blob/maint/lib/stdlib/examples/erl_id_trans.erl
  12. © 1999-2015 Erlang Solutions Ltd. Hot Code Loading 15 •

    Load a new version of a module without disrupting your running system • code:load_file/1, code:load_binary/3 • What out for processes running older versions of the module
  13. © 1999-2015 Erlang Solutions Ltd. Metaprogramming Made “Easy” • forms3

    - lists-like interface (e.g. map, reduce, all, any) - convert to/from abstract code - support for defining functions dynamically - forms_only and all traversal modes • meta4 - abstracts away the complexity of modifying an Erlang module - works at both compile and run time - permanent and transient changes 16 4 https://github.com/efcasado/meta 3 https://github.com/efcasado/forms
  14. © 1999-2015 Erlang Solutions Ltd. forms (identity transform) 17 Forms

     =    forms:read(person),   Forms  ==  forms:map(fun(Form)  -­‐>                                io:format("~p~n",                                                  [Form]),                              Form                      end,                      Forms,                      [forms_only]),   %%  =>  true {attribute,1,file,{"person.erl",1}}   {attribute,18,module,person}   {attribute,20,export,[{new,1}]}   {attribute,22,record,    {person,[{record_field,22,{atom,22,name}}]}}   {function,24,new,1,          [{clause,24,                    [{var,24,'Name'}],                    [],                    [{record,25,person,                              [{record_field,25,{atom,25,name}, {var,25,'Name'}}]}]}]}   {clause,24,                  [{var,24,'Name'}],                  [],                  [{record,25,person,                      [{record_field,25,{atom,25,name},                          {var,25,'Name'}}]}]}   {var,24,'Name'}   {record,25,person,    [{record_field,25,{atom,25,name},        {var,25,'Name'}}]}   {record_field,25,{atom,25,name},{var,25,'Name'}}   {atom,25,name}   {var,25,'Name'}   {eof,26}
  15. © 1999-2015 Erlang Solutions Ltd. forms (count anonymous variables) 18

    -­‐module(m).   -­‐export([foo/0]).   -­‐record(r,  {x,  y,  z}).   foo()  -­‐>          _  =  1,          bar(1,  2,  #r{x=1,  y=2,  z=3}).   bar(_,  _,  R  =  #r{x=_,  y=Y,  z=Z})  -­‐>          Z. forms:reduce(          fun({var,  _,  '_'},  Count)  -­‐>                  Count  +  1;          (_,  Count)  -­‐>                  Count          end,          0          forms:read(m)).   %%  =>  4
  16. © 1999-2015 Erlang Solutions Ltd. meta (example) 19 -­‐module(s).

    -­‐export([start/0]).   -­‐export(['_loop'/0]).   start()  -­‐>          spawn(fun()  -­‐>  '_loop'()  end),          ok.   '_loop'()  -­‐>          X  =  get_value(),          io:format("~p:  I've  got  ~p~n”,                              [self(),  X]),          timer:sleep(1000),          ?MODULE:'_loop'().   get_value()  -­‐>          2015. s:start().   <0.34.0>:  I've  got  2015   <0.34.0>:  I've  got  2015   <0.34.0>:  I've  got  2015   <0.34.0>:  I've  got  2015   NewF  =  forms:to_abstract("          get_value()  -­‐>  -­‐1.   ").   meta:replace_function(get_value,  0,   NewF,  s,  []).   <0.34.0>:  I've  got  -­‐1   <0.34.0>:  I've  got  -­‐1
  17. © 1999-2015 Erlang Solutions Ltd. What can I do with

    forms/meta? • behaviours25 - Erlang behaviours on steroids - Sound defaults for your behaviour’s callbacks - “Interface —> Abstract class” • erldocs6 - Your module’s documentation as a first-class citizen 20 6 https://github.com/efcasado/erldocs 5 https://github.com/efcasado/behaviours2
  18. © 1999-2015 Erlang Solutions Ltd. behaviours2 (dummy behaviour) 21 -­‐module(my_awesome_behaviour).

      -­‐export([export_all]).   -­‐type  t1()  ::  any().   -­‐type  t2()  ::  any().   -­‐callback  f1()  -­‐>  t1().   -­‐callback  f2()  -­‐>  t2().   -­‐callback  f3()  -­‐>  t2().   f1()  -­‐>          'default_f1'.   f2()  -­‐>          'default_f2'.   f3()  -­‐>          f2(). -­‐module(my_awesome_module).   -­‐compile({parse_transform,
                    bhvs2_pt}).   -­‐behaviour(my_awesome_behaviour).   f2()  -­‐>      'custom_f2'. my_awesome_module:f1().   my_awesome_module:f2().   my_awesome_module:f3().
  19. © 1999-2015 Erlang Solutions Ltd. behaviours2 (dummy behaviour) 22 -­‐module(my_awesome_behaviour).

      -­‐export([export_all]).   -­‐type  t1()  ::  any().   -­‐type  t2()  ::  any().   -­‐callback  f1()  -­‐>  t1().   -­‐callback  f2()  -­‐>  t2().   -­‐callback  f3()  -­‐>  t2().   f1()  -­‐>          'default_f1'.   f2()  -­‐>          'default_f2'.   f3()  -­‐>          f2(). -­‐module(my_awesome_module).   -­‐compile({parse_transform,
                    bhvs2_pt}).   -­‐behaviour(my_awesome_behaviour).   f2()  -­‐>      'custom_f2'. my_awesome_module:f1().   %  =>  default_f1   my_awesome_module:f2().   %  =>  custom_f2   my_awesome_module:f3().   %  =>  custom_f2.
  20. © 1999-2015 Erlang Solutions Ltd. behaviours2 (gen_server) 23 -­‐module(echo_server).

    -­‐compile({parse_transform,  bhv2_pt}).   -­‐behaviour(gen_server).   -­‐export([handle_call/3]).   handle_call(Msg,  From,  State)  -­‐>      Reply  =  Msg,      {reply,  Msg,  State}. -­‐module(echo_server).   -­‐behaviour(gen_server).   -­‐export([init/1,  handle_call/3,  handle_cast/2,                    handle_info/2,  terminate/2,                    code_change/3]).   -­‐record(state,  {}).   -­‐type  state()  ::  #state{}.   -­‐spec  init(Args  ::  [])  -­‐>                      {ok,  state()}  |                      {ok,  state(),  timeout()}  |                      ignore  |                      {stop,  Reason  ::  term()}.   init([])  -­‐>          {ok,  #state{}}.   -­‐spec  handle_call(Request  ::  term(),                                      From  ::  {pid(),  Tag  ::  term()},                                      State  ::  state())  -­‐>                      {reply,  Reply  ::  term(),  state()}  |                      {reply,  Reply  ::  term(),  state(),  timeout()}  |                      {noreply,  state()}  |                      {noreply,  state(),  timeout()}  |                      {stop,  Reason  ::  term(),  Reply  ::  term(),  state()}  |                      {stop,  Reason  ::  term(),  state()}.   handle_call(Msg,  _From,  State)  -­‐>          Reply  =  Msg,          {reply,  Reply,  State}.   -­‐spec  handle_cast(Msg  ::  term(),                                      State  ::  state())  -­‐>                      {noreply,  state()}  |                      {noreply,  state(),  timeout()}  |                      {stop,  Reason  ::  term(),  state()}.   handle_cast(Msg,  State)  -­‐>                  {noreply,  State}.   -­‐spec  handle_info(Info  ::  term(),                                      State  ::  state())  -­‐>                      {noreply,  state()}  |                      {noreply,  state(),  timeout()}  |                      {stop,  Reason  ::  term(),  state()}.   handle_info(Info,  State)  -­‐>          {noreply,  State}.   -­‐spec  terminate(Reason  ::  term(),                                  State  ::  state())  -­‐>  any().   terminate(_Reason,  _State)  -­‐>          ok.   -­‐spec  code_change(OldVsn  ::  term()  |  {down,  Vsn  ::  term()},                                      State  ::  state(),                                      Extra  ::  term())  -­‐>                      {ok,  NewState  ::  state()}.   code_change(_OldVsn,  State,  _Extra)  -­‐>          {ok,  State} Java is verbose,
 they said.
  21. © 1999-2015 Erlang Solutions Ltd. erldocs (example) 24 -­‐module(dummy_module).

    -­‐compile({parse_transform,  erldocs_pt}).   -­‐export([f1/0,  f2/1]).   -­‐doc  "This  is  the  documentation  for  f1".   -­‐spec  f1()  -­‐>  'f1'.   f1()  -­‐>  f1.   -­‐doc  "This  is  the  documentation  for  f2".   -­‐spec  f2(X  ::  integer())  -­‐>  boolean().   f2(N)  -­‐>          (N  rem  2)  ==  0. dummy_module:help(f1,  0).   ###  f1/0          f1()  -­‐>  f1   This  is  the  documentation  for  f1
