Transcript
1 Shaunak Kashyap Developer Advocate at Elastic @shaunak Elasticsearch for
SQL users
The Elastic Stack 2 Store, Index & Analyze User Interface
Plugins Ingest Hosted Service
3 Agenda Search queries Data modeling Architecture 1 2 3
2 4 Agenda Search queries Data modeling Architecture 1 3
5 Agenda Search queries Data modeling 1 2 3 Architecture
6 Search Queries https://www.flickr.com/photos/samhames/4422128094
7 CREATE TABLE IF NOT EXISTS emails ( sender VARCHAR(255)
NOT NULL, recipients TEXT, cc TEXT, bcc TEXT, subject VARCHAR(1024), body MEDIUMTEXT, datetime DATETIME ); CREATE INDEX emails_sender ON emails(sender); CREATE FULLTEXT INDEX emails_subject ON emails(subject); CREATE FULLTEXT INDEX emails_body ON emails(body); curl -XPOST 'http://localhost:9200/enron' -d' { "mappings": { "email": { "properties": { "sender": { "type": "string", "index": "not_analyzed" }, "recipients": { "type": "string", "index": "not_analyzed" }, "cc": { "type": "string", "index": "not_analyzed" }, "bcc": { "type": "string", "index": "not_analyzed" }, "subject": { "type": "string", "analyzer": "english" }, "body": { "type": "string", "analyzer": "english" } } } } Schemas
8 Loading the data
9 [LIVE DEMO] • Search for text in a single
field • Search for text in multiple fields • Search for a phrase https://github.com/ycombinator/es-enron
10 Other Search Features Stemming Synonyms Did you mean? •
Jump, jumped, jumping • Queen, monarch • Monetery => Monetary
11 Data Modeling https://www.flickr.com/photos/samhames/4422128094 https://www.flickr.com/photos/ericparker/7854157310
12 To analyze or not to analyze? PUT cities/city/1 {
"city": "Louisville", "population": 597337 } PUT cities/city/2 { "city": "New Albany", "population": 8829 } PUT cities/city/3 { "city": "New York", "population": 8406000 } POST cities/_search { "query": { "match": { "city": "New Albany" } } } QUERY + = ?

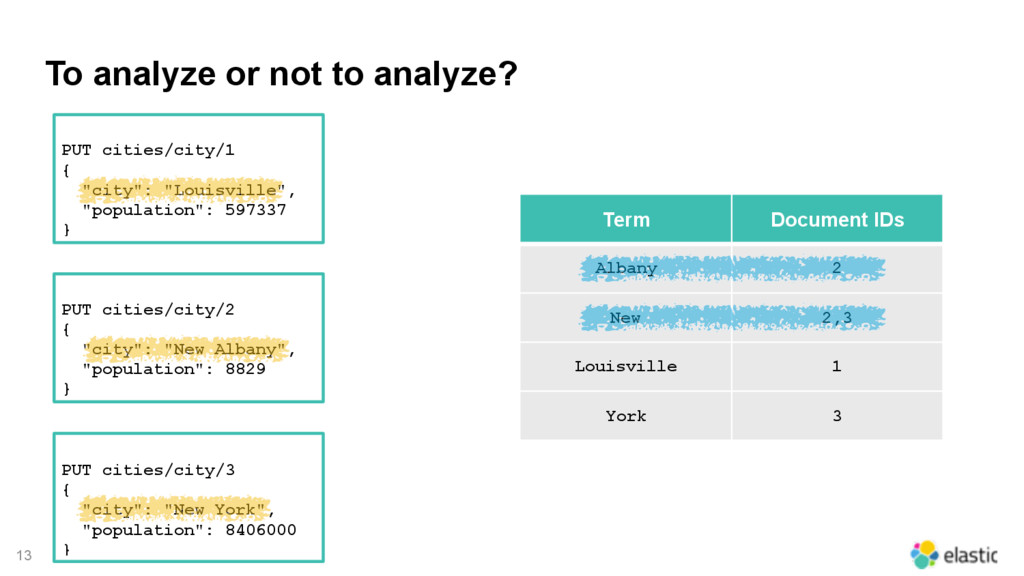

13 To analyze or not to analyze? PUT cities/city/1 {
"city": "Louisville", "population": 597337 } PUT cities/city/2 { "city": "New Albany", "population": 8829 } PUT cities/city/3 { "city": "New York", "population": 8406000 } Term Document IDs Albany 2 New 2,3 Louisville 1 York 3

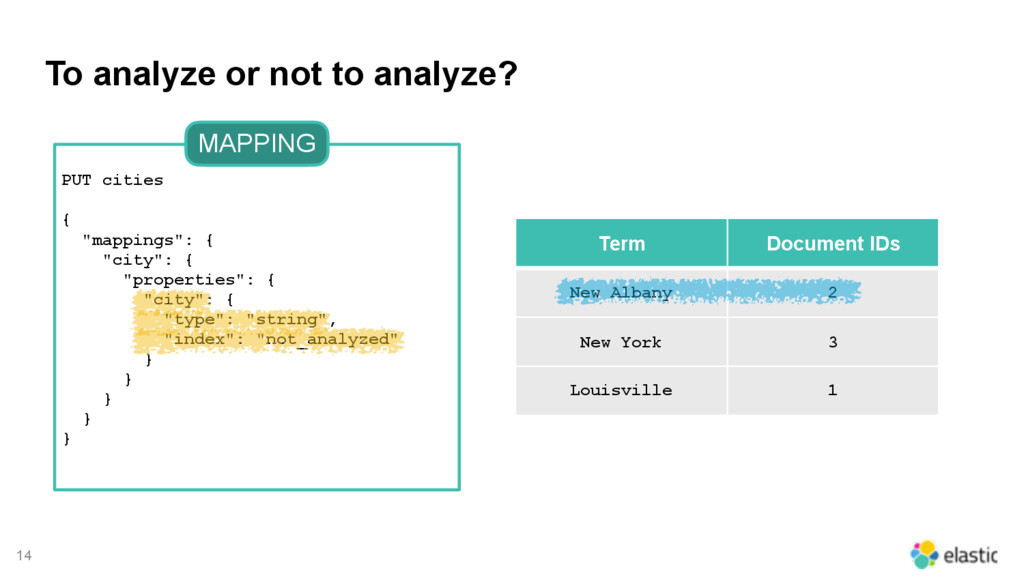

14 To analyze or not to analyze? PUT cities {
"mappings": { "city": { "properties": { "city": { "type": "string", "index": "not_analyzed" } } } } } MAPPING Term Document IDs New Albany 2 New York 3 Louisville 1

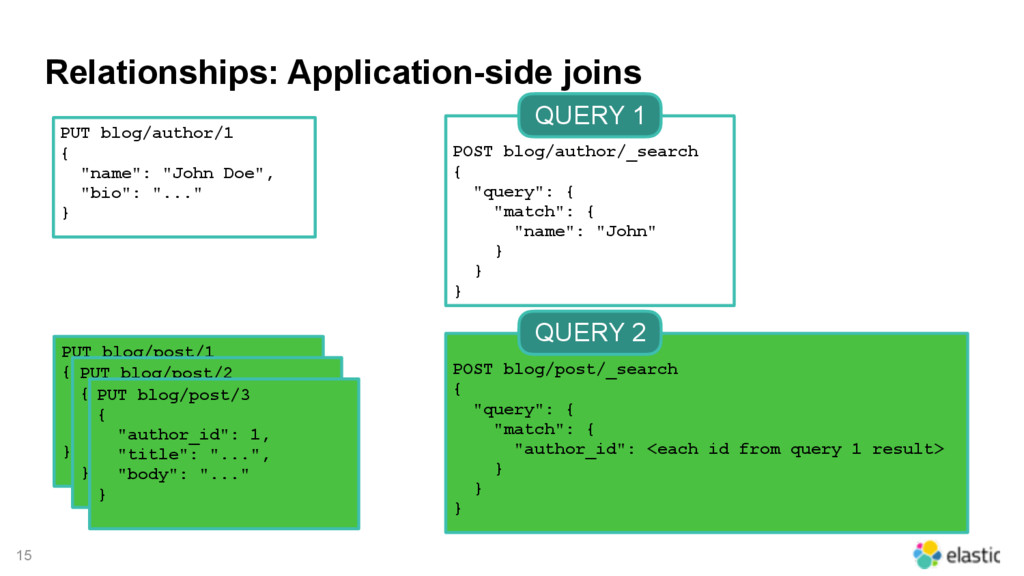

PUT blog/post/1 { "author_id": 1, "title": "...", "body": "..." }
PUT blog/post/2 { "author_id": 1, "title": "...", "body": "..." } PUT blog/post/3 { "author_id": 1, "title": "...", "body": "..." } 15 Relationships: Application-side joins PUT blog/author/1 { "name": "John Doe", "bio": "..." } POST blog/author/_search { "query": { "match": { "name": "John" } } } QUERY 1 POST blog/post/_search { "query": { "match": { "author_id": <each id from query 1 result> } } } QUERY 2
PUT blog/post/1 { "author_name": "John Doe", "title": "...", "body": "..."
} PUT blog/post/2 { "author_name": "John Doe", "title": "...", "body": "..." } 16 Relationships: Data denormalization POST blog/post/_search { "query": { "match": { "author_name": "John" } } } QUERY PUT blog/post/3 { "author_name": "John Doe", "title": "...", "body": "..." }

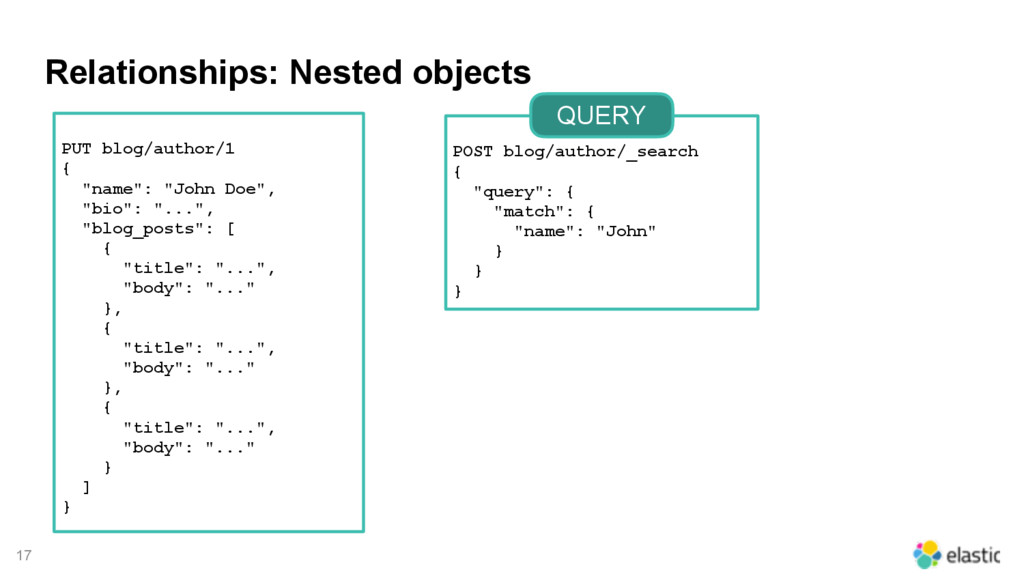

17 Relationships: Nested objects PUT blog/author/1 { "name": "John Doe",
"bio": "...", "blog_posts": [ { "title": "...", "body": "..." }, { "title": "...", "body": "..." }, { "title": "...", "body": "..." } ] } POST blog/author/_search { "query": { "match": { "name": "John" } } } QUERY
18 Relationships: Parent-child documents PUT blog/author/1 { "name": "John Doe",
"bio": "..." } POST blog/post/_search { "query": { "has_parent": { "type": "author", "query": { "match": { "name": "John" } } } QUERY PUT blog { "mappings": { "author": {}, "post": { "_parent": { "type": "author" } } } } PUT blog/post/1?parent=1 { "title": "...", "body": "..." } PUT blog/post/2?parent=1 { "title": "...", "body": "..." } PUT blog/post/3?parent=1 { "title": "...", "body": "..." }
19 Architecture https://www.flickr.com/photos/samhames/4422128094 https://www.flickr.com/photos/haribote/4871284379/
20 RDBMS Triggers database by Creative Stall from the Noun
Project 1 2
21 Async replication to Elasticsearch 1 2 3 ESSynchronizer flow
by Yamini Ahluwalia from the Noun Project
22 Async replication to Elasticsearch with Logstash 1 2 3
23 Forked writes from application 1 2
24 Forked writes from application (more robust) 1 2 queue
by Huu Nguyen from the Noun Project ESSynchronizer 3 4

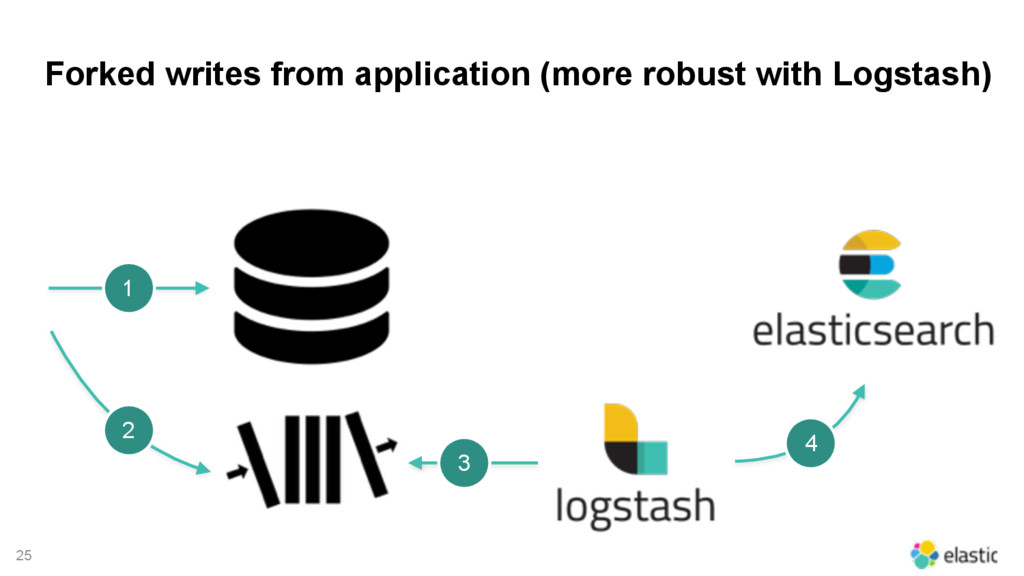

25 Forked writes from application (more robust with Logstash) 1
2 3 4
26 Questions? @shaunak https://www.flickr.com/photos/nicknormal/2245559230/
