Life as a Document in Elasticsearch

"Ever wondered about the lifecycle of a single document in Elasticsearch? What happens when you index it? How does Elasticsearch ensure a document is replicated and found across the whole cluster reliably? Does deleting a document really physically remove the document from disk? How do we get from a blob of text and keywords to near real-time search and analytics?

This talk will explain the when, where and why of your document's life inside of Elasticsearch. Alex and Boaz will take you through the journey of a document across a cluster, taking off with JSON and the curly braces, travelling through the network into the memory and all the analysis chains, heading further onto storage when writing into the transaction logs and Apache Lucene index, being read back by executing searches, all the way until the document is finally deleted.

Even though this talk will cover a lot of different aspects, it's a talk for those who may be less familiar with core searchfunctionality. You do not need to be an Apache Lucene wizard to follow along and find this session useful."

Transcript

1. Life of a document in Elasticsearch Alexander Reelsen - @spinscale Boaz Leskes - @bleskes
2. { } CC-BY-ND 4.0 Agenda 2 Life of a document in Elasticsearch
3. { } CC-BY-ND 4.0 Agenda 3 Life of a document in Elasticsearch How, when and where is a document stored/processed in Elasticsearch?
4. { } CC-BY-ND 4.0 About us Core developer & Marvel lead 4 Core & Shield developer Boaz Leskes Alexander Reelsen
5. { } CC-BY-ND 4.0 Exhibit A: A JSON document { "name" : "Elasticsearch - The definitive guide", "pages" : 721, "isbn13" : "978-1449358549", "authors" : [ "Clinton Gormley" , "Zachary Tong" ], "publish_date" : "2015/01/31", "category" : "IT > Search Engines", "description" : "Whether you need full-text search or real-time analytics...", } 5
6. { } CC-BY-ND 4.0 Exhibit A: A JSON document PUT /books/book/978-1449358549 { "name" : "Elasticsearch - The definitive guide", "pages" : 721, "isbn13" : "978-1449358549", "authors" : [ "Clinton Gormley" , "Zachary Tong" ], "publish_date" : "2015/01/31", "category" : "IT > Search Engines", "description" : "Whether you need full-text search or real-time analytics...", } 6
7. { } CC-BY-ND 4.0 Indexing a document 7 Elasticsearch Client PUT /books/book/978-1449358549 200 OK
8. { } CC-BY-ND 4.0 Indexing a document 8 Client PUT /books/book/978-1449358549 200 OK ?
9. { } CC-BY-ND 4.0 Receiving: Where to store it? 9 node  1 C PUT /books/book/978-1449358549 { }

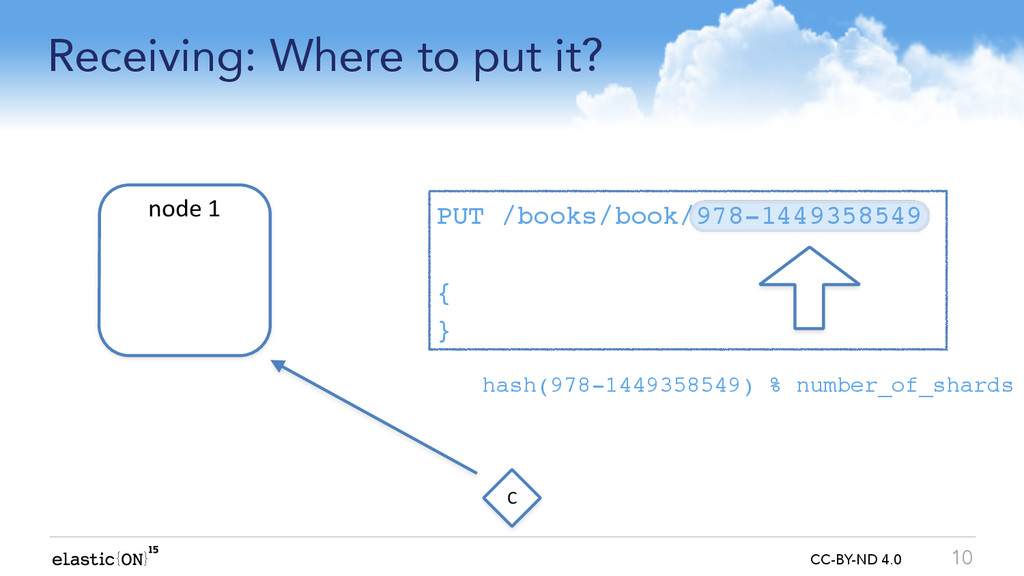

10. { } CC-BY-ND 4.0 Receiving: Where to put it? 10 node  1 C PUT /books/book/978-1449358549 { } hash(978-1449358549) % number_of_shards
11. { } CC-BY-ND 4.0 Receiving: Where to put it? 11 node  1 C PUT /books/book/978-1449358549 { } node  2
12. { } CC-BY-ND 4.0 Next step: Analysis 12 Each field is put into the inverted index { "name" : "Elasticsearch - The definitive guide", "pages" : 721, "isbn13" : "978-1449358549", "authors" : [ "Clinton Gormley" , "Zachary Tong" ], "publish_date" : "2015/01/31", "category" : "IT > Search Engines", "description" : "Whether you need full-text search or real-time analytics...", }
13. { } CC-BY-ND 4.0 Analysis 13 Each field is put into the inverted index Clinton Gormley -> Input Tokenization Analysis Clinton  Gormley [Clinton,  Gormley] [clinton,  gormley] Zachary  Tong [Zachary,  Tong] [zachary,  tong]
14. { } CC-BY-ND 4.0 Analysis 14 Resulting in a postings list Clinton Gormley -> Value Document  ID clinton 1 gormley 1 tong 1 zachary 1
15. { } CC-BY-ND 4.0 Lucene at work: Field by field { "name" : "Elasticsearch - The definitive guide", "pages" : 721, "isbn13" : "978-1449358549", "authors" : [ "Clinton Gormley" , "Zachary Tong" ], "publish_date" : "2015/01/31", "category" : "IT > Search Engines", "description" : "Whether you need full-text search or real-time analytics...", } 15
16. { } CC-BY-ND 4.0 Special case: _all field { "name" : "Elasticsearch - The definitive guide", "pages" : 721, "isbn13" : "978-1449358549", "authors" : [ "Clinton Gormley" , "Zachary Tong" ], "publish_date" : "2015/01/31", "category" : "IT > Search Engines", "description" : "Whether you need full-text search or real-time analytics...", } 16

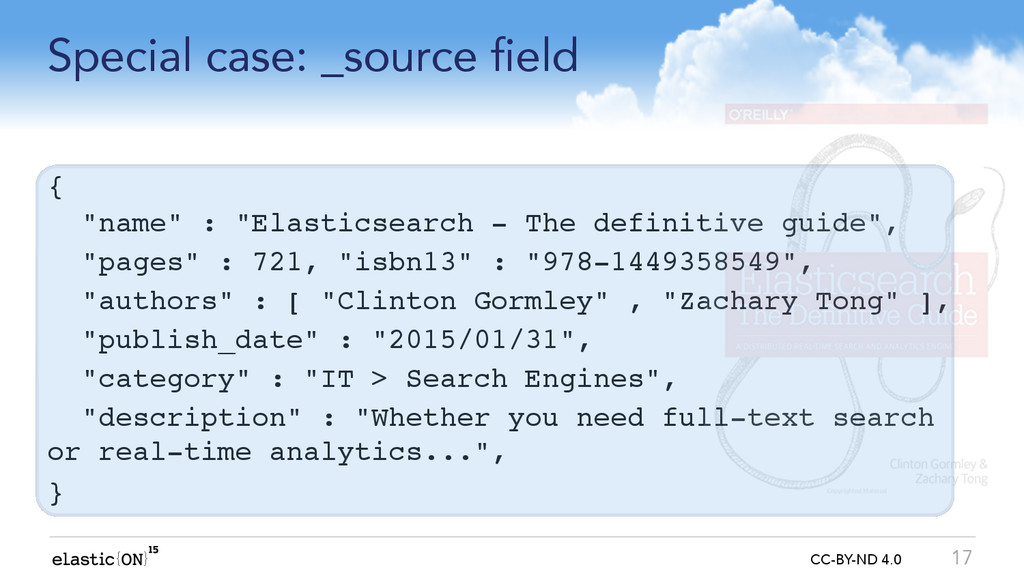

17. { } CC-BY-ND 4.0 Special case: _source field { "name" : "Elasticsearch - The definitive guide", "pages" : 721, "isbn13" : "978-1449358549", "authors" : [ "Clinton Gormley" , "Zachary Tong" ], "publish_date" : "2015/01/31", "category" : "IT > Search Engines", "description" : "Whether you need full-text search or real-time analytics...", } 17

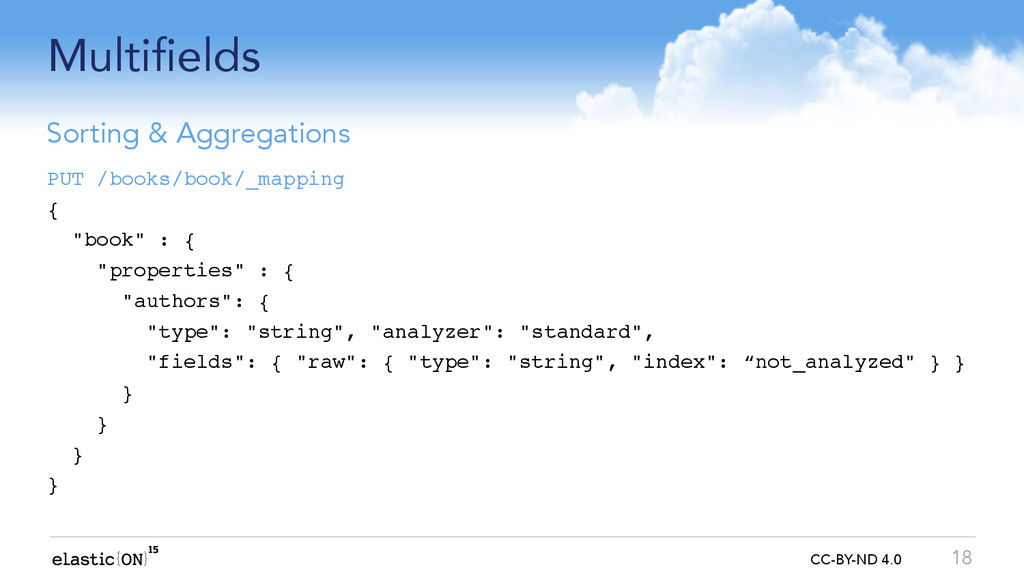

18. { } CC-BY-ND 4.0 Multifields PUT /books/book/_mapping { "book" : { "properties" : { "authors": { "type": "string", "analyzer": "standard", "fields": { "raw": { "type": "string", "index": “not_analyzed" } } } } } } 18 Sorting & Aggregations
19. { } CC-BY-ND 4.0 Multifields 19 Resulting in multiple postings lists Field: authors Value Document  ID clinton 1 gormley 1 tong 1 zachary 1 Value Document  ID Clinton  Gormley 1 Zachary  Tong 1 Field: authors.raw
20. { } CC-BY-ND 4.0 Completion suggester • Auto-complete, search-as-you-type • Data structure is stored on disk on indexing, then loaded into memory 20
21. { } CC-BY-ND 4.0 Term vectors • Handy when hit highlighting huge documents • An index of a single document • Allows to easily find sorted unique terms as well as original positions and offsets 21
22. { } CC-BY-ND 4.0 Buffering documents 22 buffer buffer
23. { } CC-BY-ND 4.0 Buffering documents 23 buffer buffer

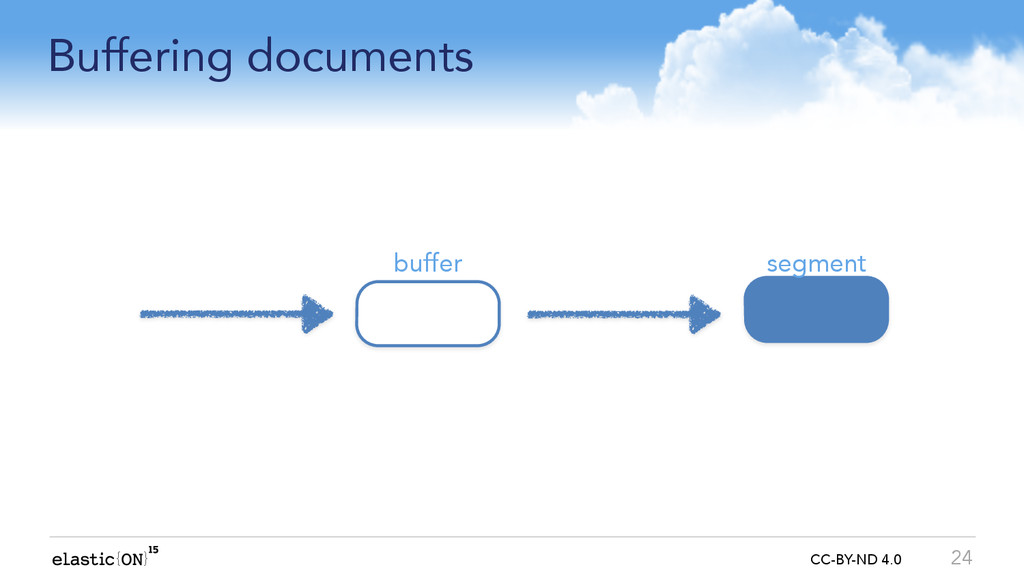

24. { } CC-BY-ND 4.0 Buffering documents 24 buffer segment
25. { } CC-BY-ND 4.0 Elasticsearch refresh 25 buffer translog
26. { } CC-BY-ND 4.0 Elasticsearch refresh 26 buffer translog segment
27. { } CC-BY-ND 4.0 Indexing a document 27 buffer translog
28. { } CC-BY-ND 4.0 Elasticsearch refresh 28 buffer translog segment
29. { } CC-BY-ND 4.0 Elasticsearch flush 29 buffer translog segment fsync
30. { } CC-BY-ND 4.0 Where are we now? • Document received via network • Document received on the correct node • Document analyzed, stored in translog & buffer • Client is still waiting for a response 30

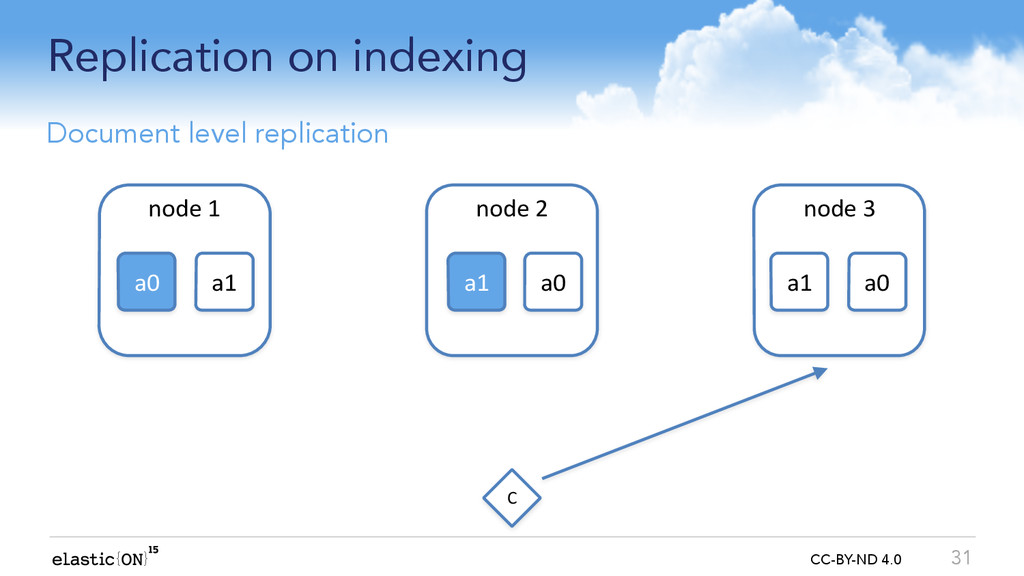

31. { } CC-BY-ND 4.0 Replication on indexing 31 Document level replication node  1 a0 a1 node  2 a1 a0 node  3 a1 a0 C

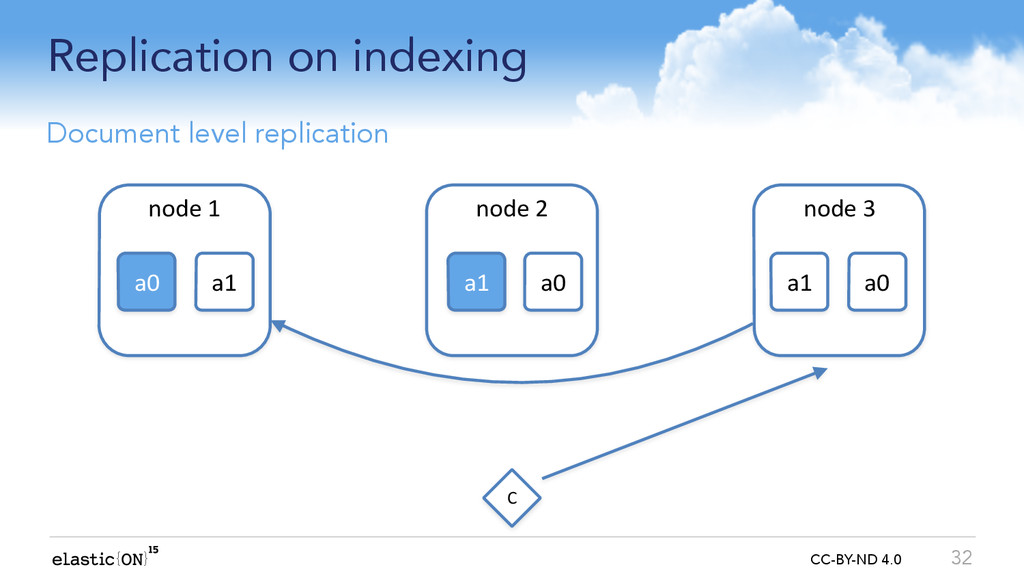

32. { } CC-BY-ND 4.0 Replication on indexing 32 Document level replication node  1 a0 a1 node  2 a1 a0 node  3 a1 a0 C

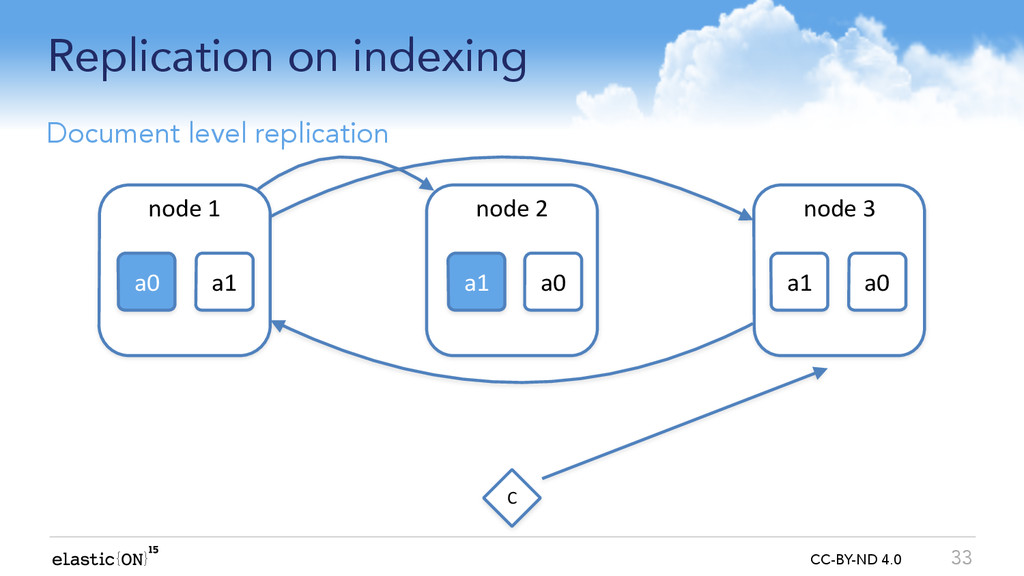

33. { } CC-BY-ND 4.0 Replication on indexing 33 Document level replication node  1 a0 a1 node  2 a1 a0 node  3 a1 a0 C
34. { } CC-BY-ND 4.0 Replication on indexing 34 Document level replication node  1 a0 a1 node  2 a1 a0 node  3 a1 a0 C
35. { } CC-BY-ND 4.0 Replication on indexing 35 Document level replication node  1 a0 a1 node  2 a1 a0 node  3 a1 a0 C
36. { } CC-BY-ND 4.0 Replication on indexing 36 Document level replication node  1 a0 a1 node  2 a1 a0 node  3 a1 a0 C Document got written 6 times! HTTP/1.1 200 OK
37. { } CC-BY-ND 4.0 Searching 37
38. { } CC-BY-ND 4.0 Searches: Collecting node 38 node  1 a0 a1 node  2 a1 a0 node  3 a1 a0 C query hits node GET /books/book/_search?q=elasticsearch
39. { } CC-BY-ND 4.0 Searches: Collecting node 39 node  1 a0 a1 node  2 a1 a0 node  3 a1 a0 C QUERY phase executed on each shard
40. { } CC-BY-ND 4.0 Searches: Collecting node 40 node  1 a0 a1 node  2 a1 a0 node  3 a1 a0 C QUERY results are sorted
41. { } CC-BY-ND 4.0 Searches: Collecting node 41 node  1 a0 a1 node  2 a1 a0 node  3 a1 a0 C FETCH phase executed
42. { } CC-BY-ND 4.0 Searches: Collecting node 42 node  1 a0 a1 node  2 a1 a0 node  3 a1 a0 C FETCH results are returned
43. { } CC-BY-ND 4.0 Searches: Collecting node 43 node  1 a0 a1 node  2 a1 a0 node  3 a1 a0 C
44. { } CC-BY-ND 4.0 Search types • Full text search – Goes on disk, access segments, execute search • Aggregation – Loads data into memory from segments, executes on in-memory data structure 44
45. { } CC-BY-ND 4.0 Memory: Fielddata GET /books/book/_search?search_type=count { "aggs" : { "author-top10" : { "terms" : { "field" : "authors" } } } } 45
46. { } CC-BY-ND 4.0 Memory: Fielddata 46 This does not work for aggs Clinton Gormley -> Term Document  ID clinton 1 gormley 1 tong 1 zachary 1
47. { } CC-BY-ND 4.0 Memory: Fielddata 47 Uninverting the index from a raw field Document  ID Term 1 Clinton  Gormley,  Zachary  Tong Term Document  ID Clinton  Gormley 1 Zachary  Tong 1

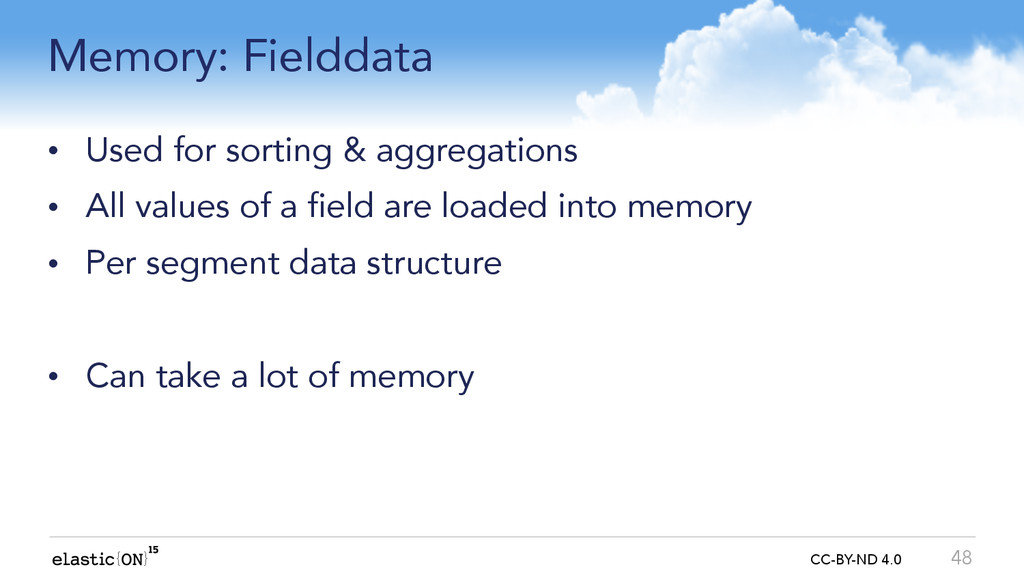

48. { } CC-BY-ND 4.0 Memory: Fielddata • Used for sorting & aggregations • All values of a field are loaded into memory • Per segment data structure • Can take a lot of memory 48
49. { } CC-BY-ND 4.0 Doc values 49 On-Disk vs. in-memory PUT /books/book/_mapping { "book" : { "properties" : { "authors": { "type": "string", "analyzer": "standard", "fields": { "raw": { "type": "string", "index": "not_analyzed", "doc_values" : true } } } } } }

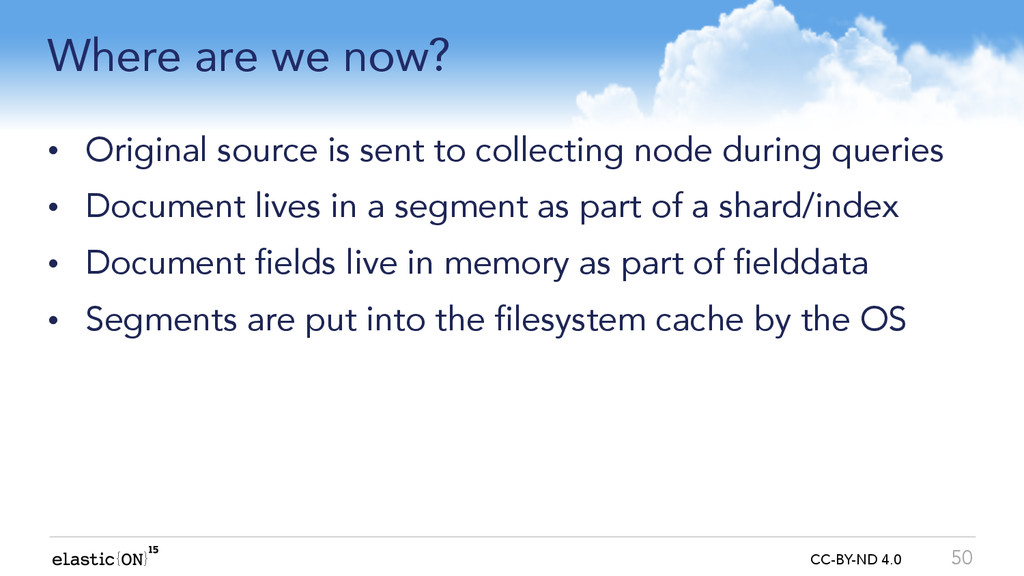

50. { } CC-BY-ND 4.0 Where are we now? • Original source is sent to collecting node during queries • Document lives in a segment as part of a shard/index • Document fields live in memory as part of fielddata • Segments are put into the filesystem cache by the OS 50
51. { } CC-BY-ND 4.0 Scaling your cluster 51
52. { } CC-BY-ND 4.0 Relocation 52 Let’s offload our fast node node  1 0P   STARTED 1P   STARTED node  2 node.box_type: ssd node.box_type: hdd PUT /books/ { "settings" : { "index.routing.allocation.include.tag" : “hdd" } }
53. { } CC-BY-ND 4.0 Relocation 53 Let’s offload our fast node node  1 0P   STARTED 1P   STARTED node  2 node.box_type: ssd node.box_type: hdd PUT /books/_settings { "index.routing.allocation.include.tag" : "hdd" }

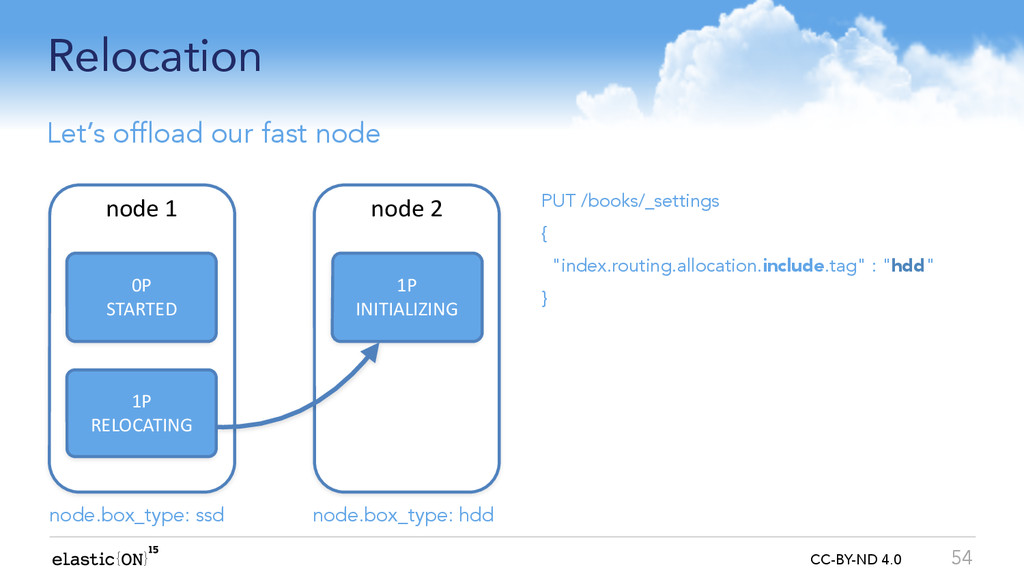

54. { } CC-BY-ND 4.0 Relocation 54 Let’s offload our fast node node  1 0P   STARTED 1P   RELOCATING node  2 node.box_type: ssd node.box_type: hdd PUT /books/_settings { "index.routing.allocation.include.tag" : "hdd" } 1P   INITIALIZING
55. { } CC-BY-ND 4.0 Relocation 55 Let’s offload our fast node node  1 0P   STARTED node  2 node.box_type: ssd node.box_type: hdd PUT /books/_settings { "index.routing.allocation.include.tag" : "hdd" } 1P   STARTED
56. { } CC-BY-ND 4.0 Relocation 56 Let’s offload our fast node node  1 0P   RELOCATING node  2 node.box_type: sdd node.box_type: hdd PUT /books/_settings { "index.routing.allocation.include.tag" : "hdd" } 1P   STARTED 1P   INITIALIZING
57. { } CC-BY-ND 4.0 Relocation 57 Let’s offload our fast node node  1 node  2 node.box_type: ssd node.box_type: hdd PUT /books/_settings { "index.routing.allocation.include.tag" : "hdd" } 1P   STARTED 1P   STARTED
58. { } CC-BY-ND 4.0 Relocation 58 What does RELOCATING mean? • Point in time snapshot is copied (segments) • Write operations occur and create new segments • All write operations are stored in translog • This translog is sent to the other node and replayed node  1 0P   STARTED 1P   RELOCATING
59. { } CC-BY-ND 4.0 Relocation • Process of copying whole shards across the cluster • Triggered by – adding/removing nodes from the cluster – exceeded disk thresholds – shard allocation filtering – forced awareness 59

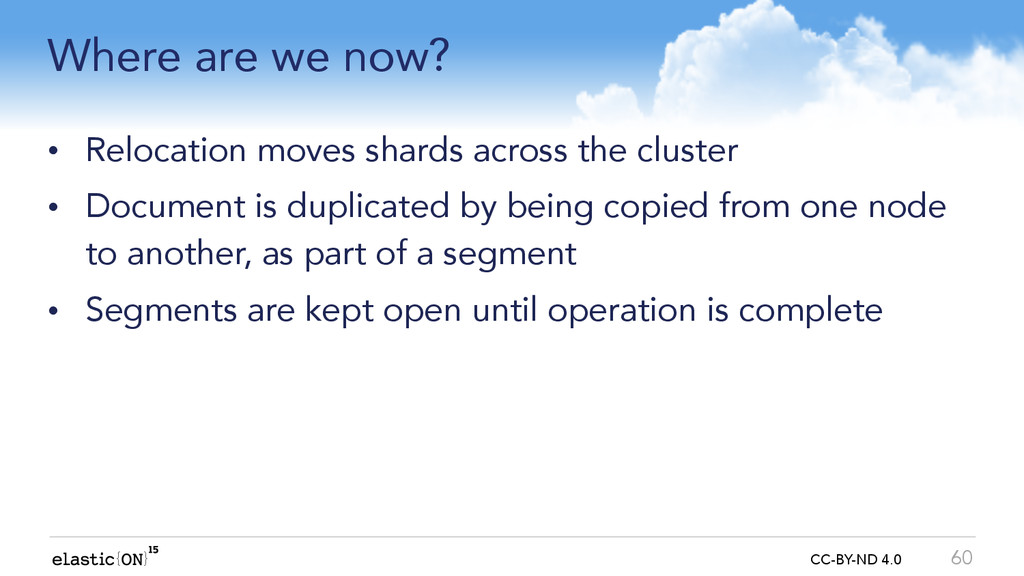

60. { } CC-BY-ND 4.0 Where are we now? • Relocation moves shards across the cluster • Document is duplicated by being copied from one node to another, as part of a segment • Segments are kept open until operation is complete 60
61. { } CC-BY-ND 4.0 Backup your data 61
62. { } CC-BY-ND 4.0 How to backup? 62 node  1 a0 a1 node  2 a1 a0 node  3 a1 a0
63. { } CC-BY-ND 4.0 How to backup? 63 node  1 a0 a1 node  2 a1 a0 node  3 a1 a0 Repository S3, FS, HDFS Azure

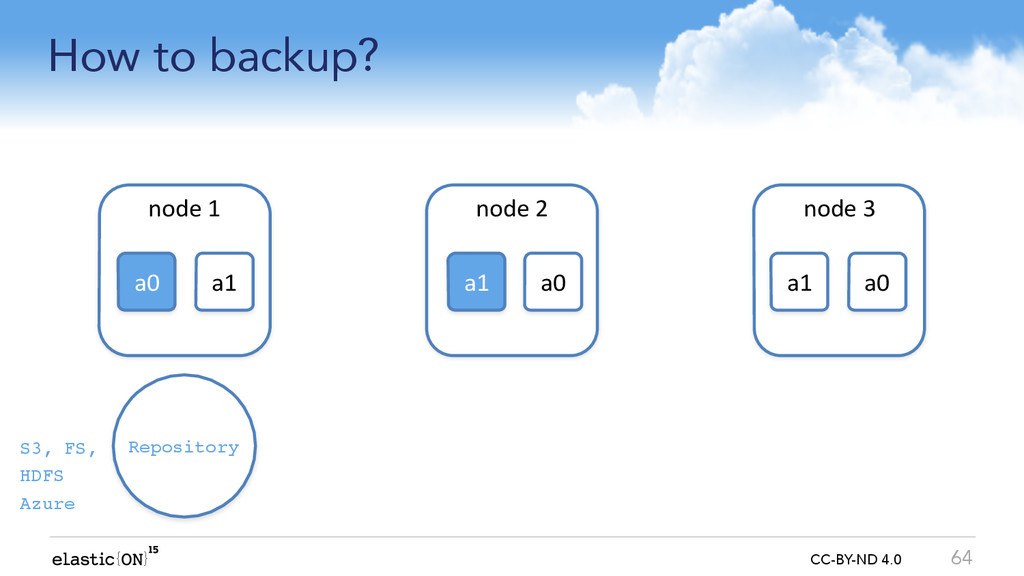

64. { } CC-BY-ND 4.0 How to backup? 64 node  1 a0 a1 node  2 a1 a0 node  3 a1 a0 Repository S3, FS, HDFS Azure
65. { } CC-BY-ND 4.0 How to backup? 65 node  1 a0 a1 node  2 a1 a0 node  3 a1 a0 S3, FS, HDFS Azure C PUT /_snapshot/books/20150310 b1 b0
66. { } CC-BY-ND 4.0 Restore from a snapshot 66 node  1 node  2 node  3 C POST /_snapshot/books/20150310/_restore b0 b1
67. { } CC-BY-ND 4.0 Restore from a snapshot 67 node  1 node  2 node  3 C POST /_snapshot/books/20150310/_restore b1 b0 b1 b0
68. { } CC-BY-ND 4.0 Deleting data 68
69. { } CC-BY-ND 4.0 Index deletion 69 node  1 b0 b1 node  2 b1 b0 node  3 b0 b1 C DELETE /books/
70. { } CC-BY-ND 4.0 Index deletion 70 node  1 node  2 node  3 C DELETE /books/
71. { } CC-BY-ND 4.0 Data deletion 71 node  1 b0 b1 node  2 b1 b0 node  3 b0 b1 C DELETE /books/book/978-1449358549
72. { } CC-BY-ND 4.0 Document deletion • Segments are immutable • Deletes are soft, document ids are added in a tombstone file to be marked for deletion • Actual deletion happens on next merge of that segment 72

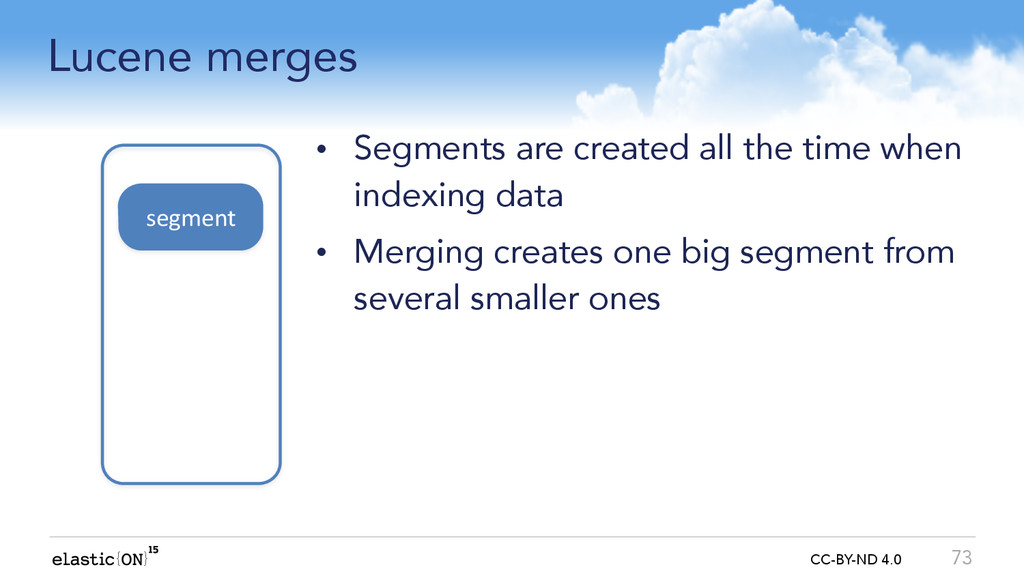

73. { } CC-BY-ND 4.0 Lucene merges 73 segment • Segments are created all the time when indexing data • Merging creates one big segment from several smaller ones
74. { } CC-BY-ND 4.0 Lucene merges 74 segment segment
75. { } CC-BY-ND 4.0 Lucene merges 75 segment segment segment
76. { } CC-BY-ND 4.0 Lucene merges 76 segment segment segment segment
77. { } CC-BY-ND 4.0 Lucene merges 77 segment segment segment segment document exists twice!
78. { } CC-BY-ND 4.0 Lucene merges 78 segment segment segment segment
79. { } CC-BY-ND 4.0 Lucene merges 79 segment
80. { } CC-BY-ND 4.0 Don’t be afraid of duplicating data! 80
81. { } CC-BY-ND 4.0 Don’t be afraid of data duplication! ... if you are aware of its lifecycle! 81
82. { } Thanks for listening! Questions? @bleskes @spinscale
