深入淺出談fragment

有基本知識來介紹frgament元件，到要如何使用fragment，以及需要注意的地方。

Transcript

1. Easy to understand Fragment
2. What is fragment? Is it another type of Activity? Does it replace Activity? Or is it a new component ?
3. What is fragment? Is it another type of Activity? Does it replace Activity? Or is it a new component ? It is a modular section of an activity!!
4. Relationship with Activity Embedded in an activity surely Depend on activity lifecycle Inside activity’s view hierarchy
5. Fragment advantage Multi-pane UI support Reuse component Add or remove component dynamically
6. When to use fragment

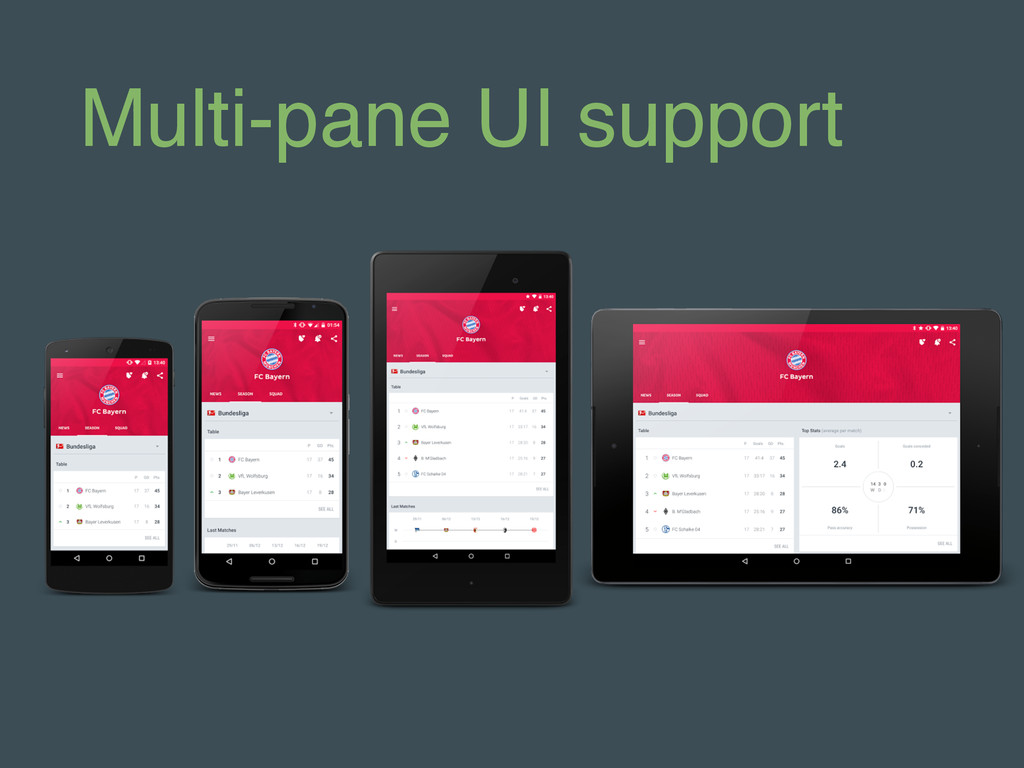

7. Multi-pane UI support
13. How to use fragment 1 <fragment 2 android:id="@+id/list" 3 android:name=“com.new.ExampleFragment" 4 android:layout_width="match_parent" 5 android:layout_height="match_parent" /> Inside the activity’s layout
14. Add fragment programmatically 1 FragmentManager fm = getFragmentManager(); 2 FragmentTransaction ft = fm.beginTransaction(); 3 ExampleFragment fragment = new ExampleFragment(); 4 ft.add(R.id.fragment_container, fragment); 5 ft.commit(); 1 <FrameLayout 2 android:id="@+id/fragment_container" 3 android:layout_width="wrap_content" 4 android:layout_height=“wrap_content"/>
15. Fragment Transactions 1 FragmentTransaction ft = fm.beginTransaction(); 2 ft.add(R.id.fragment_container, fragment); 3 ft.replace(R.id.fragment_container, fragment); Modify fragment 4 ft.show(fragment) 5 ft.hide(fragment) 6 ft.remove(fragment) Modify fragment already in activity Set transition style 7 ft.setTransition(TRANSIT_FRAGMENT_CLOSE) 8 ft.setCustomAnimations(entet,exit)
16. Fragment Communication Just like activity communication directly?
17. Fragment Communication Just like activity communication directly? Communicate through activity !
18. Main Activity fragment Controller
19. Main Activity fragment Controller
20. 1 public class ChannelDetailFragment extends Fragment { 2 private OnChannelClickListener mCallback; 3 4 public interface OnChannelClickListener { 5 public void onChannelClick(int channelNumber); 6 } 7 @Override 8 public void onAttach(Activity activity) { 9 super.onAttach(activity); 10 try { 11 mCallback = (OnChannelClickListener) activity; 12 } catch (ClassCastException e) { 13 throw new ClassCastException(activity.toString() 14 + " must implement OnChannelClickListener"); 15 } 16 } 17 public boolean onClick(View v) { 18 mCallback.onChannelClick(channelNumber); 19 } In fragment file
21. In activity file 1 public class Activity extends Activity 2 implements OnChannelClickListener { 3 4 @Override 5 public void onChannelClick(int channelNumber){ 6 // do something or open another fragment. 7 } 8 }
22. Fragment view Use setContentView() to set view?
23. Fragment view Use setContentView() to set view? 1 @Override 2 public View onCreateView(LayoutInflater inflater, ViewGroup 3 container, Bundle savedInstanceState) { 4 View root = inflater.inflate(R.layout.fragment_layout, 5 container, false); 6 //init other view 7 return root; 8 } Use onCreateView callback to set view !
24. Fragment tips Toast.makeText(getActivity(), "Mission complete", Toast.LENGTH_LONG); Get context from activity Add to BackStack 1 FragmentManager fm = getFragmentManager(); 2 FragmentTransaction ft = fm.beginTransaction(); 3 ft.replace(R.id.fragment_container, fragment); 4 ft.addToBackStack(null);
25. Import v4 or origin version 1 import android.support.v4.app.FragmentActivity; 2 import android.support.v4.app.FragmentManager; 3 import android.support.v4.app.FragmentTransaction; 4 import android.support.v4.app.Fragment; 1 import android.app.Activity; 2 import android.app.FragmentManager; 3 import android.app.FragmentTransaction; 4 import android.app.Fragment;
26. Use new Fragment() or Fragment.newInstance()? 1 ChannelFragment fragment = new ChannelFragment(); 2 Bundle args = new Bundle(); 3 args.putInt(CHANNEL_PAGE_INDEX, index); 4 fragment.setArguments(args);
27. 1 public static ChannelFragment newInstance(int index) { 2 ChannelFragment fragment = new ChannelFragment(); 3 Bundle args = new Bundle(); 4 args.putInt(CHANNEL_PAGE_INDEX, index); 5 fragment.setArguments(args); 6 return fragment; 7 } ChannelFragment.newInstance(index); Use static factory method for better!
28. Thank you! Fantasy
