Monitoring at scale: a needle in the haystack

Monitoring platform at CCIN2P3 presented at HEPiX Spring 2016

Transcript

1. MONITORING AT SCALE: A NEEDLE IN THE HAYSTACK CCIN2P3 Fabien Wernli 1
2. AGENDA 2 . 1
3. EVENT MANAGEMENT AT CCIN2P3 Context Architecture Software stack Some Use-cases What's next 2 . 2
4. CONTEXT 3 . 1
5. EVENT MONITORING @ CCIN2P3 ~ 100 million logs per day ~ 1 billion metrics per day ~ 400'000 services ~ 2'400 devices 40k/s peaks 15s period 3 . 2
6. EVENT TYPES metrics (collectd) (pull) logs (syslog-ng) (push) ccnode42 cpu-0/percent-idle ok 1.2 ccddeeff load/load-relative warning 2.3 e1000e: eth0 NIC Link is Down puppet: Finished catalog run in 58.48 seconds 3 . 3
7. ARCHITECTURE 4 . 1

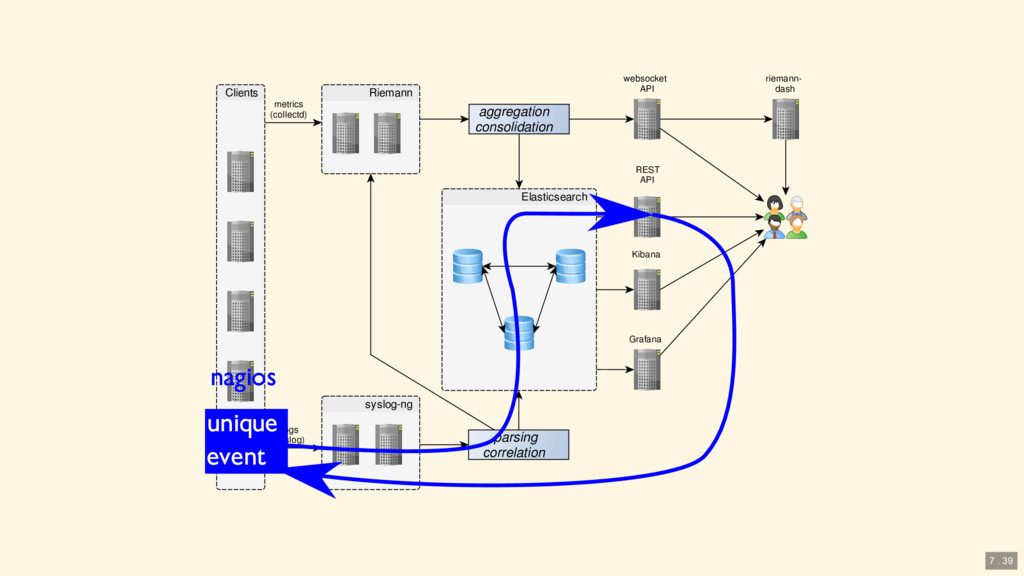

8. Elasticsearch Riemann syslog-ng Kibana Clients riemann- dash aggregation consolidation parsing correlation REST API websocket API Grafana metrics (collectd) logs (syslog) 4 . 2
9. DEDICATED PLATFORM Elasticsearch: 9 Poweredge R620/R630 48GB/4.5T Rest: a couple of openstack VMs 4 . 3
10. SOFTWARE STACK 5 . 1
11. BACKENDS syslog-ng collectd riemann Elasticsearch 5 . 2
12. SYSLOG-NG log transport pattern matching structuration correlation routing 5 . 3
13. COLLECTD metric collection threshold transport structuration 5 . 4
14. RIEMANN realtime stream processing logs and metrics aggregation routing subscription through ws multi-tier archiving of metrics through samplerr reportedly achieving MEPS 5 . 5
15. ELASTICSEARCH "You know, for search!" 5 . 6

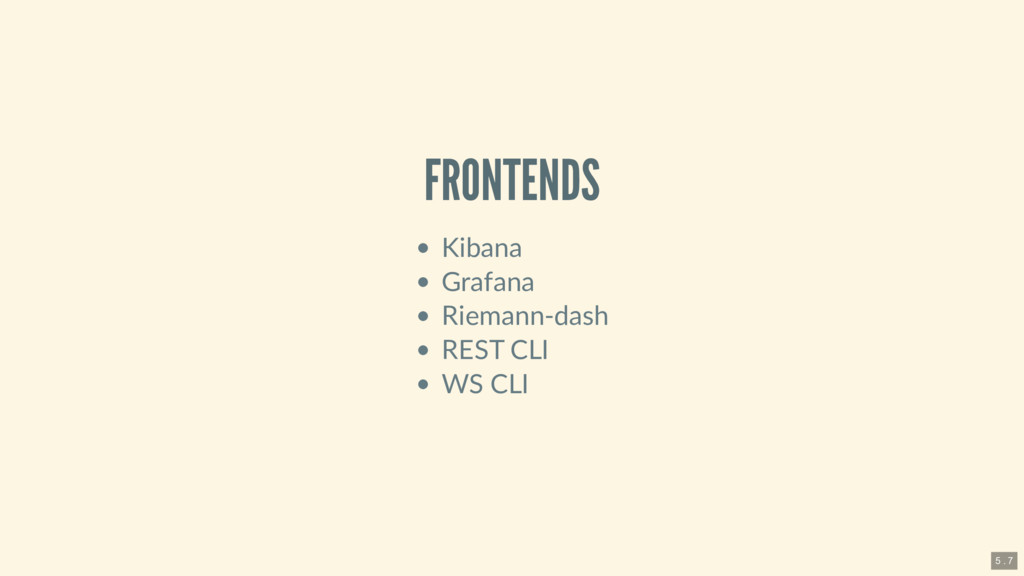

16. FRONTENDS Kibana Grafana Riemann-dash REST CLI WS CLI 5 . 7
17. DATA MODEL 6 . 1

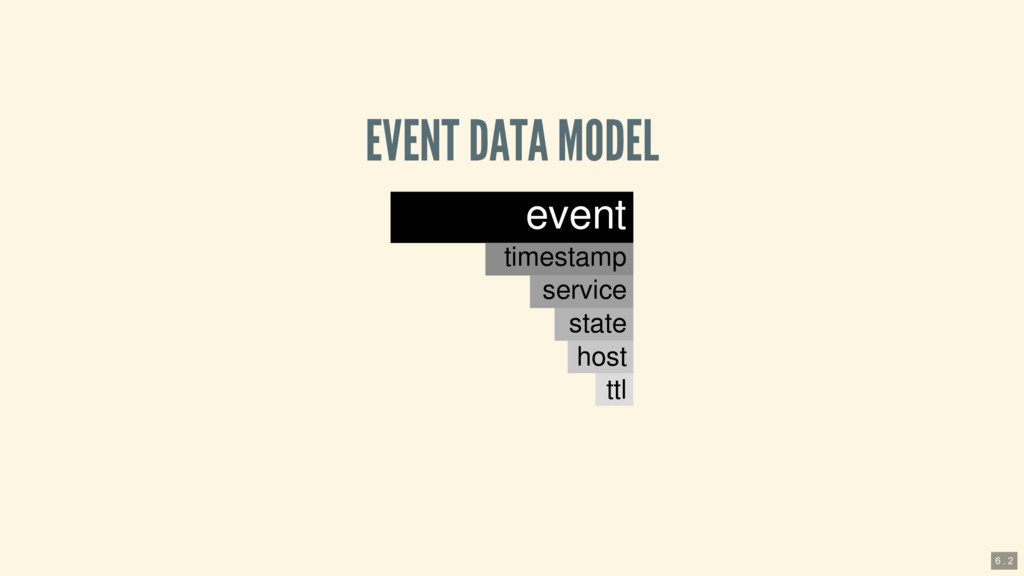

18. EVENT DATA MODEL event timestamp service state host ttl 6 . 2
19. EXAMPLE: METRIC { "timestamp": 1461075576, "service": "cpu-0/percent-idle", "state": "ok", "host": "ccddeeff.in2p3.fr", "ttl": 30, … "metric": 42, "plugin": "cpu", "pinstance": "0", "type": "percent", "tinstance": "idle", … } 6 . 3

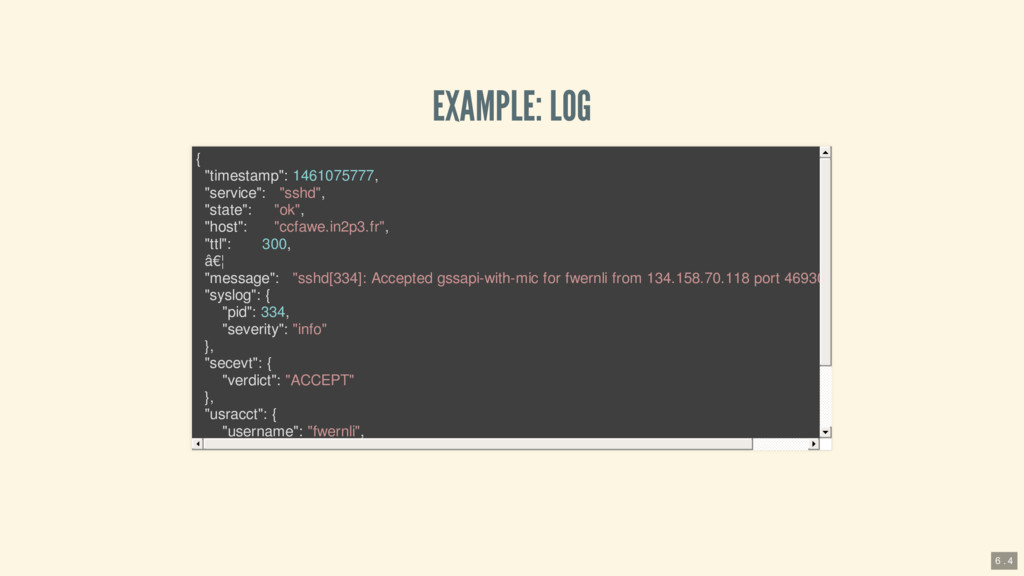

20. EXAMPLE: LOG { "timestamp": 1461075777, "service": "sshd", "state": "ok", "host": "ccfawe.in2p3.fr", "ttl": 300, … "message": "sshd[334]: Accepted gssapi-with-mic for fwernli from 134.158.70.118 port 46930 ssh2", "syslog": { "pid": 334, "severity": "info" }, "secevt": { "verdict": "ACCEPT" }, "usracct": { "username": "fwernli", "authmethod": "gssapi-with-mic" }, … } 6 . 4
21. USE-CASES 7 . 1
22. LOG PARSING 7 . 2
23. PATTERNDB 2014-05-30T14:34:53.087Z dc01.in2p3.fr \ dCache-pool: park=LCG,\ service=pool-atlas-dq2-li001a,\ ndc=,message=remove entry for: 0000BD759... Flat Message pdb::simple::ruleset { 'dCache': id => 'dCache', patterns => ['dCache-pool'], rules => [{ id => 'dCache-std-event', patterns => ['park=@ESTRING:park:,@ service=@ESTRING:svc:,@ ndc=@ESTRING:ndc:,@ message=@ANYSTRING:message@'] }] } Matching Rule { timestamp => 1401461273, host => 'dc01.in2p3.fr', program => "dCache-pool", service => "pool-atlas-dq2-li001a", ndc => nil, message => "remove entry for: 0000BD759..", } Structured Message 7 . 3
24. EVENT CORRELATION 7 . 4
25. SELF-RECOVERY id: 34a012fc-f964-4b85-a5cb-066ca2efa54b context_id: 'openafs-${appacct.cell}-${appacct.server_ip}' context_scope: program context_timeout: '60' patterns: - 'afs: Lost contact with file server @IPvANY:appacct.server_ip@ in cell @HOSTNAME:appacct.cell@)' matching rule afs: Lost contact with file server \ 10.0.104.125 in cell my.cell warning event id: b82b8d55-6060-4857-bc2e-d3ce5f4fd082 context_id: 'openafs-${appacct.cell}-${appacct.server_ip}' context_scope: program patterns: - 'afs: file server @IPvANY:appacct.server_ip@ in cell @HOSTNAME:appacct.cell@ is back up' matching rule afs: file server 10.0.104.125 in cell \ my.cell is back up self-heal event 7 . 5
26. TIMEOUT-BASED CORRELATION id: 34a012fc-f964-4b85-a5cb-066ca2efa54b context_id: 'openafs-${appacct.cell}-${appacct.server_ip}' context_scope: program context_timeout: '60' patterns: - 'afs: Lost contact with file server @IPvANY:appacct.server_ip@ in cell @HOSTNAME:appacct.cell@)' matching rule OPENAFS_LOSTCONTACT_TIMEOUT: message: tags: - alert - afs values: HOST_FROM: '${afs.server_ip}' PROGRAM: 'openafs-lostcontact/${afs.cell}-${afs.server_ip}' state: warning rule: 34a012fc-f964-4b85-a5cb-066ca2efa54b trigger: timeout Correlation afs: Lost contact with file server \ 10.0.104.125 in cell my.cell warning event 7 . 6
27. SCENARIO1: SELF-HEALING OPENAFS_LOSTCONTACT_TIMEOUT: message: tags: - alert - afs values: HOST_FROM: '${afs.server_ip}' PROGRAM: 'openafs-lostcontact/${afs.cell}-${afs.server_ip}' state: warning rule: 34a012fc-f964-4b85-a5cb-066ca2efa54b trigger: timeout Correlation afs: Lost contact with file server \ 10.0.104.125 in cell my.cell warning event afs: file server 10.0.104.125 in cell \ my.cell is back up self-heal event + no timeout generated event ↓ 7 . 7
28. SCENARIO2: KABOOM OPENAFS_LOSTCONTACT_TIMEOUT: message: tags: - alert - afs values: HOST_FROM: '${afs.server_ip}' PROGRAM: 'openafs-lostcontact/${afs.cell}-${afs.server_ip}' state: warning rule: 34a012fc-f964-4b85-a5cb-066ca2efa54b trigger: timeout Correlation afs: Lost contact with file server \ 10.0.104.125 in cell my.cell warning event timeout message: afs: Lost contact with file server \ 10.0.104.125 in cell my.cell HOST_FROM: 10.0.104.125 PROGRAM: openafs-lostcontact/my.cell-10.0.104.125 state: warning tags: [alert afs] generated event ↓ 7 . 8
29. CORRELATION TYPES timeout condition throttling gouping-by in syslog-ng-3.8.x 7 . 9

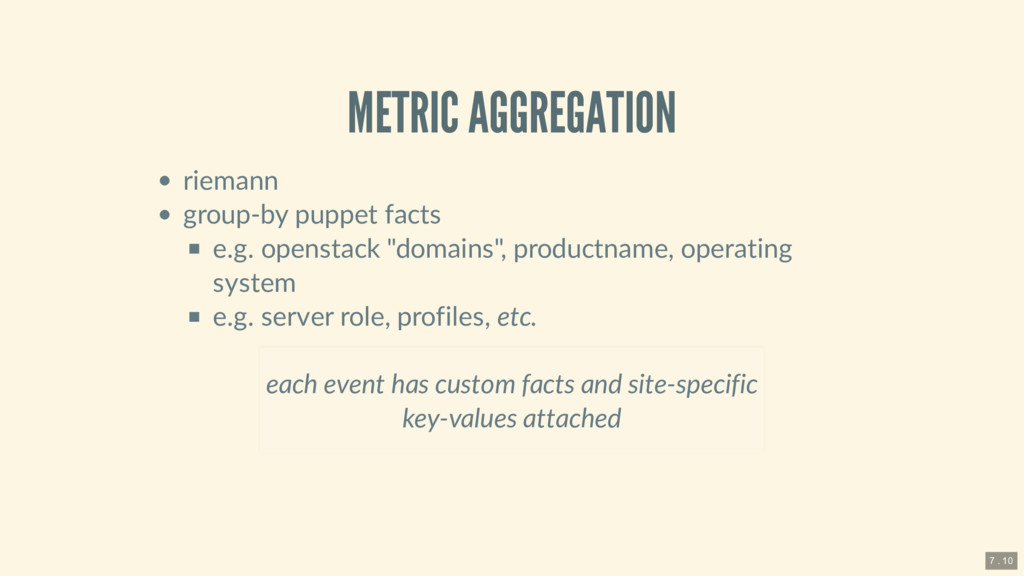

30. METRIC AGGREGATION riemann group-by puppet facts e.g. openstack "domains", productname, operating system e.g. server role, profiles, etc. each event has custom facts and site-specific key-values attached 7 . 10
31. 7 . 11
32. METRIC LIVE ARCHIVING riemann plugin Consolidate metrics using rrdtool-like overlapping round- robin archives online time-based downsampling write data to Elasticsearch rotate time-based indices using ES aliases transparent access to the data save disk space and keep queries fast ~ ILM for spectrum scale ~ continuous queries for influxdb samplerr 7 . 12

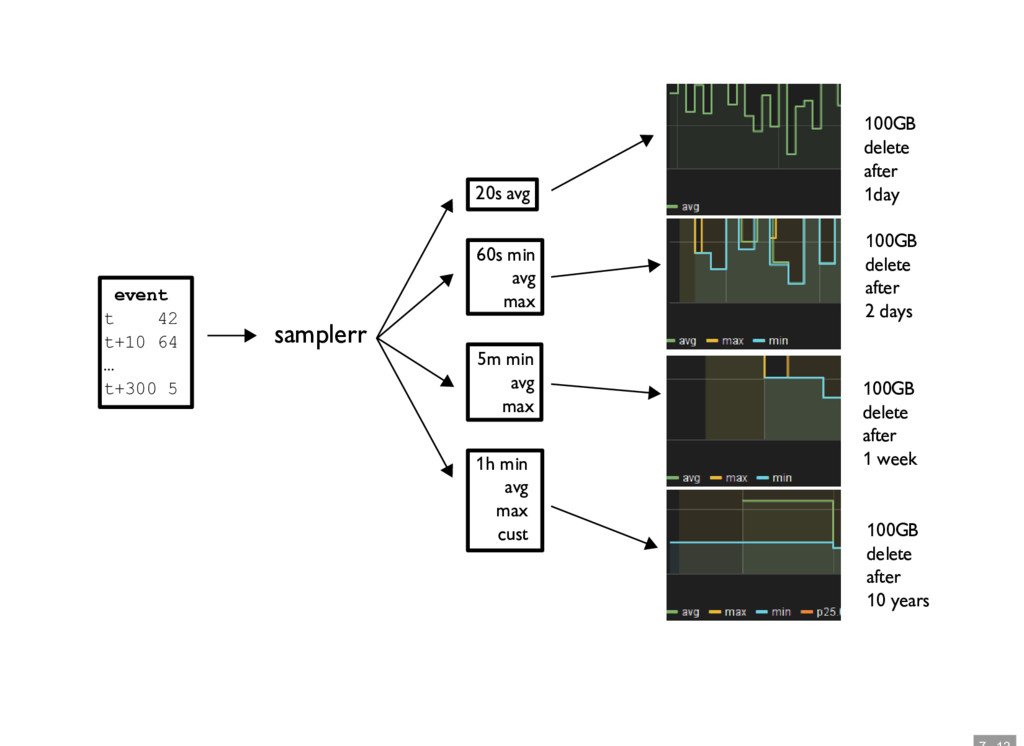

33. e v e n t t 4 2 t + 1 0 6 4 … t + 3 0 0 5 samplerr 20s avg 60s min avg max 5m min avg max 1h min avg max cust 100GB delete after 1day 100GB delete after 2 days 100GB delete after 1 week 100GB delete after 10 years
34. samplerr (def cfunc [{:func samplerr/average :name avg} {:func samplerr/minimum :name min} {:func samplerr/maximum :name max}]) (def archives [{:tf "YYYY.MM.dd" :step 20 :ttl (days 1) :cfunc avg} {:tf "GGGG.'w'WW" :step 60 :ttl (days 2) :cfunc cfunc} {:tf "YYYY.MM" :step 300 :ttl (weeks 1) :cfunc cfunc} {:tf "YYYY" :step 3600 :ttl (years 10) :cfunc custcf}]) (samplerr/persist {:index-prefix index-prefix :index-type "samplerr" :conn elastic}) (samplerr/periodically-rotate {:interval (t/seconds 60) :conn elastic :index-prefix index-prefix :alias-prefix alias-prefix :archives a 7 . 14
35. esnode> c samplerr 7 . 15
36. replace legacy system based on rrdtool used in production by fall at CCIN2P3 used for qserv monitoring (LSST) samplerr 7 . 16
37. REAL-TIME INVESTIGATION WEBSOCKETS 7 . 17
38. fwernli@ccfawe/~(0) ☠ ─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────── fwernli@ccfawe/~(0) ☠ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ fwernli@ccfawe/~(0) ☠ loggmann 7 . 18
39. riemann-dash 7 . 19
