Injections!

A presentation covering CSV & XML injection attacks, how to execute them, the damage they can cause, and how to mitigate them.

Transcript

1. Injections! Gavin Miller @gavingmiller gavinmiller.io
2. Cisco Advanced Malware Protection (AMP)
3. I am wary of software security advice that leads with "don't trust user input", or revolves around "validate user input". That principle has been the core of software security strategy for going on 20 years, and has bought us very little. In the real world, we have to start by acknowledging that the verb "trust" is situational, and that in some circumstances virtually all user input is "trusted" somehow. You could phrase this less tactfully as "Validate user input? No shit? Now what?" - Thomas Ptacek Source: https://news.ycombinator.com/item?id=3940286
4. Goals •  Exploit Situational Trust •  Examine in-use injection attacks •  Could we be breached like that?
5. Injection Attacks 1.  CSV Injection 2.  XML Injection (aka XXE)
6. CSV INJECTION

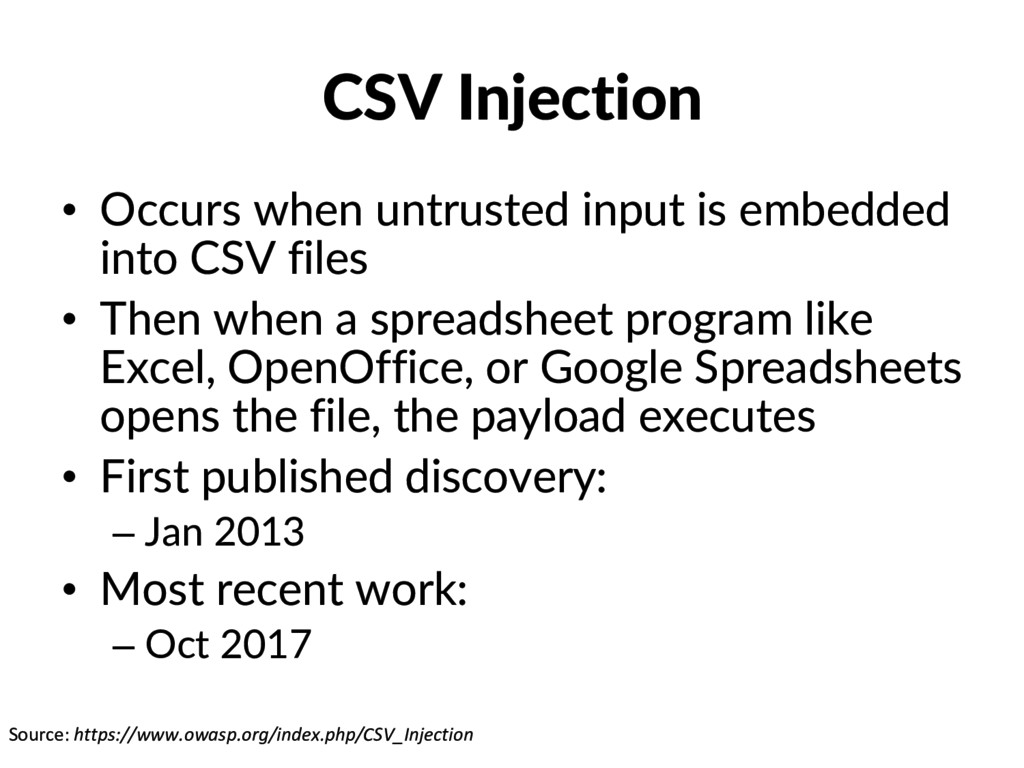

7. CSV Injection •  Occurs when untrusted input is embedded into CSV files •  Then when a spreadsheet program like Excel, OpenOffice, or Google Spreadsheets opens the file, the payload executes •  First published discovery: – Jan 2013 •  Most recent work: – Oct 2017 Source: https://www.owasp.org/index.php/CSV_Injection
8. How To Perform •  =cmd|' /C calc'!A0 •  Launches Calc
9. Does Excel Warn the User?
10. Does Excel Warn the User? •  Yes
11. Doesn't Excel Warn the User?
12. Does Excel Warn the User? •  Yes

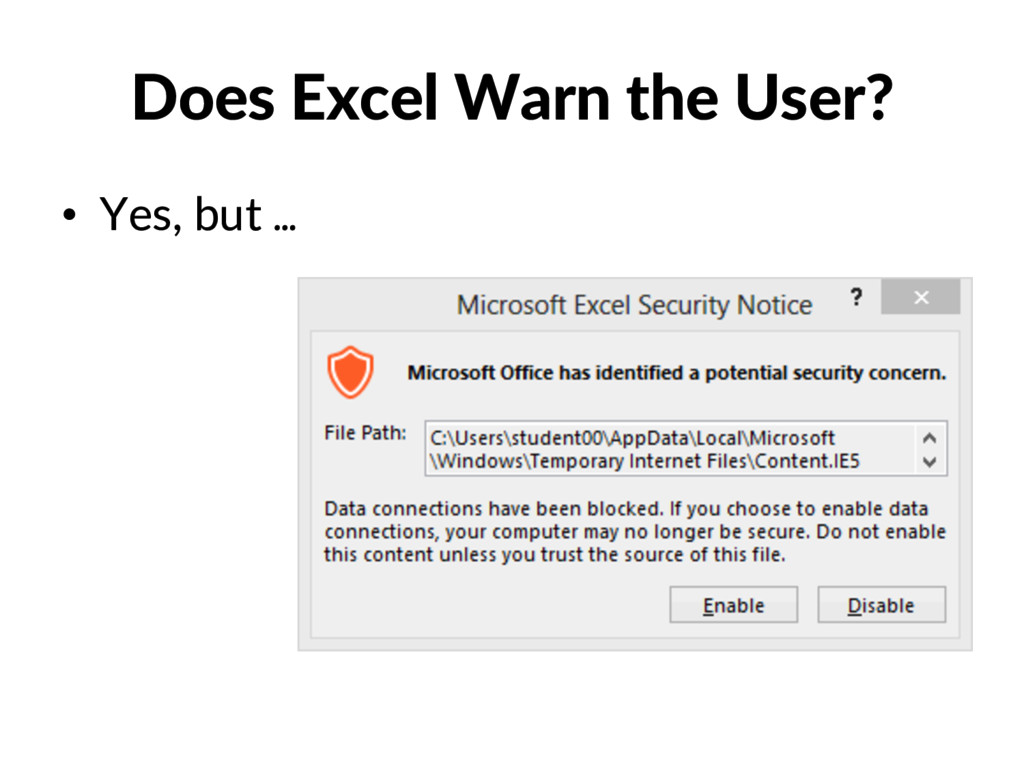

13. Does Excel Warn the User? •  Yes, but …
14. Habituation: a dramatic drop in the visual processing centers of the brain after only the second exposure to a warning, with further decreases with subsequent exposures Source: https://neurosecurity.byu.edu/chi_fmri_habituation/
15. Does Excel Warn the User? •  Yes, but …
16. Does Excel Warn the User? •  Yes, but …
17. Impact •  Exploit vulnerability in the spreadsheet software. EG: CVE-2014-3524 •  Exfiltrating contents from the spreadsheet, or other open spreadsheets. •  Pop a Shell

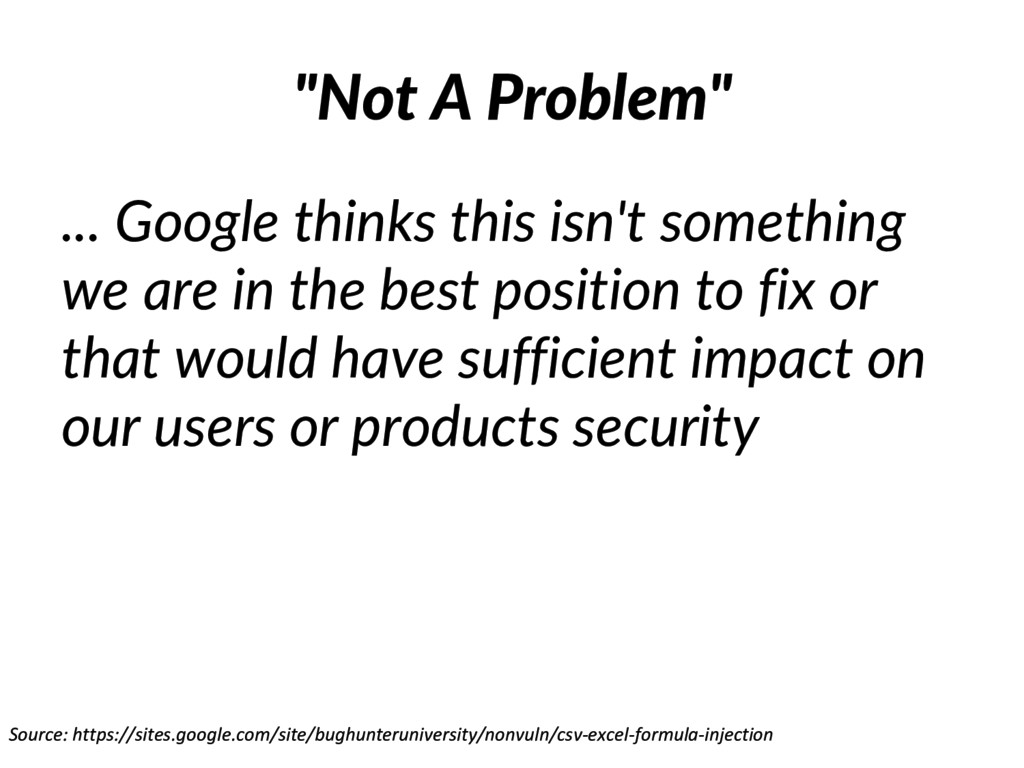

18. "Not A Problem" ... Google thinks this isn't something we are in the best position to fix or that would have sufficient impact on our users or products security Source: https://sites.google.com/site/bughunteruniversity/nonvuln/csv-excel-formula-injection
19. AlphaBay Disagrees Source: https://www.thedailybeast.com/this-is-how-cops-trick-dark-web-drug-dealers-into-unmasking-themselves

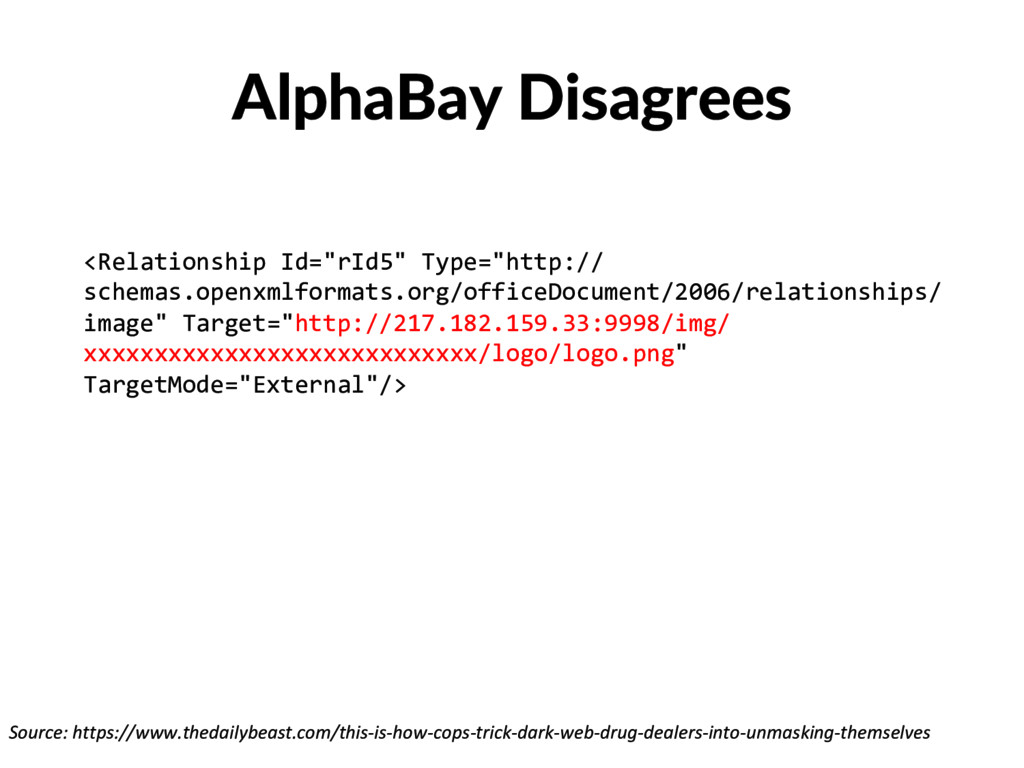

20. AlphaBay Disagrees <Relationship Id="rId5" Type="http:// schemas.openxmlformats.org/officeDocument/2006/relationships/ image" Target="http://217.182.159.33:9998/img/ xxxxxxxxxxxxxxxxxxxxxxxxxxxx/logo/logo.png" TargetMode="External"/> Source: https://www.thedailybeast.com/this-is-how-cops-trick-dark-web-drug-dealers-into-unmasking-themselves
21. Mitigation Filter out "=" when exporting to CSV
22. Doesn't Excel Warn the User?

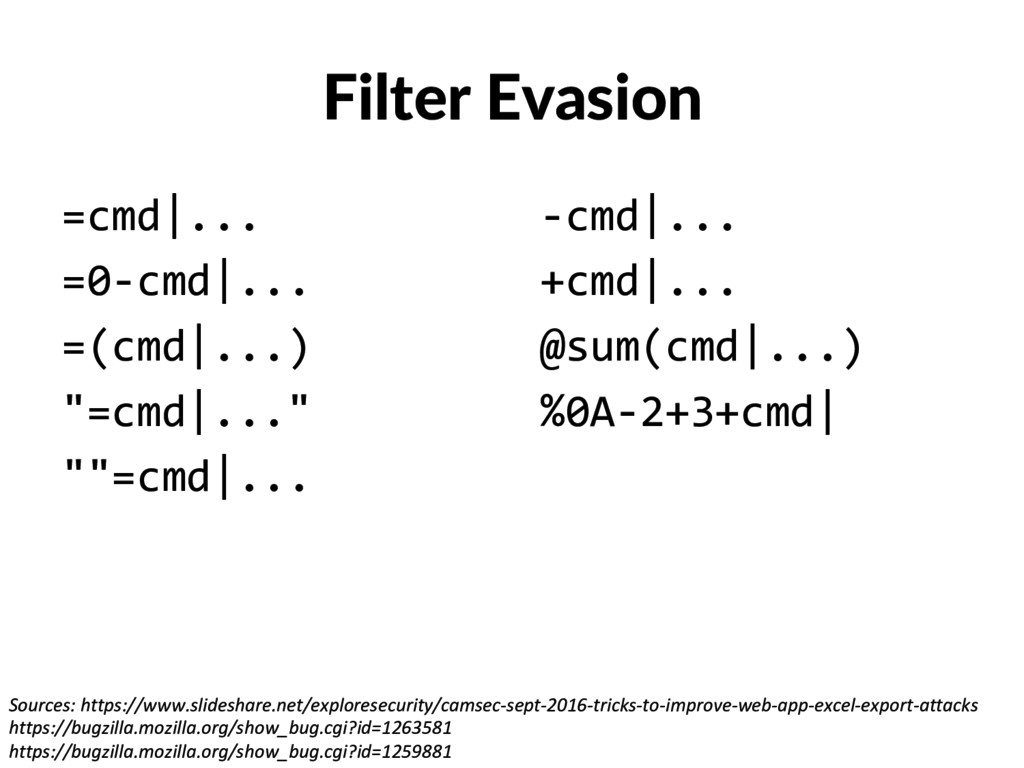

23. Filter Evasion =cmd|... =0-cmd|... =(cmd|...) "=cmd|..." ""=cmd|... -cmd|... +cmd|... @sum(cmd|...) %0A-2+3+cmd| Sources: https://www.slideshare.net/exploresecurity/camsec-sept-2016-tricks-to-improve-web-app-excel-export-attacks https://bugzilla.mozilla.org/show_bug.cgi?id=1263581 https://bugzilla.mozilla.org/show_bug.cgi?id=1259881
24. CSV INJECTION DEMOS
25. Mitigation (for realz!) •  Blacklists are always changing (and usually bypassable) – Create a strict whitelist •  Strip exports aggressively (whitelist) – Input validation blacklists may not be robust – Easier/Cheaper/Better to support bugs (legit use cases) than compromised users •  If you have to: ^\W.+\(.+\) Source: https://www.slideshare.net/exploresecurity/camsec-sept-2016-tricks-to-improve-web-app-excel-export-attacks
26. Further Reading/Research •  CSV –  https://www.slideshare.net/exploresecurity/camsec-sept-2016-tricks-to-improve-web-app-excel- export-attacks –  https://www.owasp.org/index.php/CSV_Injection –  http://georgemauer.net/2017/10/07/csv-injection.html •  DDE –  System that allows CSV injection to work –  https://sensepost.com/blog/2016/powershell-c-sharp-and-dde-the-power-within/ –  https://msdn.microsoft.com/en-us/library/windows/desktop/ms648774(v=vs.85).aspx
27. XML INJECTION (XXE)
28. XXE •  An attack against XML parsers that attempts to get the parser to execute a malicious payload resulting in information disclosure, or service disruption. Source: https://www.owasp.org/index.php/XML_External_Entity_(XXE)_Processing

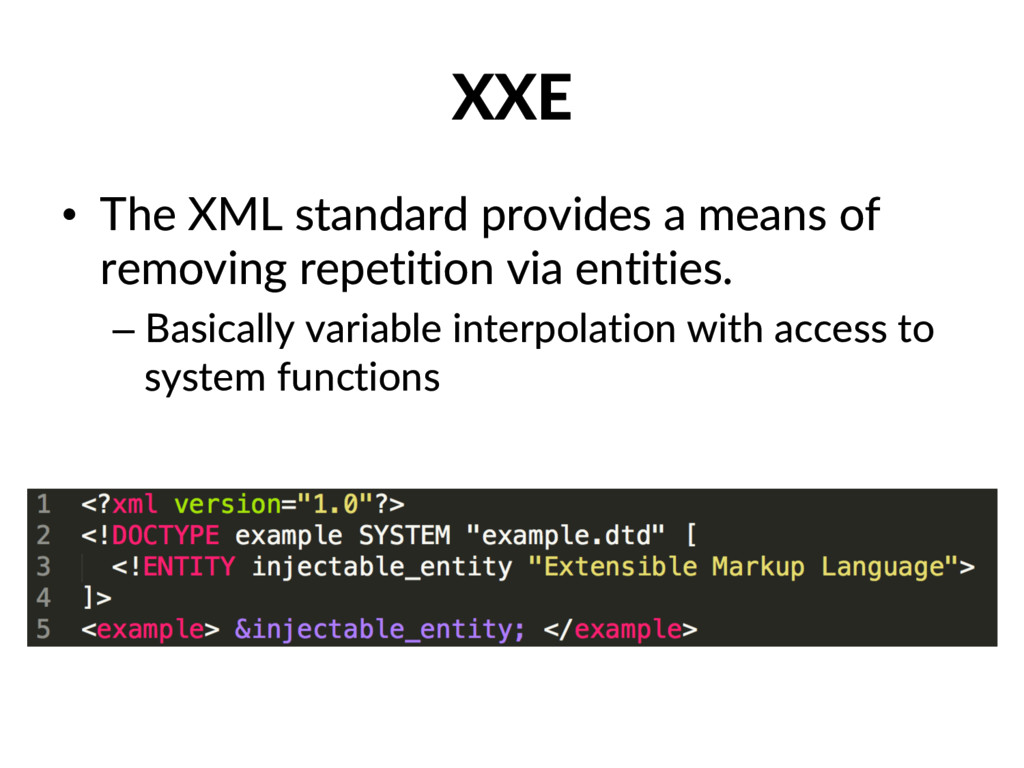

29. XXE •  The XML standard provides a means of removing repetition via entities. – Basically variable interpolation with access to system functions
30. Entities •  Two types of entities: – General Entity – Parameter Entity

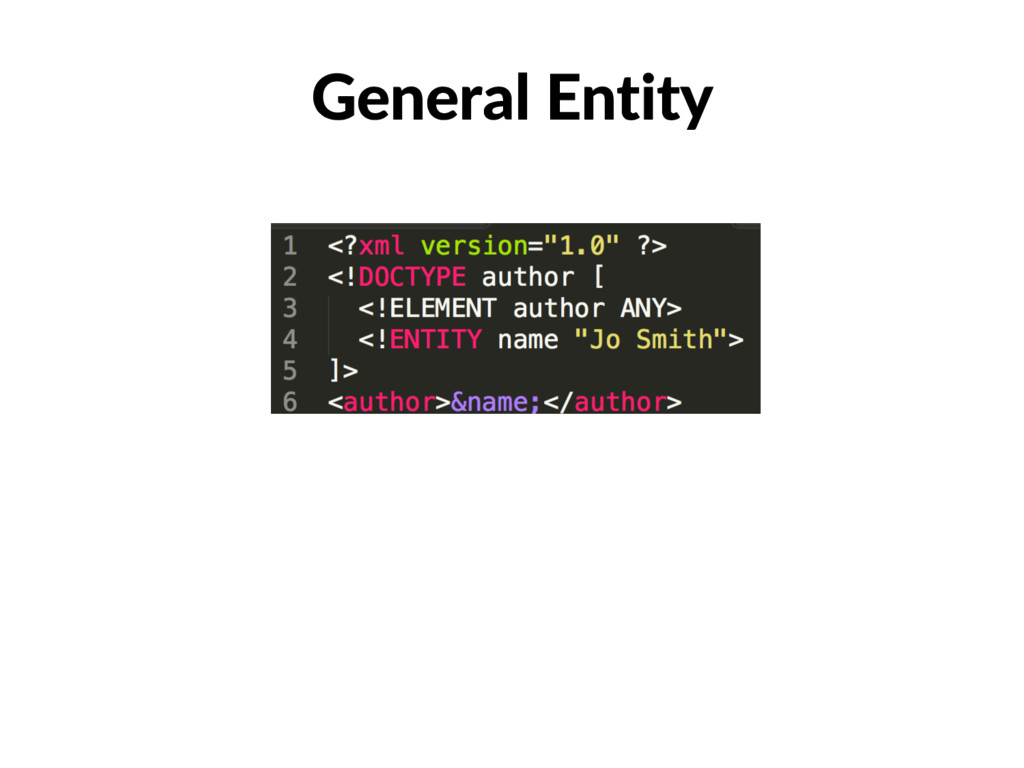

31. General Entity
32. General Entity

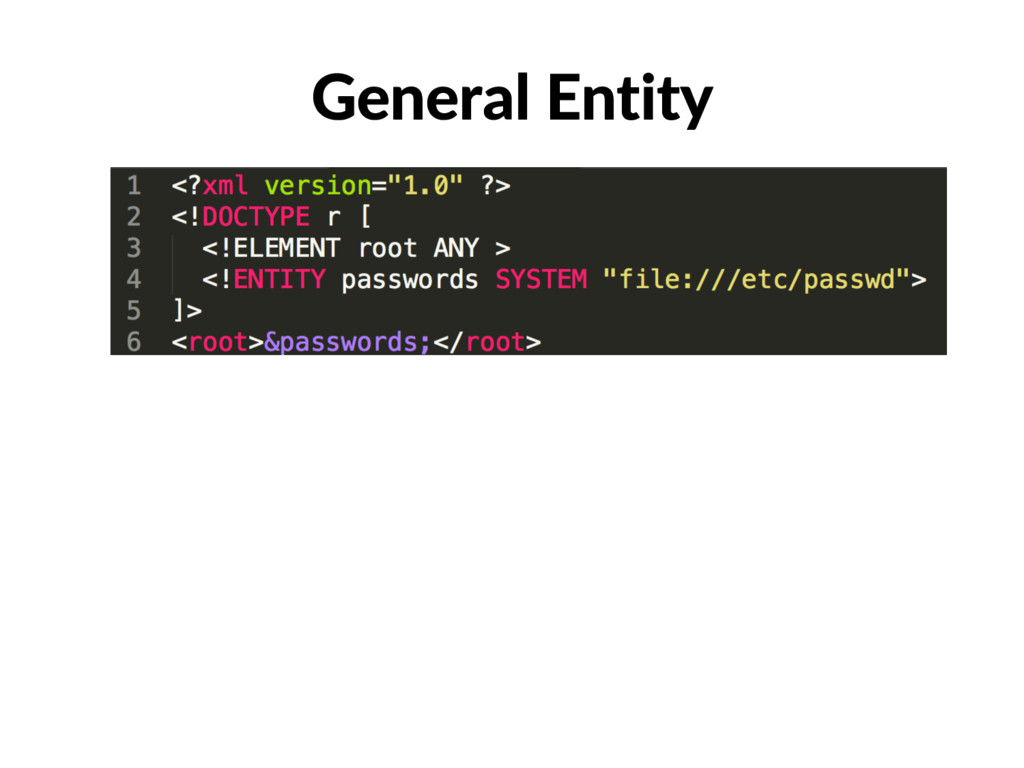

33. General Entity
34. General Entity

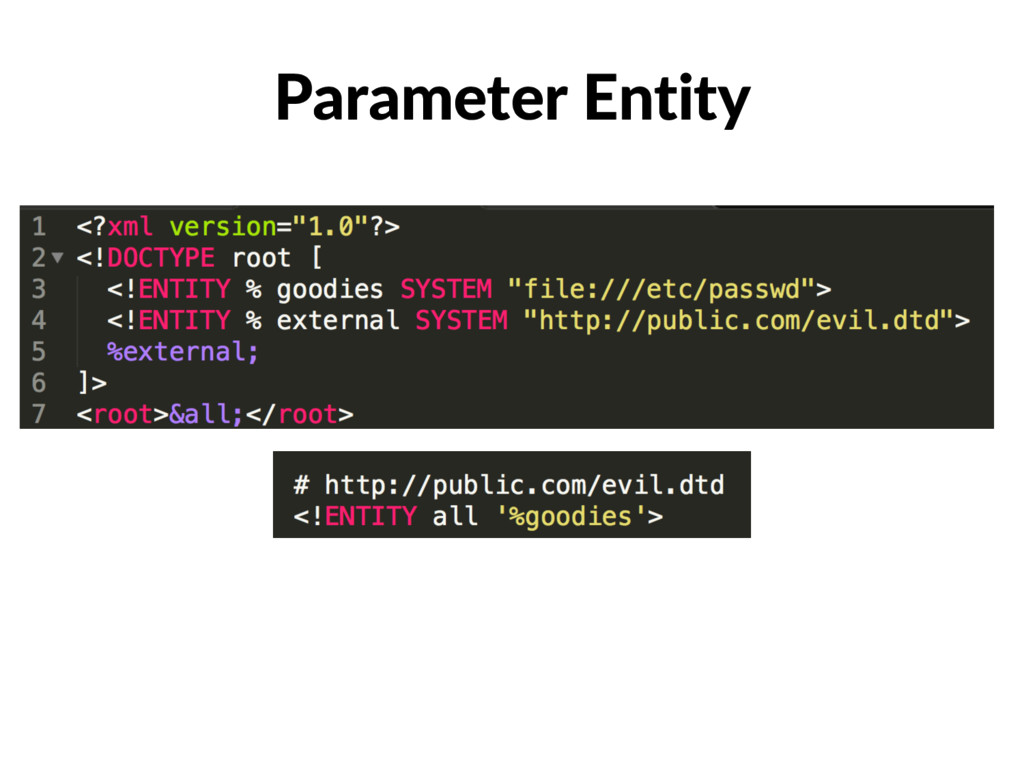

35. Parameter Entity
36. Attacks – DoS via Recursion
37. Attacks – DoS via Large File
38. Attacks – DoS via Billion Laughs
39. Attacks – Server Owned

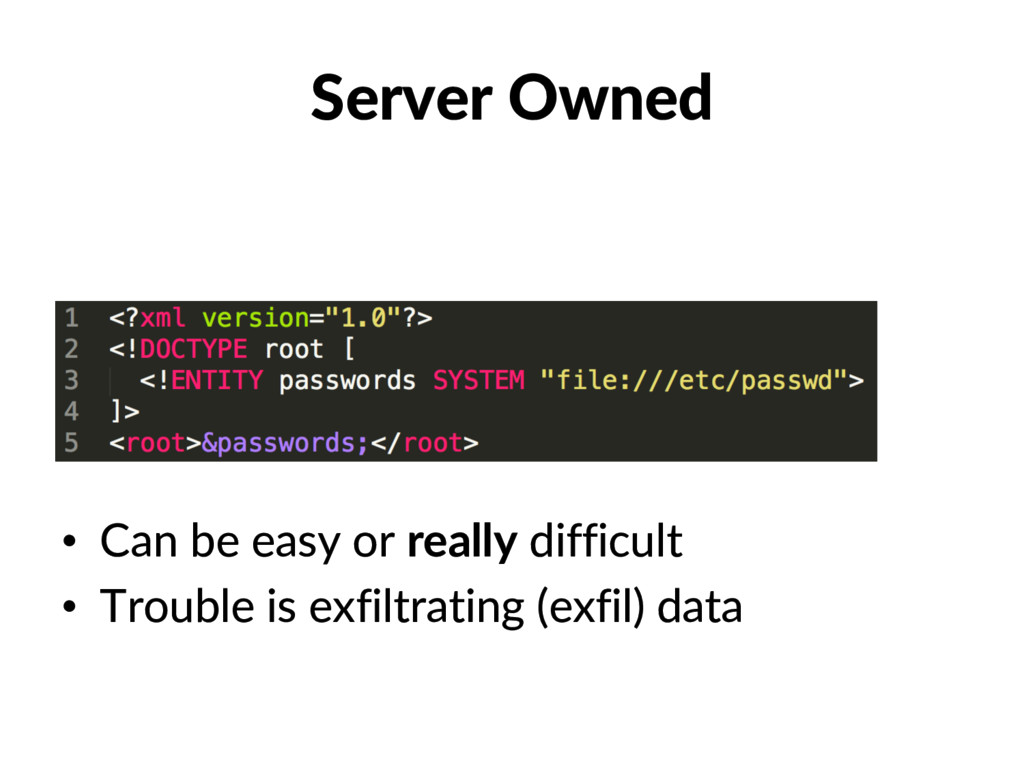

40. Server Owned •  Can be easy or really difficult •  Trouble is exfiltrating (exfil) data
41. Exfil Nieve
42. Exfil Nieve
43. Exfil via Error Response Source: https://blog.netspi.com/forcing-xxe-reflection-server-error-messages/
44. Exfil via Error Response Source: https://blog.netspi.com/forcing-xxe-reflection-server-error-messages/

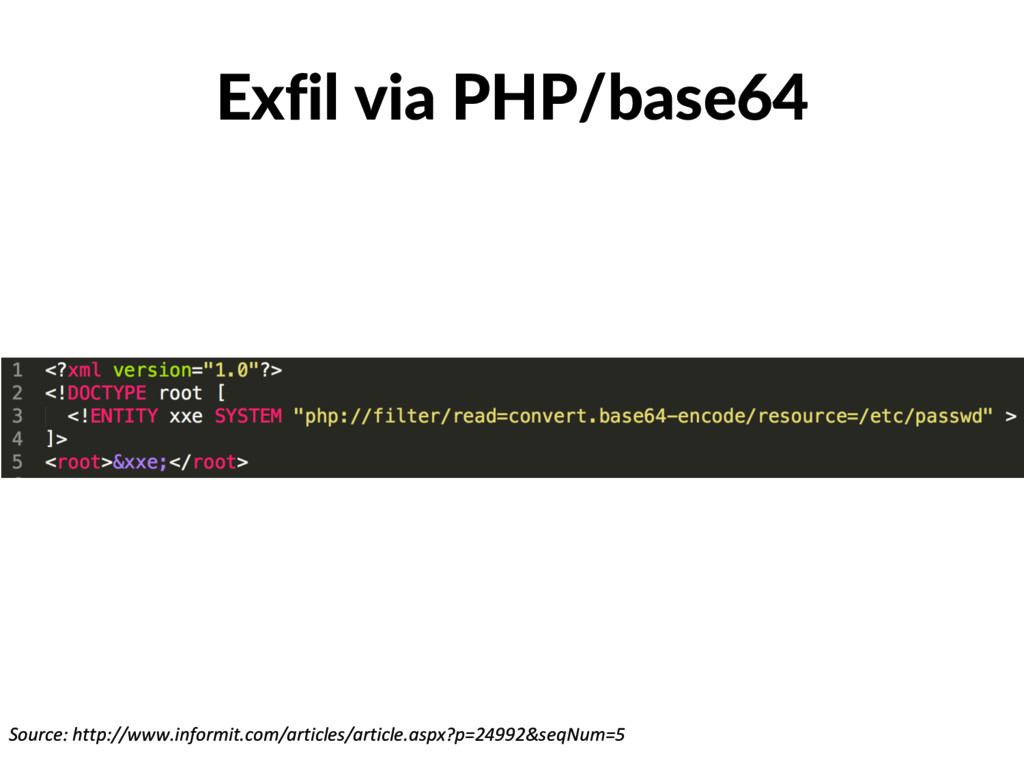

45. Exfil via PHP/base64 Source: http://www.informit.com/articles/article.aspx?p=24992&seqNum=5
46. Exfil via CDATA Source: https://web-in-security.blogspot.ca/2016/03/xxe-cheat-sheet.html

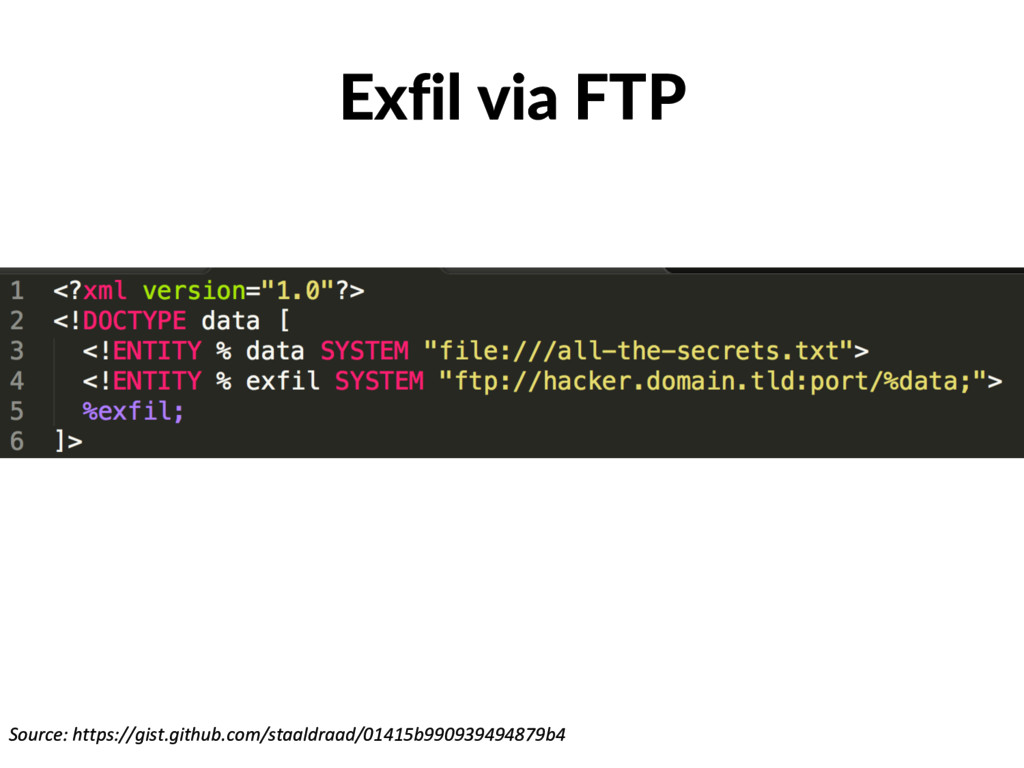

47. Exfil via FTP Source: https://gist.github.com/staaldraad/01415b990939494879b4
48. Exfil via DNS

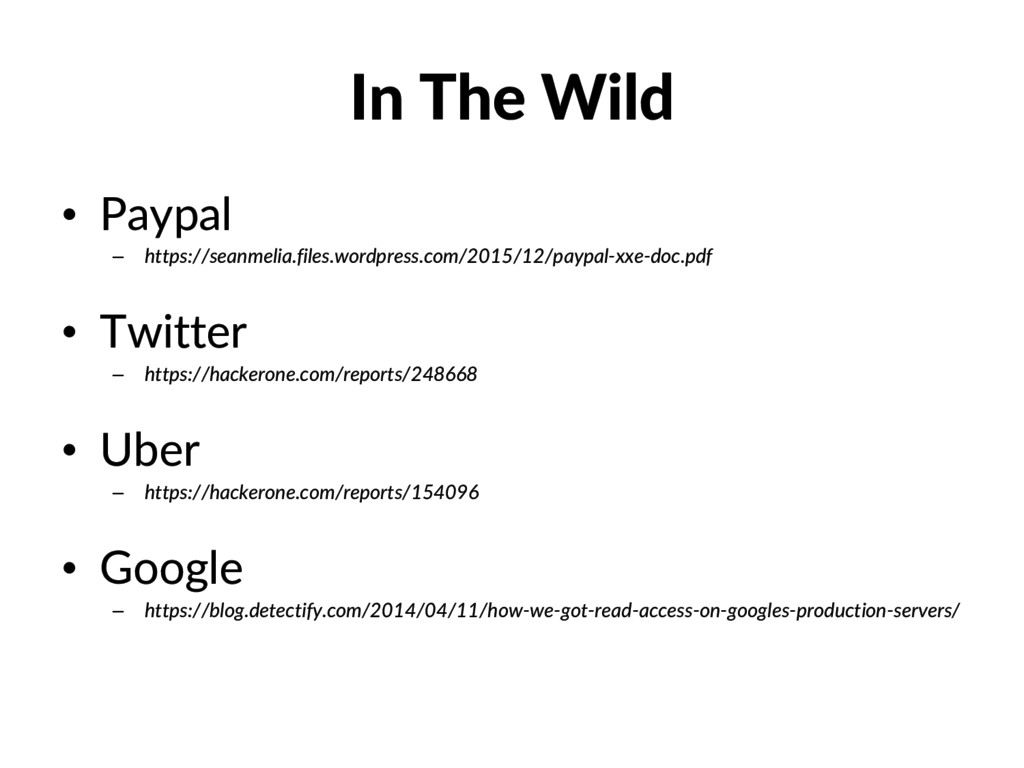

49. In The Wild •  Paypal –  https://seanmelia.files.wordpress.com/2015/12/paypal-xxe-doc.pdf •  Twitter –  https://hackerone.com/reports/248668 •  Uber –  https://hackerone.com/reports/154096 •  Google –  https://blog.detectify.com/2014/04/11/how-we-got-read-access-on-googles-production-servers/

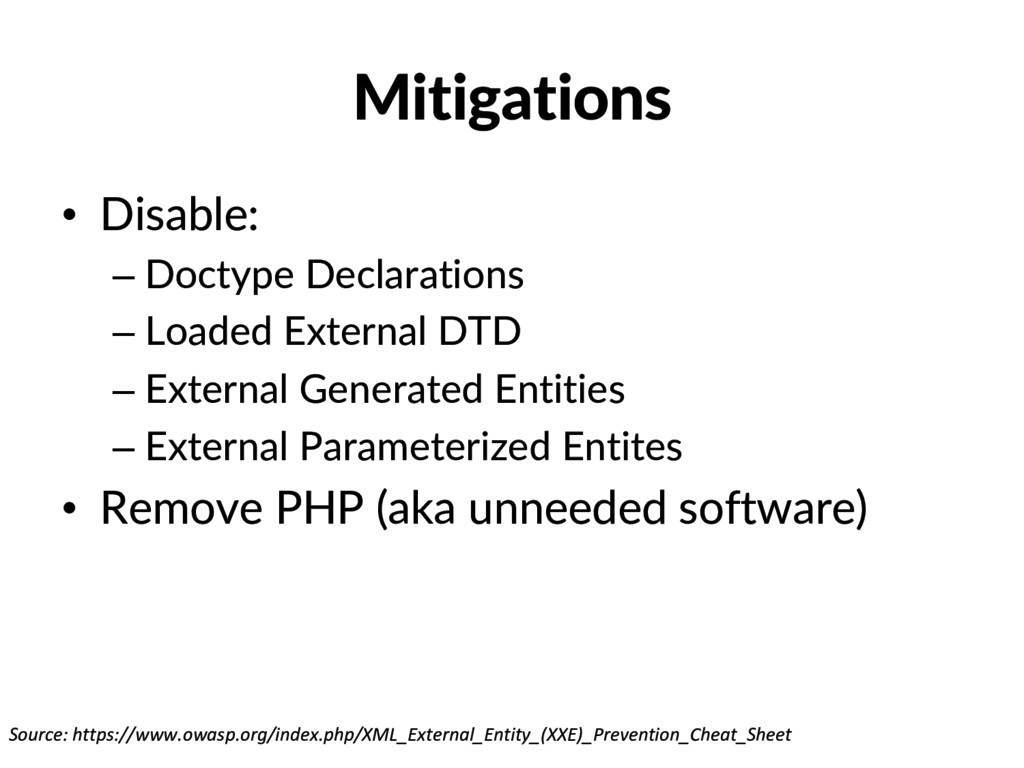

50. Mitigations •  Disable: – Doctype Declarations – Loaded External DTD – External Generated Entities – External Parameterized Entites •  Remove PHP (aka unneeded software) Source: https://www.owasp.org/index.php/XML_External_Entity_(XXE)_Prevention_Cheat_Sheet
51. XML INJECTION DEMOS
52. Further Reading/Research •  General Info: –  https://www.owasp.org/images/5/58/XML_Based_Attacks_-_OWASP.pdf –  https://www.vsecurity.com/download/papers/XMLDTDEntityAttacks.pdf •  Payloads: –  https://web-in-security.blogspot.ca/2016/03/xxe-cheat-sheet.html –  https://gist.github.com/staaldraad/01415b990939494879b4 –  Google XXE Cheatsheet
53. Thanks :) Make good decisions @gavingmiller gavinmiller.io
