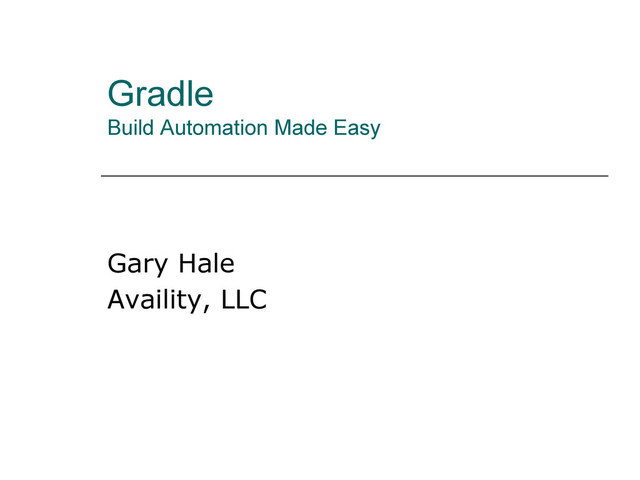

1. Gradle Build Automation Made Easy Gary Hale Availity, LLC
2. Agenda ◦ Why Gradle? ◦ Gradle Concepts ◦ Writing Gradle Scripts • Custom Tasks • Multi-project Builds • Customizing Distributions • Dependency Management ◦ Interesting Plugins ◦ Q & A
3. Why Gradle? ◦ Evolutionary Path: Dark Ages -> Ant -> Maven -> Gradle ◦ Gradle = Flexibility of Ant + Convenience of Maven + Power of Groovy ◦ Gradle makes simple things simple and complicated things possible.
4. Why Gradle? “There is no one-size-fits-all process for builds. Therefore Gradle does not impose a rigid process over people. Yet we think finding and describing YOUR process is very important. And so, Gradle has the very best support for describing it.” http://www.gradle.org
5. Why Gradle? ◦ Problems with Availity’s previous build system (Ant-based): • Duplication of information • Dependencies were informal and arbitrary • Scripts were convoluted and unreadable • Scripts were unnecessarily large • Changes to a core project could require changes to dozens of other projects
6. Why Gradle? ◦ How does Gradle fix this? • One place to change anything (DRY) • Shortest path to what you want to do • Concise, readable, powerful scripts • Dependencies are real and consistent • Full lifecycle functionality (build, test, packaging, upload, IDE metadata generation)
7. Why Gradle? ◦ Availity’s build scripts were reduced in size by roughly 66% on average and as much as 95%*. * Results are not typical.
8. Why Gradle? ◦ Who’s using Gradle? • Hibernate • Groovy • Grails • Spring Integration • Spring Security • Many others
9. Gradle Concepts ◦ Groovy-based scripts with Gradle DSL ◦ Convention over configuration ◦ Highly declarative but any functionality can be overridden and customized ◦ Based on Ant + Ivy
10. Gradle Concepts ◦ Informational commands: $ gradle tasks $ gradle dependencies $ gradle projects $ gradle --profile <task>
11. Gradle Concepts ◦ Build Lifecycle • Initialization ◦ What projects are in the build? • Configuration ◦ How are those projects configured? • Execution ◦ Where the rubber meets the road
12. Gradle Concepts ◦ Basic Concepts • Tasks • Dependencies • Configurations
13. Gradle Tasks task(‘first’) << { println ‘first task!’ } task(‘second’) << { println ‘second task!’ } second.dependsOn first $ gradle second :first first task! :second second task! BUILD SUCCESSFUL Total time: 1.389 secs
14. Gradle Tasks task('myCopy', type: Copy) { from('dir1') into('dir2') doFirst { println 'Before Copy:' fileTree('dir2').each { println '\t' + it.name } } doLast { println 'After Copy:' fileTree('dir2').each { println '\t' + it.name } } } $ gradle myCopy :myCopy Before Copy: After Copy: a.txt b.txt c.txt BUILD SUCCESSFUL Total time: 2.264 secs
15. Gradle Tasks ◦ Plugins add tasks to the build • apply plugin: ‘java’
16. Gradle Tasks apply plugin: 'java' task('listResources') << { sourceSets.main.resources.srcDirs. collect { fileTree(it).each { println '\t' + it.name } } } processResources { exclude('*.xml') eachFile { println '\tprocessing ' + it. path } dependsOn listResources } $ gradle processResources :listResources a.properties b.xml c.properties :processResources processing a.properties processing c.properties BUILD SUCCESSFUL Total time: 2.107 secs
17. Gradle Tasks ◦ Custom Task • Place in a special directory called buildSrc • Must extend DefaultTask and implement a task annotated with TaskAction • Can be abstracted to a separate project and imported at build time like any other dependency
18. Gradle Tasks package org.gradle.hello import org.gradle.api.DefaultTask import org.gradle.api.tasks.TaskAction class HelloTask extends DefaultTask { def String yourname = "whoever you are" @TaskAction def hello() { println 'Hello ' + yourname + '!' } }
19. Dependency Management ◦ Dependencies • Project: dependencies { compile project(‘:common’) } • External: dependencies { compile ‘commons-lang:commons-lang:2.4’ } • File-based: dependencies { compile files(opensource_lib + ‘/json-lib/xom-1.2.6.jar‘) }
20. Dependency Management ◦ Dependencies have different scopes: dependencies { compile ‘org.springframework:spring-core:3.0’ providedCompile ‘javax.servlet:servlet-api:2.5’ runtime ‘commons-vfs:commons-vfs:1.0’ testCompile ‘junit:junit:4.8’ }
21. Dependency Management ◦ Dependencies can exclude transitive dependencies: dependencies { compile(‘commons-dbcp:commons-dbcp:1.3’) { transitive false } } dependencies { compile(‘commons-dbcp:commons-dbcp:1.3’) { exclude module: ‘commons-pool’ } }
22. Multi-project Builds ◦ Ideally, a single root project with children in a hierarchy is desirable. ◦ Gradle also supports flat layouts. ◦ During initialization, settings.gradle sets up what projects are included in the build.
23. Multi-project Builds Root Child 1 Child 2 build.gradle settings.gradle build.gradle build.gradle
24. Multi-project Builds ◦ allprojects – applies the configuration to all projects including the root ◦ subprojects – applies the configuration to just the subprojects ◦ Subprojects can override any or all configuration injected by the root.
25. Customizing Distributions ◦ Configurations define sets of dependencies ◦ Dependencies couple libraries to configurations ◦ Artifacts couple configurations to assembly tasks
26. Customized Distributions task(‘myCustomConfigZip’, type: Zip) { from configurations.myCustomConfig } configurations { myCustomConfig extends runtime } dependencies { myCustomConfig ‘some:special-jar:1.0’ } artifacts { myCustomConfig myCustomConfigZip }
27. Customized Jars Child2/build.gradle: task(‘testArtifactJar’, type: Jar) { from sourceSets.test.classes classifier = 'test‘ } configurations { testArtifacts extends testRuntime } artifacts { testArtifacts testArtifactJar } Child1/build.gradle: dependencies { project(path: ':child2', configuration: ‘testArtifacts') }
28. Integrating with Ant ◦ Gradle considers Ant a “first-class citizen”. ◦ Your ant expertise can be directly applied in a Gradle implementation. ◦ Ant tasks can be imported into Gradle from a custom script and executed.
29. Integrating with Ant ◦ Ant snippet: <fileset dir= "src" casesensitive=" yes"> <include name="**/*.java"/> <exclude name="**/*Test*"/> </fileset>
30. Integrating with Ant ◦ Gradle equivalent: ant.fileset(dir: ‘src’, casesensitive: ‘true’) { include(name: ‘**/*.java’) exclude(name: ‘**/*Test*’) }
31. Interesting Plugins ◦ Eclipse plugin apply plugin: ‘eclipse’ • Adds tasks: ◦ eclipseClasspath ◦ eclipseProject ◦ eclipseJdt ◦ eclipseWtpComponent ◦ eclipseWtpFacet (WAR Only)
32. Interesting Plugins ◦ WAR plugin apply plugin: ‘war’ • Adds tasks: ◦ war • Adds configurations: ◦ providedCompile ◦ providedRuntime
33. Interesting Plugins ◦ Jetty plugin apply plugin: ‘jetty’ • Adds tasks: ◦ runJetty • Allows war to be run in a local jetty container.
34. Interesting Plugins ◦ Maven plugin apply plugin: ‘maven’ • Adds tasks: ◦ install • Allows maven metadata to be generated and published to a maven repository.
35. Interesting Plugins ◦ Application plugin apply plugin: ‘application’ • Adds tasks: ◦ run ◦ startScripts ◦ Install ◦ distZip
36. Interesting Plugins ◦ Sonar plugin apply plugin: ‘sonar’ • Adds tasks: ◦ sonar • Allows code quality statistics to be generated and published to a Sonar instance.
37. Links ◦ Gradle Homepage • http://gradle.org/ ◦ Gradle User Guide • http://www.gradle. org/current/docs/userguide/userguide_single.html ◦ Gradle DSL • http://www.gradle.org/current/docs/dsl/index.html ◦ Gradle Wiki • http://wiki.gradle.org/display/GRADLE/Home ◦ Gradle Cookbook • http://wiki.gradle.org/display/GRADLE/Cookbook ◦ Other Good stuff • http://wiki.gradle.org/display/GRADLE/External+Resources
