GoClipse - Setup tutorial - Version 2

GoClipse - Setup tutorial - Version 2

This tutorial schematically describes a possible solution for setting up Go, GoClipse (current version: 0.9.1) and a few related tools.

Gianluca Costa

November 28, 2014
Tweet

More Decks by Gianluca Costa

Other Decks in Programming

Transcript

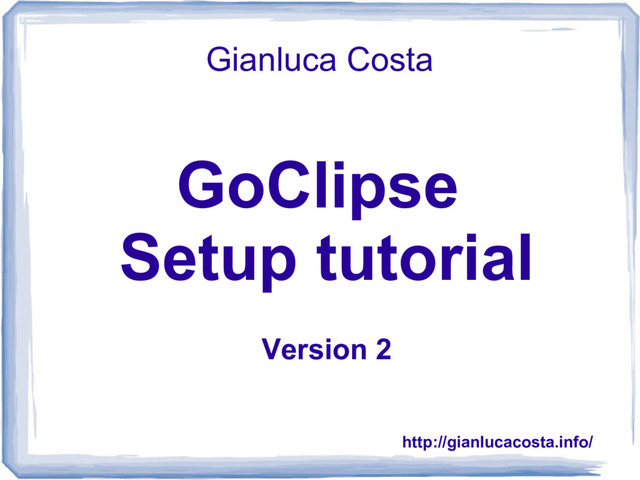

  1. GoClipse
    Setup tutorial
    Version 2
    Gianluca Costa
    http://gianlucacosta.info/

    View Slide

  2. Brief introduction to GoClipse

    Very nicely integrated within the Eclipse IDE

    Can automatically build projects whenever a file
    is saved, showing errors in the editor and in the
    Problems window

    Supports Go projects whose source files are in
    directories not listed in the GOPATH (see later)

    View Slide

  3. Brief introduction to GoClipse (2)

    Employs Gocode to provide very fast code
    completion (e.g., when you press . Or
    Ctrl+Space while writing an identifier)

    Employs Go oracle to support enhanced
    source code navigation: pressing F3 or
    clicking on a name while pressing Ctrl works
    like a hyperlink to its definition, even for
    standard library modules

    View Slide

  4. About this tutorial

    This tutorial schematically describes a
    possible solution for setting up Go, GoClipse
    (current version: 0.9.1) and a few related tools

    We'll take into account 2 similar paths:
    – A full-fledged installation, with a few optional
    components
    – A minimal setup, which can be handy if you
    need a standalone copy of GoClipse
    alongside another version of Eclipse

    Feel free to experiment! ^__^

    View Slide

  5. Full installation
    1)Install Go and set up your GOROOT
    2)Set up your GOPATH
    3)Install Git and the latest version of Gocode, for
    faster autocompletion (optional)
    4)Install Mercurial and the latest version of Go
    oracle, for accurate symbol browsing (optional)
    5)Install any edition of Eclipse - or reuse an
    installation that you already administer
    6)Install GoClipse
    7)Configure GoClipse

    View Slide

  6. Minimal installation
    1)Install Go only if it's not on your machine, but
    always set up your GOROOT
    2)Set up your GOPATH
    3)Download just the Eclipse Platform - only if
    you can't reuse an existing Eclipse installation
    4)Install GoClipse
    5)Configure GoClipse

    View Slide

  7. Setting environment variables

    If you are on a BASH-based Unix,
    environment variables can be set by editing
    the .profile configuration file (or .bashrc – it
    depends on your operating system) in your
    home directory.
    For example, you could add the following line:
    export MY_ENV_VAR=$HOME/MyDir

    If you are on a recent version of Windows,
    right-click on the This PC icon on the Desktop,
    choose Properties, then Advanced system
    settings, then Environment variables

    View Slide

  8. Install Go and set up your GOROOT

    Download Go from https://golang.org/ and
    install it: the specific procedure depends on
    your OS

    Go might already be available on your system!
    Use which go or where go to find out!

    Set the env. var. GOROOT to the absolute
    path of Go's installation directory (e.g., /opt/go
    on a Unix system, or C:\Go on Windows)

    Add the GOROOT/bin subdirectory to your
    PATH environment variable

    View Slide

  9. Set up your GOPATH

    Create a directory dedicated to your GoPath,
    for example /home/myself/gopath or
    C:\GoPath

    Set up a global environment variable called
    GOPATH, pointing to that directory

    Add GOPATH/bin to your PATH, although
    such directory doesn't exist yet

    GOPATH can be not only a single directory,
    but a list of directories: for further info, please
    refer to:https://golang.org/doc/code.html

    View Slide

  10. Install Git

    Git seems required in order to automatically
    download Gocode via “go get”

    Most Linux distributions have the related
    installation packages in their repositories, and
    Git's website provides several binaries

    Official website: http://git-scm.com/

    View Slide

  11. Install Gocode

    From the command line, run:
    go get -u github.com/nsf/gocode
    (on Unix)
    go get -u -ldflags -H=windowsgui github.com/nsf/gocode
    (on Windows)

    The program might take a few minutes and will not
    produce output in case of success

    View Slide

  12. Install Mercurial

    Mercurial seems required in order to download
    Go oracle via “go get”

    Just like Git, it is already in the software
    repositories of most Linux distributions, and its
    website provides many binary packages

    Official website: http://mercurial.selenic.com/

    View Slide

  13. Install Go oracle

    From the command line, execute:
    go get code.google.com/p/go.tools/cmd/oracle

    This might take a few minutes and will not
    output anything in case of success

    View Slide

  14. Install Eclipse

    Multiple installations of Eclipse can coexist on
    the same system – the only caveat usually
    consisting in keeping their respective
    workspaces separated

    If you want to install a minimal Eclipse version
    dedicated to GoClipse, you might want to
    download just the Eclipse Platform, currently
    available at:
    http://download.eclipse.org/eclipse/downloads/
    drops4/R-4.4.1-
    201409250400/#PlatformRuntime

    View Slide

  15. Install GoClipse

    GoClipse can be installed like most Eclipse
    plugins

    For detailed installation instructions, please
    refer to:
    https://github.com/GoClipse/goclipse/blob/late
    st/documentation/Installation.md#installation

    A basic version of CDT (C/C++ Development
    Tooling) might be automatically installed as
    well

    View Slide

  16. The workspace and the GOPATH

    First of all, if you are setting up an Eclipse
    version dedicated to GoClipse, you'll probably
    want to keep the workspace separated from
    other Eclipse workspaces, to prevent conflicts

    The workspace should reside in an arbitrary
    directory outside GOPATH

    Your source code can be located either below
    a per-project src folder or below an src folder
    of your GOPATH: for the sake of simplicity,
    we'll focus on the first case

    View Slide

  17. Configure GoClipse
    1)Before configuring GoClipse, choose your
    workspace, because settings are saved in the
    workspace itself
    2)Within Eclipse, click on the “Window ==>
    Preferences...” menu item
    3)Select the “Go” section

    View Slide

  18. Configure GoClipse (2) - General

    The values of GOROOT and GOPATH should
    match the values of the same environment
    variables previously defined

    Choose a value for GOOS and GOARCH,
    according to your current development
    platform. This seems useful for source code
    navigation

    Check the remaining executable paths

    View Slide

  19. Configure GoClipse (3) - Tools

    Open the Tools subsection

    Click the Browse... buttons to select the actual
    path of your oracle and gocode executable
    files (to find them easily, consider that they
    should reside in GOPATH/bin)

    You might want to disable the Enable Gocode
    log console checkbox

    Confirm the dialog and restart Eclipse

    View Slide

  20. Creating a Go project

    When creating a new Go project, select the
    option Create new project in workspace: while
    you work on that project, GoClipse will
    automatically prepend the project's directory to
    your GOPATH

    On the other hand, by choosing Create project
    from existing source, you could work on an
    arbitrary source dir of your GOPATH

    View Slide

  21. Create a main file
    1)Right-click on the project's src folder
    2)Choose New=>Folder
    3)Call it, for example, MyProgram
    4)Right-click on it and choose New=>Go File
    5)In the dialog, select Command Source File,
    then Empty Main Function, and call it, for
    example, main.go
    6)Write your source file (see next slide) and
    save it: GoClipse should already build the
    program for you

    View Slide

  22. A minimal source file
    package main
    import "fmt"
    func main() {
    fmt.Println("Hello, world! ^__^")
    }

    View Slide

  23. Build artifacts

    Your PROJECT_DIR/bin directory will contain
    a MyProgram executable, where MyProgram
    is the name of the directory containing the
    main package

    Additionally, every custom Go package within
    your project will create a related .a library file
    in the PROJECT_DIR/pkg/GOOS_GOARCH
    directory tree

    If source files are decoupled from the project,
    the related GOPATH is used in lieu of
    PROJECT_DIR

    View Slide
