Tackling OpenAPI Drift
Tackling OpenAPI Drift.
Lessons from the ‘AcmeFS’ Experience
Ikenna Nwaiwu
December 06, 2024
Transcript
41 slides
-
Tackling OpenAPI Drift Lessons from the ‘AcmeFS’ Experience Ikenna Nwaiwu
@ Ikenna Consulting Apidays Paris 2024 -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921
Author & Independent Consultant 3 -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921
API Governance problems I help my clients solve: •API sprawl •API drift •High API delivery lead time 4 Advisory to API providers and API tool vendors. -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921

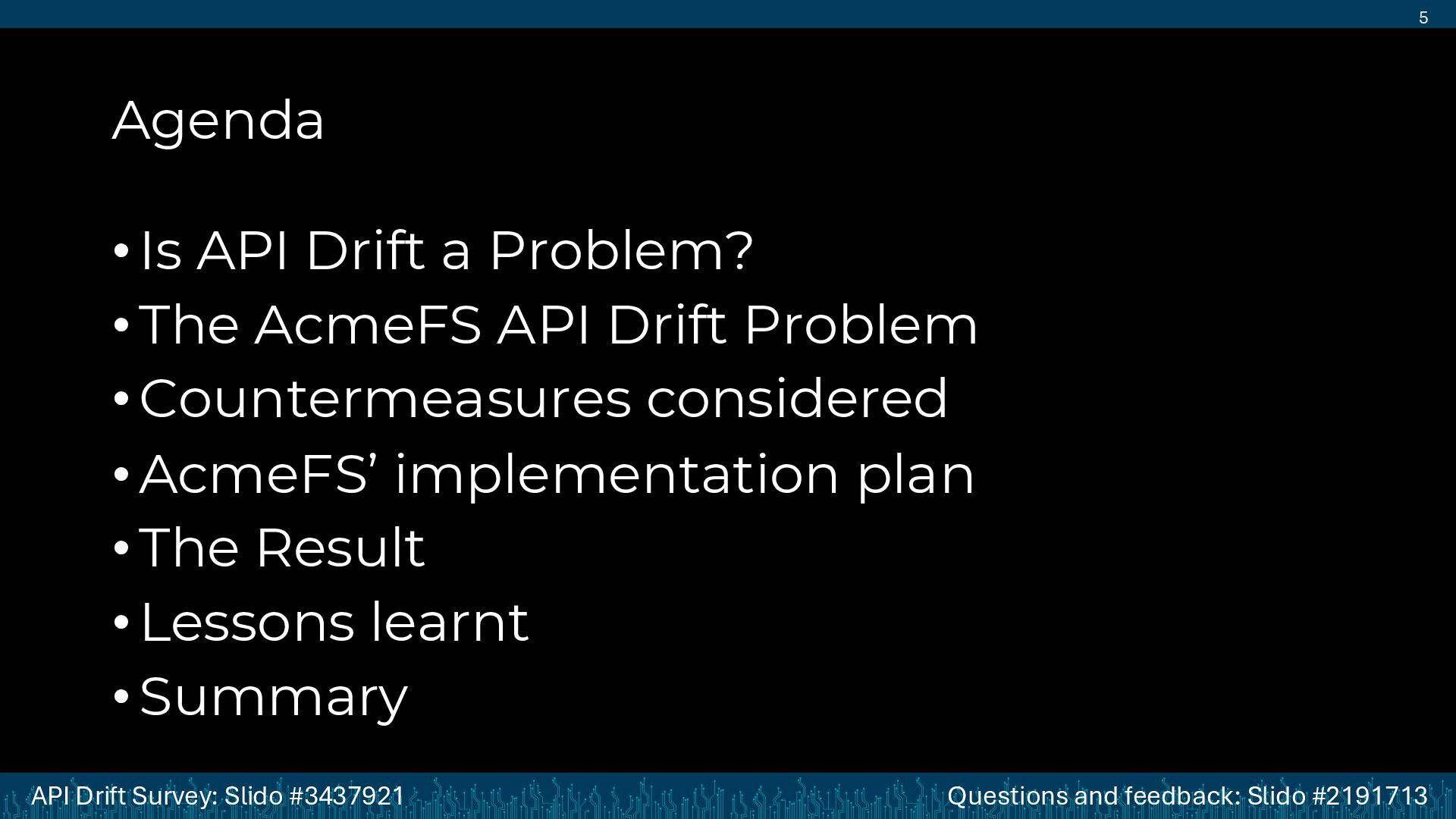

Agenda •Is API Drift a Problem? •The AcmeFS API Drift Problem •Countermeasures considered •AcmeFS’ implementation plan •The Result •Lessons learnt •Summary 5 -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921
Is API Drift a problem? 6 -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921

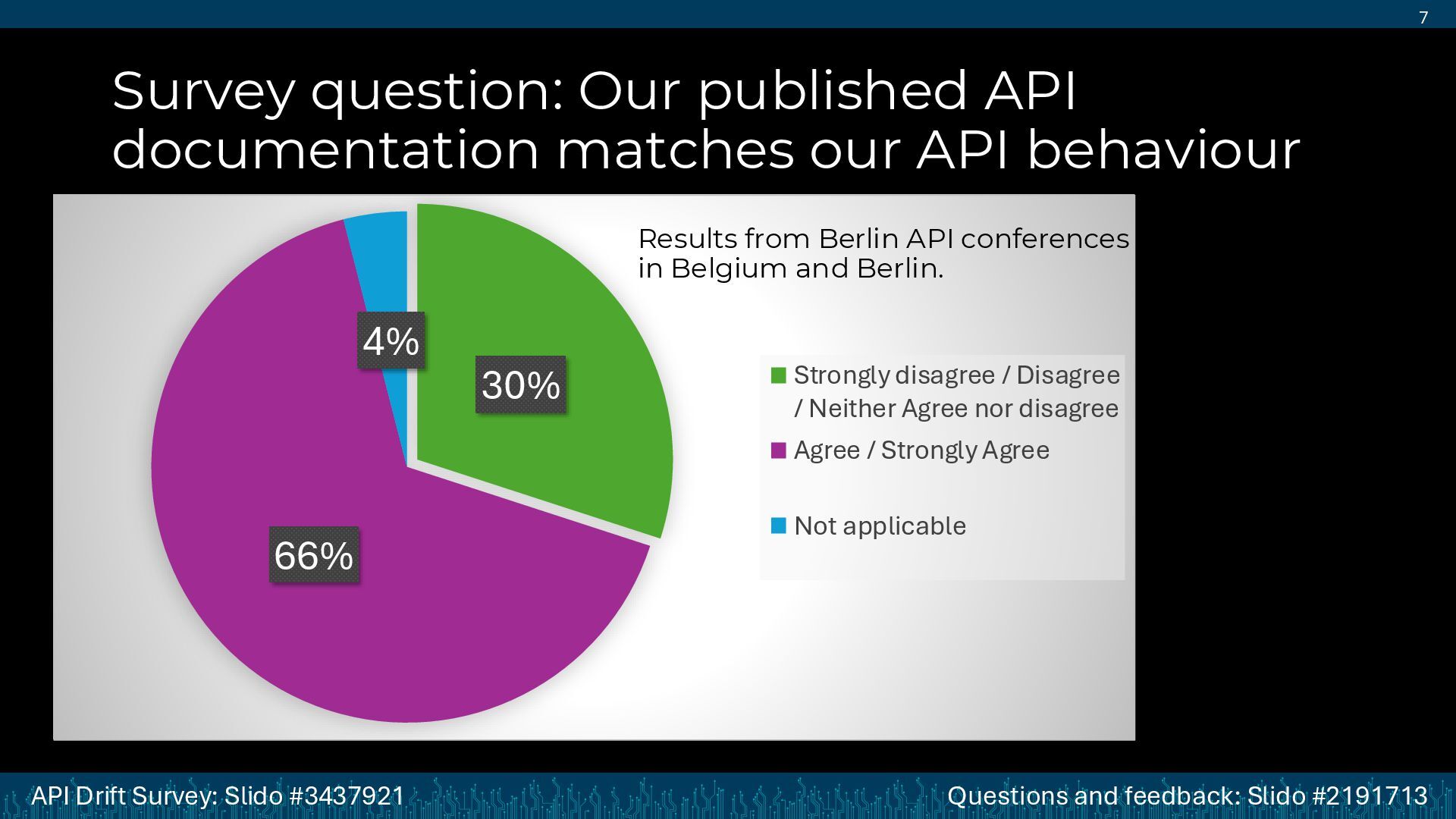

Survey question: Our published API documentation matches our API behaviour 30% 66% 4% Strongly disagree / Disagree / Neither Agree nor disagree Agree / Strongly Agree Not applicable 7 Results from Berlin API conferences in Belgium and Berlin. -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921
75% Non-Conformant endpoints Source: OpenAPI Specifications in the Real World, August 2024. 8 Credit: Ralfs Blumbergs -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921
25% Absolutely no endpoints in the API conform to docs Source: OpenAPI Specifications in the Real World, August 2024. 9 Credit: Borna Bevanda -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921

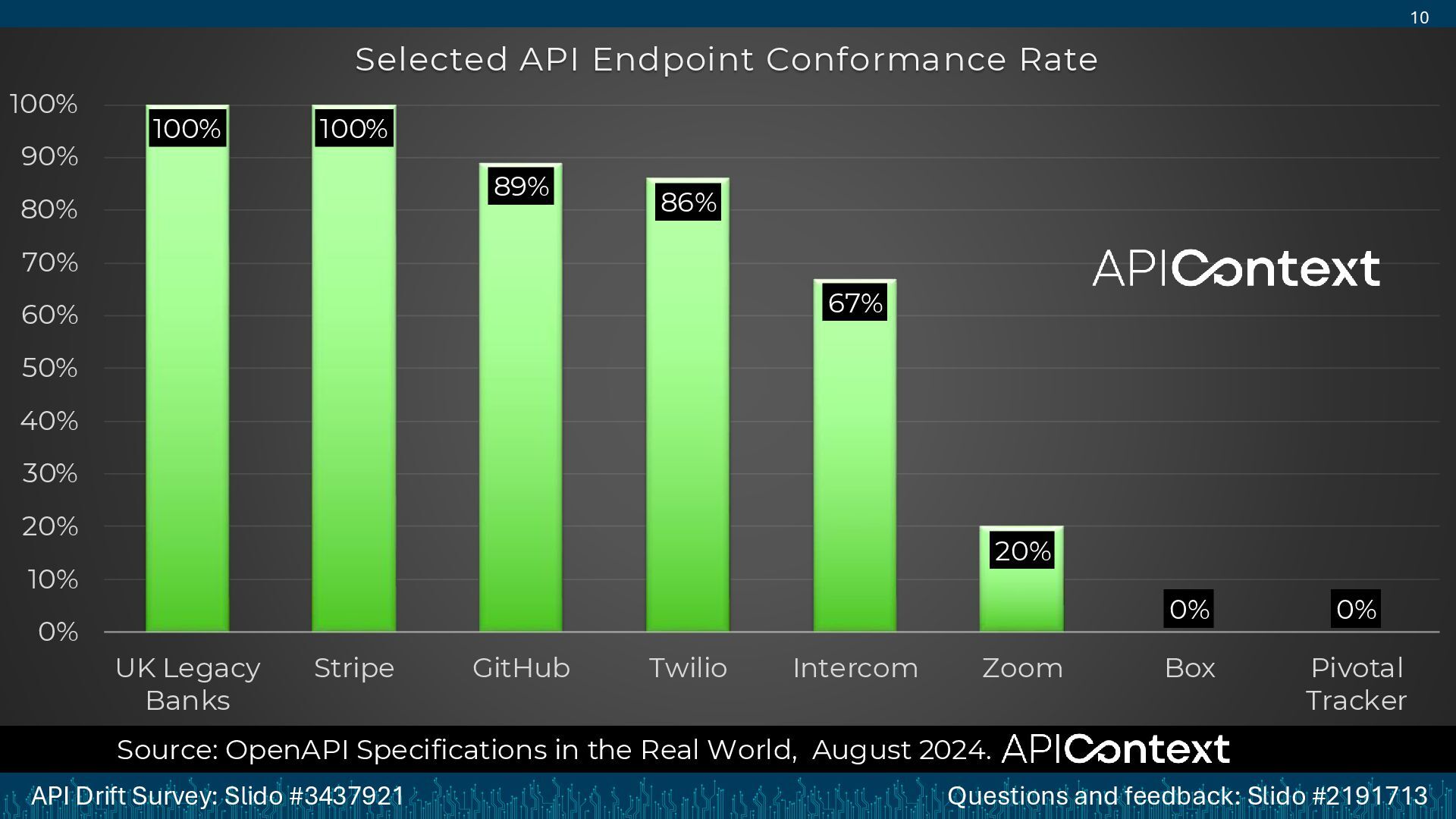

100% 100% 89% 86% 67% 20% 0% 0% 0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% UK Legacy Banks Stripe GitHub Twilio Intercom Zoom Box Pivotal Tracker Selected API Endpoint Conformance Rate Source: OpenAPI Specifications in the Real World, August 2024. 10 -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921
So, if many popular APIs suffer API drift, is it really an issue? 11 -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921
The AcmeFS Drift Problem Story: 12 -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921
BigBank1 is a strong prospect. 13 Proof of Concept (PoC) stage. -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921

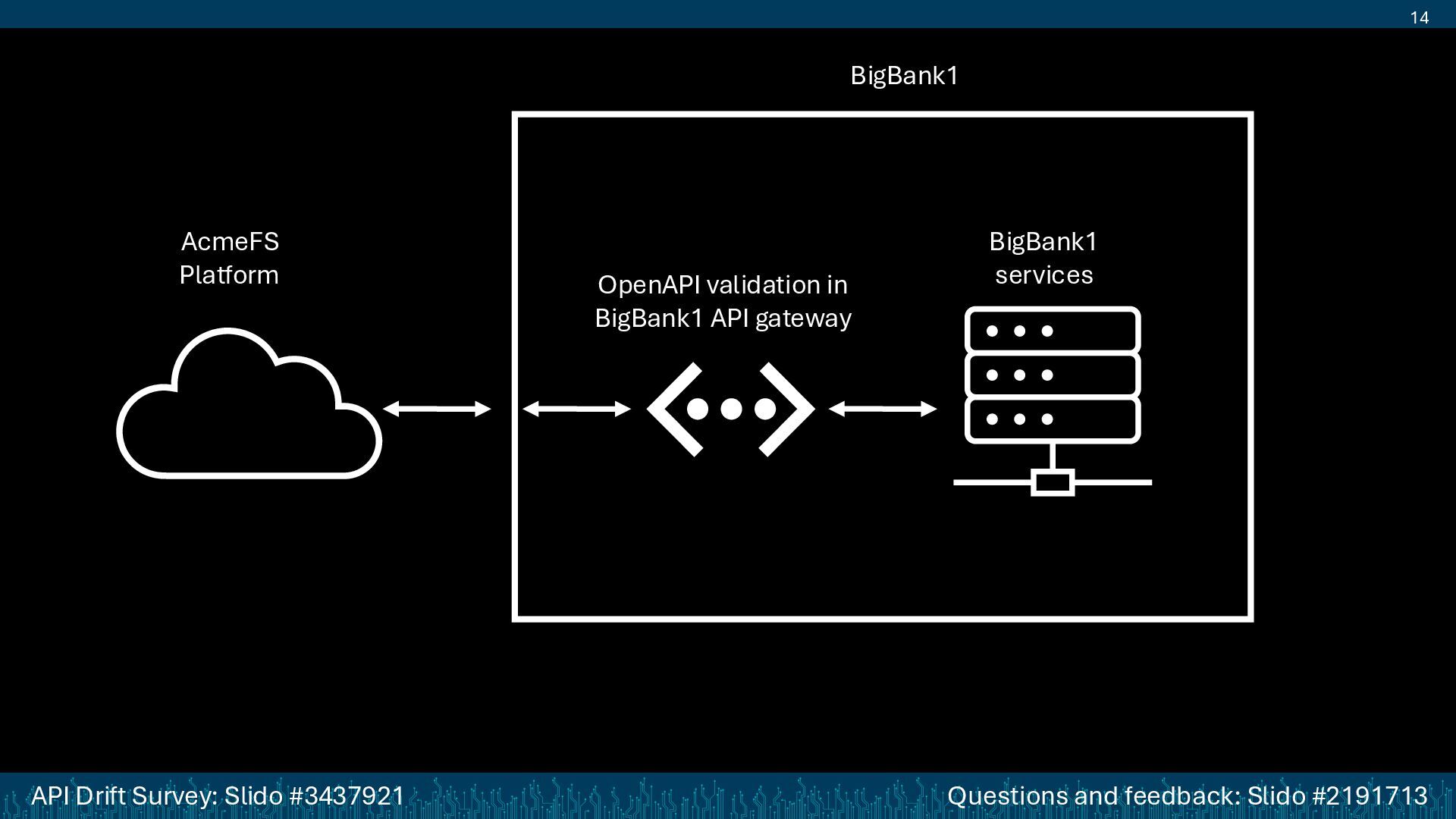

AcmeFS Platform OpenAPI validation in BigBank1 API gateway BigBank1 services BigBank1 14 -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921

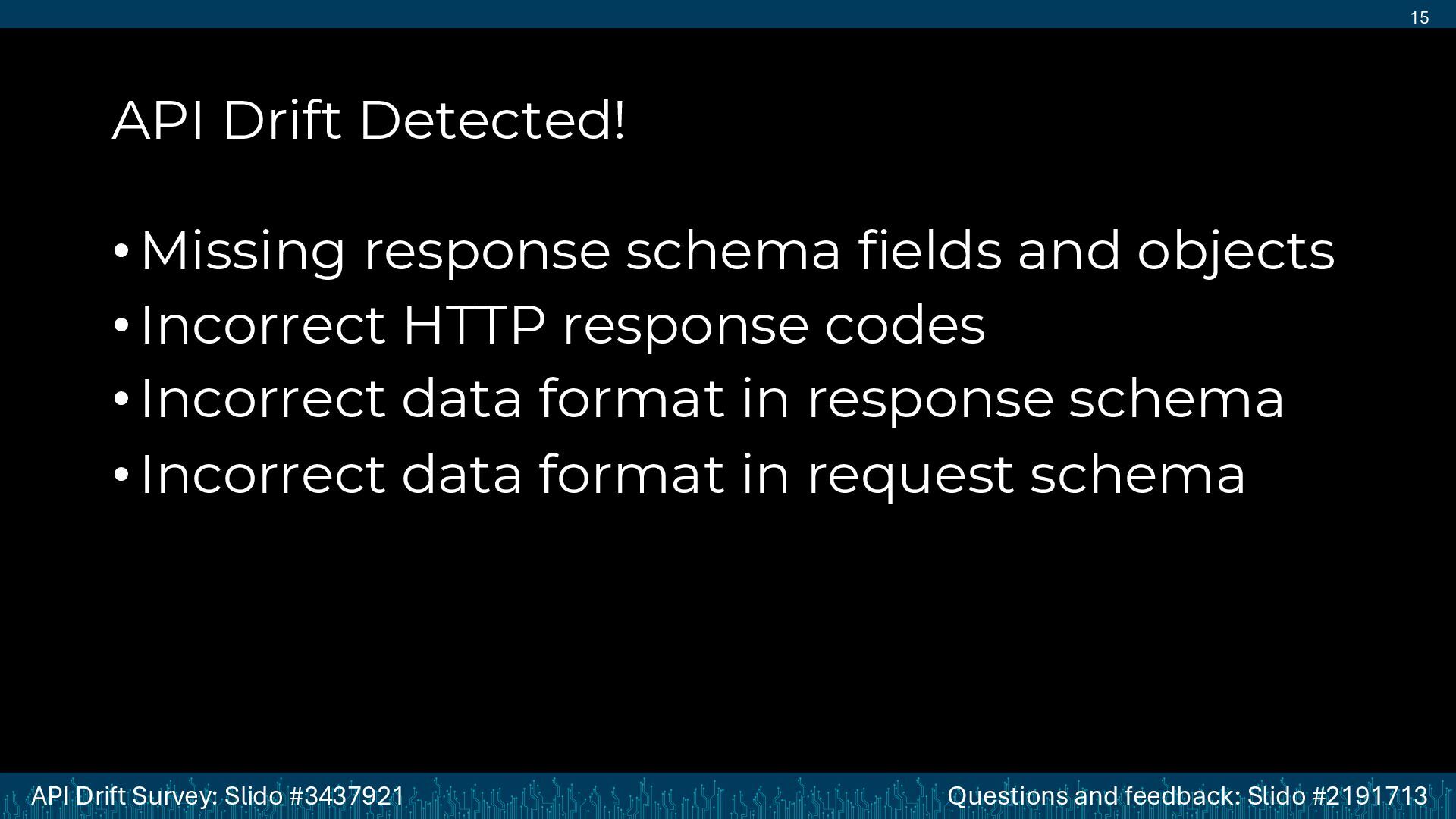

API Drift Detected! •Missing response schema fields and objects •Incorrect HTTP response codes •Incorrect data format in response schema •Incorrect data format in request schema 15 -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921
What should AcmeFS do? Another prospect, BigBank2. PoC in two weeks. 30% of endpoints in the customer workflow had API drift. 17 -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921
Countermeasures Considered 18 -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921
#1: Generate OpenAPI descriptions from code. springdoc-openapi https://springdoc.org / 19 -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921

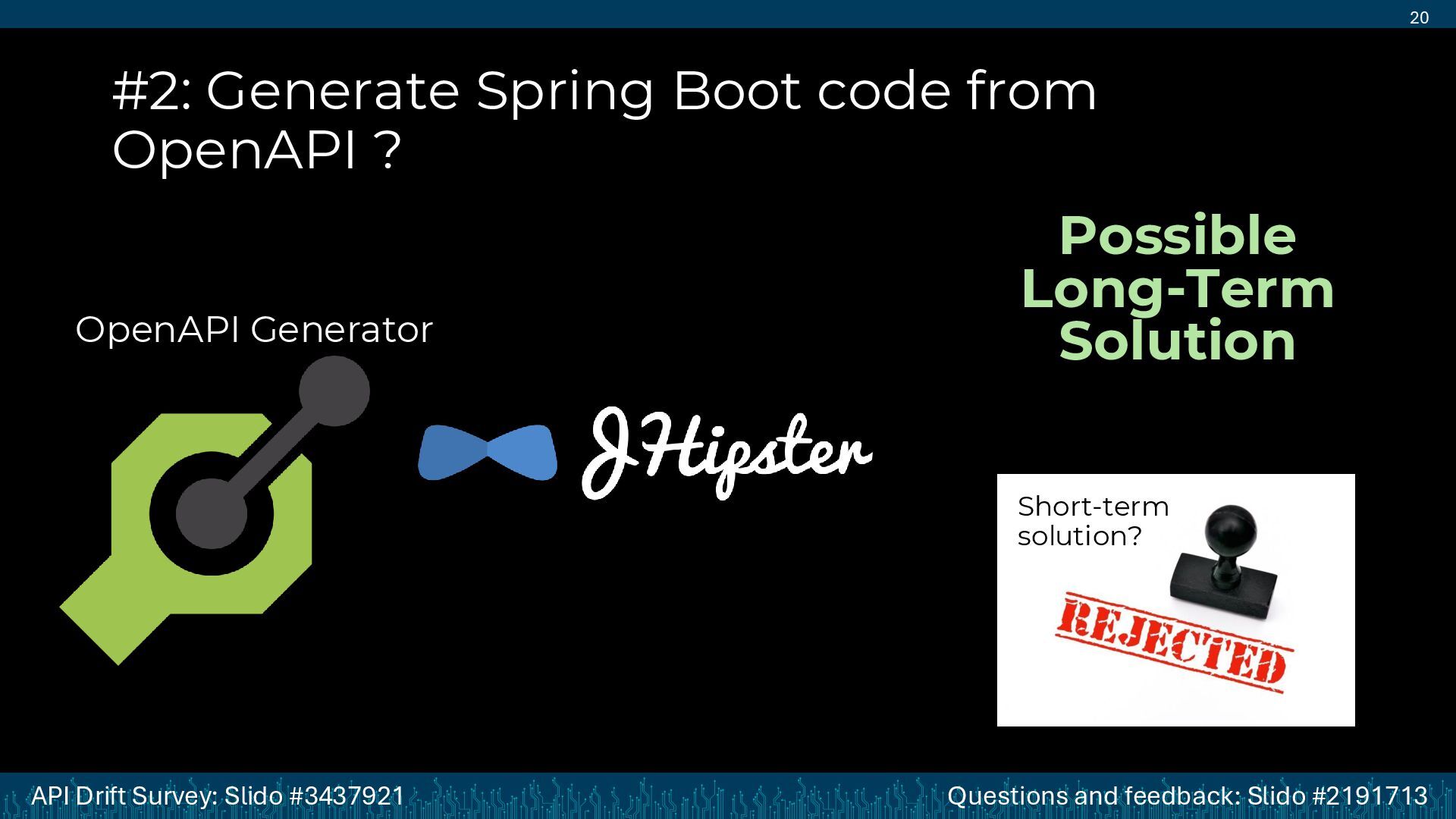

#2: Generate Spring Boot code from OpenAPI ? Possible Long-Term Solution Short-term solution? OpenAPI Generator 20 -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921

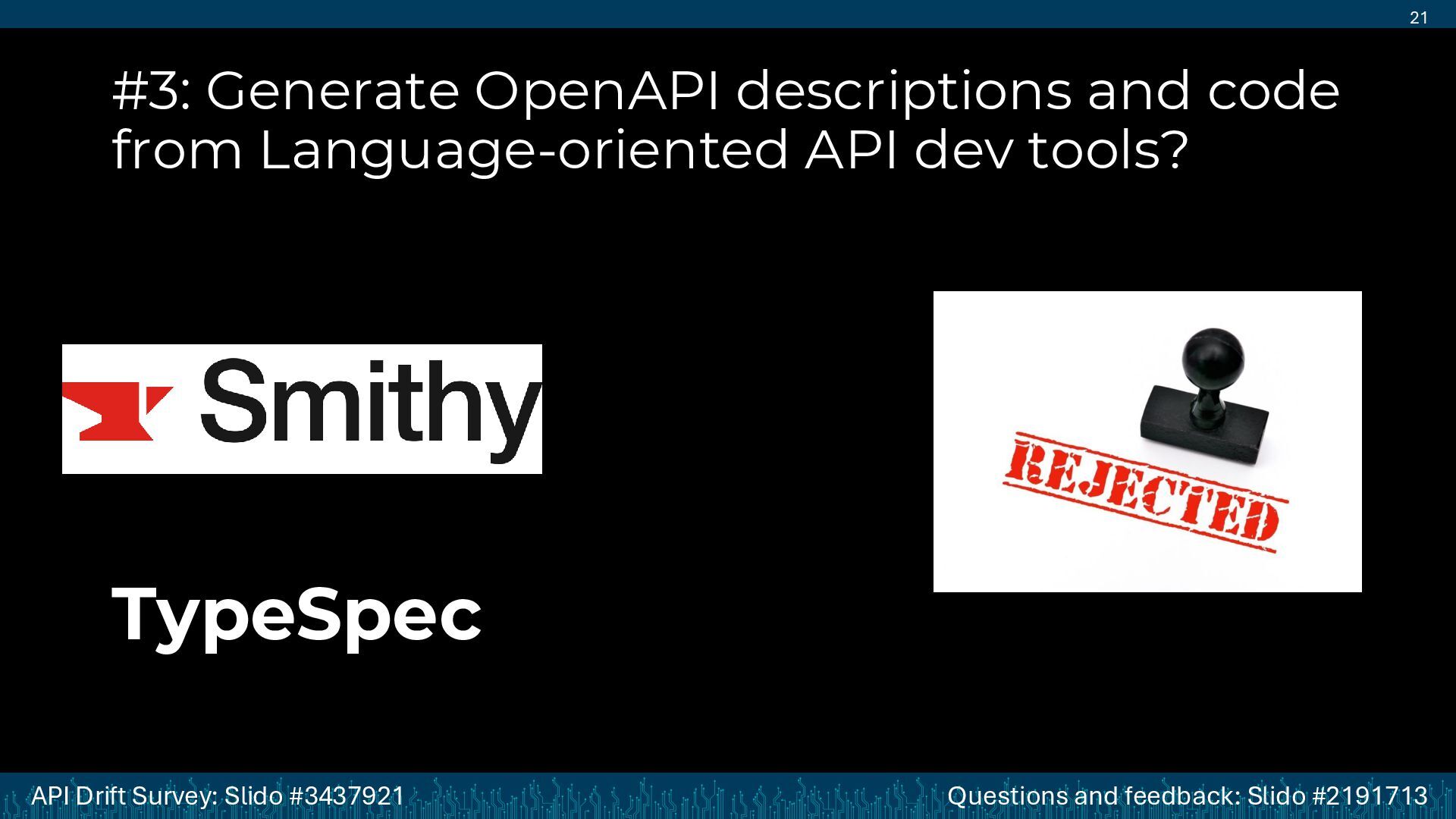

#3: Generate OpenAPI descriptions and code from Language-oriented API dev tools? TypeSpec 21 -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921

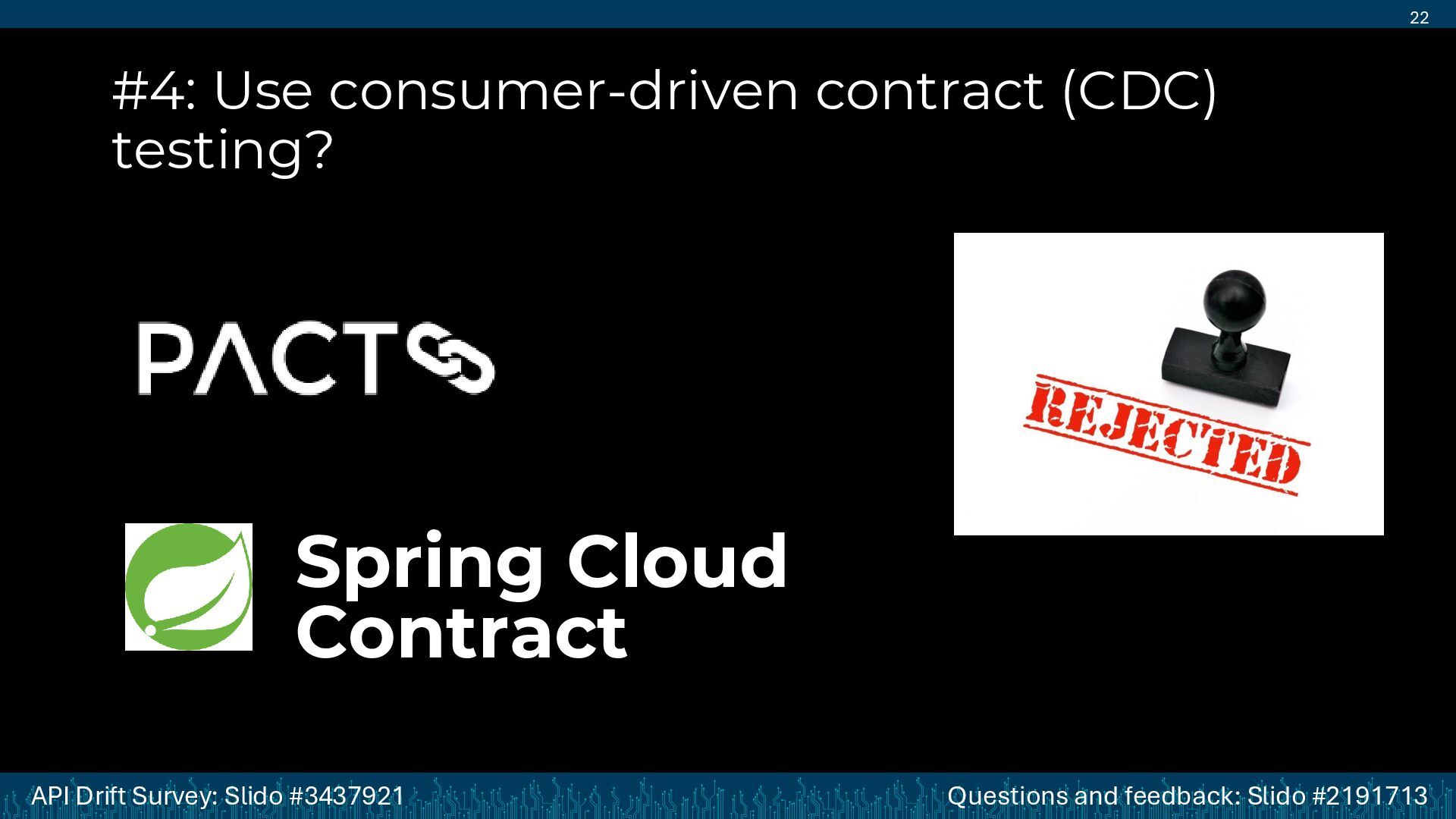

#4: Use consumer-driven contract (CDC) testing? Spring Cloud Contract 22 -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921

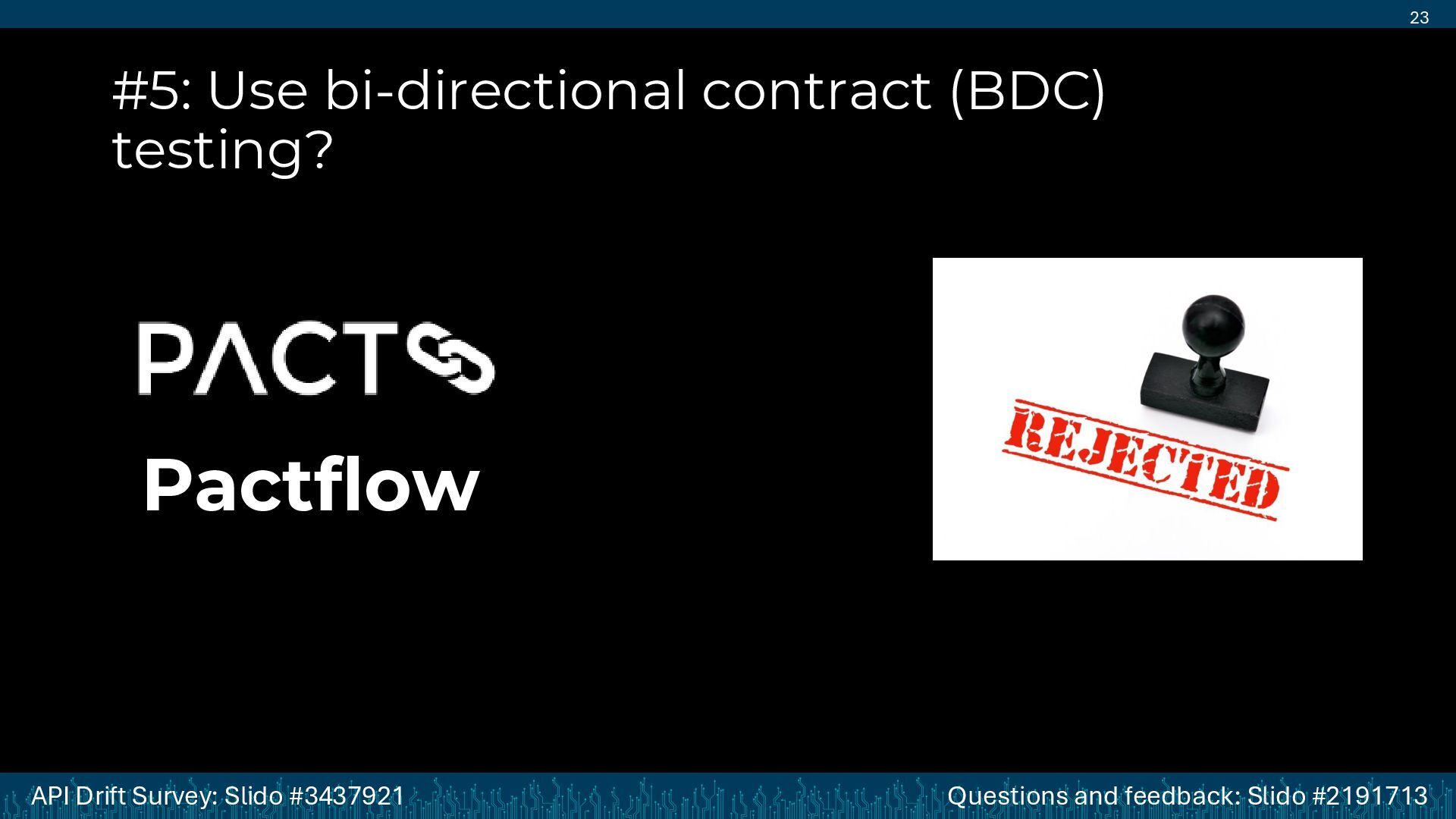

#5: Use bi-directional contract (BDC) testing? Pactflow 23 -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921

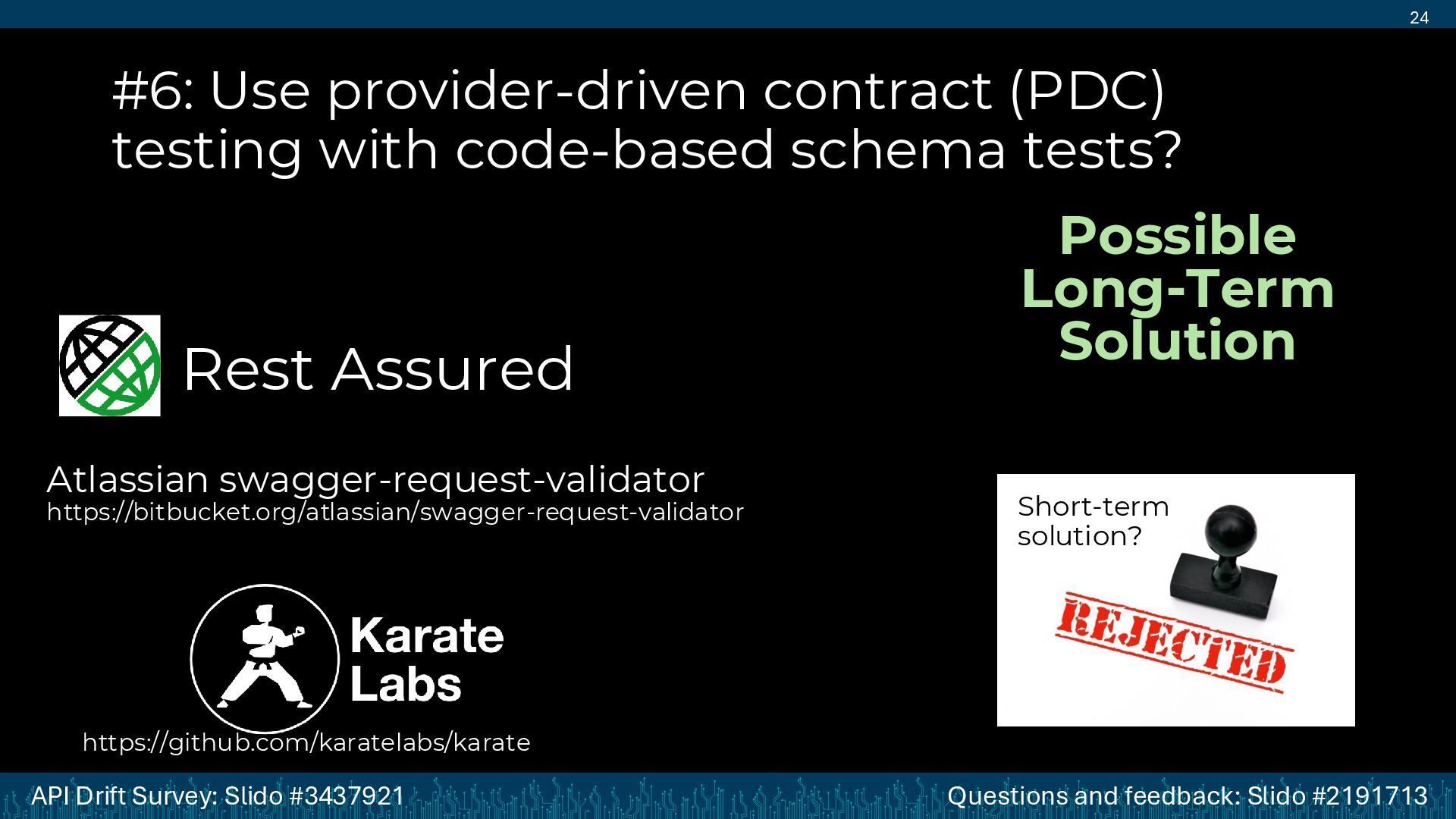

#6: Use provider-driven contract (PDC) testing with code-based schema tests? Rest Assured Atlassian swagger-request-validator https://bitbucket.org/atlassian/swagger-request-validator Possible Long-Term Solution 24 https://github.com/karatelabs/karate Short-term solution? -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921

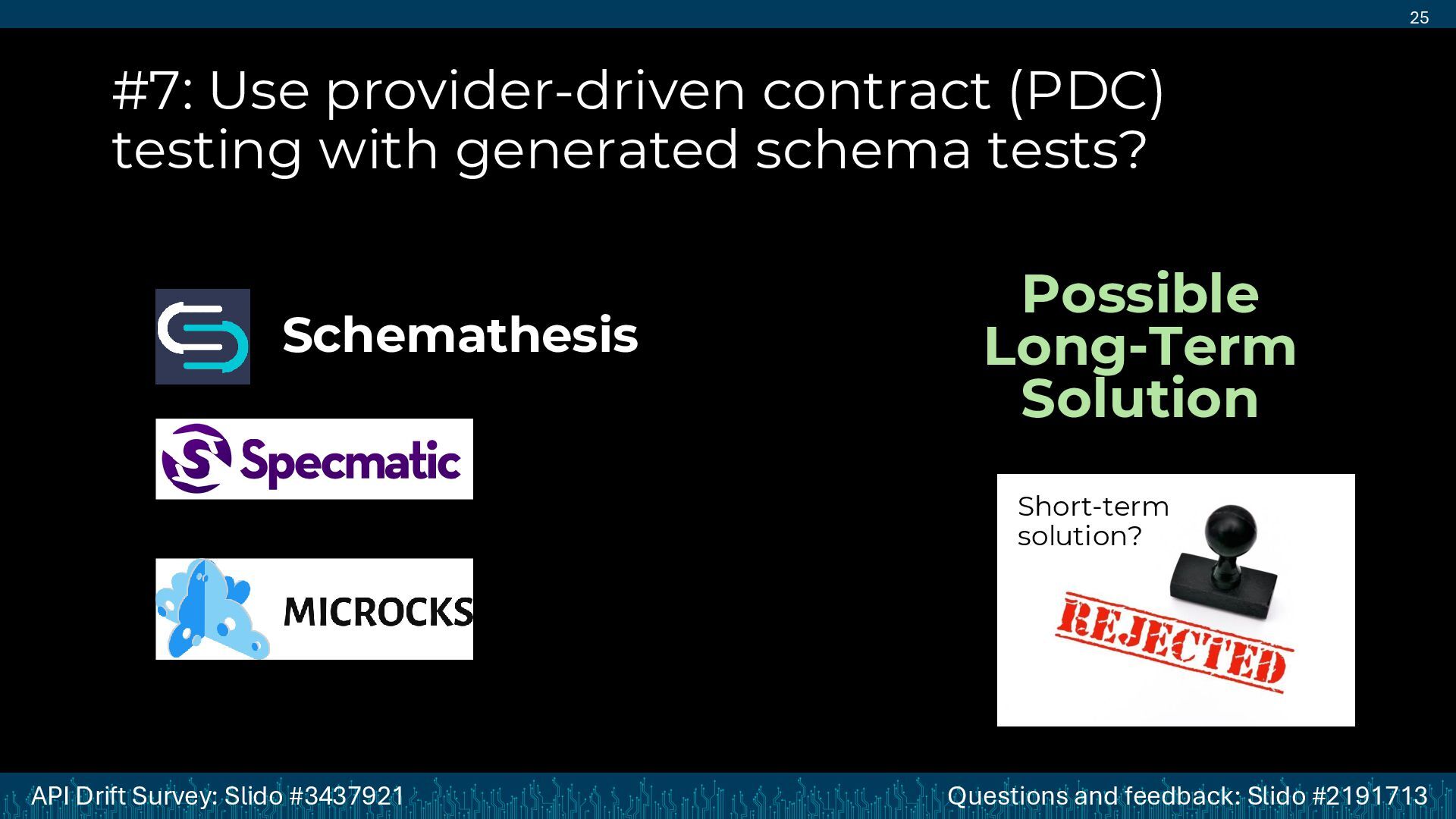

#7: Use provider-driven contract (PDC) testing with generated schema tests? Schemathesis Possible Long-Term Solution 25 Short-term solution? -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921

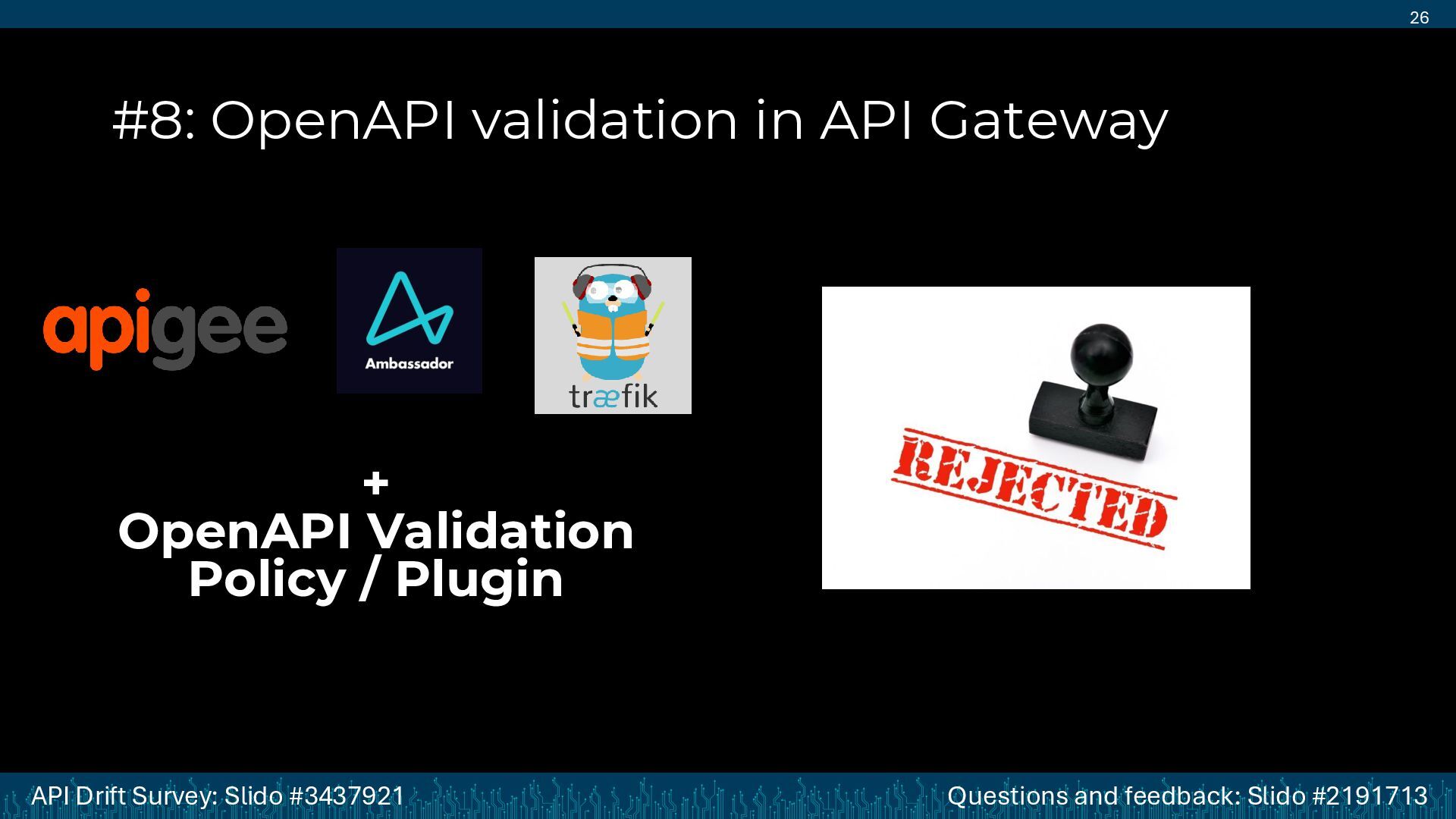

#8: OpenAPI validation in API Gateway + OpenAPI Validation Policy / Plugin 26 -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921
#9: Use provider-driven contract (PDC) testing with a validating proxy? 27 https://github.com/pb33f/wiretap https://github.com/stoplightio/prism -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921
Implementation Plan 28 -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921

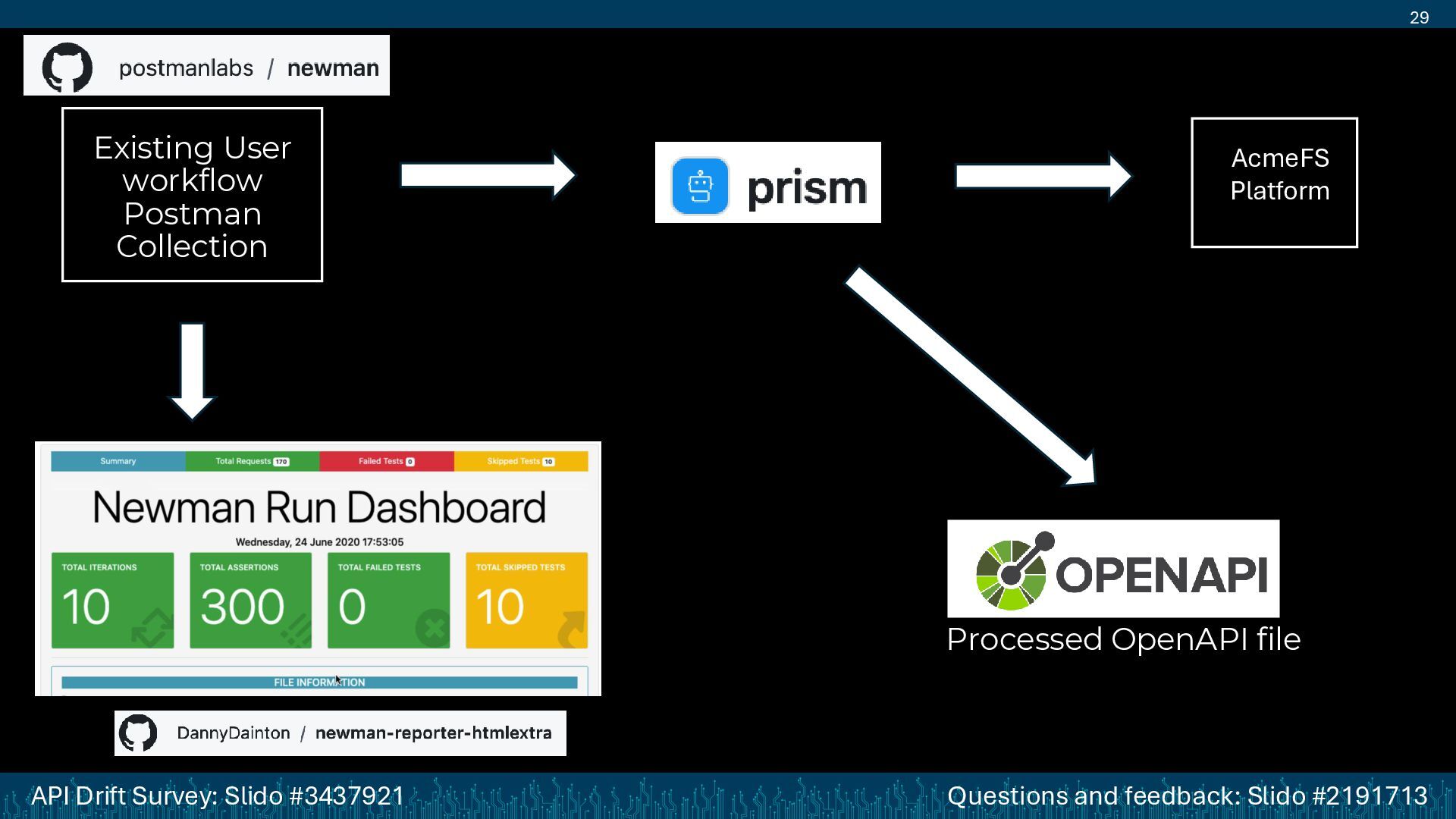

AcmeFS Platform Processed OpenAPI file Existing User workflow Postman Collection 29 -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921

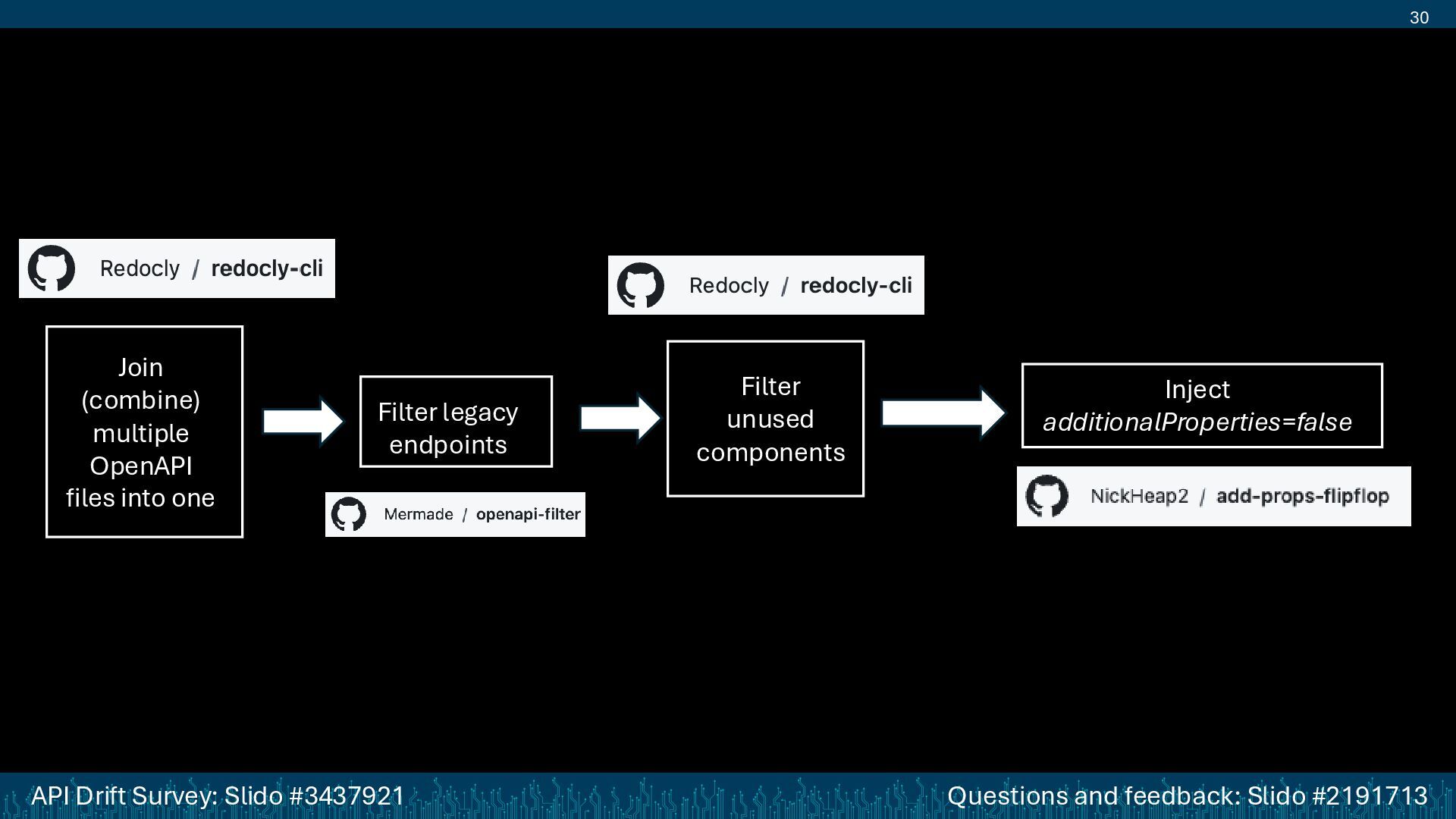

Join (combine) multiple OpenAPI files into one Inject additionalProperties=false Filter unused components Filter legacy endpoints 30 -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921

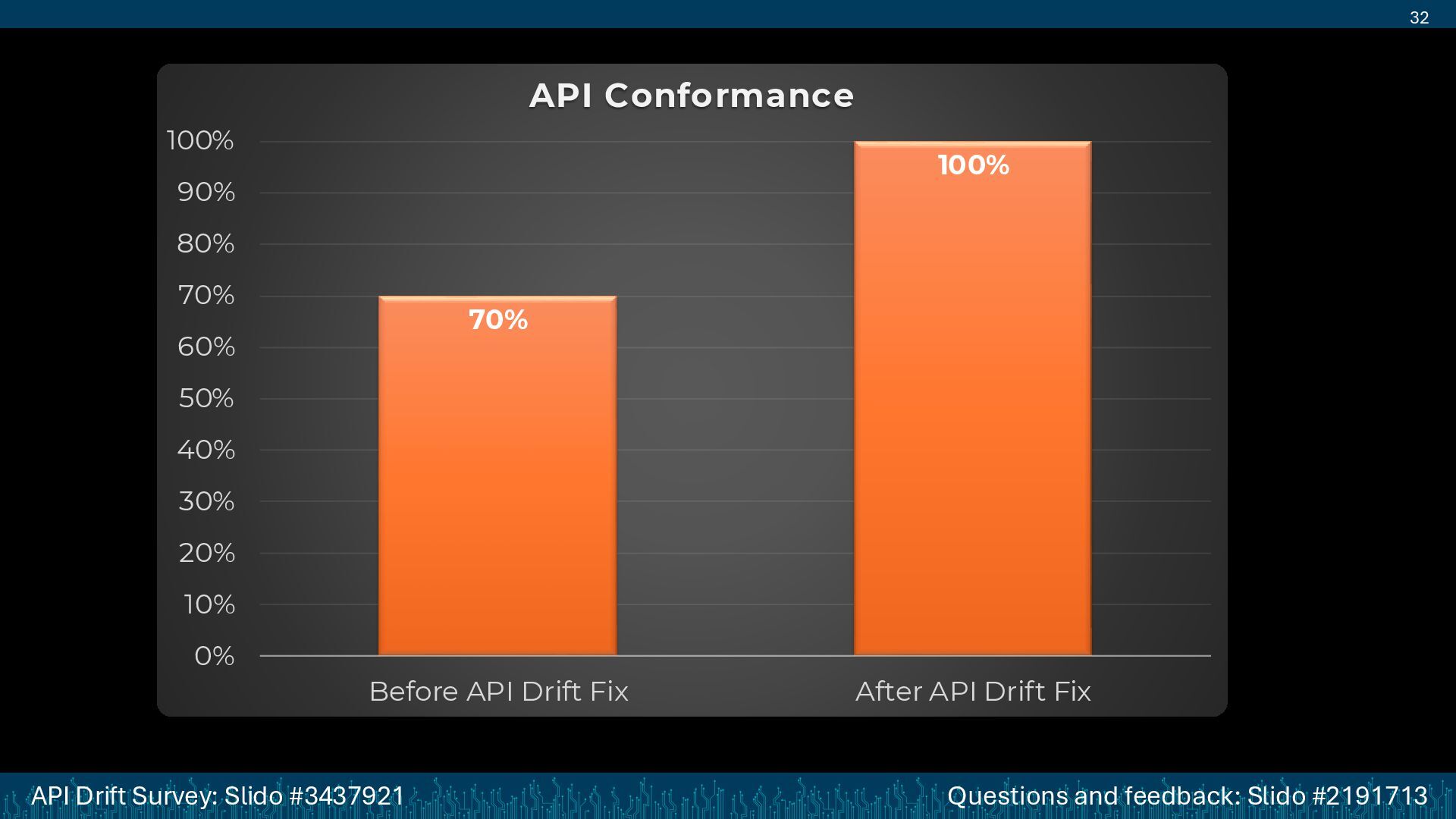

70% 100% 0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% Before API Drift Fix After API Drift Fix API Conformance 32 -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921
BigBank2 PoC Successful. Deal signed. 33 -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921
Lessons Learnt 34 -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921
Use the Product and Client Solution (Dev Roles) roles to write user journey collections, which can be used in automated contract tests! 35 # 1 -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921
github.com/usebruno/bruno 36 -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921
When fixing API drift, consider starting from the most common user workflows 37 # 2 -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921

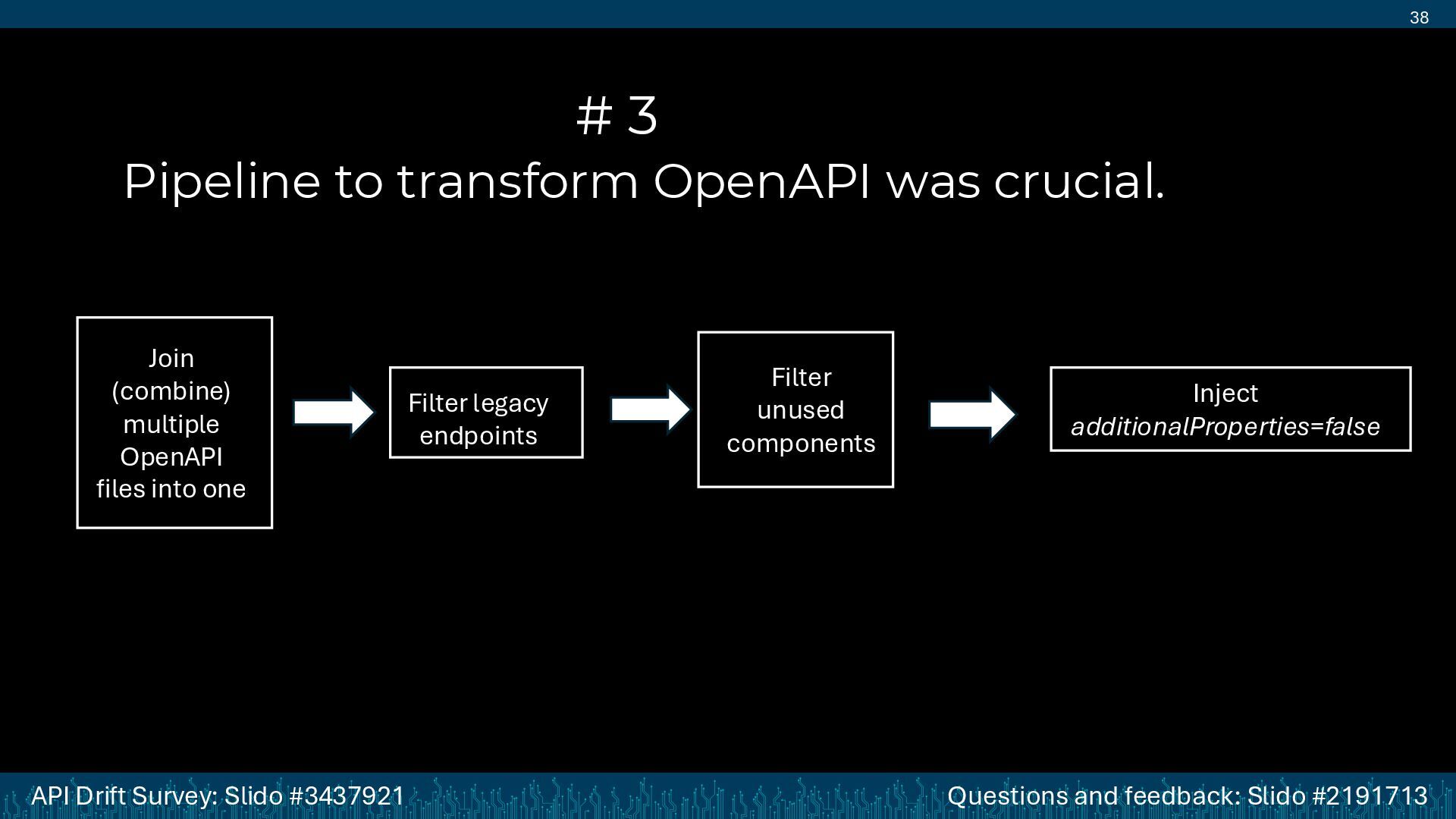

Pipeline to transform OpenAPI was crucial. Join (combine) multiple OpenAPI files into one Filter unused components Filter legacy endpoints Inject additionalProperties=false 38 # 3 -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921
• Many APIs suffer API drift • For some APIs, drift is a deal breaker • Request Collections + PDC + Transformed OpenAPI 40 -
Questions and feedback: Slido #2191713 API Drift Survey: Slido #3437921
Q&A 41 Rate this talk Slido: 2191713 The End
