iOS Attack Vectors

iOS Attack Vectors given at Swiftable 2022

Transcript

1. iOS Attack Vectors Itay Brenner - @itaybre - December 2022 - BA Swiftable

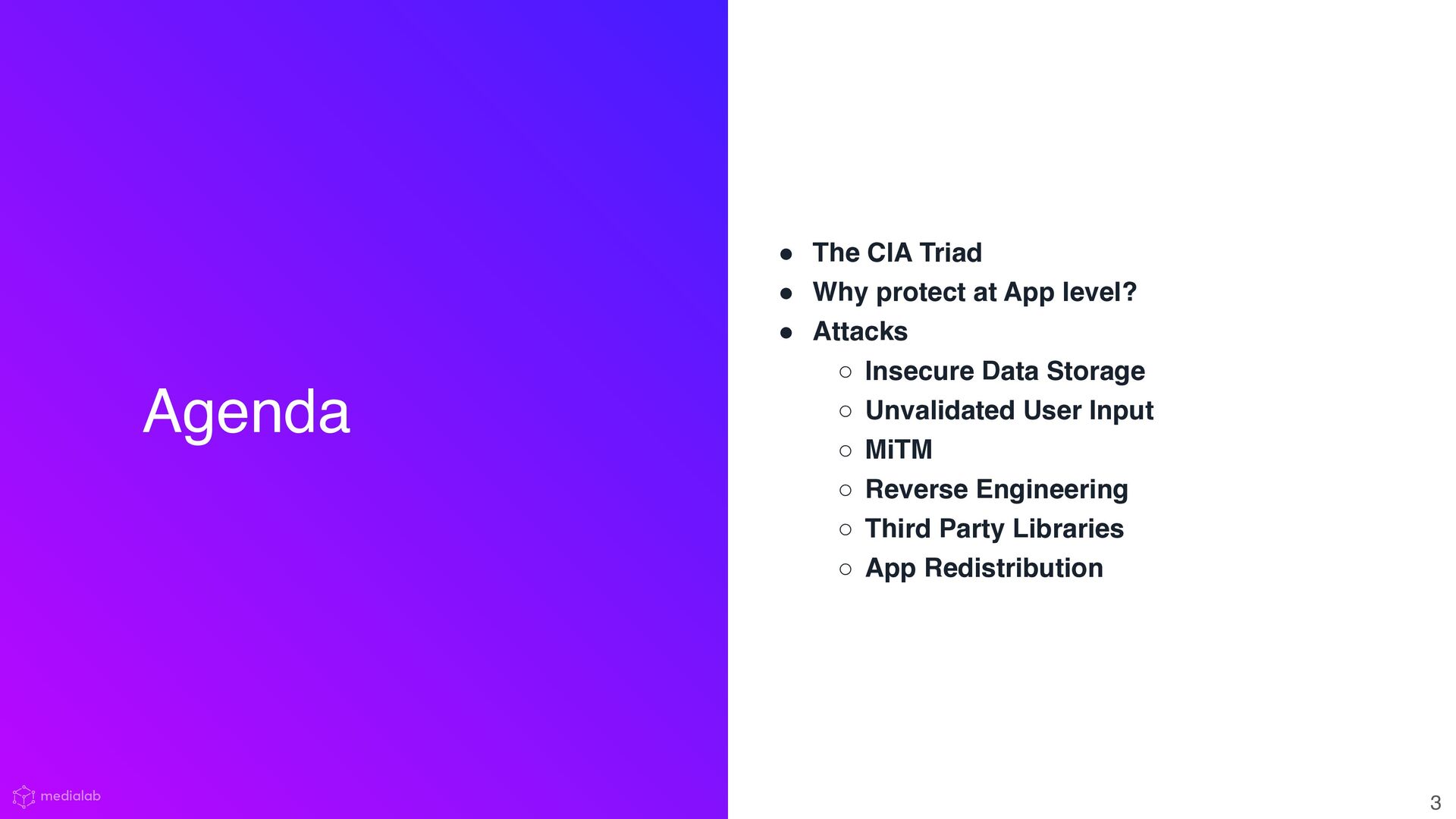

3. • The CIA Triad • Why protect at App level? • Attacks ◦ Insecure Data Storage ◦ Unvalidated User Input ◦ MiTM ◦ Reverse Engineering ◦ Third Party Libraries ◦ App Redistribution 3 Agenda
4. The CIA Triad 4 • Confidentiality: it involves the effort to make sure data is kept secret or private and only people with proper privileges can access secure information. • Integrity: it involves making sure your data is trustworthy and free from tampering. • Availability: it involves making sure that people with access to specific information must be able to consume it when they need to. The CIA Triad

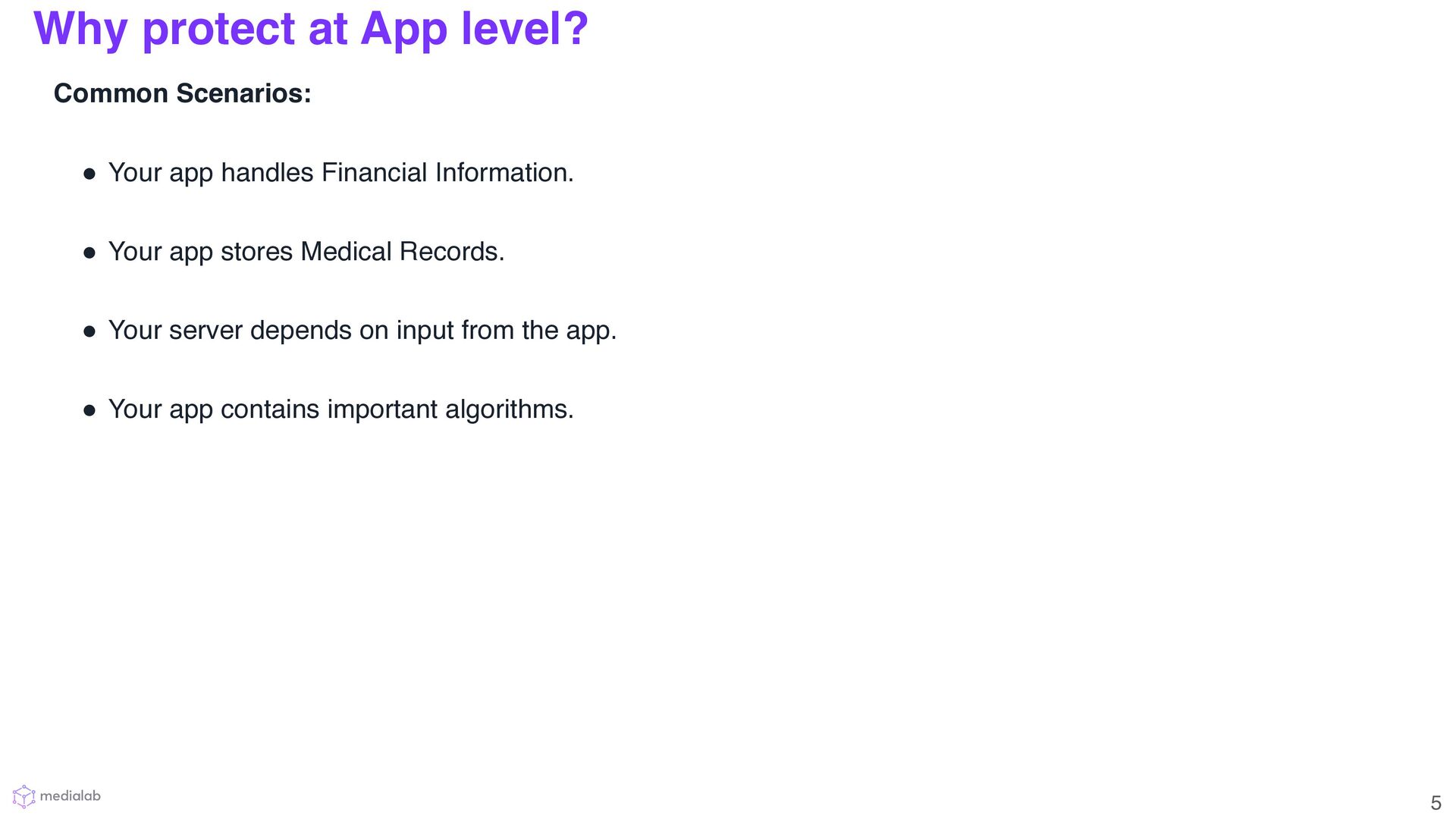

5. Why protect at App level? 5 Common Scenarios: • Your app handles Financial Information. • Your app stores Medical Records. • Your server depends on input from the app. • Your app contains important algorithms. Why protect at App level?

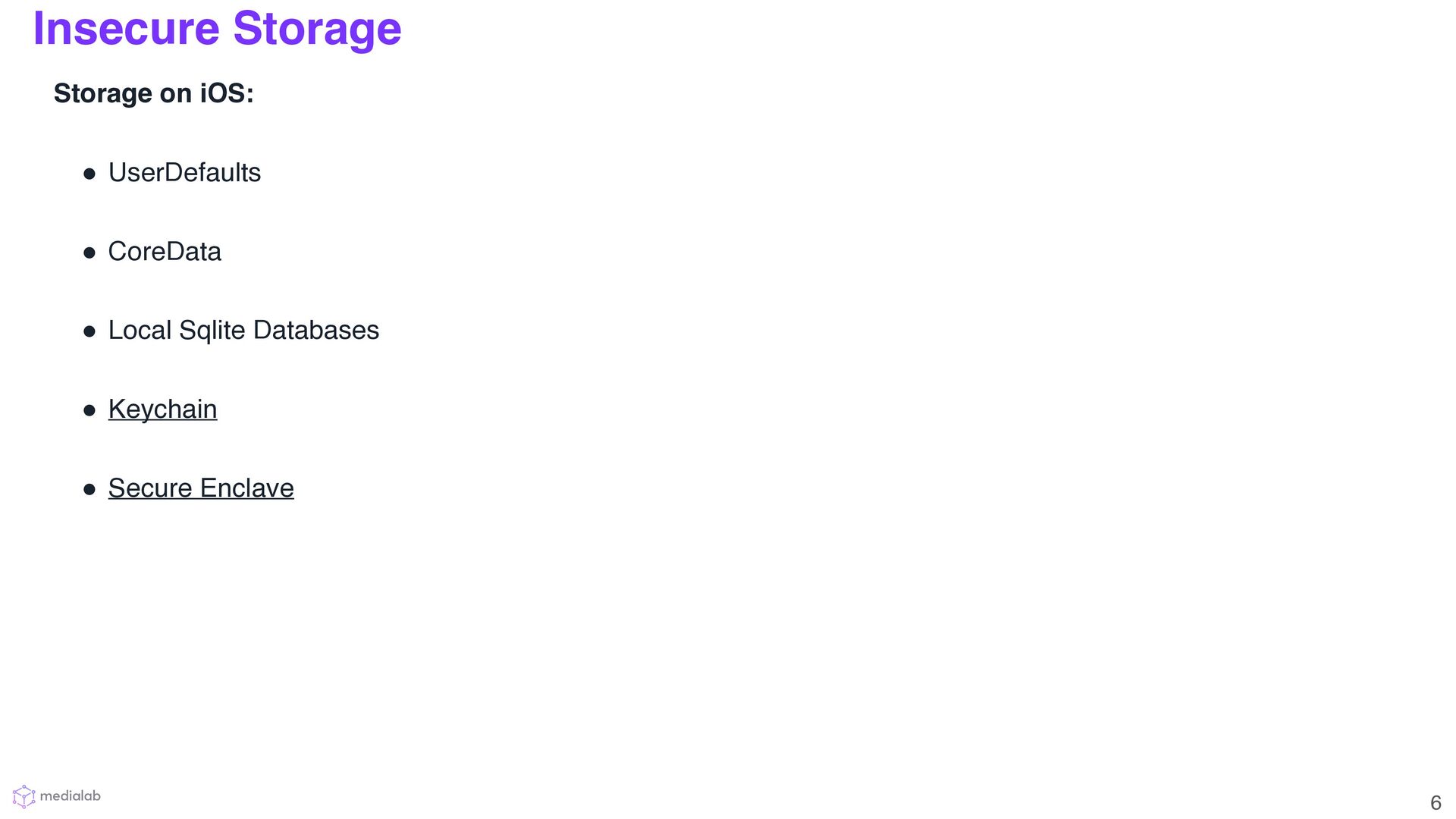

6. Storage on iOS: • UserDefaults • CoreData • Local Sqlite Databases • Keychain • Secure Enclave Insecure Storage 6 Insecure Storage

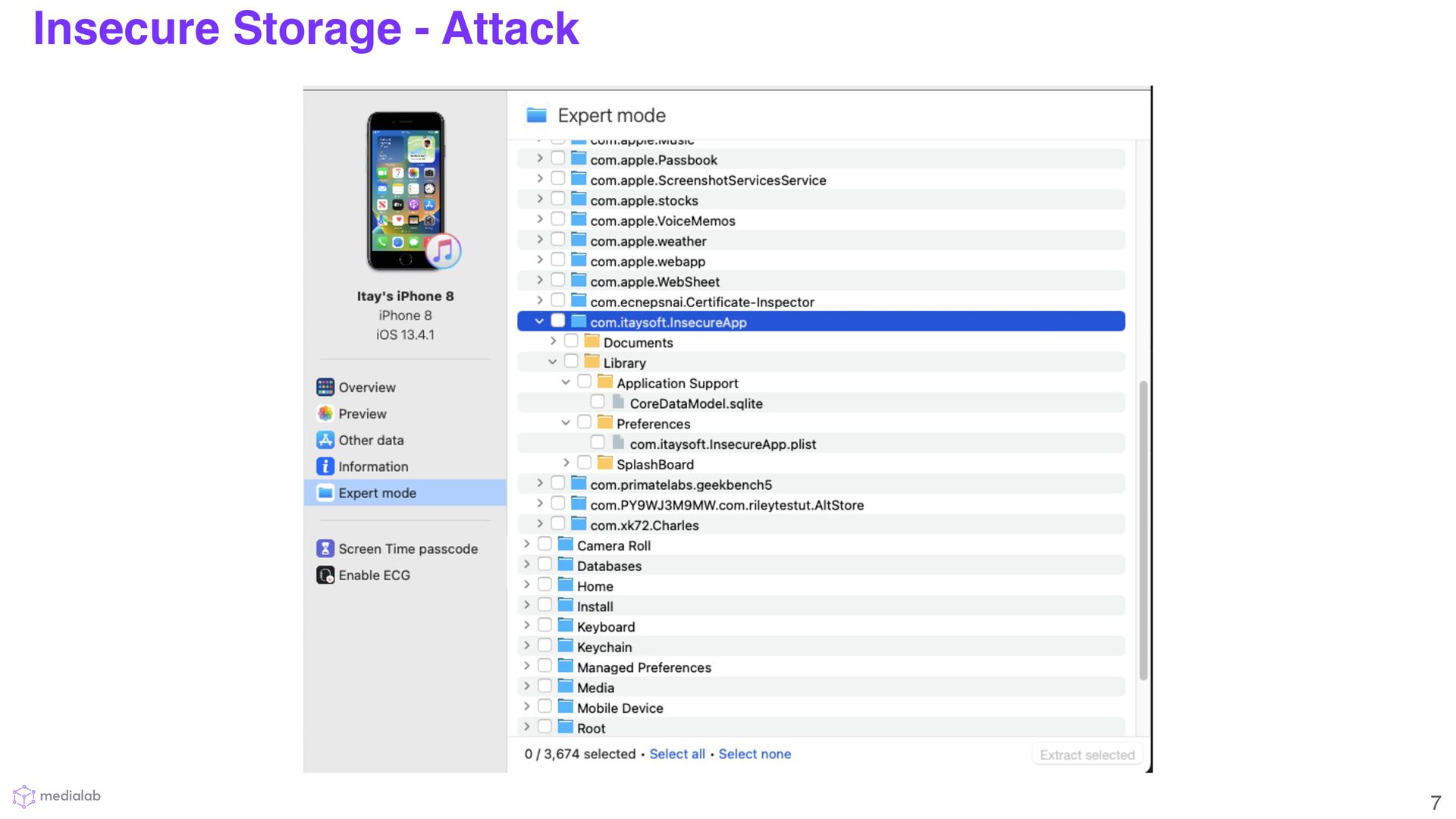

7. Insecure Storage (Attack) 7 Insecure Storage - Attack

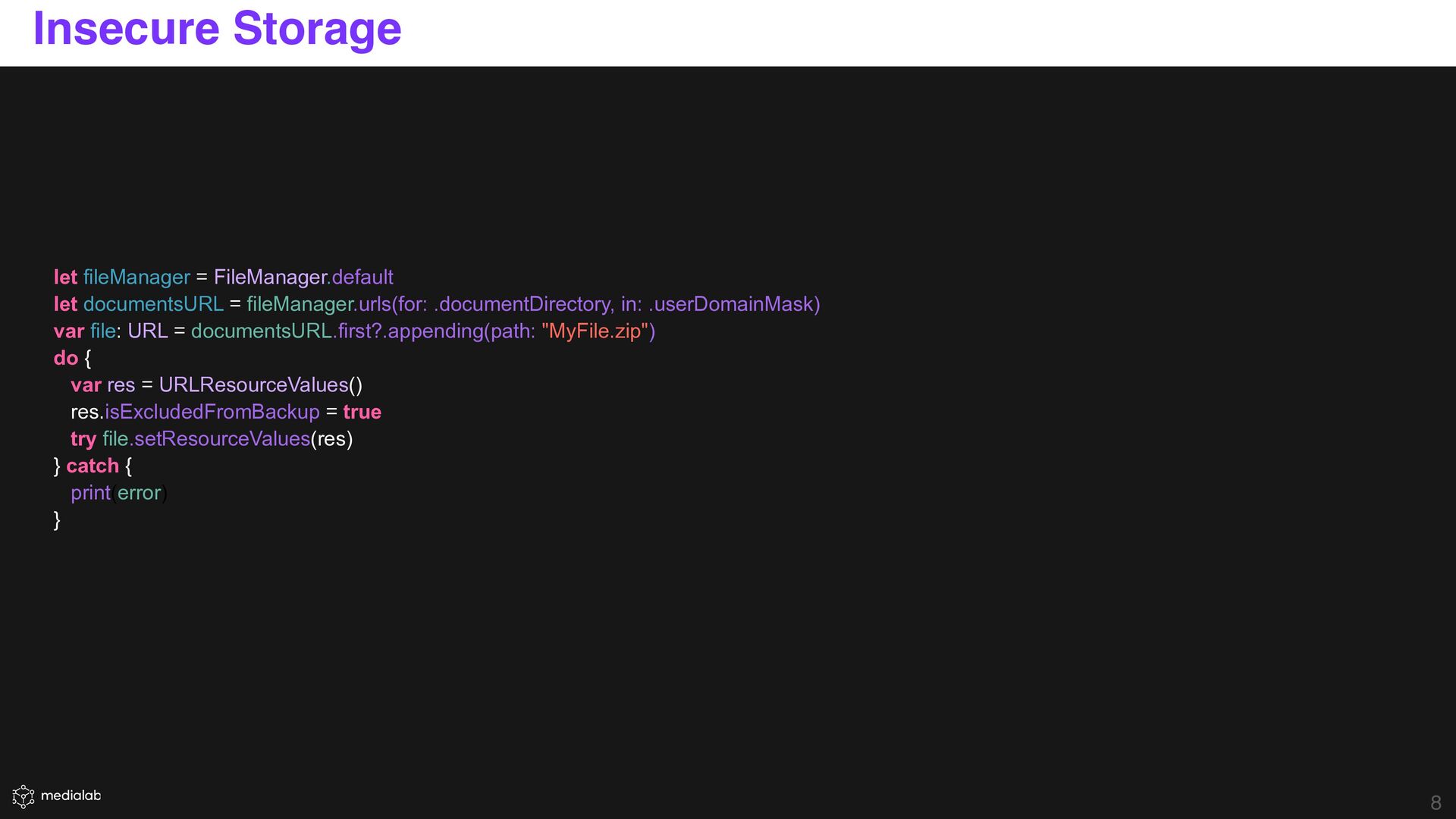

8. Insecure Storage 8 let fileManager = FileManager.default let documentsURL = fileManager.urls(for: .documentDirectory, in: .userDomainMask) var file: URL = documentsURL.first?.appending(path: "MyFile.zip") do { var res = URLResourceValues() res.isExcludedFromBackup = true try file.setResourceValues(res) } catch { print(error) } Insecure Storage

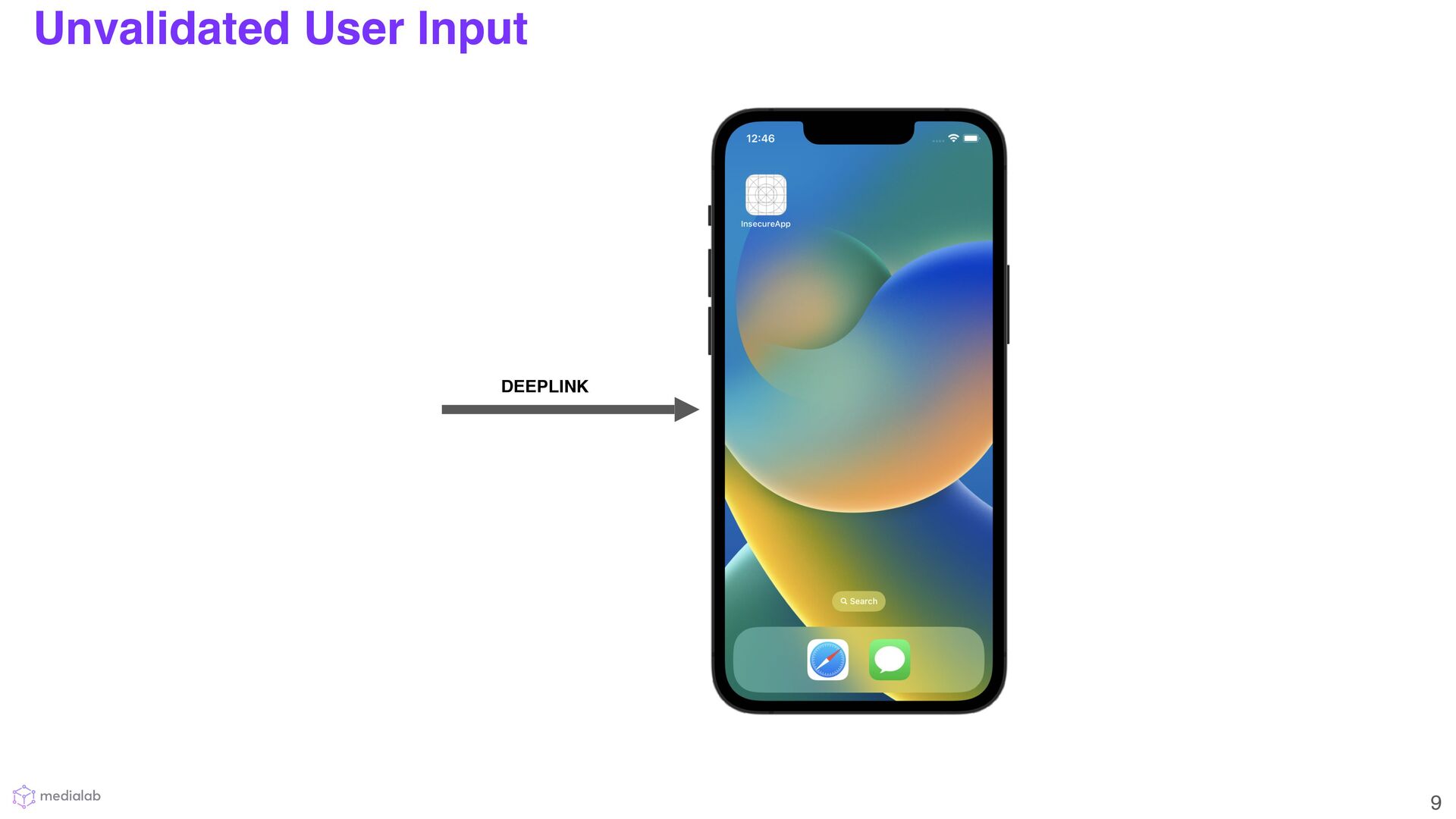

9. Unvalidated User Input 9 Unvalidated User Input DEEPLINK

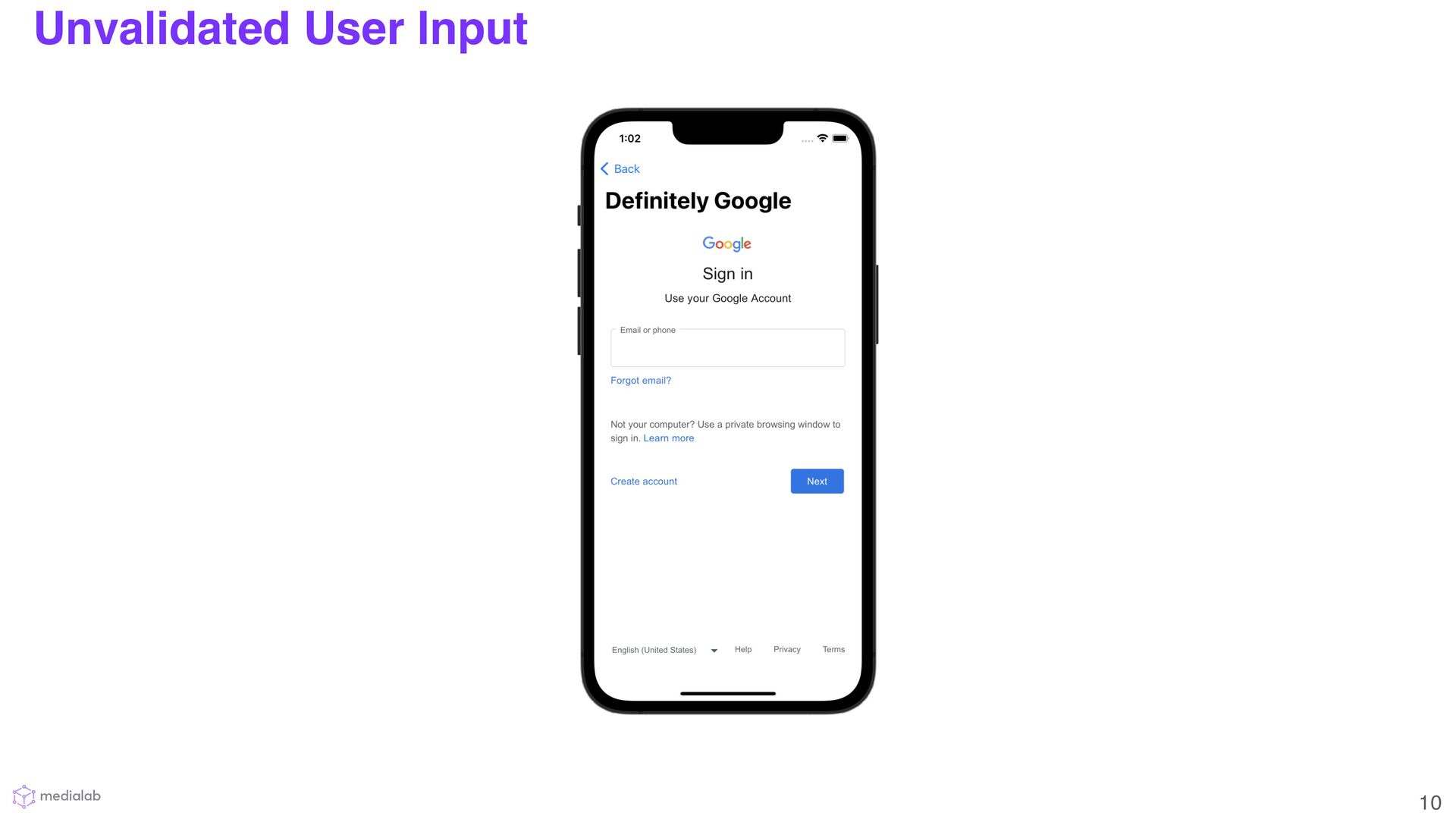

10. Unvalidated User Input 10 Unvalidated User Input

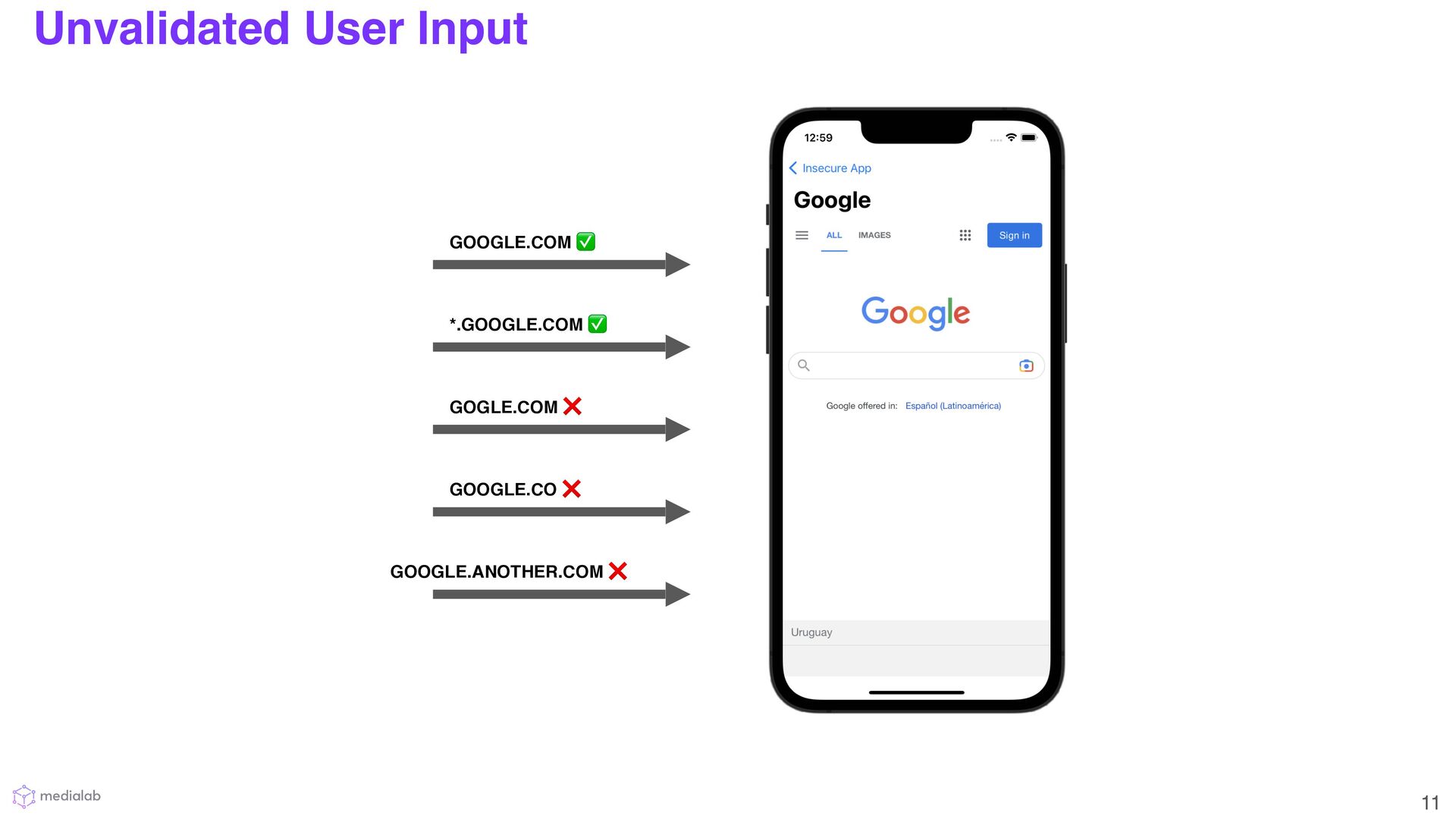

11. Unvalidated User Input 11 Unvalidated User Input GOOGLE.COM ✅ *.GOOGLE.COM ✅ GOGLE.COM ❌ GOOGLE.CO ❌ GOOGLE.ANOTHER.COM ❌

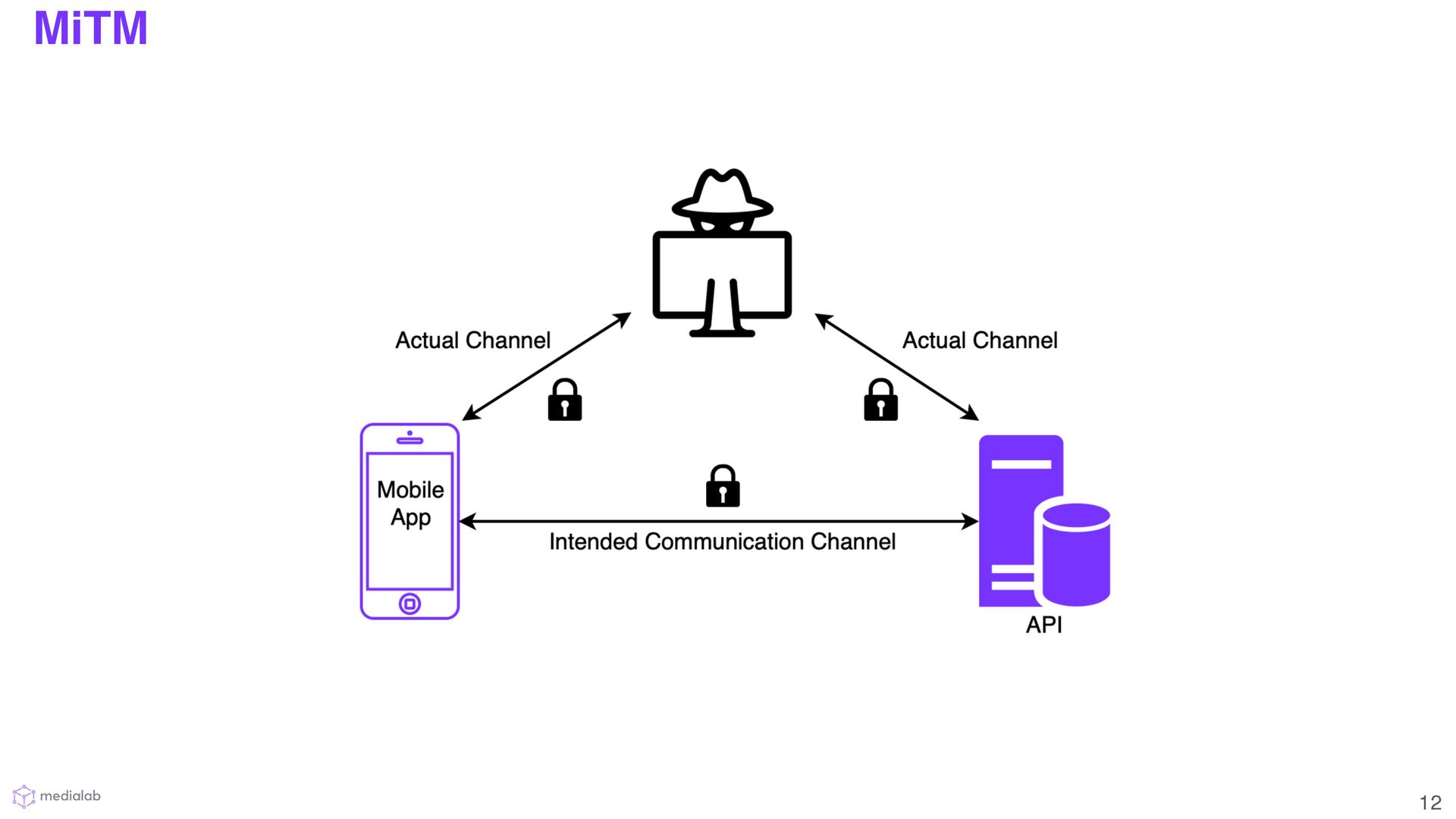

12. MiTM 12 MiTM
13. Reverse Enginering 13 MiTM - Pinning SSL Certificates

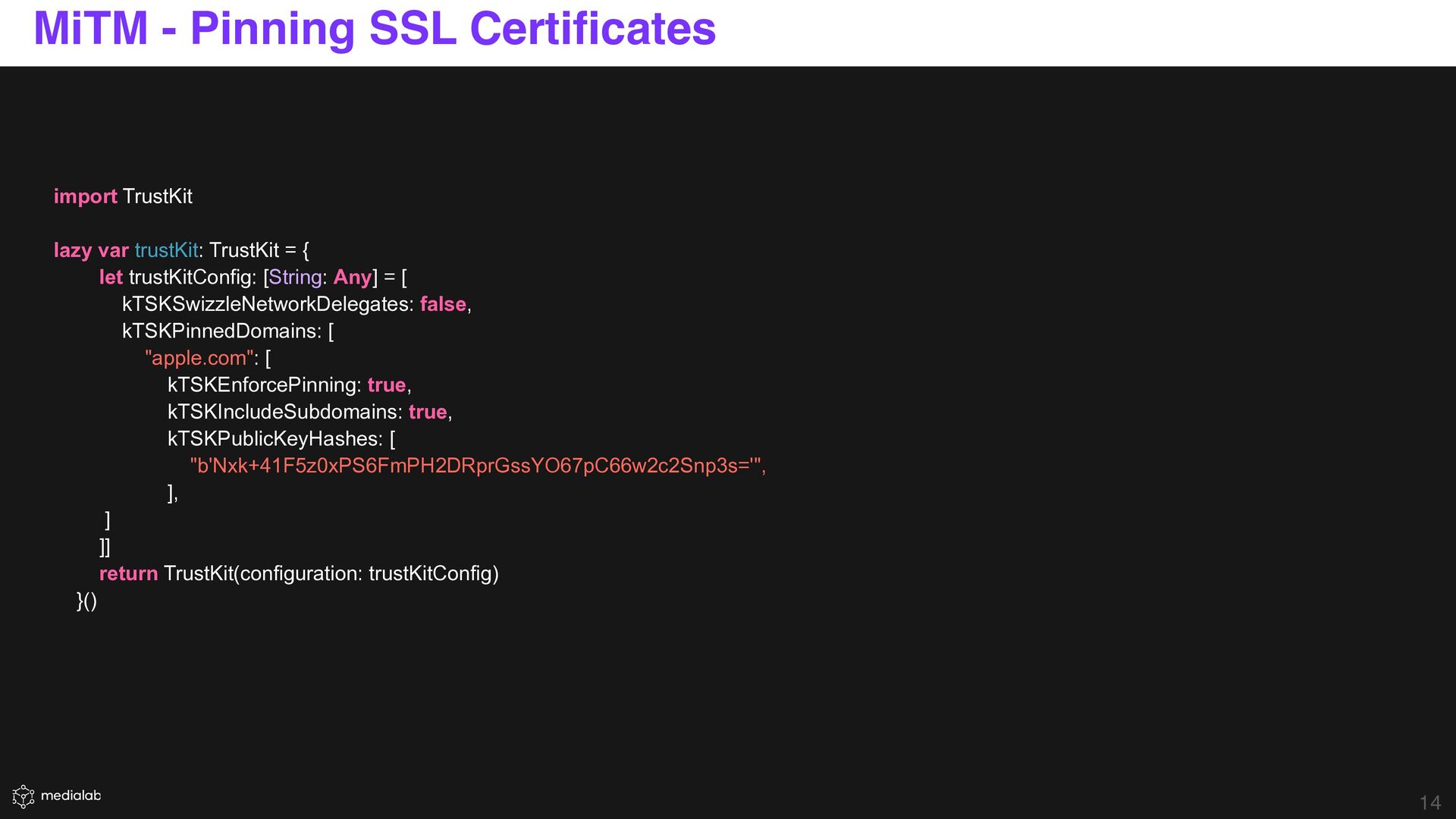

14. Reverse Enginering 14 import TrustKit lazy var trustKit: TrustKit = { let trustKitConfig: [String: Any] = [ kTSKSwizzleNetworkDelegates: false, kTSKPinnedDomains: [ "apple.com": [ kTSKEnforcePinning: true, kTSKIncludeSubdomains: true, kTSKPublicKeyHashes: [ "b'Nxk+41F5z0xPS6FmPH2DRprGssYO67pC66w2c2Snp3s='", ], ] ]] return TrustKit(configuration: trustKitConfig) }() MiTM - Pinning SSL Certificates

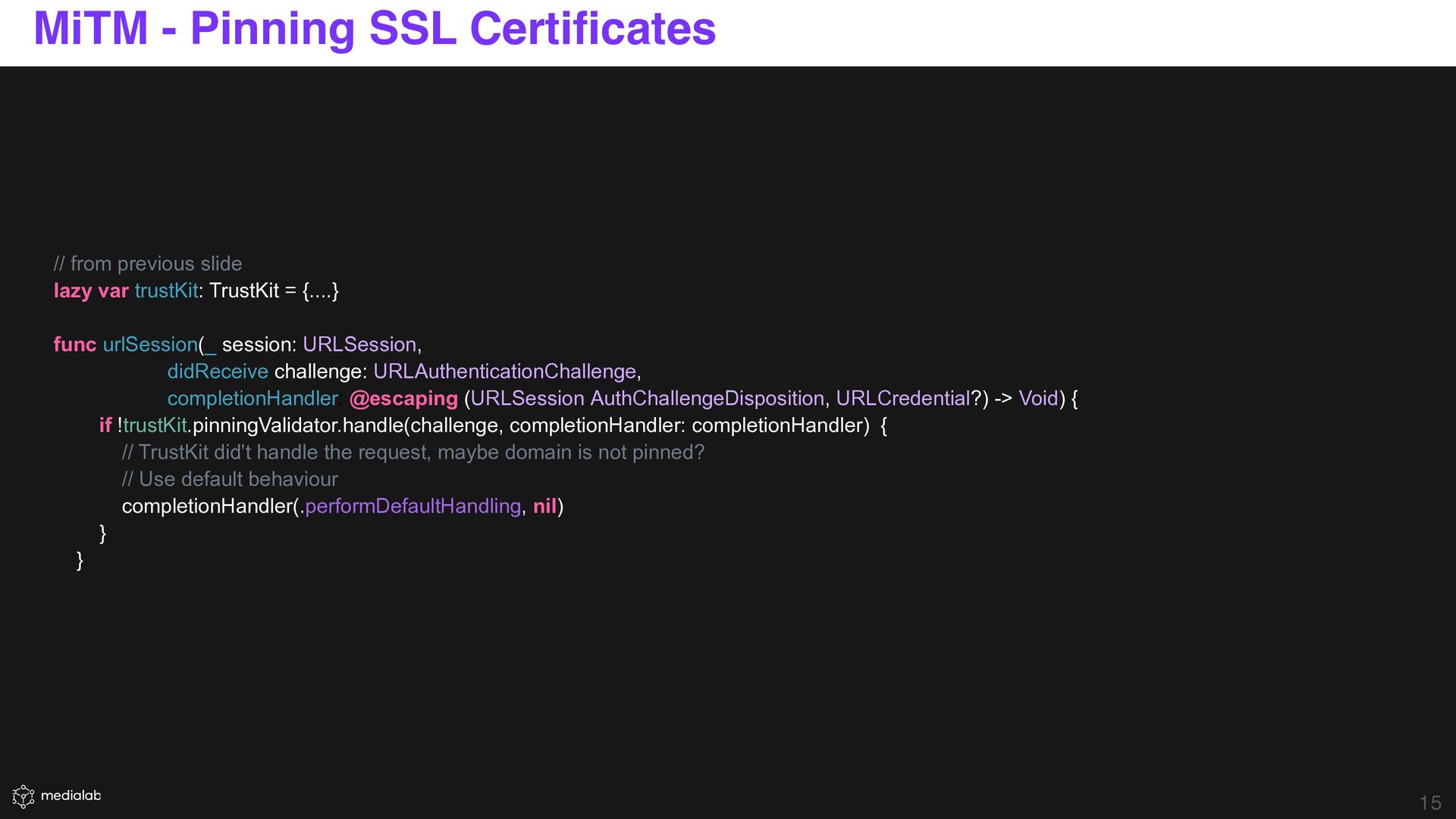

15. Reverse Enginering 15 // from previous slide lazy var trustKit: TrustKit = {....} func urlSession(_ session: URLSession, didReceive challenge: URLAuthenticationChallenge, completionHandler: @escaping (URLSession.AuthChallengeDisposition, URLCredential?) -> Void) { if !trustKit.pinningValidator.handle(challenge, completionHandler: completionHandler) { // TrustKit did't handle the request, maybe domain is not pinned? // Use default behaviour completionHandler(.performDefaultHandling, nil) } } MiTM - Pinning SSL Certificates

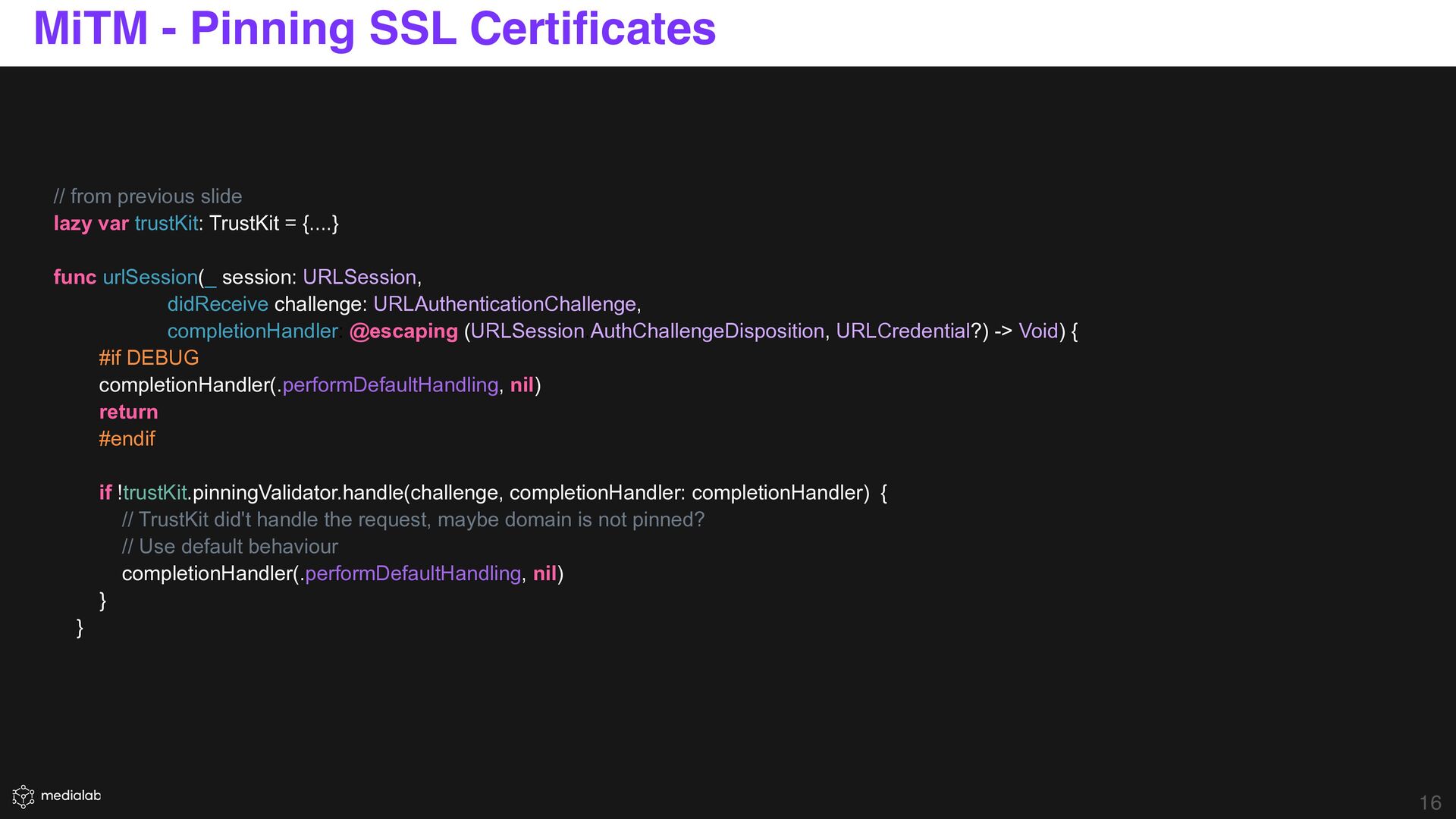

16. Reverse Enginering 16 // from previous slide lazy var trustKit: TrustKit = {....} func urlSession(_ session: URLSession, didReceive challenge: URLAuthenticationChallenge, completionHandler: @escaping (URLSession.AuthChallengeDisposition, URLCredential?) -> Void) { #if DEBUG completionHandler(.performDefaultHandling, nil) return #endif if !trustKit.pinningValidator.handle(challenge, completionHandler: completionHandler) { // TrustKit did't handle the request, maybe domain is not pinned? // Use default behaviour completionHandler(.performDefaultHandling, nil) } } MiTM - Pinning SSL Certificates
17. Reverse Enginering 17 Reverse Engineering

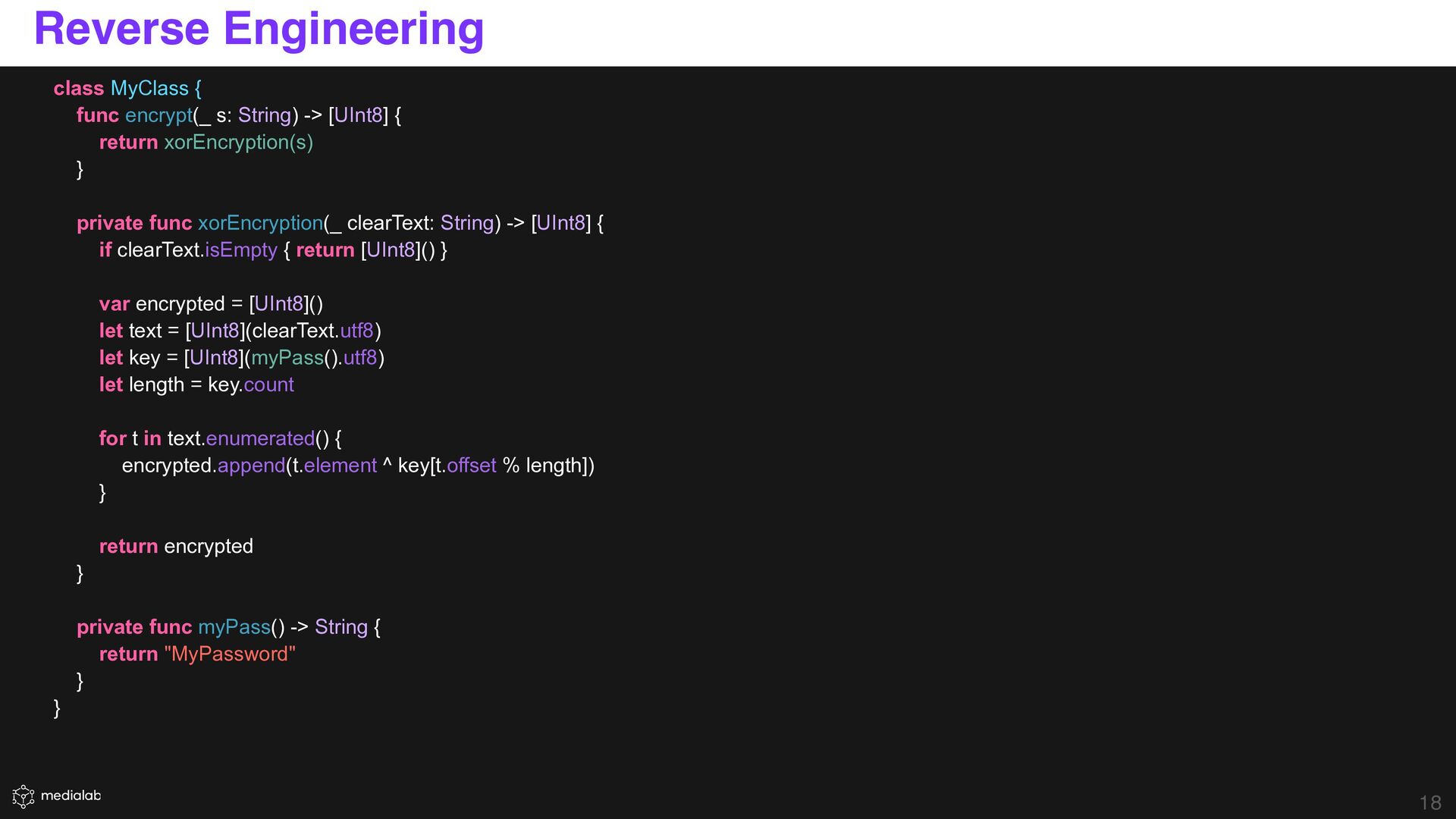

18. Reverse Enginering 18 class MyClass { func encrypt(_ s: String) -> [UInt8] { return xorEncryption(s) } private func xorEncryption(_ clearText: String) -> [UInt8] { if clearText.isEmpty { return [UInt8]() } var encrypted = [UInt8]() let text = [UInt8](clearText.utf8) let key = [UInt8](myPass().utf8) let length = key.count for t in text.enumerated() { encrypted.append(t.element ^ key[t.offset % length]) } return encrypted } private func myPass() -> String { return "MyPassword" } } Reverse Engineering

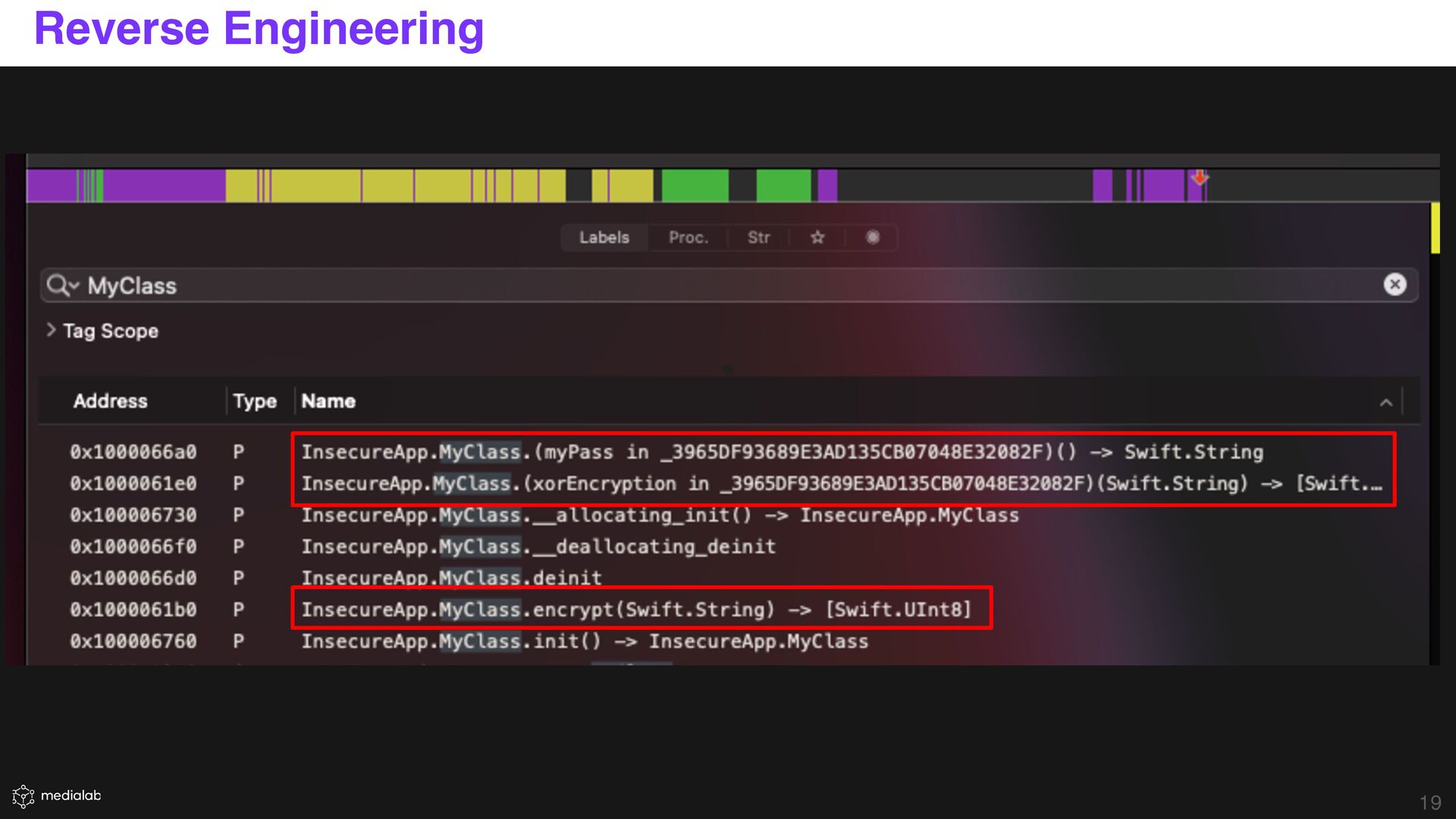

19. Reverse Enginering 19 Reverse Engineering

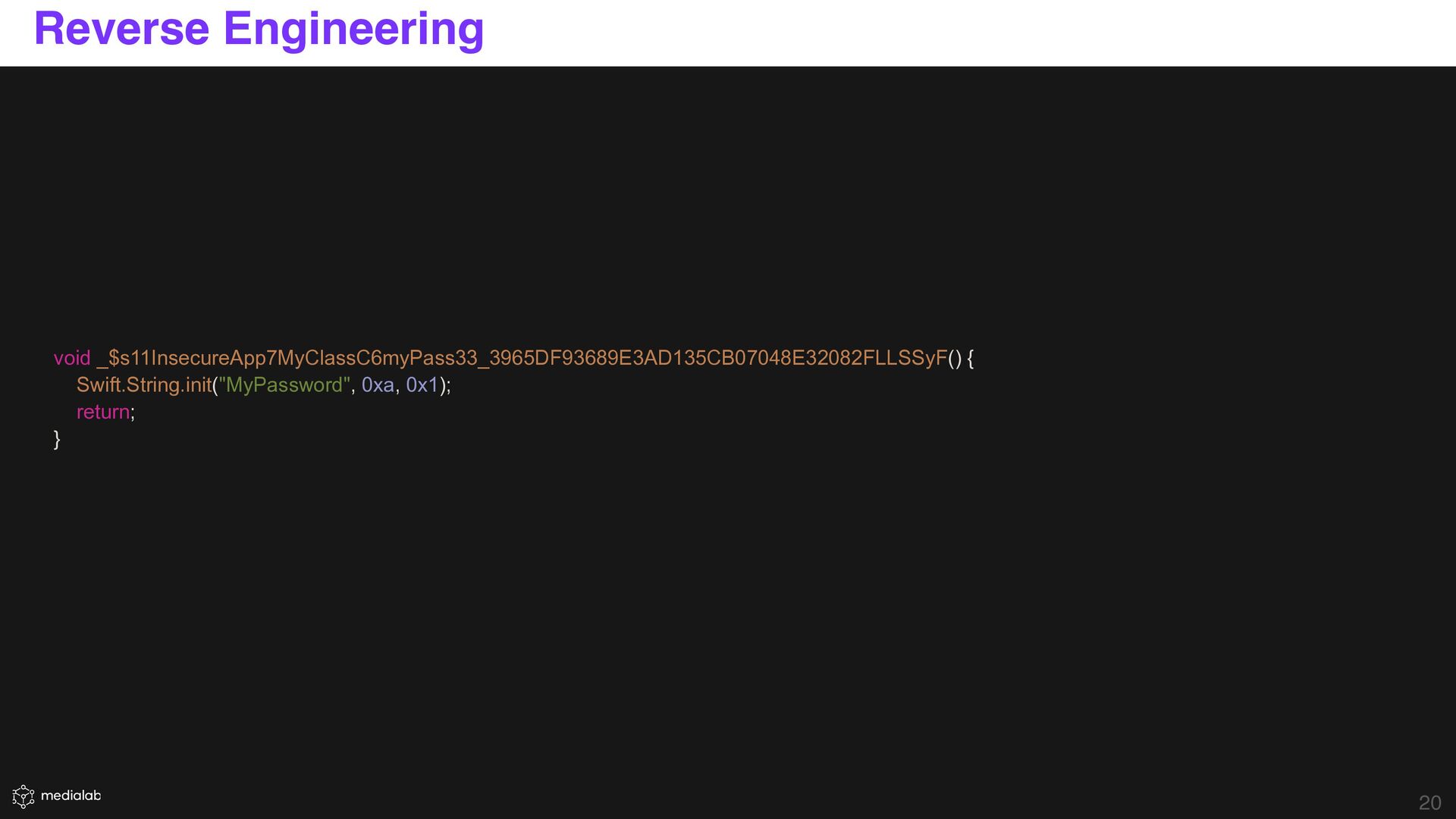

20. Reverse Enginering 20 void _$s11InsecureApp7MyClassC6myPass33_3965DF93689E3AD135CB07048E32082FLLSSyF() { Swift.String.init("MyPassword", 0xa, 0x1); return; } Reverse Engineering

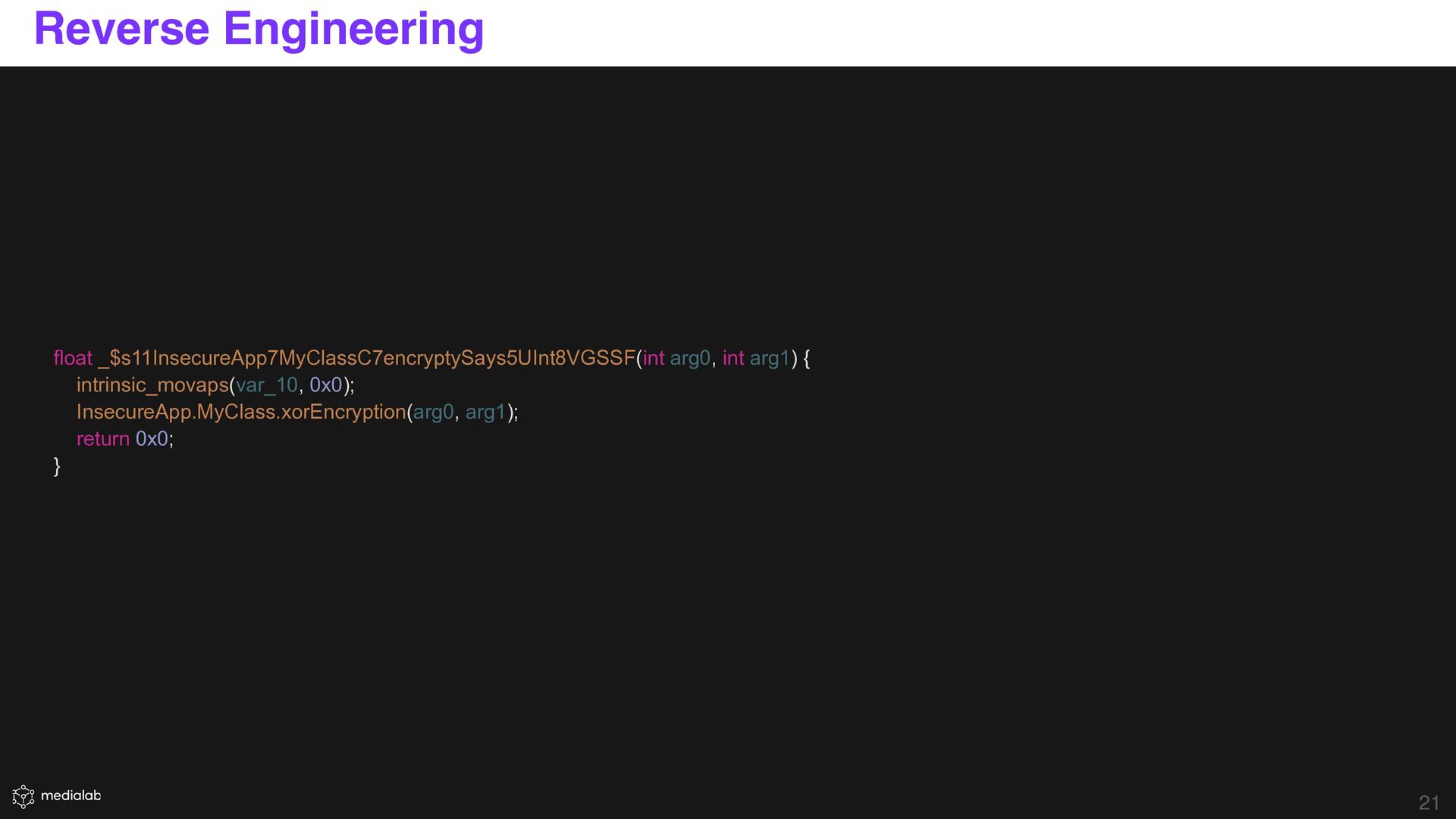

21. Reverse Enginering 21 float _$s11InsecureApp7MyClassC7encryptySays5UInt8VGSSF(int arg0, int arg1) { intrinsic_movaps(var_10, 0x0); InsecureApp.MyClass.xorEncryption(arg0, arg1); return 0x0; } Reverse Engineering

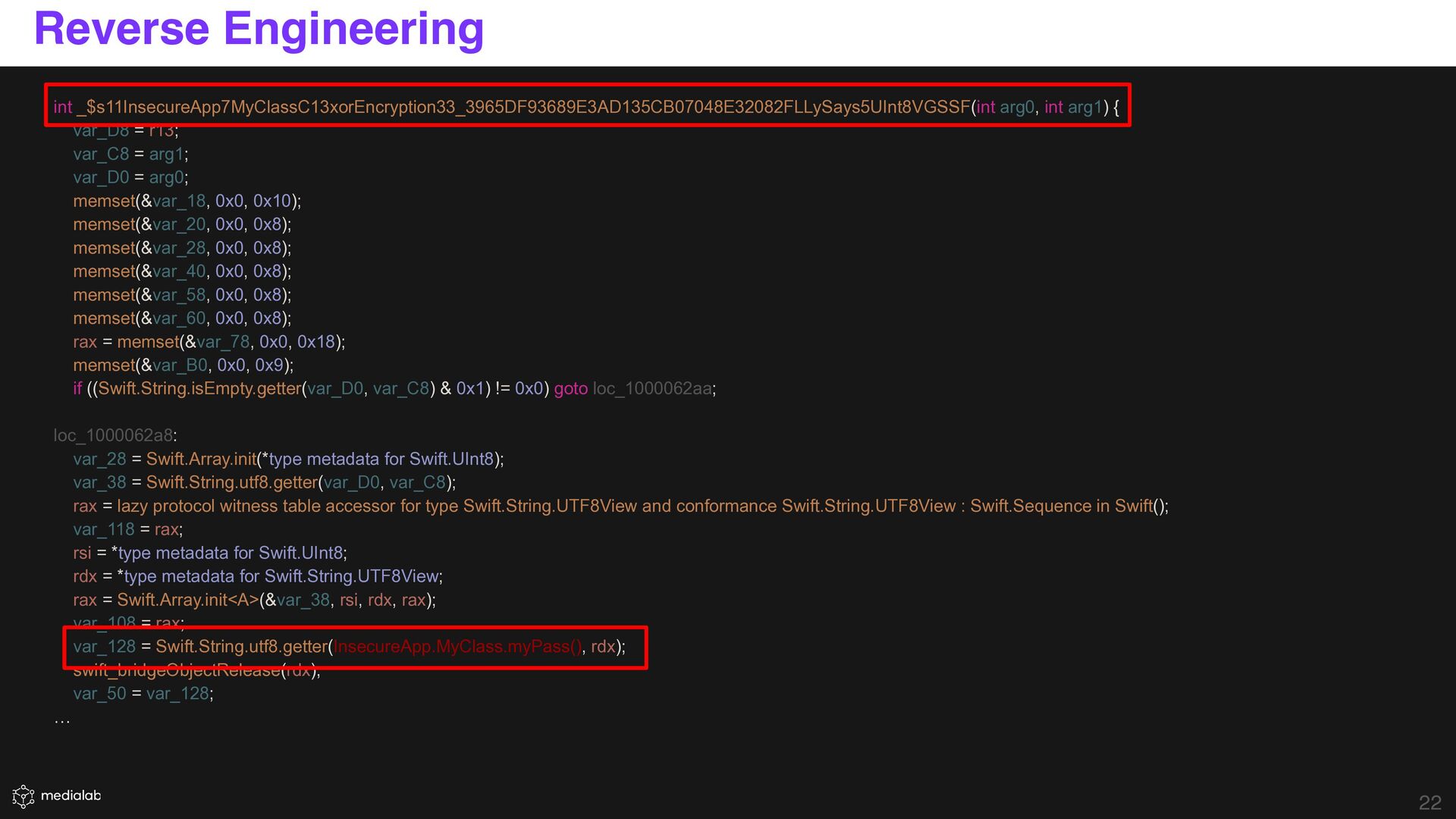

22. int _$s11InsecureApp7MyClassC13xorEncryption33_3965DF93689E3AD135CB07048E32082FLLySays5UInt8VGSSF(int arg0, int arg1) { var_D8 = r13; var_C8 = arg1; var_D0 = arg0; memset(&var_18, 0x0, 0x10); memset(&var_20, 0x0, 0x8); memset(&var_28, 0x0, 0x8); memset(&var_40, 0x0, 0x8); memset(&var_58, 0x0, 0x8); memset(&var_60, 0x0, 0x8); rax = memset(&var_78, 0x0, 0x18); memset(&var_B0, 0x0, 0x9); if ((Swift.String.isEmpty.getter(var_D0, var_C8) & 0x1) != 0x0) goto loc_1000062aa; loc_1000062a8: var_28 = Swift.Array.init(*type metadata for Swift.UInt8); var_38 = Swift.String.utf8.getter(var_D0, var_C8); rax = lazy protocol witness table accessor for type Swift.String.UTF8View and conformance Swift.String.UTF8View : Swift.Sequence in Swift(); var_118 = rax; rsi = *type metadata for Swift.UInt8; rdx = *type metadata for Swift.String.UTF8View; rax = Swift.Array.init<A>(&var_38, rsi, rdx, rax); var_108 = rax; var_128 = Swift.String.utf8.getter(InsecureApp.MyClass.myPass(), rdx); swift_bridgeObjectRelease(rdx); var_50 = var_128; … Reverse Enginering 22 Reverse Engineering

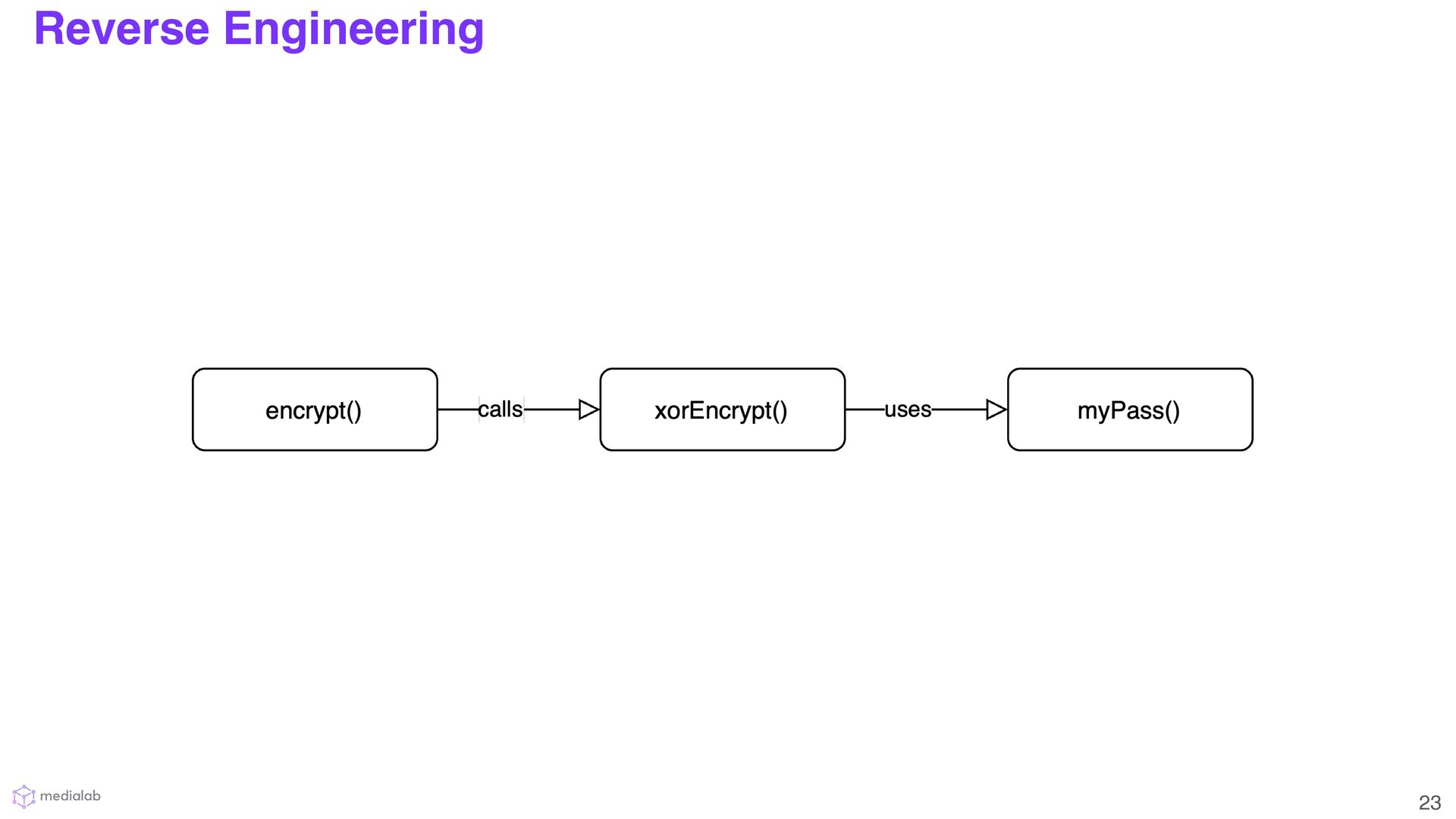

23. Reverse Enginering 23 Reverse Engineering

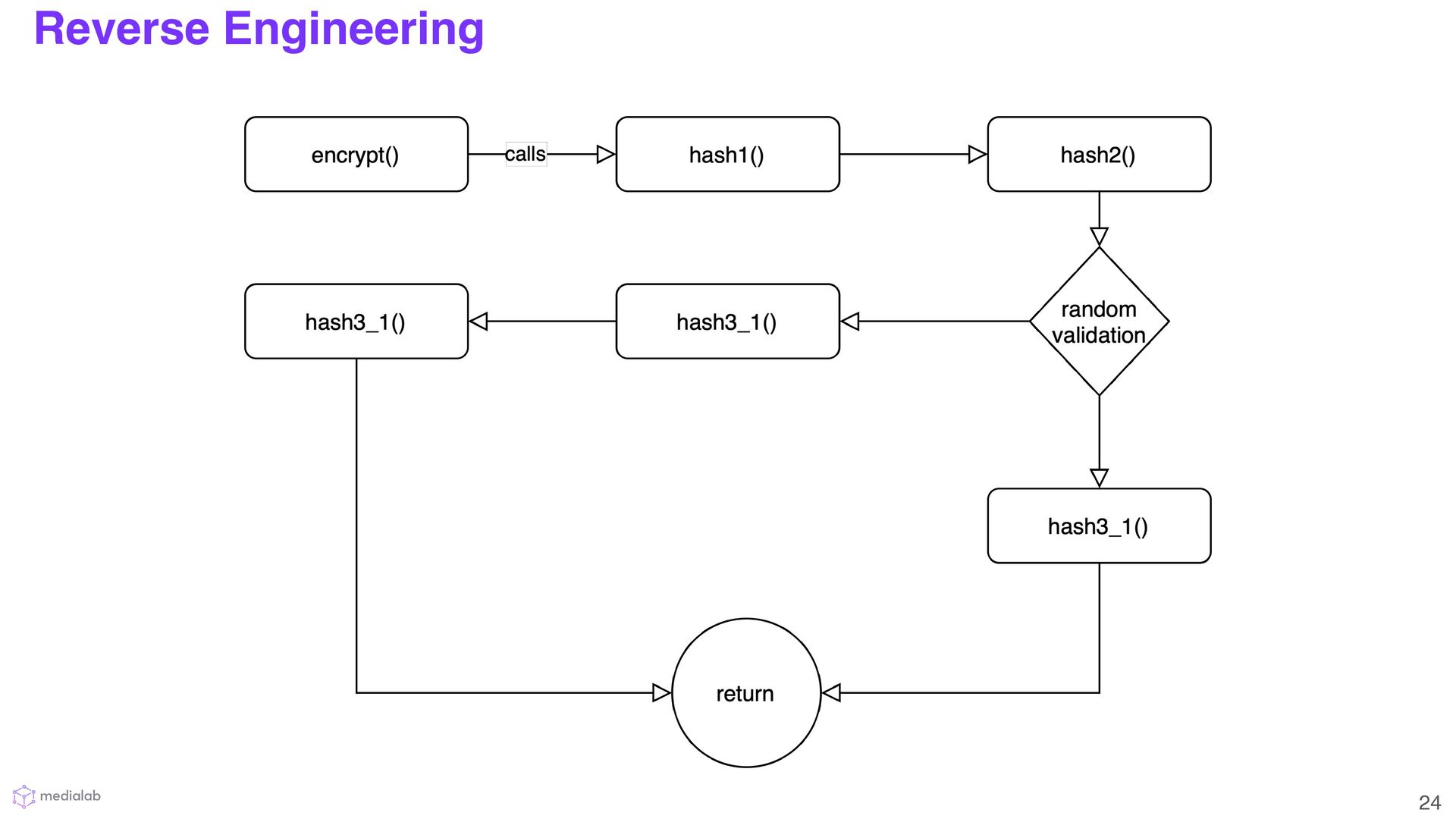

24. Reverse Enginering 24 Reverse Engineering

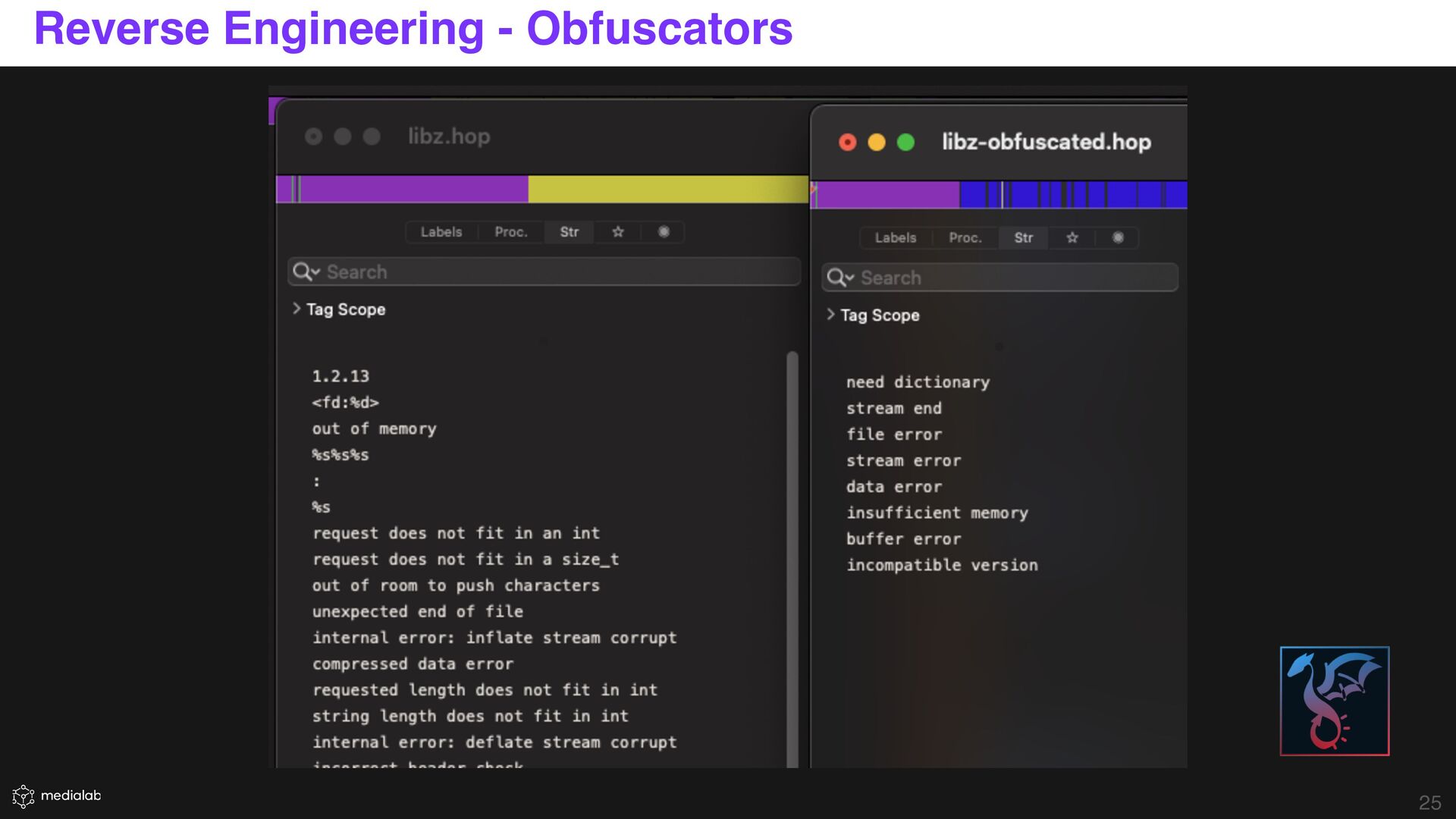

25. Reverse Enginering - Obfuscators 25 Reverse Engineering - Obfuscators

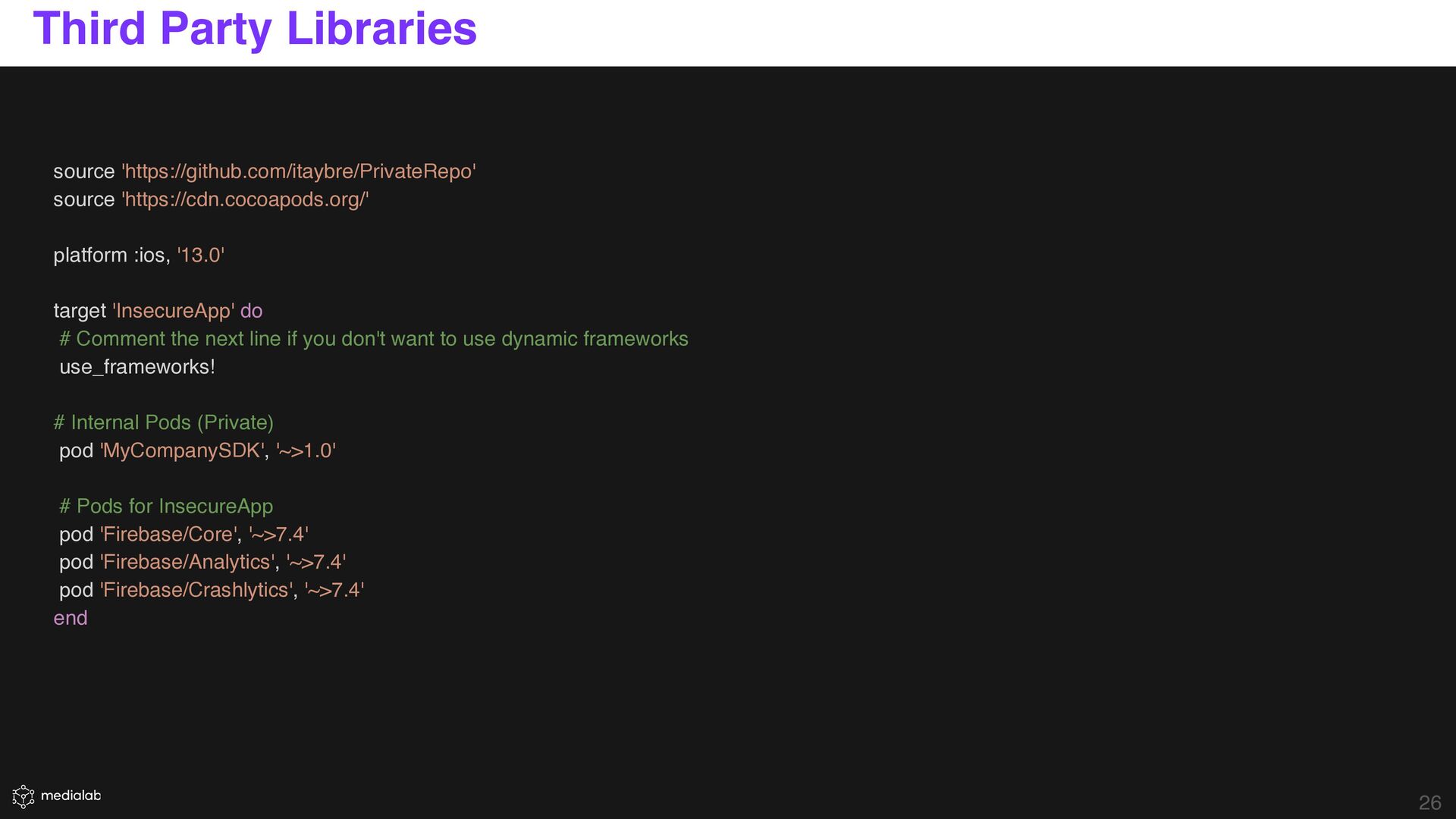

26. Third Party Libraries 26 Third Party Libraries source 'https://github.com/itaybre/PrivateRepo' source 'https://cdn.cocoapods.org/' platform :ios, '13.0' target 'InsecureApp' do # Comment the next line if you don't want to use dynamic frameworks use_frameworks! # Internal Pods (Private) pod 'MyCompanySDK', '~>1.0' # Pods for InsecureApp pod 'Firebase/Core', '~>7.4' pod 'Firebase/Analytics', '~>7.4' pod 'Firebase/Crashlytics', '~>7.4' end

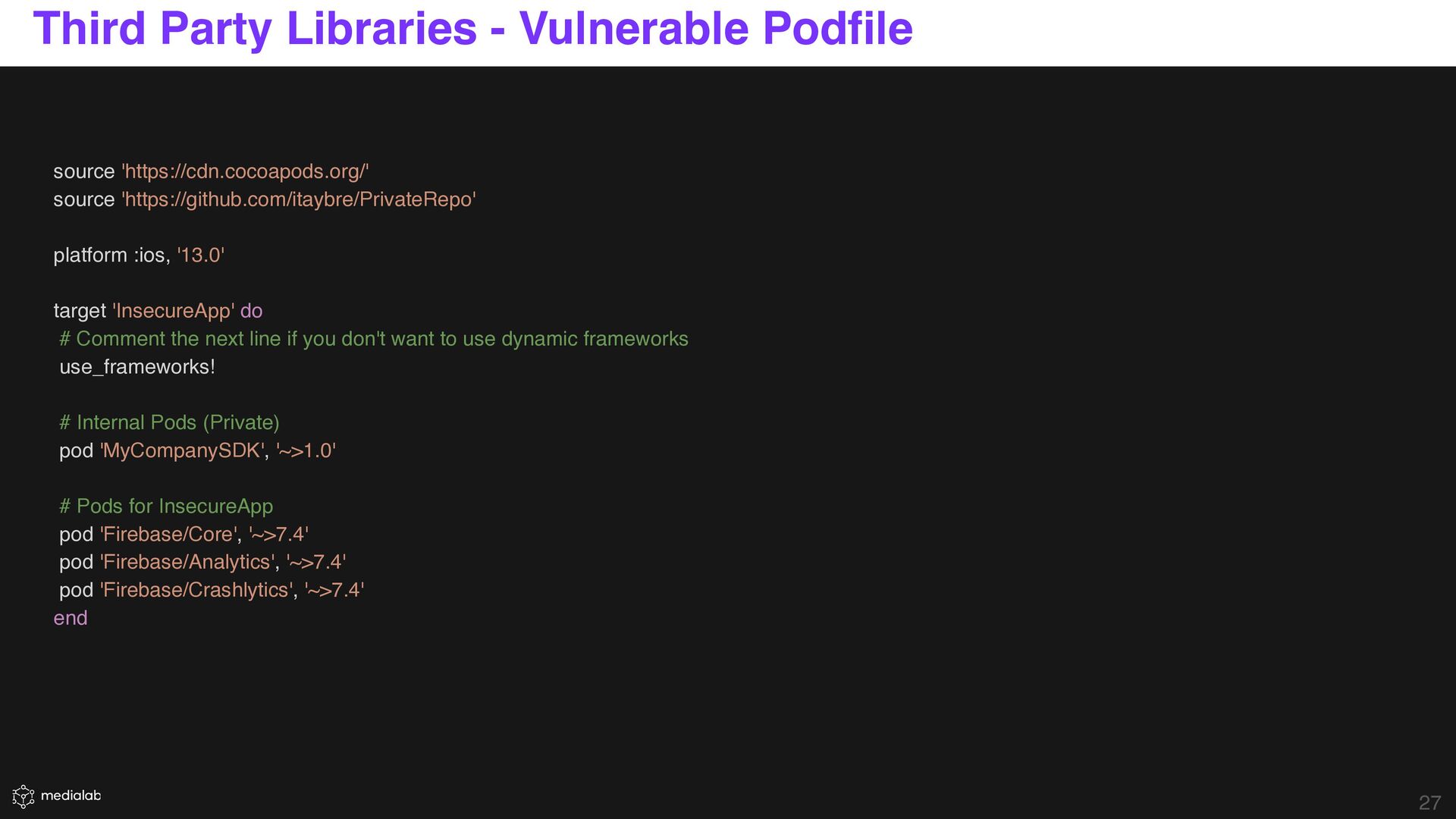

27. Third Party Libraries 27 Third Party Libraries - Vulnerable Podfile source 'https://cdn.cocoapods.org/' source 'https://github.com/itaybre/PrivateRepo' platform :ios, '13.0' target 'InsecureApp' do # Comment the next line if you don't want to use dynamic frameworks use_frameworks! # Internal Pods (Private) pod 'MyCompanySDK', '~>1.0' # Pods for InsecureApp pod 'Firebase/Core', '~>7.4' pod 'Firebase/Analytics', '~>7.4' pod 'Firebase/Crashlytics', '~>7.4' end

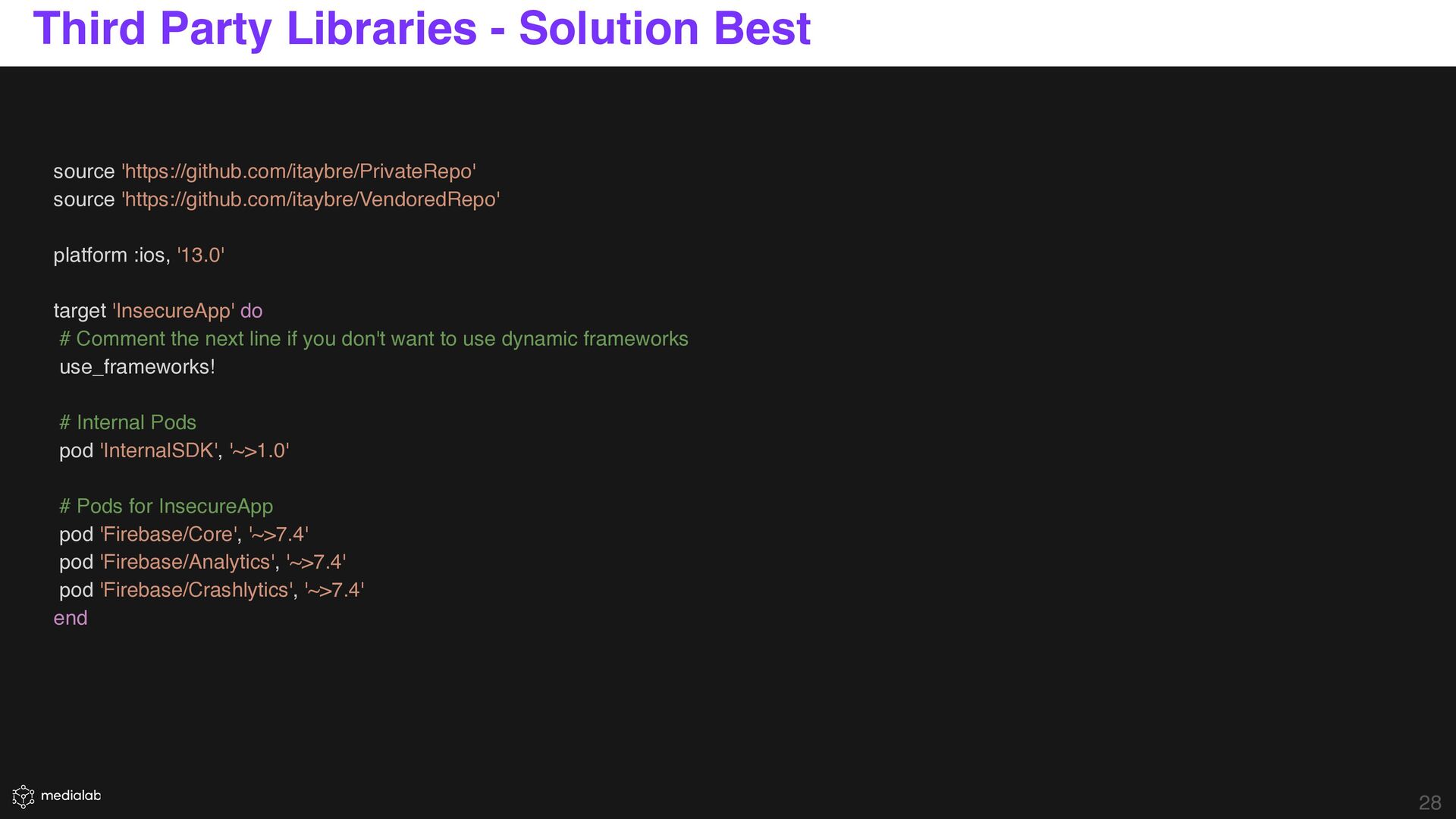

28. Third Party Libraries 28 Third Party Libraries - Solution Best source 'https://github.com/itaybre/PrivateRepo' source 'https://github.com/itaybre/VendoredRepo' platform :ios, '13.0' target 'InsecureApp' do # Comment the next line if you don't want to use dynamic frameworks use_frameworks! # Internal Pods pod 'InternalSDK', '~>1.0' # Pods for InsecureApp pod 'Firebase/Core', '~>7.4' pod 'Firebase/Analytics', '~>7.4' pod 'Firebase/Crashlytics', '~>7.4' end
29. Third Party Libraries 29 Third Party Libraries - Xcode Attack
30. App Redistribution 30 App Redistribution

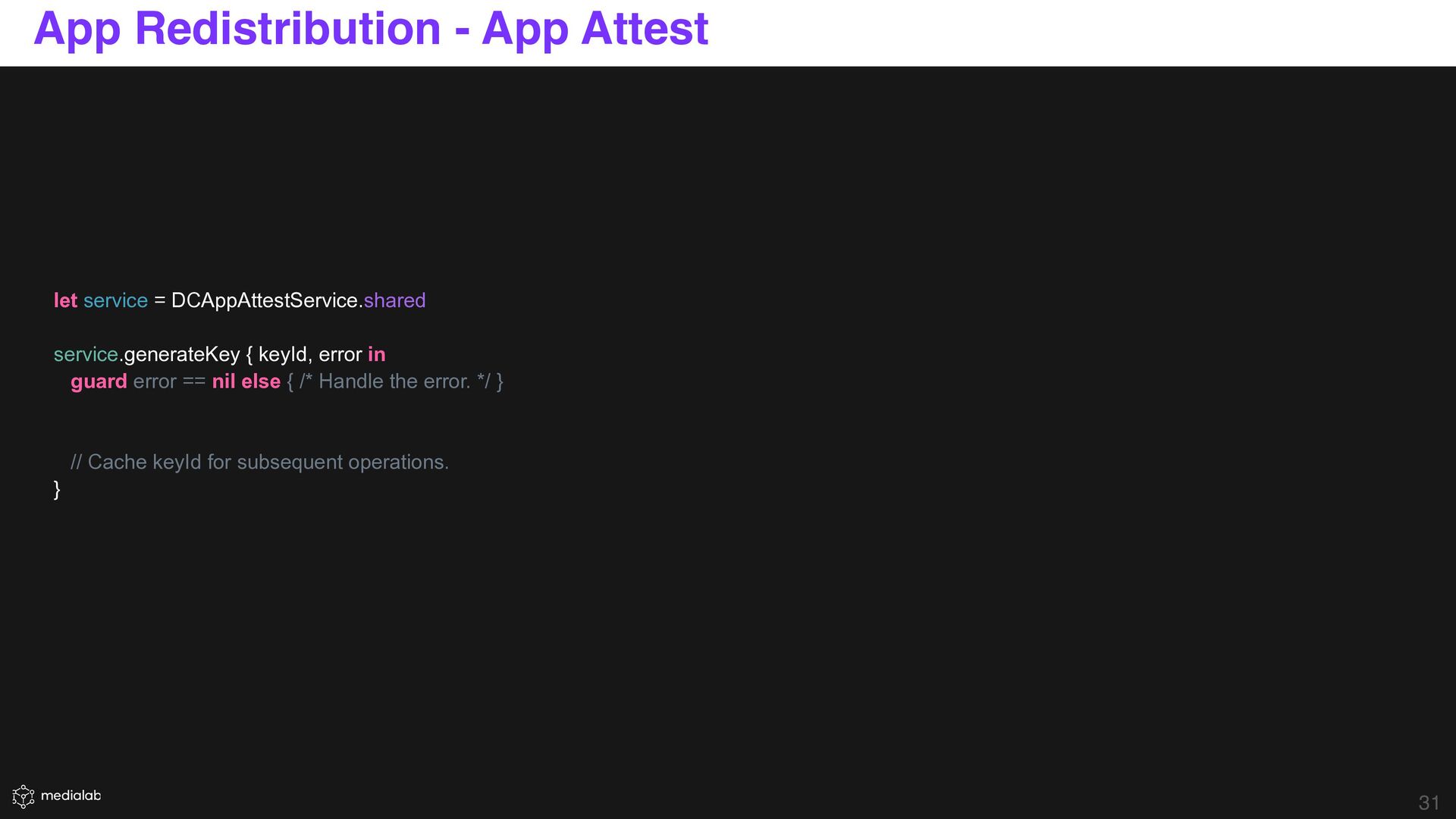

31. App Attest 31 let service = DCAppAttestService.shared service.generateKey { keyId, error in guard error == nil else { /* Handle the error. */ } // Cache keyId for subsequent operations. } App Redistribution - App Attest

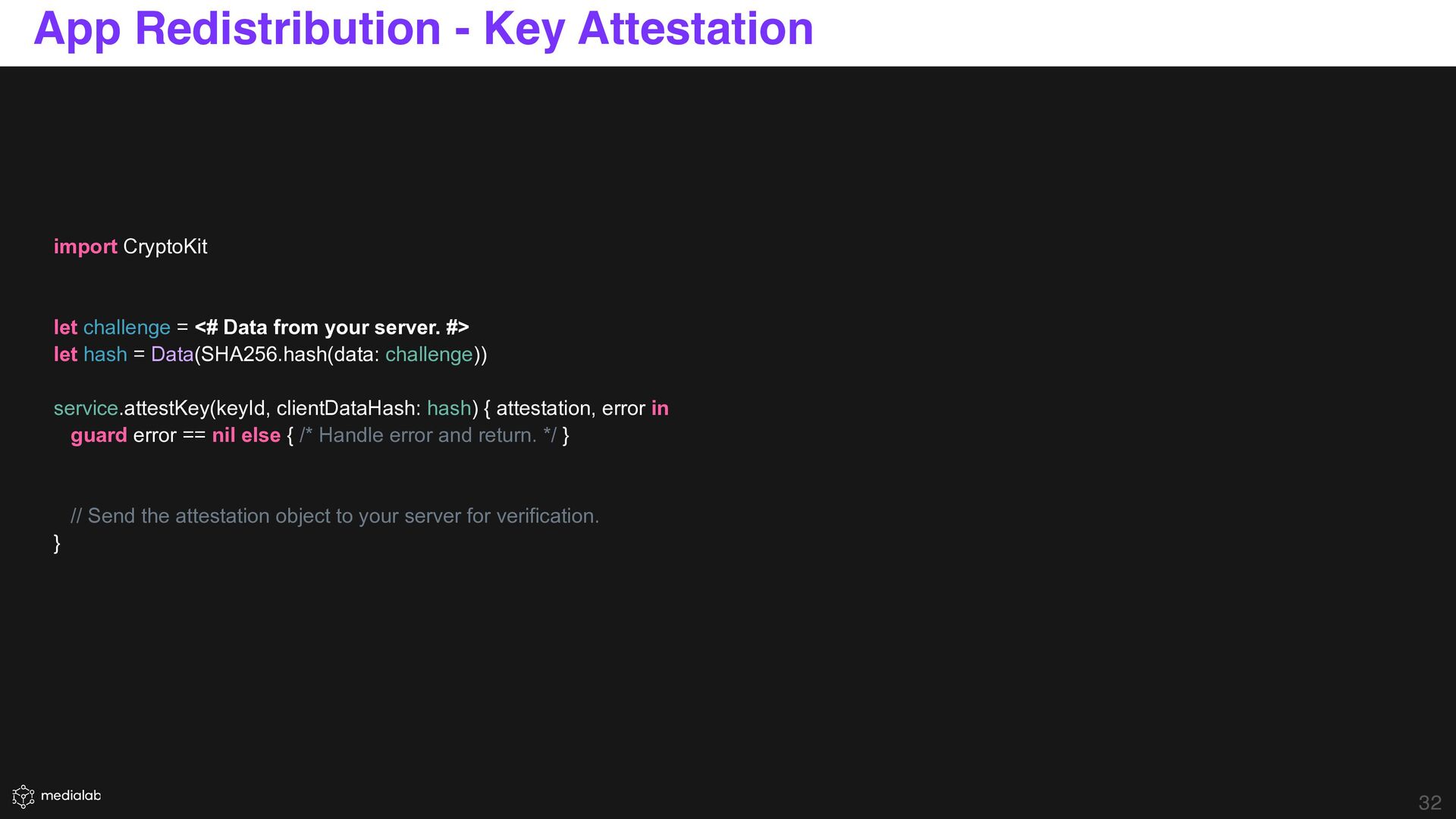

32. Key Attestation 32 import CryptoKit let challenge = <# Data from your server. #> let hash = Data(SHA256.hash(data: challenge)) service.attestKey(keyId, clientDataHash: hash) { attestation, error in guard error == nil else { /* Handle error and return. */ } // Send the attestation object to your server for verification. } App Redistribution - Key Attestation

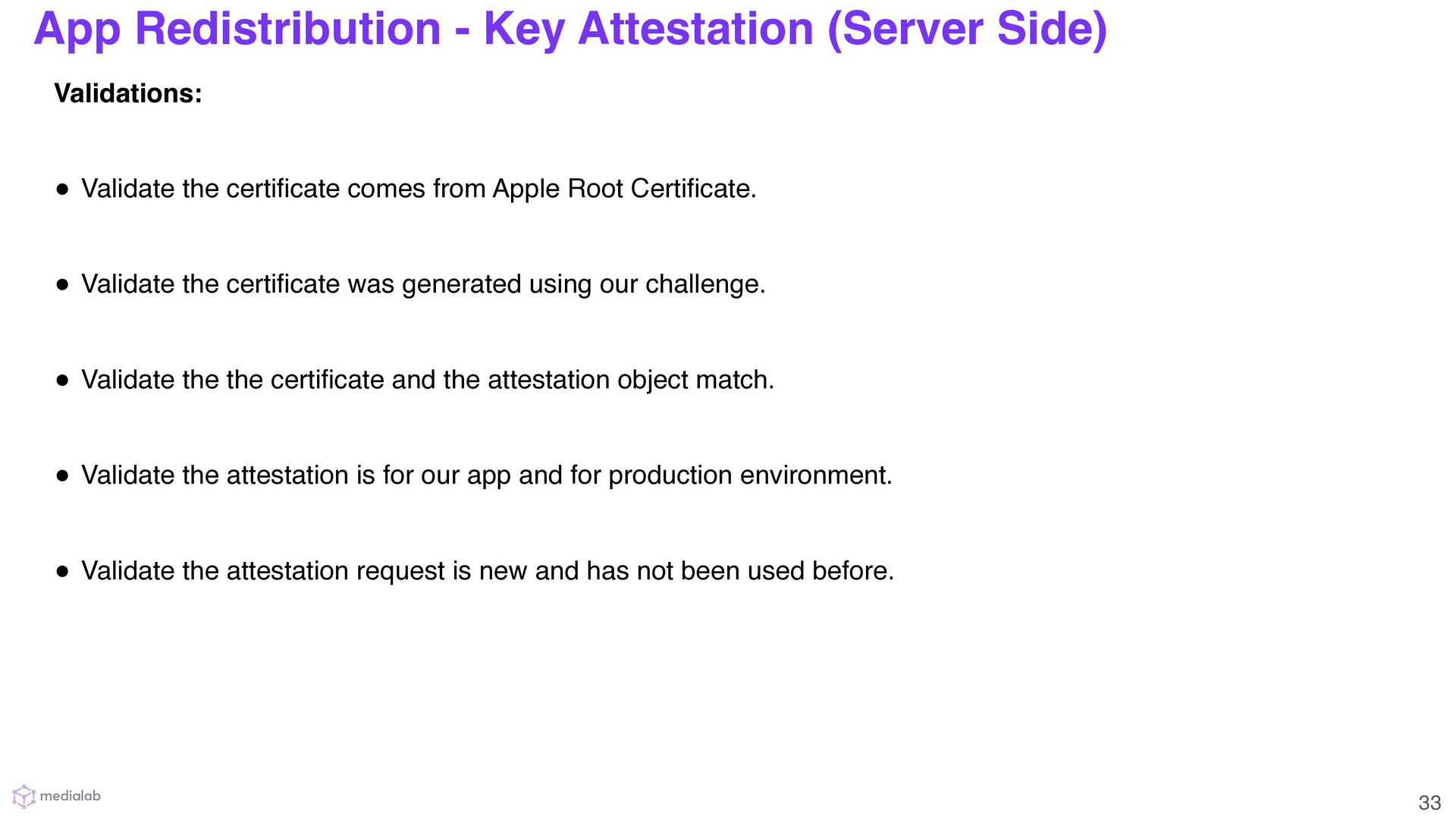

33. Validations: • Validate the certificate comes from Apple Root Certificate. • Validate the certificate was generated using our challenge. • Validate the the certificate and the attestation object match. • Validate the attestation is for our app and for production environment. • Validate the attestation request is new and has not been used before. Key Attestation (Server Side) 33 App Redistribution - Key Attestation (Server Side)

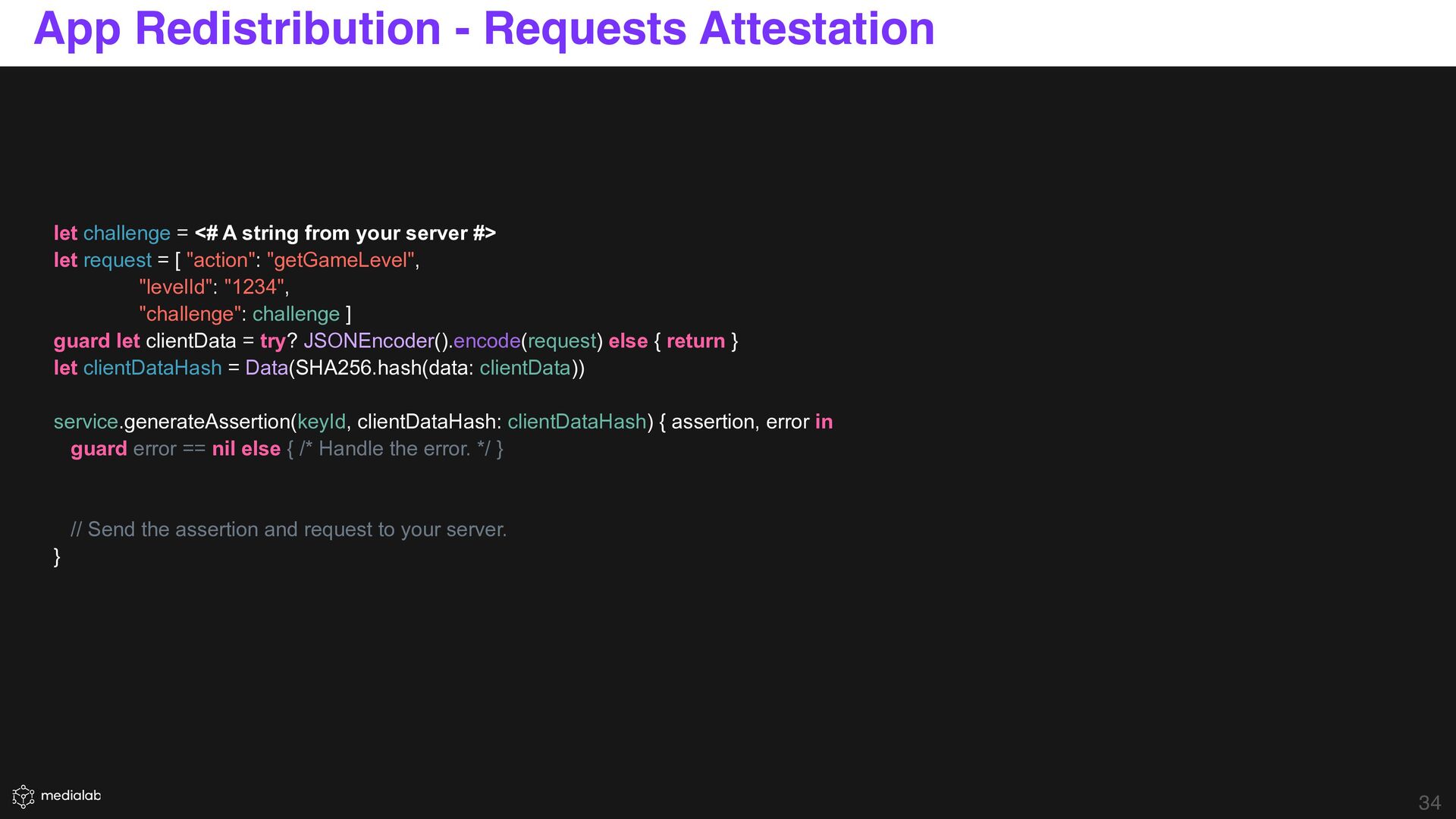

34. Requests Attestation 34 let challenge = <# A string from your server #> let request = [ "action": "getGameLevel", "levelId": "1234", "challenge": challenge ] guard let clientData = try? JSONEncoder().encode(request) else { return } let clientDataHash = Data(SHA256.hash(data: clientData)) service.generateAssertion(keyId, clientDataHash: clientDataHash) { assertion, error in guard error == nil else { /* Handle the error. */ } // Send the assertion and request to your server. } App Redistribution - Requests Attestation
35. Thanks! Twitter: @itaybre GitHub: itaybre
