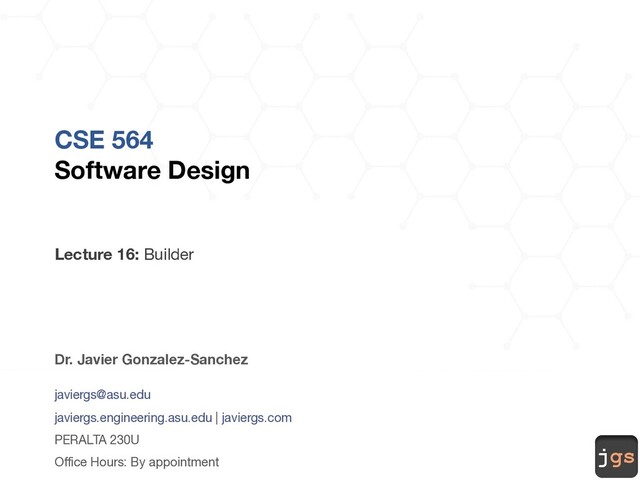

  1. jgs
    CSE 564
    Software Design
    Lecture 16: Builder
    Dr. Javier Gonzalez-Sanchez
    [email protected]
    javiergs.engineering.asu.edu | javiergs.com
    PERALTA 230U
    Office Hours: By appointment

    View Slide

  2. jgs
    Builder
    Wrapper of an object
    When an object cannot be produced in one step

    View Slide

  3. jgs
    564 00001110
    GoF Patterns

    View Slide

  4. jgs
    564 00001110
    Builder
    § A Builder is a wrapper of an object. It is used when an object cannot be
    produced in one single step.
    § Builder isolates the product’s internal representation and the steps for the
    product’s construction.
    § Use the Builder pattern to get rid of having a Product with multiple
    constructors with a diverse number of parameters each, i.e., as an option
    for providing default values for attributes in an object.

    View Slide

  5. jgs
    564 00001110
    Builder

    View Slide

  6. jgs
    564 00001110
    Builder pattern
    // For creating complex objects
    // Delegate to several builders
    public class Client {
    public static void main( string[] args ) {
    Director director = new Director( );
    StudentBuilder sBuilder = new StudentBuilder();
    InstructorBuilder iBuilder = new InstructorBuilder();
    director.constructStudent( sBuilder );
    Student s = sBuilder.getResult();
    s.show();
    director.constructInstructor( iBiulder );
    Instructor i = iBuilder.GetResult();
    i.Show();
    }
    }

    View Slide

  7. jgs
    564 00001110
    Builder pattern
    class Director {
    public void constructStudent( Builder builder ) {
    builder.setSalary(“10”);
    builder.setAccess(“LIMITED”);
    builder.setHours(“20”);
    builder.setComputer(“no”);
    }
    public void constructInstructor( Builder builder ) {
    builder.setSalary(“50”);
    builder.setAccess(“FULL”);
    builder.setHours(“40”);
    builder.setComputer(“yes”);
    }
    }

    View Slide

  8. jgs
    564 00001110
    Builder pattern
    interface Builder {
    void setSalary (String salary);
    void setAccess (String access);
    void setHours (String hours);
    void setComputer(String computer);
    }
    class StudentBuilder extends Builder {
    private int salary;
    private String access;
    private int hours);
    private Computer c;
    // setters for all variables
    public void setSalary (int salary) { this.salary = Integer.parseInt(salary)); }
    public void setAccess (String access) {this.access = access;}
    public void setHours (String hours) {this.hours = Integer.parseInt(hours)); }
    public void setComputer(String computer) {c = computer.equals(“yes”)?new Computer():null;}
    public Student getResult() {
    // you can validate here that all data exist
    return new Student (salary, access, hours, computer);
    }
    }

    View Slide

  9. jgs
    564 00001110
    Builder pattern
    interface Builder {
    void setSalary (String salary);
    void setAccess (String access);
    void setHours (String hours);
    void setComputer(String computer);
    }
    class InstructorBuilder extends Builder {
    private int salary;
    private String access;
    private int hours;
    private Computer c;
    // setters for all variables
    public void setSalary (int salary) { this.salary = Integer.parseInt(salary)); }
    public void setAccess (String access) {this.access = access;}
    public void setHours (String hours) {this.hours = Integer.parseInt(hours)); }
    public void setComputer(String computer) {c = new Computer();}
    public Student getResult() {
    // you can validate here that all data exist
    return new Instructor (salary, access, hours, computer);
    }
    }

    View Slide

  10. jgs
    564 00001110
    Builder pattern
    class Student {
    private int salary;
    private String access;
    private int hours;
    private Computer c;
    // common simple trivial getters
    // common simple trivial setters
    // common simple trivial constructor
    // what about making the constructor private ?
    }
    class Instructor {
    private int salary;
    private String access;
    private int hours;
    private Computer c;
    // common simple trivial getters
    // common simple trivial setters
    // common simple trivial constructor
    // what about making the constructor private ?
    }

    View Slide

  11. jgs
    Fluent-Builder
    Wrapper of an object
    When an object cannot be produced in one step

    View Slide

  12. jgs
    564 00001110
    Fluent-Builder
    § The Fluent Builder is a builder whose design relies on method chaining. In
    doing so, it aims to promote code legibility.

    View Slide

  13. jgs
    564 00001110
    Fluent-Builder
    import java.awt.*;
    public class Client {
    public static void main(String[] args) {
    FluentBuilder builder = new BoxFluentBuilder()
    .setColor(Color.RED)
    .setSize(20)
    .setX(10)
    .setY(20);
    Product box = ((BoxFluentBuilder)builder).get();
    }
    }

    View Slide

  14. jgs
    564 00001110
    Fluent-Builder
    import java.awt.Color;
    public interface Builder {
    public Builder setColor(Color color);
    public Builder setSize(int size);
    public Builder setX(int x);
    public Builder setY(int y);
    }

    View Slide

  15. jgs
    564 00001110
    Fluent-Builder
    import java.awt.*;
    public class BoxFluentBuilder implements FluentBuilder {
    private Color color;
    private int size, x, y;
    public Builder setColor (Color color) {
    this.color = color; return this;
    }
    public Builder setSize(int size) { this.size = size; return this; }
    public Builder setX(int x) { this.x = x; return this; }
    public Builder setY(int y) { this.y = y; return this; }
    public Box get() {
    return new Box (color, size, x, y);
    }
    }

    View Slide

  16. jgs
    564 00001110
    Example

    View Slide

  17. jgs
    564 00001110
    GoF Patterns

    View Slide

  18. jgs
    Factory
    Wrapper of a constructor
    One entire object to be built in a single method call

    View Slide

  19. jgs
    564 00001110
    Abstract Factory

    View Slide

  20. jgs
    564 00001110
    Products
    public interface Shape {
    void draw();
    }
    public class RoundedRectangle implements Shape {
    public void draw() {
    System.out.println("Inside RoundedRectangle/draw() method.");
    }
    }
    public class RoundedSquare implements Shape {
    public void draw() {
    System.out.println("Inside RoundedSquare/draw() method.");
    }
    }
    public class Rectangle implements Shape {
    public void draw() {
    System.out.println("Inside Rectangle/draw() method.");
    }
    }

    View Slide

  21. jgs
    564 00001110
    Factories
    public abstract class AbstractFactory {
    Shape getShape(String shapeType) ;
    }
    public class ShapeFactory extends AbstractFactory {
    public Shape getShape(String shapeType){
    if(shapeType.equalsIgnoreCase("RECTANGLE")){
    return new Rectangle();
    }else if(shapeType.equalsIgnoreCase("SQUARE")){
    return new Square();
    }
    return null;
    }
    }

    View Slide

  22. jgs
    564 00001110
    Factories
    public class RoundedShapeFactory extends AbstractFactory {
    public Shape getShape(String shapeType){
    if(shapeType.equalsIgnoreCase("RECTANGLE")){
    return new RoundedRectangle();
    }else if(shapeType.equalsIgnoreCase("SQUARE")){
    return new RoundedSquare();
    }
    return null;
    }
    }

    View Slide

  23. jgs
    564 00001110
    Client
    public class Client {
    public static void main(String[] args) {
    AbstractFactory shapeFactory = new ShapeFactory();
    //get an object of Shape Rectangle
    Shape shape1 = shapeFactory.getShape("RECTANGLE");
    //call draw method of Shape Rectangle
    shape1.draw();
    //get an object of Shape Square
    Shape shape2 = shapeFactory.getShape("SQUARE");
    //call draw method of Shape Square
    shape2.draw(); ]
    //get shape factory
    AbstractFactory shapeFactory1 = new RoundedShapeFactory();
    //get an object of Shape Rectangle
    Shape shape3 = shapeFactory1.getShape("RECTANGLE");
    //call draw method of Shape Rectangle
    shape3.draw();
    //get an object of Shape Square
    Shape shape4 = shapeFactory1.getShape("SQUARE");
    //call draw method of Shape Square
    shape4.draw();
    }
    }

    View Slide

  24. jgs
    564 00001110
    Questions

    View Slide

  25. jgs
    CSE 564 Software Design
    Javier Gonzalez-Sanchez, Ph.D.
    [email protected]
    Fall 2021
    Copyright. These slides can only be used as study material for the class CSE564 at ASU.
    They cannot be distributed or used for another purpose.

    View Slide
