DSW 2017: Travis Jacobs, "Time Is Money, Reducing Cost Through Virtual Prototyping"

Transcript

1. www.ansys.com www.boomsupersonic.com www..ursamajortechnologies.com Travis Jacobs Principal Engineer JA Simulations Time Is Money,
 Reducing Cost Through
 Virtual Prototyping Kevin Hanley Sr Account Manager ANSYS Inc. Wally Raban Sr. Applications Engineer ANSYS Inc. David Gregory Chief Technology Officer Ursa Major Technologies Andy Berryann Head Of Propulsion Boom Supersonic
2. www.ansys.com www.boomsupersonic.com www..ursamajortechnologies.com ▪ What Is The TOTAL Cost Of A Bad Design? ▪ Would You Like To Save $100,000 On Developing Your Next Product? ▪ What Would It Mean To Your Bottom Line If You Could Reduce Product Development Costs By 30 Percent & Get To Market 6 Months Ahead Of Your Competitors?
3. www.ansys.com www.boomsupersonic.com www..ursamajortechnologies.com Benefits Of Virtual Prototyping ✓Speed To Market ✓Higher Quality & Reliability ✓Robust Design ✓Lower Cost ✓Less Risk ✓Faster Development Cycle ✓Increased Innovation ✓Optimized Design
4. www.ansys.com www.boomsupersonic.com www..ursamajortechnologies.com ▪ What Is The Cost Of A Delay? ▪ What Is The Cost Of Missed Sales?
5. www.ansys.com www.boomsupersonic.com www..ursamajortechnologies.com Product Design Challenges ▪Problems & Errors Found Late In The Development Cycle ▪Cost, Performance & Quality Trade Offs ▪Frequent Design Changes ▪Accurately Predicting Performance In The Real World ▪Workforce Reductions & Lack Of Skilled Technical Experts
6. www.ansys.com www.boomsupersonic.com www..ursamajortechnologies.com Business Pressures ▪Customer Demand For Lower Cost Products ▪Shorter Product Development Cycles ▪Better Quality & Reliability ▪Greater Innovation ▪Smarter & More Feature Rich Products

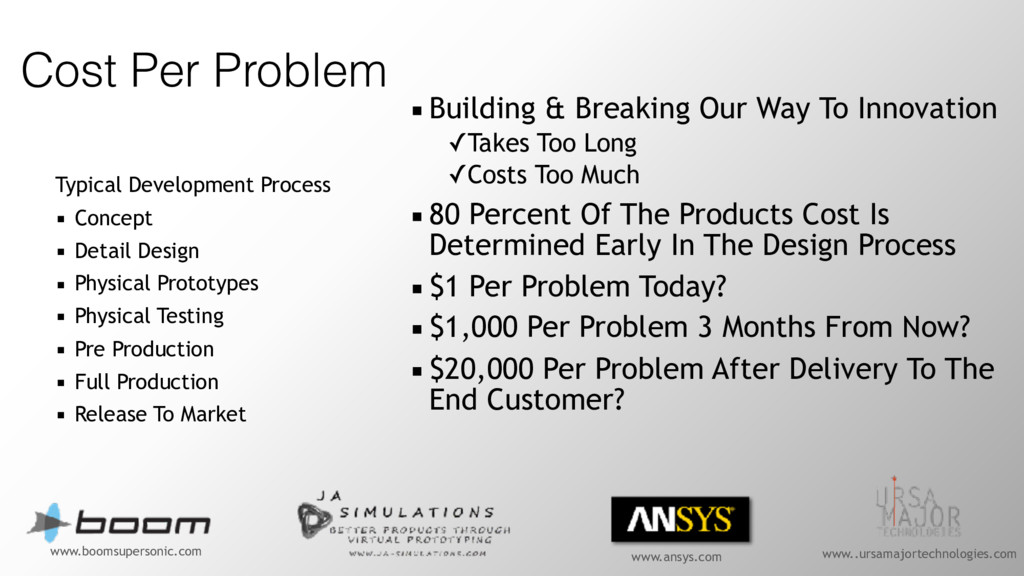

7. www.ansys.com www.boomsupersonic.com www..ursamajortechnologies.com Cost Per Problem ▪Building & Breaking Our Way To Innovation ✓Takes Too Long ✓Costs Too Much ▪80 Percent Of The Products Cost Is Determined Early In The Design Process ▪$1 Per Problem Today? ▪$1,000 Per Problem 3 Months From Now? ▪$20,000 Per Problem After Delivery To The End Customer? Typical Development Process ▪ Concept ▪ Detail Design ▪ Physical Prototypes ▪ Physical Testing ▪ Pre Production ▪ Full Production ▪ Release To Market
8. www.ansys.com www.boomsupersonic.com www..ursamajortechnologies.com ▪ Why Are Most Product Development Projects Behind Schedule & Over Budget? ▪ “A Plan Is Just A List Of Things That Didn’t Happen” ▪ You Have To Fail To Succeed ▪ Exponentially Accelerate The Failure Cycle Utilizing Virtual Prototypes
9. www.ansys.com www.boomsupersonic.com www..ursamajortechnologies.com Success Stories Of Virtual Prototyping ▪Nebia ▪ $100,000 Goal In 36 Hours ▪ $3.1 Million ▪SpaceX ▪Hyperloop ▪Ferrari Racing ▪Red Bull Racing
10. www.ansys.com www.boomsupersonic.com www..ursamajortechnologies.com
11. www.ansys.com www.boomsupersonic.com www..ursamajortechnologies.com Discovery Live Demo Wally Raban Sr. Applications Engineer ANSYS Inc.
12. www.ansys.com www.boomsupersonic.com www..ursamajortechnologies.com Virtual Prototyping Reduces Costly Testing ▪ More optimized designs, with less time and cost A room full of Concorde wind tunnel models The next gen is being developed with CFD
13. www.ansys.com www.boomsupersonic.com www..ursamajortechnologies.com Ursa Major Technologies David Gregory Chief Technology Officer Ursa Major Technologies
