1. Update your reality with Vision and ARKit Julien Datour
2. Demo time!
3. That’s what I’m talking about Vision ARKit SceneKit

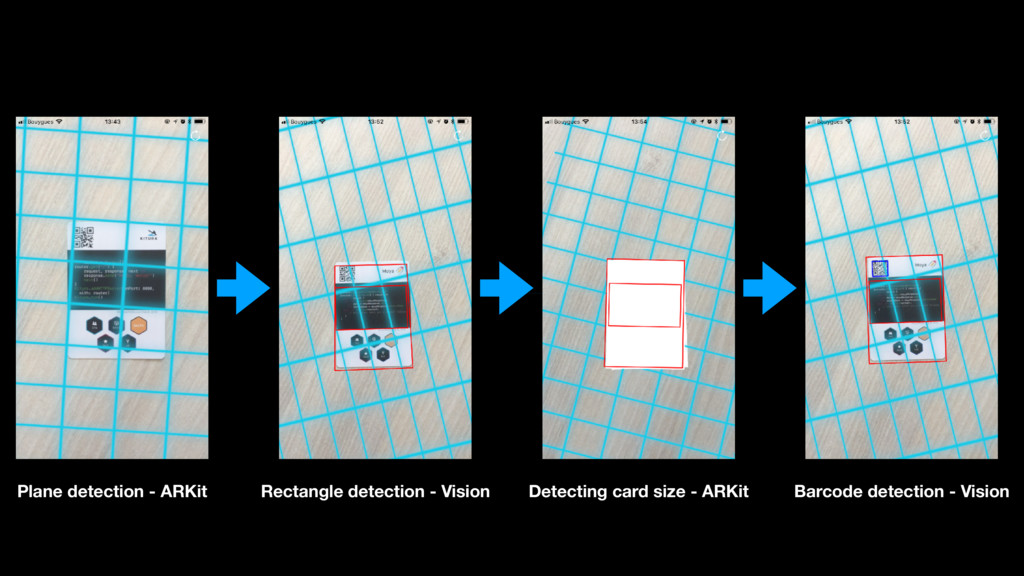

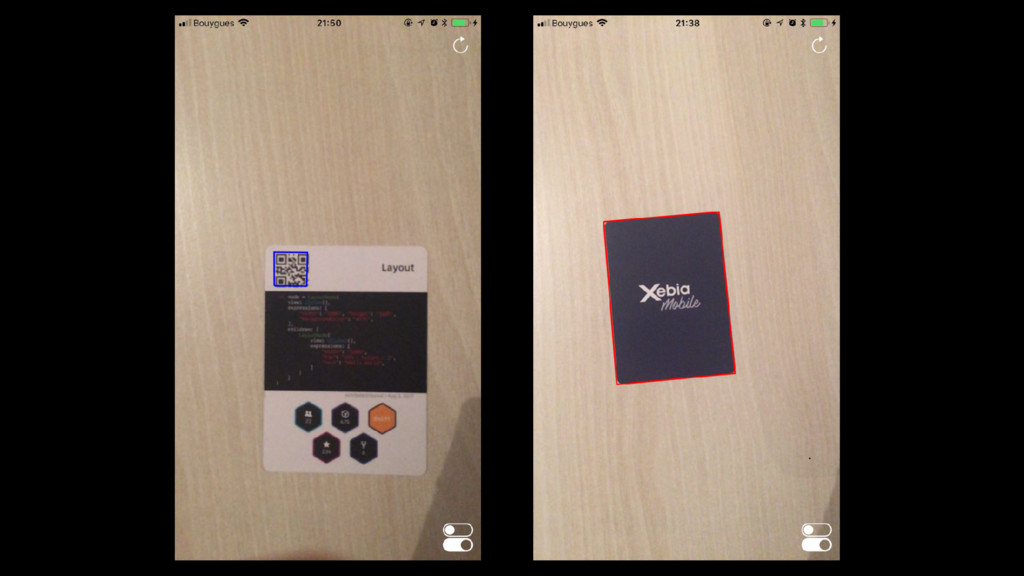

4. Plane detection - ARKit Rectangle detection - Vision Barcode detection - Vision Detecting card size - ARKit
5. Vision
6. –Brett Keating, Apple Manager, during WWDC “High-level on-device solutions to Computer Vision problems through one simple API”
7. –Julien Datour, Me, during FrenchKit “A framework that detects stuff on images”
8. How Vision works

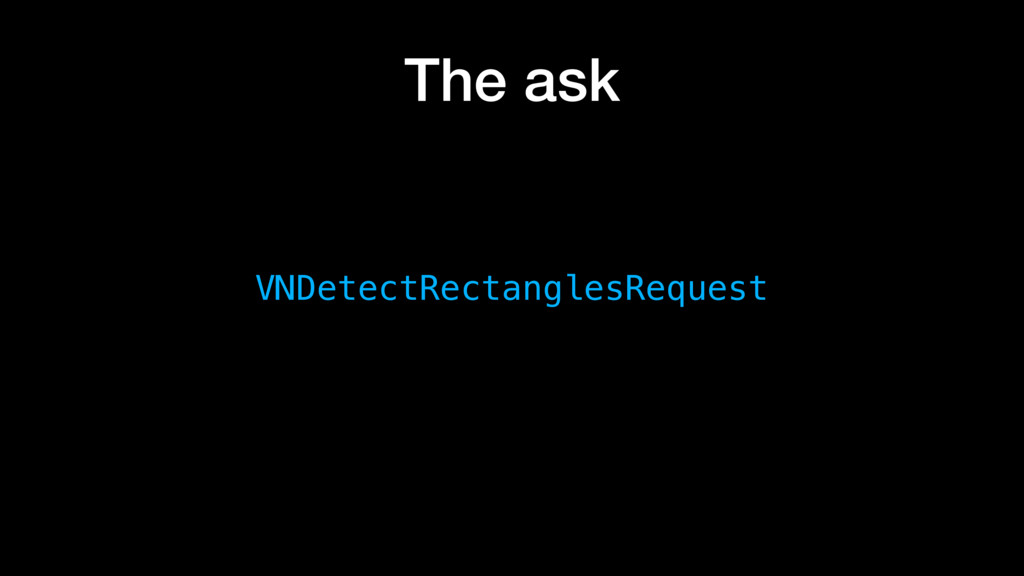

9. The ask VNDetectRectanglesRequest

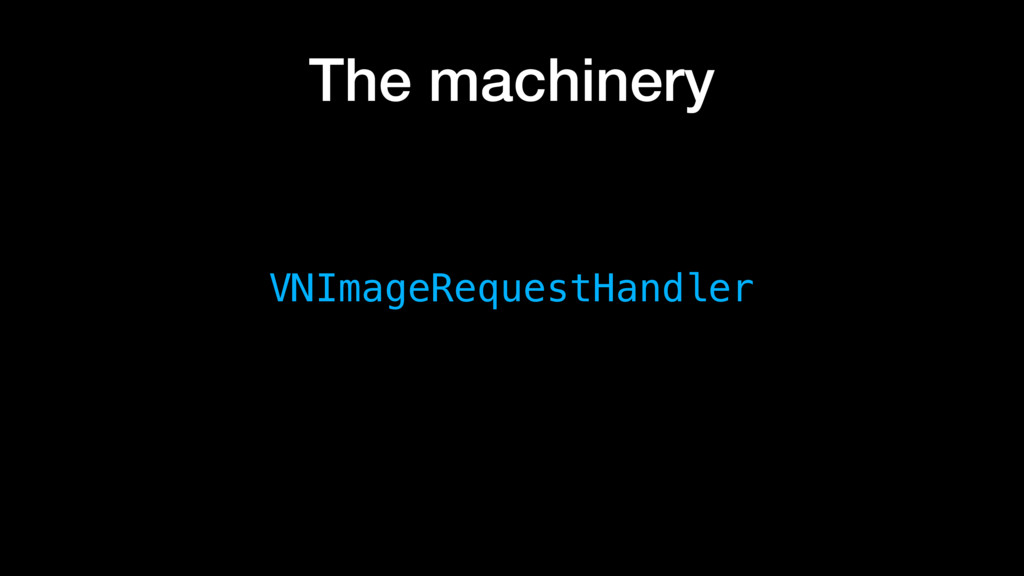

10. The machinery VNImageRequestHandler

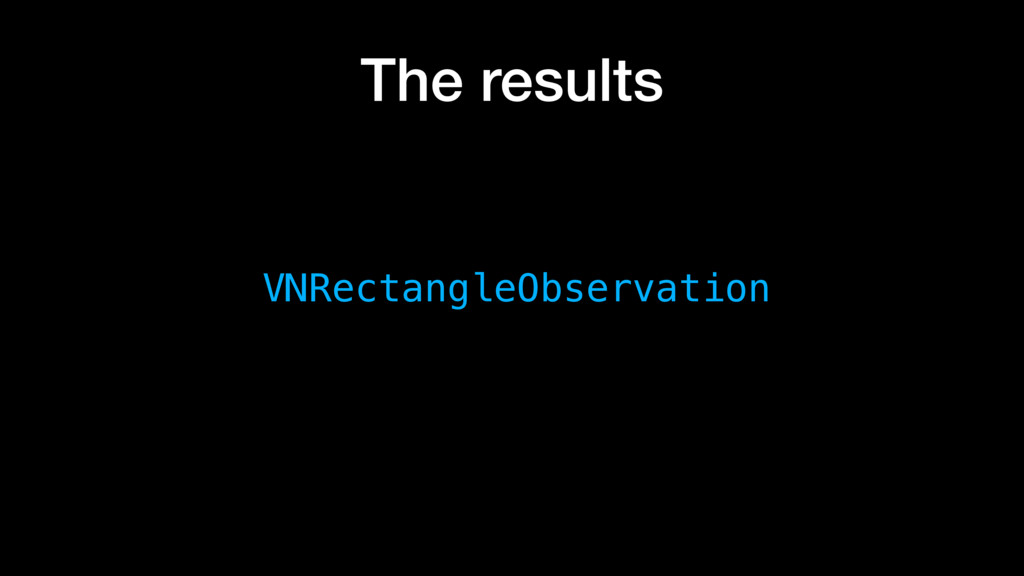

11. The results VNRectangleObservation
12. The ask, the machinery and the results

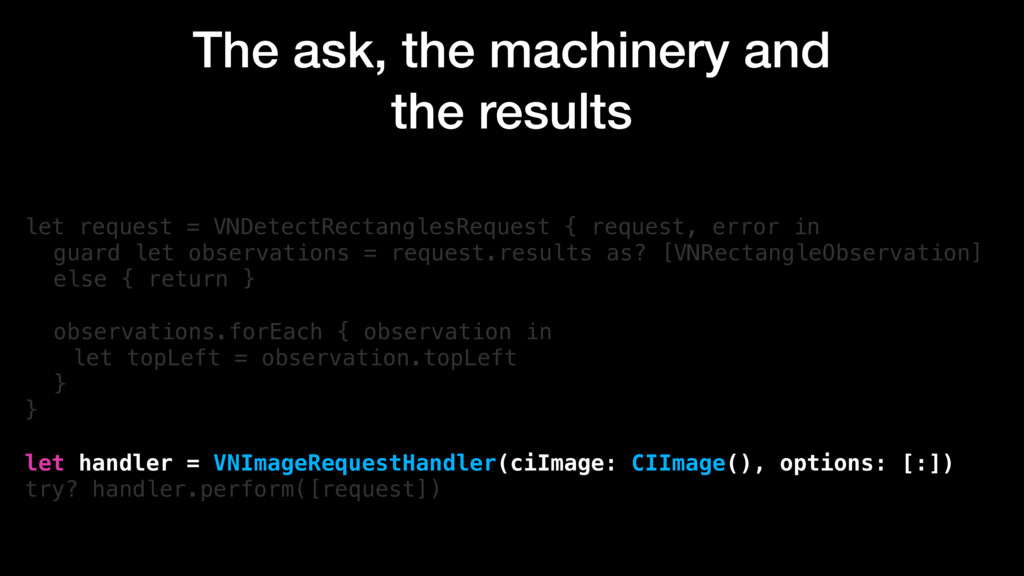

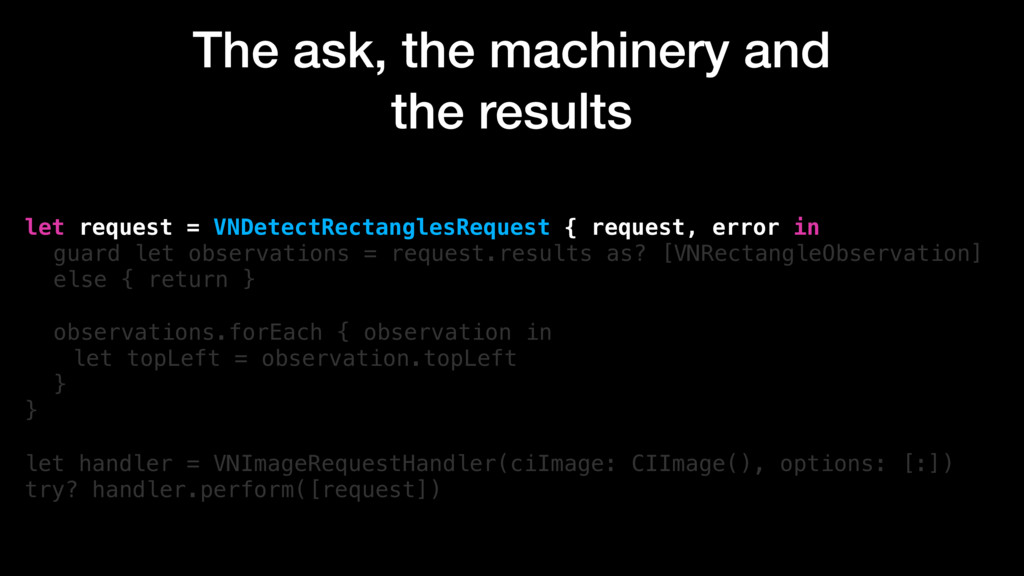

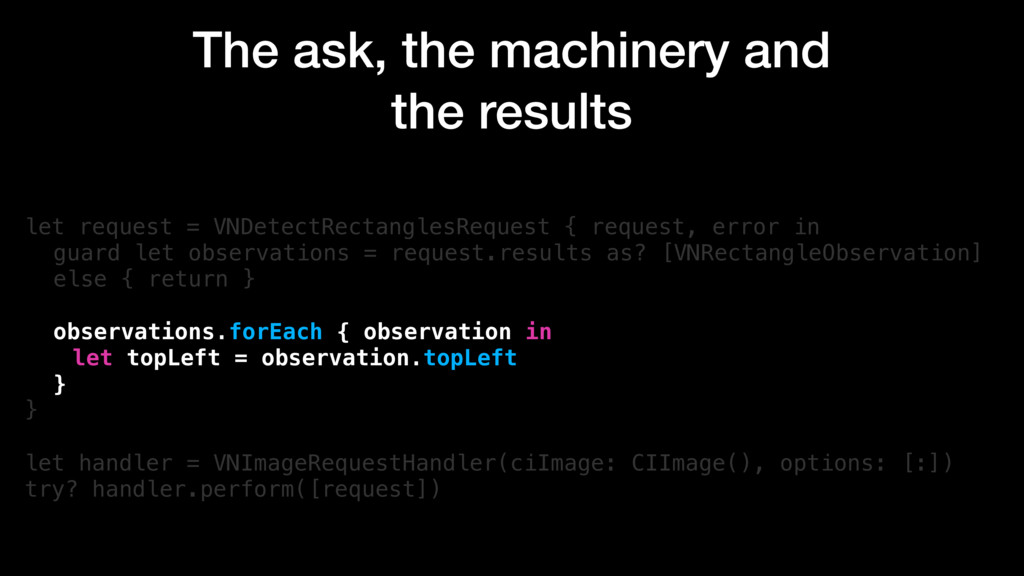

13. The ask, the machinery and the results let request = VNDetectRectanglesRequest { request, error in guard let observations = request.results as? [VNRectangleObservation] else { return } observations.forEach { observation in let topLeft = observation.topLeft } } let handler = VNImageRequestHandler(ciImage: CIImage(), options: [:]) try? handler.perform([request])

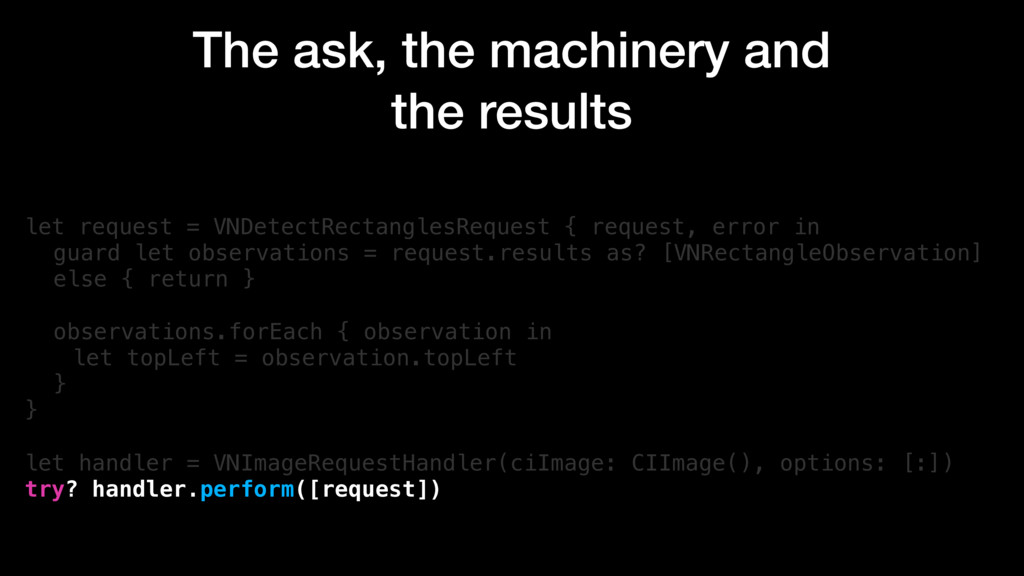

14. The ask, the machinery and the results let request = VNDetectRectanglesRequest { request, error in guard let observations = request.results as? [VNRectangleObservation] else { return } observations.forEach { observation in let topLeft = observation.topLeft } } let handler = VNImageRequestHandler(ciImage: CIImage(), options: [:]) try? handler.perform([request])
15. The ask, the machinery and the results let request = VNDetectRectanglesRequest { request, error in guard let observations = request.results as? [VNRectangleObservation] else { return } observations.forEach { observation in let topLeft = observation.topLeft } } let handler = VNImageRequestHandler(ciImage: CIImage(), options: [:]) try? handler.perform([request])

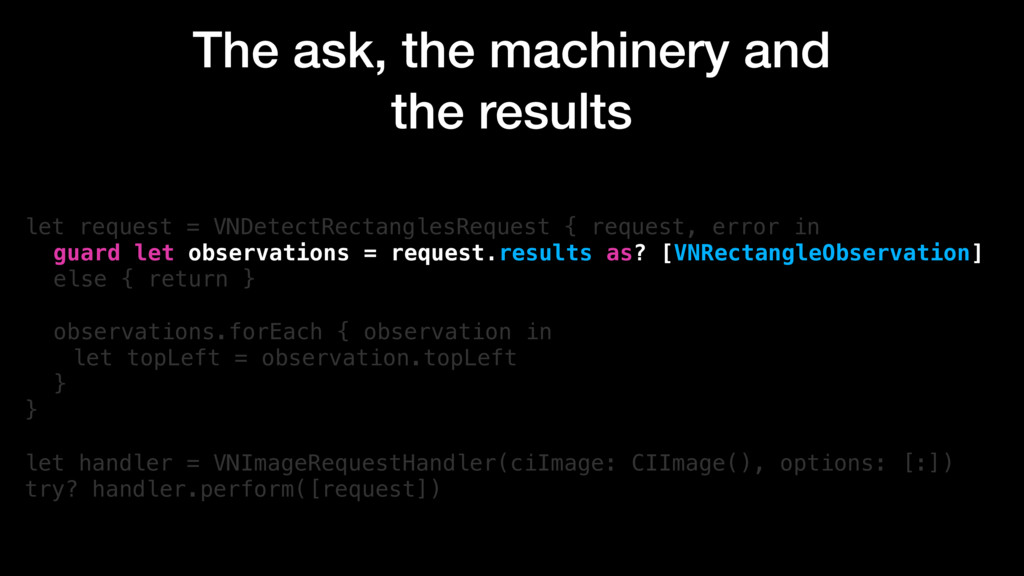

16. The ask, the machinery and the results let request = VNDetectRectanglesRequest { request, error in guard let observations = request.results as? [VNRectangleObservation] else { return } observations.forEach { observation in let topLeft = observation.topLeft } } let handler = VNImageRequestHandler(ciImage: CIImage(), options: [:]) try? handler.perform([request])
17. The ask, the machinery and the results let request = VNDetectRectanglesRequest { request, error in guard let observations = request.results as? [VNRectangleObservation] else { return } observations.forEach { observation in let topLeft = observation.topLeft } } let handler = VNImageRequestHandler(ciImage: CIImage(), options: [:]) try? handler.perform([request])

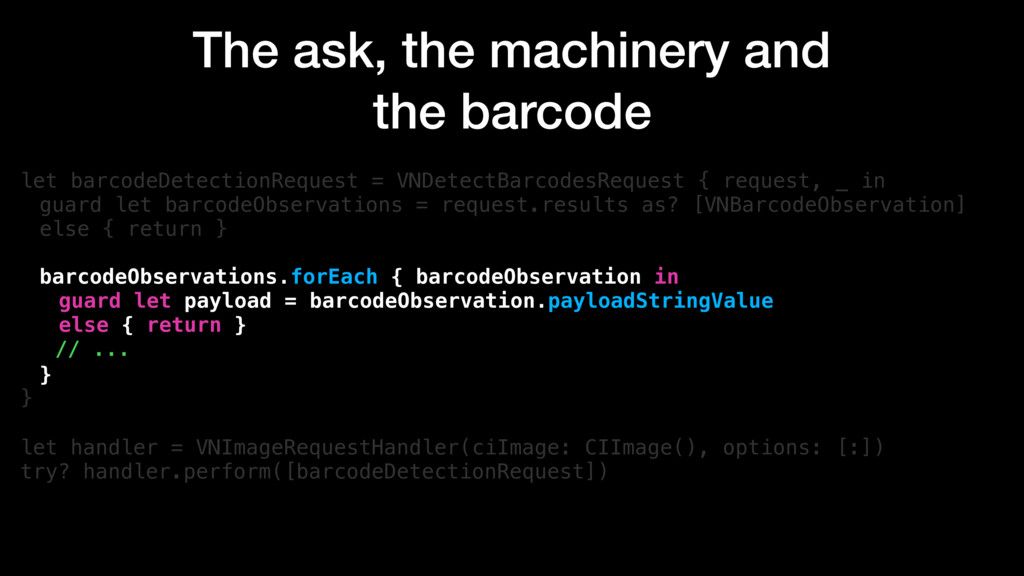

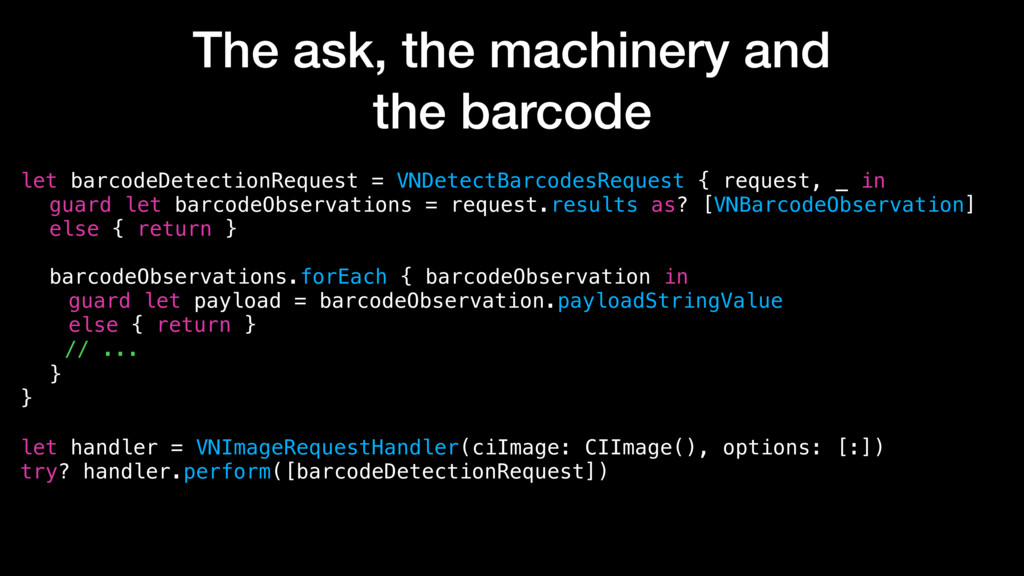

18. The ask, the machinery and the barcode let barcodeDetectionRequest = VNDetectBarcodesRequest { request, _ in guard let barcodeObservations = request.results as? [VNBarcodeObservation] else { return } barcodeObservations.forEach { barcodeObservation in guard let payload = barcodeObservation.payloadStringValue else { return } // ... }` } let handler = VNImageRequestHandler(ciImage: CIImage(), options: [:]) try? handler.perform([barcodeDetectionRequest])
19. The ask, the machinery and the barcode let barcodeDetectionRequest = VNDetectBarcodesRequest { request, _ in guard let barcodeObservations = request.results as? [VNBarcodeObservation] else { return } barcodeObservations.forEach { barcodeObservation in guard let payload = barcodeObservation.payloadStringValue else { return } // ... }` } let handler = VNImageRequestHandler(ciImage: CIImage(), options: [:]) try? handler.perform([barcodeDetectionRequest])
21. ARKit - SceneKit
22. SceneKit

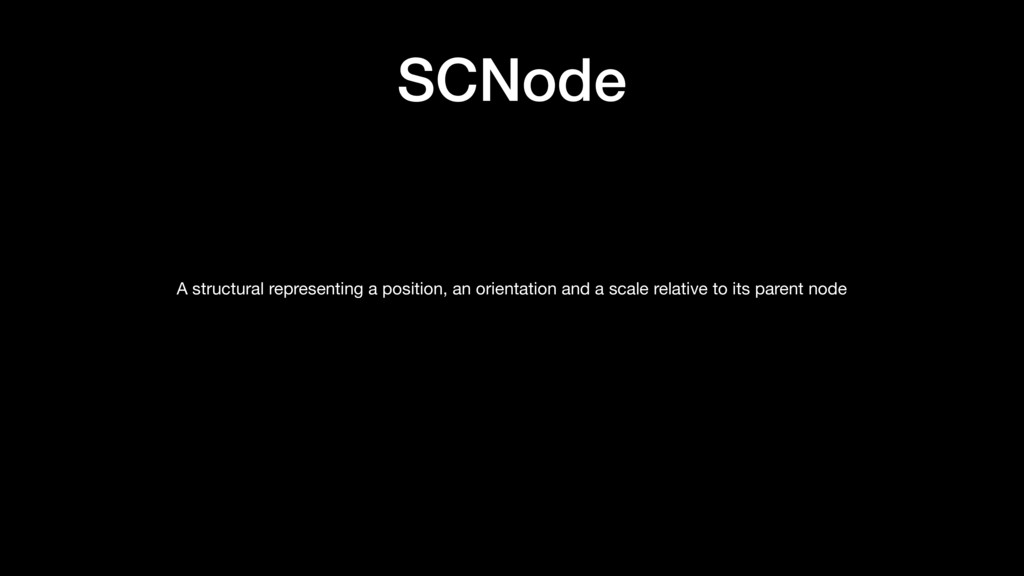

23. SCNode A structural representing a position, an orientation and a scale relative to its parent node

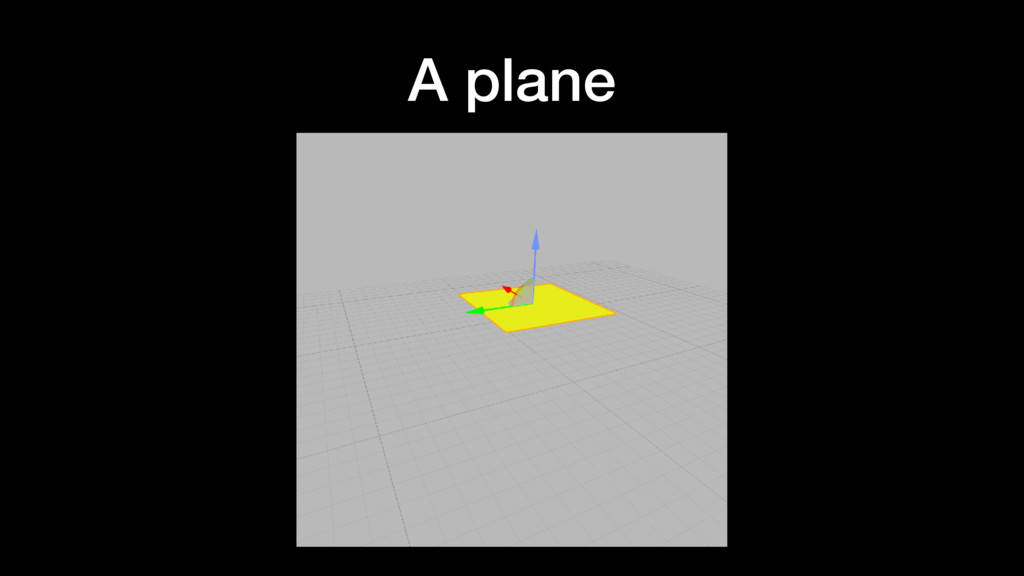

24. A plane

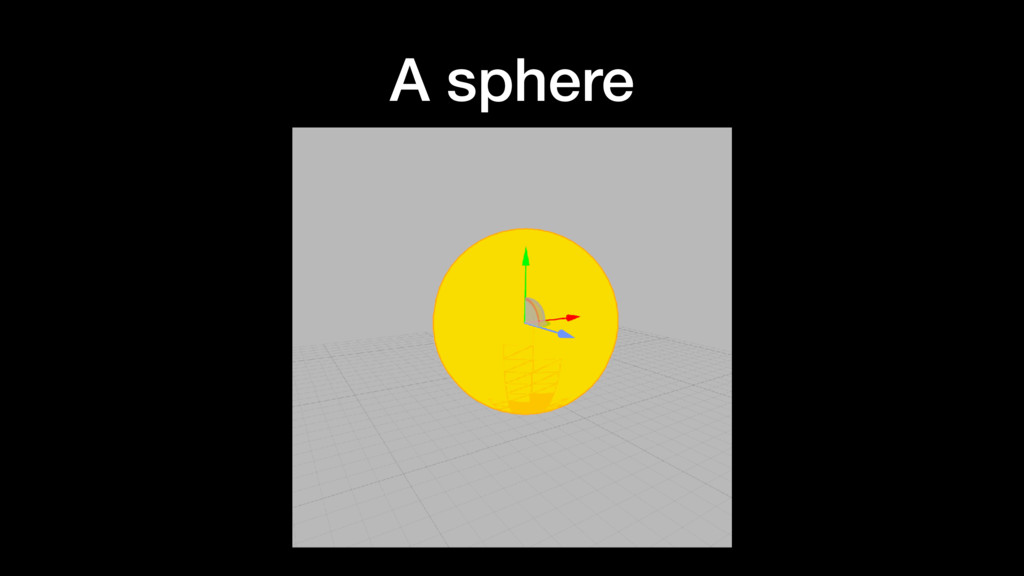

25. A sphere

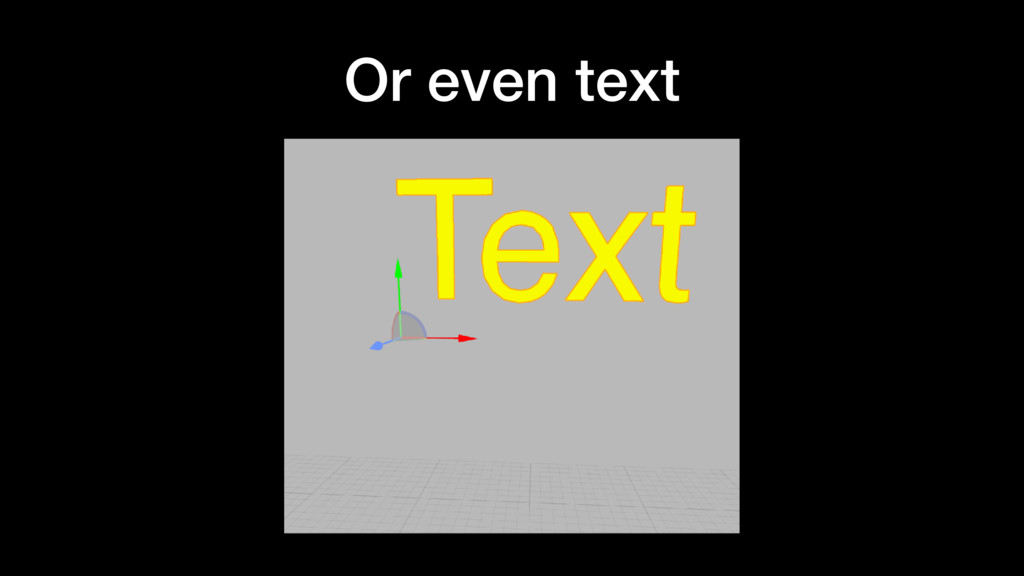

26. Or even text
28. ARKit

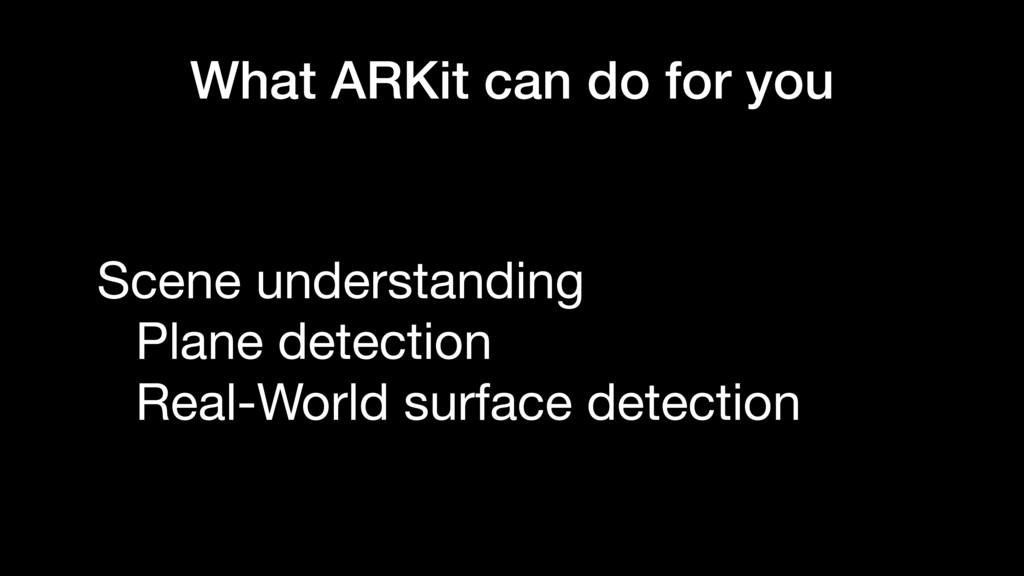

29. What ARKit can do for you Scene understanding Plane detection Real-World surface detection

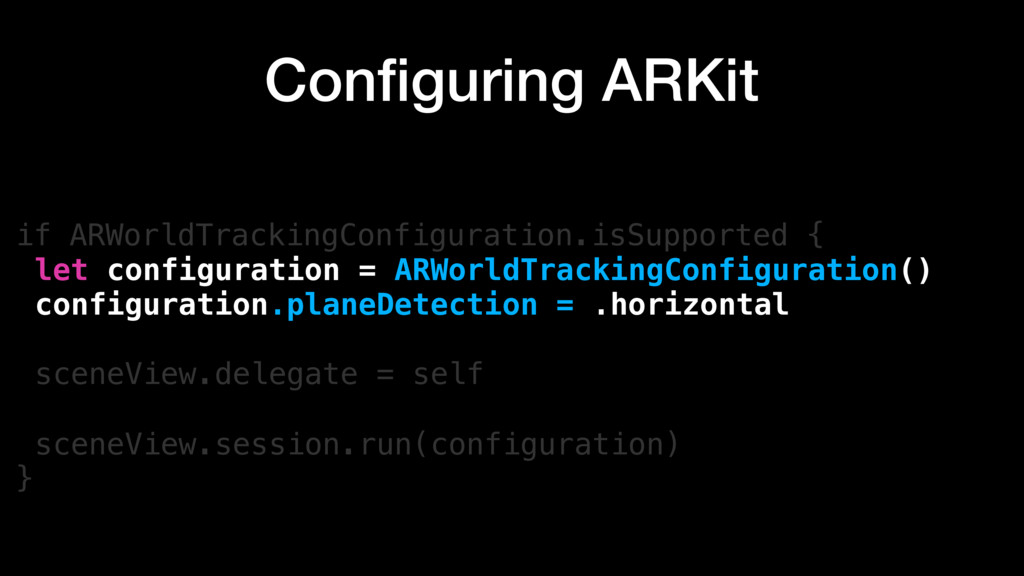

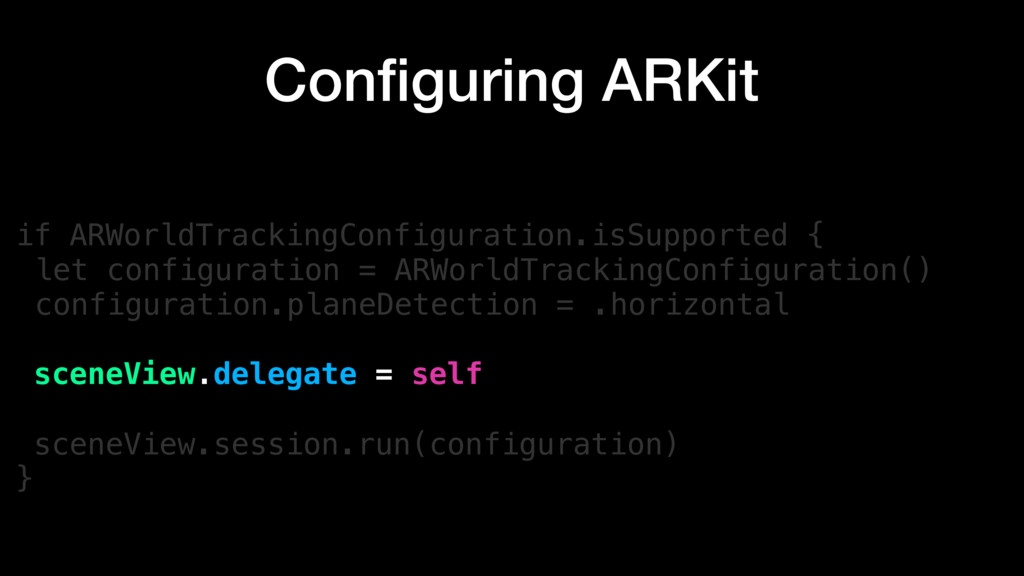

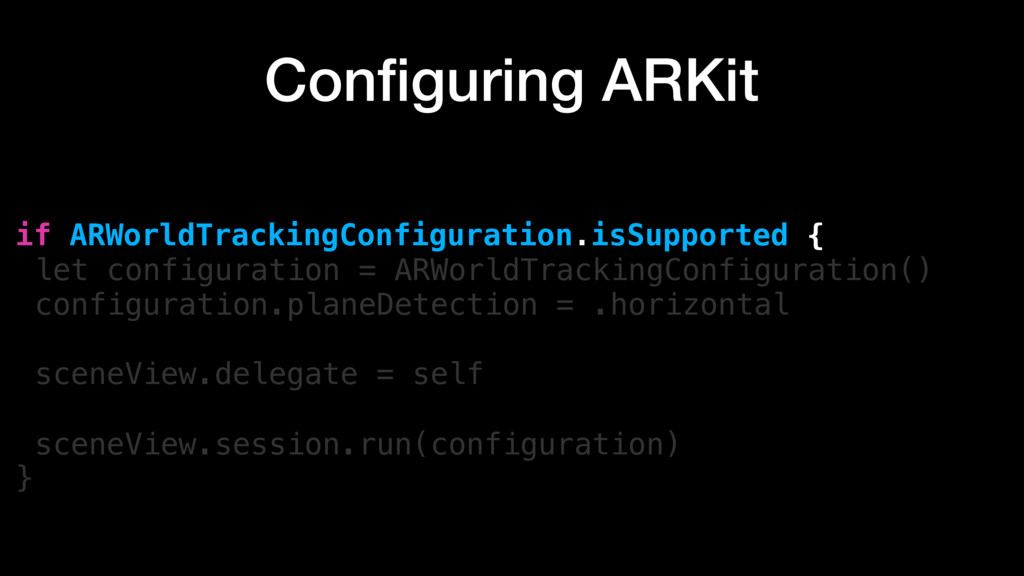

31. Configuring ARKit if ARWorldTrackingConfiguration.isSupported { let configuration = ARWorldTrackingConfiguration() configuration.planeDetection = .horizontal sceneView.delegate = self sceneView.session.run(configuration) }
32. Configuring ARKit if ARWorldTrackingConfiguration.isSupported { let configuration = ARWorldTrackingConfiguration() configuration.planeDetection = .horizontal sceneView.delegate = self sceneView.session.run(configuration) }
33. Configuring ARKit if ARWorldTrackingConfiguration.isSupported { let configuration = ARWorldTrackingConfiguration() configuration.planeDetection = .horizontal sceneView.delegate = self sceneView.session.run(configuration) }

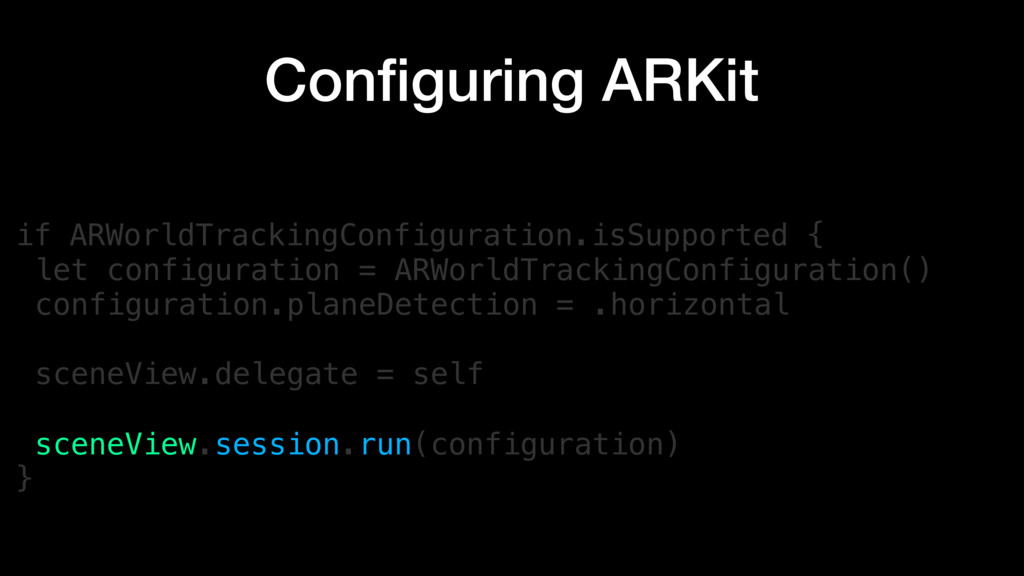

34. Configuring ARKit if ARWorldTrackingConfiguration.isSupported { let configuration = ARWorldTrackingConfiguration() configuration.planeDetection = .horizontal sceneView.delegate = self sceneView.session.run(configuration) }

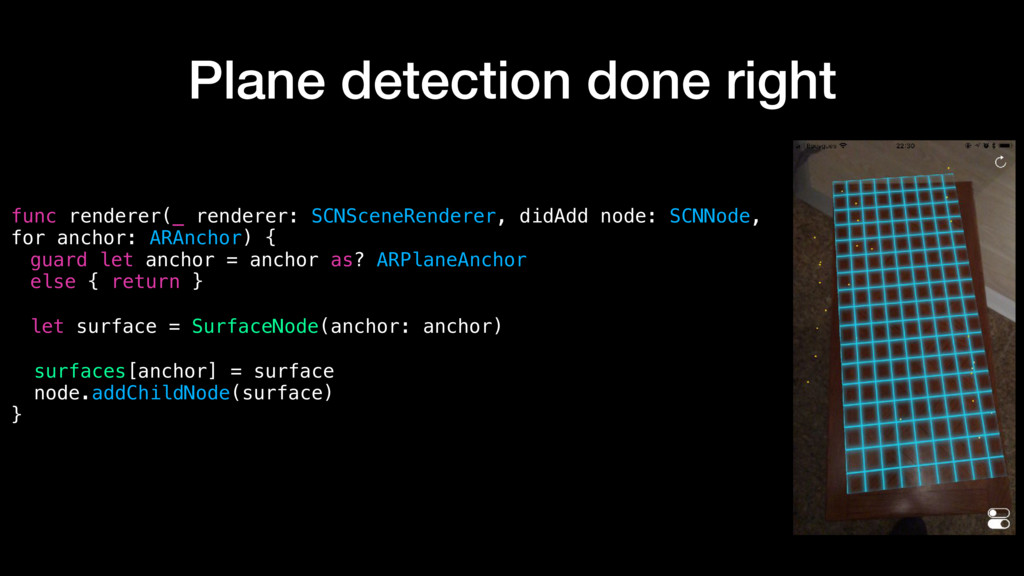

35. Plane detection done right func renderer(_ renderer: SCNSceneRenderer, didAdd node: SCNNode, for anchor: ARAnchor) { guard let anchor = anchor as? ARPlaneAnchor else { return } let surface = SurfaceNode(anchor: anchor) surfaces[anchor] = surface node.addChildNode(surface) }

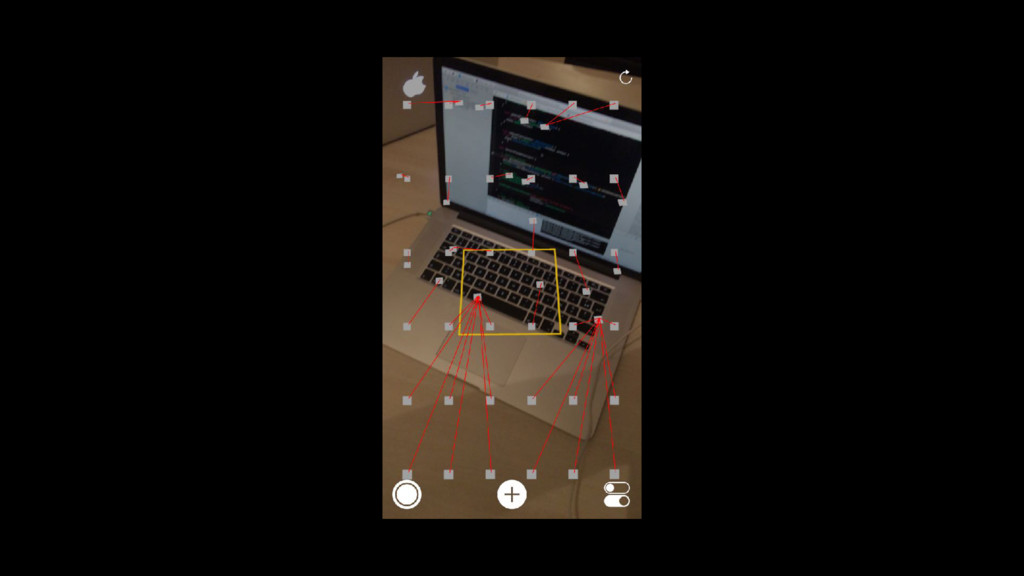

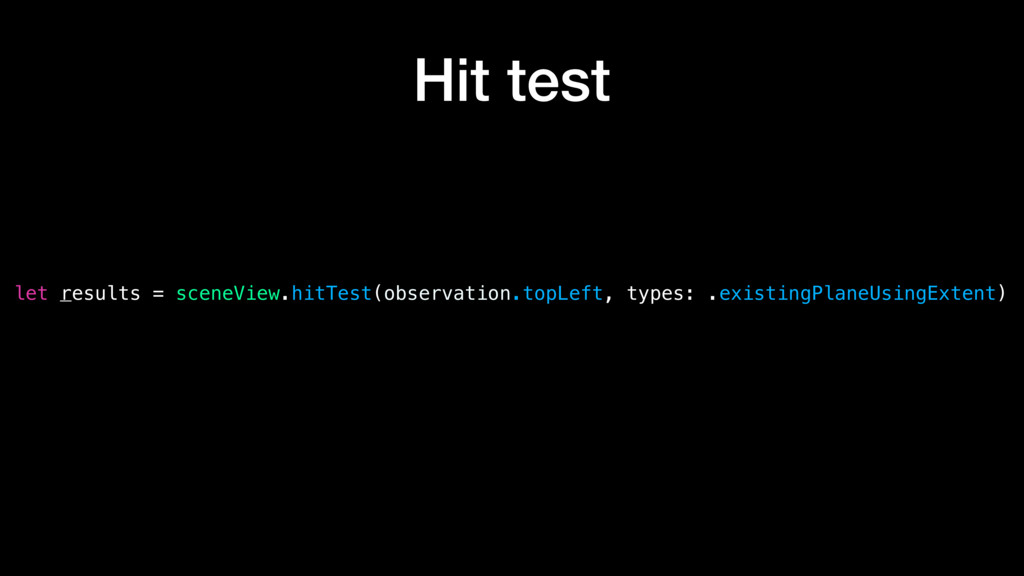

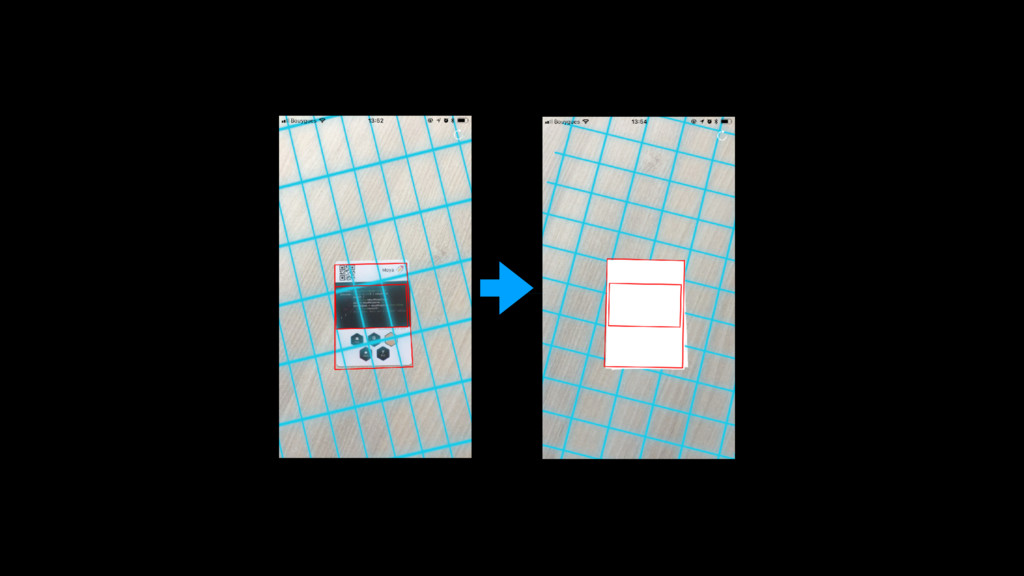

38. Hit test let results = sceneView.hitTest(observation.topLeft, types: .existingPlaneUsingExtent)
41. Thanks
42. @JulienDatour
