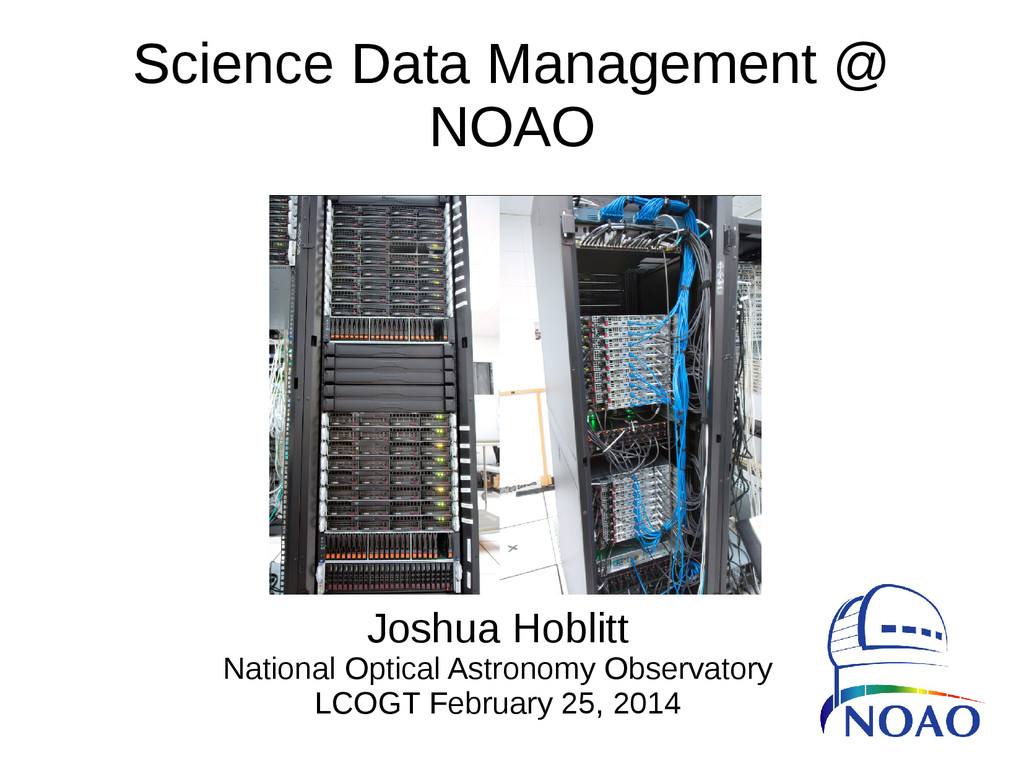

1. Science Data Management @ NOAO Joshua Hoblitt National Optical Astronomy Observatory LCOGT February 25, 2014
2. SDM's role Essentially, we “store, cook, and serve” “the data”. – Data “hand off” / Mountain top caches – Data transport – Data storage / Archiving (indexing - limited) – Data reduction (not all instruments) – Portal access Via the Portal(s), we also serve as part of the public interface between NOAO and the community at large.
3. Staff
4. Scale • 5 sites – KP, TU, CT, CP, LS • ~10 telescopes* • “3 copy” rule – Applies to raw data only – Effectively have 4 copies • 3 “mass store systems” – 1 x 524T (metdata & data replication) – 2 x 175T • 3 pipelines – deccp, newfirm, mosaic • 2 public archives – raw/reduced – survey

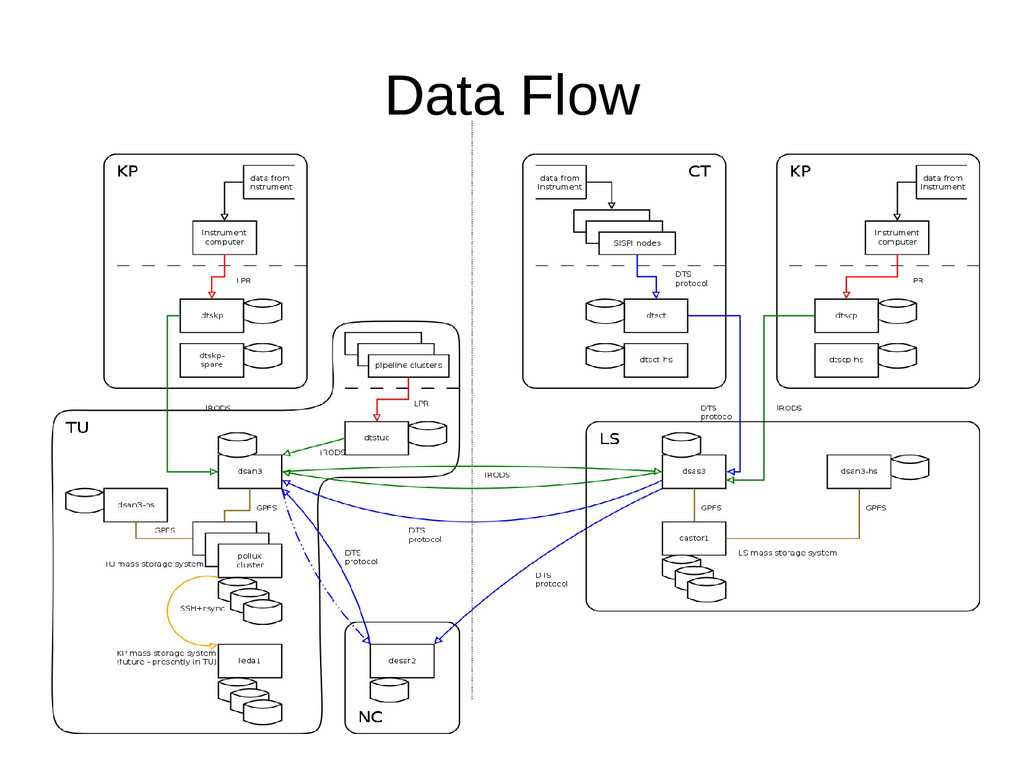

5. Data Flow
6. Data flow conceptualized the simple version
7. Daily Data Volume 0 100 200 300 400 500 600 Date GiB
8. North/South logical network

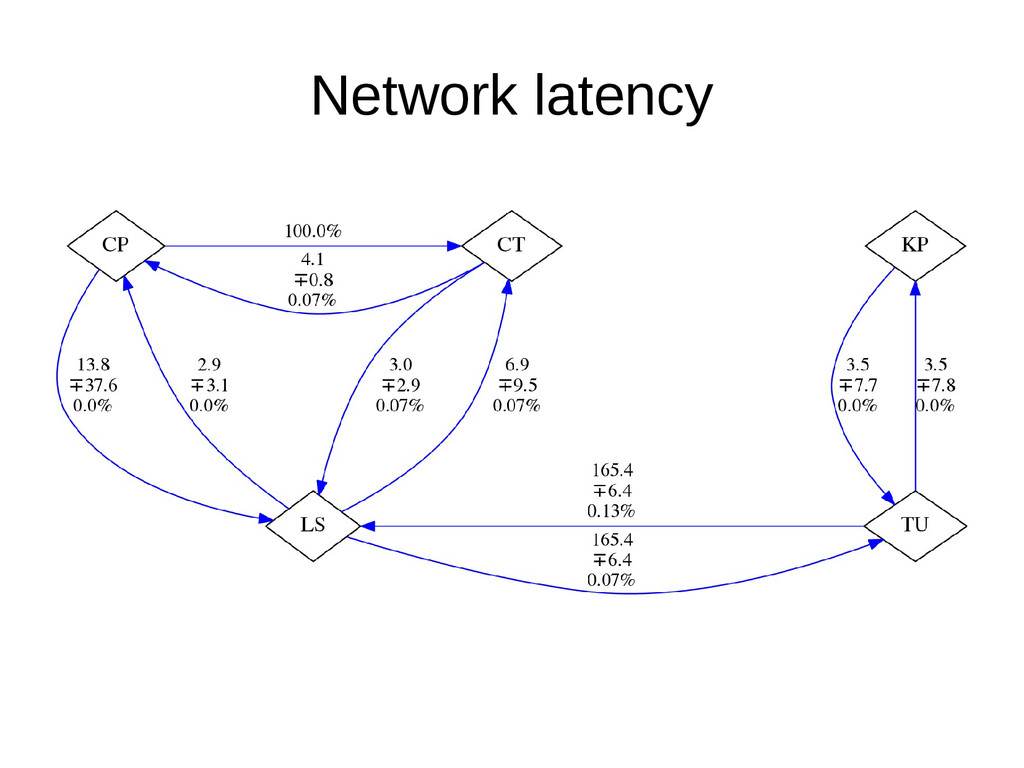

9. Network latency
10. (graph taken from: http://www.cisco.com/web/about/ac123/ac147/images/ipj/ipj_9-2/92_gig_fig_02_sm.jpg) TCP congestion control

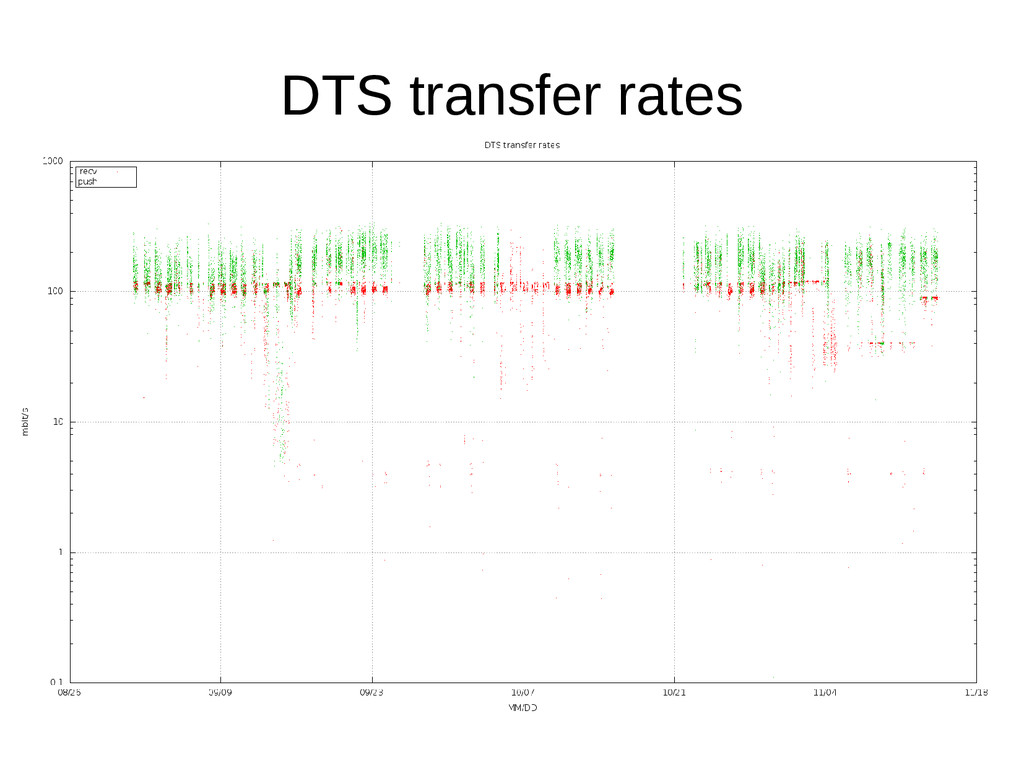

11. DTS transfer rates
12. FITS compression NOAO Science Data Report for 2014­02­23, R. Seaman replication files fz(MB) R(avg) uncompressed NORTH 351 4843.5 2.95 14306.8 MB SOUTH 1379 133411.5 2.40 320406.5 MB total 1730 138255.0 2.42 334713.3 MB data type files fz(MB) R(avg) uncompressed 16­bits 1168 134222.2 2.40 322222.5 MB 32­bits 259 3590.6 3.14 11274.8 MB FP (raw) 303 442.2 2.75 1216.0 MB observing mode files fz(MB) R(avg) uncompressed classical 990 135199.5 2.43 328023.4 MB queue 740 3055.5 2.19 6689.9 MB eng ­ ­ ­ ­ split ­ ­ ­ ­ too ­ ­ ­ ­ survey ­ ­ ­ ­

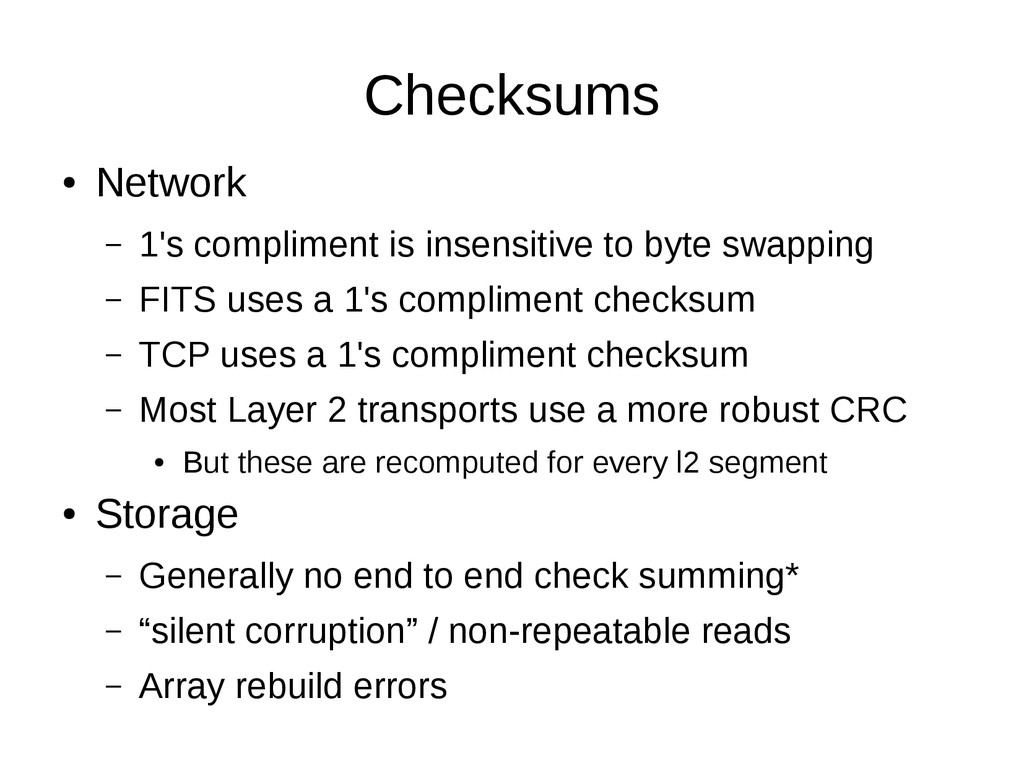

13. Checksums • Network – 1's compliment is insensitive to byte swapping – FITS uses a 1's compliment checksum – TCP uses a 1's compliment checksum – Most Layer 2 transports use a more robust CRC • But these are recomputed for every l2 segment • Storage – Generally no end to end check summing* – “silent corruption” / non-repeatable reads – Array rebuild errors
