NanoPlayBoard: Un proyecto educativo Open Source Hardware

NanoPlayBoard: Un proyecto educativo Open Source Hardware

«NanoPlayBoard: Un proyecto educativo Open Source Hardware» es una charla de:

- Antonio Morales / @antonio1010mr
- José Juan Sánchez / @josejuansanchez

Presentación utilizada en XIII Jornadas SLCENT de Actualización Informática y Electrónica. 17 de Noviembre de 2016, Almería.

http://hacklabalmeria.net/actividades/2016/11/17/xiii-jornadas-slcent.html

Descripción de la charla:

Esta charla muestra todos los recursos educativos que se han creado en torno al proyecto NanoPlayBoard y cómo pueden ser utilizados en el aula.

Vídeos usados en la charla:

[1] Obstacle avoiding NanoPlayBot.
[2] Android controlled RGB LED using NanoPlayBoard and Bluetooth.
[3] Experimenting with NanoPlayBoard and MQTT.

[1] https://www.youtube.com/watch?v=pL5-iOmOGC8
[2] https://www.youtube.com/watch?v=5EVmYEs8DxE
[3] https://www.youtube.com/watch?v=j-Uuq9SCd-M

2e5aefd649aca2d15a7dd3c2bb0726d4?s=128

José Juan Sánchez Hernández

November 25, 2016
Tweet

Transcript

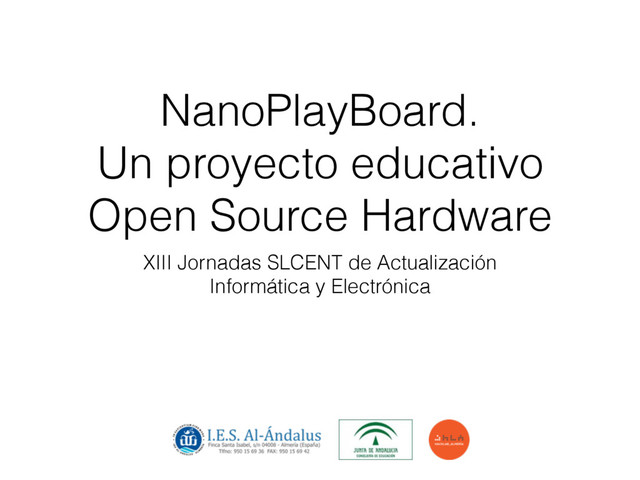

  1. NanoPlayBoard. Un proyecto educativo Open Source Hardware XIII Jornadas SLCENT

    de Actualización Informática y Electrónica
  2. 2 NanoPlayBoard Educational Shield for Arduino Nano Made with ❤

    in Almería http://nanoplayboard.org
  3. Agenda 1. Projects 2. Contributing 3. Demo time 4. References

    3
  4. Agenda 1. Projects 2. Contributing 3. Demo time 4. References

    4
  5. • Arduino Library • Android App • Firmata • Johnny-Five

    • Python client library • Processing • ScratchX Extension 5 Projects
  6. 6 License GNU General Public License, Version 3 http://www.gnu.org/licenses/gpl-3.0.en.html

  7. 7 Arduino Library Open the Arduino IDE and select: Sketch

    > Include Library > Manage Libraries
  8. 8 Arduino Library Select: File > Examples > NanoPlayBoard

  9. 9 #include <NanoPlayBoard.h> NanoPlayBoard board; ...

  10. 10 int value = board.potentiometer.read(); Potentiometer / read

  11. 11 int value = board.potentiometer.scaleTo(0,99); Potentiometer / scaleTo

  12. 12 int value = board.ldr.read(); LDR / read

  13. 13 int value = board.ldr.scaleTo(0,99); LDR / scaleTo

  14. 14 board.buzzer.playTone(440); Buzzer / playTone

  15. 15 board.rgb.on(); LED RGB / on

  16. 16 board.rgb.off(); LED RGB / off

  17. 17 board.rgb.setColor(255, 0, 0); LED RGB / setColor

  18. 18 board.rgb.setColor(“FF0000”); LED RGB / setColor

  19. 19 board.rgb.setIntensity(25); LED RGB / setIntensity

  20. 20 board.ledmatrix.print(“Hola”); LED Matrix / print

  21. 21 board.servos.goForward(); Servos / goForward
