Unidirectional Dataflow With Observables

I gave this talk at the Devs Meetup in Freiburg.

Here is the list of things I linked to in my slides:

My Twitter: http://twitter.com/kahliltweets
My Site: http://kahlil.info
My Snapchat: https://www.snapchat.com/add/kahlilsnaps

The introduction to Reactive Programming you've been missing:
https://gist.github.com/staltz/868e7e9bc2a7b8c1f754

RxJS Beyond the Basics: Creating Observables from scratch:
https://egghead.io/courses/rxjs-beyond-the-basics-creating-observables-from-scratch

Learning Observable By Building Observable:
https://medium.com/@benlesh/learning-observable-by-building-observable-d5da57405d87#.krkwhykrg

Netflix JavaScript Talks - Async JavaScript with Reactive Extensions:
https://www.youtube.com/watch?v=FAZJsxcykPs&feature=youtu.be&t=752

The Cycle.js Reducer Pattern:
http://staltz.com/reducer-pattern-in-cyclejs.html

TinyDraft (an example project):
https://github.com/kahlil/tinydraft

Artists (an example project):
https://github.com/kahlil/artists

Transcript

1. Unidirectional Dataflow Architecture with Observables
2. ! I AM KAHLIL LECHELT @kahliltweets kahlil.info ! kahlilsnaps
3. Frontend Architect at 1&1
4. Co-organizer KarlsruheJS and FrankfurtJS
5. Reactive Podcast
7. BEST. FUCKING. CULT. EVVURR. Our rituals include: - writing less code - delete code - saying "streams" all the time
8. MINI-INTRO TO OBSERVABLES
9. WARNING This is just brief introduction to observables in order to give you some context. To fully understand them I have listed some resources for you to learn from: » "The introduction to Reactive Programming you've been missing" » "RxJS Beyond the Basics: Creating Observables from scratch"
10. OH, MYSTERIOUS OBSERVABLES Streams? Lodash for Async? Better Promises?
12. Why Streams?
13. “Observable is a function that takes an observer and returns a function.” Ben Lesh (Frontend Lead Netflix, Lead Dev RxJS 5)
14. function myObservable(observer) { const datasource = new DataSource(); datasource.ondata = (e) => observer.next(e); datasource.onerror = (err) => observer.error(err); datasource.oncomplete = () => observer.complete(); return () => { datasource.destroy(); }; }
15. Why Lodash for Async?
16. “An Observable is just a collection of items, over time.” Jafar Husain (Cross-Platform Technical Lead Netflix)
17. const stream = Rx.Observable.fromArray([1, 2, 3, 4, 5, 6]); stream .map(x => x * 10) .filter(x => x > 30) .scan((acc, x) => acc + x, 0) .subscribe( x => console.log(x), // => 40, 90, 150 err => console.error(error), () => console.log('completed') );

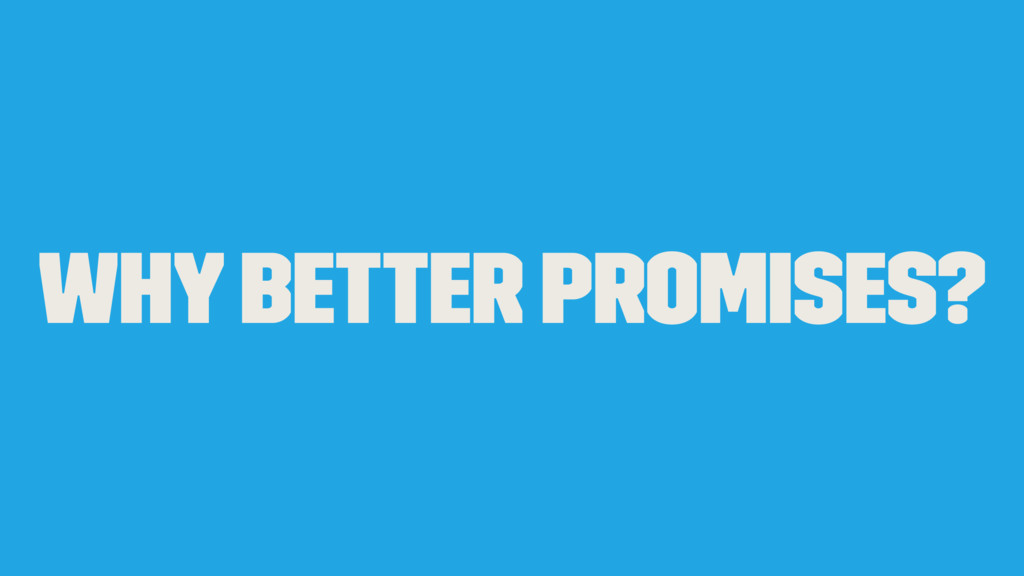

18. Why better Promises?
19. ANY KIND OF DATASOURCE, SYNC OR ASYNC
20. Search Wikipedia Example function searchWikipedia (term) { // makes request - returns promise } const $input = $('#textInput'); // Get all distinct key up events from the input and only fire if long enough and distinct const keyup = Rx.Observable.fromEvent($input, 'keyup') .map(e => e.target.value) .filter(text => text.length > 2) .debounce(750 /* Pause for 750ms */ ) .distinctUntilChanged() // Only if the value has changed .flatMapLatest(searchWikipedia) .subscribe(/* write data to DOM */); See working example here.
21. UNIDIRECTIONAL DATAFLOW !
22. uni • di • rec • tion • al Functioning, moving, or responsive in a single direction. da • ta • flow Path taken by data within a device, network, or organization, as it moves from its source to a data repository or a data user.
24. 10 x BETTER THAN WHAT WE DID BEFORE
27. (action, state) => UI
28. This is why: » data flows in one direction » side effects live at the edges of the application.
29. A Functional Programming Paradigm
30. » Cycle.js uses the Cycle.js reducer pattern and drivers » Elm uses the updater pattern and ports » Redux uses a reducer pattern and middleware
31. Why do we do all this? » keeps growing and big apps manageable » devs stay in control of the code
32. DEVELOPER HAPPINESS ✨ " ✨
33. Unidirectional Dataflow with RxJS Observables Welcome to the cult! All doors and exits have been locked for your safety. (we will wait here for the space ship !)
34. How does that all fit together? How do we implement a unidirectional dataflow with Observables?
35. Cycle.js does a good job of tying these two concepts together They implement a unidirectional dataflow pattern called MVI: “MVI is a simple pattern to refactor the main() function into three parts: Intent (to listen to the user), Model (to process information), and View (to output back to the user).” Cycle.js Docs
36. Cycle.js Reducer Pattern And MVI comes with the Cycle.js reducer pattern which continuously manages and holds state using Observables. Same as update pattern in Elm. Same as reducers in Redux.

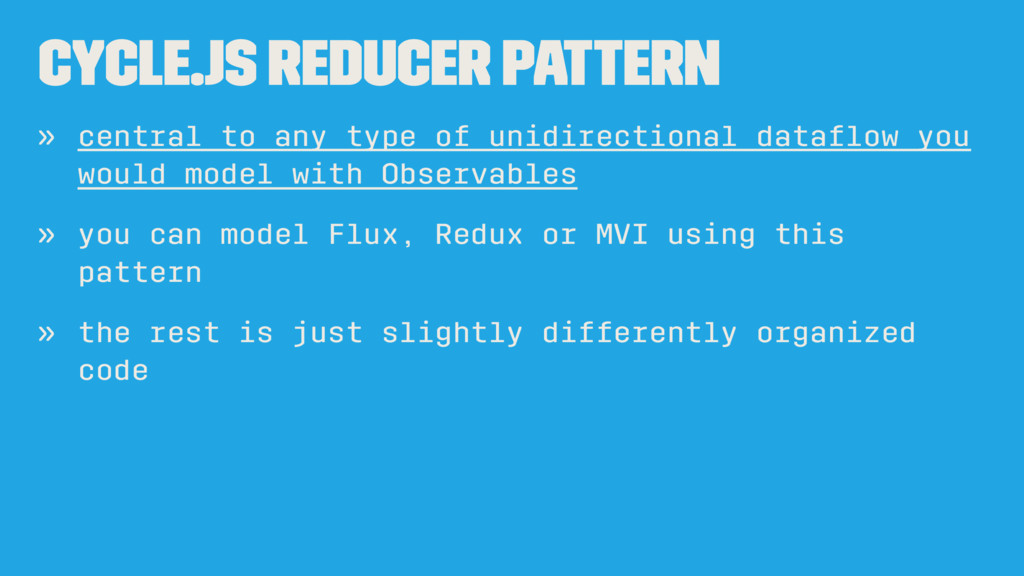

37. Cycle.js Reducer Pattern » central to any type of unidirectional dataflow you would model with Observables » you can model Flux, Redux or MVI using this pattern » the rest is just slightly differently organized code
38. So how does this pattern work?
39. 1.Create action streams (intent / user actions) .fromEvent(), .fromPromise() .create() ... 2.Merge them into one big fat stream of actions (Dispatcher) .merge() or Rx.Subject 3.in your store or model function, .filter() for the action that you are interested in 4..map() action to corresponding reducer function 5..scan() over the resulting stream of reducer functions and apply each reducer function on the current state
40. User Intent const openMailClick$ = Rx.Observable.fromEvent(/* ... */); dispatcher.dispatch(openMailClick$, 'OPEN_MAIL');
41. Dispatcher const dispatcher$ = new Rx.Subject(); function dispatch(stream, action) { return stream .map(action => ({ type: action, payload: action.payload }) .subscribe(action => dispatcher$.next(action)); }
42. Reducer Pattern const openMail$ = dispatcher$ .filter(action => action.type === 'OPEN_MAIL') .map(action => { return state => state.map(mail => { if (mail.id === action.id) { mail.open = true; } return mail; } }); return Rx.Observable .merge(openMail$, /* other action reducer streams */) .scan((state, modFn) => modFn(state), []);
43. LET'S SEE SOME CODE A simple example and naive implementation using RxJS, jQuery and ES2015: github.com/kahlil/artists A more complicated example using Angular 2, RxJS, TypeScript and a little helper library I made: github.com/kahlil/tinydraft
44. Closing Unidirectional dataflow is awesome. Observables are awesome. Combine them for maximum effect !
