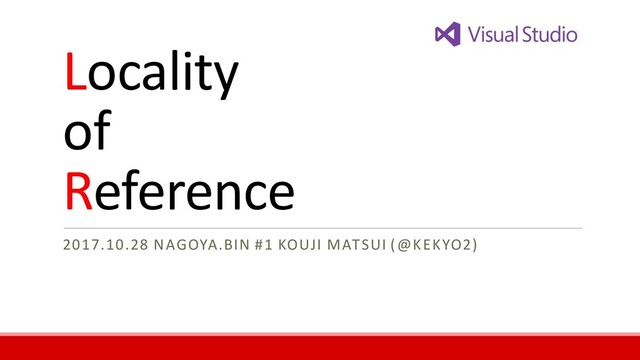

  1. Locality
    of
    Reference
    2017.10.28 NAGOYA.BIN #1 KOUJI MATSUI (@KEKYO2)

    View Slide

  2. Kouji Matsui - kekyo
    • NAGOYA city, AICHI pref., JP
    • Twitter – @kekyo2 / Facebook
    • ux-spiral corporation
    • Microsoft Most Valuable Professional VS
    and DevTech 2015-
    • Certified Scrum master / Scrum product
    owner
    • Center CLR organizer.
    • .NET/C#/F#/IL/metaprogramming or like…
    • Bike rider

    View Slide

  3. Agenda
    •Physical side scales
    •Logical side scales
    •Data stream between physicals and logicals
    •Locality of reference
    •Anti-locality of reference
    •Conclusion

    View Slide

  4. Physical side scales

    View Slide

  5. Physical side scales
    Processor #1
    Physical Core #4
    Logical Core #1
    Logical Core #1
    Logical Core #1
    Logical Core #1
    Physical Core #3
    Logical Core #1
    Logical Core #1
    Logical Core #1
    Logical Core #1
    Physical Core #2
    Logical Core #1
    Logical Core #1
    Logical Core #1
    Logical Core #1
    Physical Core #1
    Logical Core #1
    Logical Core #1
    Logical Core #1
    Logical Core #1
    Processor #2
    Physical Core #8
    Logical Core #1
    Logical Core #1
    Logical Core #1
    Logical Core #1
    Physical Core #7
    Logical Core #1
    Logical Core #1
    Logical Core #1
    Logical Core #1
    Physical Core #6
    Logical Core #1
    Logical Core #1
    Logical Core #1
    Logical Core #1
    Physical Core #5
    Logical Core #1
    Logical Core #1
    Logical Core #1
    Logical Core #17
    Processor #3
    Physical Core #12
    Logical Core #1
    Logical Core #1
    Logical Core #1
    Logical Core #1
    Physical Core #11
    Logical Core #1
    Logical Core #1
    Logical Core #1
    Logical Core #1
    Physical Core #10
    Logical Core #1
    Logical Core #1
    Logical Core #1
    Logical Core #1
    Physical Core #9
    Logical Core #1
    Logical Core #1
    Logical Core #1
    Logical Core #33

    View Slide

  6. Physical side scales
    The memory/IO bind at
    the fixed CPU/Core
    (Non configurable)

    View Slide

  7. Physical side scales
    The “shared cache memory” bind at the fixed
    CPU/Core
    (Non configurable)

    View Slide

  8. Physical side scales
    The “cache memory” bind at the fixed CPU/Core
    (Non configurable)
    The “shared cache memory” bind at the fixed
    CPU/Core
    (Non configurable)

    View Slide

  9. Agenda
    •Physical side scales
    •Logical side scales
    •Data stream between physicals and logicals
    •Locality of reference
    •Anti-locality of reference
    •Conclusion

    View Slide

  10. Logical side scales
    Process #1
    Virtual
    Memory
    Space
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Process #2
    Virtual
    Memory
    Space
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #11
    Process #3
    Virtual
    Memory
    Space
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #21
    Process #4
    Virtual
    Memory
    Space
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #31
    Process #5
    Virtual
    Memory
    Space
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #41

    View Slide

  11. Logical side scales
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #11
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #21
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #31
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #41
    Logical Core #4
    Logical Core #3
    Logical Core #2
    Logical Core #1
    This is true story
    Execution context

    View Slide

  12. Logical side scales
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #11
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #21
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #31
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #41
    Logical Core #4
    Logical Core #3
    Logical Core #2
    Logical Core #1
    Switch execution
    context

    View Slide

  13. Agenda
    •Physical side scales
    •Logical side scales
    •Data stream between physicals and logicals
    •Locality of reference
    •Anti-locality of reference
    •Conclusion

    View Slide

  14. Data stream between physicals and logicals
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #11
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #21
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #31
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #41
    Logical Core #4
    Logical Core #3
    Logical Core #2
    Logical Core #1
    L1/L2 cache #1
    L1/L2 cache #2 L1/L2 cache #4
    L1/L2 cache #3

    View Slide

  15. Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #11
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #21
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #31
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #41
    Logical Core #4
    Logical Core #3
    Logical Core #2
    Logical Core #1
    L1/L2 cache #1
    L1/L2 cache #2 L1/L2 cache #4
    L3 cache #1 L3 cache #2
    L1/L2 cache #3

    View Slide

  16. Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #11
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #21
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #31
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #41
    Logical Core #4
    Logical Core #3
    Logical Core #2
    Logical Core #1
    L1/L2 cache #1
    L1/L2 cache #2
    L1/L2 cache #3
    L1/L2 cache #4
    L3 cache #1 L3 cache #2
    NUMA node bound memory

    View Slide

  17. Agenda
    •Physical side scales
    •Logical side scales
    •Data stream between physicals and logicals
    •Locality of reference
    •Anti-locality of reference
    •Conclusion

    View Slide

  18. Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #31
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #41
    Logical Core #4
    L1/L2 cache #4
    L3 cache #2
    NUMA node bound memory
    declaredType
    currentType
    stopType
    field
    FieldInfo[]
    Thread #33 context
    Load/Preload

    View Slide

  19. Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #31
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #41
    Logical Core #4
    L1/L2 cache #4
    L3 cache #2
    NUMA node bound memory
    __stack0_0
    Thread #42 context
    __stack0_1
    __stack0_2
    __stack1_0
    declaredType
    currentType
    local0
    local1
    field
    Load/Preload
    Switch

    View Slide

  20. Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #21
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #31
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #41
    Logical Core #4
    Logical Core #3
    L1/L2 cache #3
    L1/L2 cache #4
    L3 cache #2
    NUMA node bound memory
    declaredType
    currentType
    stopType
    field
    FieldInfo[]

    View Slide

  21. Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #21
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #31
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #41
    Logical Core #4
    Logical Core #3
    L1/L2 cache #3
    L1/L2 cache #4
    L3 cache #2
    NUMA node bound memory
    declaredType
    currentType
    stopType
    field
    FieldInfo[]
    stopType
    field
    FieldInfo[]
    field
    Load/Preload
    Switch

    View Slide

  22. Agenda
    •Physical side scales
    •Logical side scales
    •Data stream between physicals and logicals
    •Locality of reference
    •Anti-locality of reference
    •Conclusion

    View Slide

  23. Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #21
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #31
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #41
    Logical Core #4
    Logical Core #3
    L1/L2 cache #3
    L1/L2 cache #4
    L3 cache #2
    NUMA node bound memory
    Common value
    Common value
    Common value
    Load/Preload
    Load/Preload
    These threads access
    common value

    View Slide

  24. Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #21
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #31
    Thread #1
    Thread #1
    Thread #1
    Thread #1
    Thread #41
    Logical Core #4
    Logical Core #3
    L1/L2 cache #3
    L1/L2 cache #4
    L3 cache #2
    NUMA node bound memory
    Common value
    Common value
    Common value
    Race condition
    (Receive coherence penalty)
    STRATEGY:
    • Turn to immutable
    • Hashed indexer
    Write back
    Write back

    View Slide

  25. Agenda
    •Physical side scales
    •Logical side scales
    •Data stream between physicals and logicals
    •Locality of reference
    •Anti-locality of reference
    •Conclusion

    View Slide

  26. Conclusion
    The execution context bounds not THREAD. The code executor is
    CPU CORE.
    CPU cores have structuable nested cache system.
    Cache miss penalty is large.
    Cache coherency penalty is large.
    Both I/O systems too.
    Important cache-related architecture:
    ◦ Locality of reference
    ◦ Immutable

    View Slide

  27. Thanks join!
    My blog
    ◦ http://www.kekyo.net/
    Current active project:
    ◦ IL2C - A translator implementation of .NET intermediate language to C
    language.
    ◦ YouTube: http://bit.ly/2xtu4MH
    ◦ GitHub: https://github.com/kekyo/IL2C

    View Slide
