Dynamic Feature Modules (DFMs)

Transcript

1. Dynamic Feature Modules (DFMs) @ken_kentan
2. Dynamic Delivery
3. Dynamic Delivery Google Play’s app serving model. • Generate and serve optimized APKs for each user’s device configuration. • Can reduce download APK size.
4. Split APK mechanism of Dynamic Delivery • Base APK ◦ All other split APKs can access this. • Configuration APKs ◦ Includes native libraries and resources for a specific screen etc.. ◦ Automatically generate by Google Play. • Dynamic feature APKs ◦ Modularized feature.

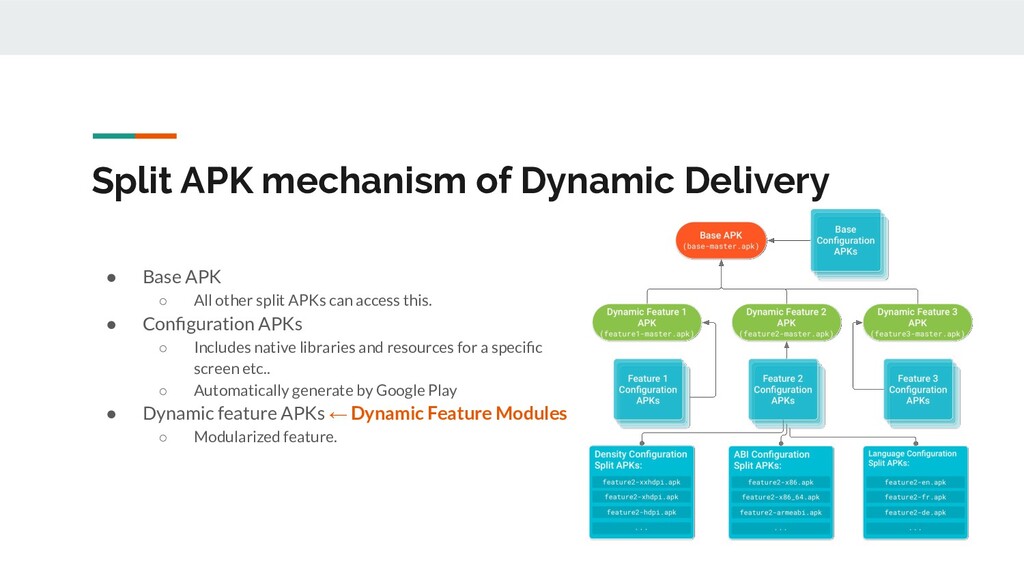

5. Split APK mechanism of Dynamic Delivery • Base APK ◦ All other split APKs can access this. • Configuration APKs ◦ Includes native libraries and resources for a specific screen etc.. ◦ Automatically generate by Google Play • Dynamic feature APKs ← Dynamic Feature Modules ◦ Modularized feature.
6. Dynamic Feature Module
7. Dynamic Feature Modules (DFMs) • Modularize method for Dynamic Delivery.
8. Pros / Cons

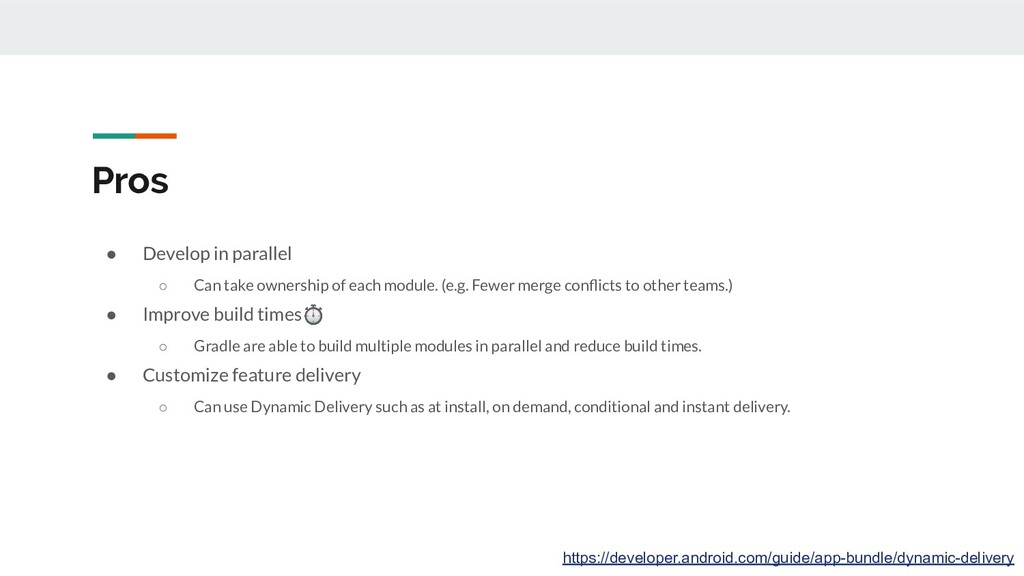

9. Pros • Develop in parallel ◦ Can take ownership of each module. (e.g. Fewer merge conflicts to other teams.) • Improve build times⏱ ◦ Gradle are able to build multiple modules in parallel and reduce build times. • Customize feature delivery ◦ Can use Dynamic Delivery such as at install, on demand, conditional and instant delivery. https://developer.android.com/guide/app-bundle/dynamic-delivery

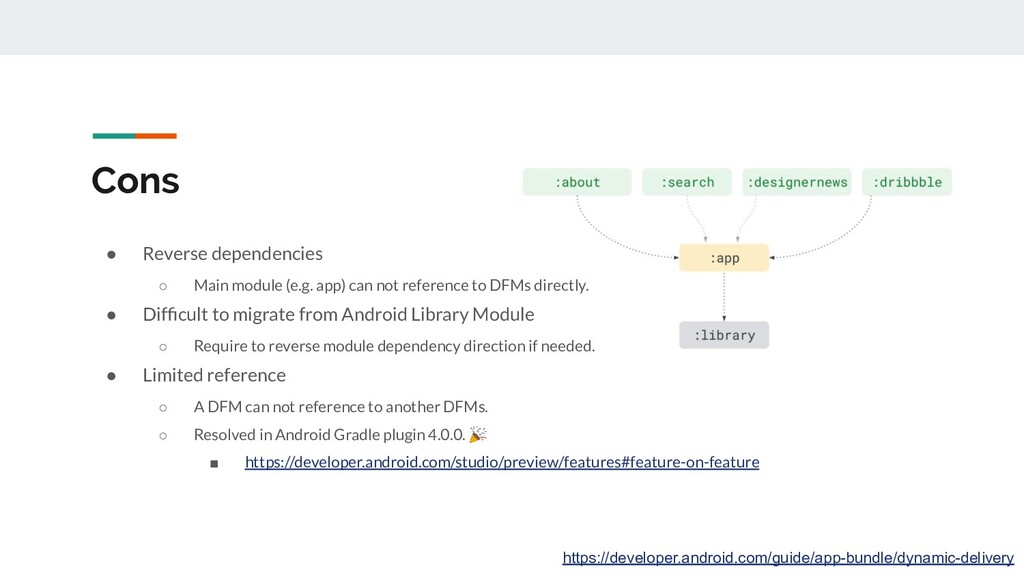

10. Cons • Reverse dependencies ◦ Main module (e.g. app) can not reference to DFMs directly. • Difficult to migrate from Android Library Module ◦ Require to reverse module dependency direction if needed. • Limited reference ◦ A DFM can not reference to another DFMs. ◦ Resolved in Android Gradle plugin 4.0.0. ▪ https://developer.android.com/studio/preview/features#feature-on-feature https://developer.android.com/guide/app-bundle/dynamic-delivery

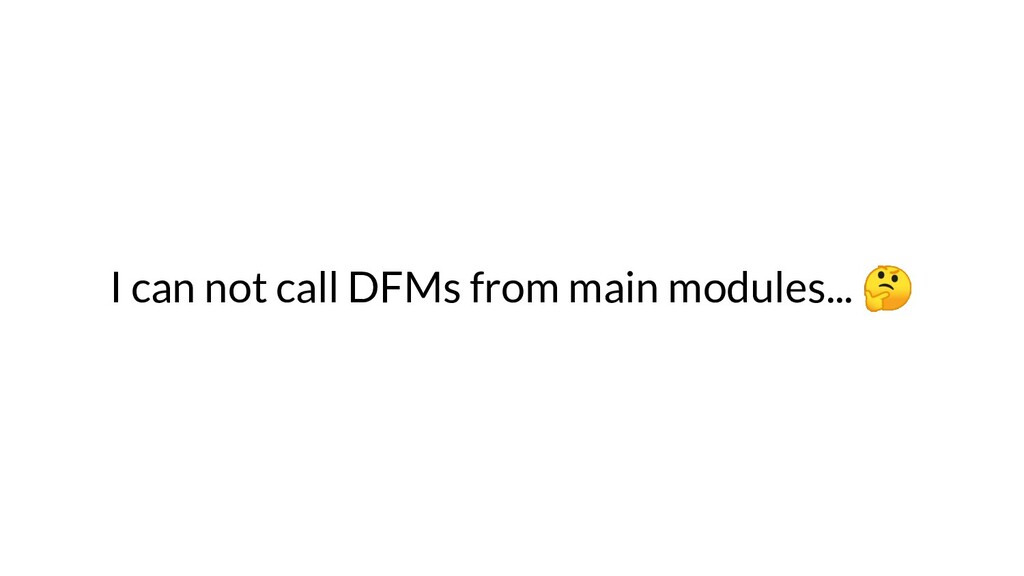

11. I can not call DFMs from main modules...

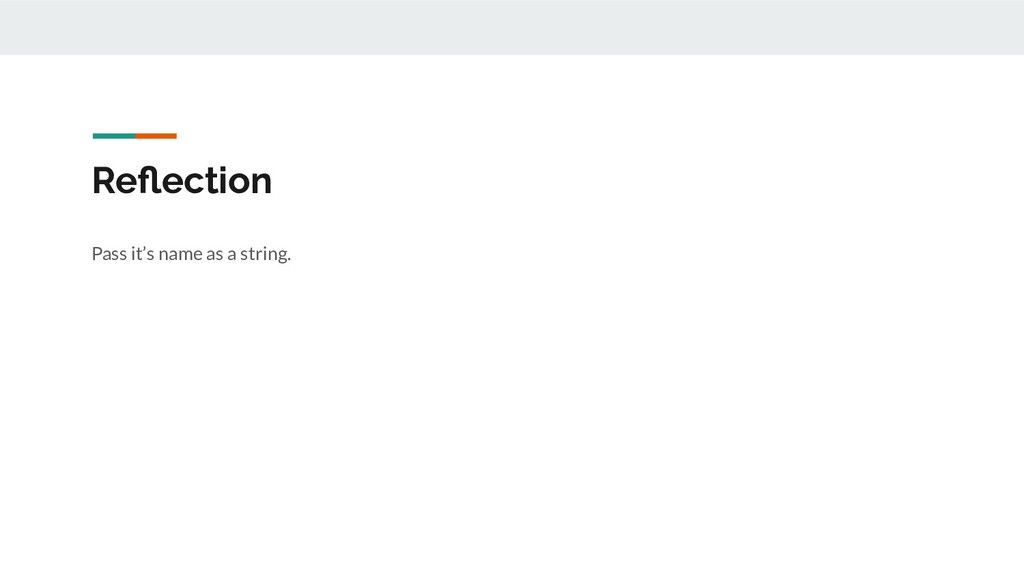

12. Reflection Pass it’s name as a string.

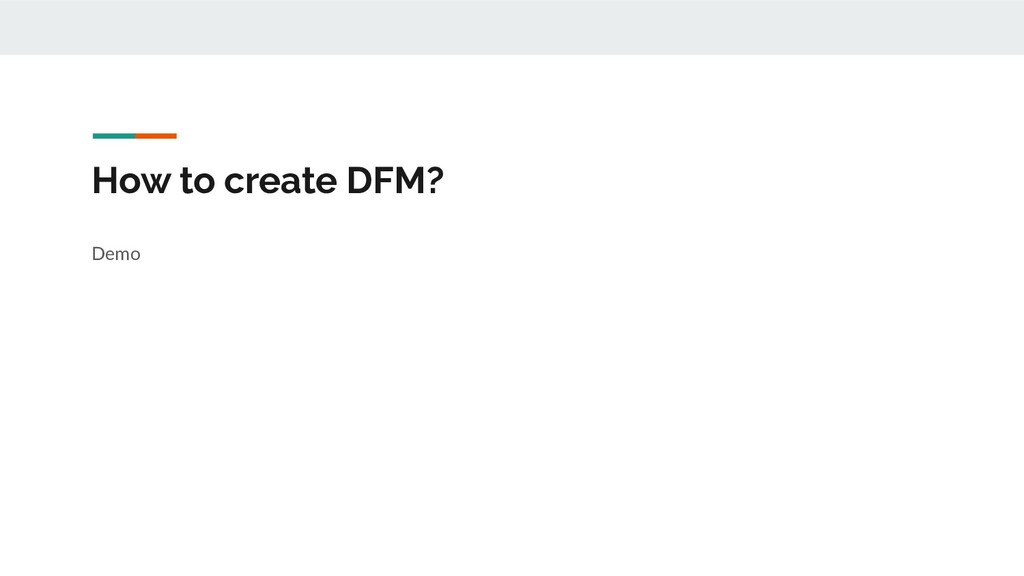

13. How to create DFM? Demo
14. AndroidManifest.xml • dist:instant ◦ Google Play Instant option • dist:title ◦ User-facing module title • dist:delivery ◦ Select delivery option (at-install or on-demand) • dist:fusing ◦ Include this module if Android 4.4 and lower.
15. Delivery Option
16. At-install Will download at app install, by default.

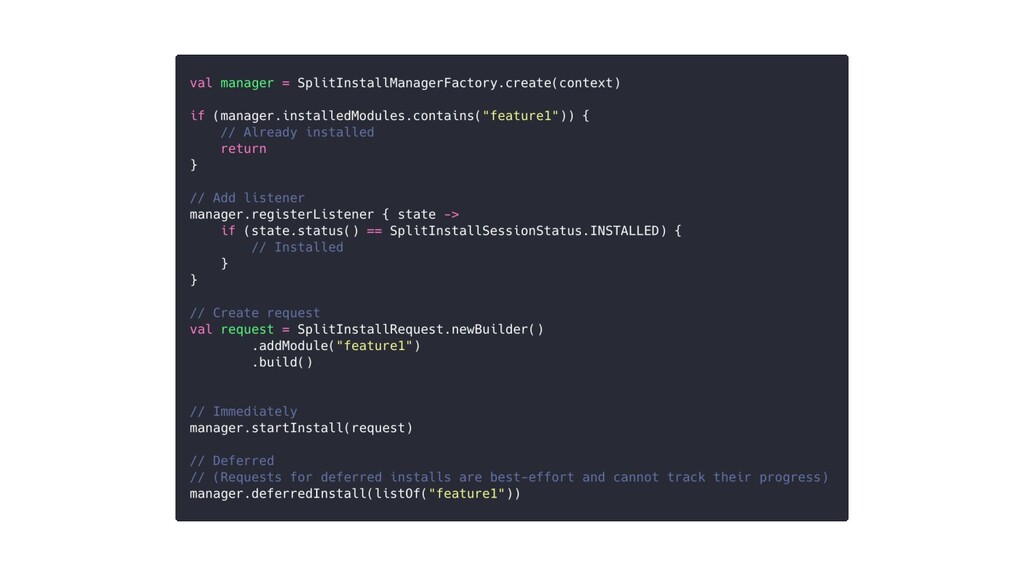

17. On-demand Download and install packages using Play Core Library via internet. • Immediate ◦ Install immediately. • Deferred ◦ Add install request to a queue. ◦ Will be executed in up to a maximum of 24 hours. Send request Download Check https://developer.android.com/guide/app-bundle/on-demand-delivery

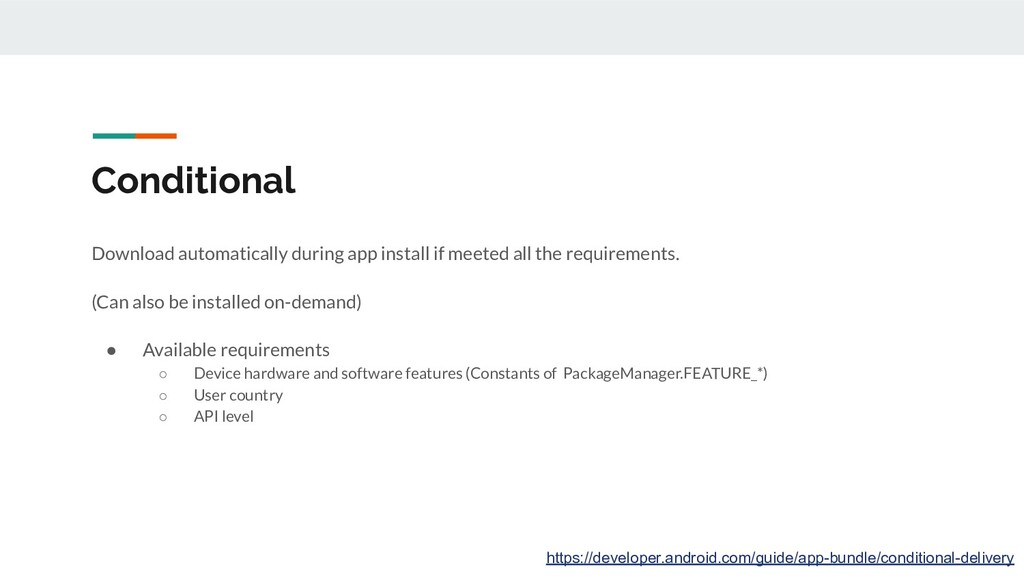

19. Conditional Download automatically during app install if meeted all the requirements. (Can also be installed on-demand) • Available requirements ◦ Device hardware and software features (Constants of PackageManager.FEATURE_*) ◦ User country ◦ API level https://developer.android.com/guide/app-bundle/conditional-delivery

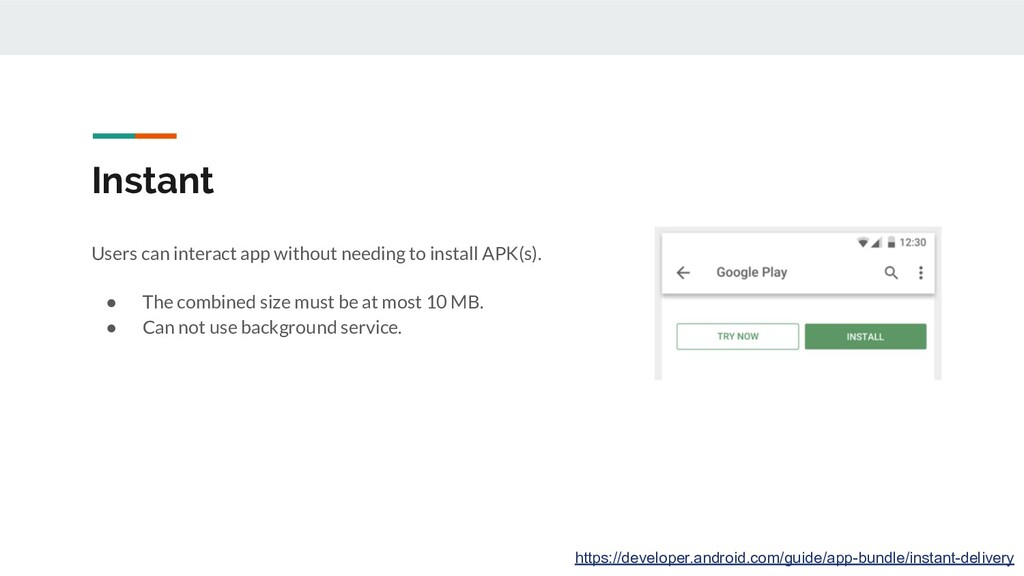

20. Instant Users can interact app without needing to install APK(s). • The combined size must be at most 10 MB. • Can not use background service. https://developer.android.com/guide/app-bundle/instant-delivery
21. Summary

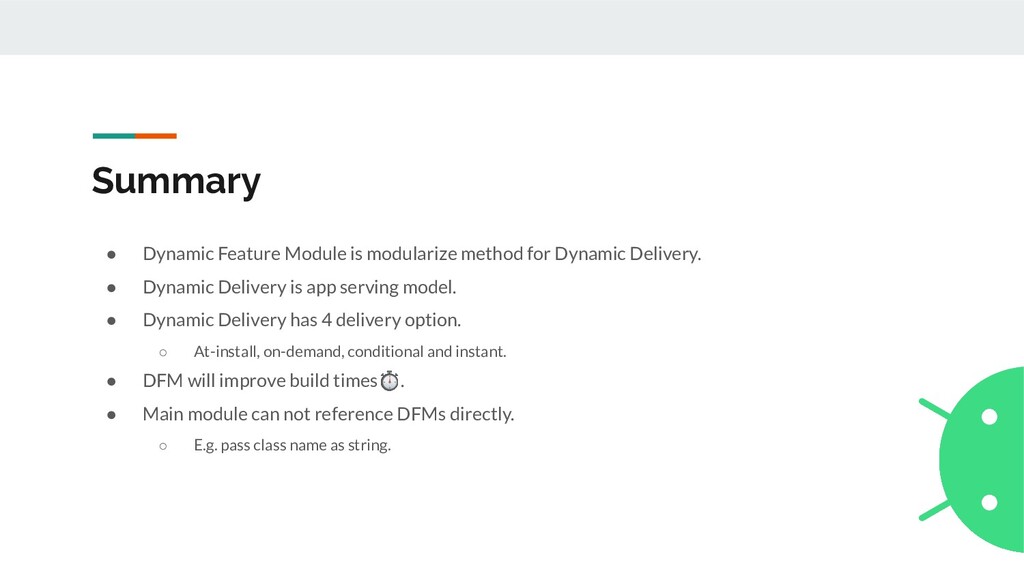

22. Summary • Dynamic Feature Module is modularize method for Dynamic Delivery. • Dynamic Delivery is app serving model. • Dynamic Delivery has 4 delivery option. ◦ At-install, on-demand, conditional and instant. • DFM will improve build times⏱. • Main module can not reference DFMs directly. ◦ E.g. pass class name as string.
23. Thank you for listening.
