KieLive#22: OptaPlanner Shadow Variables for the Vehicle Routing Problem and Task Assignment

Some OptaPlanner use cases, such as the Vehicle Routing Problem (especially with Time Windows) and Task Assignment use shadow variables. A shadow variable is something that changes during planning, but unlike a genuine planning variable, doesn’t do so freely, it’s not decided by OptaPlanner directly. Instead, it’s value is deterministically defined by the values of the genuine planning variables. For example in VRP, the arrival time of a vehicle at each visit, is determined by the order of the visits of that vehicle and the departure time of the vehicle.

About the invited speaker:
Geoffrey De Smet is the founder and lead of OptaPlanner (www.optaplanner.org), the open source AI constraint solver in Java that is used across the globe to automatically solve employee rostering, vehicle routing, task assignment, maintenance scheduling and other planning problems. He's an international speaker.

Twitter: https://twitter.com/GeoffreyDeSmet

2c8520502587d8827bad79bd2317299b?s=128

KIE Community

January 20, 2021
Tweet

Transcript

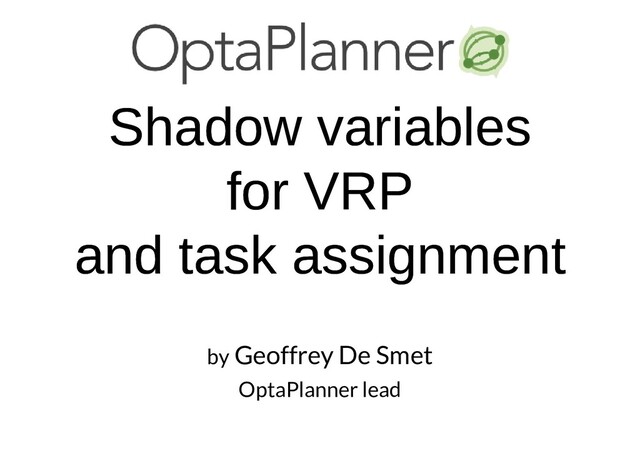

  1. Shadow variables Shadow variables for VRP for VRP and task

    assignment and task assignment by Geoffrey De Smet OptaPlanner lead
  2. What is a shadow variable? What is a shadow variable?

    (Genuine) planning variable Integer a with a value range of 1-10
  3. What is a shadow variable? What is a shadow variable?

    (Genuine) planning variable Integer a with a value range of 1-10 Shadow variable Integer b = a + 100
  4. What is a shadow variable? What is a shadow variable?

    (Genuine) planning variable Integer a with a value range of 1-10 Shadow variable Integer b = a + 100 Behavior: If a = 1 then b = 101
  5. What is a shadow variable? What is a shadow variable?

    (Genuine) planning variable Integer a with a value range of 1-10 Shadow variable Integer b = a + 100 Behavior: If a = 1 then b = 101 If a = 2 then b = 102
  6. What is a shadow variable? What is a shadow variable?

    (Genuine) planning variable Integer a with a value range of 1-10 Shadow variable Integer b = a + 100 Behavior: If a = 1 then b = 101 If a = 2 then b = 102 If a = 7 then b = 107
  7. Why are shadow variables useful? Why are shadow variables useful?

    int a; int getA() { return a; } // This is NOT a shadow variable, it's non-simple getter int getB() { return a + 100; }
  8. None
  9. None
  10. None
  11. None
  12. Build-in shadow variables Build-in shadow variables

  13. None
  14. None
  15. None
  16. Add Room.lessonList demo

  17. Build-in shadow variables Build-in shadow variables @InverseRelationShadowVariable @AnchorShadowVariable Coming soon...

    @IndexInChainShadowVariable (name undecided)
  18. Custom shadow variable Custom shadow variable DEMO DEMO

  19. Don't overuse shadow variables Don't overuse shadow variables Shadow vars

    are de-normalization information duplication
  20. Don't overuse shadow variables Don't overuse shadow variables Shadow vars

    are de-normalization information duplication Shadow vars work incrementally Shadow variable corruption is possible!
  21. Don't overuse shadow variables Don't overuse shadow variables Shadow vars

    are de-normalization information duplication Shadow vars work incrementally Shadow variable corruption is possible! Shadow var Room.getLessonCount() is probably not worth it.
  22. Vehicle Routing Problem (VRP) Vehicle Routing Problem (VRP)

  23. Vehicle Routing Problem with Time Vehicle Routing Problem with Time

    Windows (VRPTW) Windows (VRPTW) Swing demo!
  24. VRPTW Customer visit properties VRPTW Customer visit properties Input: readyTime:

    Time window start dueTime: Time window end serviceTime Change during planning:
  25. VRPTW Customer visit properties VRPTW Customer visit properties Input: readyTime:

    Time window start dueTime: Time window end serviceTime Change during planning: arrivalTime = previousDepartureTime + travelTim
  26. VRPTW Customer visit properties VRPTW Customer visit properties Input: readyTime:

    Time window start dueTime: Time window end serviceTime Change during planning: arrivalTime = previousDepartureTime + travelTim startTime = max(readyTime, arrivalTime
  27. VRPTW Customer visit properties VRPTW Customer visit properties Input: readyTime:

    Time window start dueTime: Time window end serviceTime Change during planning: arrivalTime = previousDepartureTime + travelTim startTime = max(readyTime, arrivalTime departureTime = startTime + serviceTim
  28. VRPTW Customer visit properties VRPTW Customer visit properties Input: readyTime:

    Time window start dueTime: Time window end serviceTime Change during planning: arrivalTime = previousDepartureTime + travelTim startTime = max(readyTime, arrivalTime departureTime = startTime + serviceTim Hard constraint: departureTime <= dueTime
  29. None
  30. None
  31. None
  32. None
  33. None
  34. None
  35. VRPTW with lunches VRPTW with lunches Original: arrivalTime = previousDepartureTime

    + travelTim startTime = max(readyTime, arrivalTime
  36. VRPTW with lunches VRPTW with lunches Original: arrivalTime = previousDepartureTime

    + travelTim startTime = max(readyTime, arrivalTime Extra logic to allow for lunch: If travelTime contains 12:00, add 1 hour to transitTime for lunch. Else serviceTime contains 12:00, add 1 hour to serviceTime for lunch.
  37. VRPTW with lunches VRPTW with lunches Original: arrivalTime = previousDepartureTime

    + travelTim startTime = max(readyTime, arrivalTime Extra logic to allow for lunch: If travelTime contains 12:00, add 1 hour to transitTime for lunch. Else serviceTime contains 12:00, add 1 hour to serviceTime for lunch. All this logic ends up in the VariableListener.
  38. Task assignment Task assignment

  39. None
  40. None
  41. None
  42. None
  43. None
  44. None
  45. Task assignment Task assignment DEMO DEMO

  46. Advanced design patterns Advanced design patterns

  47. None
  48. None
  49. None
  50. None
  51. None
  52. None
  53. None
  54. None
  55. None
  56. None
  57. None
  58. None
  59. None
  60. None
  61. None
  62. Getting started Getting started

  63. Quick starts Quick starts github.com/kiegroup/optaplanner-quickstarts (https://github.com/kiegroup/optaplanner- quickstarts) $ git clone

    git@github.com:kiegroup/optaplanner-quickstarts.git ... $ cd optaplanner-quickstarts $ cd quarkus-school-timetabling $ mvn quarkus:dev ...
  64. @GeoffreyDeSmet Q & A Q & A Homepage Slides User

    guide Feedback www.optaplanner.org (https://www.optapl www.optaplanner.org/learn/slides.html (https://www.optaplanner.org/learn/slides www.optaplanner.org/learn/documentatio (https://www.optaplanner.org/learn/docum @GeoffreyDeSmet (https://twitter.com/GeoffreyDeSmet)
