  1. Scaling Mobile Test Automation with Appium and AI Pann Nu

    Wai QA Engineer — KINTO Technologies SeleniumConf Valencia 2026

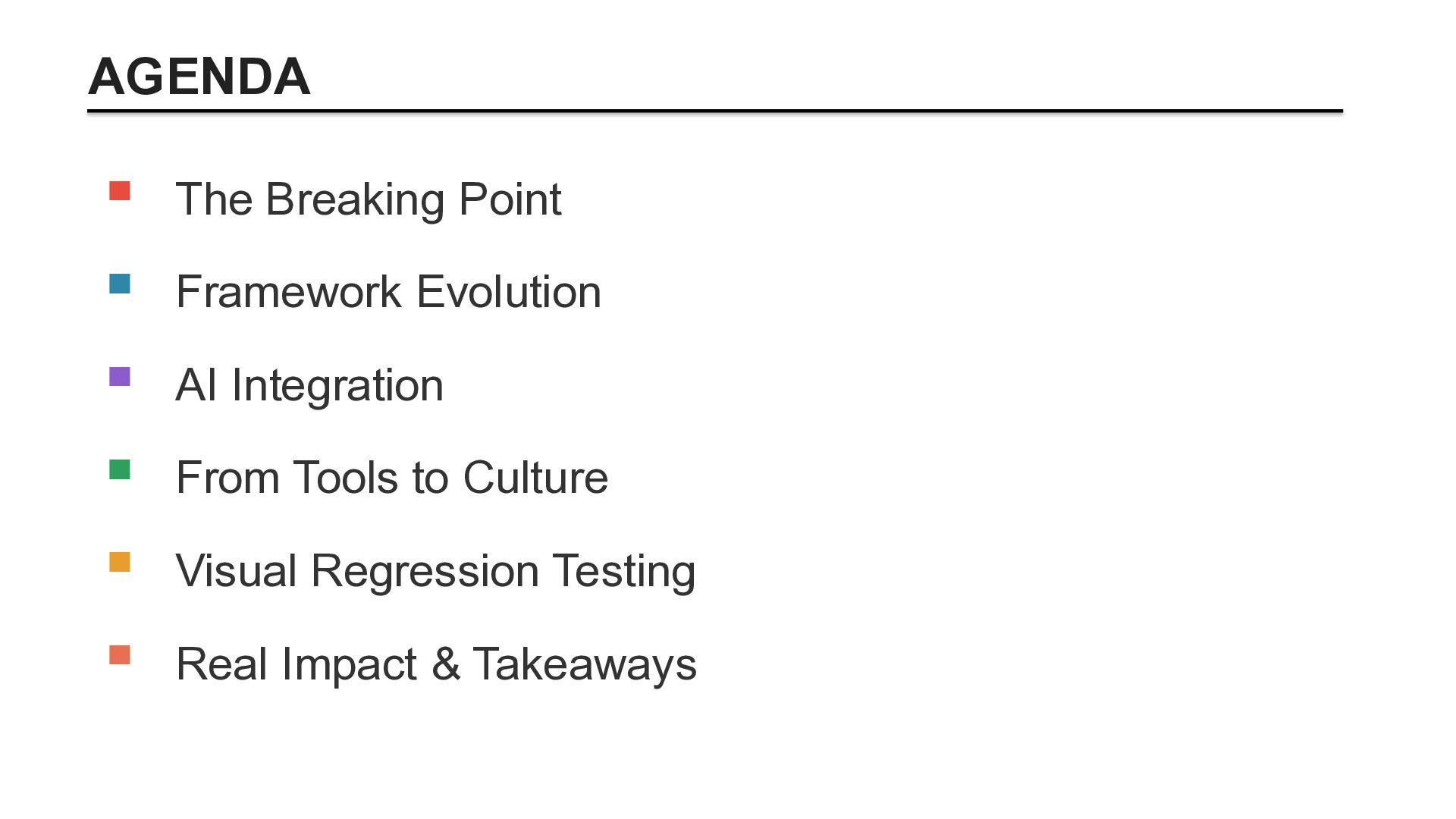

  2. AGENDA The Breaking Point Framework Evolution AI Integration From Tools

    to Culture Visual Regression Testing Real Impact & Takeaways

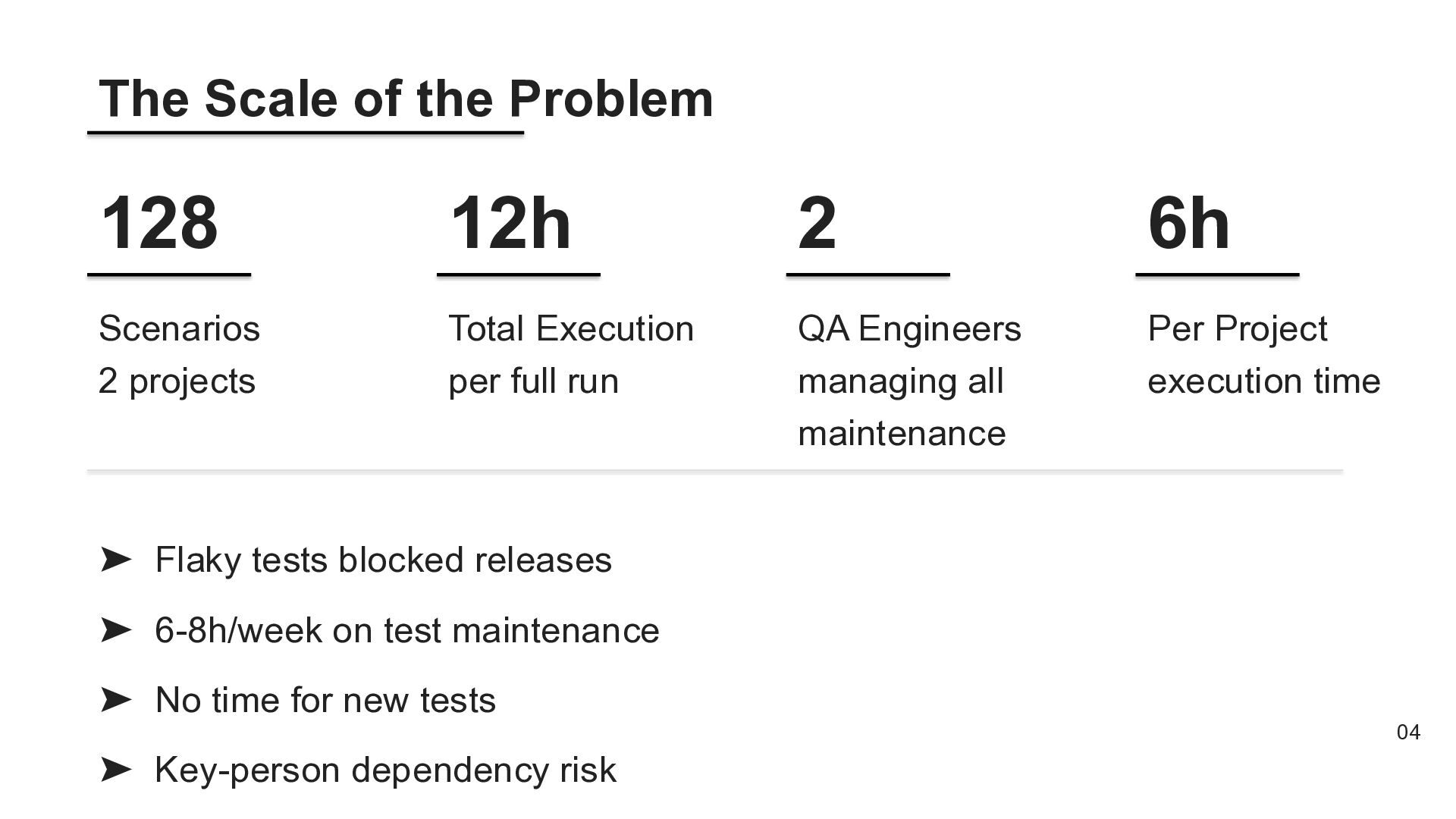

  3. The Scale of the Problem 128 Scenarios 2 projects 12h

    Total Execution per full run 2 QA Engineers managing all maintenance 6h Per Project execution time ➤ Flaky tests blocked releases ➤ 6-8h/week on test maintenance ➤ No time for new tests ➤ Key-person dependency risk 04
  4. Release Blockers 05 Flaky Tests ➤ Unstable and unreliable test

    results ➤ Environment dependency, timing issues Slow Feedback ➤ Slow feedback from CI/CD pipeline ➤ Developers skip waiting for results Cost of Delay ➤ Multiple costs from release delays ➤ Slower delivery, declining morale
  5. Modular Page Object Model 07 WHAT WE DID ➤ Modular

    Appium framework refactoring ➤ Page Object + component design ➤ Shared iOS/Android abstraction layer ➤ Reusable component library RESULT 40%+ Test Duplication Reduced Cross-platform code sharing reduced maintenance significantly
  6. CI/CD Integration with GitHub Actions 08 PR Trigger — Auto-trigger

    tests on PR events Smart Grouping — Tests selected by change impact Parallel Execution — Parallel test execution for faster runs Auto Report — Auto-report results with Slack notification

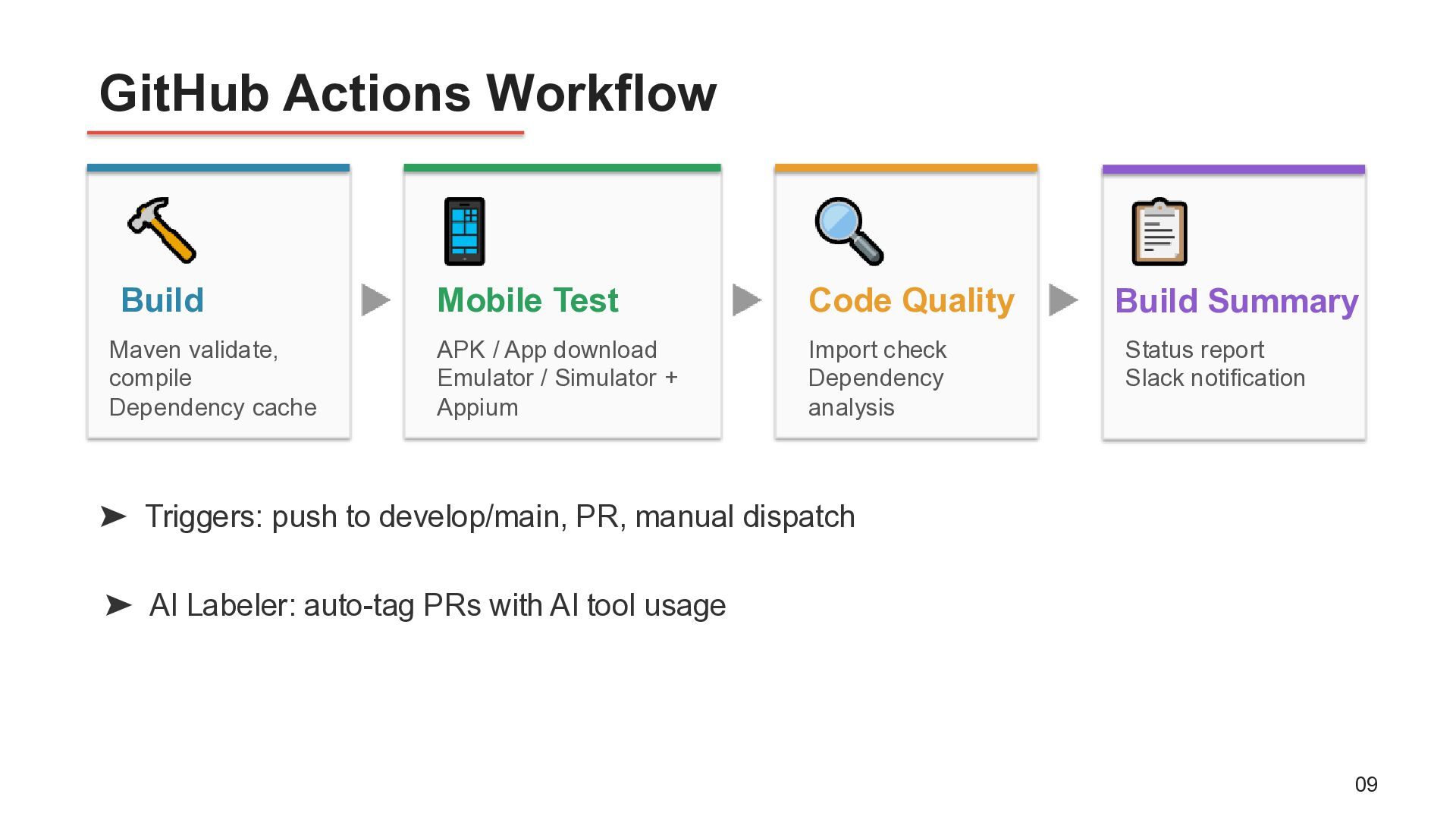

  7. GitHub Actions Workflow Build Maven validate, compile Dependency cache Mobile

    Test APK / App download Emulator / Simulator + Appium Code Quality Import check Dependency analysis Build Summary Status report Slack notification 09 ➤ Triggers: push to develop/main, PR, manual dispatch ➤ AI Labeler: auto-tag PRs with AI tool usage

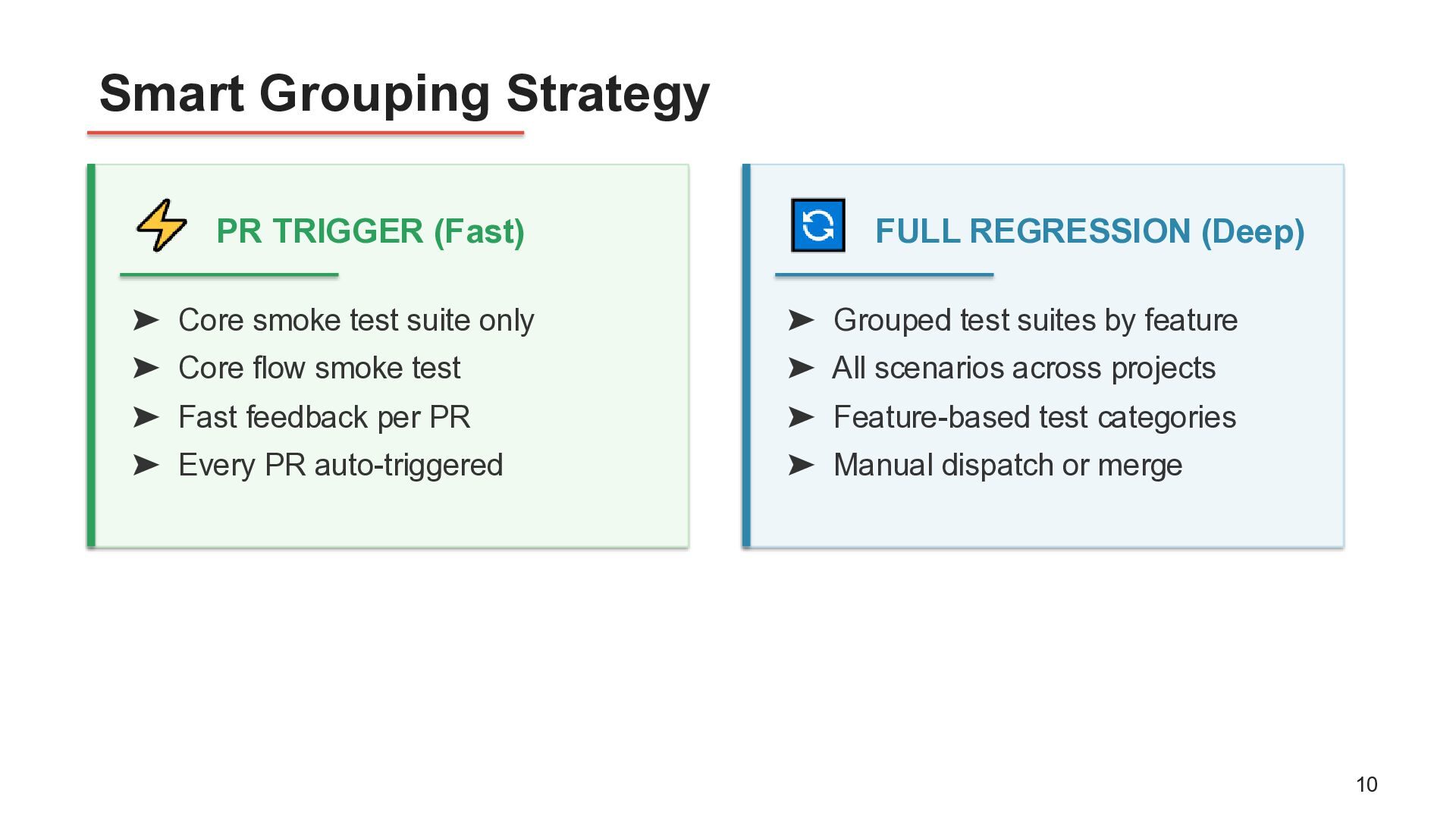

  8. Smart Grouping Strategy PR TRIGGER (Fast) ➤ Core smoke test

    suite only ➤ Core flow smoke test ➤ Fast feedback per PR ➤ Every PR auto-triggered FULL REGRESSION (Deep) ➤ Grouped test suites by feature ➤ All scenarios across projects ➤ Feature-based test categories ➤ Manual dispatch or merge 10

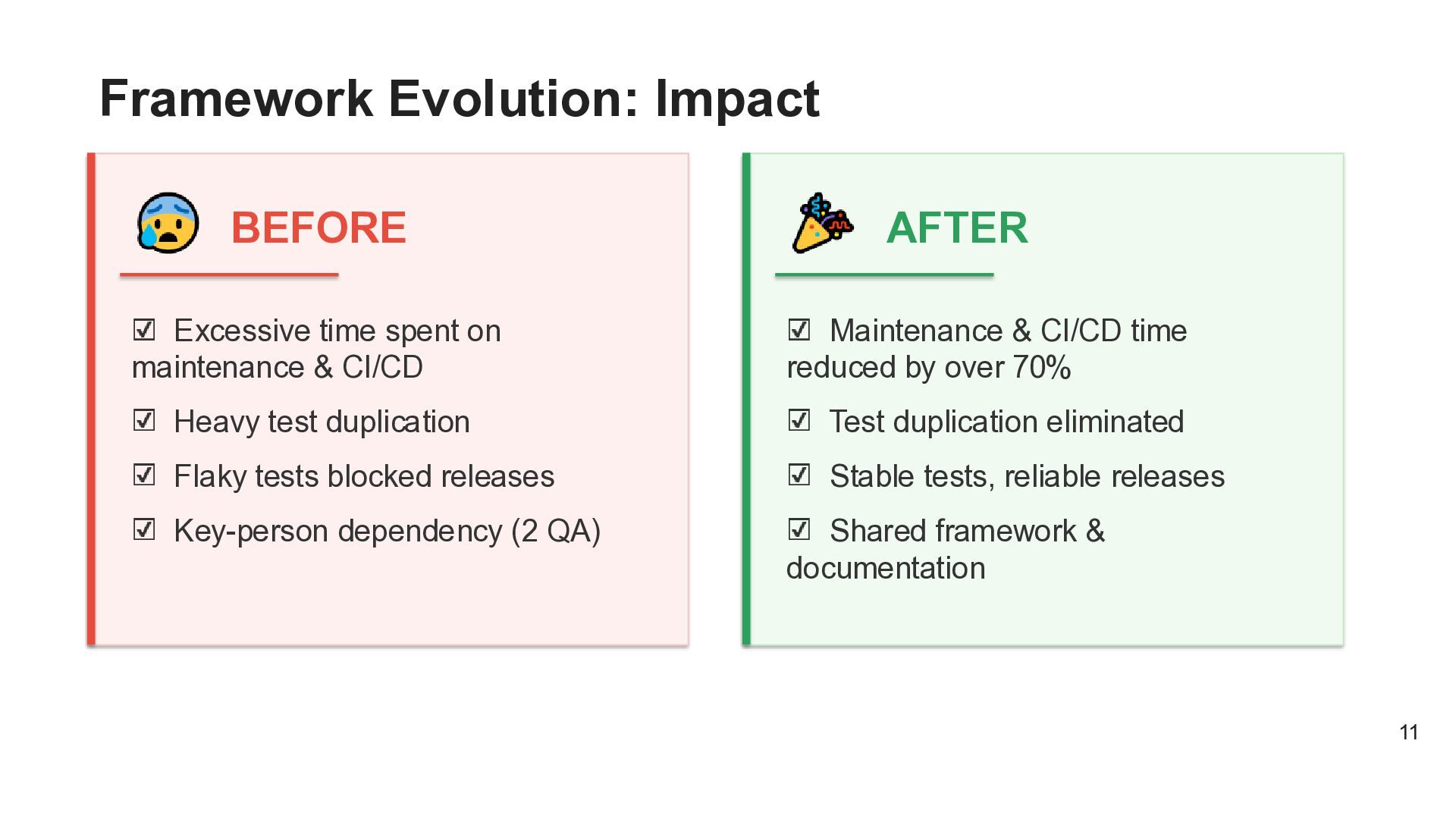

  9. Framework Evolution: Impact 11 BEFORE AFTER Excessive time spent on

    maintenance & CI/CD Heavy test duplication Flaky tests blocked releases Key-person dependency (2 QA) Maintenance & CI/CD time reduced by over 70% Test duplication eliminated Stable tests, reliable releases Shared framework & documentation

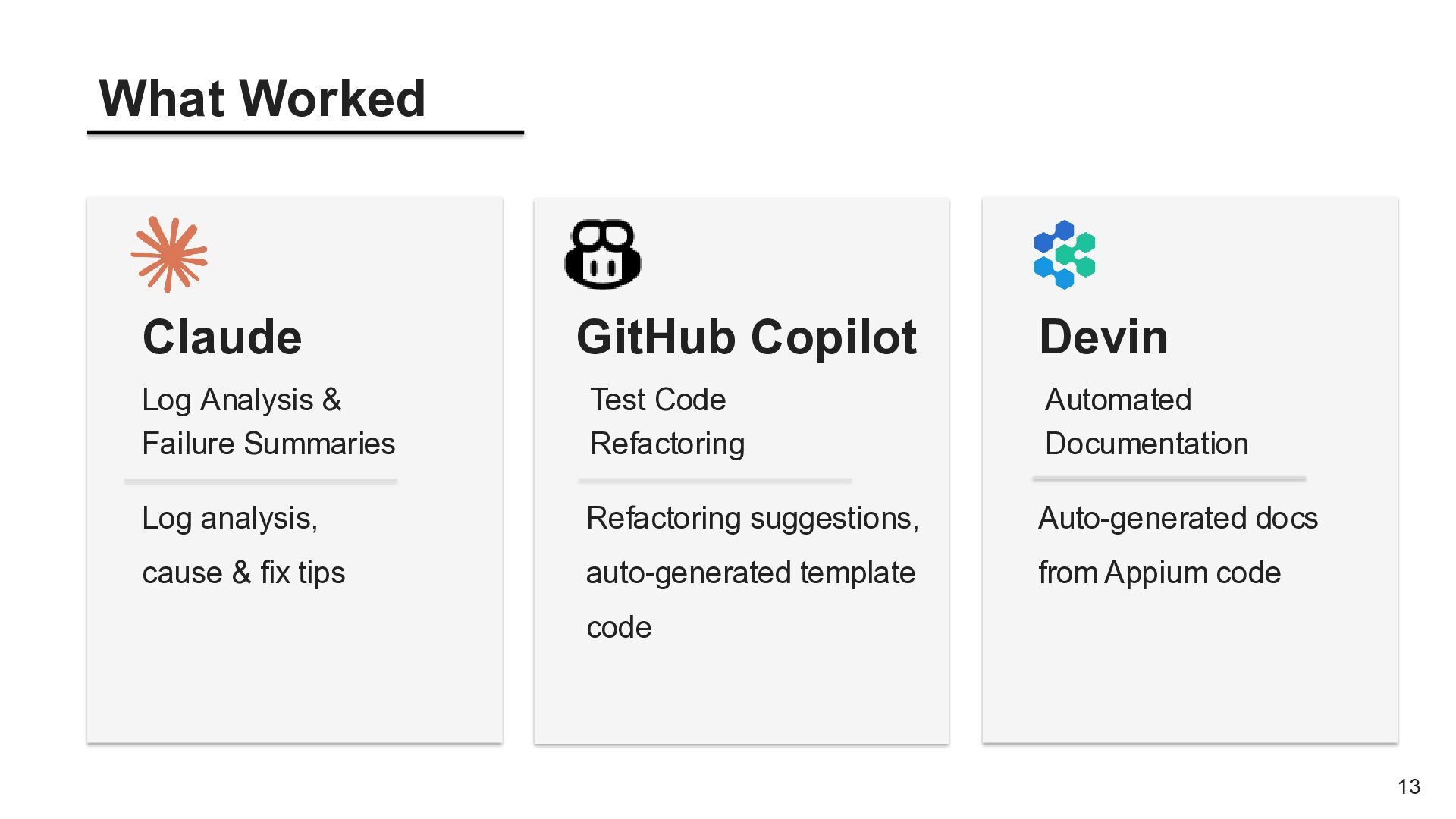

  10. What Worked Claude Log Analysis & Failure Summaries Log analysis,

    cause & fix tips GitHub Copilot Test Code Refactoring Refactoring suggestions, auto-generated template code Devin Automated Documentation Auto-generated docs from Appium code 13

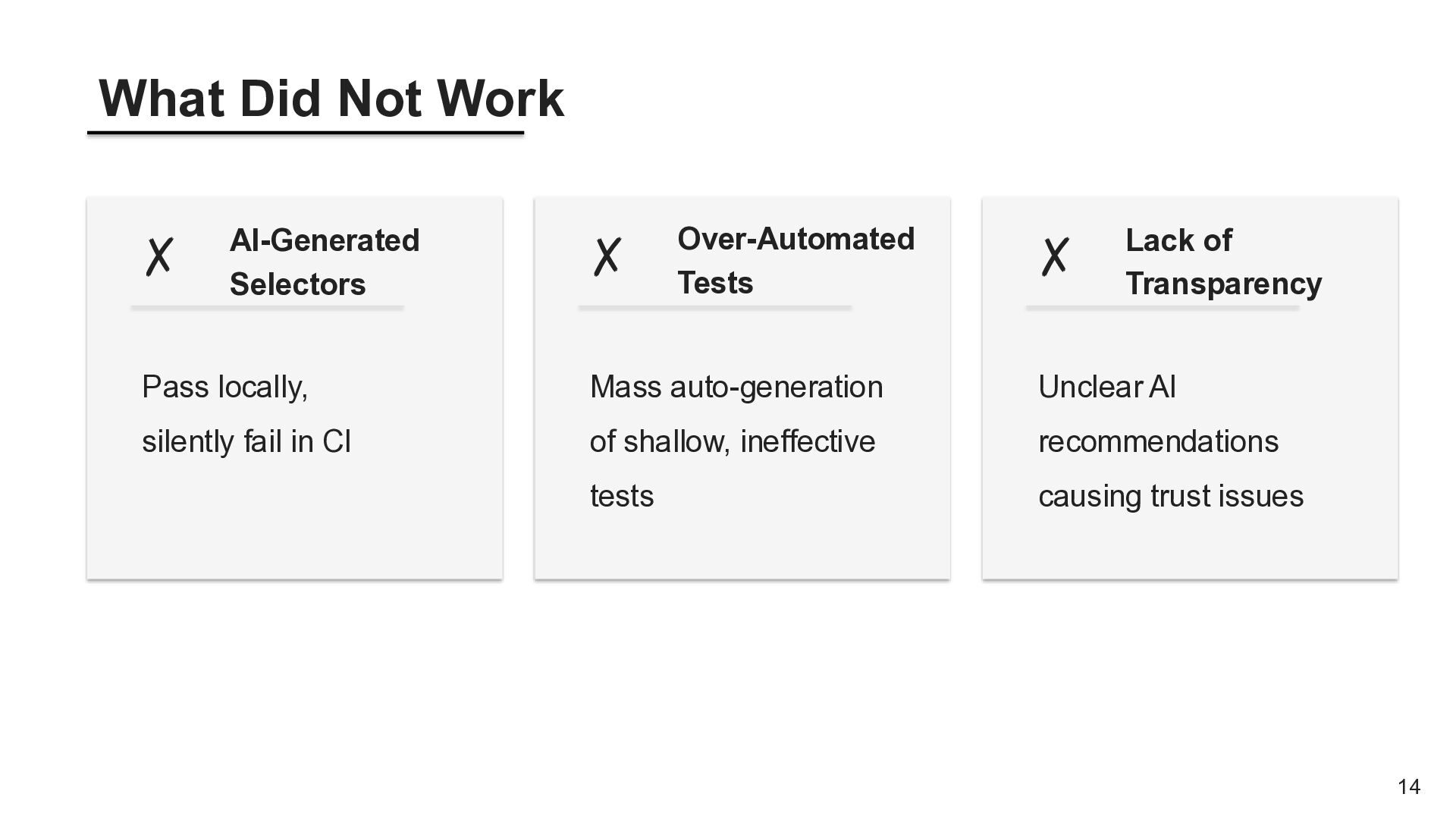

  11. What Did Not Work ✗ AI-Generated Selectors Pass locally, silently

    fail in CI ✗ Over-Automated Tests Mass auto-generation of shallow, ineffective tests ✗ Lack of Transparency Unclear AI recommendations causing trust issues 14

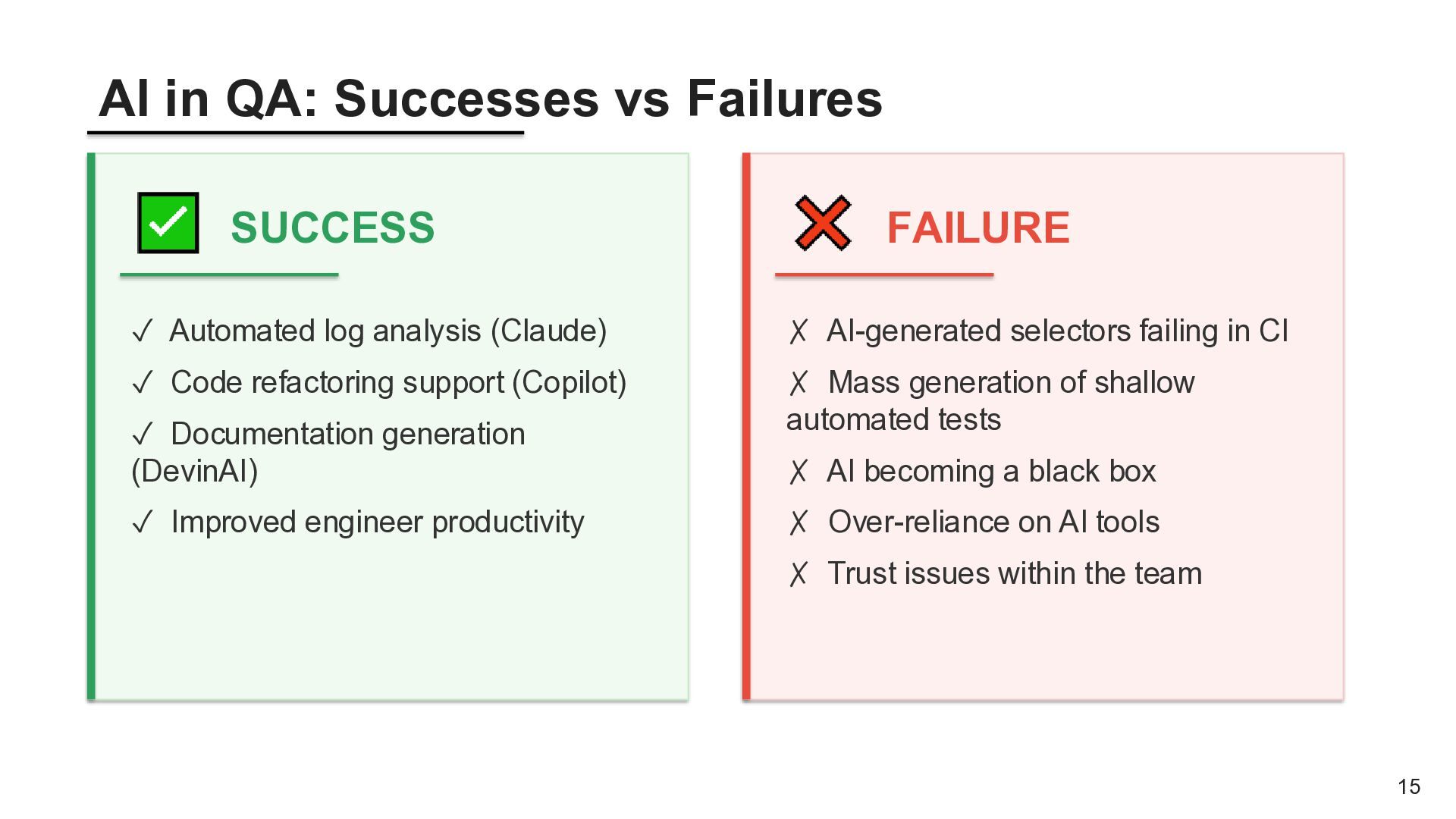

  12. AI in QA: Successes vs Failures 15 SUCCESS ✓ Automated

    log analysis (Claude) ✓ Code refactoring support (Copilot) ✓ Documentation generation (DevinAI) ✓ Improved engineer productivity FAILURE ✗ AI-generated selectors failing in CI ✗ Mass generation of shallow automated tests ✗ AI becoming a black box ✗ Over-reliance on AI tools ✗ Trust issues within the team

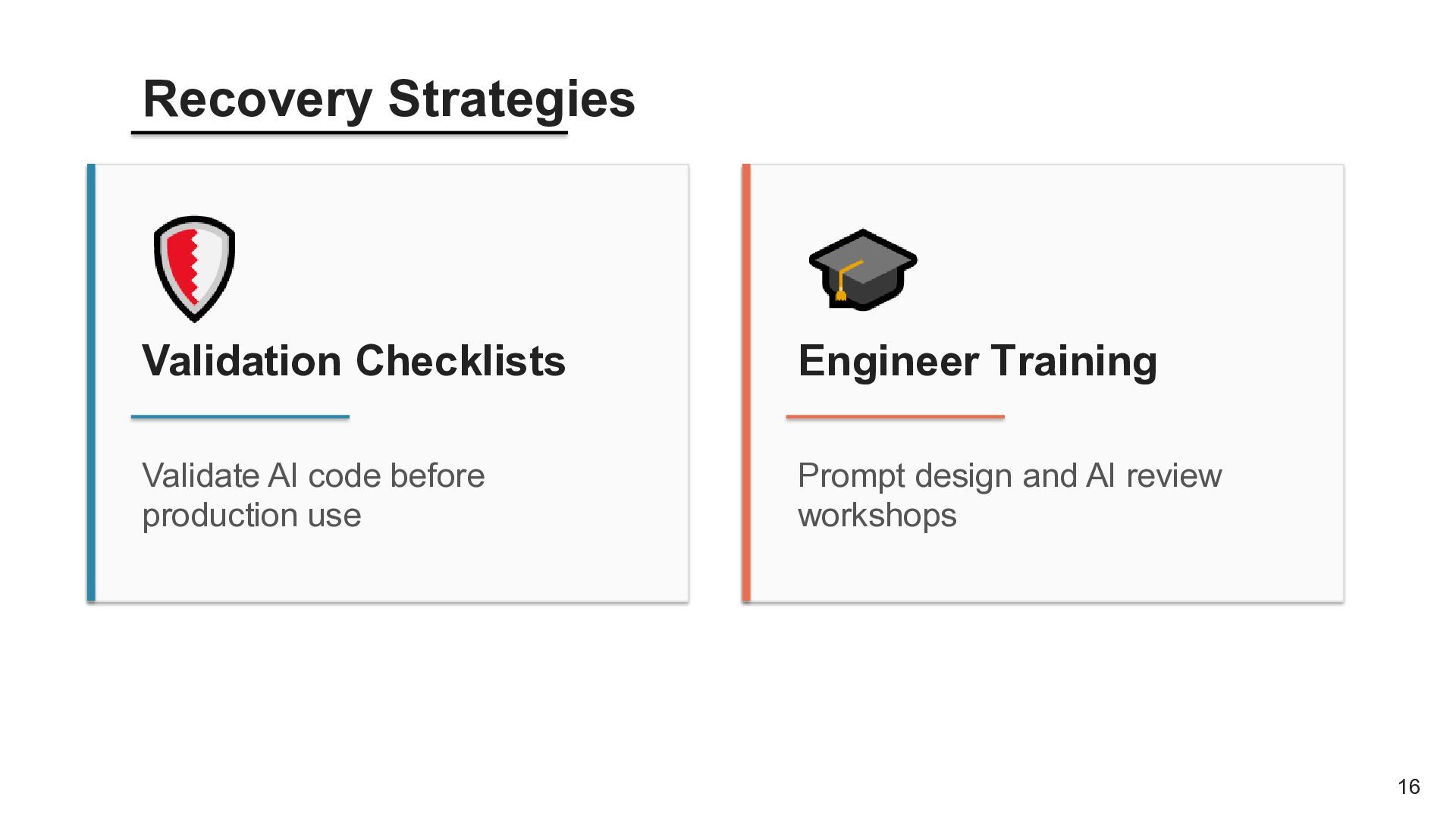

  13. Recovery Strategies 16 Validation Checklists Validate AI code before production

    use Engineer Training Prompt design and AI review workshops

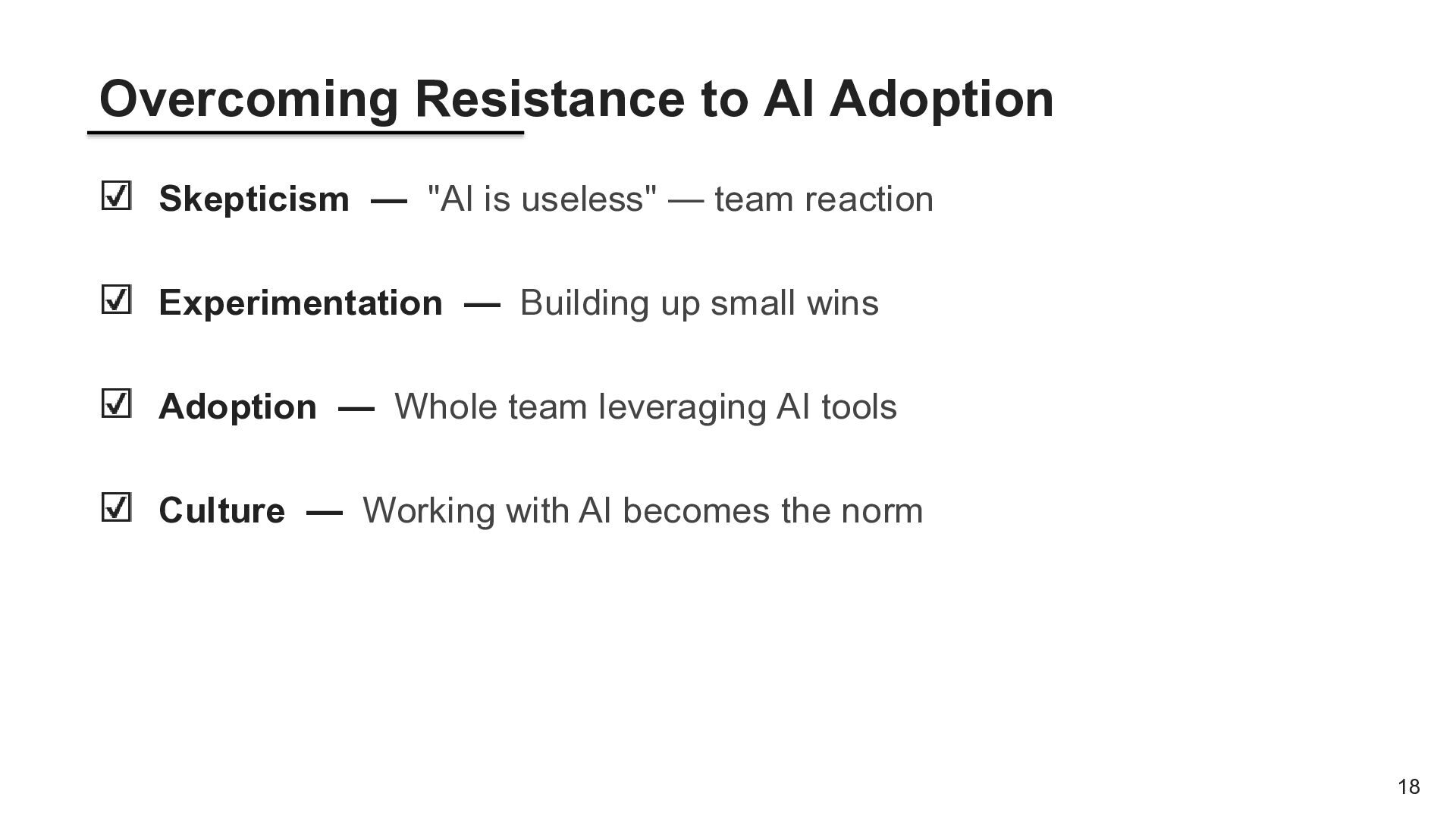

  14. Overcoming Resistance to AI Adoption 18 Skepticism — "AI is

    useless" — team reaction Experimentation — Building up small wins Adoption — Whole team leveraging AI tools Culture — Working with AI becomes the norm

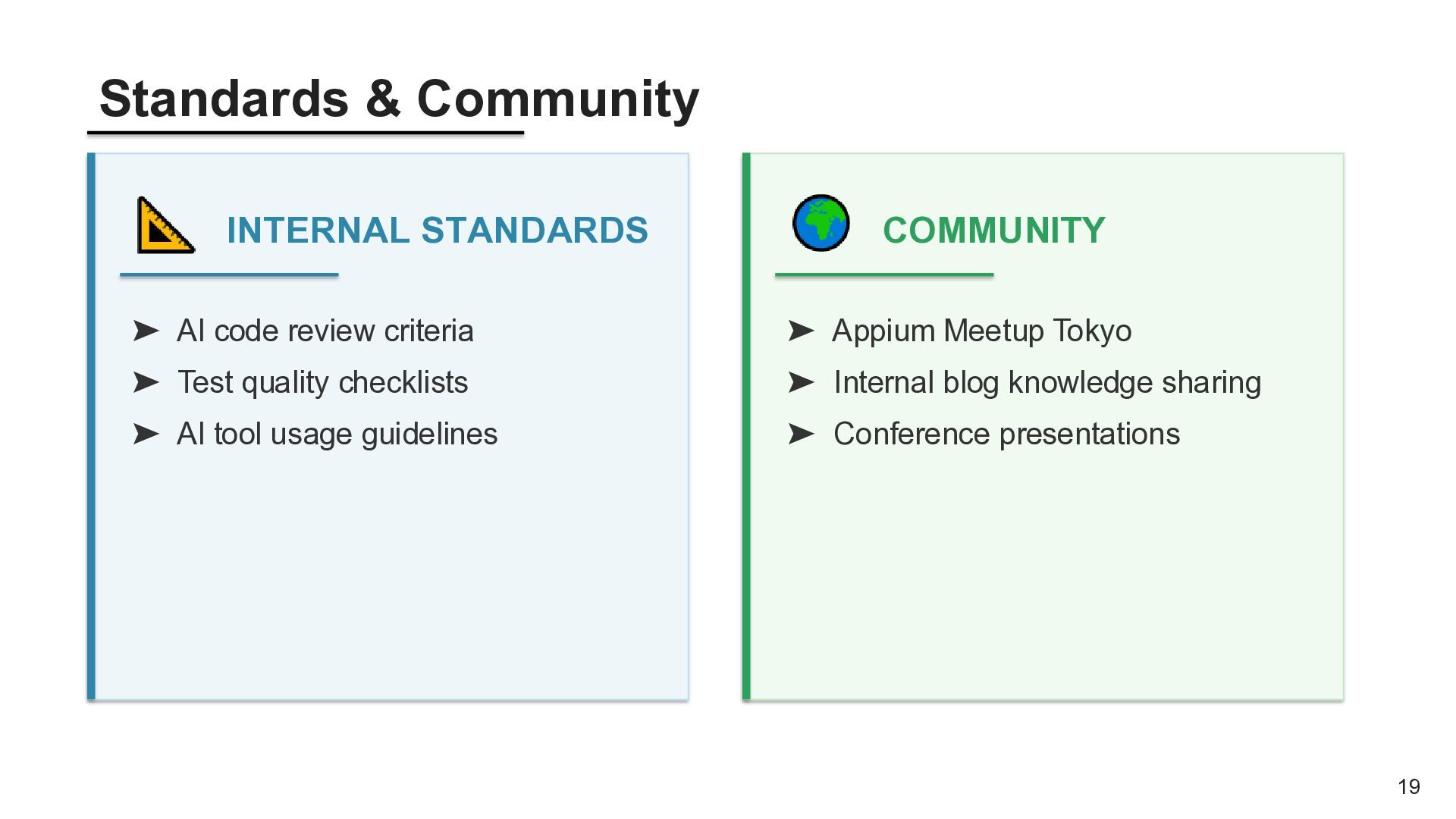

  15. Standards & Community 19 INTERNAL STANDARDS ➤ AI code review

    criteria ➤ Test quality checklists ➤ AI tool usage guidelines COMMUNITY ➤ Appium Meetup Tokyo ➤ Internal blog knowledge sharing ➤ Conference presentations

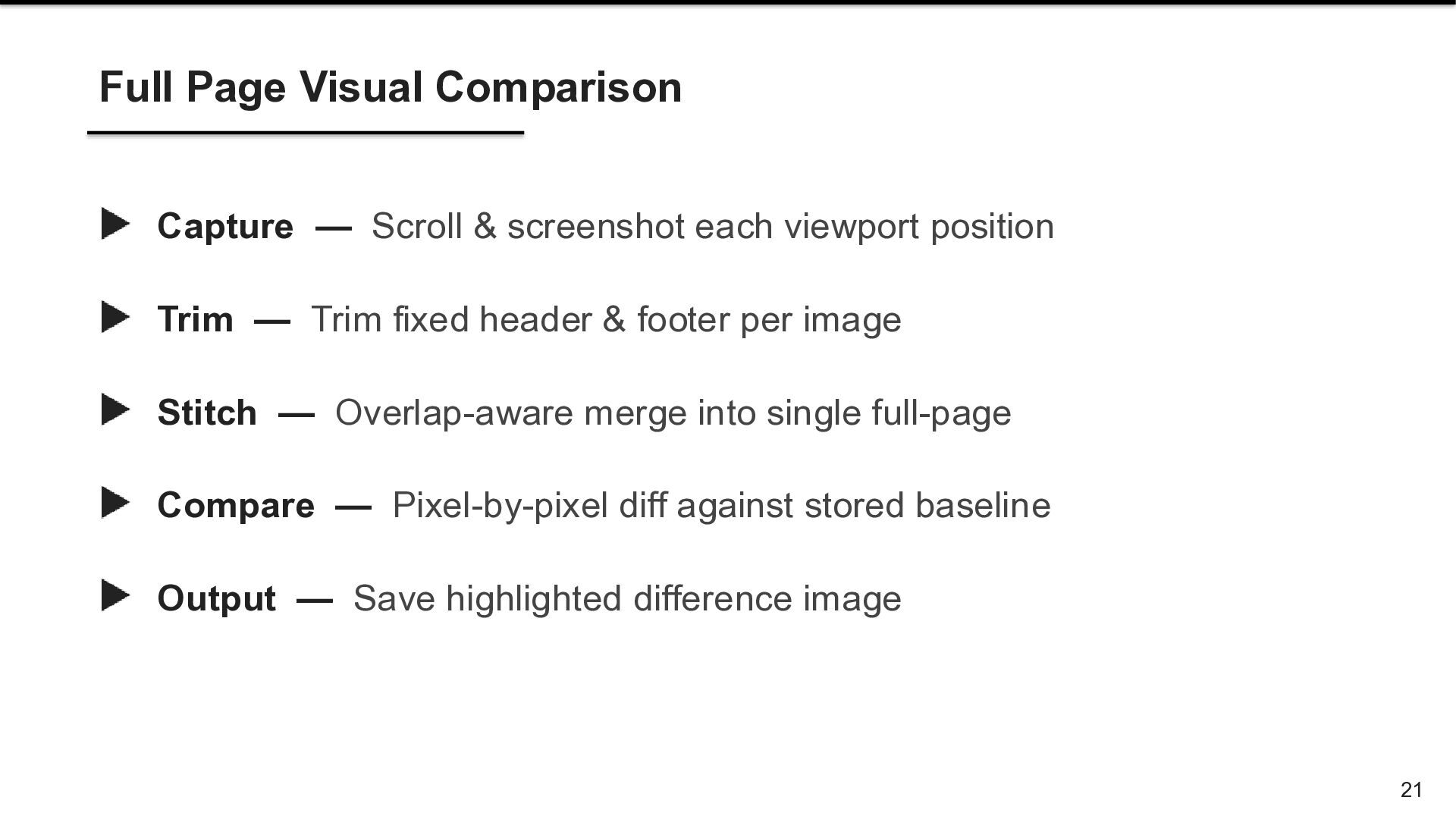

  16. Full Page Visual Comparison 21 Capture — Scroll & screenshot

    each viewport position Trim — Trim fixed header & footer per image Stitch — Overlap-aware merge into single full-page Compare — Pixel-by-pixel diff against stored baseline Output — Save highlighted difference image

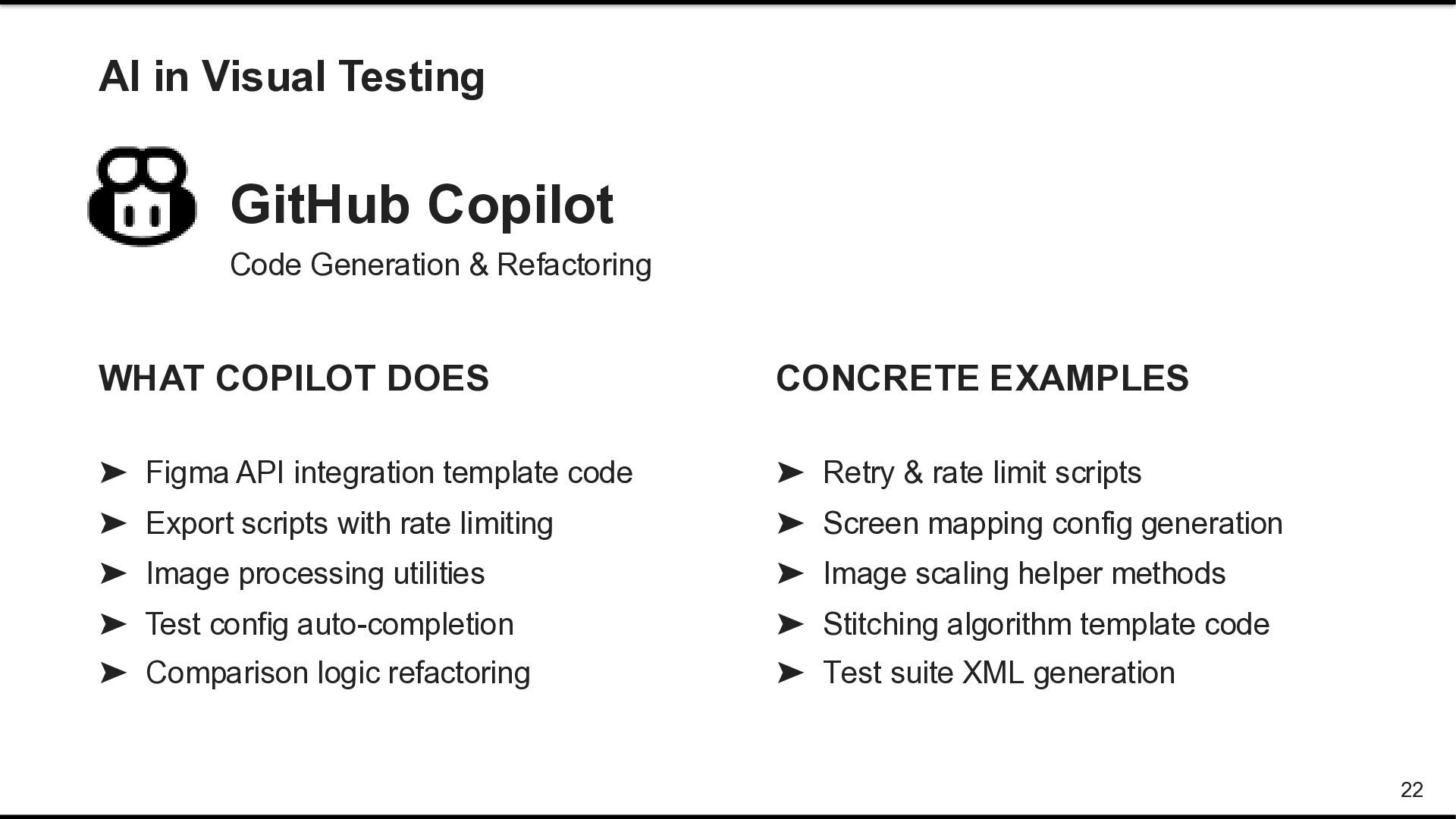

  17. AI in Visual Testing GitHub Copilot Code Generation & Refactoring

    22 WHAT COPILOT DOES ➤ Figma API integration template code ➤ Export scripts with rate limiting ➤ Image processing utilities ➤ Test config auto-completion ➤ Comparison logic refactoring CONCRETE EXAMPLES ➤ Retry & rate limit scripts ➤ Screen mapping config generation ➤ Image scaling helper methods ➤ Stitching algorithm template code ➤ Test suite XML generation

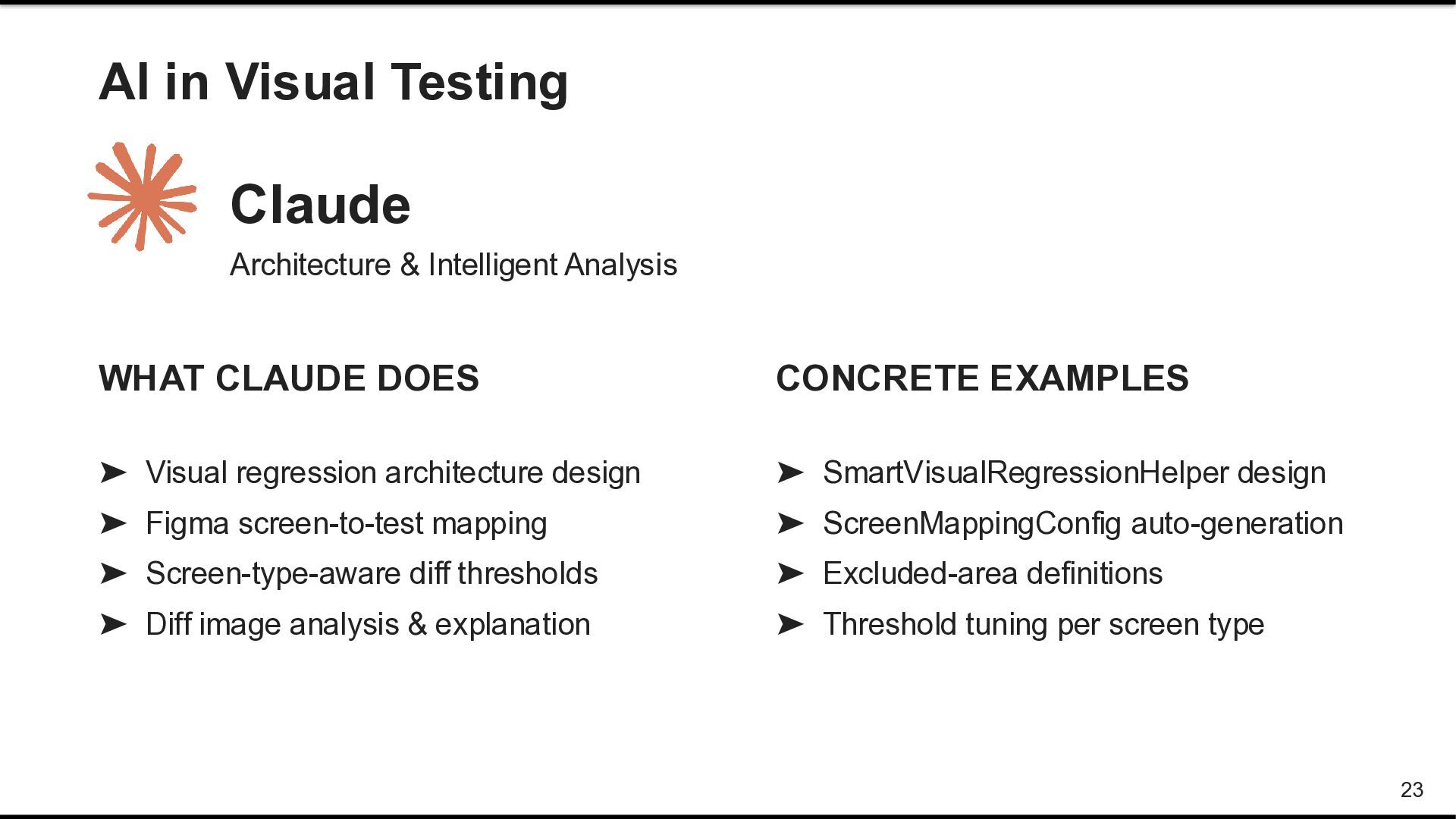

  18. AI in Visual Testing Claude Architecture & Intelligent Analysis 23

    WHAT CLAUDE DOES ➤ Visual regression architecture design ➤ Figma screen-to-test mapping ➤ Screen-type-aware diff thresholds ➤ Diff image analysis & explanation CONCRETE EXAMPLES ➤ SmartVisualRegressionHelper design ➤ ScreenMappingConfig auto-generation ➤ Excluded-area definitions ➤ Threshold tuning per screen type

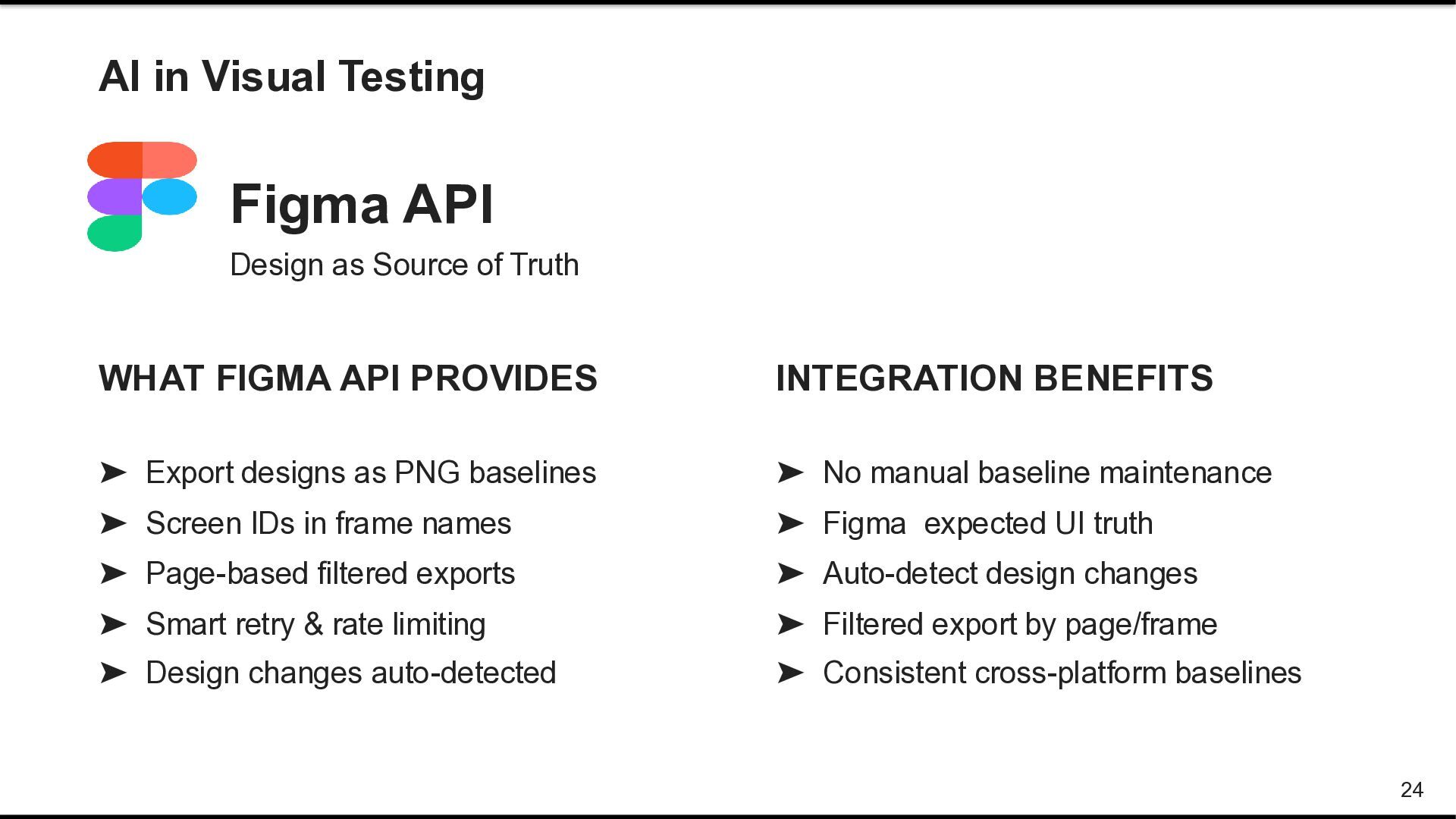

  19. AI in Visual Testing Figma API Design as Source of

    Truth 24 WHAT FIGMA API PROVIDES ➤ Export designs as PNG baselines ➤ Screen IDs in frame names ➤ Page-based filtered exports ➤ Smart retry & rate limiting ➤ Design changes auto-detected INTEGRATION BENEFITS ➤ No manual baseline maintenance ➤ Figma expected UI truth ➤ Auto-detect design changes ➤ Filtered export by page/frame ➤ Consistent cross-platform baselines

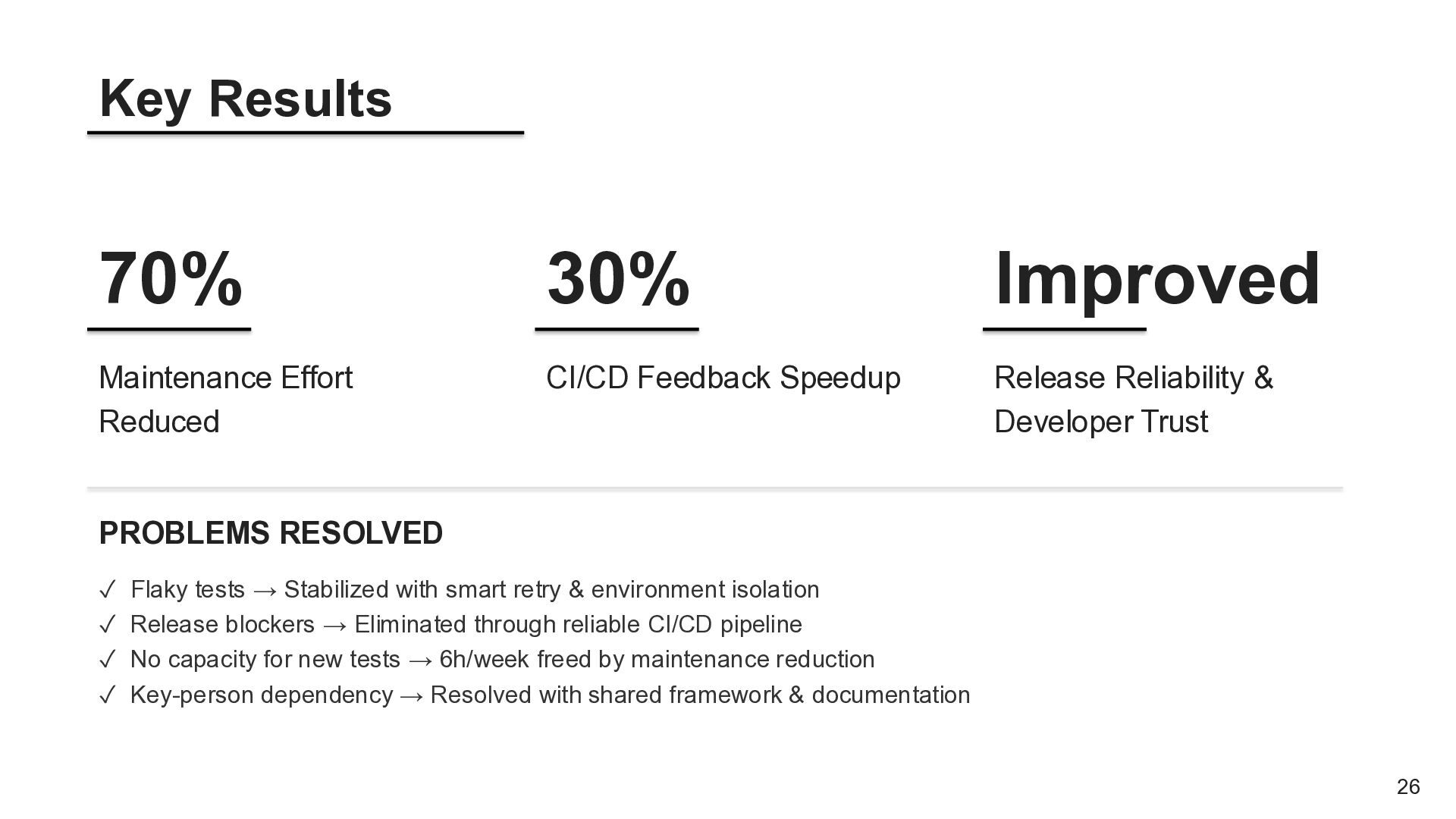

  20. Key Results 70% Maintenance Effort Reduced 30% CI/CD Feedback Speedup

    Improved Release Reliability & Developer Trust 26 PROBLEMS RESOLVED ✓ Flaky tests → Stabilized with smart retry & environment isolation ✓ Release blockers → Eliminated through reliable CI/CD pipeline ✓ No capacity for new tests → 6h/week freed by maintenance reduction ✓ Key-person dependency → Resolved with shared framework & documentation

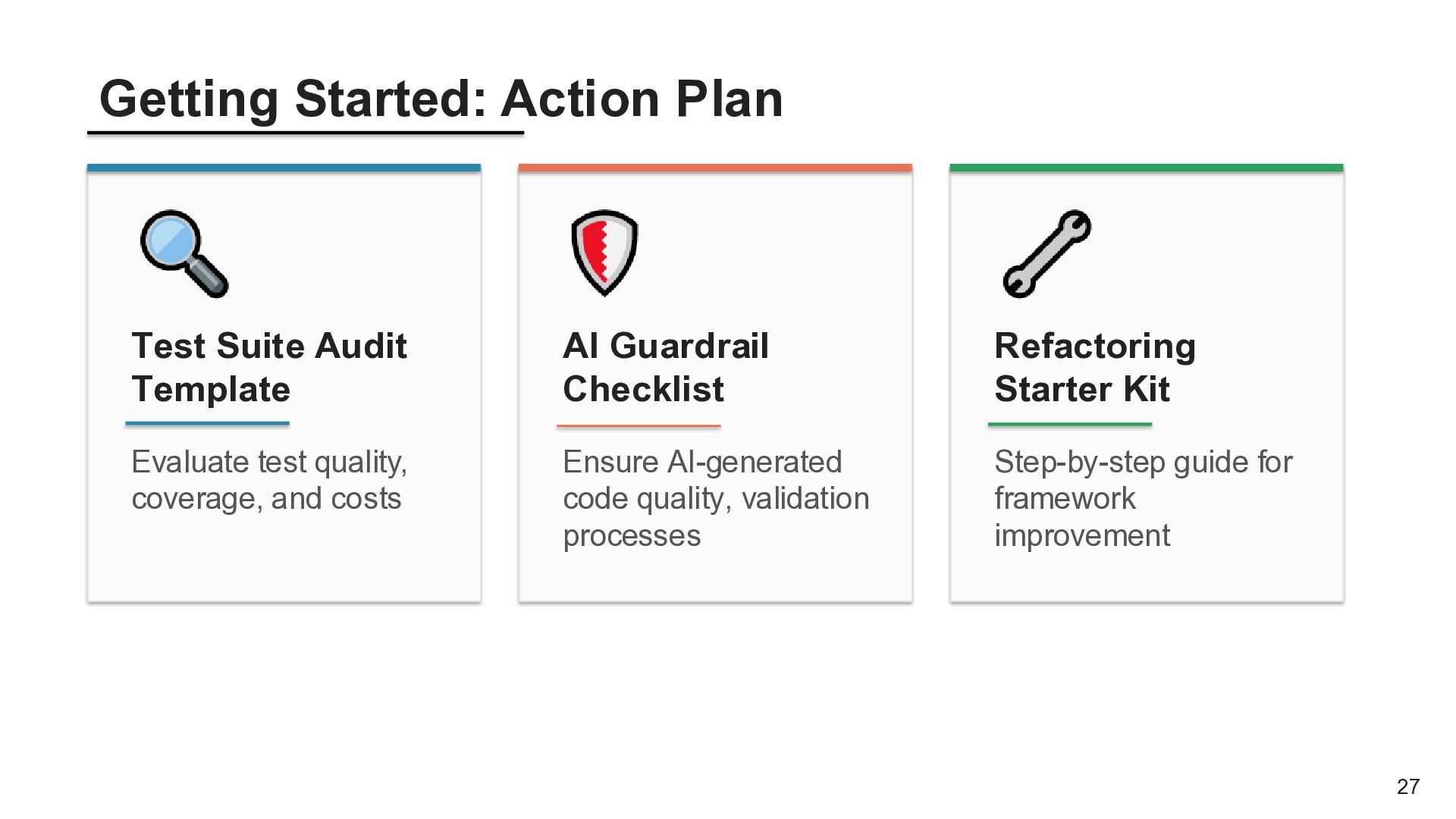

  21. Getting Started: Action Plan 27 Test Suite Audit Template Evaluate

    test quality, coverage, and costs AI Guardrail Checklist Ensure AI-generated code quality, validation processes Refactoring Starter Kit Step-by-step guide for framework improvement

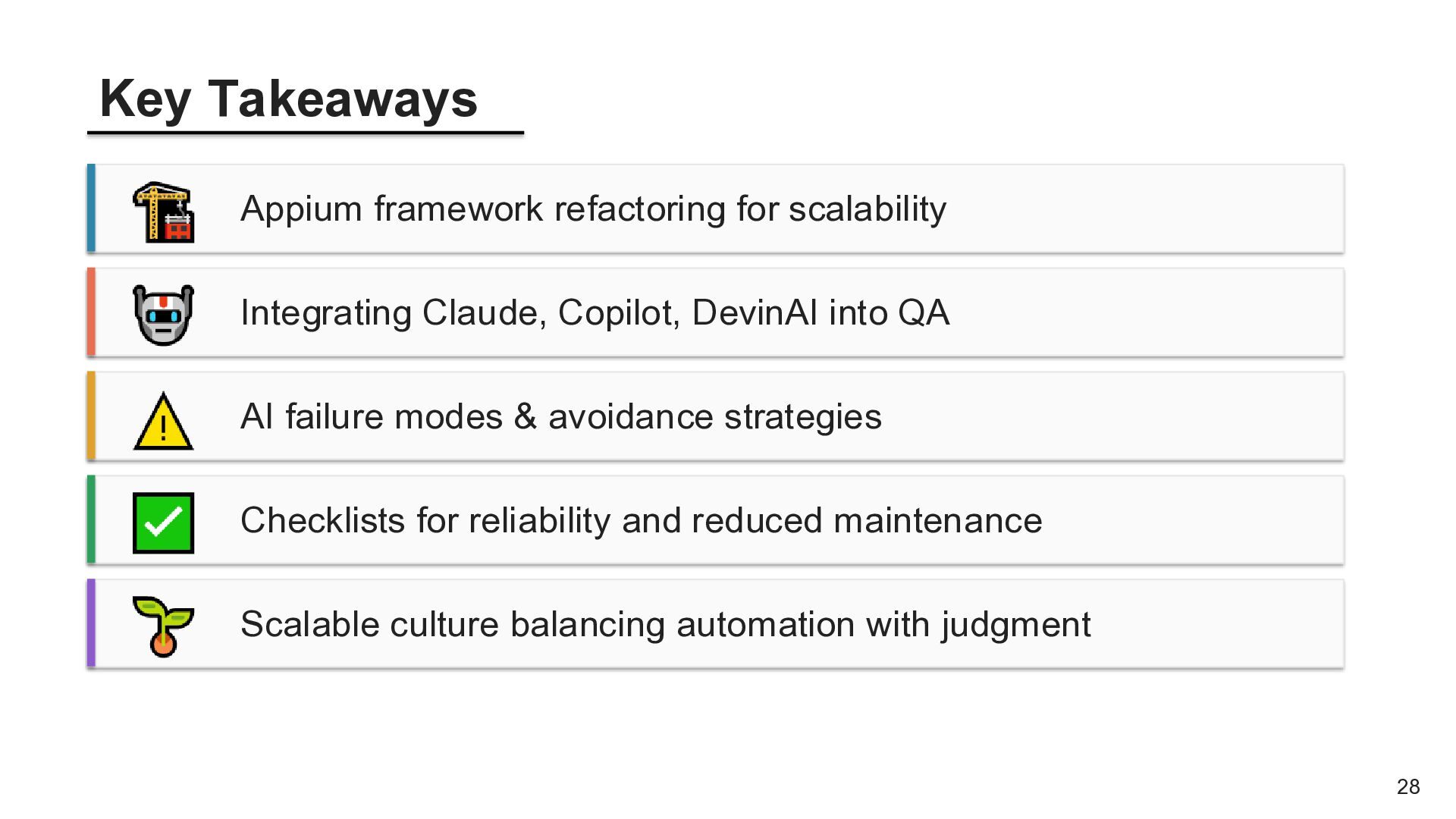

  22. Key Takeaways 28 Appium framework refactoring for scalability Integrating Claude,

    Copilot, DevinAI into QA AI failure modes & avoidance strategies Checklists for reliability and reduced maintenance Scalable culture balancing automation with judgment
  23. Thank You Questions & Discussion Pann Nu Wai QA Engineer

    — KINTO Technologies SeleniumConf Valencia 2026 30
