Introduction to Endpoints

Endpoints is a Scala library for defining communication protocols over HTTP between applications. It allows to describe API endpoints as first-class Scala values and interpret them in multiple ways: as server, client or documentation making sure documentation is always consistent with server implementation.

Transcript

1. Introduction to Endpoints Piotr Krzemiński $ git clone https://github.com/krzemin/endpoints-scala-workshop @pkrzemin

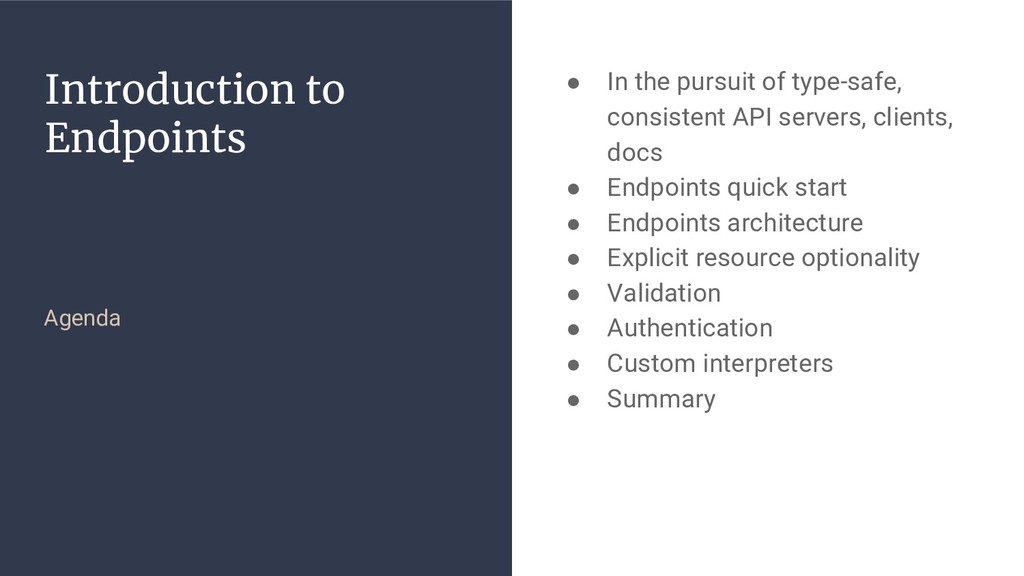

2. Introduction to Endpoints Agenda • In the pursuit of type-safe, consistent API servers, clients, docs • Endpoints quick start • Endpoints architecture • Explicit resource optionality • Validation • Authentication • Custom interpreters • Summary

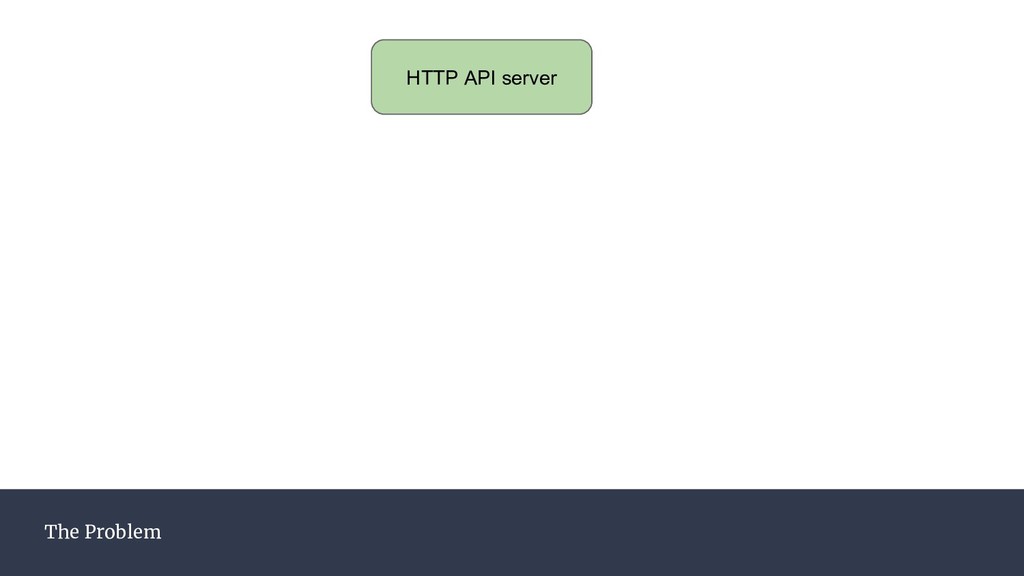

3. The Problem HTTP API server

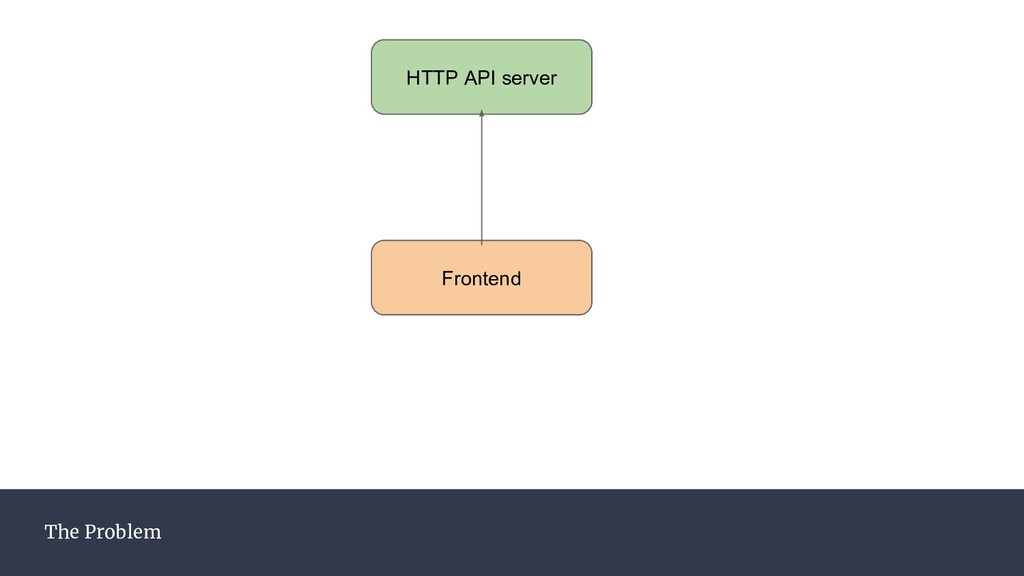

4. The Problem HTTP API server Frontend

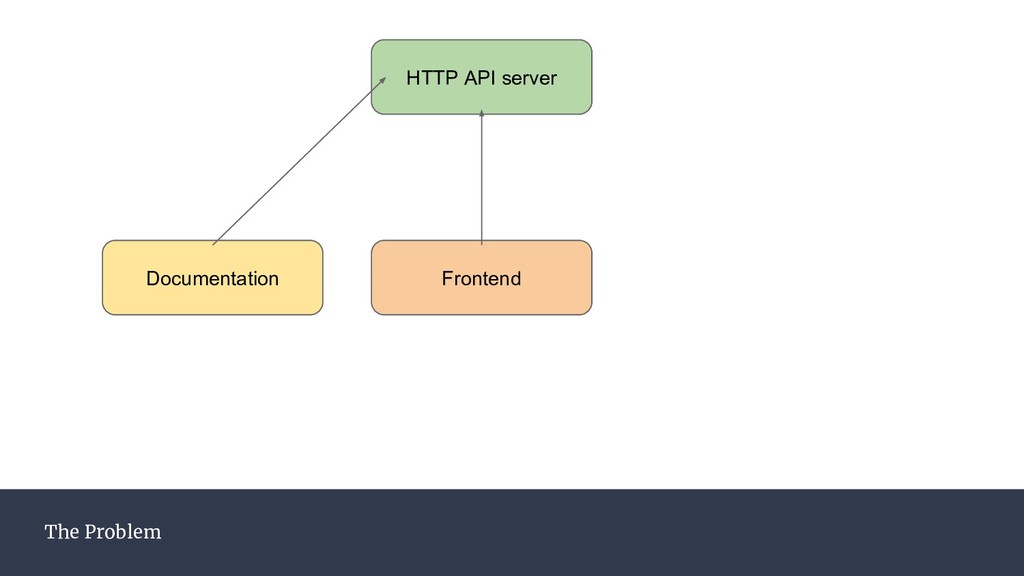

5. The Problem HTTP API server Frontend Documentation
6. The Problem HTTP API server Frontend Documentation API client
7. Issues with manual approach 1. Consistency 2. Duplication 3. Correctness 4. Boilerplate 5. Maintainability at scale HTTP API server Frontend Documentation API client

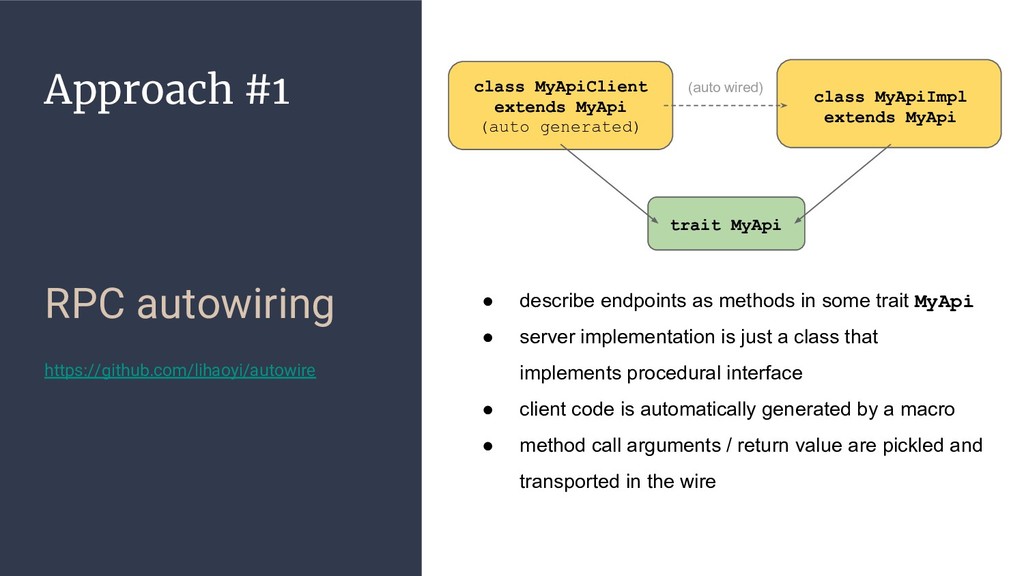

8. Approach #1 RPC autowiring https://github.com/lihaoyi/autowire trait MyApi class MyApiImpl extends MyApi class MyApiClient extends MyApi (auto generated) • describe endpoints as methods in some trait MyApi • server implementation is just a class that implements procedural interface • client code is automatically generated by a macro • method call arguments / return value are pickled and transported in the wire (auto wired)
9. Approach #2 Doc annotations https://github.com/swagger-akka-http/swa gger-akka-http https://github.com/swagger-api/swagger-p lay • use your target server implementation • write annotations to provide doc information • documentation is generated from type info and/or annotations • implementation and doc information in single place https://github.com/krzemin/currency-api/blob/master/src/main/scala/com/example/CurrencyApiRoutes.scala
10. Approach #3 Code generation https://www.apibuilder.io https://grpc.io https://openapi-generator.tech api spec • api endpoints and entity models are described in some external, rich language • the spec file is an input to code generator which emits code in the target language • interoperability of clients / servers implemented in different target languages Code generator Play routes Documentation Api client (Scala) Api client (Kotlin) JSON codecs
11. Approach #4 Interpreted EDSL https://julienrf.github.io/endpoints https://github.com/http4s/rho https://haskell-servant.github.io https://github.com/softwaremill/tapir Endpoints definition • endpoint definition as a construct in programming language • ability to interpret definition in the same programming language • easy customizability: plugging in own interpreters Documentation interpreter Server interpreter Client interpreter Documentation Client Server custom interpreter custom output

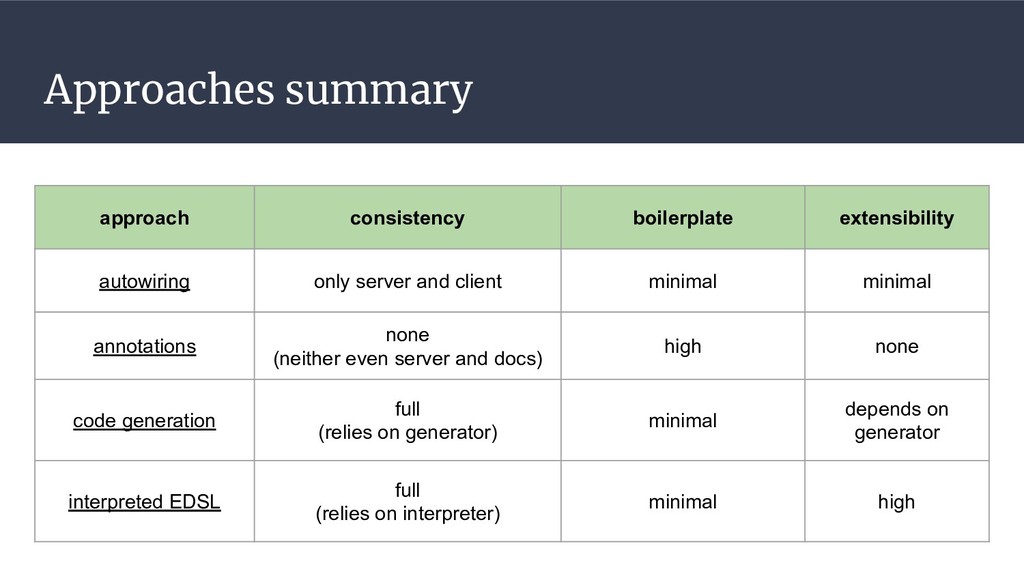

12. Approaches summary approach consistency boilerplate extensibility autowiring only server and client minimal minimal annotations none (neither even server and docs) high none code generation full (relies on generator) minimal depends on generator interpreted EDSL full (relies on interpreter) minimal high

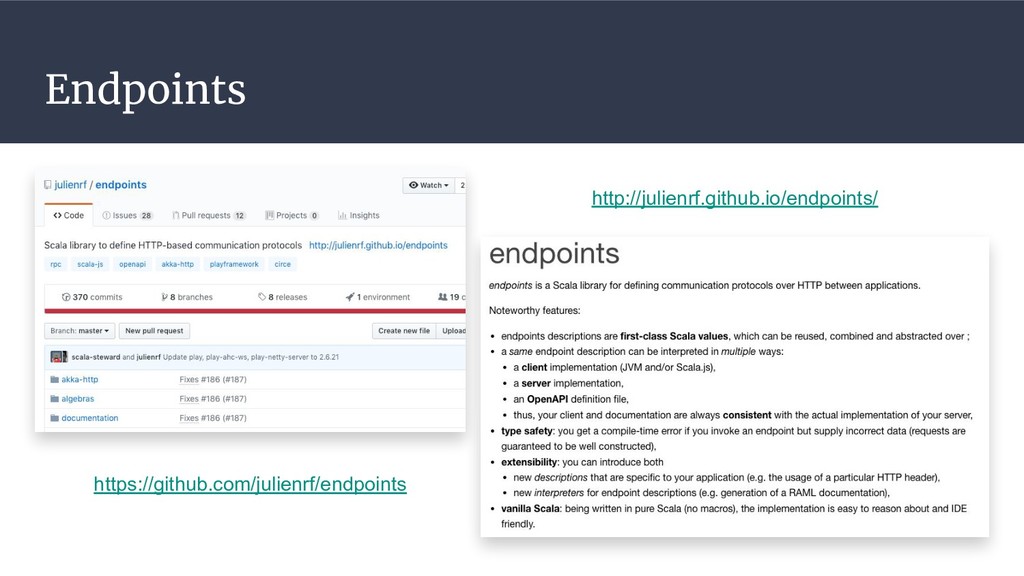

13. Endpoints https://github.com/julienrf/endpoints http://julienrf.github.io/endpoints/

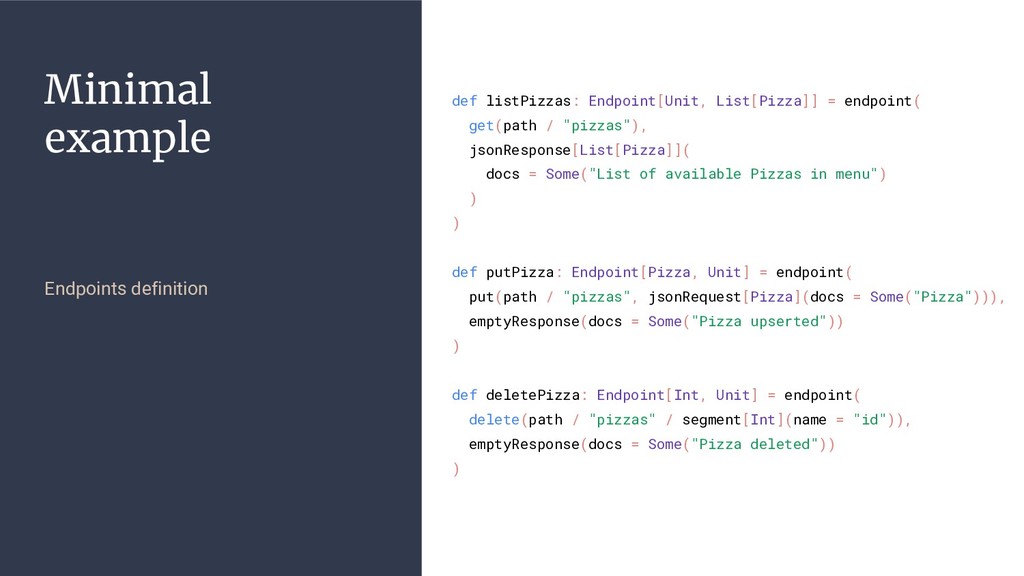

14. Minimal example Endpoints definition def listPizzas: Endpoint[Unit, List[Pizza]] = endpoint( get(path / "pizzas"), jsonResponse[List[Pizza]]( docs = Some("List of available Pizzas in menu") ) ) def putPizza: Endpoint[Pizza, Unit] = endpoint( put(path / "pizzas", jsonRequest[Pizza](docs = Some("Pizza"))), emptyResponse(docs = Some("Pizza upserted")) ) def deletePizza: Endpoint[Int, Unit] = endpoint( delete(path / "pizzas" / segment[Int](name = "id")), emptyResponse(docs = Some("Pizza deleted")) )

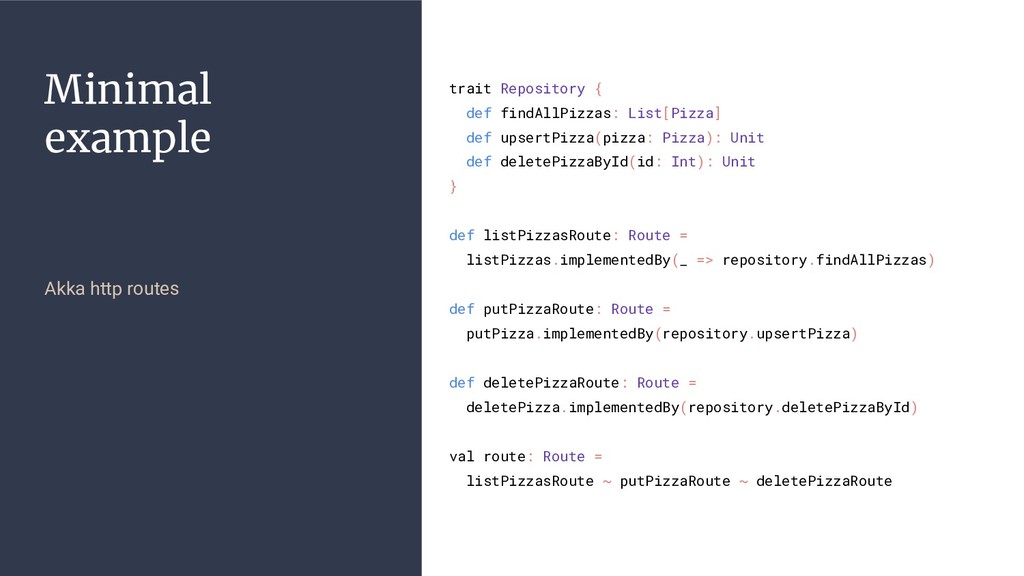

15. Minimal example Akka http routes trait Repository { def findAllPizzas: List[Pizza] def upsertPizza(pizza: Pizza): Unit def deletePizzaById(id: Int): Unit } def listPizzasRoute: Route = listPizzas.implementedBy(_ => repository.findAllPizzas) def putPizzaRoute: Route = putPizza.implementedBy(repository.upsertPizza) def deletePizzaRoute: Route = deletePizza.implementedBy(repository.deletePizzaById) val route: Route = listPizzasRoute ~ putPizzaRoute ~ deletePizzaRoute
16. Minimal example OpenApi documentation def openapi: OpenApi = openApi(Info("Pizza Store", "1.0.0"))( listPizzas, putPizza, deletePizza ) def openapiJson: Json = openapi.asJson { "openapi": "3.0.0", "info": { "title": "Pizza Store", "version": "1.0.0" }, "paths": { "/pizzas": { "get": { "responses": { "200": { "description": "List of available Pizzas in menu", "content": { "application/json": { "schema": { "type": "array", "items": { ...

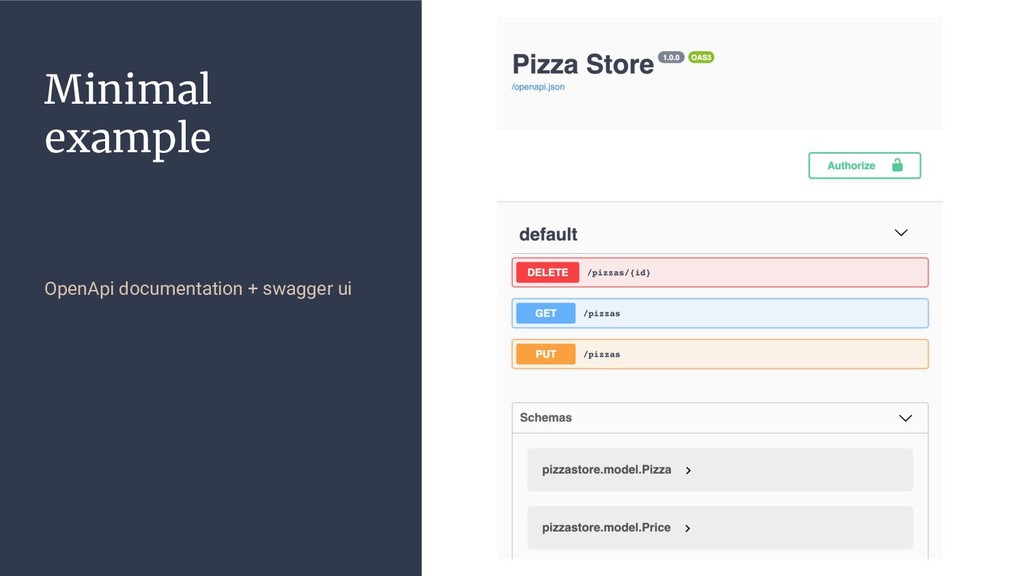

17. Minimal example OpenApi documentation + swagger ui

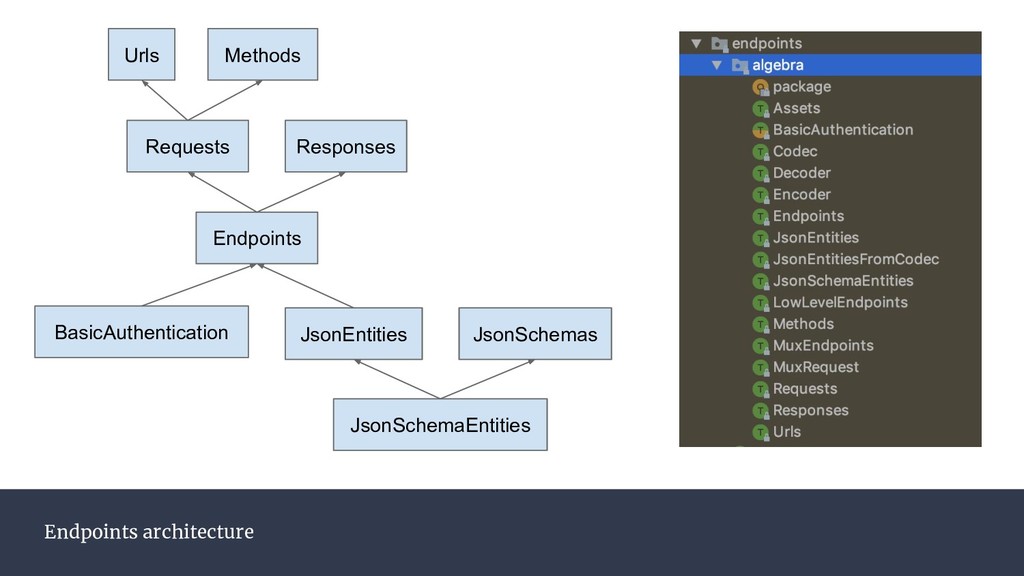

18. Endpoints architecture Urls Methods Responses Requests Endpoints JsonEntities JsonSchemas JsonSchemaEntities BasicAuthentication

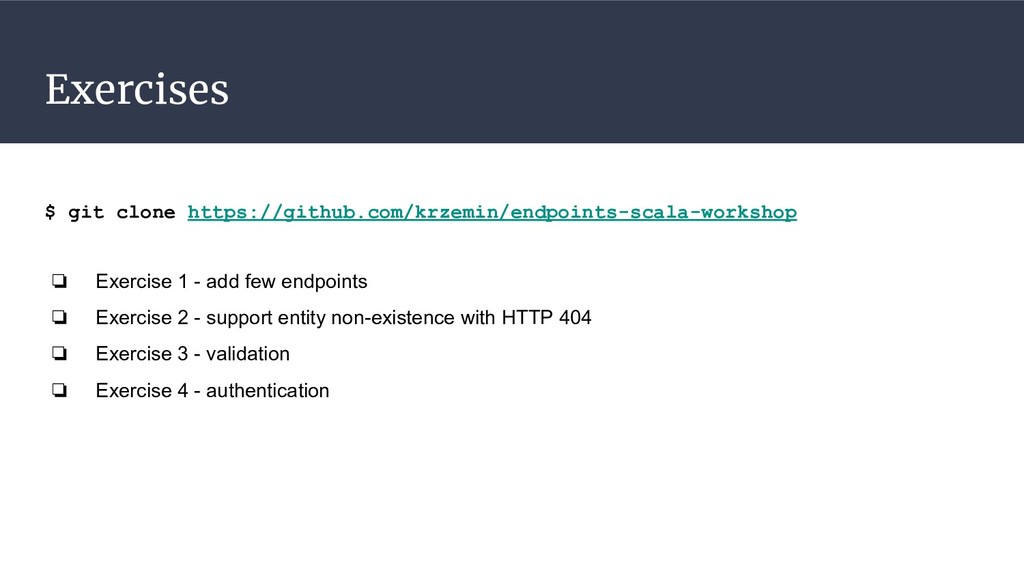

19. Exercises $ git clone https://github.com/krzemin/endpoints-scala-workshop ❏ Exercise 1 - add few endpoints ❏ Exercise 2 - support entity non-existence with HTTP 404 ❏ Exercise 3 - validation ❏ Exercise 4 - authentication

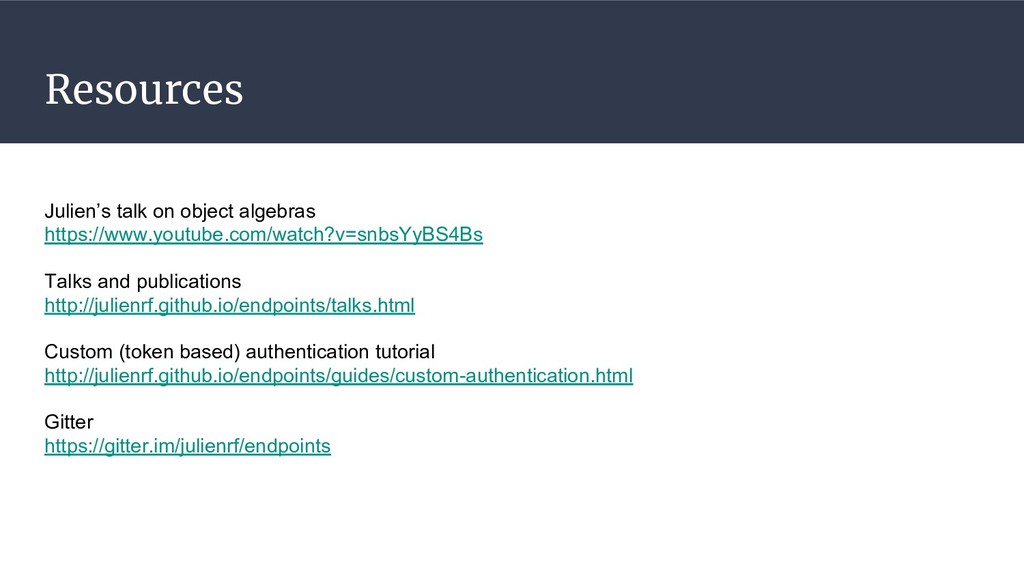

20. Resources Julien’s talk on object algebras https://www.youtube.com/watch?v=snbsYyBS4Bs Talks and publications http://julienrf.github.io/endpoints/talks.html Custom (token based) authentication tutorial http://julienrf.github.io/endpoints/guides/custom-authentication.html Gitter https://gitter.im/julienrf/endpoints
