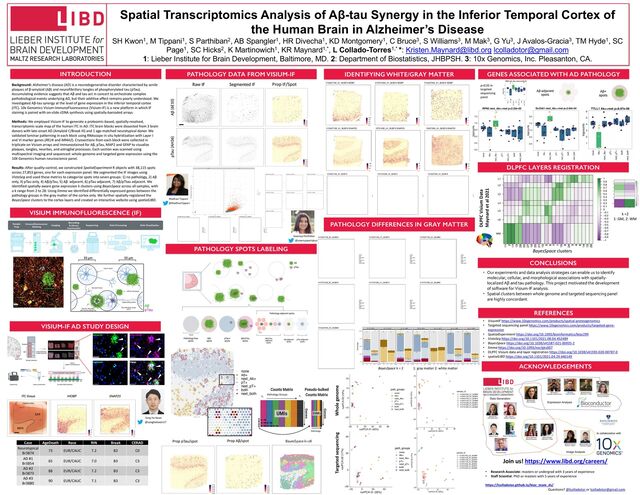

Spatial Transcriptomics Analysis of Aβ-tau Synergy in the Inferior Temporal Cortex of
the Human Brain in Alzheimer’s Disease
SH Kwon1, M Tippani1, S Parthiban2, AB Spangler1, HR Divecha1, KD Montgomery1, C Bruce3, S Williams3, M Mak3, G Yu3, J Avalos-Gracia3, TM Hyde1, SC
Page1, SC Hicks2, K Martinowich1, KR Maynard1,*, L Collado-Torres1,* *: [email protected] [email protected]
1: Lieber Institute for Brain Development, Baltimore, MD. 2: Department of Biostatistics, JHBPSH. 3: 10x Genomics, Inc. Pleasanton, CA.
INTRODUCTION
VISIUM-IF AD STUDY DESIGN
PATHOLOGY DATA FROM VISIUM-IF
CONCLUSIONS
REFERENCES
IDENTIFYING WHITE/GRAY MATTER
Background: Alzheimer’s disease (AD) is a neurodegenerative disorder characterized by senile
plaques of β-amyloid (Aβ) and neurofibrillary tangles of phosphorylated tau (pTau).
Accumulating evidence suggests that Aβ and tau act in concert to orchestrate complex
pathobiological events underlying AD, but their additive effect remains poorly understood. We
investigated Aβ-tau synergy at the level of gene expression in the inferior temporal cortex
(ITC). 10x Genomics Visium ImmunoFluorescence (Visium-IF) is a new platform in which IF
staining is paired with on-slide cDNA synthesis using spatially-barcoded arrays.
Methods: We employed Visium-IF to generate a proteomic-based, spatially-resolved,
transcriptomic-scale map of the human ITC in AD. ITC brain blocks were dissected from 3 brain
donors with late-onset AD (Amyloid C/Braak III) and 1 age-matched neurotypical donor. We
validated laminar patterning in each block using RNAscope in situ hybridization with Layer I
and VI marker genes (RELN and NR4A2). Cryosections from each block were collected in
triplicate on Visium arrays and immunostained for Aβ, pTau, MAP2 and GFAP to visualize
plaques, tangles, neurites, and astroglial processes. Each section was scanned using
multispectral imaging and sequenced: whole-genome and targeted gene expression using the
10X Genomics human neuroscience panel.
Results: After quality-control, we constructed SpatialExperiment R objects with 38,115 spots
across 27,853 genes, one for each expression panel. We segmented the IF images using
VistoSeg and used these metrics to categorize spots into seven groups: 1) no pathology, 2) Aβ
only, 3) pTau only, 4) Aβ/pTau, 5) Aβ adjacent, 6) pTau adjacent, 7) Aβ/pTtau adjacent. We
identified spatially-aware gene expression k clusters using BayesSpace across all samples, with
a k range from 2 to 28. Using limma we identified differentially expressed genes between the
pathology groups in the gray matter of the cortex only. We further spatially-registered the
BayesSpace clusters to the cortex layers and created an interactive website using spatialLIBD.
PATHOLOGY SPOTS LABELING
GENES ASSOCIATED WITH AD PATHOLOGY
• Our experiments and data analysis strategies can enable us to identify
molecular, cellular, and morphological associations with spatially-
localized Aβ and tau pathology. This project motivated the development
of software for Visium-IF analysis.
• Spatial clusters between whole genome and targeted sequencing panel
are highly concordant.
