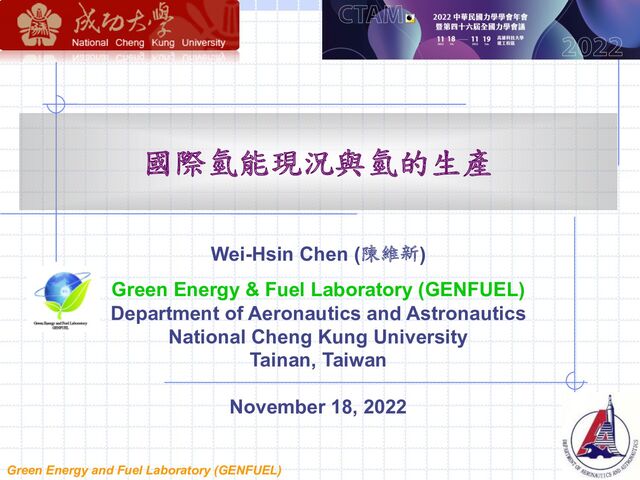

  1. Green Energy and Fuel Laboratory (GENFUEL) Wei-Hsin Chen (陳維新) Green

    Energy & Fuel Laboratory (GENFUEL) Department of Aeronautics and Astronautics National Cheng Kung University Tainan, Taiwan November 18, 2022 國際氫能現況與氫的生產
  2. Green Energy and Fuel Laboratory (GENFUEL) Green Energy and Fuel

    Laboratory (GENFUEL) Climate, Sustainability & Net Zero Hydrogen Energy Development Hydrogen Patent Outlook Conclusions Outline 2
  3. Green Energy and Fuel Laboratory (GENFUEL) Green Energy and Fuel

    Laboratory (GENFUEL) GISTEMP Climate Spiral (1880-2021) 4 https://svs.gsfc.nasa.gov/4975
  4. Green Energy and Fuel Laboratory (GENFUEL) Green Energy and Fuel

    Laboratory (GENFUEL) CO2 Emissions 6 https://ourworldindata.org/co2-emissions 6 billion 37 billion 9.5 million
  5. Green Energy and Fuel Laboratory (GENFUEL) 7 Global CO2 and

    CH4 Emissions Nature Reviews Earth & Environment volume 3, pages217–219 (2022)
  6. Green Energy and Fuel Laboratory (GENFUEL) 1992 1994 1995 1997

    2014 2015 2020 2022 Earth Summit 1995 COP1 Re100 Kyoto Protocol (COP 3) 17 Sustainable Development Goals (SDGs) Paris Agreement (COP21) COP27 Egypt Net Zero Atmospheric CO2 increases since the Industrial Revolution 8 UN Framework Convention on Climate Change (FCCC) Environmental Sustainability
  7. Green Energy and Fuel Laboratory (GENFUEL) Green Energy and Fuel

    Laboratory (GENFUEL) 9 Keep Pillars of Decarbonization 3% 82 % 15% 2030 4% 50 % 46% 2050 100% 0% Maturity technology Developed technology Electrification Hydrogen Ammonia CCUS, Bioenergy Renewable energy Energy efficiency Behavioral change People Net Zero by 2050: A Roadmap for the Global Energy Sector (IEA, 2021)
  8. Green Energy and Fuel Laboratory (GENFUEL) Green Energy and Fuel

    Laboratory (GENFUEL) 10 Taiwan Net Zero Roadmap
  9. Green Energy and Fuel Laboratory (GENFUEL) Fuel for Decarbonization 12

    International Journal of Energy Research, 44:6093-6097;2020 Decarbonization Carbon economy Hydrogen economy
  10. Green Energy and Fuel Laboratory (GENFUEL) Green Energy and Fuel

    Laboratory (GENFUEL) 14 Net Zero & Energy No. of papers: 3608 (2015-2022) 1. Technology 2. Building 3. Effect 4. Cost 5. Potential 6. Development 7. Efficiency 8. Renewable energy 9. Performance 10. Hydrogen 11. Fuel
  11. Green Energy and Fuel Laboratory (GENFUEL) Green Energy and Fuel

    Laboratory (GENFUEL) 15 Applied Energy 1. Performance 2. Algorithm 3. Framework 4. Effect 5. Effectiveness 6. Impact 7. Emission 8. Battery 9. Hydrogen 10.Transition 11.Feature No. of papers: 1639 (2022)
  12. Green Energy and Fuel Laboratory (GENFUEL) Green Energy and Fuel

    Laboratory (GENFUEL) 16 Energy Conversion and Management 1. System 2. Efficiency 3. Condition 4. Cost 5. Process 6. Emission 7. Electricity 8. Production 9. Simulation 10.Hydrogen 11.Development No. of papers: 1148 (2022)
  13. Green Energy and Fuel Laboratory (GENFUEL) Green Energy and Fuel

    Laboratory (GENFUEL) 18 1. Performance 2. Nanoparticles 3. Water 4. Nanosheets 5. H2 production 6. H2 storage 7. Optimization 8. H evolution reaction 9. Electrocatalyst 10.Design 11.O evolution reaction 12.Combustion No. of papers: 2396 (2022) International Journal of Hydrogen Energy
  14. Green Energy and Fuel Laboratory (GENFUEL) Integrated photovoltaic / hydrogen

    power plants Hydrogen fuel cell ship Electric-hydrogen train The electric UAV is powered by a hydrogen fuel cell and solar panels on the wings H2 fuel cell car & LH2 ship Hydrogen FC sailing catamaran China’s first certificate of type approval for a marine fuel cell product. Green hydrogen electrolyzers 19 Global H2 Energy Heavy-duty locomotives 1 MW FC for a haul truck Hydrogen trucks and buses Ursa Major Technologies liquid H2 propulsion systems Volvo fuel cell trucks
  15. Green Energy and Fuel Laboratory (GENFUEL) 21 Hydrogen in Iron

    & Steel • ArcelorMittal in Luxembourg The world's largest production location • Baowu in China Currently the only large-scale hydrogen energy steelmaking demonstration company. • NIPPON STEEL in Japan SUPERCOURSE50 Hydrogen Steel Demonstration Site • POSCO in Korea Commercially produced DRI using 25% hydrogen and 75% carbon monoxide
  16. Green Energy and Fuel Laboratory (GENFUEL) Green Energy and Fuel

    Laboratory (GENFUEL) 22 Iron & Steel Industry Blast furnace (BF) Basic-oxygen-furnace (BOF)
  17. Green Energy and Fuel Laboratory (GENFUEL) Green Energy and Fuel

    Laboratory (GENFUEL) 23 Iron & Steel Industry Electric-Arc-Furnace (EAF)
  18. Green Energy and Fuel Laboratory (GENFUEL) Green Energy and Fuel

    Laboratory (GENFUEL) 24 Hydrogen Direct Reduction (HDR) From: Steel, N., Nippon Steel Carbon Neutral Vision 2050, A.C.o.Z.-C. Steel, Editor. 2021, Nippon Steel Corporation: Japan. Fig. 1. Reduction mechanism between fossil fuel and hydrogen [15].
  19. Green Energy and Fuel Laboratory (GENFUEL) Green Energy and Fuel

    Laboratory (GENFUEL) 26 CO2 Free Near CO2 Free H2 Green Electrolysis H2 Turquoise Renewable energy Methane & renewables Nuclear Electrolysis H2 Pink (Yellow) Natural Gas/ hydrocarbons H2 Gray H2 Blue Coal H2 Brown Steam methane reformer Carbon sequestration Hydrogen Color
  20. Green Energy and Fuel Laboratory (GENFUEL) Green Energy and Fuel

    Laboratory (GENFUEL) Photoelectrochemical Alkaline water electrolysis, AWE Proton exchange membrane electrolysis, PEME Solid oxide electrolysis, SOE Hydrogen Production Route & Color Biological Dark-fermentation Photo-fermentation Electrochemical AWE PEME SOE Green Hydrogen Pink Hydrogen Nuclear energy Renewable energy Steam reforming Partial oxidation Autothermal reforming Thermal decomposition Gasification & pyrolysis w/o CCUS with CCUS Brown/Grey Hydrogen Blue Hydrogen Turquoise Hydrogen Solid carbon Thermochemical 27
  21. Green Energy and Fuel Laboratory (GENFUEL) Life Cycle CO2 Emissions

    of H2 Production 28 International Journal of Energy Research, 44:6093-6097;2020
  22. Green Energy and Fuel Laboratory (GENFUEL) 29 Hydrogen Production This

    image is adapted from the results presented in the Hydrogen for Europe pre-study. For details on the underlying assumptions and data used please refer to the full report. https://blog.sintef.com/sintefenergy/gas-technology/hydrogen-the-future-is-green-but-the-path-there-is-multicoloured/
  23. Green Energy and Fuel Laboratory (GENFUEL) 31 Ammonia Economy 'A

    roadmap to the ammonia economy'. Douglas Macfarlane. Joule, 2020.
  24. Green Energy and Fuel Laboratory (GENFUEL) 32 Keywords: Hydrogen production

    Results: 1,571,240 Patents BASF (23.5%) Bayer (19.0%) Sanofi (17.6%) Dow Inc. (14.9%) Unassigned (24.9%) 2016: 61840 Patents 2010: 48205 Patents 2000: 34225 Patents 1927: 431 Patents
  25. Green Energy and Fuel Laboratory (GENFUEL) 33 China, Mainland 2022:

    630 Patents 2020: 6415 Patents 2016: 9915 Patents 1991: 182 Patents 2010: 4682 Patents Unassigned (27.7%) BASF (6.3%) Chinese Academy of Sciences (19.2%) Dow Inc. (4.9%) China Petrochemical Corporation (41.9%)
  26. Green Energy and Fuel Laboratory (GENFUEL) 34 Japan 2021: 132

    Patents 2012: 2693 Patents 2006: 2581 Patents 1973: 73 Patents 1990: 1729 Patents Sumitomo Chemical Company, Limited (19.0%) Mitsui Chemicals Inc. (18.2%) Fujifilm Holdings Corp (18.4%) Shin-Etsu Chemical Co., Ltd.. (23.4%) Mitsubishi Chemical Holdings Corp. (20.9%)
  27. Green Energy and Fuel Laboratory (GENFUEL) 35 United States 2014:

    3986 Patents 2002: 3485 Patents 1980: 1882 Patents 1930: 20 Patents 1962: 400 Patents 2021: 341 Patents BASF (20.3%) Pfizer Inc. (14.9%) Bayer (18.3%) Exxon Mobil Corporation (23.7%) Dow, Inc. (22.8%)
  28. Green Energy and Fuel Laboratory (GENFUEL) 36 Taiwan 2021: 570

    Patents 2019: 895 Patents 2012: 1041 Patents 2001: 6 Patents 2008: 1144 Patents Taiwan Fujifilm Holdings Corp (17.6%) Nissan Chemical Corporation (15.5%) Sumitomo Chemical Company, Limited (17.1%) Shin-Etsu Chemical Co., Ltd. (24.1%) Dow, Inc. (25.7%)
  29. Green Energy and Fuel Laboratory (GENFUEL) Green Energy and Fuel

    Laboratory (GENFUEL) 38 Global Hydrogen Review 2022 https://www.connaissancedesenergies.org/sites/default/files/pdf-actualites/GlobalHydrogenReview2022.pdf p. 92 Hydrogen Production Cost
  30. Green Energy and Fuel Laboratory (GENFUEL) Green Energy and Fuel

    Laboratory (GENFUEL) 39 https://www.weforum.org/agenda/2022/02/clean-hydrogen-energy-low-carbon-superpowers/
  31. Green Energy and Fuel Laboratory (GENFUEL) Hydrogen Project in EU

    40 383 projects for hydrogen production in 39 EU countries
  32. Green Energy and Fuel Laboratory (GENFUEL) Hydrogen Production Potential 41

    https://home.kpmg/xx/en/home/insights/2021/01/geographic- hydrogen-hotspots.html
  33. Green Energy and Fuel Laboratory (GENFUEL) 42 Hydrogen Earthshots program,

    with “111 goal” to cut the cost of clean hydrogen to $1 per 1 kilogram in 1 decade. U.S. Earth Shots
  34. Green Energy and Fuel Laboratory (GENFUEL) Supply Chain in Taiwan

    (Upstream) (Raw materials) Ø Bipolar plate Ø Carbon cloth/paper Ø Catalyst Ø Reformer Downstream (System applications) Ø Fixed type Ø Transport type Ø Portable type Merchandise Ø Hydrogen storage alloy Ø Purification and recovery Ø Methanol supply Ø System peripheral components Ø Hydrogen production Ø Hydrogen storage and transportation Ø Ammonia supply Ø Inspection & Testing (Verification Equipment) 43
  35. Green Energy and Fuel Laboratory (GENFUEL) Green Energy and Fuel

    Laboratory (GENFUEL) 44 TOYOTA ALTIS 平均油耗 (15.6 km/L) 油箱(43 L) 續航力(670 km) 平均每公里1.96塊台幣 (TWD/km) TOYOTAALTIS (Hybrid) 平均油耗(25.2 km/L) 油箱(43L) 續航力(1083 km) 平均每公里1.21塊台幣(TWD/km) TOYOTA Mirai 平均氫耗(131.5 km/kg) 氫氣箱(5 kg) 續航力(658 km) 平均每公里0.45-0.61塊台幣(TWD/km) 台灣95無鉛汽油價格 每公升30.5台幣 台灣氫氣價格 每公斤60-80台幣 Gas, Hybrid and FC Cars
  36. Green Energy and Fuel Laboratory (GENFUEL) Green Energy and Fuel

    Laboratory (GENFUEL) Conclusions Time Level Alstom Fuel cell vehicle Hydrogen fueling station 45
  37. Green Energy and Fuel Laboratory (GENFUEL) 46 Green Energy and

    Fuel Laboratory Make Green Come True! Thank you for your attention
