UKRIT PONGSATHAPORN Lead Hardware Engineer LINE THAILAND LINE THINGS CONNECTING
THE UNCONNECTABLE
A brief look at previous IoT solutions What you can
do right now Something New ? LINE THINGS History Developer Trial ???
HISTORY

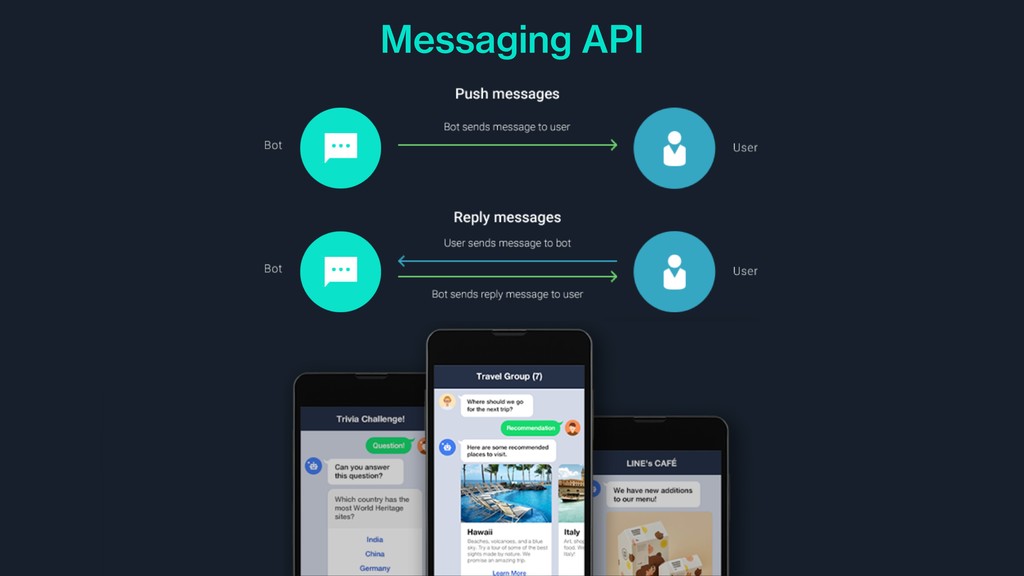

Messaging API
LINE Messaging API IoT Use Case IoT device LINE server
Device directly connects with a third party web Messaging API Your server
LINE BEACON
LINE Beacon LINE LINE server Your server LINE BEACON Messaging
API
FEATURES Relative location of the user to the beacon Segment
and specify only users that are near your designated area Provide a more relevant and useful service Location Segmentation Relation
GOING FURTHER Two-way communication Data can be sent and received
Support for almost all BLE devices Seamless integration for users. Out of sight, out of mind. Bi-directional Full Support Seamless
A universal platform for IoT devices
None
WHAT IS LINE THINGS ? A n I o T
p l atfo r m w i t h i n L I N E ’s ecosystem, open to everyone A bridge to connect users, devices, and services Universal hub for your IoT devices and online services Open IoT Platform Bridge to Connect Universal Hub
LINE THINGS LINE LINE server Device Messaging API LIFF BLE
Your server LIFF app
CONNECTION PROCESS Device Scanning Connect Advertising
DEVICE LINK LIFF BLE
HOW DOES LIFF BLE WORK ? LINE LIFF SDK (BLE
plugin) BLE native component Device LIFF app

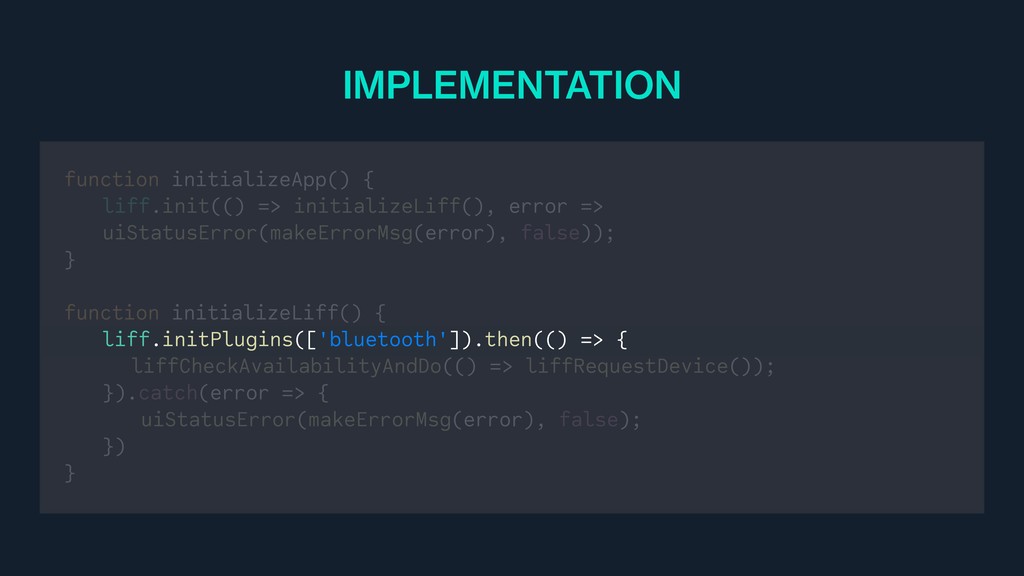

function initializeApp() { liff.init(() => initializeLiff(), error => uiStatusError(makeErrorMsg(error), false));
} function initializeLiff() { liff.initPlugins(['bluetooth']).then(() => { liffCheckAvailabilityAndDo(() => liffRequestDevice()); }).catch(error => { uiStatusError(makeErrorMsg(error), false); }) } IMPLEMENTATION
function initializeApp() { liff.init(() => initializeLiff(), error => uiStatusError(makeErrorMsg(error), false));
} function initializeLiff() { liff.initPlugins(['bluetooth']).then(() => { liffCheckAvailabilityAndDo(() => liffRequestDevice()); }).catch(error => { uiStatusError(makeErrorMsg(error), false); }) } IMPLEMENTATION
const device = await liff.bluetooth.requestDevice(); const gatt = await device.gatt.connect();
const service = await gatt.getPrimaryService( 'E625601E-9E55-4597-A598-76018A0D293D' ); const characteristic = await service.getCharacteristic( '26E2B12B-85F0-4F3F-9FDD-91D114270E6E' ); characteristic.addEventListener('characteristicvaluechanged', (e) => { console.log('value changed to:' + e.target.value); }); await characteristic.startNotifications(); IMPLEMENTATION

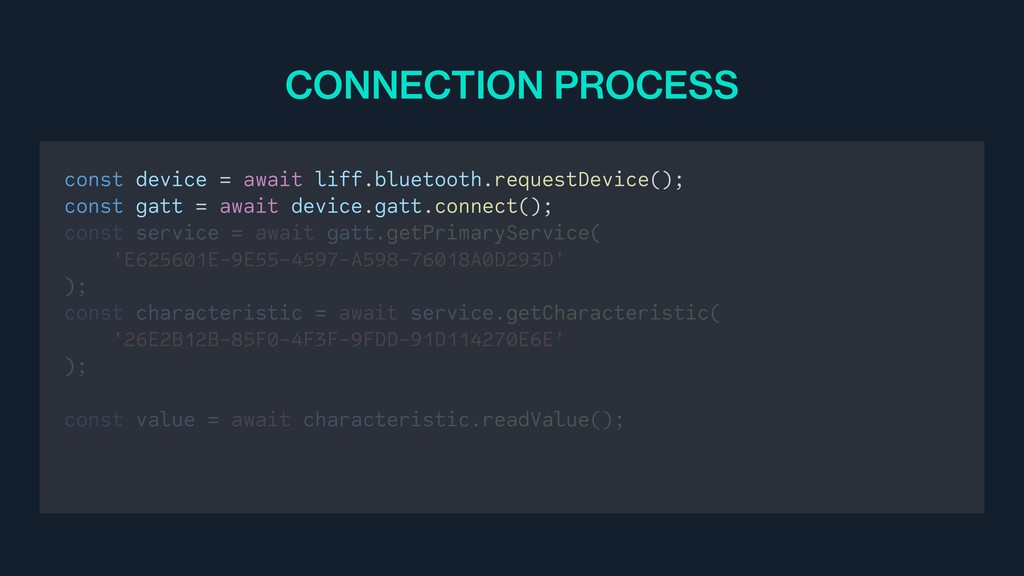

const device = await liff.bluetooth.requestDevice(); const gatt = await device.gatt.connect();
const service = await gatt.getPrimaryService( 'E625601E-9E55-4597-A598-76018A0D293D' ); const characteristic = await service.getCharacteristic( '26E2B12B-85F0-4F3F-9FDD-91D114270E6E' ); const value = await characteristic.readValue(); CONNECTION PROCESS

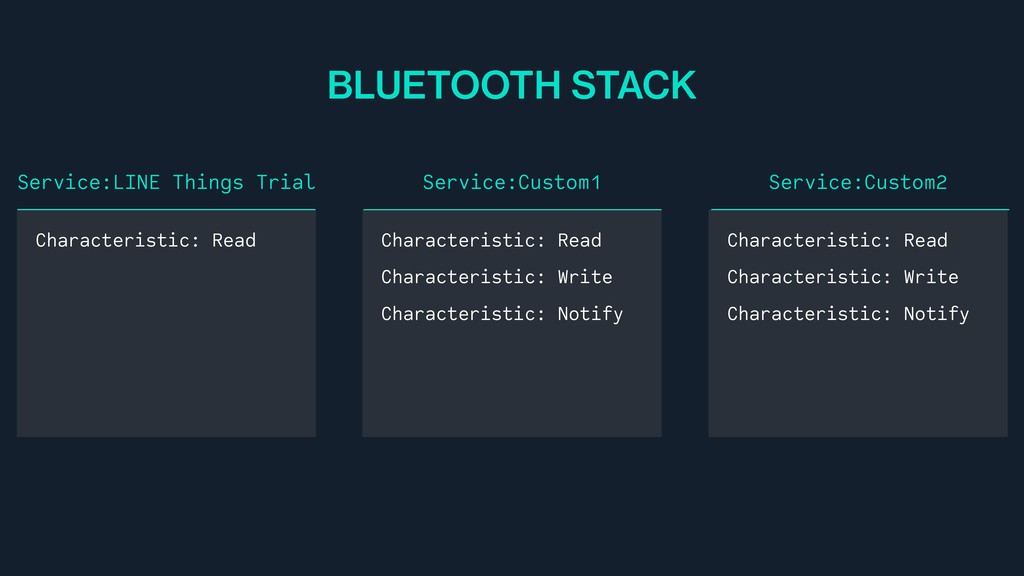

Characteristic: Read Characteristic: Read Characteristic: Write Characteristic: Notify Characteristic: Read
Characteristic: Write Characteristic: Notify BLUETOOTH STACK Service:LINE Things Trial Service:Custom1 Service:Custom2

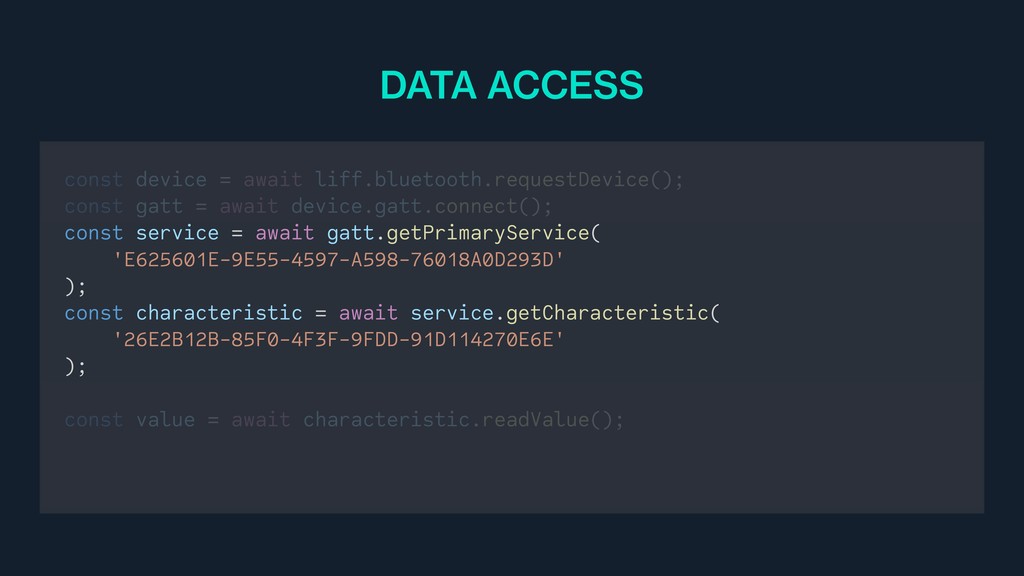

const device = await liff.bluetooth.requestDevice(); const gatt = await device.gatt.connect();
const service = await gatt.getPrimaryService( 'E625601E-9E55-4597-A598-76018A0D293D' ); const characteristic = await service.getCharacteristic( '26E2B12B-85F0-4F3F-9FDD-91D114270E6E' ); const value = await characteristic.readValue(); DATA ACCESS
Device Read Device Write Device Notify DATA ACCESS LINE app
LINE app LINE app
const device = await liff.bluetooth.requestDevice(); const gatt = await device.gatt.connect();
const service = await gatt.getPrimaryService( 'E625601E-9E55-4597-A598-76018A0D293D' ); const characteristic = await service.getCharacteristic( '26E2B12B-85F0-4F3F-9FDD-91D114270E6E' ); const value = await characteristic.readValue(); READ
const device = await liff.bluetooth.requestDevice(); const gatt = await device.gatt.connect();
const service = await gatt.getPrimaryService( 'E625601E-9E55-4597-A598-76018A0D293D' ); const characteristic = await service.getCharacteristic( '26E2B12B-85F0-4F3F-9FDD-91D114270E6E' ); await characteristic.writeValue( new TextEncoder('utf-8').encode('LIFF BLE') ) WRITE
const device = await liff.bluetooth.requestDevice(); const gatt = await device.gatt.connect();
const service = await gatt.getPrimaryService( 'E625601E-9E55-4597-A598-76018A0D293D' ); const characteristic = await service.getCharacteristic( '26E2B12B-85F0-4F3F-9FDD-91D114270E6E' ); characteristic.addEventListener('characteristicvaluechanged', (e) => { console.log('value changed to:' + e.target.value); }); await characteristic.startNotifications(); NOTIFY
LINE THINGS DEVELOPER TRIAL
REQUIREMENTS Create a LINE Things-compatible device Add LIFF app to
your channel Create a Channel Create a LIFF app for LINE Things Create a Provider Register a Product 1 2 3 4 5 6
REGISTER YOUR PRODUCT curl -X POST https://api.line.me/things/v1/trial/products \ -H 'Authorization:
Bearer {channel access token}' \ -H 'Content-Type:application/json' \ -d '{ "name": "{trial product name}", "liffId": "{LIFF APP ID}" }'
{ "id": {productId}, "name": "{trial product name}", "type": "BLE", "channelId":
{channelId}, "actionUri": "{LIFF APP URL}", "serviceUuid": "{serviceUuid}", "psdiServiceUuid": "{psdiServiceUuid}", "psdiCharacteristicUuid": "{psdiCharacteristicUuid}" }
LINE THINGS STARTER DEMONSTRATION
AUTOMATIC COMMUNICATION ???

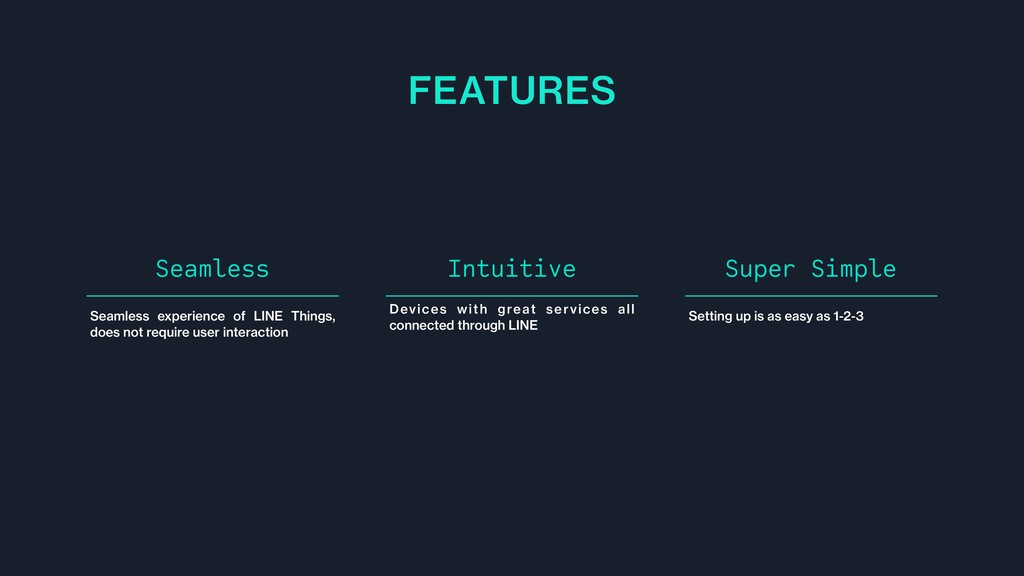

Seamless experience of LINE Things, does not require user interaction
Devices with great services all connected through LINE Setting up is as easy as 1-2-3 Seamless Intuitive Super Simple FEATURES
LINE THINGS LINE LINE server LINE Things Device Messaging API
Returns execution results Your server Executes a scenario set
REGISTERING A SCENARIO SET { "autoClose": false, "suppressionInterval": 0, "scenarios":
[ { "trigger": { "type": "BLE_NOTIFICATION", "serviceUuid": "<YOUR SERVICE UUID>", "characteristicUuid": "62FBD229-6EDD-4D1A-B554- 5C4E1BB29169" }, "actions": [] } ] }

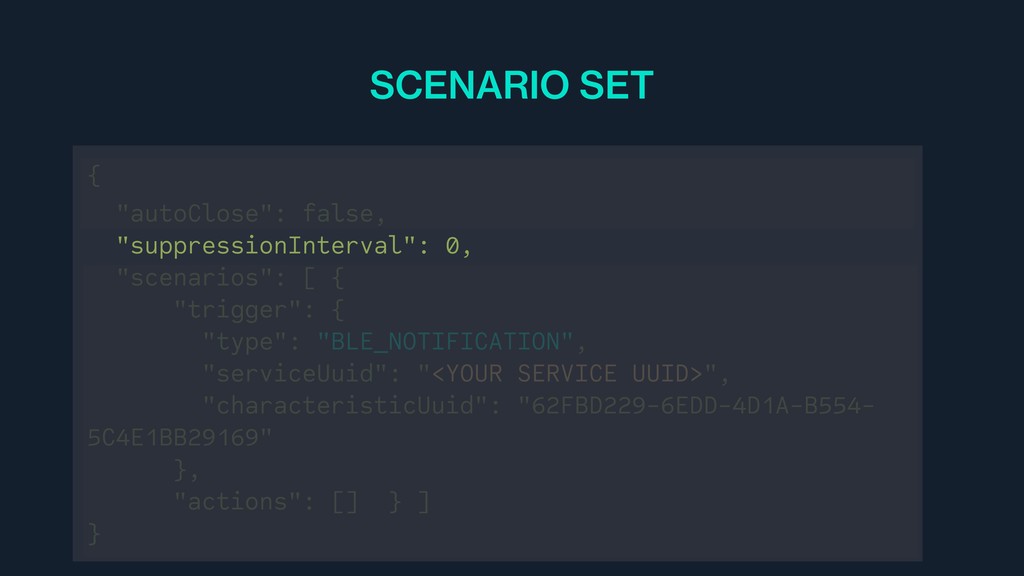

{ "autoClose": false, "suppressionInterval": 0, "scenarios": [ { "trigger": {
"type": "BLE_NOTIFICATION", "serviceUuid": "<YOUR SERVICE UUID>", "characteristicUuid": "62FBD229-6EDD-4D1A-B554- 5C4E1BB29169" }, "actions": [] } ] } SCENARIO SET
{ "autoClose": false, "suppressionInterval": 0, "scenarios": [ { "trigger": {
"type": "BLE_NOTIFICATION", "serviceUuid": "<YOUR SERVICE UUID>", "characteristicUuid": "62FBD229-6EDD-4D1A-B554- 5C4E1BB29169" }, "actions": [] } ] } SCENARIO SET
{ "autoClose": false, "suppressionInterval": 0, "scenarios": [ { "trigger": {
"type": "BLE_NOTIFICATION", "serviceUuid": "<YOUR SERVICE UUID>", "characteristicUuid": "62FBD229-6EDD-4D1A-B554- 5C4E1BB29169" }, "actions": [] } ] } SCENARIO SET
{ "autoClose": false, "suppressionInterval": 0, "scenarios": [ { "trigger": {
"type": "BLE_NOTIFICATION", "serviceUuid": "<YOUR SERVICE UUID>", "characteristicUuid": "62FBD229-6EDD-4D1A-B554- 5C4E1BB29169" }, "actions": [] } ] } SCENARIO SET
{ "autoClose": false, "suppressionInterval": 0, "scenarios": [ { "trigger": {
"type": "BLE_NOTIFICATION", "serviceUuid": "<YOUR SERVICE UUID>", "characteristicUuid": "62FBD229-6EDD-4D1A-B554- 5C4E1BB29169" }, "actions": [] } ] } SCENARIO SET
{ "events": [ { "type": "things", "replyToken": "7219516709304f028ddf1540d6953518", "source": {
"userId": "u11111111111111111111111111111111", "type": "user" }, "timestamp": 1558610209312, "things": { "deviceId": "t016ae2ae6b5d3fabed4cd0700cf16612", "result": { "scenarioId": "01DBG55W4AQX75G66X83QX46ZY", "revision": 2, "startTime": 1558610206362, Webhook Event
AUTOMATIC COMMUNICATION DEMONSTRATION
HANDS-ON-ATHON LINE THAILAND LINE Developers Thailand ONE MORE THING...
THANK_YOU
