Building a Serverless Data Pipeline

Signal conference talk about Data, Serverless and a StackOverflow Dashboard

Transcript

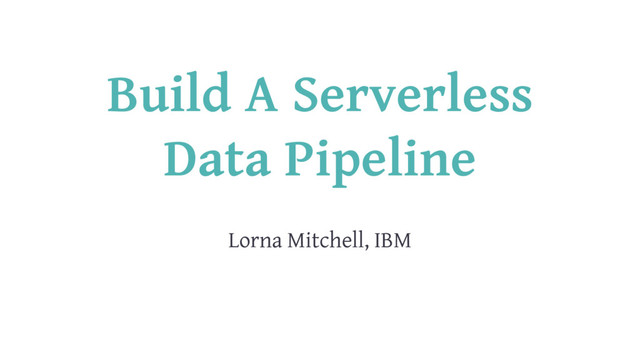

1. Build A Serverless Data Pipeline Lorna Mitchell, IBM
2. Stackoverflow Dashboard @lornajane
3. Pipeline To Shift Data Bringing data from StackOverflow into the dashboard my advocate team uses @lornajane
4. Why Go Serverless? • Costs nothing when idle • Small application, simple architecture • Bursty usage since it runs from a cron • No real-time requirement • Easily within free tier @lornajane
5. An Aside About Databases @lornajane
6. Document Databases Store collections of schemaless documents, in JSON @lornajane
7. CouchDB Cluster Of Unreliable Commodity Hardware • Modern, scalable document database • HTTP API • JSON data format • Best replication on the planet (probably) @lornajane
8. Writing Serverless Functions @lornajane
9. Serverless Platforms • Amazon Lambda • IBM Cloud Functions (aka OpenWhisk) • Twilio Functions • Azure Functions • Google Cloud Functions • Iron Functions • ... and more every week @lornajane
10. Hello World in JS All the platforms are slightly different, this is for OpenWhisk exports.main = function(args) { return({"message": "Hello, World!"}); }; Function must return an object or a Promise @lornajane
11. OpenWhisk Vocabulary • trigger an event, such as an incoming HTTP request • rule map a trigger to an action • action a function, optionally with parameters • package collect actions and parameters together • sequence more than one action in a row @lornajane
12. Working With Actions Deploy code: zip hello.zip index.js wsk action update --kind nodejs:6 demo/hello1 hello.zip Then run it: wsk action invoke --blocking demo/hello1 @lornajane
13. Web-Enabled Actions Deploy code: zip hello.zip index.js wsk action update --kind nodejs:6 --web true demo/hello1 hello.zip Then curl it: curl https://openwhisk.ng.bluemix.net/api/v1/web/.../hello1.json @lornajane
14. Build the Data Pipeline @lornajane
15. OfflineFirst Applications This app is OfflineFirst: • Client side JS • Client side copy of DB using PouchDB • Background sync to serverside CouchDB @lornajane
16. Designing for Serverless • Modular, testable functions • Each with a single purpose • Observe data hygiene @lornajane
17. Pipeline Actions @lornajane
18. Pipeline Actions Sequence socron • collector makes an API call, passes on data • invoker fires many actions: one for each item Sequence qhandler • storer inserts or updates the record • notifier sends a webhook to slack or a bot @lornajane
19. Health Warning: large quanitity of code coming up ... @lornajane
20. Triggering the Pipeline It's a cron job, so we create a periodic trigger wsk trigger delete couchdbish wsk trigger create couchdbish --feed /whisk.system/alarms/alarm \ --param cron "*/5 * * * *" \ --param trigger_payload "{\"tags\": [\"cloudant\",\"ibm-cloudant Use a rule to link this to our socron sequence wsk rule update couchdbrule couchdbish stackoverflow/socron wsk rule enable couchdbrule @lornajane
21. Collector 1 var request = require('request'); 2 function main(message) { 3 return new Promise(function(resolve, reject) { 4 var tagged = message.tags.join(';'); 5 var r = { method: 'get', url: https://api.stackexchange.com 6 request(r, function(err, response, body) { 7 if (err) { return reject(err); } 8 if (response.statusCode != 200) { throw(new Error('status 9 resolve({ items: body.items }); 10 }); 11 }); 12 } 13 module.exports = main; @lornajane
22. Invoker 1 function main(args) { 2 return new Promise(function(resolve, reject) { 3 var openwhisk = require('openwhisk'); 4 var ow = openwhisk(); 5 var actions = args.items.map(function (item) { 6 return ow.actions.invoke( 7 {actionName: "stackoverflow/qhandler", params: {questio 8 }); 9 return Promise.all(actions).then(function (results) { 10 return resolve({payload: "All OK: " + results.length + " 11 }); 12 }); 13 } @lornajane
23. Storer 1 function main(message) { 2 var cloudant = require('cloudant')({url: message.cloudantURL, 3 var db = cloudant.db.use(message.dbname); 4 var id = message.question.question_id.toString(); 5 return getDoc(db, id).then(function(data) { 6 if (data === null) { // so insert 7 message.question.tags = message.question.tags.sort(); // 8 var obj = { _id: id, type: 'question', owner: null, statu 9 return db.insert(obj).then(function(data) { 10 return obj; // pass on the new object to the next actio 11 }); 12 } else { ... } 13 }); @lornajane
24. Notifier 1 function main(data) { 2 return new Promise(function(resolve, reject) { 3 var request = require('request'); 4 if(data.status == 'new') { 5 var event = { type: "new-question", data: data }; 6 request({ 7 url: hardcoded_hubot_url, method: "POST", headers: {"Co 8 }, function (err, response, body) { 9 if(err) { reject ({payload: "Failed"}); 10 } else { resolve( {payload: "Notified"} ); } 11 }); 12 } else { resolve( {payload: "Complete"} ); } 13 }); @lornajane
25. And breathe! @lornajane
26. Hubot http://hubot.github.com A customisable, life embetterment robot @lornajane
27. Serverless And Data @lornajane
28. Resources • IBM Cloud Functions: https://www.ibm.com/cloud-computing/bluemix/openwhisk • Code https://github.com/ibm-watson-data-lab/soingest • My blog: https://lornajane.net • CouchDB: http://couchdb.apache.org/ • PouchDB: https://pouchdb.com/ • Hubot: http://hubot.github.com @lornajane
