AEMUV (Arduino Electronic Multi-Usage Vehicle)

A vehicle controlled by an Android application using the gyroscope, wirelessly connected via Bluetooth; it has speed control, night vision, live video feedback received at the Android phone, obstacle avoidance, path finder, in-place rechargeable batteries and path record/replay. Designed to handle different kinds of indoor and outdoor applications and to explore areas that are difficult to reach.

Transcript

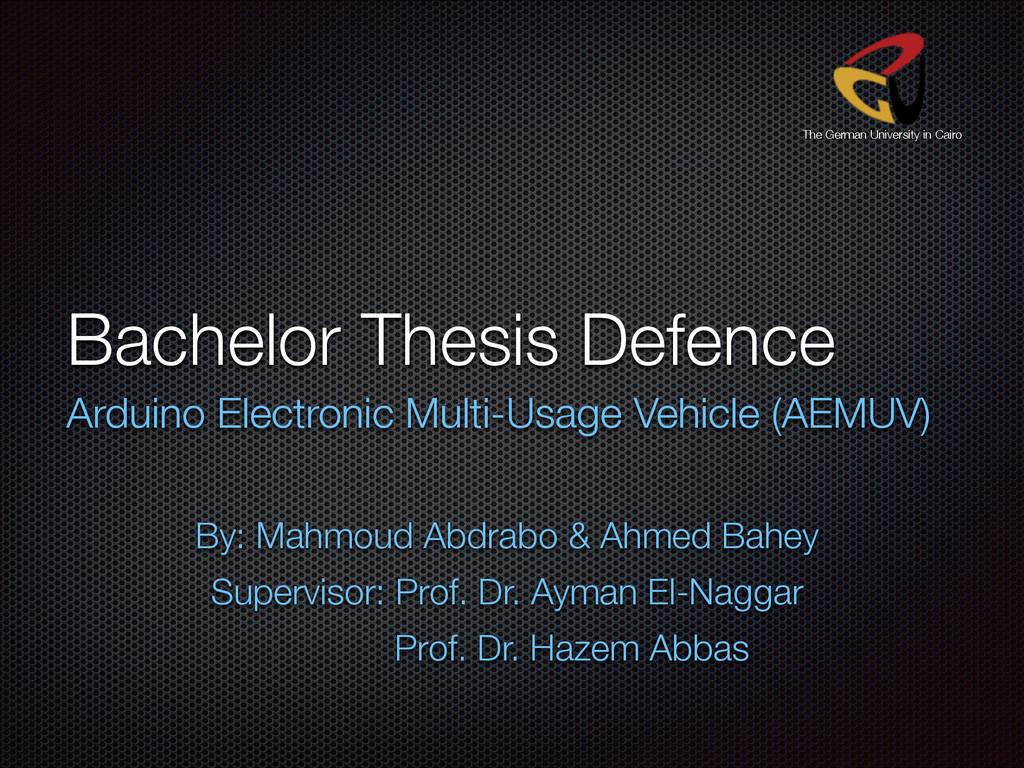

1. Bachelor Thesis Defence Arduino Electronic Multi-Usage Vehicle (AEMUV) ! By: Mahmoud Abdrabo & Ahmed Bahey Supervisor: Prof. Dr. Ayman El-Naggar Prof. Dr. Hazem Abbas The German University in Cairo

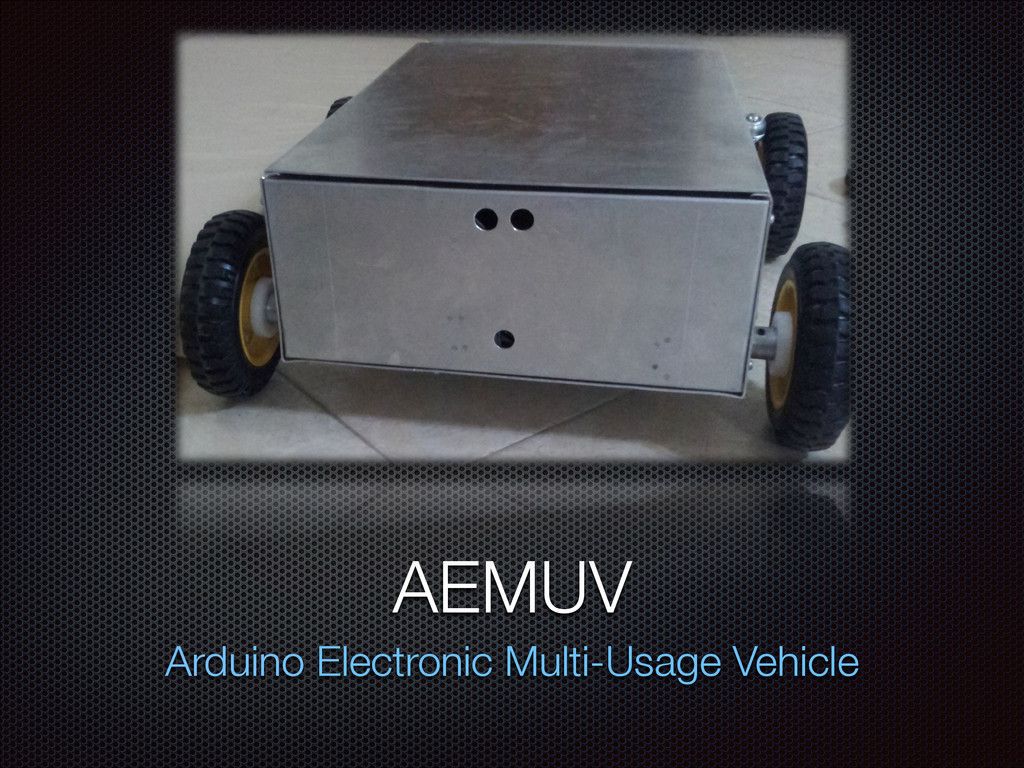

2. AEMUV Arduino Electronic Multi-Usage Vehicle
3. Outline Project Idea Features Mechanical Design Electrical Design Control Conclusion Future Work
4. Outline Project Idea Features Mechanical Design Electrical Design Control Conclusion Future Work

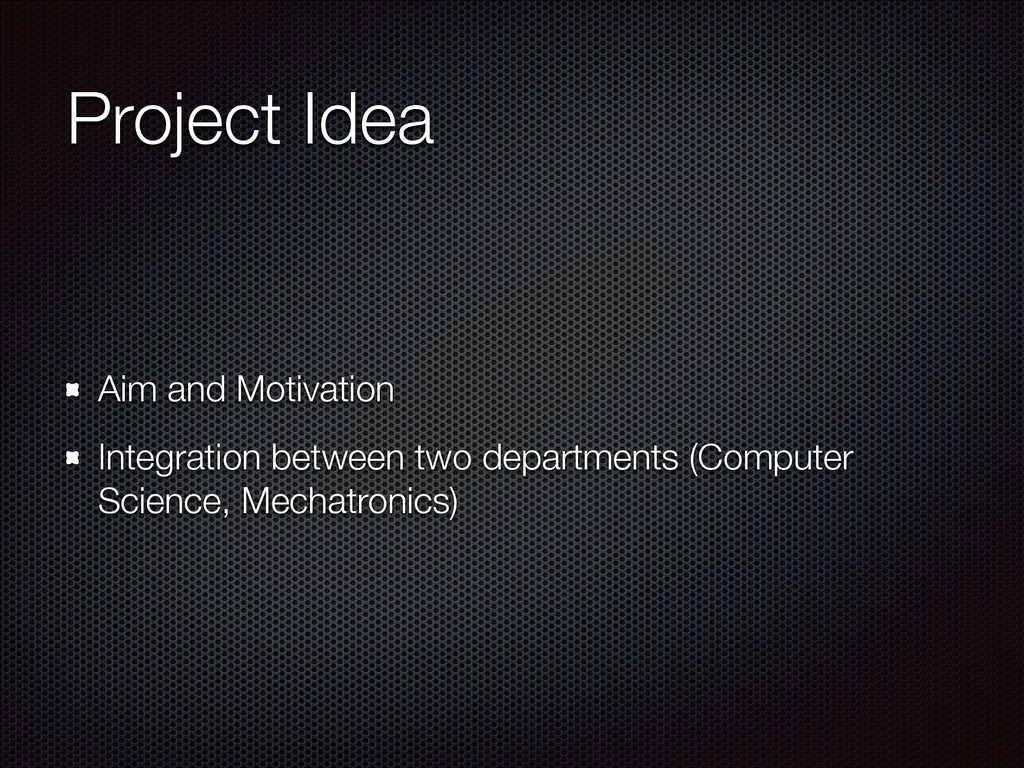

5. Project Idea Aim and Motivation Integration between two departments (Computer Science, Mechatronics)
6. Outline Project Idea Features Mechanical Design Electrical Design Control Conclusion Future Work
7. Features Gyroscope Control D-pad Control Obstacle Avoidance Line Following Path Remembering Live Video Feedback Night Vision 6-Speed Motion Separate Power Supply and Switches In place Rechargeable Batteries
8. Outline Project Idea Features Mechanical Design Electrical Design Control Conclusion Future Work
9. Mechanical Design Rectangular Aluminium Box All Components are enclosed in the box Rubber Insulation for Electric Connections Sliding Cover Indoor/Outdoor Usage Towing Hook
10. Outline Project Idea Features Mechanical Design Electrical Design Control Conclusion Future Work
11. Electrical Design On/Off Switch for Arduino and Sensors On/Off Switch for Motors Powering The Electrical Components Charging Circuit Fuses for Over-current Protection

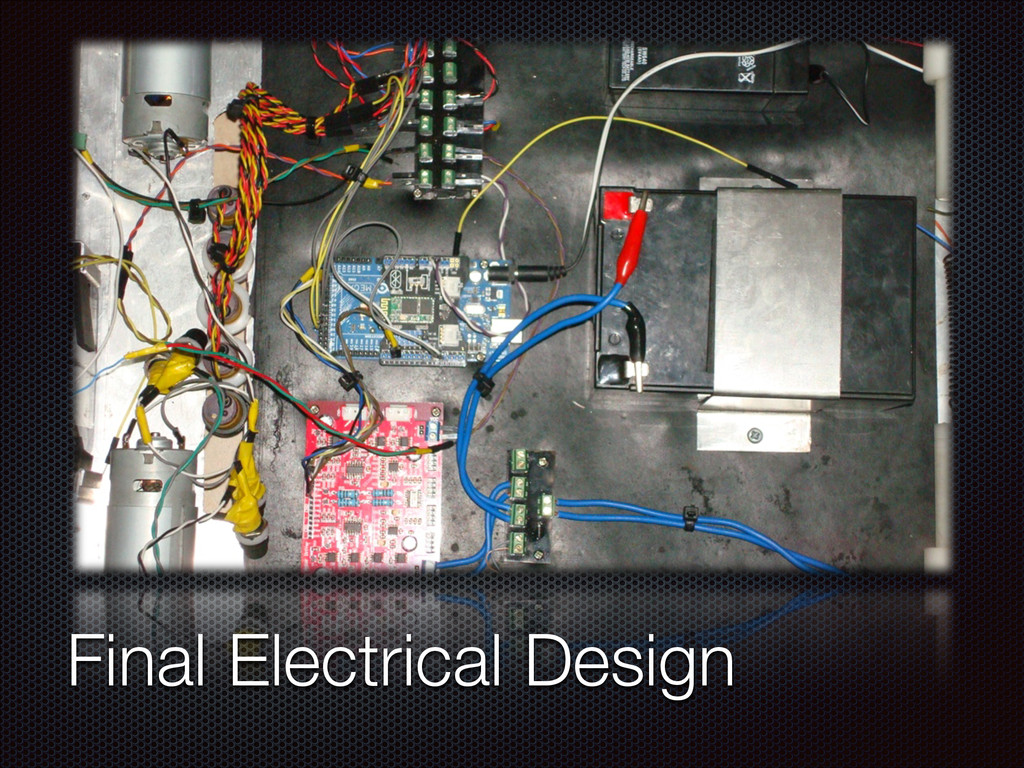

12. Final Electrical Design
13. Outline Project Idea Features Mechanical Design Electrical Design Control Conclusion Future Work

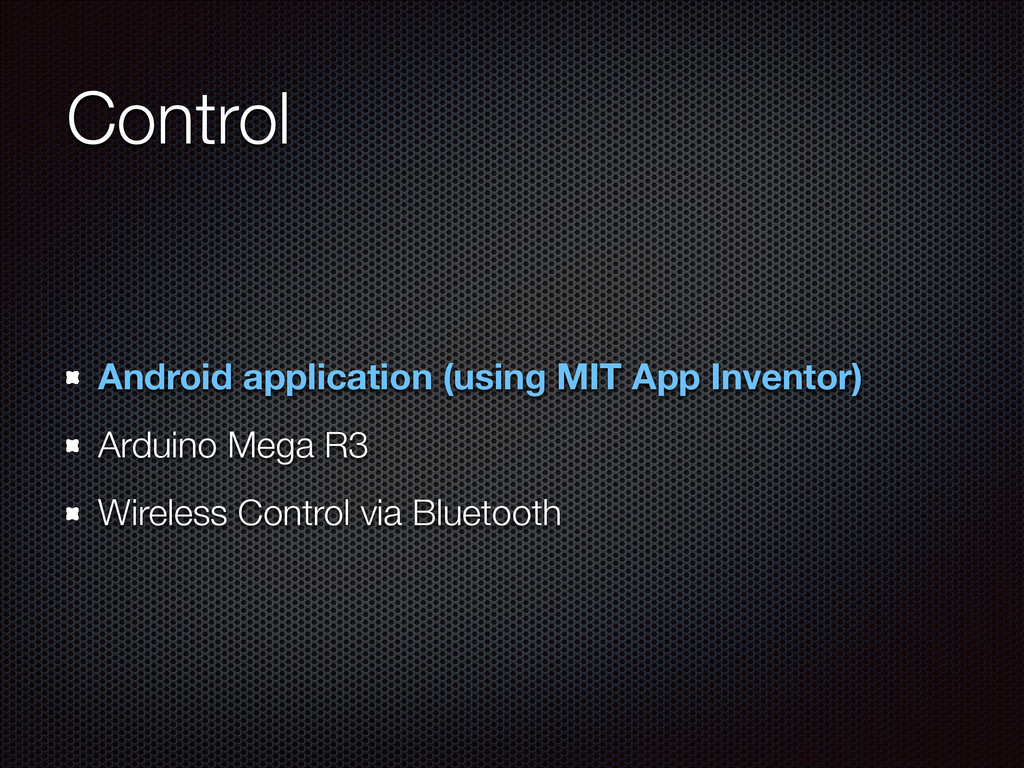

14. Control Android application (using MIT App Inventor) Arduino Mega R3 Wireless Control via Bluetooth
15. Control Android application (using MIT App Inventor) Arduino Mega R3 Wireless Control via Bluetooth

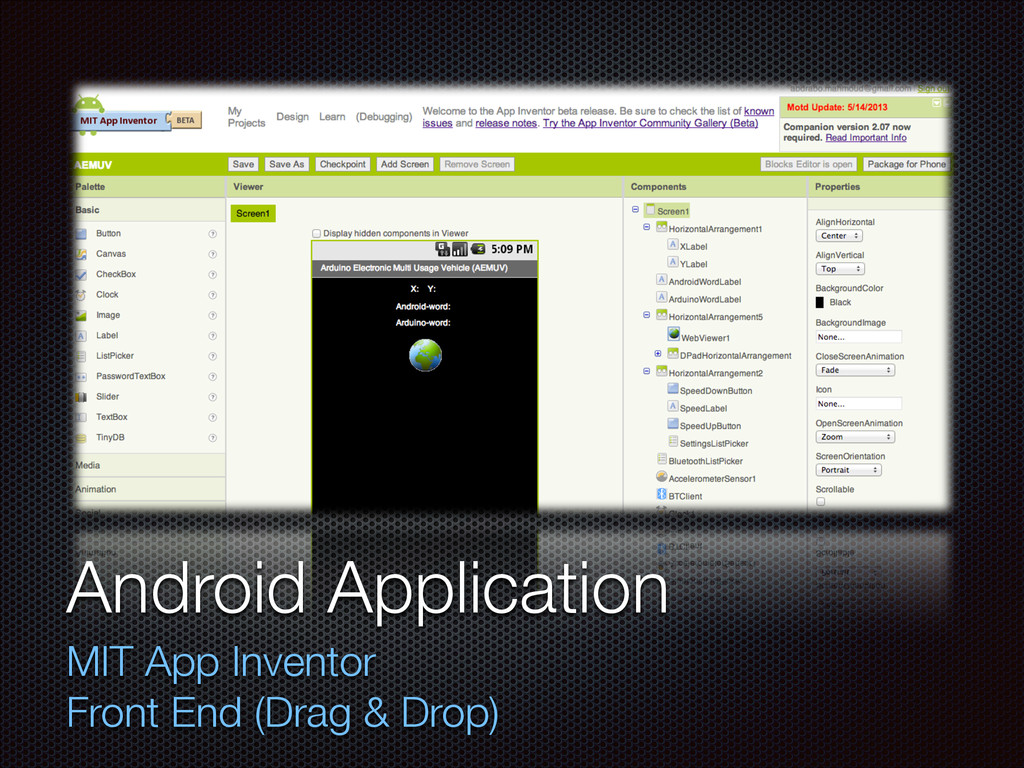

16. Android Application MIT App Inventor Front End (Drag & Drop)

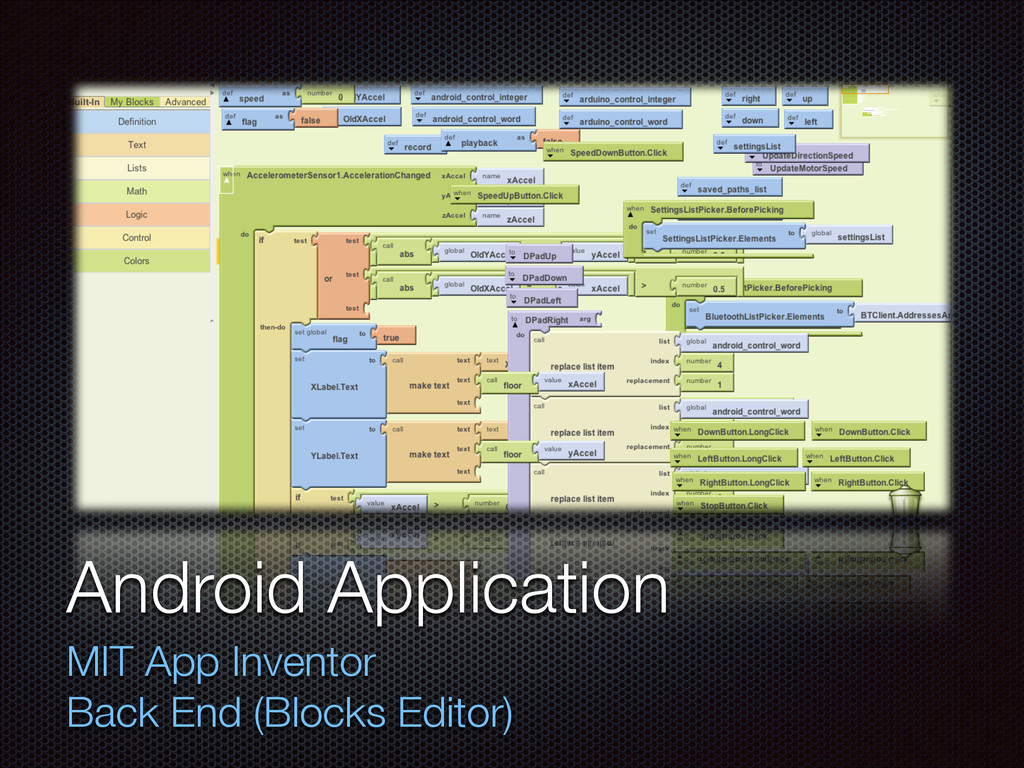

17. Android Application MIT App Inventor Back End (Blocks Editor)

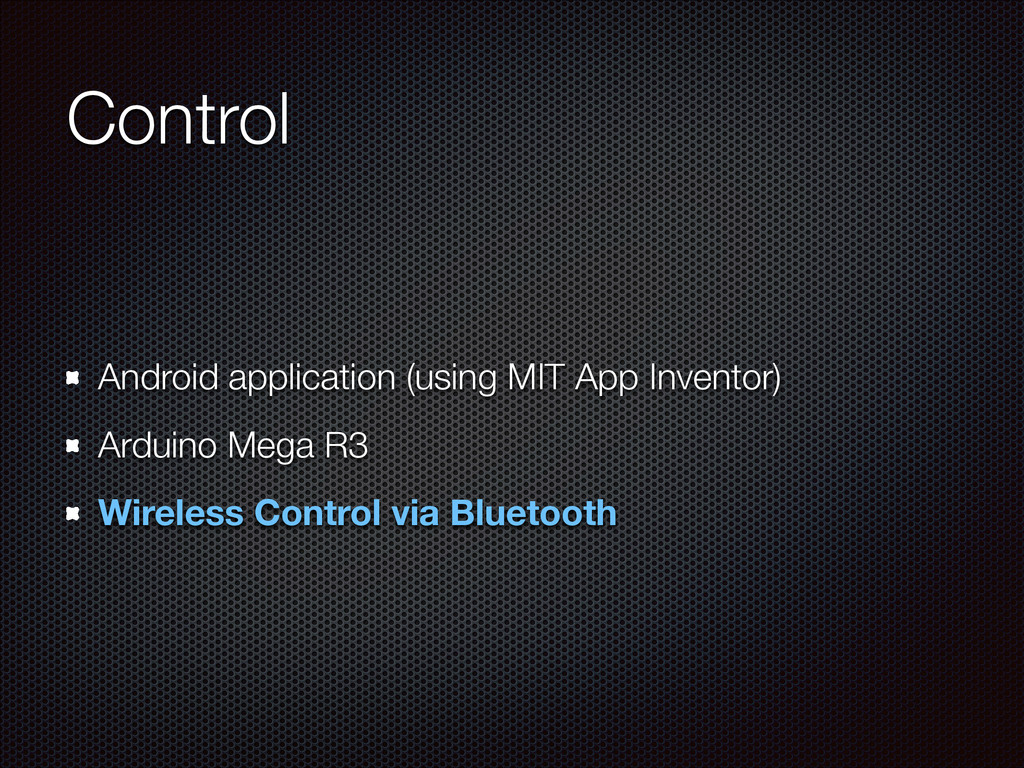

18. Control Android application (using MIT App Inventor) Arduino Mega R3 Wireless Control via Bluetooth
19. Control Android application (using MIT App Inventor) Arduino Mega R3 Wireless Control via Bluetooth

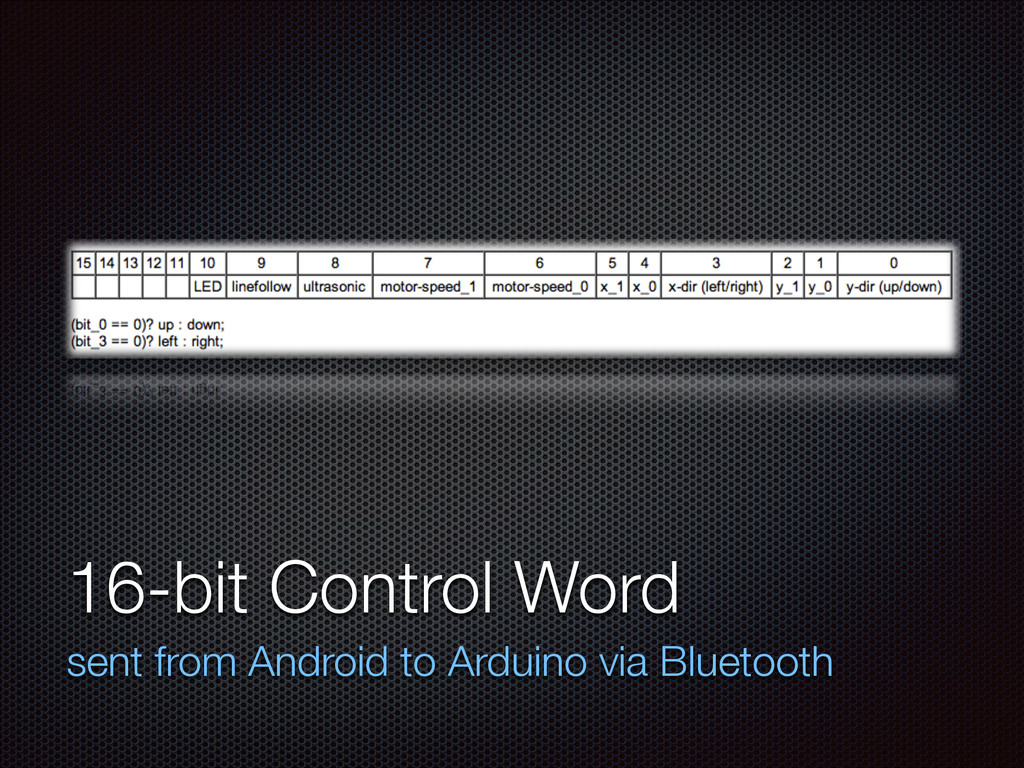

20. 16-bit Control Word sent from Android to Arduino via Bluetooth
21. Outline Project Idea Features Mechanical Design Electrical Design Control Conclusion Future Work

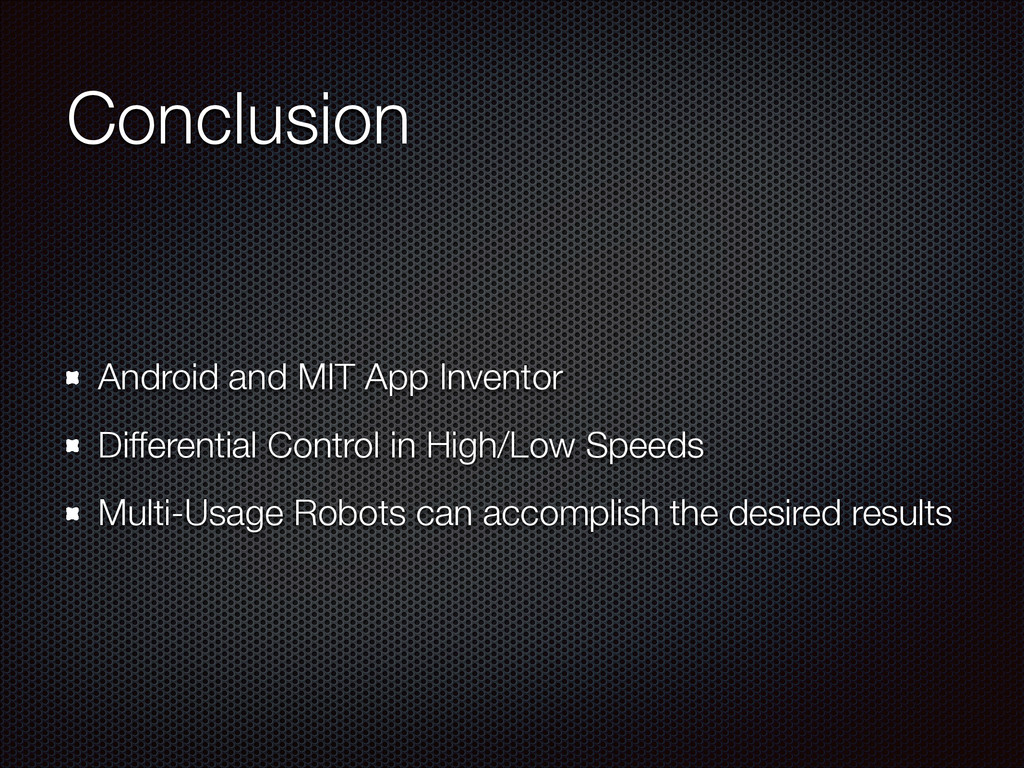

22. Conclusion Android and MIT App Inventor Differential Control in High/Low Speeds Multi-Usage Robots can accomplish the desired results
23. Outline Project Idea Features Mechanical Design Electrical Design Control Conclusion Future Work

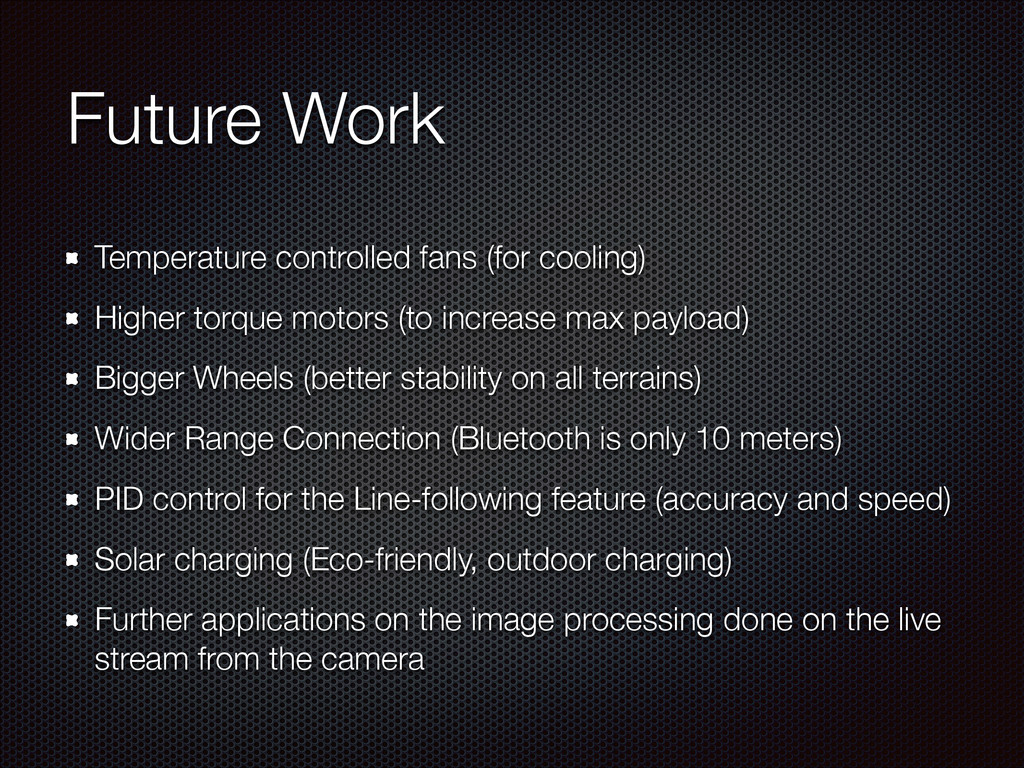

24. Future Work Temperature controlled fans (for cooling) Higher torque motors (to increase max payload) Bigger Wheels (better stability on all terrains) Wider Range Connection (Bluetooth is only 10 meters) PID control for the Line-following feature (accuracy and speed) Solar charging (Eco-friendly, outdoor charging) Further applications on the image processing done on the live stream from the camera

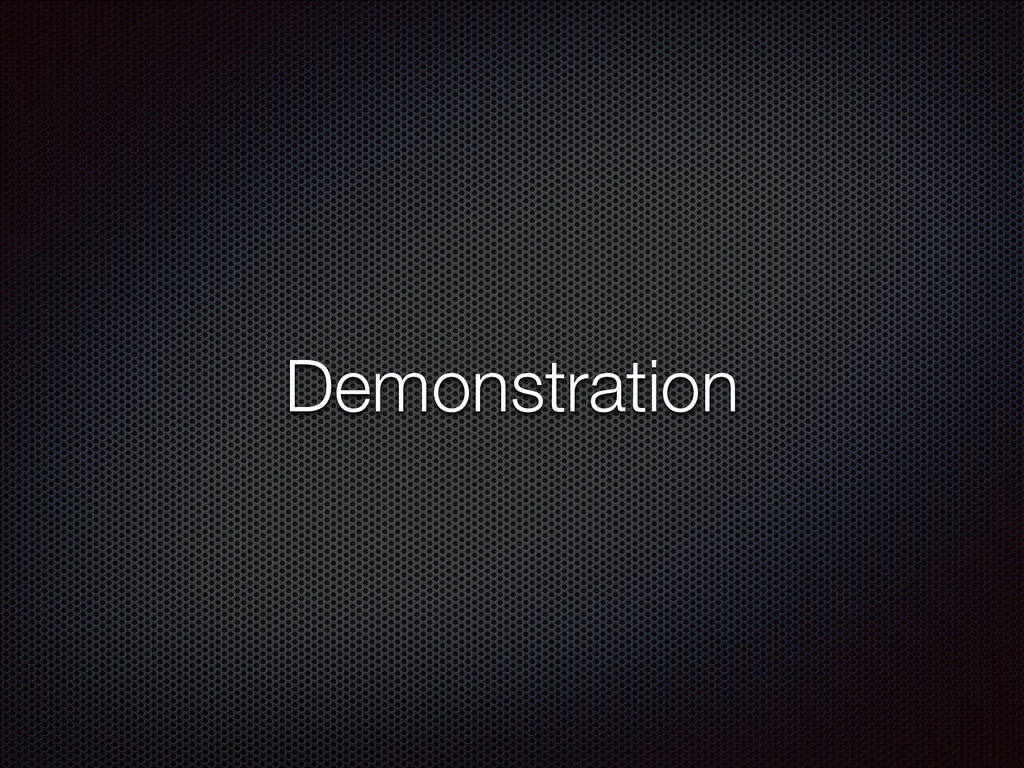

25. Demonstration
