Real-time Analytics with Spark

Big Data meets a small startup. Presented at the Galway Data Meetup.

Experiences from deploying a scalable data analytics infrastructure in the cloud, using Spark, Kafka, Cassandra, MongoDB and Node.js
You will also find a short overview of Spark, some code examples, and useful tips for running Spark Streaming in Production.

Transcript

1. Real-time Analytics with Spark Maciej Dabrowski, Chief Data Scientist, Altocloud ! Galway Data Meetup, 2015-02-03
2. 2 MEETS A SMALL STARTUP source: https://media.licdn.com/mpr/mpr/p/1/005/0a0/167/2f98d60.jpg

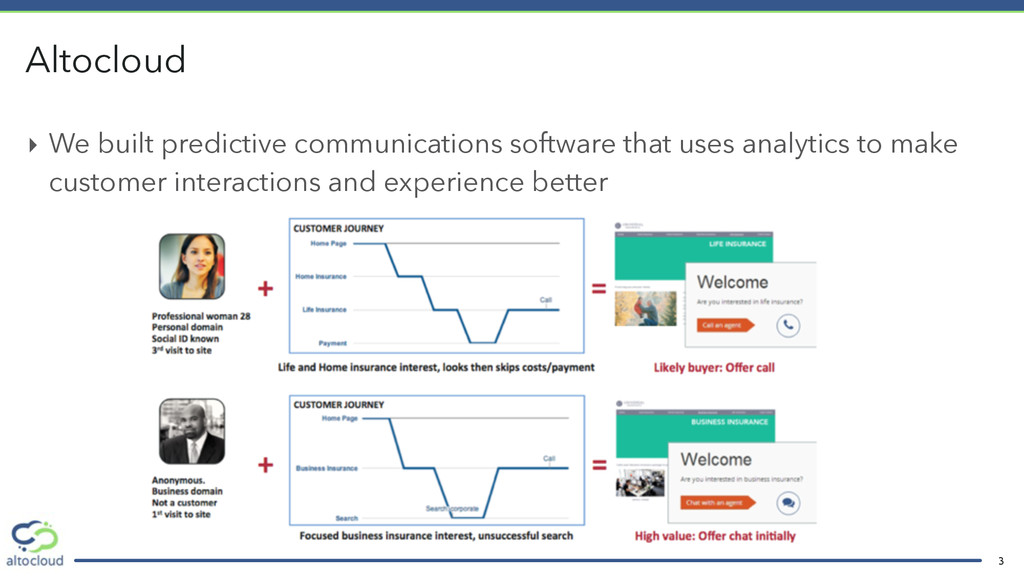

3. ‣ We built predictive communications software that uses analytics to make customer interactions and experience better Altocloud 3

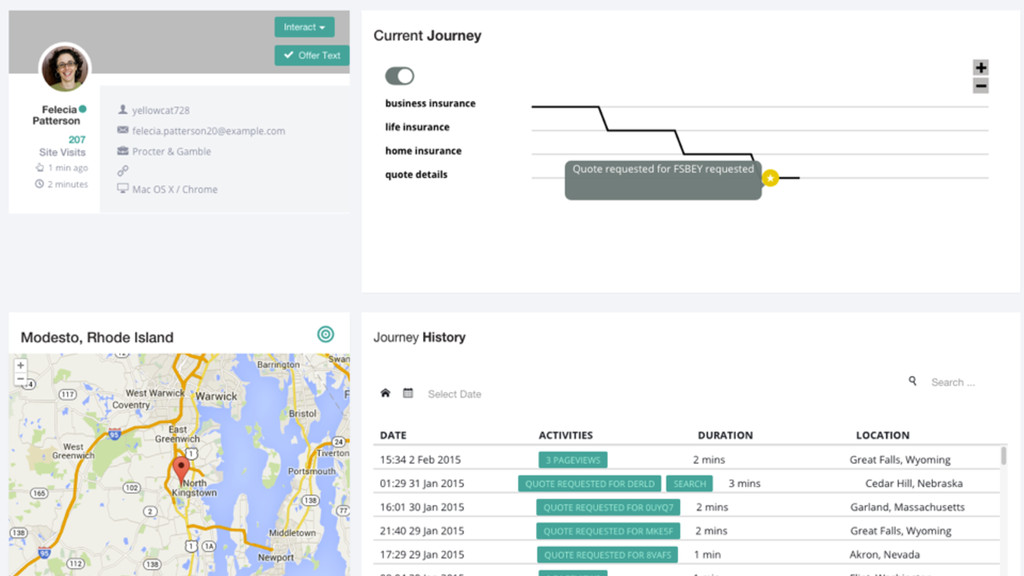

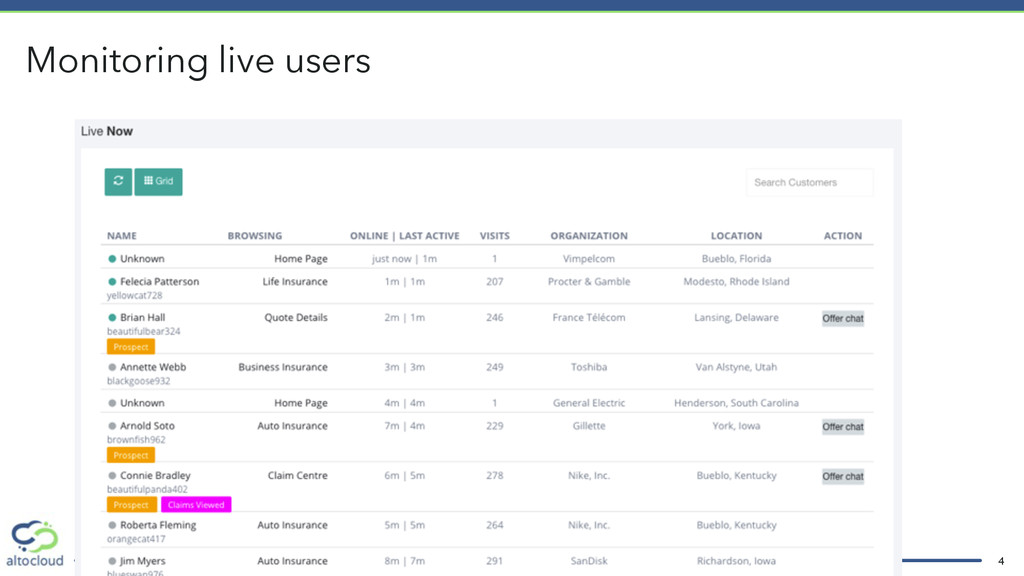

4. Monitoring live users 4
6. 6 ANALYTICS source: http://olap.com/

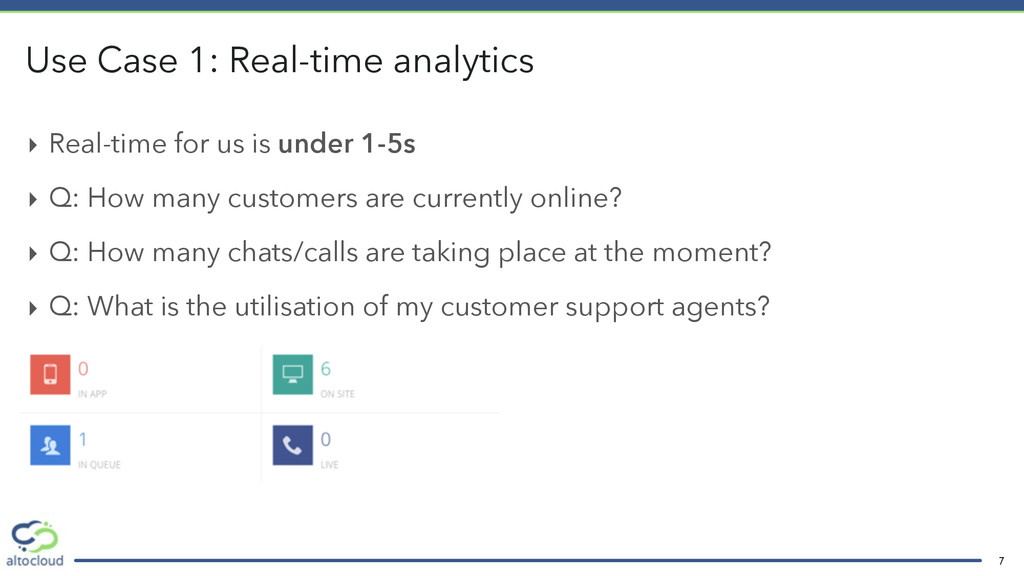

7. ‣ Real-time for us is under 1-5s ‣ Q: How many customers are currently online? ‣ Q: How many chats/calls are taking place at the moment? ‣ Q: What is the utilisation of my customer support agents? Use Case 1: Real-time analytics 7

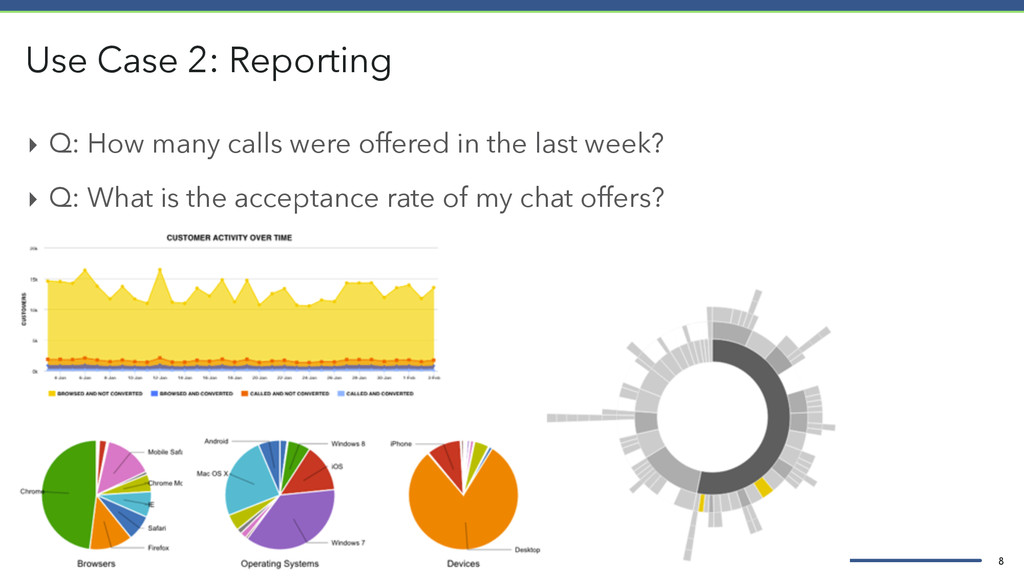

8. ‣ Q: How many calls were offered in the last week? ‣ Q: What is the acceptance rate of my chat offers? Use Case 2: Reporting 8

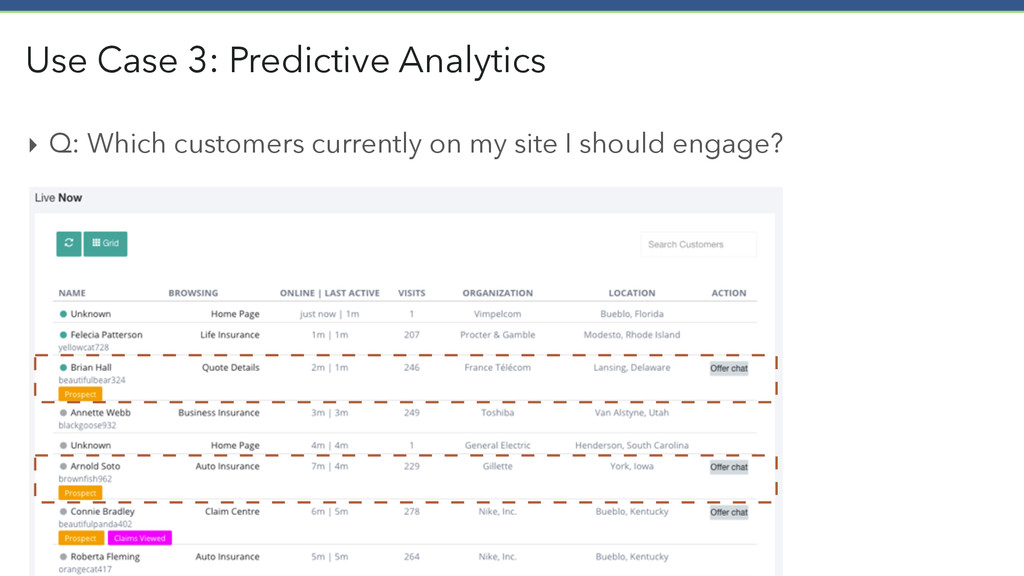

9. ‣ Q: Which customers currently on my site I should engage? Use Case 3: Predictive Analytics 9

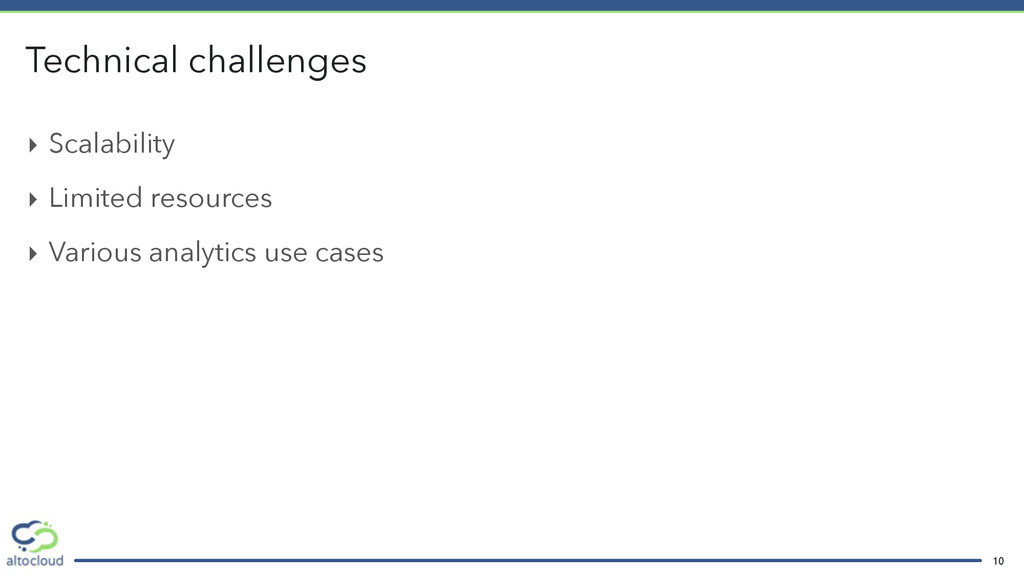

10. ‣ Scalability ‣ Limited resources ‣ Various analytics use cases Technical challenges 10
11. 11 Real-time analytics with Hadoop source: http://barbarashdwallpapers.com/funny-elephant-wallpapers/

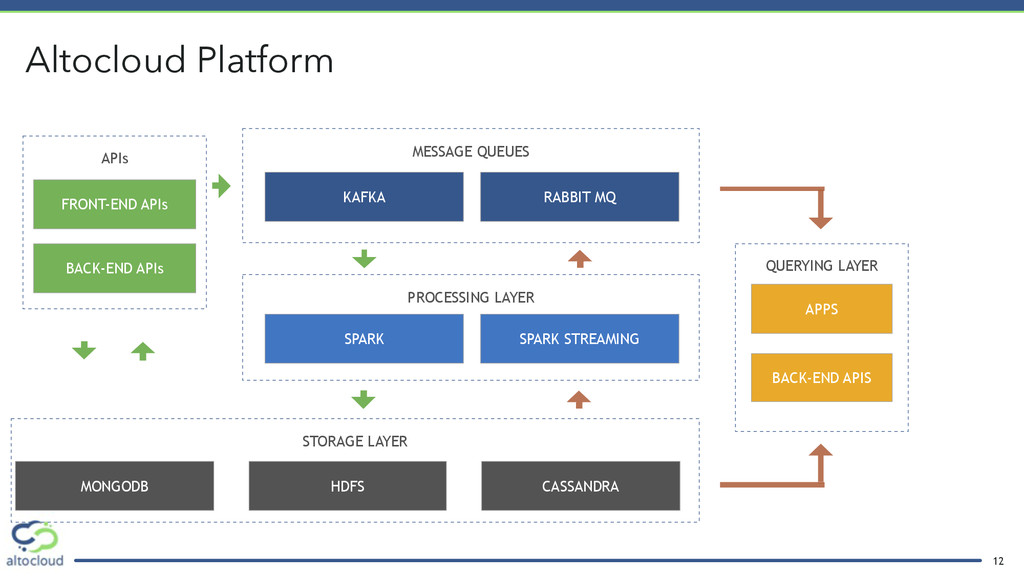

12. APIs QUERYING LAYER STORAGE LAYER PROCESSING LAYER Altocloud Platform 12 MESSAGE QUEUES FRONT-END APIs KAFKA SPARK RABBIT MQ CASSANDRA SPARK STREAMING HDFS BACK-END APIS APPS BACK-END APIs MONGODB

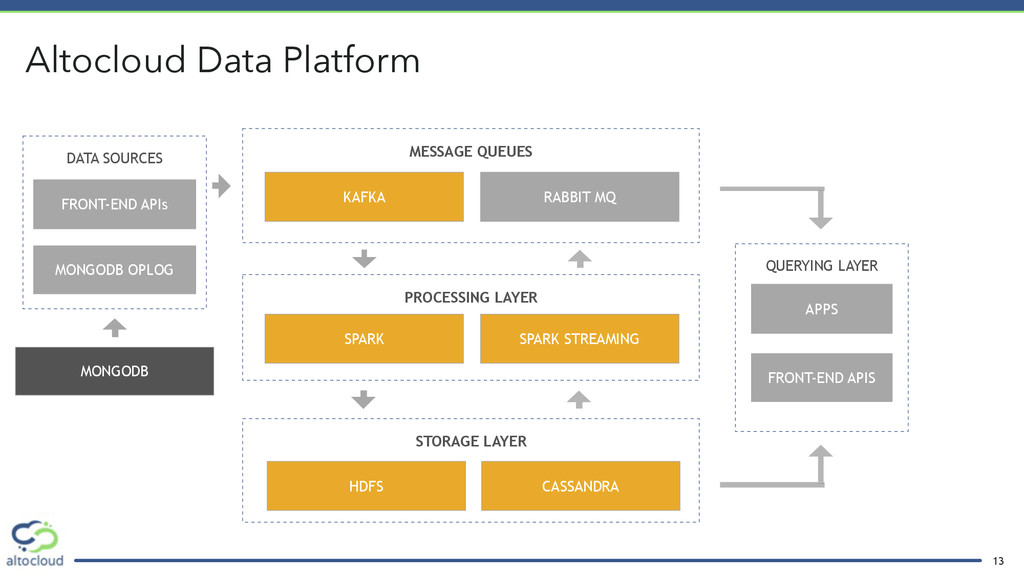

13. DATA SOURCES QUERYING LAYER STORAGE LAYER PROCESSING LAYER Altocloud Data Platform 13 MESSAGE QUEUES FRONT-END APIs KAFKA MONGODB OPLOG SPARK RABBIT MQ CASSANDRA SPARK STREAMING HDFS FRONT-END APIS APPS MONGODB

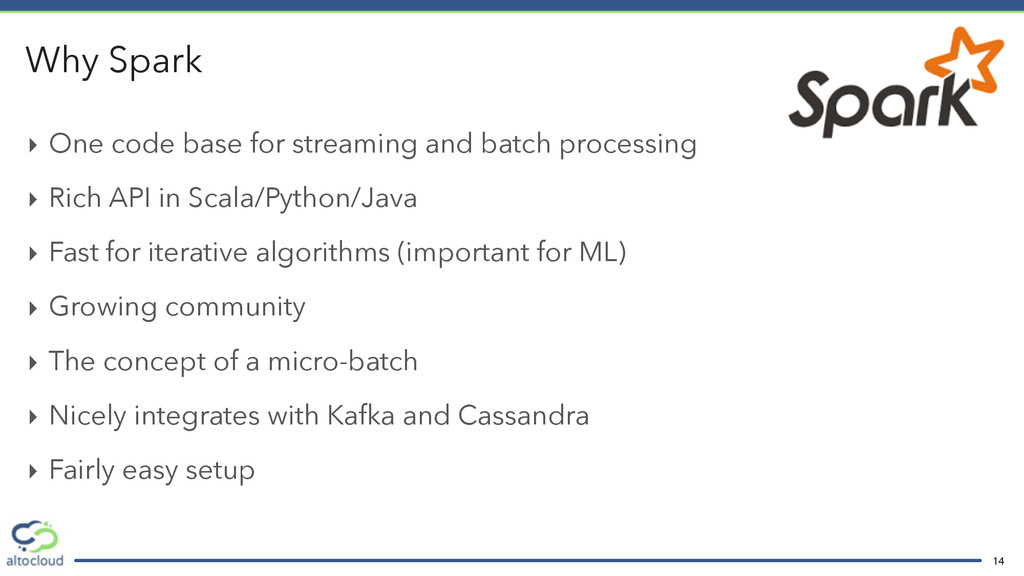

14. ‣ One code base for streaming and batch processing ‣ Rich API in Scala/Python/Java ‣ Fast for iterative algorithms (important for ML) ‣ Growing community ‣ The concept of a micro-batch ‣ Nicely integrates with Kafka and Cassandra ‣ Fairly easy setup Why Spark 14

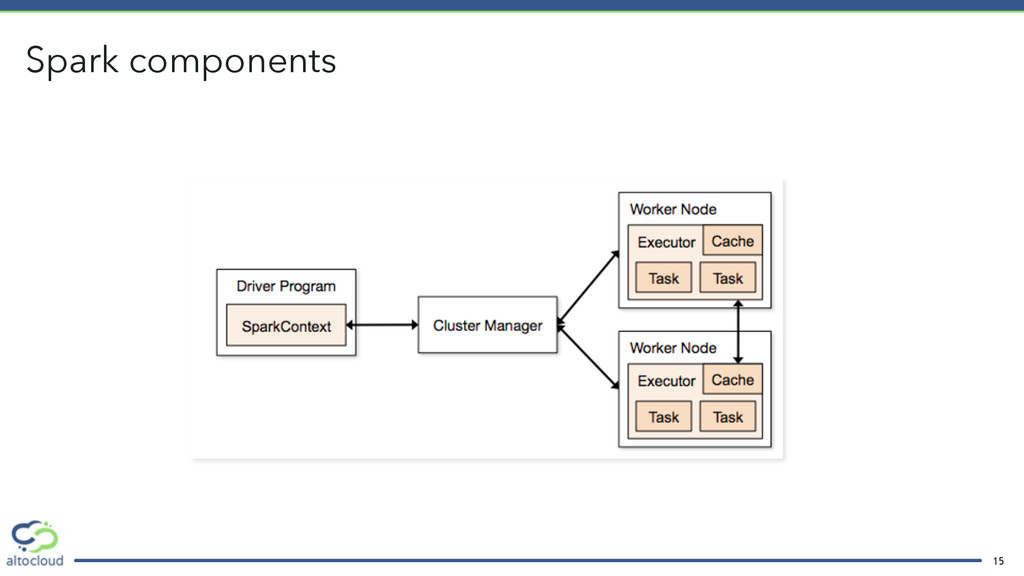

15. Spark components 15

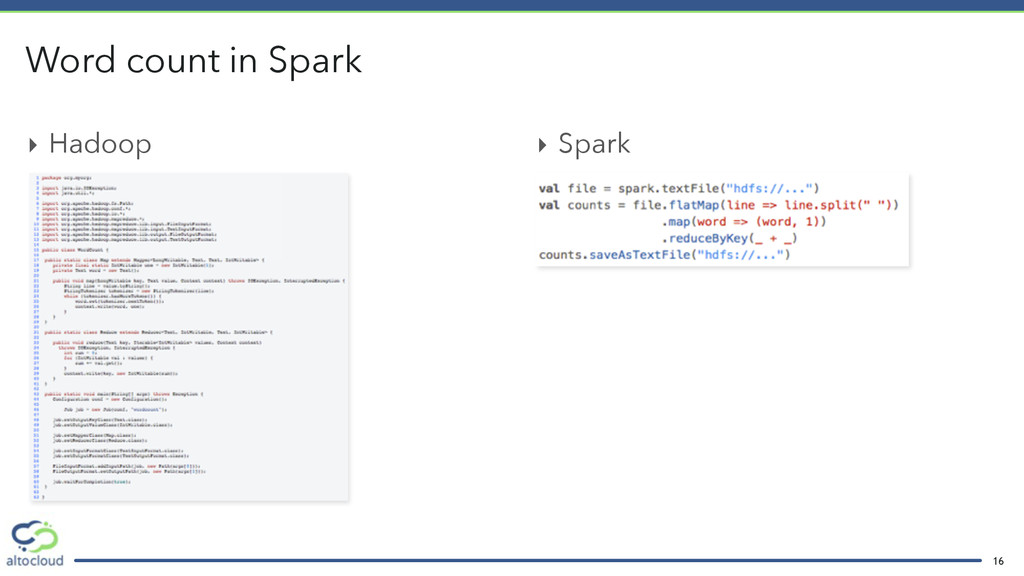

16. ‣ Hadoop ! ! ! ! ! ! ‣ Spark Word count in Spark 16

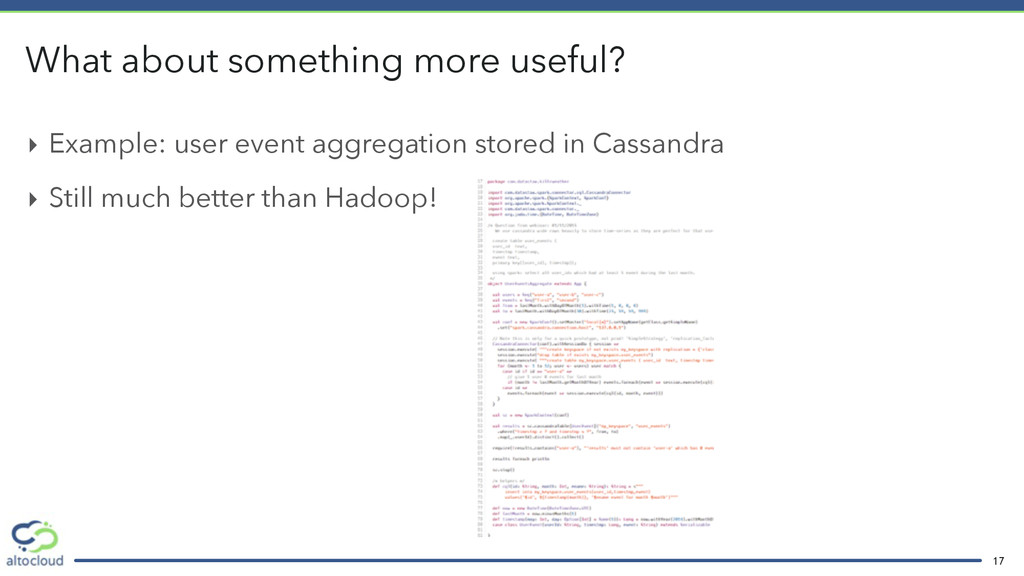

17. ‣ Example: user event aggregation stored in Cassandra ‣ Still much better than Hadoop! What about something more useful? 17

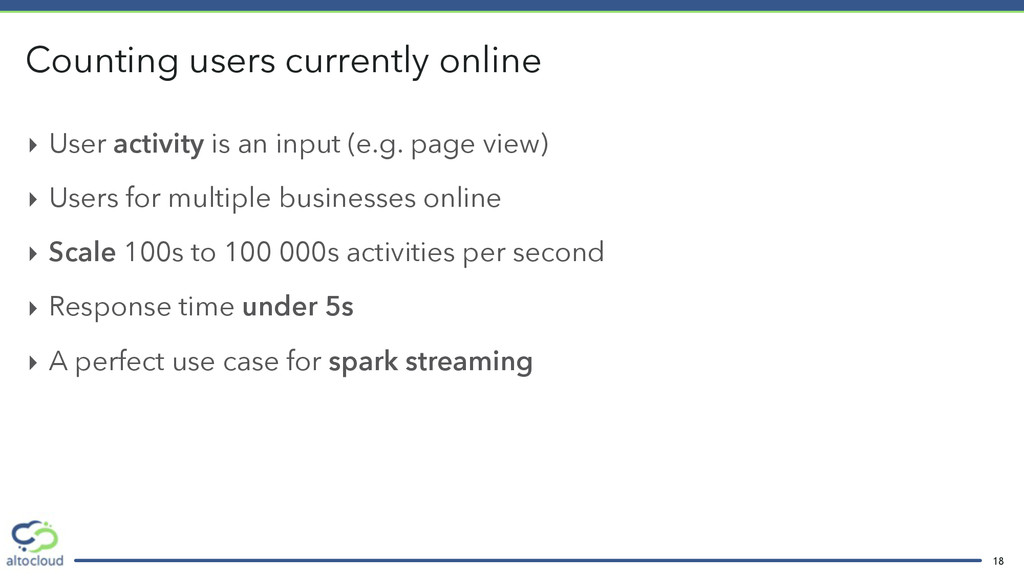

18. ‣ User activity is an input (e.g. page view) ‣ Users for multiple businesses online ‣ Scale 100s to 100 000s activities per second ‣ Response time under 5s ‣ A perfect use case for spark streaming Counting users currently online 18

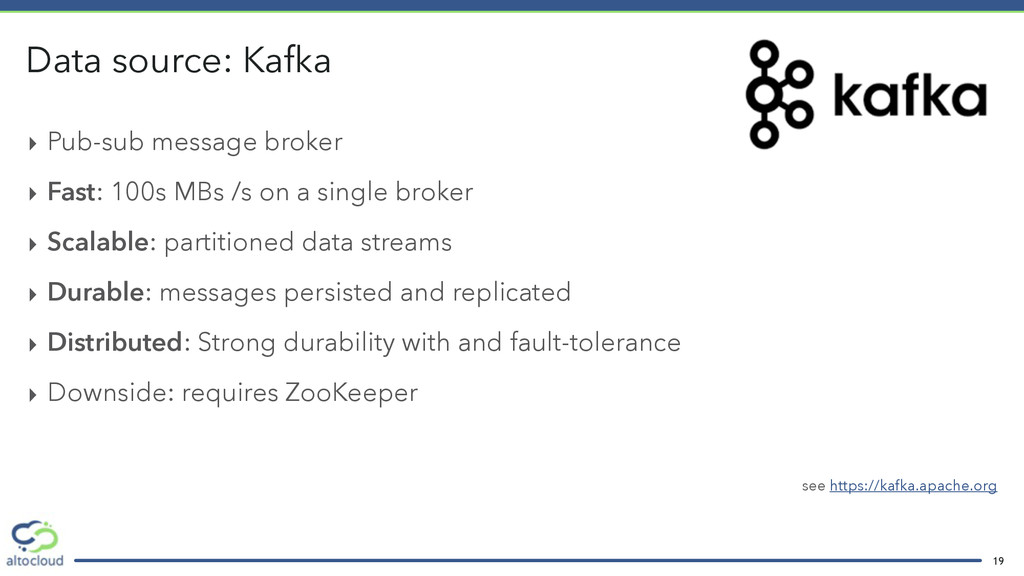

19. ‣ Pub-sub message broker ‣ Fast: 100s MBs /s on a single broker ‣ Scalable: partitioned data streams ‣ Durable: messages persisted and replicated ‣ Distributed: Strong durability with and fault-tolerance ‣ Downside: requires ZooKeeper ! see https://kafka.apache.org Data source: Kafka 19

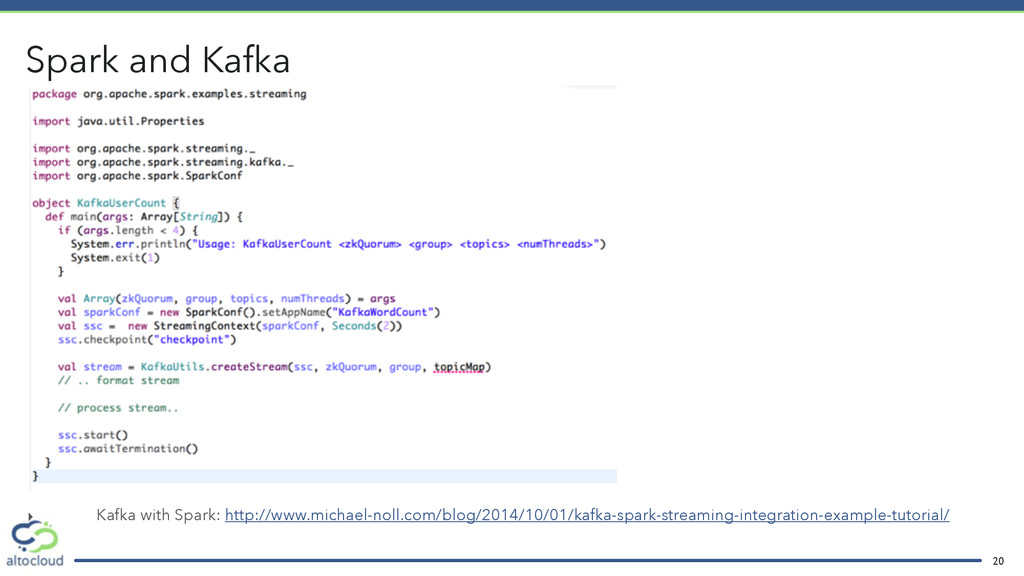

20. ! ! ! ! ! ! ! ‣ Kafka with Spark: http://www.michael-noll.com/blog/2014/10/01/kafka-spark-streaming-integration-example-tutorial/ Spark and Kafka 20

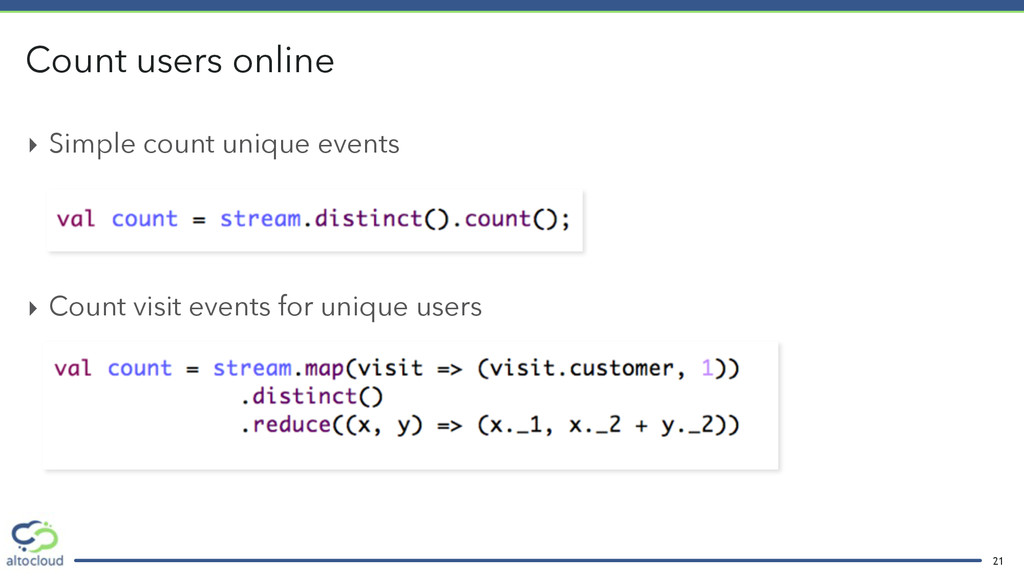

21. ‣ Simple count unique events ! ! ‣ Count visit events for unique users Count users online 21

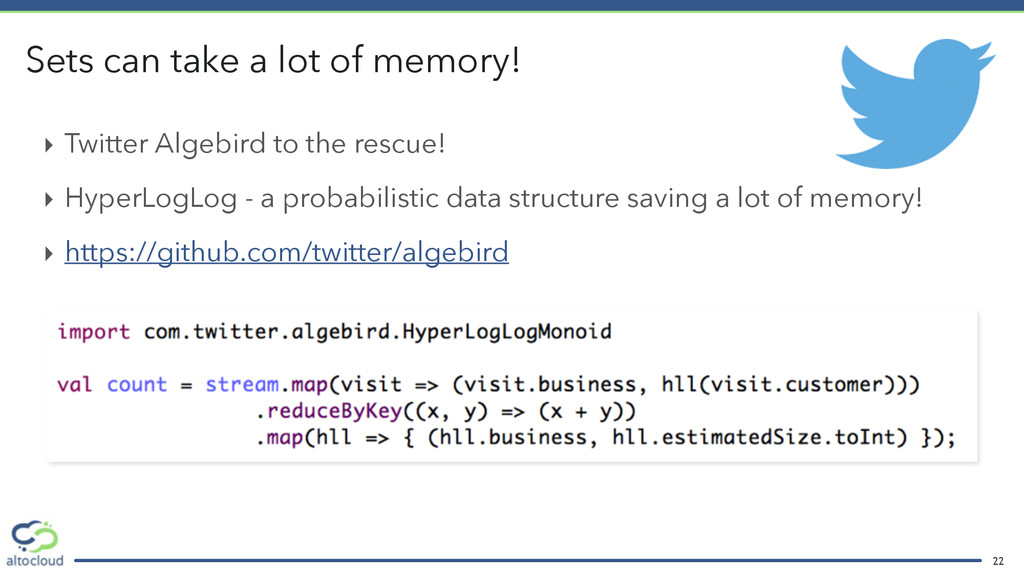

22. ‣ Twitter Algebird to the rescue! ‣ HyperLogLog - a probabilistic data structure saving a lot of memory! ‣ https://github.com/twitter/algebird Sets can take a lot of memory! 22

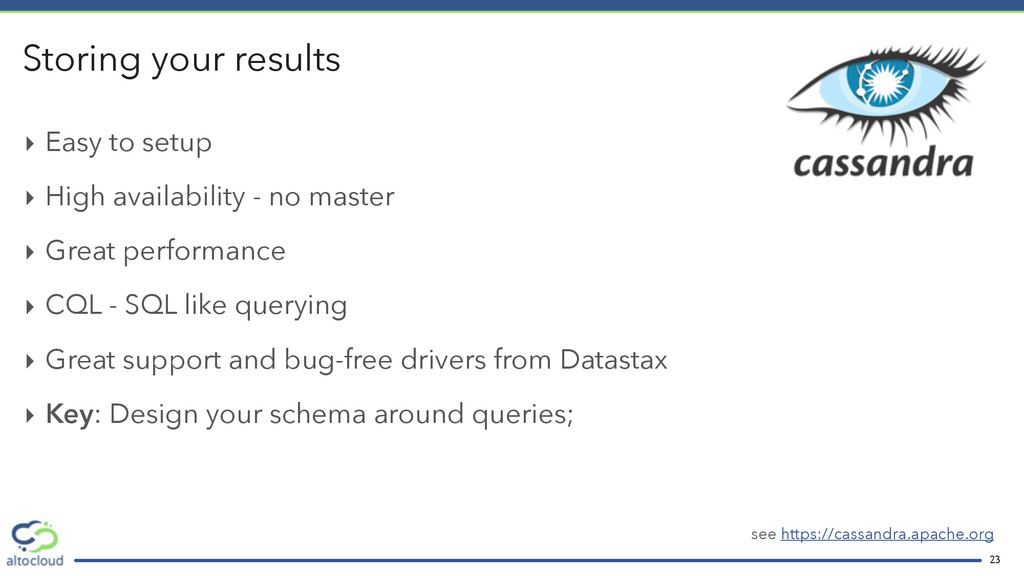

23. ‣ Easy to setup ‣ High availability - no master ‣ Great performance ‣ CQL - SQL like querying ‣ Great support and bug-free drivers from Datastax ‣ Key: Design your schema around queries; ! ! see https://cassandra.apache.org Storing your results 23

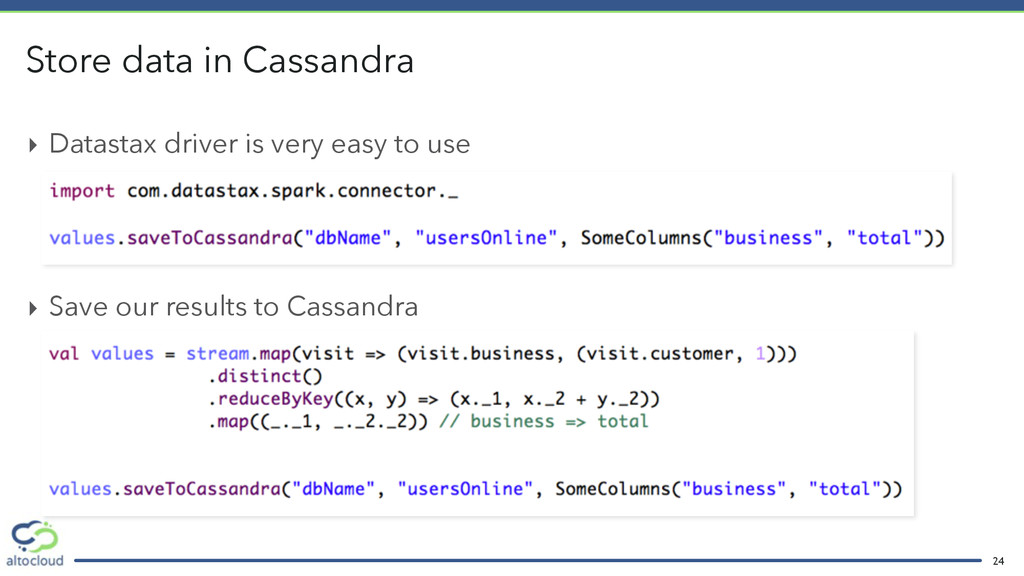

24. ‣ Datastax driver is very easy to use ! ! ‣ Save our results to Cassandra Store data in Cassandra 24
25. 25 source: http://top1walls.com

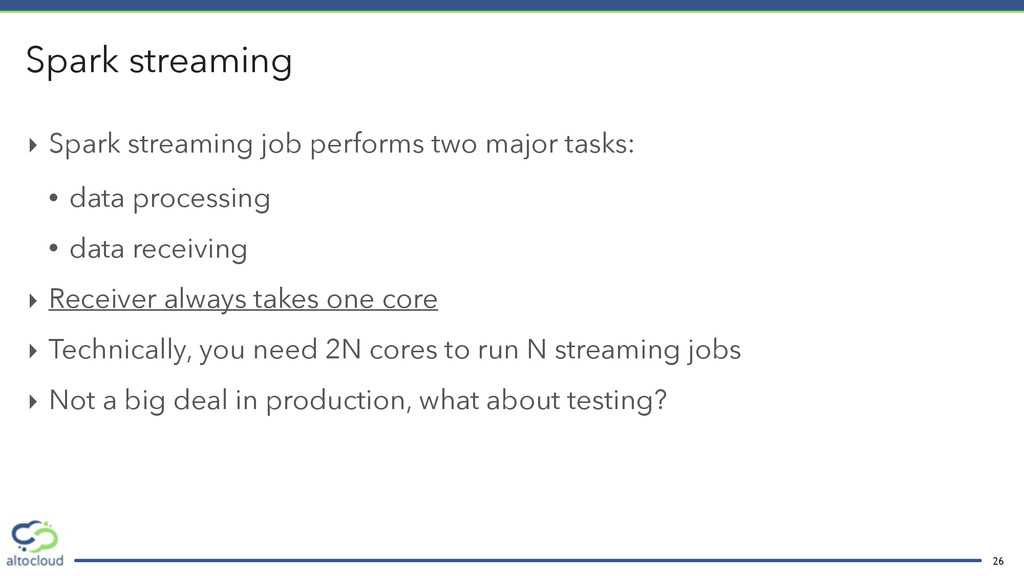

26. ‣ Spark streaming job performs two major tasks: • data processing • data receiving ‣ Receiver always takes one core ‣ Technically, you need 2N cores to run N streaming jobs ‣ Not a big deal in production, what about testing? Spark streaming 26

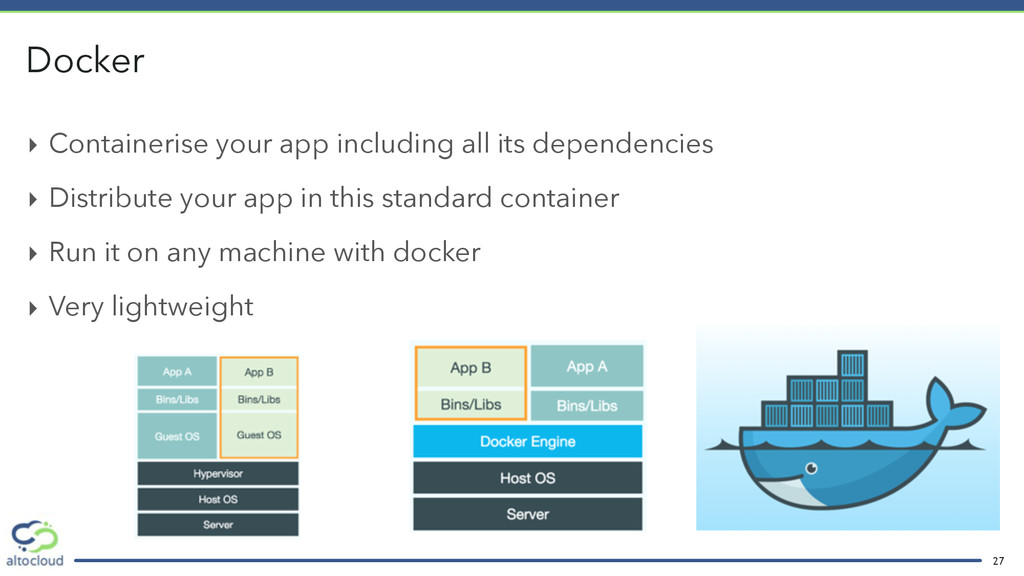

27. ‣ Containerise your app including all its dependencies ‣ Distribute your app in this standard container ‣ Run it on any machine with docker ‣ Very lightweight Docker 27

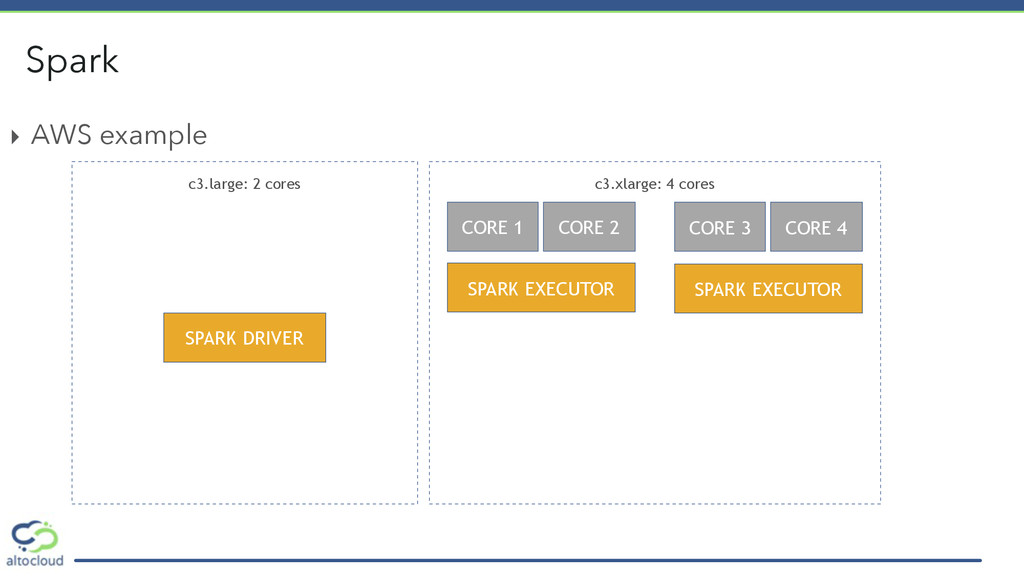

28. c3.xlarge: 4 cores ‣ AWS example Spark SPARK EXECUTOR c3.large: 2 cores SPARK DRIVER SPARK EXECUTOR CORE 1 CORE 2 CORE 3 CORE 4

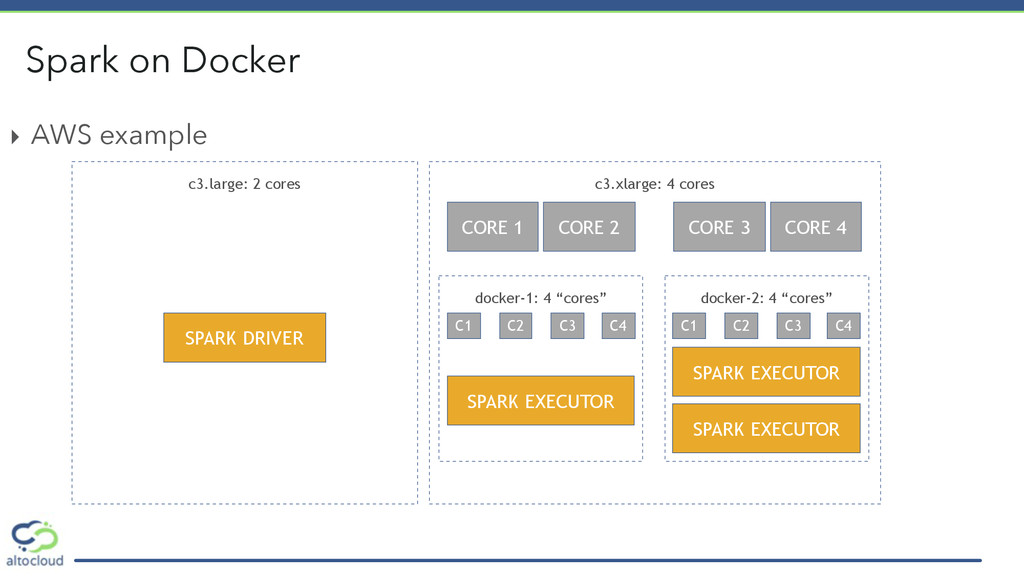

29. c3.xlarge: 4 cores ‣ AWS example Spark on Docker c3.large: 2 cores SPARK DRIVER CORE 1 CORE 2 CORE 3 CORE 4 docker-1: 4 “cores” SPARK EXECUTOR C1 C2 C4 C3 docker-2: 4 “cores” SPARK EXECUTOR C1 C2 C4 C3 SPARK EXECUTOR

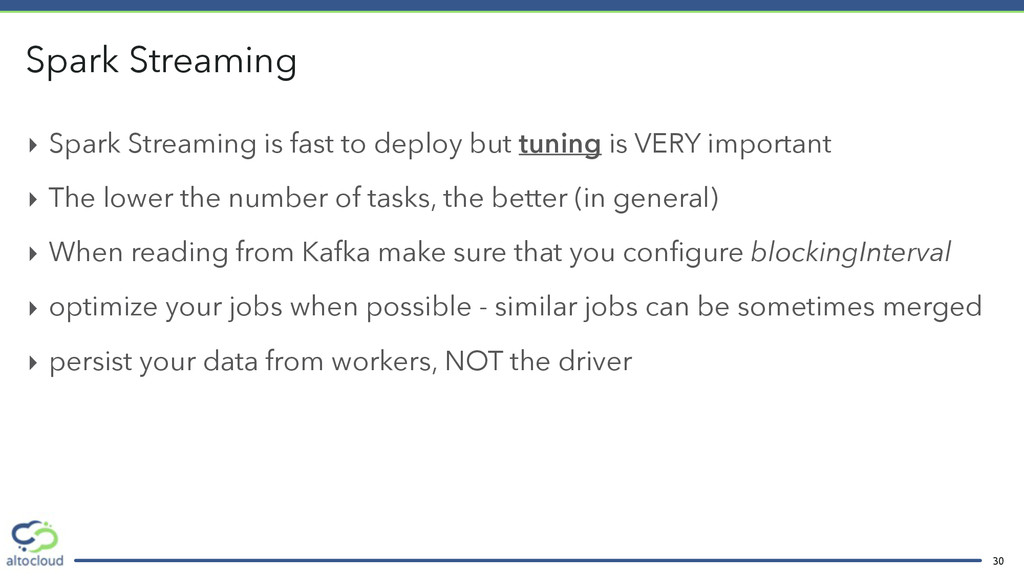

30. ‣ Spark Streaming is fast to deploy but tuning is VERY important ‣ The lower the number of tasks, the better (in general) ‣ When reading from Kafka make sure that you configure blockingInterval ‣ optimize your jobs when possible - similar jobs can be sometimes merged ‣ persist your data from workers, NOT the driver Spark Streaming 30

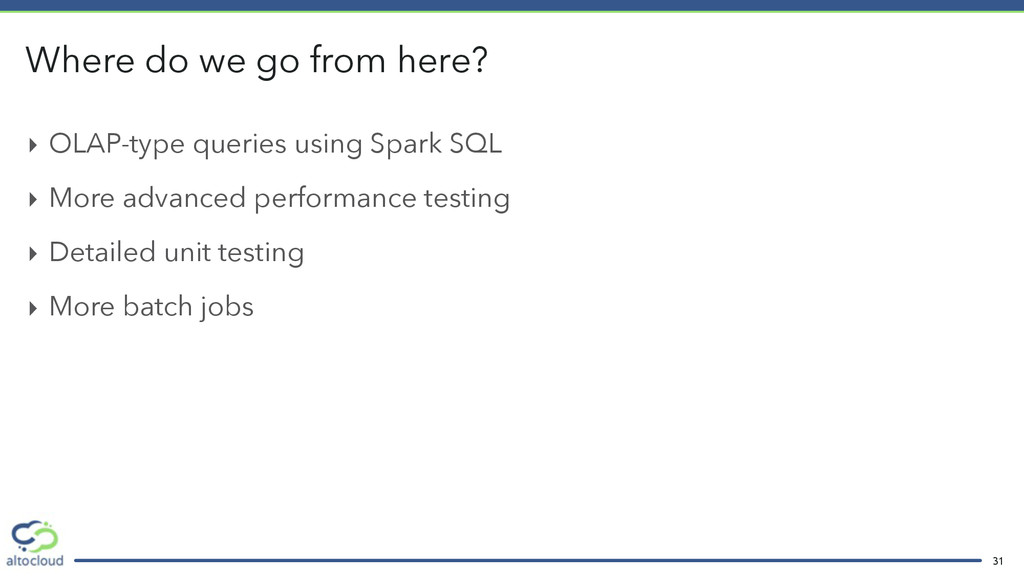

31. ‣ OLAP-type queries using Spark SQL ‣ More advanced performance testing ‣ Detailed unit testing ‣ More batch jobs Where do we go from here? 31

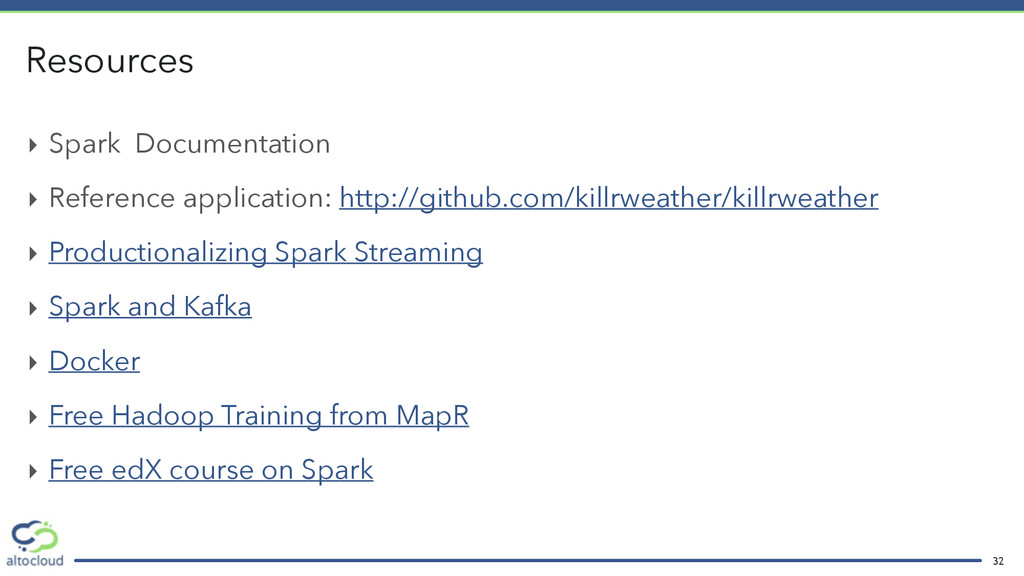

32. ‣ Spark Documentation ‣ Reference application: http://github.com/killrweather/killrweather ‣ Productionalizing Spark Streaming ‣ Spark and Kafka ‣ Docker ‣ Free Hadoop Training from MapR ‣ Free edX course on Spark Resources 32
